Audiovox VM9026 Installation Manual

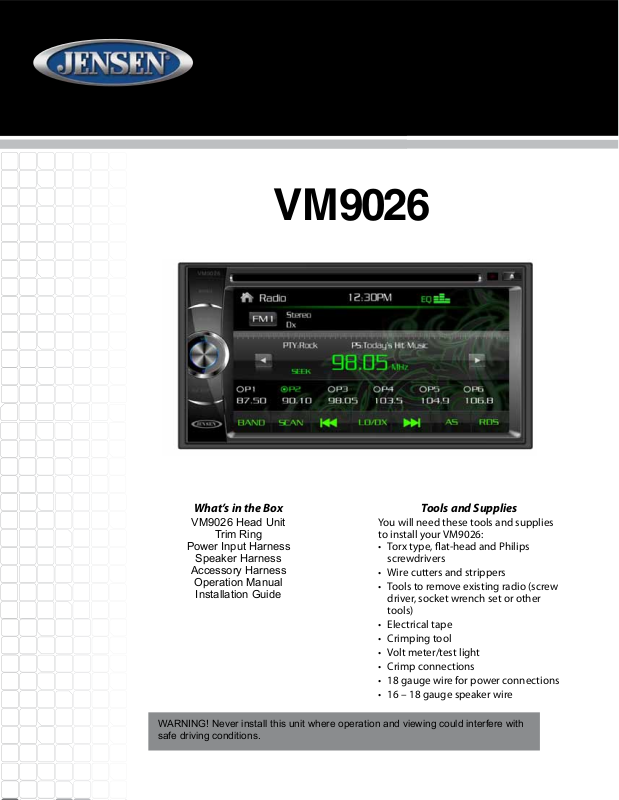

VM9026
What’s in the Box
VM9026 Head Unit
Trim Ring
Power Input Harness
Speaker Harness
Accessory Harness
Operation Manual
Installation Guide
WARNING! Never install this unit where operation and viewing could interfere with
safe driving conditions.
You will need these tools and supplies
to install your VM9026:
• Torx type, at-head and Philips
screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screw
driver, socket wrench set or other
tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
Tools and Supplies
Optional Equipment
• Rear Camera
Disconnecting the Battery
• To prevent a short circuit, be sure to turn o the ignition and remove the negative (-) battery cable prior to
installation.
NOTE: If the VM9026 is to be installed in a car equipped with an on-board drive or navigation computer, do not
disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use
extra caution during installation to avoid causing a short circuit.
Replacing the Fuse
• When replacing the fuse, use a new 15A replacement fuse. Using a fuse with an improper rating could damage the
unit and cause a re.
ISO-DIN Installation
This unit is designed to t into a 2.0 DIN dashboard opening, found in many imported cars. The unit has threaded
holes in the chassis side panels which may be used with the original factory mounting brackets of some Toyota,
Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the dashboard. Please consult with your
local car stereo specialty shop for assistance on this type of installation.
1. Remove the existing factory radio from the dashboard or
center console mounting. Save all hardware and brackets
as they will be used to mount the new radio.
2. Remove the factory mounting brackets and hardware from
the existing radio and attach them to the new radio.
CAUTION! Do not exceed M5 X 6MM screw size. Longer screws
may damage components inside the chassis.
3. Place the radio in front of the dash opening so the
wiring can be brought out through the dash. Follow
the wiring diagram carefully and make certain all
connections are secure and insulated. After completing
the wiring connections, plug the ISO connectors into
the mating sockets on the rear of the radio chassis.
Turn the unit on to conrm operation (vehicle ignition
must be “On”). If the unit does not operate, check all
wiring for proper connections.
4. Mount the new radio assembly to the dashboard or center
console using the reverse procedure in step 1.
CAUTION! Be careful not to damage the car wiring.
NOTE: It is the end-users responsibility to install and operate this unit in a manner in accordance with local, state and
federal laws. The PARKING BRAKE wire MUST BE CONNECTED as directed in the manual.
CAUTION! Do not block the cooling fan exit. If blocked, the unit may overheat and become damaged.
Using the Cosmetic Trim Ring
A cosmetic trim ring is packaged with the head unit for installation exibility. This unit will t into most import dashes
with little or no modication to the dash board/cavity. Some US domestic vehicle dashes will accept a Double-DIN
chassis, but there is usually a small gap between the radio and dash piece after installation is complete. In this case,
use the appropriate trim ring to conceal any gaps that may be present.
NOTE: For proper operation of the CD/DVD player, the chassis must be mounted within 30° of horizontal. Make sure the
unit is mounted within this limitation.
