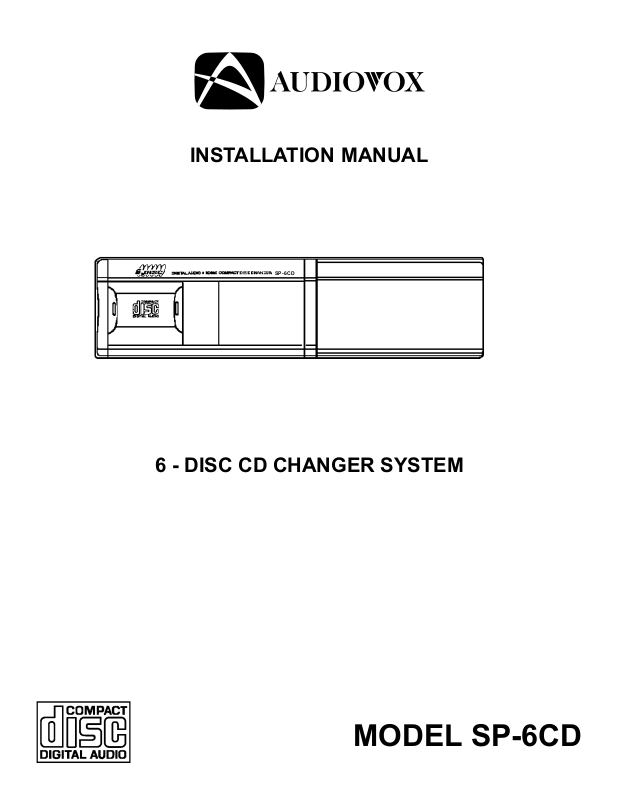

INSTALLATION MANUAL
SP-6CD
6 - DISC CD CHANGER SYSTEM
MODEL SP-6CD
PACKING LIST
MAIN UNIT
INSTALLATION P ARTS
Changer
Bracket (L)
1 pc.
Hexagonal Bolt
with Washer
M5x8
4 pcs.
OTHER ACCESSOR Y
CD Magazine
Bracket (R)
1 pc.
5 Meter DIN cable
(8 pin)
1 pc.
Index seal sheet
Installation
Manual
Self-Tapping Screw
(M5 x 12)
4 pcs.
Seals
1 pc.
Owner's
guide
1 pc.
1 pc.
1 pc.
1 pc.
1
BEFORE INSTALLING THE UNIT
Transport lock screws
The mechanism in the CD changer is "locked" into place during shipment by the
transport screws. Be sure to remove the screws prior to installation.
Caution
After removing the transport lock screws, place the supplied seals over the screw
holes. These seals are used to keep dust out of the unit, which could cause a malfunction.
Installation and Wiring Precautions
To prevent a short-circuit,
1
Be sure to turn off the ignition and remove the negative (-) battery cable, prior to installation.
Connect power wires last.
Note
If the changer is to be installed in a car that is equipped with an on-board drive or navigation computer, do not disconnect
the battery cable. If the cable is disconnected, the computermemorymaybelost. Under theseconditions,useextracaution
during installation, not to cause a short circuit.
Do not install the unit in the following locations.
2
Locations exposed to direct sunlight.
Where hot air is discharged from the car heater.
When proper installation is not possible and where a great deal of vibration is generated.
Be sure to use the supplied brackets and screws.
3
Be careful not to snag any wires when tightening screws and installing the ground wire.
When installing the unit, do not use any screws that are part of the brake or steering system.
This unit cannot be installed in any way except that which is authorized (on its side, on its end, at a 45° angle or suspended).
4
ID (Identity) Switch for 2nd CD Changer
By using the separately sold Divider unit, an additional compatible CD changer can be installed. When an additional CD changer has been
attached in this fashion, the ID switch is used to indicate the number of each respective changer unit.
When changer is used independently.
* The ID switch is initially set to "1" when shipped.
When changer is used as additional changer unit
* Use a ballpoint pen or similar fine-tipped implement to
change the orientation of the switch.
2nd unit (additional
changer unit)
2
SETTING THE ANTI-VIBRATION SPRINGS
This unit can be installed horizontally (suspended), vertically, and at a 45° angle. Once the installation position has been decided, it's
necessary to set the position of the built-in anti-vibration springs inside the unit. Please do this before performing the procedure. Vibration
may cause the disc to skip if the unit is used before properly setting the anti-vibration springs.
At the time of shipping, the built-in anti-vibration springs is set for horizontal installation "H".
There are built-in anti-vibration springs on both the left and right sides.
Set the anti-vibration springs position with a screwdriver before attaching the brackets.
For use when unit is installed horizontally or suspended:
Confirm that the built-in anti-vibration springs is set to position "H".
For use when unit is installed vertically:
The built-in anti-vibration springs should be set to position "V".
For use when unit is installed at a 45° angle:
The built-in anti-vibration springs should be set to position "45°".
PROCEDURE FOR HORIZONTAL INSTALLATION
1
Confirm that the built-in anti-vibration springs on both the
left and right sides are set to the horizontal installation
position "H".
Attach bracket (L) and bracket (R) using the hexagonal
bolts (M5 x 8).
2
Determine the mounting location and drill four mounting holes.
Never mount the unit near the fuel tank.
3
Secure the unit in place using four self-tapping screws
(M5 x 12).
Drill holes 4mm in
diameter.
Self-tapping screw (M5 x 12)
3
PROCEDURE FOR VERTICAL INSTALLATION
1
Confirm that the built-in anti-vibration springs on both the left and right
sides are set to the vertical installation position "V".
Attach bracket (L) and bracket (R) using the hexagonal bolts (M5 x 8).
Determine the mounting location and drill four mounting holes.
2
Never mount the unit near the fuel tank.
Secure the unit in place, using four self-tapping screws (M5 x 12).
3
Drill holes 4mm in
diameter.
Self-tapping screw
(M5 x 12)
PROCEDURE FOR 45° ANGLE INSTALLATION
1
Confirm that the built-in anti-vibration springs on both the left and right
sides are set to the 45° installation position "45°".
Attach bracket (L) and bracket (R) using the hexagonal bolts (M5 x 8).
Determine the mounting location and drill four mounting holes.
2
Never mount the unit near the fuel tank.
Secure the unit in place using four self-tapping screws (M5 x 12).
3
Drill holes 4mm in
diameter.
Self-tapping screw (M5 x 12)
4
PROCEDURE FOR MOUNTING UNDER REAR DECK
1
Confirm that the built-in anti-vibration springs on both the left and right
sides are set to the horizontal installation position "H".
Attach bracket (L) and bracket (R) using the hexagonal bolts (M5 x 8).
2
Determine the mounting location and drill four mounting
holes.
4mm
Attach the CD changer using four self-tapping screws
3
(M5 x 12).
5
VEHICLE WIRING
Mating 8-pin DIN socket on rear of
compatible radio chassis (see Note 1 below).
Car Stereo with
CD Changer Controls
DIN cable (8-pin)
NOTE: 1. Check with your Audiovox car audio dealer to be sure
your stereo is directly compatible with this CD changer.
2. Wiring instructions for use with FM Modulator/Commander
Systems are included with the CDC-MC1, CDC-MCR2,
P-MC3 and P-MCR4 accessories.
CD changer
