SHUTTLE
Home Installation Guide
SIR-HK1
128-6814
1 of 8
Congratulations
Y ou are one step closer to experiencing Sirius Satellite Radio. Sirius will revolutionize your in-home
or vehicle entertainment with:
· 100 streams of original programming, including –
60 streams of completely commercial-free music – guaranteed.
40 streams of news, sports and entertainment
· Coast-to-Coast reception and Digital-quality sound
All music content is selected and developed in-house by Sirius’ team of Master Music Programmers
– talented and seasoned professionals who love the music as much as the listeners. World-class
partners such as ESPN, ABC, CNBC, Bloomberg, Discovery and Radio Disney are developing
news, sports and entertainment programming.
Y our Audiovox Shuttle must be used with an adapter kit, such as the Audiovox Home kit or V ehicle/
Boat Kit as required by your specific installation needs. These kits are available at retailers where
Audiovox main units are sold.
Audiovox Home Kit: SIR-HK1
Audiovox Vehicle Kit: SIR-CK1 (With FM Modulator)
Audiovox Vehicle Kit: SIR-CK2 (Without FM Modulator)
-2-
128-6814
2 of 8
Cautions and Warnings
1. Do not install the Shuttle in a position that obstructs
viewing of any home entertainment component, such
as Television, or stereo system indicators and displays.
2. This unit complies with the interference limits
relative to a Class B digital device, applicable
under Part 15 of the FCC Rules regarding
installation in a residential environment. If the unit
is not installed in accordance with these instructions, it could cause harmful interference to radio or
television reception. If this condition persists after
corrective action, consult your dealer or experienced installation facility.
3. By adhering to these warnings and safety considerations, serious accidents and/or personal injury can
be avoided.
128-6814
3 of 8
Contents SIR-HK1
Install Manual
P/N 1286814
1 pc.
Antenna
(P/N 118C1125)
Audio Cable
(P/N 112B3293)
1 pc.
Cradle HK1
(P/N 136D3472)
Installation/Wiring Precautions
1. Make sure the adapter cable is not connected to an
AC wall outlet until all interconnections have been
made and verified. The adapter power cable should
be connected last.
2. Do not install the unit in the locations exposed to
direct sunlight or in areas subject to extreme
temperatures.
3. Incorrect installation may cause damage to the
system.
1 pc.
DC Power Adapter
(P/N 136C3467)
1 pc.
4. During antenna placement/installation, refer to
the Antenna Aiming procedure outlined in the
Shuttle User Guide, SIR-PNP1(128-6812).
1 pc.
-4-
128-6814
4 of 8
Setting Up and Installing Your Kit
NOTE: The SIRIUS® signal can be received and
processed virtually anywhere as long as there
are no obvious satellite signal obstructions such
as high terrain, trees, overhangs, etc.
1. Cabling Interconnections
You can begin to enjoy Sirius® Satellite Radio as
soon as the Shuttle and home Kit installation are
complete. Set up your Audiovox Shuttle using the
following installation instructions, or enlist the help
of a professional installer.
2. Installing/Positioning the Antenna
For best reception, the supplied antenna should
be placed near a window; some repositioning may
be required to achieve optimum results. The
following guidelines are recommended:
a. In a major city, where Sirius ground repeaters
are present, you can usually place the antenna
away from a window and still achieve the
desired results.

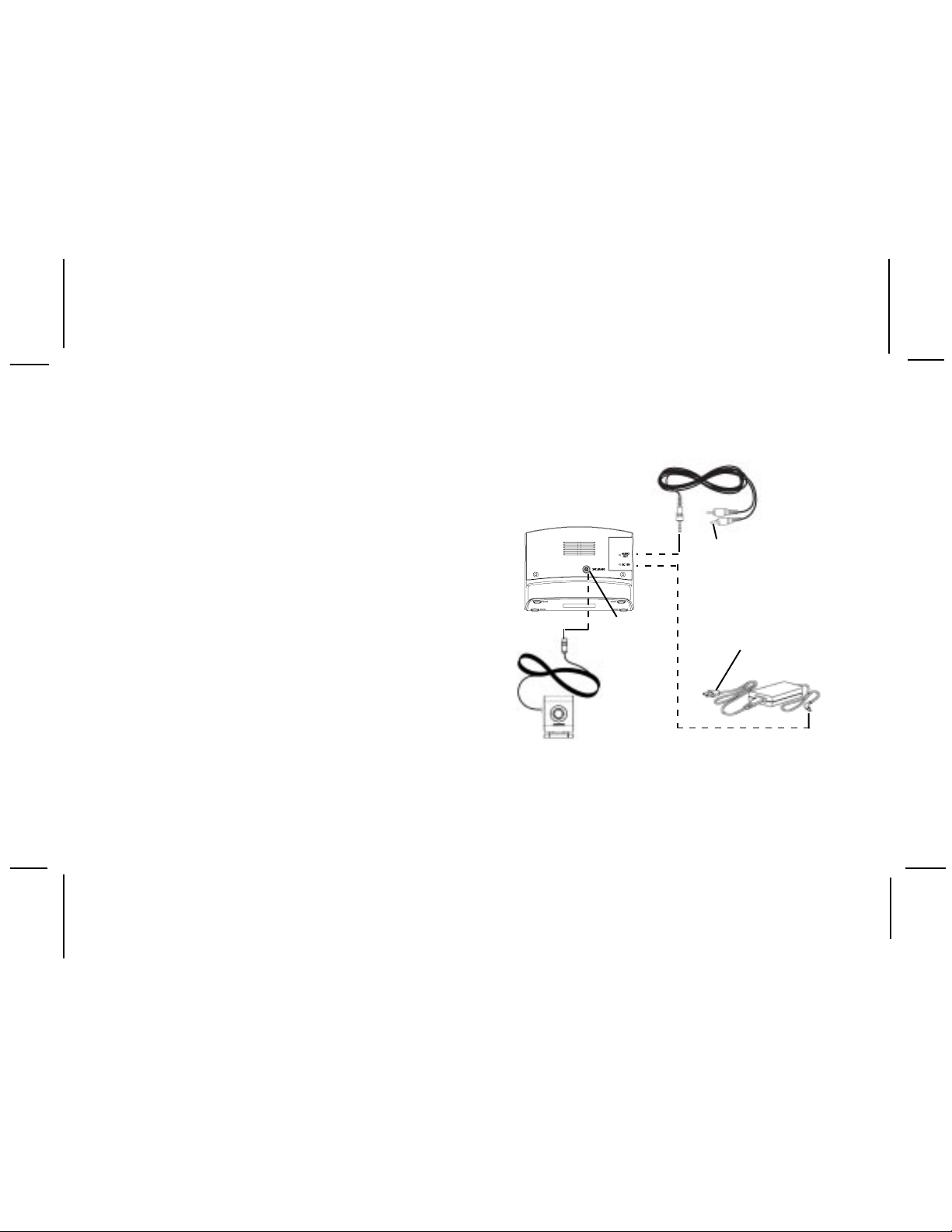

Interconnect Diagram
SHUTTLE CRADLE
HK1
SAT. RF
CONNECTOR
SHUTTLE
ANTENNA
-5-
AUDIO
CABLE
TO AUXILIARY AUDIO
INPUT OF RADIO OR
ENTERT AINMENT
SYSTEM
TO AC WALL
OUTLET
DC POWER
ADAPTER
128-6814
5 of 8
b. You can also place the antenna outside (on the
roof structure), provided it is clear of any
overhead obstructions.
NOTE: Because of the orbiting characteristics
of the Sirius Satellites, the strength of
the received signal may change over
time. In most cases however, the
signal should be available
continuously. If you experience a
loss of signal or audio, reposition the
antenna inside the home or outside
as necessary.
5. Installing the Shuttle on the Cradle
Place the Shuttle in the cradle so that the Shuttle
connectors are linedup; use the SAT and TERR
RF connectors as guides. Then gently press in on
the bottom of the Shuttle to engage the
connectors.
SAT. (MAIN)
RF CONNECTOR
7. Mounting the Antenna
The antenna should be placed on a relatively flat
surface whenever possible. To mount the antenna:
a. Plug the antenna into the SA T . (MAIN) connector
on the back of the cradle.
b. Place the antenna at the preferred location
inside or outside the home.
-6-
TERR. RF
CONNECTOR
16-PIN SYSTEM
CONNECTOR
128-6814
6 of 8
c. Apply power to the Shuttle system as outlined
in the associated User Guide and obtain an
audio output. If no audio is heard, move the
antenna to different positions on the surface
until an audio output is heard. This is the
desired antenna position and should be
marked with masking tape or by another nonscratch method.
d. After determining the optimum position, turn
off Shuttle power, disconnect the power
adapter from the wall outlet receptacle and
disconnect the antenna cable.
e. Plan the routing of the antenna cable to the
Shuttle RF input. Make sure you avoid any
obstructions that could crimp, kink or twist the
cable; use protective grommets wherever rough
openings are encountered.
-7-
f. If the antenna is mounted outside, route the
cable from the antenna position to the interior
of the home, working the cable through the
basement,under a window sill, etc.; make
adjustments and take up slack whenever
necessary.
g. Plug the antenna cable into the SAT (MAIN)
connector on the back of the cradle.
j. Plug the female end of the AC cable into the DC
adapter; then plug the DC Adapter jack into the
DC 12V receptacle on the cradle.
k. Plug the other end of the AC cable into a 110-
volt wall receptacle; the integral power LED in
the Shuttle power button (
l. You are now ready to enjoy Sirius programming
within your home.
) will light red.
128-6814
7 of 8
12 MONTH LIMITED WARRANTY
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof,
under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s)
will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill
of sale), specification of defect(s), transportation prepaid, to an approved warranty station or the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs incurred for
installation, removal or reinstallation of the product, or to damage to tapes, compact discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration,
improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). THE
EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE
AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF
48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or
representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage
so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 ! 1-800-645-4994
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA
128-6464
© 2003 Audiovox Electronics Corporation
