SHUTTLE BOOM BOX
SIR-BB1 User Guide
AUDIO OX
SRS
PHONES AUX
AUX
128-6945
128-6945
1 of 12
Congratulations
Y ou are one step closer to experiencing Sirius Satellite Radio. Sirius will revolutionize your in-home,
vehicle, and family outing entertainment such as camping trips and beach excursions. Sirius entertainment will revolutionize your listening enjoyment with:
· 100 streams of original programming, including –
60 streams of completely commercial-free music – guaranteed.
40 streams of news, sports and entertainment
· Coast-to-Coast reception and Digital-quality sound
All music content is selected and developed in-house by Sirius’ team of Master Music Programmers
– talented and seasoned professionals who love the music as much as the listeners. World-class
partners such as ESPN, ABC, CNBC, Bloomberg, Discovery and Radio Disney are developing
news, sports and entertainment programming.
Y our Audiovox Boom Box must be used with Shuttle Receiver Model SIR-PNP1 or SIR-PNP2 (sold
separately). Optional kits are available at retailers where Audiovox main units are sold.
Audiovox Home Kit: SIR-HK1
Audiovox Vehicle Kit: SIR-CK1 (With FM Modulator)
Audiovox Vehicle Kit: SIR-CK2 (Without FM Modulator)
-2-
128-6945
2 of 12
FCC Regulations
This unit complies with the interference limits relative to a Class B digital device, applicable under Part
15 of the FCC Rules regarding installation in a residential environment. If the unit is not installed in
accordance with these instructions, it could cause harmful interference to audio or television reception.
If this condition persists after corrective action, consult your dealer or experienced installation facility.
Cautions and Warnings
1. Within the home, do not install the Shuttle Boom Box in a position that obstructs viewing of any
home entertainment component, such as Television, or stereo system indicators and displays.
2. Do not install or use the SIR-BB1 in locations exposed to direct sunlight, or in areas subject to
extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent
to water such as pools, hot tubs, etc.
3. When outdoors, position the SIR-BB1 and antenna where there are no obvious satellite signal
obstructions such as high terrain, trees, overhangs, etc.
4. When installed indoors, unplug the AC Power Adapter from the wall outlet when the SIR-BB1 is
not to be used for an extended period of time. If batteries are installed, set the Power On/Off-VOL
control to the Off position to prevent unintentional battery discharge, or remove the batteries.
5. To avoid possible damage to the Shuttle Boom Box caused by battery leakage, it is recommended that the batteries be removed when the Boom Box is not being used for an extended
period of time.
6. Do not install or place the SIR-BB1 on an inclined or unstable surface.
7. By adhering to these warnings and safety considerations, serious accidents and/or personal
injury can be avoided.
-3-
128-6945
3 of 12
Contents SIR-BB1
User/Install Manual
P/N 1286945
1 pc.
AC Power Cord
AC/DC Power Adapter
(P/N 136C3585)
1 pc.
Boom Box
(P/N SIR-BB1)
AUDIO OX
SRS
PHONES
AUX
AUX
1 pc.
Antenna
(P/N 118C1125)
1 pc.
Installation/Wiring Precautions
1. If using the adapter, make sure the adapter cable
is not connected to an AC wall outlet until all interconnections have been made and verified. The
adapter power cable should be connected last.
2. Incorrect installation may cause damage to the
system.
3. During antenna placement/installation, refer to the
Antenna Aiming procedure outlined in the Shuttle
User Guides, SIR-PNP1(1286812) or SIR-PNP2
(1286901).
Setting Up and Installing Your Kit
NOTE: The SIRIUS® signal can be received and
processed virtually anywhere as long as there
are no obvious satellite signal obstructions
such as high terrain, trees, overhangs, etc.
However, signal reception depends mainly on
where you are, geographically, and where this
place is with respect to the orbital paths of the
Sirius satellites. In placing the antenna,
therefore, these factors must be taken into
account .
-4-
128-6945
4 of 12
Boom Box SIR-BB1 Controls
The Audiovox Sirius® Boom Box SIR-BB1 provides two
control buttons, a Power On/Off -Volume control, and a
pushbutton to toggle between Satellite Radio or an
auxiliary audio input signal. A power-on LED is also
located on the front panel.
1.PHONES Jack: Accepts a stereo headphone jack
to provide private listening capability for the Boom
Box.
2.
SRS/AUX Selector Pushbutton: Pushbutton
toggles between Satellite Radio and an external
audio input signal (MP3, CD, etc.) present at the
AUX input jack.
3.
AUX Jack: Accepts an audio input signal from
an external audio device. When
using the AUX audio
input, turn the Shuttle
off to preserve battery
power. Adjust the
volume level of the
external audio device
12
to obtain an audio output from the SIR-BB1. The
volume control on the external audio device
should be set to mid-range.
6
AUDIO OX
SRS
PHONES
AUX
AUX
3
5
4
4.Power On/Low Battery LED: The LED lights
green when the Power On/Off Switch-VOL control
i s rotated clockwise (CW) to the On position. In
addition, the LED will light red to alert the user
that the batteries are nearly discharged. This
condition may cause degraded performance of
the SIR-BB1.
5.Power On/Off Switch-VOL Control: Applies power
to the Boom Box when rotated clockwise (CW) from
the Off position. When in On position, increases or
decreases the volume of the audio output signal
from the SIR-BB1. To increase the volume level,
rotate the control CW. To decrease the volume level,
rotate the control counterclockwise (CCW).
6. Release Button: Press this button to release and
remove the Shuttle from the SIR-BB1 cradle.
1.Battery Installation
Your Boom Box can operate independently of AC
power by installing 8 D-Cell batteries as follows:
NOTE: The batteries are bypassed automatically
whenever the supplied AC Adapter is
plugged into the DC 12V jack on the back
panel.
-5-
128-6945
5 of 12
BATTER Y
COMPAR TMENT
COVER
1.
Turn the Boom Box upside down to access
BATTER Y COMPAR TMENT
COVER LATCHES
BOTTOM OF
BOOM BOX
the battery compartment.
2.
Push the battery cover latches forward and flip
up the battery compartment cover to the open
position.
3.
Insert eight (8) D-Cell batteries observing
battery polarity as shown; then close the cover.
POSITIVE
BATTER Y
COMPARTMENT
(COVER REMOVED)
NEGATIVE
2.Cabling Interconnections
You can begin to enjoy Sirius® Satellite Radio
as soon as the Shuttle and Boom Box Kit
installation are complete. Set up your Audiovox
SIR-BB1 by following the interconnect diagram.
NEGATIVE
POSITIVE
3.Installing the Shuttle in the SIR-BB1
Place the Shuttle in the cradle so that the Shuttle
guides are lined up with the SIR-BB1 cradle. Then
push the Shuttle forward to engage the connectors.
The Shuttle will snap into place. Apply power to the
SIR-BB1 by rotating the VOL control clockwise from
the off position; the LED indicator lights green. If the
Shuttle does not turn on at the same time, press the
red Power On/Off button in the upper left corner of
the Shuttle front panel.
4.Removing the Shuttle From the SIR-BB1
Press and hold the eject button on
top of the Boom Box; the
Shuttle will partially eject
forward. Using yourthumb
an d forefinger, grasp the
Shuttle on the sides and pull
forward to disengage.
-6-
128-6945
6 of 12

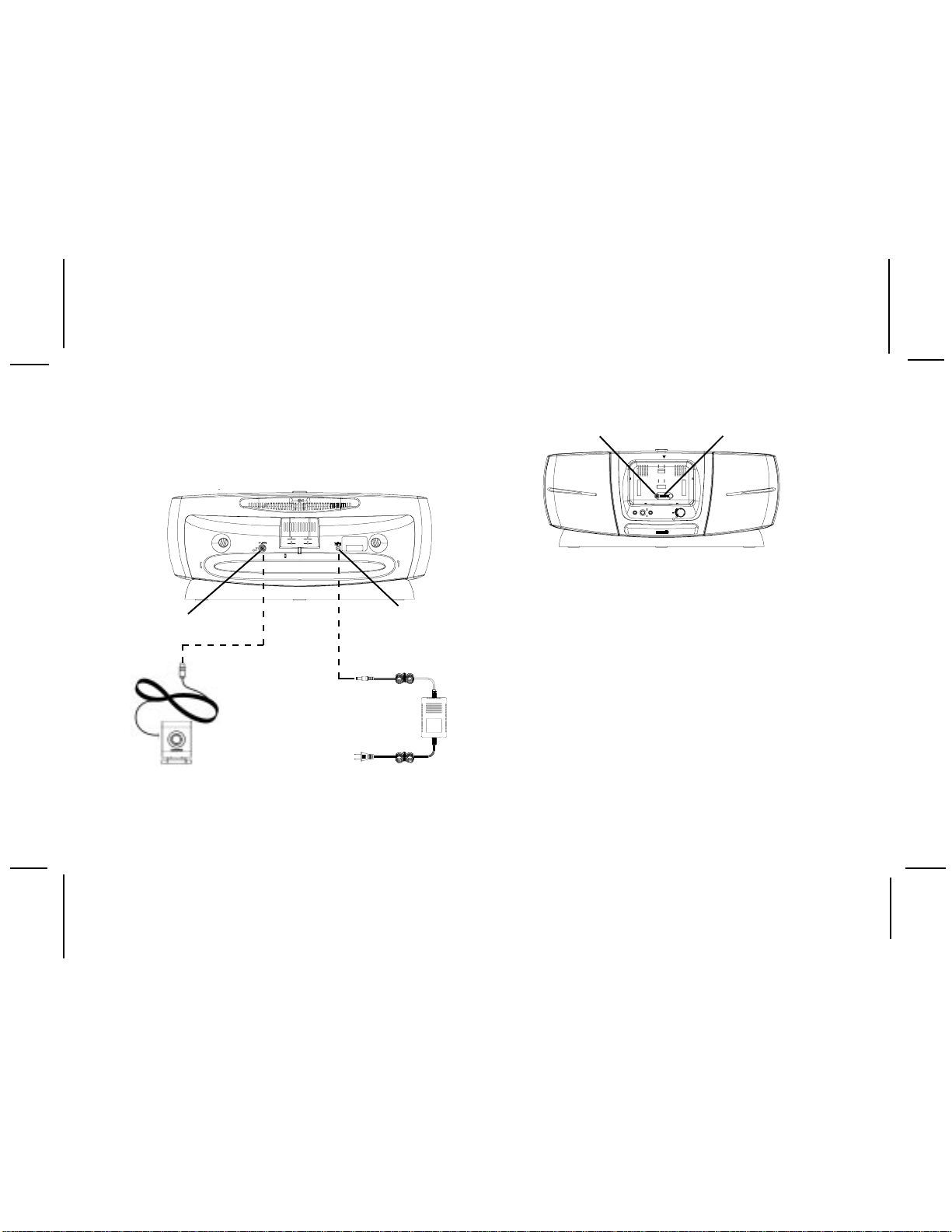

Interconnect Diagram
SHUTTLE BOOM
BOX SIR-BB1
+
ANTENNA
JACK (ANT)
DC POWER
ADAPTER
(DC 12V 2.2A)
TO AC WALL
OUTLET
SHUTTLE
ANTENNA
DC POWER
ADAPTER JACK
SAT. (MAIN)
RF CONNECTOR
AUDIO OX
SRS
PHONES
AUX
AUX
16-PIN SYSTEM
CONNECTOR
5.Installing/Positioning the Antenna
For best reception, the supplied antenna should
be placed near a window if in the house or, if
outdoors, in an open area and as high aspossible;
some repositioning may be required to achieve
optimum results. The following guidelines are
recommended:
a. In a major city, where Sirius ground repeaters
are present, you can usually place the
antenna away from a window and still achieve
the desired results.
b. You can also place the antenna outside (on the
roof structure), provided it is clear of any
overhead obstructions. Because of the orbiting
characteristics of the Sirius Satellites, the
strength of the received signal may change over
-7-
128-6945
7 of 12
time. In most cases however, the signal should be
available continuously. If you experience a loss of
signalor audio, reposition the antenna inside the
home or outside as necessary.
6.Antenna Placement Considerations
The antenna should be placed on a relatively flat
surface whenever possible. When outdoors, the
antenna may be left in its mount atop the Boom
Box provided no overhead obstructions are present.
To mount the antenna:
a.Plug the antenna into the ANT connector on the
back of the SIR-BB1.
b.Leave the antenna in place on the Boom Box,
or remove the antenna from its mount, uncoil
the antenna lead, and place it at the preferred
location inside or outside the home. If no audio
i sheard, move the antenna to different positions
on the surface until an audio output is heard. This
is the desired antenna position and, if indoors,
should be marked.
c. After determining the optimum position, turn
off SIR-BB1 and Shuttle power. Disconnect the
poweradapter from the wall outlet receptacle
(if indoors) and disconnect the antenna cable.
d. Plan the routing of the antenna cable to the SIR-BB1
ANT input when indoors. Makesure you avoid any
obstructions that could crimp, kink or twist the cable;
use protective grommets wherever rough openings
are encountered. If the antenna is mounted outside,
route the cable from the antenna position to the
interior of the home, working the cable through the
basement, under a window sill, etc.; make
adjustments and take up slack whenever necessary.
e. If outdoors, either leave the antenna in place atop the
SIR-BB1, or remove the antenna and find a location
free from overhead obstructions such as tree
branches, or the roof of a tent or other temporary
shelter.
f. Plug the antenna cable into the ANT connector on
the back of the SIR-BB1.
g. If not using battery power as the primary power
source, plug the female end of the DC adapter cable
into the DC 12V receptacle on the rear of the SIR-BB1.
h. Plug the other end of the DC adapter cable into a
110-volt receptacle. Apply power to the Boom Box
and Shuttle.
i. You are now ready to enjoy Sirius programming
outdoors or within your home.
-8-
128-6945
8 of 12
Specifications
Nominal Output Power per Channel 5.0 Watts Rms
Total Harmonic Distortion (THD) 0.3% at 1 Watt
Frequency Response 30Hz to 20kHz
Signal-to-Noise Ratio
Speaker Impedance 8 Ohms Nominal
Headphone Output Impedance 32 Ohms
Headphone Output Level 500 mV (Maximum)
Headphone Connector Type 3.5 mm Stereo Jack
Auxiliary Input Impedance 6K-Ohms Nominal
Auxiliary Input Level 2.0 Volts (Maximum)
Auxiliary Connector Type 3.5 mm Stereo Jack
Equalizer Frequency -6dB Nominal at 2.5kHz
Overall SIR-BB1 Dimensions 19” W x 6.9” D x 7.8” H
Overall AC Adapter Dimensions 3.5” L x 1.3” H x 2.36” W
SIR-BB1 Weight 5.88 Lbs. (2670 Grams)
-9-
>65dB Maximum
484.9mmW x 175.68mmD x 198.36mmH
90mmL x 33.5mmH x 60mmW
128-6945
9 of 12
Maintenance
Periodic Inspection
The SIR-BB1 Boom Box should be inspected periodically for external damage. At least once every 30
days of use, perform the following checks:
1. Inspect the 16-pin Shuttle connector for loose, bent or broken pins, misalignment, etc.; make
sure theSAT connector is intact and exhibits no apparent damage.
2. Check the VOL control for freedom of motion without binding of any kind.
3. Check that the SRS/AUX Selector pushbutton operates correctly in that it toggles between the
Satellite Radio output and the AUX input.
4. Make sure the antenna connector at the rear of the unit is free from damage of any kind and that
the antenna lead plug mates correctly and securely.
5. Make sure the DC 12V connector at the rear of the unit is also free from damage of any kind and
that the AC Adapter plug mates correctly and securely.
6. Check the antenna for any physical damage; make sure the antenna lead is secure and not
nicked or frayed.
7. Inspect the overall Boom Box case and speaker grilles for damage such as nicks, scratches
punctures, etc.
Cleaning the SIR-BB1 Boom Box
When cleaning the Boom Box, make sure the AC Adapter is unplugged from the power source. Do not
use liquid cleaners or aerosol cleaners. Use a lint-free cloth lightly dampened with water for cleaning
the exterior of the Boom Box only .
-10-
128-6945
10 of 12
Troubleshooting
TLUAF
nonruttonseodmetsySffoottessirewopelttuhS elttuhSehtgnisunorewopelttuhSnruT
ELBABORP
ESUAC
yltcerrocnidellatsnirodellatsnitonseirettaB ytiraloptcerrocgnivresboseirettabllatsnI
YDEMER
nottubffo/norewoP
seirettabgnisuetarepotonseod1BB-RIS sirotcennocrewopCAehtsagnolsA
delbasidsinoitarepoyrettab
noitarepotnettimretnIlevelyrettabwoLseirettabecalpeR
egassemRORREANNETNA 1BB-RISotdetcennoctonannetnaetilletaS
egassemLANGISGNIRIUQCA annetnadnuorarorevoselcatsborofkcehC ybraenetanimileotnoitacolegnahC
srekaeps1BB-RISmorfdnuosoNdellatsnisenohpdaeHsenohpdaehevomeR
lenapraer
eldarcnidetaesylmriftonelttuhS sedisthgirdnatfelrewolelttuhSehtsserP
noitisop
,1BB-RISehtfolenapraerehtotdehcatta
tcerrocninisinottubhsuprotceleSXUA/SRS
-11-
1BB-RIS
lenap
detam
).cte,segdirb(selcatsbo
folenapraermorfrotcennocrewopevomeR
raer1BB-RISotannetnaetilletastcennoC
ylmriferasrotcennocehttahterusneot
langisoiduaderisedrofnottubsserP
)tupniXUAro)SRS(oidaRetilletaS(
128-6945
11 of 12
12 MONTH LIMITED WARRANTY
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof,
under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s)
will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill
of sale), specification of defect(s), transportation prepaid, to an approved warranty station or the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs incurred for
installation, removal or reinstallation of the product, or to damage to tapes, compact discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration,
improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). THE
EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE
AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF
48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or
representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so
the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which
vary from state to state.
U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 l 1-800-645-4994
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA
128-6464
128-6945
12 of 12
Loading...
