Audiovox RVMPKG4 User Manual

Rearview Mirror with 4" Color LCD Monitor
and Camera Package
Model: RVMPKG4 (V2.0)
Installation Manual
Rearview Mirror with 4" LCD Monitor
Built-In Speaker
Rearview Camera Input
Auxiliary Video Input
Automatically Displays Backup Camera Image
Camera
Warnings
The product is intended to assist in safe driving and to allow the driver to have a
broader rearview while in reverse. You as the driver, are solely responsible for
the safe operation of your vehicle and the safety of your passengers according to
the country and their local traffic regulations. Do not use any features of this
system to the extent it distracts you from safe driving. Your first priority while
driving should always be the safe operation of your vehicle. Audiovox
Electronics Corp. cannot accept any responsibility whatsoever for accidents
resulting from failure to observe these precautions or safety instructions.
1. This product utilizes high voltage. Any unauthorized modifications or
damage to the products may result in electrical shock. Handle all components
with care. Inspect regularly for damage to components and cabling.
2. You shall be responsible to ensure that the installation of this product does
not void or affect the vehicle manufacturer’s warranty. Audiovox Electronics
Corporation, or its subsidiaries are not liable in full or in part for improper
installation resulting in loss or damage to your property, or for voiding all or
part of the vehicle manufacturer’s warranty.
3. Do not apply excessive force to any of the components contained within this
kit. Excessive force used before, during or after installation that results in a
damaged or non-functional part shall void all warranties.
4. Please follow the procedures in this installation manual. Improper
installation or modification of this product shall void all warranties.
1
TABLE OF CONTENTS
Warnings 1
Product description 3
Packing list 3
Installation Instructions 4
1. Signal Input 5
2. Control and Indicator 6
3. Auxiliary Input Switch 7
Specifications 7
Maintenance 8
Troubleshooting 9
Illustration of connections 10
2
Product Description
There is a blind spot that exists at the back of a vehicle while the vehicle is in
reverse. Equipped with a camera, this electronic rearview mirror provides the
driver with a clear and wide image of the area behind the vehicle whenever the
vehicle is shifted into reverse.

Backing up vehicle

Do not back up vehicle while watching the mirror/monitor screen. Always look
in the direction of vehicle motion. Use the mirror/monitor as an aid in safety
confirmation. The actual distance is shorter than it looks in the monitor. The
range of image is limited. Beware of blind spots.
Packing list
Item Description Figure
1
2
3
4
Rear View Mirror
Control Box
Power Cable
Fastening Belts
3
5
Rear View
CMOS1 Camera
Parts list included with camera installation manual
6 Camera Cable
1. Installation Instructions
(1) Mount the mirror/monitor
a). Take the two belts and slide them into
the slots on the top rear of the mirror
with the grooved side of the belt facing
down.
b). Take the buckles and slide them into the
lower slots on the rear of the mirror with
the buckle facing down toward the strap.
NOTE: The large open rectangle on the
buckle will face away from the strap
c). Mount the new rearview mirror / monitor
Figure 1
Figure 2
over the existing mirror. Slide the rearview
mirror onto the existing mirror from one
side with one strap mounted to the mirror.
Then attach the other strap to the other side
of the mirror. Securely tighten both straps on the mirror to
prevent the mirror from falling off..
4
Figure 3
d). Trim off excess length of the straps.
e). Place (hide) the monitor cable behind the windshield trim piece down under
the dash area.
(2) Wiring the Monitor
a) RED FUSED WIRE: 12VDC ACCESSORY SOURCE
Connect this wire to a source that has 12 volts when the Ignition key switch is
turned on, and 0 volts when the Ignition key switch is turned off.
b) BLACK WIRE: CHASSIS GROUND
Connect this wire to a solid, metal part of the vehicle’s chassis.
c) PINK WIRE: GROUND WHEN PARKING BRAKE IS APPLIED
Connect this wire to the wire from the parking brake that turns on the parking
brake light on the dash, this wire will have ground when the parking brake is
pressed.
(3) Connect the mirror cable and power cable as shown in Figure 6 on page 10.
2. Signal Inputs
The signal input connections for the system include:
(1) Rear Camera: Connect the yellow & white RCA connectors to the same
color RCA plug on the extension cable. Run the extension cable to the
control box and connect the yellow & white RCA connectors on the
extension cable to the RCA plugs on the control box. Connect the control
box cable to the rearview mirror cable as shown in figure 6, on page 10.
(2) Audio/Video Input Plugs: RCA are located at the end of the control box.
By connecting video and audio signals with these plugs. The user can watch
the auxiliary video input only when the parking brake is engaged.
5
Figure 4
3. Controls and Indicators
Figure 5
Figure 5 illustrates the controls and indicators of the RVMPKG4(V2.0) rear view
mirror:
A: Rearview mirror B: 4" LCD panel C: Brightness control knob D: Power indication (Red when ignition is on)
6
E: Speaker volume control F: Auxiliary input switch (see below) G: Speaker in rear of mirror
Auxiliary Input Switch:
Auxiliary input switch: To access the 2
The parking brake must be engaged in order to view the 2
nd
A/V input press the switch. Note:
nd
input.
Specification
General
Power Supply DC 12V
Power Consumption 10W
Current Draw 500mA
Video Input/Output 1Vp-p/75 Impedance
Audio Input <=500mV
Audio Power Output 0.5W(16Ω)
Overall Dimension 11W X 3.75H X 1.25D inch
Display System
Screen 4” TFT Color LCD
Brightness 250 nit
Contrast Ratio 150 : 1
LCD Viewing Angle Top-10°, Bottom 30°, Left 45°,
Right 45°
Resolution 960×234
Video Format NTSC
Display Format 4 : 3
7

Maintenance

Though your Rearview mirror requires little care, you can still
maintain its condition and performance following the procedures below.
Keep your system away from excessive moisture, extreme heat or cold and
magnetic fields.
Keep liquids away from the display mirror.
To avoid damage, do not place auxiliary devices or other objects on the top
of the mirror.
Occasionally clean the surface of the mirror with soft cloth moistened with
water or window cleaner.
8
Troubleshooting
Symptoms Solutions
The ON/OFF signal light
<D> is not on after the car is
started?
No video signal appears
while reversing the car?
Video image is not sharp
enough?
1. Check the installation-wiring diagram.
2. Ensure that the parallel red and black line
from the control box is connected properly.
1. Check the LCD Contrast (Brightness)
control knob whether the contrast knob is set too low
2. Check the rearview Camera lens.
3. Check the rearview Camera wiring and
connection.
4. Check the cable from the rearview mirror
is connected properly.
Clean the lens of the camera.
9
Illustration of Connections
Refer to CMOS1 camera installation manual
Parts list included with camera
10

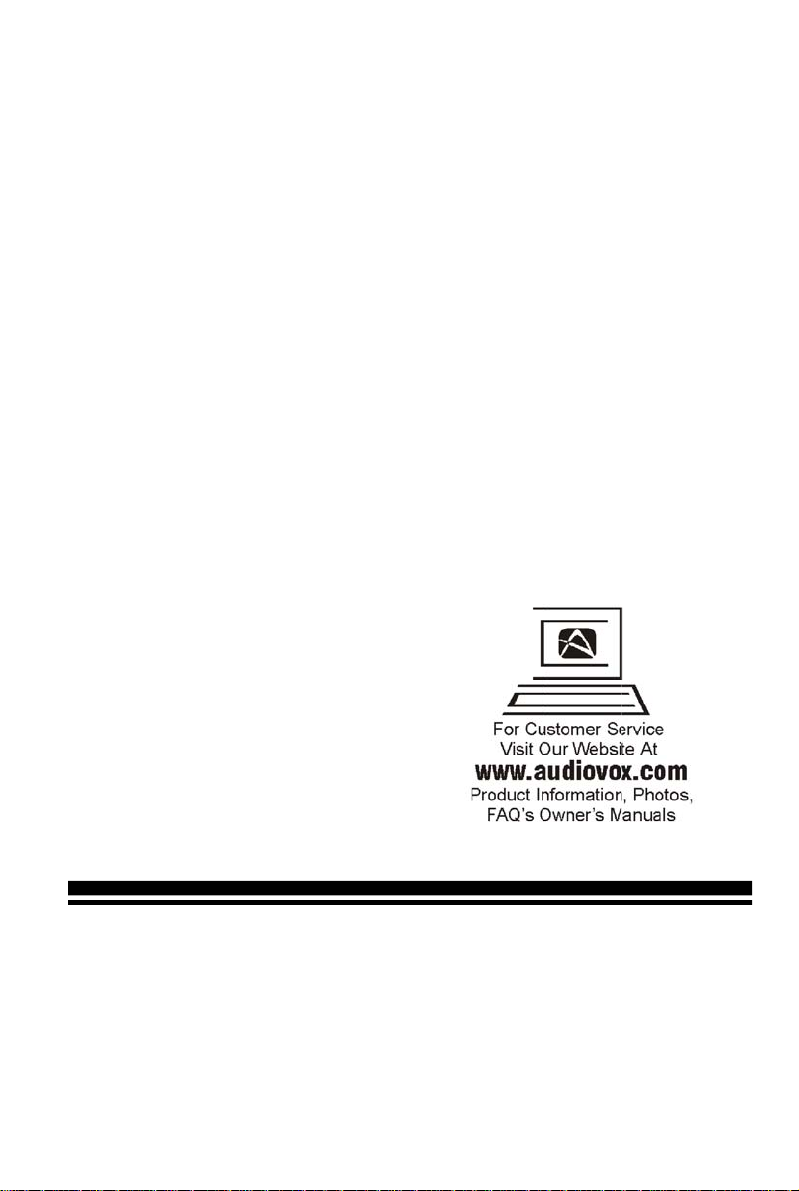

© 2007 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788
