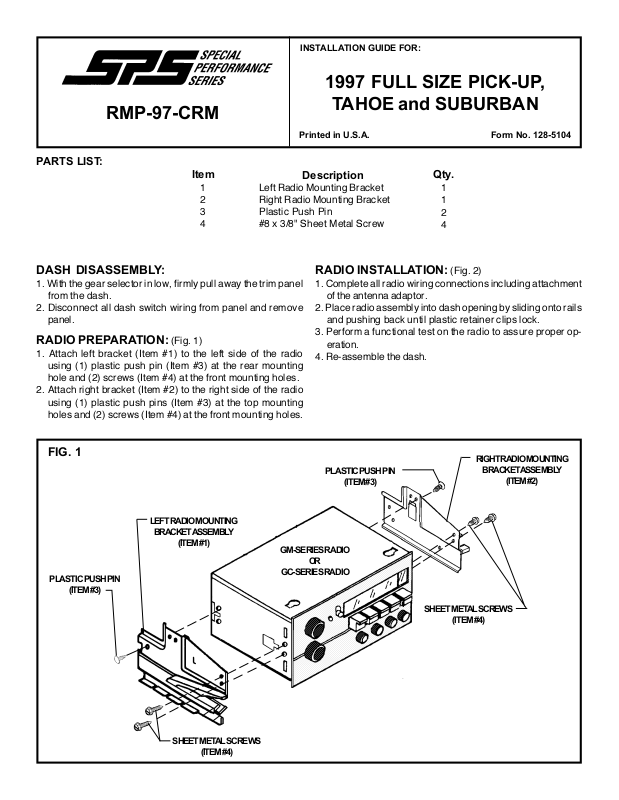

Audiovox RMP-97-CRM User Manual
INSTALLATION GUIDE FOR:
1997 FULL SIZE PICK-UP,
RMP-97-CRM
PARTS LIST:
Item
1
2
3
4
DASH DISASSEMBLY :
1. With the gear selector in low, firmly pull away the trim panel
from the dash.
2. Disconnect all dash switch wiring from panel and remove
panel.
RADIO PREPARATION: (Fig. 1)
1. Attach left bracket (Item #1) to the left side of the radio
using (1) plastic push pin (Item #3) at the rear mounting
hole and (2) screws (Item #4) at the front mounting holes.
2. Attach right bracket (Item #2) to the right side of the radio
using (1) plastic push pins (Item #3) at the top mounting
holes and (2) screws (Item #4) at the front mounting holes.
Left Radio Mounting Bracket
Right Radio Mounting Bracket
Plastic Push Pin
#8 x 3/8" Sheet Metal Screw
TAHOE and SUBURBAN
Printed in U.S.A. Form No. 128-5104
Description
RADIO INSTALLATION: (Fig. 2)
1. Complete all radio wiring connections including attachment
of the antenna adaptor.
2. Place radio assembly into dash opening by sliding onto rails
and pushing back until plastic retainer clips lock.
3. Perform a functional test on the radio to assure proper operation.
4. Re-assemble the dash.
Qty.
1
1
2
4
FIG. 1
PLASTIC PUSHPIN
(ITEM#3)
LEFTRADIOMOUNTING
BRACKETASSEMBLY
(ITEM#1)
SHEETMETALSCREWS
(ITEM#4)
PLASTIC PUSHPIN
GM-SERIESRADIO
OR
GC-SERIESRADIO
(ITEM#3)
RIGHTRADIOMOUNTING
BRACKETASSEMBLY
(ITEM#2)
SHEETMETALSCREWS
(ITEM#4)
FIG. 2A
EXISTINGDASH
FIG. 2B
PREPAREDRADIO
(as per Fig. 1)
REINSTALL
DASHP ANEL
