Audiovox CE-201R User Manual

PORTABLE CD SYSTEM
The lightning flash and CAlJT1ON: TO REDUCE THE RISK I The exdamation point anu tlead within the OF ELECTRIC SHOCK, DO NOT within the triangle is a
triangle is a warning REMOVE COVER (OR BACK) NO warning sign alerting you sign alerting you of USER-SERVICEABLE PARTS of impo!1ant instructions
"dangerous voltage" INSIDE. REFER SERVICING TO accompanying the inside the product. OUAUFIEDSERVICEPERSONNEL ~uct.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Follow the advice below for safe and appropriate operations.
ON PLACEMENT
.Do not use the unit in places which are
extremely hot, cold, dusty, or humid. .Place the unit on a flat and even surface­.Do not restrict the air flow of the unit by
placing it in a place with poor air flow, by
covering it with a cloth, or by placing it on
a carpet.
ON SAFETY .When connecting and disconnecting the
AC cord, grip the plug and not the cord
itself. Pulling the cord may damage it and
create hazard. .When you are not going to use the unit for
a long period of time, disconnect the AC power cord.
ON AC VOLTAGE .Before use, check that the rated voltage of
your unit matches your local voltage.
ON CONDENSATION .When left in a heated room where it is warm
and damp, water droplets or condensation may form inside the CD player .
.When there is condensation inside the unit,
the unit may not function normally-
.Let it stand for 1 to 2 hours before turning
the power on, or gradually heat the room up and dry the unit before use.
Should any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.
FCC INFORMATION This device complies with Part 15 of FCC Rules. Operations are subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause
undesirable operations.
2
~"" ~" ~ ~"
\
,;, I!'
,~
6 5
4 3
2 1
1. PHONES jack (for Headphones)
2. TONE control
3. CD operation section I~ Reverse Skip
1 Forward Skip PAUSE indicator REPEAT ALL indicator REPEAT ONE indicator
CD Display Window
REMOTE SENSOR REPEAT button
.Stop
11 Play/Pause
4. FUNCTION selector
5. VOLUME control
7 8
9 10 11
12 13
14
15 16
6. Cassette operation buttons II PAUSE ...STOP/EJECT
~ F .FWD (Fast Forward) ~ REWIND ~ PLAY .RECORD
7. CD compartment
8. CD door open button
9. Dial scale
10. TUNING control
11. BAND selector
12. BEAT CUT / FM MODE selector
13. Cassette compartment
14. Telescopic antenna
15. AC socket
16. Battery compartment
3
USING HOUSE CURRENT .Before use, check that the rated voltage
of your unit matches your local voltage.
J::i=- ~
Caution: To prevent electrical shock,
USING BATTERIES Disconnect the AC power cord from the
AC inlet of the unit. Battery power is cut automatically by the cord when it is con- nected.
~
Battery door
~ r I
TO ADJUST THE VOLUME
Ii
match wide blade of plug to wide slot, fully insert.
(~
To AC inlet L-
To AC outlet ~
When the volume decreases, or the sound distorts, replace all of the batteries with new ones.
--
o~
Insert eight UM-1 (size D) batteries
TO ADJUST SOUND QUALITY Select the tone for high or low frequency
range.
TONE ,
)
(0) :~::~ 1
1:1
WHEN RECORDING The VOLUME control and TONE control may be adjusted with no effect on the recorded
signal.
1MI~MAX U
FOR PRIVATE LI~TENING Connect a headphone (03.5mm stereo mini- plug) to the PHONES jack. When the headphone is connected, speakers are automatically disconnected.
4
~~
I

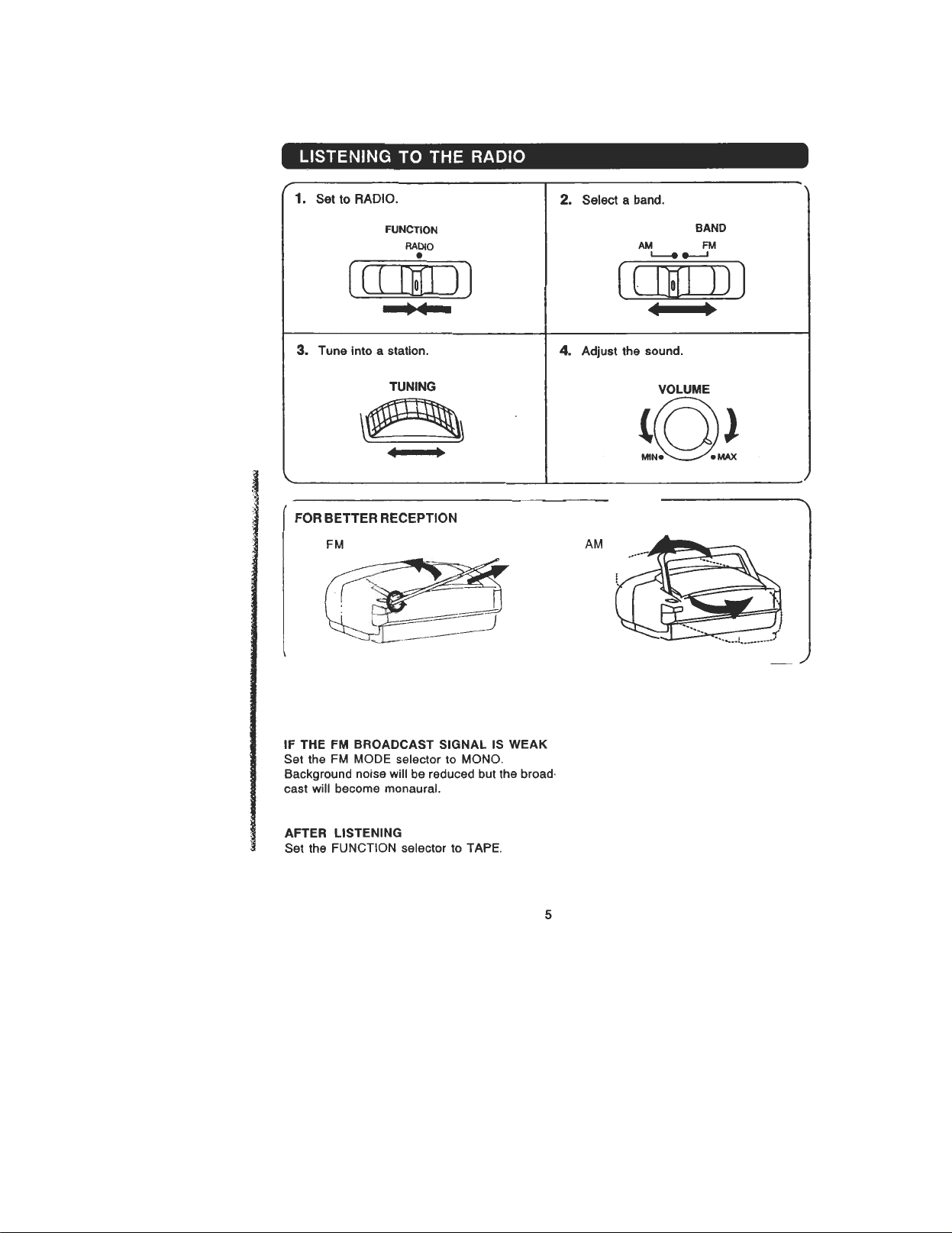

FOR BETTER RECEPTION
FM
IF THE FM BROADCAST SIGNAL IS WEAK Set the FM MODE selector to MONO. Background noise will be reduced but the broad. cast will become monaural.
AFTER LISTENING Set the FUNCTION selector to TAPE.
AM
5
6
This function allows a single track or all tracks on a disc to be played repeatedly.
7

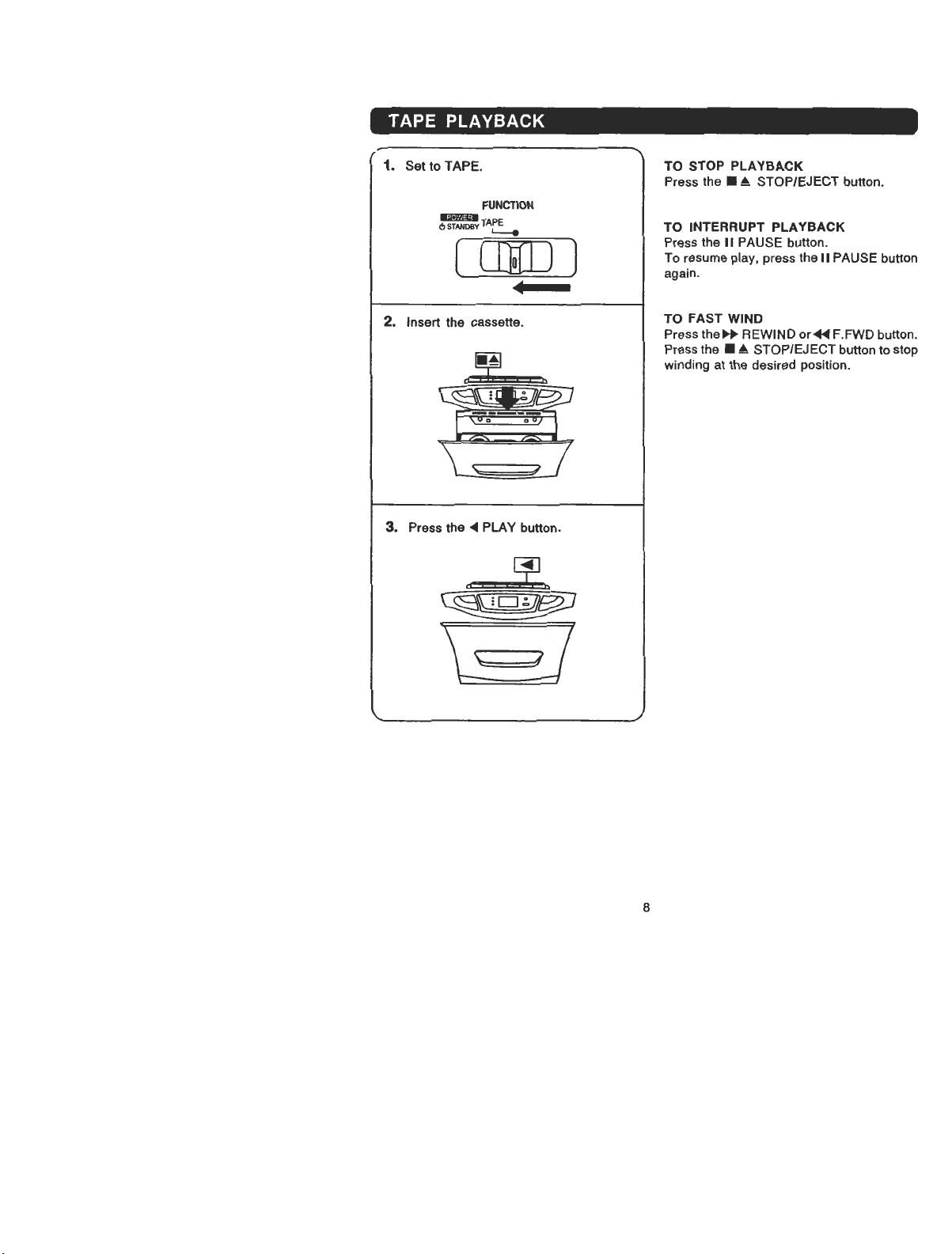

TO STOP PLA YBACK Press the. A STOP/EJECT button.
TO INTERRUPT PLAYBACK Press the II PAUSE button. To resume play, press the II PAUSE button
again.
TO FAST WIND Press the~ REWIND or~ F.FWD button. Press the. A STOP/EJECT button to stop
winding at the desired position.
8
TO STOP RECORDING
Press the. A STOP/EJECT button.
TO INTERRUPT RECORDING
Press the II PAUSE button. To resume recording, press the II PAUSE button again.
NOTE
If squealing sounds (beating) are heard when
recording from AM(MW), slide the BEAT
CUT switch at the side of the unit to different
positions until the noise is eliminated.
TO ERASE A RECORDED TAPE
1. Set the FUNCTION selector to TAPE.
2. Insert a tape with the side you want to erase facing you.
3. Press the. RECORD button to start eras-
ing.
9
~ Era head stan
J!
\ CLEANING CD -~ --
If the CDskips or will not play, the disc may need CLEANING THE TAPE HEADS cleaning. Before playing, wipe the disc from the Clean the head with a cotton bud slightly centre out with a cleaning cloth. After playing, moistened with cleaning fluid or denatured store the disc in its case. alcohol.
CLEANING THE UNIT Do not use volatile chemicals on this unit. Clean by lightly wiping with a soft cloth.
IMPORTANT NOTICE: .Should the CD door be opened before the reading of the CD is completed, a jamming noise may
occur. This can be resolved by closing the CD door and then setting the FUNCTION selector temporarily to TAPE (POWER STANDBY).
.If an abnormal display indication or an operating problem occurs, disconnect the AC power cord
and remove the batteries. Wait at least 5 seconds, then reconnect the AC power cord or reinstall the batteries.
PROBLEMS
No power supply.
The cassette cannot be inserted. The tape gets caught in the tape transport
mechanism. Tape running is unstable. There is excessive noise, quivers or
ITEMS TO CHECK Is the power cord unplugged or loose?
Are batteries installed? Are the batteries properly aligned?
Is the cassette up-side-down? Is the pinch roller or capstan dirty?
Is there excessive slack in the tape? Is there excessive slack in the taPe?
i Are the heads dirty?
01 ,~
Pinch roller Record/playback head
breaks in the sound. The .REC button cannot be pressed. Is the cassette's erasure prevention tab broken off? Recording cannot be done. Are the heads dirty? The prevk>us ~ing cannot be erased. Is the erasure head dirty? The CD produces no sound. Is the CD upside down?
Is the CD or lens excessively dirty? Is the disc holder dosed properly? Is the function selector set to CD? Is there condensation inside the unit?
The CD sound jumps.
Is the lens or CD excessively dirty? Is the unit subject to excessive vibration? Are there any bad scratches on the CD? -
10
~

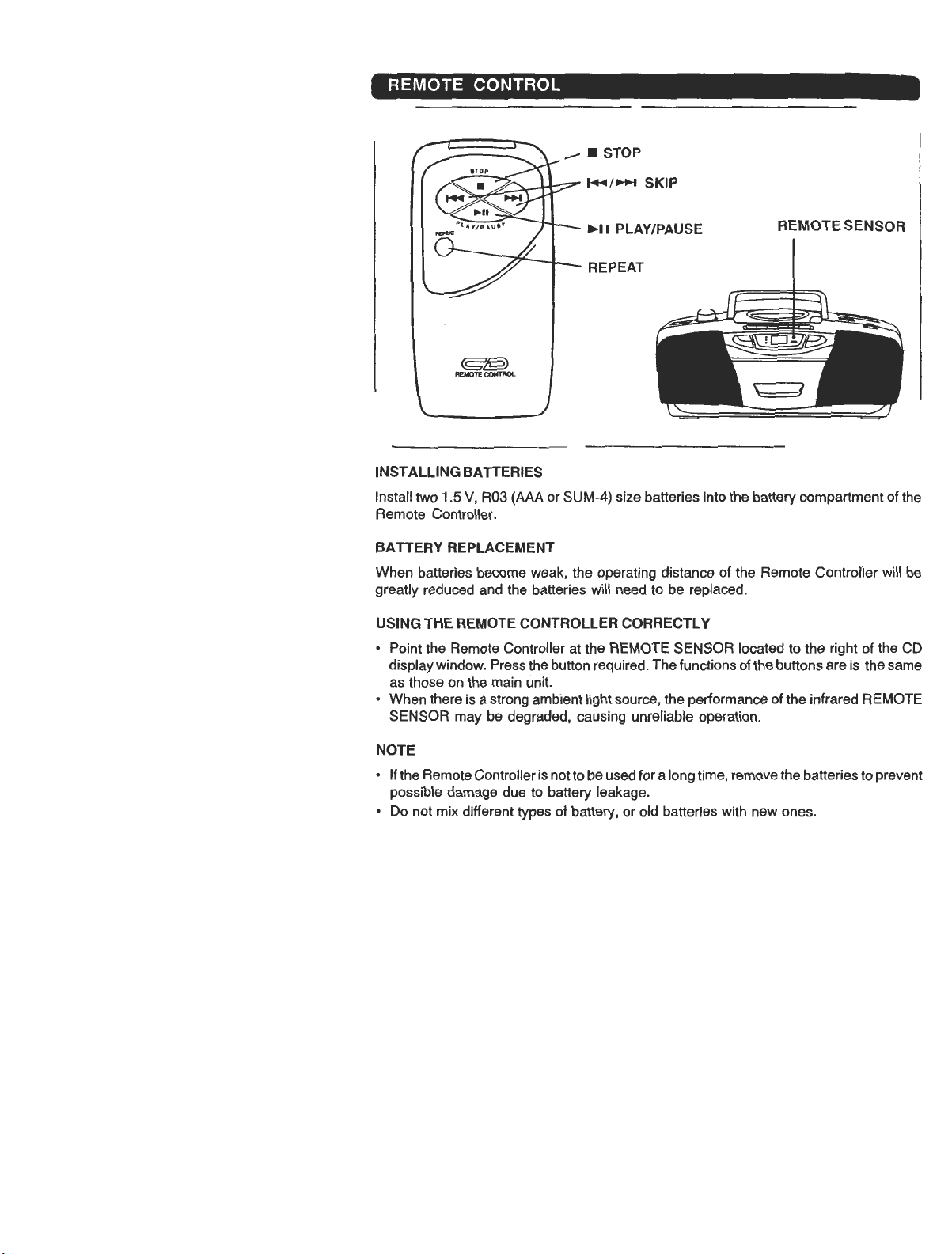

-.STOP
~/~ SKIP
~II PLAY/PAUSE REMOTE SENSOR
REPEAT
INSTALliNG BATTERIES Install two 1.5 V, RO3 (AM or SUM-4) size batteries into the battery compartment of the
Remote Controller.
BATTERY REPLACEMENT
When batteries become weak, the operating distance of the Remote Controller will be greatly reduced and the batteries will need to be replaced.
USING THE REMOTE CONTROLLER CORRECTL y .Point the Remote Controller at the REMOTE SENSOR located to the right of the CD
display window. Press the button required. The functions of the buttons are is the same as those on the main unit.
.When there is a strong ambient light source, the performance of the infrared REMOTE
SENSOR may be degraded, causing unreliable operation.
NOTE .If the Remote Controller is not to be used for a long time, remove the batteries to prevent
possible damage due to battery leakage.
.Do not mix different types of battery, or old batteries with new ones.
CASSETTE SECTION Track format:
Recording system: Erasing system: Tape speed:
F.F. & REW time: Frequency response:
CD SECTION
Channels: SIN ratio: Wow & Flutter:
Sampling frequency: Quantization:
Pick up light source: Pick up wave length:
RADIO SECTION Tuning ranges:
Antennas:
GENERAL Output power:
Power consumption:
Terminal impedance: Power source:
Unit dimensions:
Unit weight (approx.): Accessories:
4 tracks stereo AC bias Magnetic erase
4.75 cm/sec. 110 sec. (C-60 tape) 40-12,000 Hz (normal/tape)
2 channels 60 dB undetectable
44.1 kHz 8 bits linear/ch Semi-conductor laser 790 nm
FM 88- 108 MHz AM 530 -1700 kHz AM: Built-in ferrite bar FM: Telescopic antenna
2.8W maximum (1.4 Wlchannel RMS) 15W PHONES 32 ohms AC 120 V -60 Hz OC 12 V (8xLR20 "0" size or UM-1 batteries) 410 x 161 x 234 mm (WxHxO) with handle
410 x 161 x 211 mm (WxHxO) without handle
2.9 kg (not included batteries) AC power cord
Specifications subject to change wit~out notice.
12
811-012091-020
