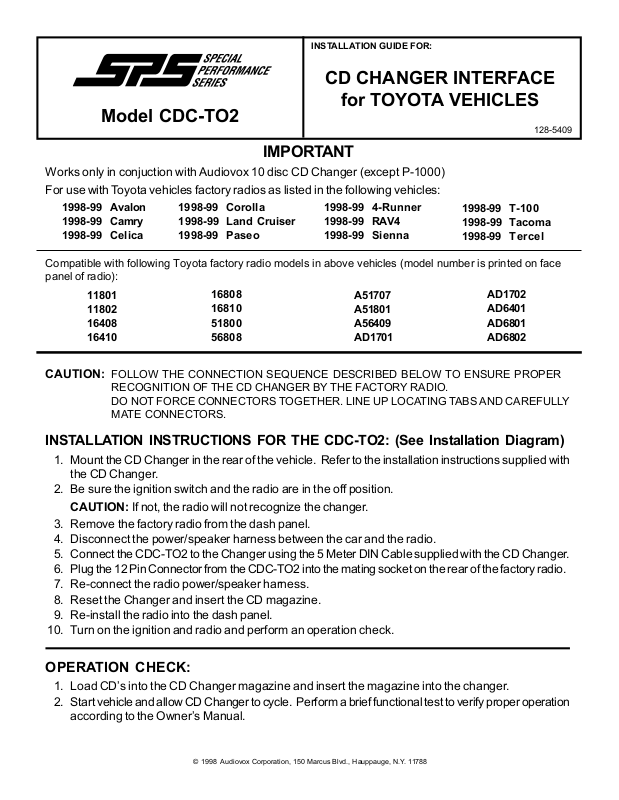

INSTALLATION GUIDE FOR:
CD CHANGER INTERFACE
for TOYOTA VEHICLES
Model CDC-TO2
128-5409
IMPORTANT
Works only in conjuction with Audiovox 10 disc CD Changer (except P-1000)
For use with Toyota vehicles factory radios as listed in the following vehicles:
1998-99 Avalon
1998-99 Camry
1998-99 Celica
Compatible with following Toyota factory radio models in above vehicles (model number is printed on face
panel of radio):
1998-99 Corolla
1998-99 Land Cruiser
1998-99 Paseo
1998-99 4-Runner
1998-99 RAV4
1998-99 Sienna
1998-99 T-100
1998-99 Tacoma
1998-99 Tercel
11801
11802
16408
16410
16808
16810
51800
56808
A51707
A51801
A56409
AD1701
AD1702
AD6401
AD6801
AD6802
CAUTION: FOLLOW THE CONNECTION SEQUENCE DESCRIBED BELOW TO ENSURE PROPER
RECOGNITION OF THE CD CHANGER BY THE FACTORY RADIO.
DO NOT FORCE CONNECTORS TOGETHER. LINE UP LOCATING TABS AND CAREFULLY
MATE CONNECTORS.
INSTALLA TION INSTRUCTIONS FOR THE CDC-TO2: (See Installation Diagram)
1. Mount the CD Changer in the rear of the vehicle. Refer to the installation instructions supplied with
the CD Changer.
2. Be sure the ignition switch and the radio are in the off position.
CAUTION: If not, the radio will not recognize the changer.
3. Remove the factory radio from the dash panel.
4. Disconnect the power/speaker harness between the car and the radio.
5. Connect the CDC-TO2 to the Changer using the 5 Meter DIN Cable supplied with the CD Changer.
6. Plug the 12 Pin Connector from the CDC-TO2 into the mating socket on the rear of the factory radio.
7. Re-connect the radio power/speaker harness.
8. Reset the Changer and insert the CD magazine.
9. Re-install the radio into the dash panel.
10. Turn on the ignition and radio and perform an operation check.
OPERATION CHECK:
1. Load CD’s into the CD Changer magazine and insert the magazine into the changer.
2. Start vehicle and allow CD Changer to cycle. Perform a brief functional test to verify proper operation
according to the Owner’s Manual.
© 1998 Audiovox Corporation, 150 Marcus Blvd., Hauppauge, N.Y. 11788
12-PIN
CD CHANGER
CONNECTOR
12-PIN
CONNECTOR
CDC-TO2
FACTORY RADIO
REAR VIEW
ANTENNA JACKS
15-PIN
SPEAKER/POWER
CONNECTOR
To Factory Radio
Model: CDC-TO2
CD CHANGER INTERFACE FOR
TOYOTA VEHICLES
Audiovox Corporation, Hauppauge, NY PROD. CODE: 000
Made inTaiwan 132-5469
10 DISC CD CHANGER
8-PIN DIN
CONNECTOR
ToCD Changer
5 METER DIN
CABLE
(SUPPLIED W/
CD CHANGER)
