Audiovox AVT-1498 User Manual
13” COLOR TV/MONITOR
DC OPERATION WITH REMOTE CONTROL
AVT–1498 OPERATING INSTRUCTIONS
SPECIALLY DESIGNED FOR THE
VAN AND AUTOMOTIVE INDUSTRIES
RECOMMENDED GUIDELINES FOR THE USE OF A
VIDEO MONITOR/TV IN A MOTOR VEHICLE
* A VIDEO MONITOR /TV is designed for rear passenger viewing only. This product may only be
installed in the rear seat compartment of the vehicle, out of the driver's view.
* Installation in any other area of the vehicle, including anywhere within the driver's view, is illegal in
most states, provinces and countries and may lead to driver distraction resulting in an accident, injury
and or death. If you are unsure of regulations regarding this, please consult your local laws to
determine how this applies to you.
* Users should be aware of the possible noise distraction caused by the use of the product and
should carefully monitor the volume so as not to interfere with the driver's attention to surrounding
traffic conditions.
EXPLANATION OF GRAPHIC SYMBOLS:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The lightning flash with arrowhead
within a triangle is intended to tell the
user that parts inside the product are a
risk of electric shock to persons.
The exclamation point within a triangle
is intended to tell the user that important operating and servicing instructions
are in the papers with the appliance.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
IMPORTANT SAFETY INFORMATION
1.
Read Instructions — All the safety and operating instruction should be read before the appliance is
operated.
2.
Retain Instructions — The safety and operating instructions should be retained for future reference.
Heed Warnings — All warnings on the appliance and in the operating instructions should be ad-
3.
hered to.
Follow Instructions — All operating and use instructions should be followed.
4.
Cleaning — Unplug this video product from the DC supplying outlet before cleaning. Do not use liq-
5.
uid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Exception; A product that is meant
for uninterrupted service and that for some specific reason, such as the possibility of the loss of an
authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or
any other purpose, may exclude in the cleaning description other wise required.
Attachments — Do not use attachments not recommended by the video product manufacturer as
6.
they may cause hazards.
Water and Moisture — Do not use this video product near water-for example, near a bath tub, wash
7.
bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
Accessories — Do not place this video product on an unstable cart, stand, tripod, bracket, or table.
8.
The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or
sold with the video product. Any mounting of the appliance should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9.
Ventilation — Slots and openings in the cabinet are provided for ventilation, to ensure reliable operations of the video product and to protect it from overheating. These openings must not be blocked
or covered. The openings should never be blocked by placing the video products on a bed, sofa,
rug, or other similar surface. This video product should never be placed near or over a radiator or
heat register. This video product should not be placed in a built-in installation such as a book case
or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered
to.
10.
Power Sources — This video product should be operated only from the type of power source indicated on the marking label. Video products intended to operate from battery power, or other
sources, refer to the operating instructions.
11.
Lightning — For added protection for this video product receiver during a lightning storm, or when
it is left unattended and unused for long periods of timer, unplug it from the DC supplying outlet and
disconnect the antenna. This will prevent damage to the video product due to lightning.
Overload — Do not overload DC supplying outlets and extension cords as this can result in a risk of
12.
fire or electric shock.
13.
Object and Liquid Entry — Never push objects of any kind into this video product through openings
as they may touch dangerous voltage points or shortout parts that could result in a fire or electric
shock. Never spill liquid of any kind on the video-product.
Servicing — Do not attempt to service this video product yourself as opening or removing covers
14.
may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service — Unplug this video product from the DC supplying outlet and refer ser-
15.
vicing to qualified service personnel under the following conditions:
When the power-supply cord or adapter is damaged.
a.
If liquid has been spilled, or object have fallen into the video product.
b.
c.
If the video product has been exposed to rain or water.
d.
If the video product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
If the video product has been dropped or the cabinet has been damaged.
e.
When the video product exhibits a distinct change in performance-this indicates a need for service.
f .
Replacement Parts — When replacement parts are required, be sure the service technician has
16.
used replacement parts specified by the manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
Safety Check — Upon completion of any service or repairs to this video product, ask the service
17.
technician to perform safety checks to determine that the video product is in proper operating condition.
SERVICE SAFETY INFORMATION
1. For your protection, please read these instructions completely and comply with all warnings,
cautions and instructions placed on the set or described in the operating instructions.
2. Electrical components that are likely to be replaced in the field and that are critical with respect to
the safety are identified on the schematic diagram by the symbol ! .
3. Warning: This product includes critical mechanical and electrical parts which are essential for X
radiation safety. For continued safety replace critical components only with exact replacement parts
given in the parts list. Operating high voltage for this product is 20.16KV at minimum brightness.
POWER REQUIREMENTS
POWER SUPPLY
The AVT-1498 is designed for 12 Volt operation.
CAR BATTERY OPERATION
A cigarette lighter adapter cable is supplied for use in any 12 Volt, negative ground battery vehicle. Simply
insert the DC plug on the end of the cable into the DC POWER JACK (10) on the back of the TV set, and the
other end of the cable into the cigarette lighter receptacle of the vehicle. The television is now ready for
operation.
CAUTION:
MEASURE DC SOURCE
POLARITY BEFORE USE
OTHERWISE, THE SET
MAY BE DAMAGED.
GND
(Rear of TV)
DC JACK
Cigarette Lighter
socket of car (12V)
Remove plug from cigarette lighter receptacle when unit is not in use
*
REVISED DATE : 07/04/03
– DRAWING CHANGE
Car battery cord
–1–
ANT.
OUT
VIDEO AUDIO
VIDEO AUDIO
INPUT-1
CAUTION:FOR CONTINUED PROTECTION
AGAINTS RISK OF FIRE REPLACE ONLY
WITH SAME TYPE 5A, 250V FUSE.
DC INPUT
INPUT-3
12-14V
VIDEO AUDIO
DC JACK
FUSE
DC
12-14V
T5A/250V
+
–
EXT. SPK.
•
*
1. Front Panel Controls
Å
INPUT–2
AUDIO
VIDEO
AUDIO/VIDEO Input Jack
Æ
(For “VIDEO 2 MODE”)
INPUT–2
AUDIO
Remote Sensor
ENTER MENU CHANNEL VOLUME POWER
ENTER Button
Ä
Ã
VIDEO
ENTER MENU CHANNEL VOLUME POWER
MENU Button
CHANNEL Button
Â
(Also “ ” and “ ” Buttons)
VOLUME Button
Á
(Also “ – ” and “+” Buttons)
–2–
POWER Button
À
À. POWER Button
• Press once to turn on TV.
• Press again to turn off TV.
Á. VOLUME Buttons
• Press VOLUME “+” to increase volume, or press VOLUME “–” to decrease volume.
• The “+” and “–” buttons are also used to adjust the picture. When the PICTURE display disappears
from the screen. These buttons once again become the volume adjustment controls.
Â. CHANNEL Buttons
• Press CHANNEL to see the next higher channel in memory.
• Press CHANNEL to see the next lower channel in memory.
• The and buttons are also used to select desired function on the menu.

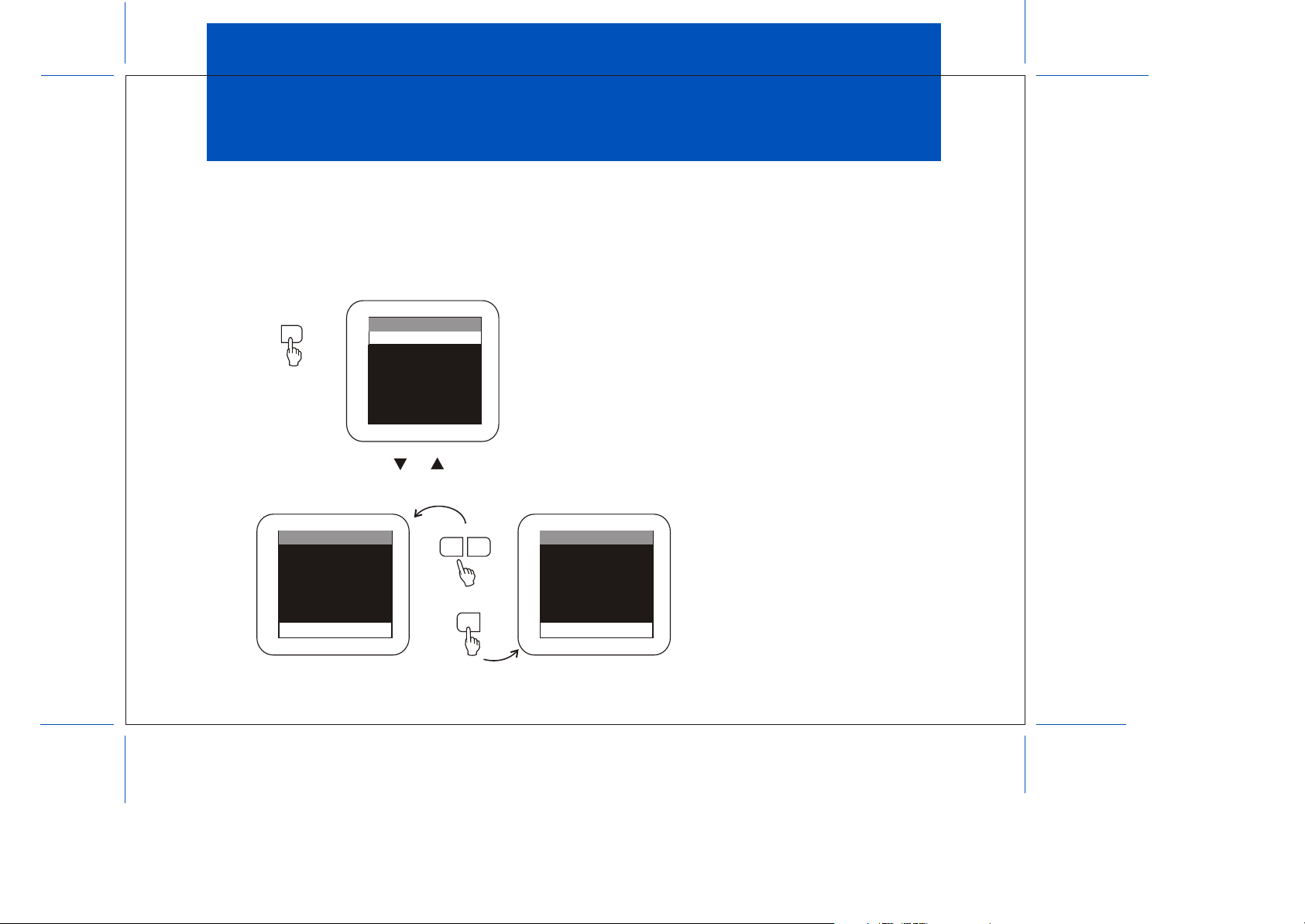

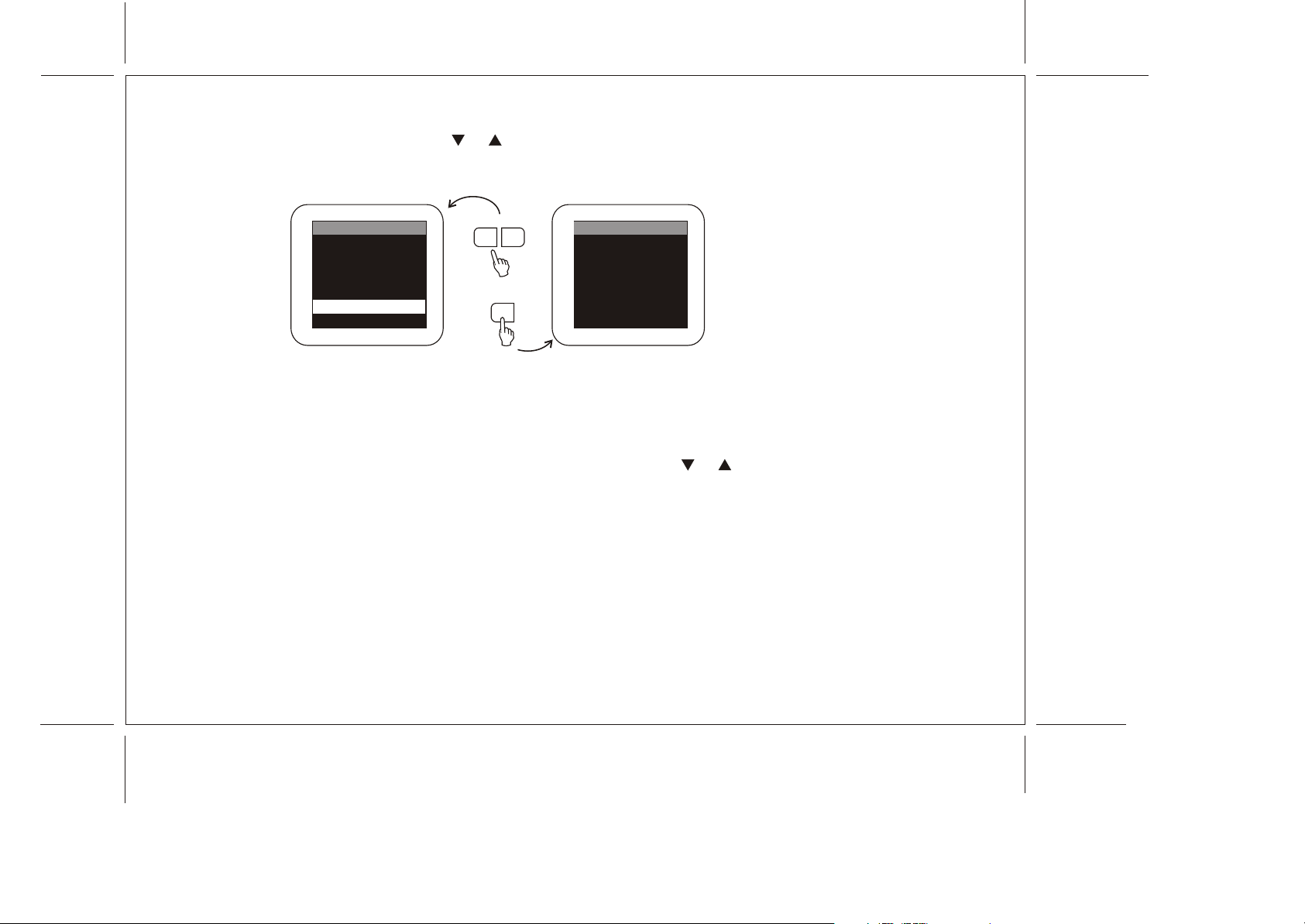

Ã. MENU Button
• Press the MENU button, the MENU display appears.
• Press or to select desired function, then press ENTER button to end the choice.
• Details about using each function are on page 11.
Ä. ENTER Button
• To end the choice on the first menu or the second menu.
• Details about using each function are on page 11.
Å. Remote Sensor
• Receives commands from remote control.
• When using the remote control, point it toward this sensor.
Æ. AUDIO/VIDEO Input Jack
• Use a audio/video cable to connect this jack to the audio/video output from a video camera, VCR,
video game, etc.
• These jacks on the front can only be used for direct audio and video input on the “VIDEO 2” mode.
–3–
2. Rear Panel Controls
*
*
Antenna Jack
ANT.
OUT
VIDEO AUDIO
13
AUDIO/VIDEO
Output Jack
ANT.
DC INPUT
INPUT-1
OUT
12-14V
VIDEO AUDIO
VIDEO AUDIO
11
DC Input Jack Fuse Holder12
INPUT-1
VIDEO AUDIO
11
DC INPUT
12-14V
AUDIO/VIDEO
Input Jack
(For "VIDEO 1" mode)
–4–
CAUTION:FOR CONTINUED PROTECTION
AGAINTS RISK OF FIRE REPLACE ONLY
WITH SAME TYPE 5A, 250V FUSE.
FUSE
INPUT-3
T5A/250V
VIDEO AUDIO
EXT. SPK.
CAUTION:FOR CONTINUED PROTECTION
AGAINTS RISK OF FIRE REPLACE ONLY
WITH SAME TYPE 5A, 250V FUSE.
INPUT-3
VIDEO AUDIO
14
AUDIO/VIDEO
Input Jack
DC
12-14V
+
–
•
8
FUSE
T5A/250V
EXT. SPK.
9
External Speaker Jack
DC
12-14V
–
•
+
*
REVISED DATE : 07/04/03
– DRAWING CHANGE
*
8 .
FUSE Holder
• There is a safety fuse in the holder.
• The fuse is a 5-amp, 125/250V (slow blow type).
9 .
External Speaker Jack
• You can plug an optional Speaker into this jack for private listening.
• When the plug of an external speaker is attached, the sound will come through the external
speaker instead of the TV speaker.
DC Input Jack
10 .
• For car use, the TV is designed for negative (–) ground 12V DC operation only.
• When unit is not in use, remove the car battery cord from the cigarette lighter socket.
AUDIO/VIDEO Input Jack
11 .
• Use an audio/video cable to connect this jack to the audio/video output from a video camera,
VCR, video game, etc.
• These jacks on the rear can be used for direct audio and video input on the "VIDEO 1" mode.
12 .
ANTENNA Jack
• Connect the antenna cable to the VHF-UHF antenna terminal.
13 .
AUDIO/VIDEO Output Jack
• For connection to a monitor TV, audio/video system or VCR.
AUDIO/VIDEO Input Jack
14 .
• Use an audio/video cable to connect this jack to the audio/video output from a video camera,
VCR, video game and etc.
• These jacks on the rear can be used for direct audio and video input on the “VIDEO 3” mode.
*
REVISED DATE : 07/04/03
– ADD IN ITEM # 14 (AUDIO/VIDEO INPUT JACK)
