Audiovox A-DUO-100-AUD, A-DUO-101-AVW, A-DUO-103-AVW, A-DUO-102-AVW Installation Manual & User Manual

Download

Page 1

for selected Audi/VW vehicles

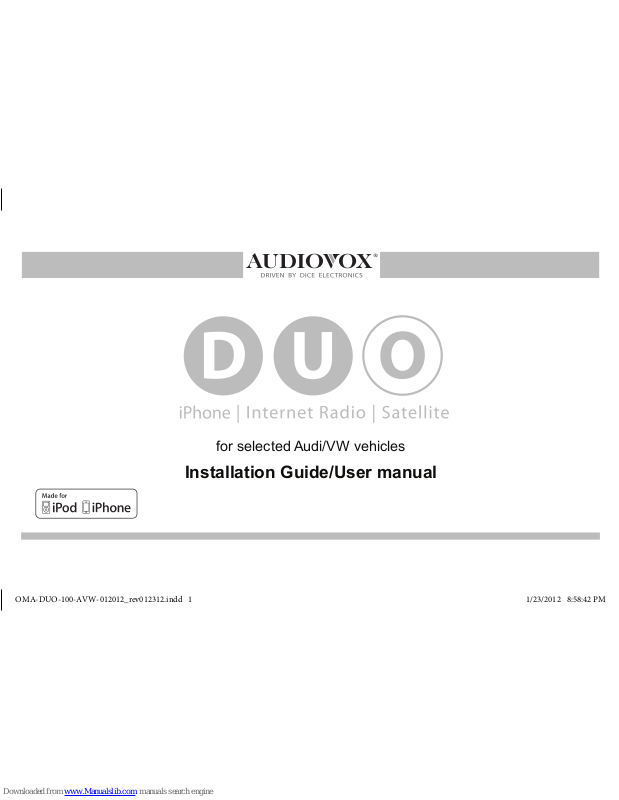

Installation Guide/User manual

OMA-DUO-100-AVW-012012_rev012312.indd 1 1/23/2012 8:58:42 PM

Page 2

Copyrights and Trademarks

The Audiovox and Audiovox Driven by DICE Electronics logos are trademarks of Audiovox Electronics Corporation

iPod and iPhone are trademarks of Apple, Inc.

All Trademarks and Logos are the property of their respective owners.

Printed in the U.S.A.

OMA-DUO-100-AVW-012012_rev012312.indd 2 1/23/2012 8:58:42 PM

Page 3

Warning and safety

Product registration

Silverline DUO kit contents

Identifying your DUO kit

Dip switch conguration

Supported iPod models

Installation

Connection Diagram

A-DUO-100-AUD Connector

A-DUO-101-AVW R1 Connector

A-DUO-101-AVW R2 Connector

A-DUO-101-AVW R2 Modication

A-DUO-102-AVW Connector

A-DUO-103-AVW Connector

Attention to installers

iPod content browsing

Charging

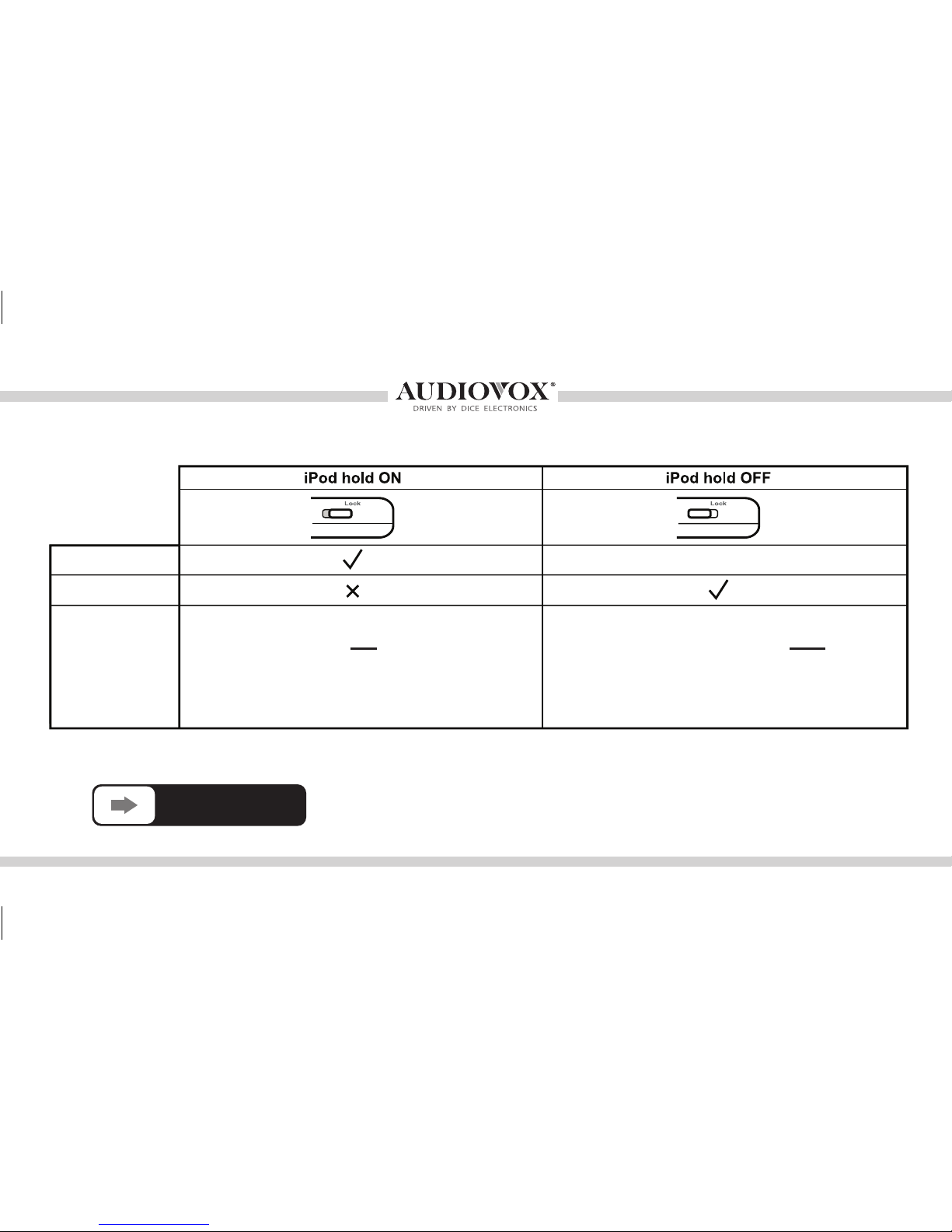

iPod locked/unlocked settings

SAT Emulation

(A-DUO-103-AVW)

Basic Operation and Settings Browsing modes Overview of Audi Symphony radio Overview of VW radio Overview of Audi Concert radio Overview of Audio Navigation Plus radio Overview of VW Navigation radio Sirius Connect Operation CDC Emulation

(A-DUO-100-AUD, A-DUO-101-AVW, A-DUO-102-AVW)

Basic Operation and Settings Browsing modes Selecting the DUO as an Audio Source Internet Radio Applications Auxiliary audio source Optional Remote Kit: iPod Optional Remote Kit: SIRIUS Troubleshooting Firmware Update Warranty

..............................................................4

..............................................................5

....................................................6

........................................................7

........................................................8

............................................................9

............................................................................10

.............................................................11

..................................................12

.............................................13

............................................14

..........................................15

..................................................16

..................................................17

.............................................................18

...........................................................19

.............................................................................19

.............................................20

........................................................21

.............................................................................22

..................................................23

.....................................................................24

......................................................25

........................................26

...................................................27

................................................................28

.........................................................29

.............................................................................30

..........................................31

.................................................................32

.........................................................................36

...................................................................37

..............................................................38

..................................................................................39

................................................................................42

..............................................................................................43

Table of Contents

OMA-DUO-100-AVW-012012_rev012312.indd 3 1/23/2012 8:58:42 PM

Page 4

Please read these instructions carefully before proceeding. Failure to follow instructions may result in

improper operation or injury. Neither Audiovox Electronics Corporation nor Apple Inc., its regional ofces,

distributors or resellers take any responsibility for any damage or injury as a result of using the integration kit.

- Do not open, disassemble or alter the interface in any way.

- Do not insert anything into the casing.

- Do not cut or try to alter cables in any way and always use the correct connections.

- Only operate unit when stationary or ask passengers to operate it for you.

- Do not allow the Apple iPod/iPhone to distract you from driving.

- Exercise good judgement and keep your eyes on the road at all times.

- Do not expose unit to extreme temperatures, humidity or shock.

- Keep the unit and iPod/iPhone away from uids.

- Keep away from children! - Interface components may contain small parts, can be broken or disassembled and components may become loose from vibration and heat. Small components and packaging materials may be a choking hazard when handled by children.

Warning and safety!

OMA-DUO-100-AVW-012012_rev012312.indd 4 1/23/2012 8:58:42 PM

Page 5

Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This interface was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.

We recommend registering your Audiovox product so you can receive news about important rmware updates

and have unlimited access to our online support system.

To register your Audiovox product, please complete the following steps:

1. Visit http://www.audiovoxproducts.com

2. Look up and save the serial number of the product.

3. Complete the product registration form.

4. Submit the form.

5. Save the registration sheet in a safe place for future reference.

If you are unable to complete the registration via internet, please call Audiovox at 1-800-645-4994.

Congratulations on your purchase!

Product registration

Prior to installation make sure the module’s rmware is up to date to ensure compatibility with the latest features and enhancements. Please refer to page 42 to update rmware.

OMA-DUO-100-AVW-012012_rev012312.indd 5 1/23/2012 8:58:43 PM

Page 6

Silverline DUO kit contents

Silverline DUO module

IR Receiver &

Remote (optional)

AUX connector

(optional)

user manual

A-DUO-101-AVW

R1 connector

dock cable

A-DUO-100-AUD

connector

A-DUO-101-AVW

R2 connector

A-DUO-103-AVW

connector

A-DUO-102-AVW

connector

Only one of these cables is included with each kit!

for selected Audi/VW vehicles

Installation Guide/User manual

OMA-DUO-100-AVW-012012_rev012312.indd 6 1/23/2012 8:58:43 PM

Page 7

Identifying your DUO kit

A-DUO-100-AUD, A-DUO-101-AVW, A-DUO-102-AVW - These kits work in CDC Emulation mode. Please refer to the CDC Emulation sections of this manual.

A-DUO-103-AVW - This kit works in SAT Emulation mode. Please refer to the SAT Emulation sections of this manual. DIP switch settings also need to be congured for this kit (see next page).

DBM12345678

Module serial number

Product part number

A-DUO-103-AVW

The Audiovox and Au-

diovox Driven by DICE Electronics logos are trademarks of Audiovox Electronics Corporation.

Designed, manufactured and assembled in California using foreign and domestic components.

OMA-DUO-100-AVW-012012_rev012312.indd 7 1/23/2012 8:58:43 PM

Page 8

DIP switch conguration (A-DUO-103-AVW only)

The conguration switches located on the Silverline DUO module are used to set functionality for various radio

models. Refer to pages 23-27 for correct DIP switch settings. Incorrect dip switch settings may cause the interface to not work properly or to not operate at all. Disconnect the vehicle harness from the module and

cycle ignition off for 60 seconds after changing the switches then reconnect the module!

Silverline DUO module

This setting must be performed for proper functionality of the DUO kit. See pages 23-27 to deter-

mine the correct DIP switch setting for your vehicle’s specic radio (A-DUO-103-AVW only).

OMA-DUO-100-AVW-012012_rev012312.indd 8 1/23/2012 8:58:43 PM

Page 9

Supported iPod models and rmware version requirements

Model Model

1G nano 160 GB classic

iPod 5G 5G nano

2G nano 3G touch

iPod classic iPhone 4

3G nano

4G touch

iPod touch

6G nano

iPhone

iPhone 3G

4G nano

120 GB classic

2G touch

iPhone 3GS

Firmware / OS Version Firmware / OS Version

1.3.1 2.0.4

1.3 1.0.2

1.1.3 iOS 5

1.1.2 iOS 5

1.1.3

iOS 5

iOS 3.1.3

1.2

iOS 3.1.3

iOS 4.2.1

1.0.4

2.0.1

iOS 4.2.1

iOS 5

iPhone 4S iOS 5

OMA-DUO-100-AVW-012012_rev012312.indd 9 1/23/2012 8:58:43 PM

Page 10

Attention installer! Please read the following!

Audiovox strongly recommends that the unit be installed in an easily accessible place! DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET!

Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily in the future. (Have the installer show you where the interface module is installed.)

Installing the module behind the radio will make it difcult to:

-Add possible future upgrades, changing software, adding new features, improving operation;

-Access the AUX input on the module to attach any audio device;

-Access the DIP switches located on the module;

-Remove the unit in case of failure.

MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!

OMA-DUO-100-AVW-012012_rev012312.indd 10 1/23/2012 8:58:43 PM

Page 11

Connection Diagram

*Do not connect the iPod dock cable under any circumstance to the SIRIUS module connector! Improper connection can cause permanent damage to iPod/SIRIUS module.

IR receiver

(optional)

Silverline DUO module

(front)

Silverline DUO module

(back)

Update port

(USB to PC)

iPod dock cable*

iPod/iPhone

(not included)

Vehicle BUS

connector

SIRIUS SAT radio

(not included)

Note: works with A-

DUO-103-AVW only!

Auxiliary device

(not included)

AUX connector

(optional)

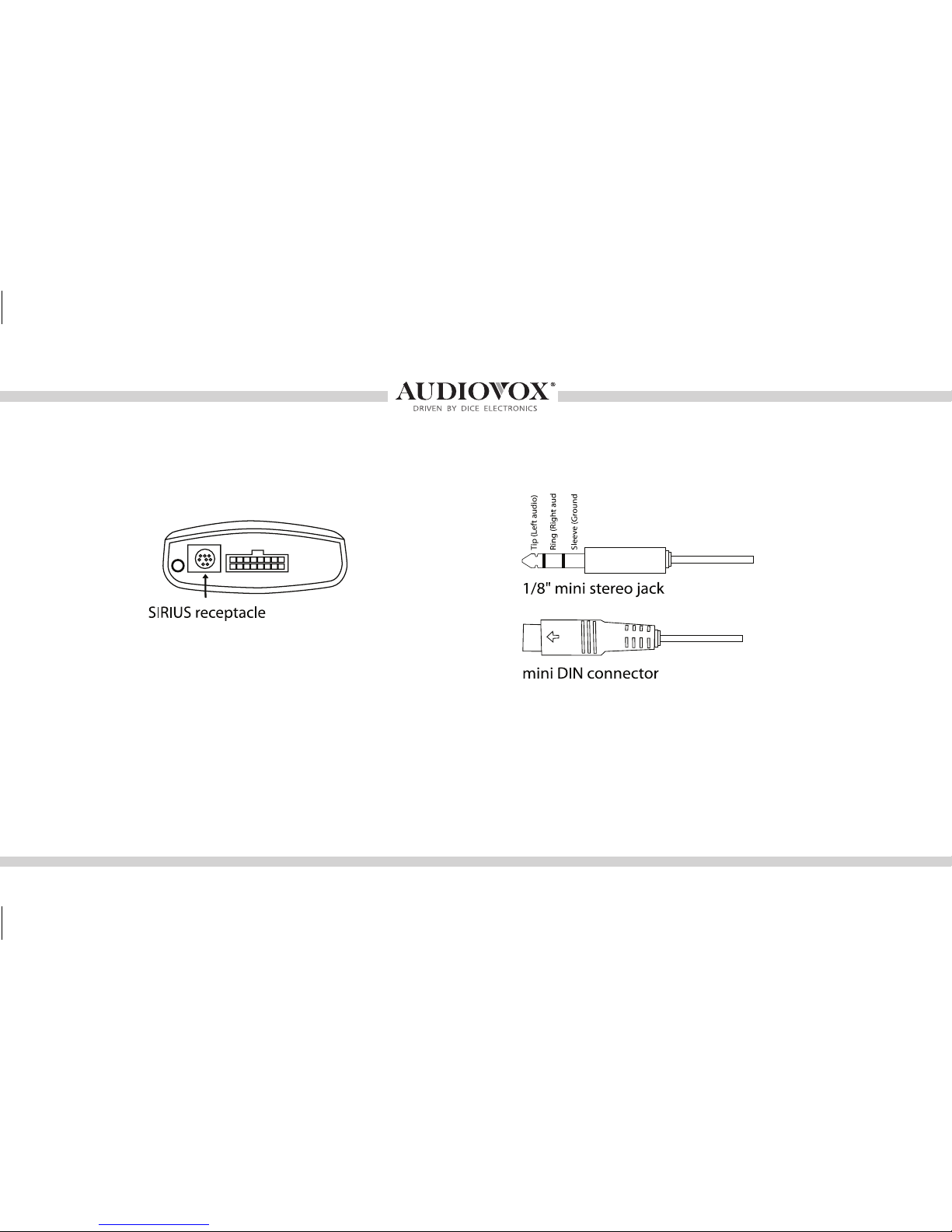

SIRIUS connector*

OMA-DUO-100-AVW-012012_rev012312.indd 11 1/23/2012 8:58:43 PM

Page 12

Installation

1. Verify compatibility

5. Route kit to glove box or other accessible location

6. Connect battery & test

7. Complete install by re-installing radio

2. Disconnect battery

3. Remove radio from car

4. Install Silverline DUO cable

Some radios will enter an anti-theft security mode and will lock requiring the radio’s security code to be entered to unlock it. This code can be requested from the vehicle’s dealership.

OMA-DUO-100-AVW-012012_rev012312.indd 12 1/23/2012 8:58:43 PM

Page 13

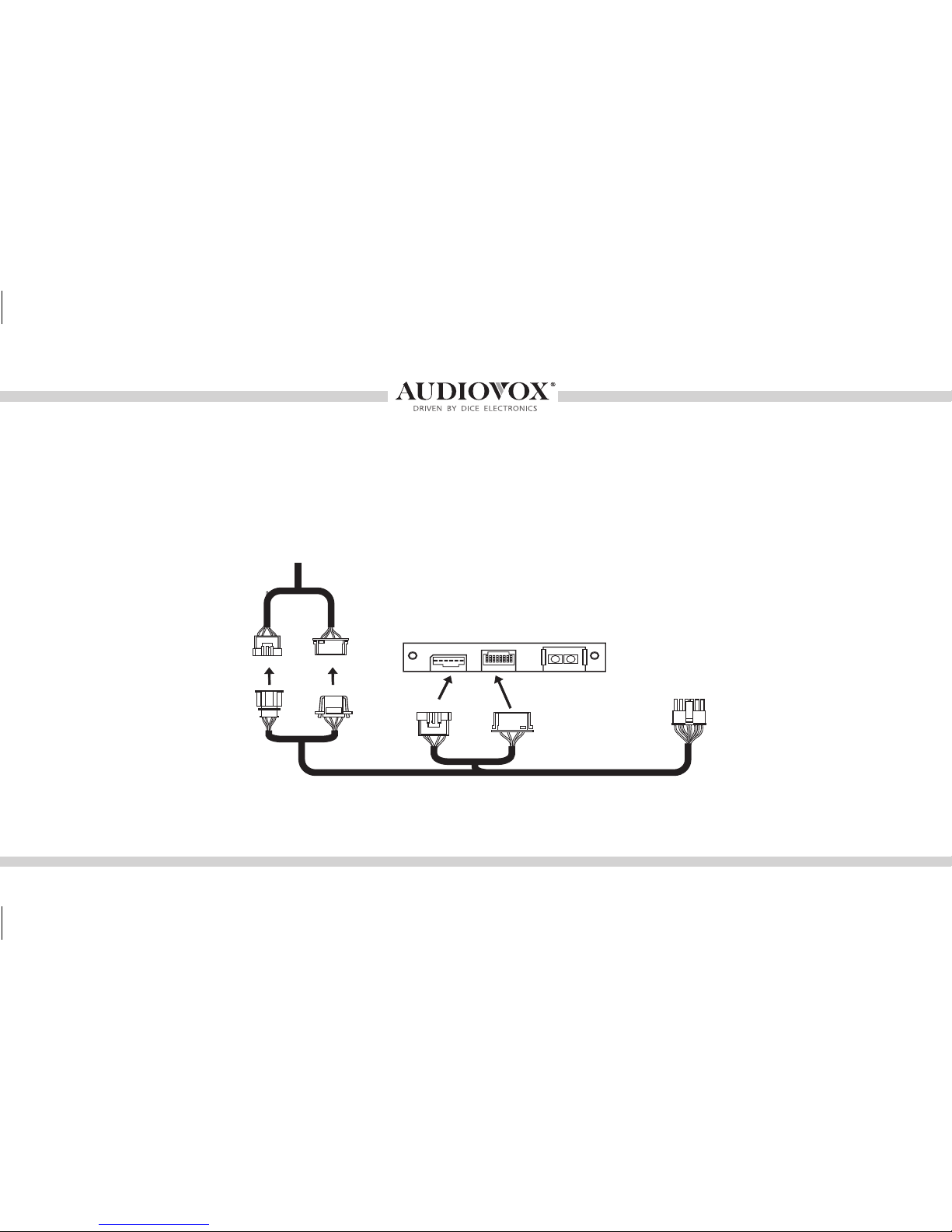

Vehicle BUS Connector - A-DUO-100-AUD Connector

To factory harness

in vehicle

A-DUO-100-AUD Connector

To Silverline DUO

Interface Module

To ground

You can access the CD changer connector located on the back of the radio. Unplug the factory connection if present and plug the A-DUO-100-AUD connector into the receptacle. The connector should securely lock. Ground wire MUST be connected to a stable grounding point.

OMA-DUO-100-AVW-012012_rev012312.indd 13 1/23/2012 8:58:44 PM

Page 14

Vehicle BUS Connector - A-DUO-101-AVW R1 Connector

You can access the CD changer connector located on the back of the radio. Unplug the factory connection if present and plug the A-DUO-101-AVW R1 connector into the receptacle. The connector should securely lock. Ground wire MUST be connected to a stable grounding point.

A-DUO-101-AVW R1 connector

OMA-DUO-100-AVW-012012_rev012312.indd 14 1/23/2012 8:58:44 PM

Page 15

Vehicle BUS Connector - A-DUO-101-AVW R2 Connector

You can access the CD changer connector located on the back of the radio. Unplug the factory connection if present and plug the A-DUO-101-AVW R2 connector into the receptacle. The connector should securely lock. Ground wire MUST be connected to a stable grounding point.

A-DUO-101-AVW R2 connector

OMA-DUO-100-AVW-012012_rev012312.indd 15 1/23/2012 8:58:44 PM

Page 16

A-DUO-101-AVW R2 Modication

If vehicle is equipped with factory satellite radio and it is to be retained, the harness modication illustrated

below is required. NOTE: This modication will only work for VW vehicles.

Disconnect main radio harness and locate SAT connector. Remove it from main harness by pressing on the release tab of the SAT connector.

Slide out the inner part of the SAT connector from plastic housing.

Disassemble the A-DUO101-AVW R2 connector the same way as the factory SAT connector.

Remove the SAT wires from the factory connector by releasing the pins with a small screw driver or ball point pen.

Put plastic connector covers back on. Insert A-DUO-101AVW R2 connector to factory VW main harness.

Connect ground wire to chassis of radio.

Relocate wires to A-DUO101-AVW R2 connector keeping the same order and location.

SAT

Connector

pins 1,3, 7

A-DUO-101-

AVW R2

connector

OMA-DUO-100-AVW-012012_rev012312.indd 16 1/23/2012 8:58:44 PM

Page 17

Vehicle BUS Connector - A-DUO-102-AVW Connector

The connection for this is made at the external CD-changer connection in certain Audi/VW vehicles. On VW models, the connection is usually in the trunk (does not apply to vehicles that came with a CD-changer built in to the radio). For Audi vehicles, the connection is inside the glove box, standard with navigation radios and/ or single-CD radios (also does not apply for vehicles that came with a CD-changer built in to the radio). The external CD-changer cannot be retained.

To Silverline DUO

Interface Module

To factory CD

changer harness

OMA-DUO-100-AVW-012012_rev012312.indd 17 1/23/2012 8:58:44 PM

Page 18

Vehicle BUS Connector - A-DUO-103-AVW Connector

Factory SAT

harness in vehicle

SAT Tuner (optional)*

To Silverline DUO

Interface Module

A-DUO-103-AVW Connector

*Connect SAT Tuner only if the SAT subscription is activated or will be activated in the near future. If vehicle did not come with a factory satellite tuner, two connections inside the front passenger-side kick panel may have to be mated together for the Silverline Duo to recognize as an audio source.

The factory Satellite tuner connections must be accessed, for which the location varies depending on vehicle (inside trunk panels, under passenger seat, etc). The harness provided with the kit is long enough to reach from these locations. If there is a factory satellite tuner, unplug it’s two connections and these can connect into the interface harness. If satellite radio is intended to be retained, connect the other two plugs into the satellite tuner.

OMA-DUO-100-AVW-012012_rev012312.indd 18 1/23/2012 8:58:44 PM

Page 19

By default, the interface creates a Playlist having a name that is the same

as the name of the iPod. This Playlist is the very rst on the list of Playlists

shown while browsing in Playlist mode. This Playlist contains all the songs on the iPod. Once a Playlist is selected an Artist may be selected within that Playlist using the Artist Mode. Albums by the selected Artist within the selected Playlist may be selected in Album Mode. “ALL ARTIST” and “ALL ALBUM” designate all available content in those categories.

The interface automatically charges the battery of the iPod when connected and your vehicle ignition key is in the ACC/ON position.

Charging may be indicated by an icon that appears on the upper right corner of the iPod screen. May vary by model.

Less browsable content

Category

Settings

Cat: ALL

Radio source selector (XM1 / Silverline DUO)

Press to enter Mode selection, then rotate the jog dial (4) to select: SONG / PLAYLIST / ARTIST / ALBUM / PODCAST / AUDIOBOOK

Track Up / Down

Jog dial used to select SONG / PLAYLIST / ARTIST / ALBUM / SOURCE / SETTING on the

screen. Press the knob to conrm the selected

mode.

SAT emulation: Operating Silverline DUO as an audio source on various radio systems - VW NAV w/ SAT

SAT Emulation

VOICE BAND CD MUTE DEST NAV MAP

Set DIP switch:

Audiovox

OMA-DUO-100-AVW-012012_rev012312.indd 27 1/23/2012 8:58:45 PM

Page 28

• Stations can be saved to PRESET 1-6 by holding a preset button (1-6).

• TEXT or DISP button will toggle between the text elds.

• If a Sirius Connect compatible tuner is not detected, then an “AUX” message will be displayed. Please refer

to the factory manual of your radio system about operating the Satellite mode.

• Go to Channel 000 to view the Sirius Tuner ID for activation. The 12 digit SID display format is in two halves

as SID “123456-” followed by “-789ABC”.

Note: You may use the remote control to change browsing modes.

SAT emulation: Sirius ConnectTM operation

Press

Press Press

Press & Hold

SAT Emulation

OMA-DUO-100-AVW-012012_rev012312.indd 28 1/23/2012 8:58:45 PM

Page 29

CDC emulation: Basic operation and settings

Accessing the DUO as the audio source:

Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the Silverline DUO is integrated to be part of the vehicle’s audio system. To access the DUO source, press the CD button. Pressing this button repeatedly will cycle through sources present in the vehicle (CD > DUO).

DUO source selection:

The DUO adds additional audio sources including iPod and auxiliary audio input*. To cycle between these sources,

use the TRACK buttons within the rst 5 seconds of accessing the DUO as the audio source.

*This source requires additional parts/accessories/service from Audiovox and/or third parties and can only be selected if devices are connected.

CDC Emulation

DUO Interface Settings

Select DISC 1 to apply settings and resume audio playback. Use TRACK up/down to select DUO audio source:

TRACK 1 = iPod TRACK 2 = Auxiliary audio source

Select DISC 3 to change default volume level; use track up/down to adjust between Min and Max. Use

TRACK up/down to cycle settings:

TRACK 1 = min. volume TRACK 5 = mid volume (default) TRACK 9 = max volume

DISC 2, 4, 5 and 6 have no settings available.

OMA-DUO-100-AVW-012012_rev012312.indd 29 1/23/2012 8:58:45 PM

Page 30

TRACK

In CDC Emulation, you can browse the content on your iPod by various modes: song, playlist, artist, album, podcast and audiobook. Each DISC button has a mode assigned to it as illustrated below.

● Press DISC button to select mode, then use next/previous track buttons to browse contents within the selected mode.

Browse by song:

Browse by playlist:

Browse by artist:

Browse by album:

Browse by podcast:

Browse by audiobook:

DISC 1

DISC 2

DISC 3

DISC 4

DISC 5

DISC 6

TRACK

CDC emulation: Browsing modes

CDC Emulation

OMA-DUO-100-AVW-012012_rev012312.indd 30 1/23/2012 8:58:45 PM

Page 31

CDC emulation: Operating Silverline DUO as an audio source

Radio source selector (CDC / Silverline DUO)

Press for Next / Previous track, hold to rewind or fast forward.

Turn to change track

Press to change DISC

1 CD EXT

2 CD EXT

3 CD EXT

CD EXT 4

TRACK 12

CD EXT 5

CD EXT 6

CD 01:52

CDC Emulation

OMA-DUO-100-AVW-012012_rev012312.indd 31 1/23/2012 8:58:45 PM

Page 32

This kit includes support for internet radio streaming apps available on the iTunes® Store. Thousands of stations can be streamed through data connections. Supported apps include Livio Car Internet Radio, Pandora, iHeart Radio and more. Supported features such as text display on screen, and next/previous track functions will vary by app.

To learn more about each app specically, please visit the website for the

app you need information about.

Users must have an active wireless data connection in order to stream music from an app while in the car. Data connections including “3G” or “4G” through wireless carriers, or a third party wireless Internet access point connected to your mobile device through WiFi will work. Because this app requires a data connection, it will only work on connected devices such as the iPhone and iPod touch.

Internet Radio Application support (iPhone/iPod touch)

Data connection requirements (3G/4G/WiFi)

OMA-DUO-100-AVW-012012_rev012312.indd 32 1/23/2012 8:58:46 PM

Page 33

NOTE: The following features may not be supported by all apps. For demonstration purposes the following examples will show the features for the Livio Car Internet Radio app.

The app must be active on the screen of the device. To do so, simply tap the app’s icon and it will load.

Next/previous TRACK buttons execute application specic features such as skipping stream or cycling between station presets. DISC/

PRESET (1-6) buttons are associated with station presets when used with the Livio Car Internet Radio application.

iPhone operating system iOS5 enabled application developers to share the “now playing” screen information. For example, when using the Pandora App, you will see artist, album and song information on the radio’s screen. When using an application that doesn’t implement this feature, or running iOS4, only the name of the application will be shown.

Please note that although iOS 4 (4.2.1) is supported on iPhone 3G and iTouch 2nd generation, applications do not run in the background. As such, loading the app takes longer than on devices where the app is present in the background.

Controlling Internet Radio Apps

OMA-DUO-100-AVW-012012_rev012312.indd 33 1/23/2012 8:58:46 PM

Page 34

If your listening experience is interrupted by a call, under most conditions, the app will resume playback at the end of the call.

Music playback apps running on your iPhone are sent to background automatically when the home button of the phone is pressed, but the music playback itself is not stopped.

To resume playback of your iPod music library, stop Livio playback by tapping on the screen below the Livio Radio logo. An icon representing “stop” will show on the main Livio screen. Press the home button to send the application to the background. (Other apps may need to be terminated manually. Please see next page.)

A few seconds after this, the iPod music playback application will reinitialize itself and become active again if the iPod was locked when it was connected to the kit. (This is indicated by an Accessory Connected message being shown when the iPod icon is tapped.)

If the iPod was in unlocked state when it was connected to the kit, press the play button on the iPod application.

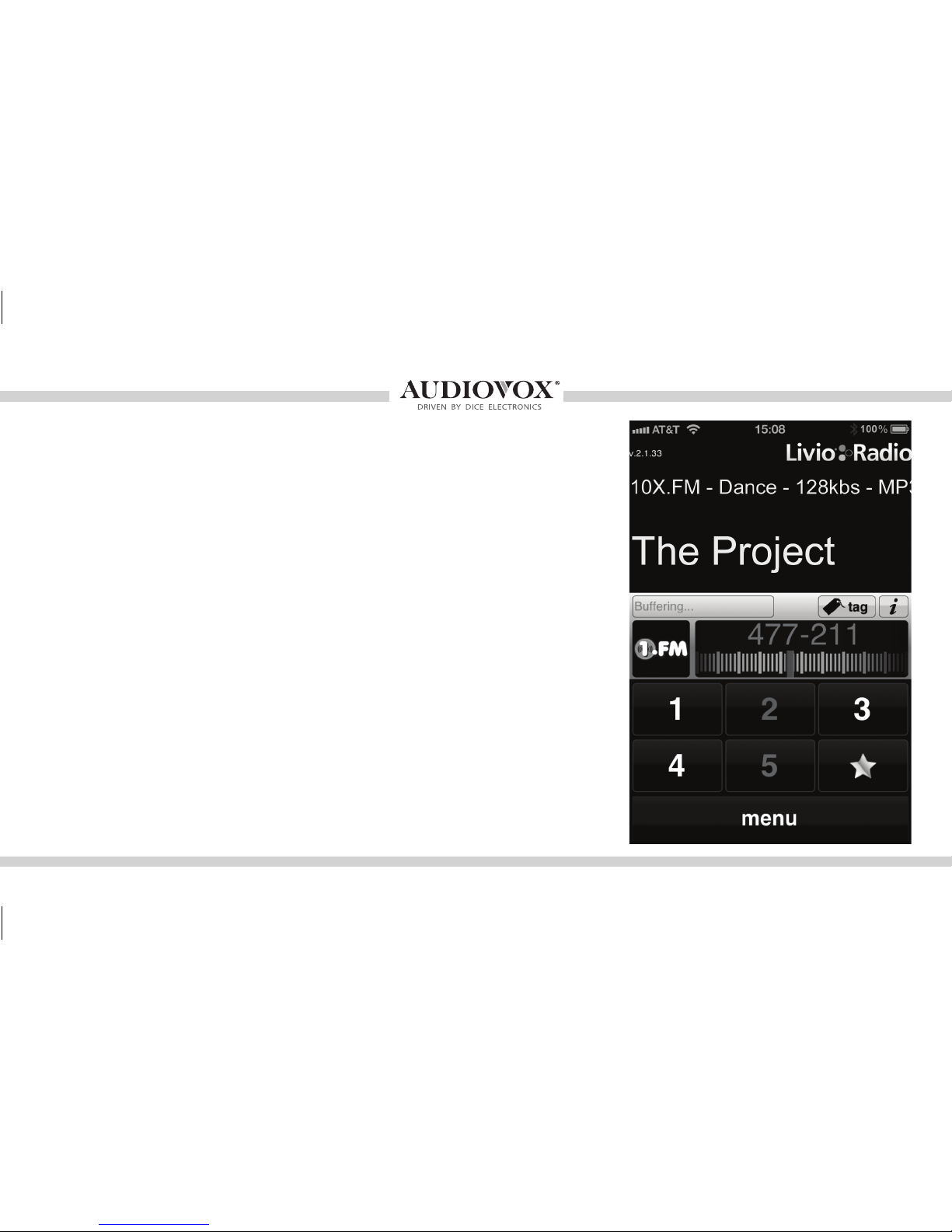

Text that scrolls across the radio’s screen is associated with the stream shown on the radio and displays current song or station information. Stream must be playing before information on the display is updated.

Text display from the Internet Radio App

OMA-DUO-100-AVW-012012_rev012312.indd 34 1/23/2012 8:58:46 PM

Page 35

If you need to terminate (kill) the app please follow the steps below:

1. Double-tap on the home button of the iPhone to bring up the list of running apps. If you don’t see the app’s icon right away, swipe the screen left or right to locate it. Note: If you do not see such task bar but rather a music control popup then you have an iOS device that does not support background run of apps, therefore this section is not applicable to you.

2. Press and hold the icon of the app until a red minus icon shows.

3. Tap the red minus icon shown on top of the app.

4. This will close the app.

5. In a few seconds, the iPod music playback app should reinitialize itself and become active again. This can

be veried by going back to the list of running apps and swiping the screen unit the music control section is

shown. The iPod app icon next to the music control sections shows that iPod is your audio source.

Many radio stations offer lower bitrates. Selecting streams with a lower bitrate will reduce data usage and may reduce stream interruptions during the drive. For example with the Livio Car Internet Radio app, to adjust bitrates manually, users can: Go to the Setting menu of the device, select the Livio Radio settings the change

the Maximum Bitrate Filter and set it to 64K. Other settings such as Buffer time and Reliability lter may also

help in getting a more stable connection.

Terminate (kill) the App

Internet Radio App settings

OMA-DUO-100-AVW-012012_rev012312.indd 35 1/23/2012 8:58:46 PM

Page 36

The DUO AUX cable (A-ACC-106-AUX) can be used to connect an auxiliary device, such as an MP3 player, DVD player or other audio source.

The auxiliary audio source can be accessed in both CDC and SAT emulation modes.

To access AUX audio source:

- Plug the mini DIN connector of the AUX adapter cable into the SIRIUS receptacle and connect the 1/8” mini stereo jack to the sound output of your audio device.

- Enter AUX mode (see pg. 21 or pg.29).

- All music playback is controlled through your audio device.

Auxiliary audio source (only with optional AUX connector)

OMA-DUO-100-AVW-012012_rev012312.indd 36 1/23/2012 8:58:46 PM

Page 37

iPod: Shufe SONG (within a PLAYLIST) / Shufe ALBUM / Shufe off

Toggle the audio sources between iPod and SIRIUS/AUX

iPod: Skip to the next ALBUM

*Next/Previous ARTIST function is currently not supported.

iPod: Skip to the previous ALBUM

Play / Pause

iPod: Repeat one / Repeat all / Repeat off

iPod: Next Track App: Next station/song (App dependant)

iPod: Previous Track App: Prev station/song (App dependant)

iPod: Skip to the next PLAYLIST

iPod: Skip to the previous PLAYLIST

SOURCE

Optional Remote Kit: Functions for iPod/App

OMA-DUO-100-AVW-012012_rev012312.indd 37 1/23/2012 8:58:47 PM

Page 38

Optional Remote Kit: Wireless Remote Function for SIRIUS

Previous Channel

Next Channel

Recall preset SIRIUS channel

Save the current SIRIUS channel in the corresponding preset.

Next Category

Toggle the audio sources between iPod and SIRIUS/AUX

Previous Category

Note: To display SIRIUS ID, go to channel 000.

Note: Saving presets with the remote will be

different from the presets saved by the radio.

OMA-DUO-100-AVW-012012_rev012312.indd 38 1/23/2012 8:58:47 PM

Page 39

Troubleshooting

Problem Solution

Text is not displaying in SAT emulation.

Make sure DIP switch settings are correctly set for text display. CDC emulation will not display text because the radio does not support text.

Make sure all EQ and BASS boost options are turned off on your iPod. See pg. 21 (SAT emulation) or pg. 29 (CDC emulation) for additional volume adjustments.

Music is distorted or sound level is too

low with iPod connected.

Disconnect the vehicle BUS connector from the DUO module for 30 seconds and reconnect. Ensure the vehicle BUS connector is properly connected to the radio and the DUO module. Follow the steps described in the SAT or CDC emulation sections of this manual to access the DUO interface. Make sure ground wire is securely attached to a ground point on the vehicle.

Cannot select the Silverline DUO

interface as an audio source.

Reset iPod and make sure the most recent iPod rmware is installed. Check

vehicle user manual on how steering wheel controls work, long presses may toggle alternate function.

Radio/ steering wheel controls do not

operate iPod.

OMA-DUO-100-AVW-012012_rev012312.indd 39 1/23/2012 8:58:47 PM

Page 40

Problem Solution

Playback of content selected on the iPod before connected to the interface continues until new content is selected.

Why does category read “PRESELCTD”?

The radio displays track/channel 99 (“TR 99” or ”CH99”). Track up/down controls don’t work.

Track 99 indicates that the Silverline DUO is in auxiliary audio (AUX) mode. See pg. 21 (SAT emulation mode) or pg. 29 (CDC emulation mode) for how to enter/exit this mode.

Check all connections. See if iPod charges while connected to computer or wall charger. You may need to reset the iPod.

iPod does not charge.

Ensure the cable connecting SIRIUS tuner is securely connected to the correct receptacle. Only the A-DUO-103-AVW kit is compatible with SIRIUS tuners.

Sirius tuner can’t be selected.

OMA-DUO-100-AVW-012012_rev012312.indd 40 1/23/2012 8:58:47 PM

Page 41

The iPod has reached the end of a playlist. Please select a new Playlist.

Why does the radio display show “EMPTY/STOP” and no music plays?

Problem Solution

When the Silverline DUO is playing iPod music in UNLOCKED mode, browsing mode information isn’t available so the “iPod UNLOCKED”

notication is shown. To view information associated with browsing modes,

ensure the iPod’s hold button is set before connecting it to Silverline DUO.

Why does the message “iPod UNLOCKED” display on screen?

If you entered settings mode in CDC emulation and you see anything other than CD1-01, you will need to exit from settings mode by pressing the CD1 button.

Cannot control the iPod or other Duo audio source

OMA-DUO-100-AVW-012012_rev012312.indd 41 1/23/2012 8:58:47 PM

Page 42

Updating Firmware (Mac OS illustrated)

Connect module via mini USB

Device specications and update selection License Agreement

(click Agree to proceed)

Product registration notication Firmware update progress Module updated successfully!

Audiovox

http://secure.audiovox.net/audiovox/register/

The above screen shots are for illustration purposes only.

Audiovox Firmware Updater v3.0.0

Audiovox Electronics

Audiovox Electronics,

Silverline DUO

DUO AVW

ABP 2.01

DUO

OMA-DUO-100-AVW-012012_rev012312.indd 42 1/23/2012 8:58:47 PM

Page 43

AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) w ill be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. A game controller, if supplied, is similarly warranted for ninety (90) days.

To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation prepaid, to the Company at the address shown below.

This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs incurred for installation, removal or reinstallation of the product, or to damage to digital memory/media devices, gaming devices, discs, speakers, accessories, or vehicle electrical systems.

This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN N O EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

This Warranty i s in lieu o f all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED T O THE DURATION O F THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH O F ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY O F MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM D ATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE F OR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH O F THIS OR ANY OTHER WARRANTY. No person or representative is authorized to assume for the Company any liability other than expressed herein i n connection w

ith the sale of this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

12 MONTH LIMITED WARRANTY

128-9032Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788

 1-800-645-4994

OMA-DUO-100-AVW-012012_rev012312.indd 43 1/23/2012 8:58:48 PM

Page 44
