Audio Technologies DA103 User Manual

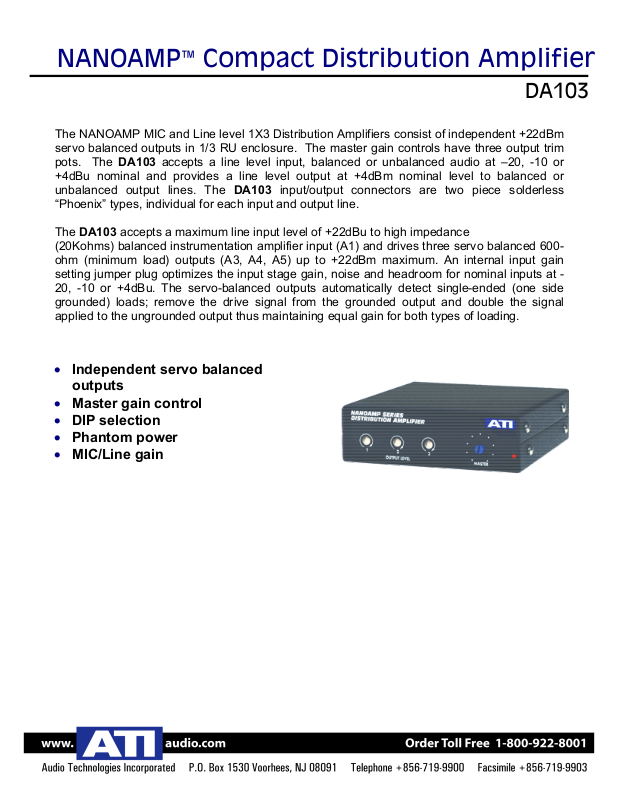

NANOAMP™ Compact Distribution Amplifier

r

r

DA103

The NANOAMP MIC and Line level 1X3 Distribution Amplifiers consist of independent +22dBm
servo balanced outputs in 1/3 RU enclosure. The master gain controls have three output trim
pots. The DA103 accepts a line level input, balanced or unbalanced audio at –20, -10 o
+4dBu nominal and provides a line level output at +4dBm nominal level to balanced o
unbalanced output lines. The DA103 input/output connectors are two piece solderless
“Phoenix” types, individual for each input and output line.

The DA103 accepts a maximum line input level of +22dBu to high impedance
(20Kohms) balanced instrumentation amplifier input (A1) and drives three servo balanced 600­ohm (minimum load) outputs (A3, A4, A5) up to +22dBm maximum. An internal input gain
setting jumper plug optimizes the input stage gain, noise and headroom for nominal inputs at ­20, -10 or +4dBu. The servo-balanced outputs automatically detect single-ended (one side
grounded) loads; remove the drive signal from the grounded output and double the signal
applied to the ungrounded output thus maintaining equal gain for both types of loading.

• Independent servo balanced

outputs

• Master gain control

• DIP selection

• Phantom power

• MIC/Line gain

NANOAMP™ Compact Distribution Amplifier

Technical Specifications

OUTPUT LEVEL

FREQUENCY RESPONSE
DISTORSION

NOISE

GAIN

PHANTOM POWER

POWER

DIMENSIONS in.(cm)

MOUNTING

CONNECTORS

POWER SUPPLIES

WA100-1
WA100-2

PH48-1

RACK MOUNT KITS

DESK MOUNT KITS

FIELD ACCESSORIES

PROK-1

REMOTE POWER PACKS

PPA-1

PPA-2

PPA-B
DCA100-1

BBU100-1

WARRANTY

+22dBm MAX, +4dBm Nominal into 600 ohm
balanced or unbalanced lines
+/- .25dB 20Hz to 20kHz
.05% THD Maximum at +20dBm;
.005% at nominal levels 20Hz to 20kHz
MIC Input: EIN = -124dBm,
LINE Input: EIN = -90dBm,
20Hz to 20kHz measurement bandwidth

Internal DIP switch gain selection at 30, 40,

60 or 80dB maximum.

+20VDC regulated;
Optional 48VDC available.
22 to 30VDC, 24VDC Nominal. @ 100mA;
See Power Supplies and Accessories

1.75(4.45)H x 5.6(14.22)W
x 5.75(14.6)D; 1.25 lbs, .57Kg
Free standing or rack mountable; one, two or
three units in 1¾"

Two piece quick release screw plug

connector per input and and outputs.

Wall mount power supply (UL), 24VDC @ .4amp, 115 VAC/60Hz.
Wall mount power supply or Table top power supply with IEC 320
Male 3 pin AC input connector, 24VDC @ .4amp, 230VAC/50Hz
48VDC phantom power option

20604-501 Center mount for single unit 20604-502 Side-by-side mount for two units 20604­503 Side-by-side mount for three units
20617-501 Angled Desk Mount Base. 20617-502 Angled Desk Mount Base and One
Stacker(2 units high). 20617-503 Angled Desk Mount Base and Two Stackers(3 units high).
20617-504 Stacker (2 units high) 20604-504 Horizontal Joiner (2 units side-by-side)

Unit protection kit which consists of a set of side plates with attached
side brackets. The side plates protect the front panel controls and the
rear XLR connectors from impact damage, and for attachment to carry
strap (not included); the slide brackets provide ease of access and
exchange of the power assemblies i.e. PPA, DCA, or BBU.

Integrated power pack assembly for remote operation which

mounts to a mixer. Includes housing, rechargable gel-cell battery
pack (four hours operation), and an external battery charger operating
at 115VAC/60Hz.

Same as above except battery charger operating at 230VAC/50Hz.
Europlug. Contact factory for other plug configurations.
Extra rechargable battery pack, charger not included.

Integrated DC/DC assembly which mounts to a mixer and accepts
external battery power with DC inputs from 10 to 32 volts to
produce 24VDC at 200mA maximum.
Battery Pack houses four 9V alkaline or lithium batteries
(not included) for remote operation or back-up power.
Limited, One Year Warranty

DA103
