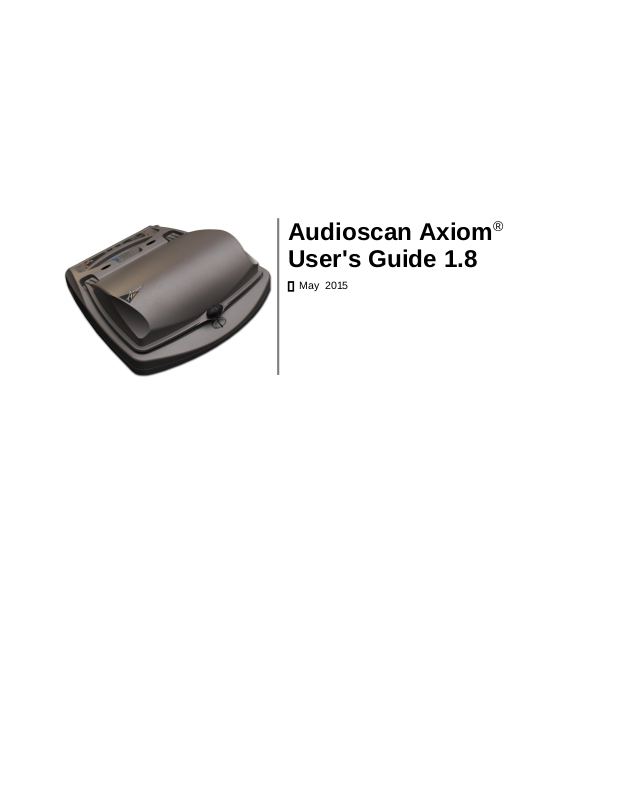

Audioscan Axiom User Manual

Audioscan Axiom User's Guide 1.8
May 2015
®
Table of Contents
1 About Axiom..........................................................................................................................................................................5
Product description...............................................................................................................................................................5
Associated items and supplies..............................................................................................................................................5
SAFETY WARNINGS and NOTICES................................................................................................................................5
Environmental safety............................................................................................................................................................6
Declaration of Electromagnetic Compatibility (EMC).......................................................................................................6
Warranty, Trademarks, Acknowledgments.........................................................................................................................7
EC Declaration of Conformity.............................................................................................................................................9
Electronic User’s Guide.....................................................................................................................................................10
How to Avoid Undesirable Side Effects............................................................................................................................10
Unpacking and connecting.................................................................................................................................................12
General care instructions....................................................................................................................................................14
Microphone care.................................................................................................................................................................15
Switching ON/OFF.............................................................................................................................................................16
Input device operation........................................................................................................................................................16
Barcode data input..............................................................................................................................................................17
Screen messages and Help.................................................................................................................................................18
Software updating...............................................................................................................................................................18
Date and time setup............................................................................................................................................................19
Display settings...................................................................................................................................................................19
Saving test setup.................................................................................................................................................................19
Networking requirements...................................................................................................................................................21
Networking setup................................................................................................................................................................21
Remote Operation...............................................................................................................................................................24
Changing the Remote Operation port................................................................................................................................24
NOAH Service Port............................................................................................................................................................25
Changing the NOAH service port......................................................................................................................................25
Testing the NOAH service port..........................................................................................................................................26
Automatic connection (recommended)..............................................................................................................................27
Static connection................................................................................................................................................................27
Storing data in NOAH........................................................................................................................................................29
Printing results....................................................................................................................................................................29
Printing setup......................................................................................................................................................................29
Printer connection...............................................................................................................................................................30
Printer types........................................................................................................................................................................30
HP printer............................................................................................................................................................................31
Custom printer....................................................................................................................................................................31
File output...........................................................................................................................................................................32
Page setup...........................................................................................................................................................................32
Windows-shared printers and folders.................................................................................................................................34
Network printer...................................................................................................................................................................36
Web browser screen capture..............................................................................................................................................36
Session setup.......................................................................................................................................................................37
Storing and restoring session files......................................................................................................................................37
Test box screen...................................................................................................................................................................40
Format.................................................................................................................................................................................40
Scale....................................................................................................................................................................................41
Hide or Show test box curves.............................................................................................................................................41
1996 or 2003 ANSI standard..............................................................................................................................................41
Axiom®User's Guide Version 1.8  May 2015
ANSI test frequencies.........................................................................................................................................................41
Test box calibration facts...................................................................................................................................................42
Calibrating test box reference microphone........................................................................................................................43
Calibration check for coupler microphone........................................................................................................................43
Coupling the hearing instrument for ANSI tests...............................................................................................................44
Coupling the hearing instrument for Test box Speechmap...............................................................................................45
Positioning the hearing instrument....................................................................................................................................45
ANSI S3.22-1996 facts.......................................................................................................................................................47
ANSI S3.22-2003 facts.......................................................................................................................................................47
ANSI 1996 Linear and AGC tests......................................................................................................................................48
ANSI 2003 Linear and AGC tests......................................................................................................................................48
ANSI test results.................................................................................................................................................................49
Multicurve procedure.........................................................................................................................................................50
Multicurve results...............................................................................................................................................................50
Spectral analysis in Multicurve..........................................................................................................................................51
Manual control procedure..................................................................................................................................................51
Sound level meter using manual control...........................................................................................................................52
Sensory loss simulator description.....................................................................................................................................54
Sensory loss simulator operation.......................................................................................................................................54
On-ear calibration facts......................................................................................................................................................56
Calibration of on-ear probe microphone............................................................................................................................56
Calibration check for probe module..................................................................................................................................57
Max TM SPL setup............................................................................................................................................................58
Positioning the client..........................................................................................................................................................59
Positioning the probe tube..................................................................................................................................................59
SPL or HL scale..................................................................................................................................................................61
Hide or show on-ear curves................................................................................................................................................61
On-ear manual control........................................................................................................................................................63
Sound level meter using on-ear microphones....................................................................................................................63
Calibration of RECD transducer........................................................................................................................................64
Calibration of RECD transducer........................................................................................................................................64
Measure RECD ..................................................................................................................................................................68
RECD results......................................................................................................................................................................69
ANSI S3.46(2013) RECD..................................................................................................................................................70
RECD protocols..................................................................................................................................................................70
RECD facts.........................................................................................................................................................................71
Insertion gain in SPL..........................................................................................................................................................73
Insertion gain in HL...........................................................................................................................................................74
Audiometric data entry.......................................................................................................................................................74
REUR measurement procedure..........................................................................................................................................75
REAR measurement procedure..........................................................................................................................................76
SII calculation in Insertion gain.........................................................................................................................................77
CROS fitting using Insertion gain......................................................................................................................................77
3
Axiom®User's Guide Version 1.8  May 2015
Speechmap facts.................................................................................................................................................................79
DSL 5.0 in Speechmap.......................................................................................................................................................79
DSL 5.0 changes.................................................................................................................................................................80
NAL-NL1 in Speechmap....................................................................................................................................................80
NAL-NL2 in Speechmap....................................................................................................................................................80
Camfit in Speechmap.........................................................................................................................................................81
Using Speechmap...............................................................................................................................................................81
Speechmap Setup................................................................................................................................................................82
Screen tour - unaided screen..............................................................................................................................................84
Screen tour - aided screen..................................................................................................................................................85
On-ear or Test box mode....................................................................................................................................................85
SII calculation in Speechmap.............................................................................................................................................86
Using Custom Stimuli in Speechmap................................................................................................................................86
Creating WAV Files for Speechmap.................................................................................................................................87
Speechmap screen choices.................................................................................................................................................90
Data entry...........................................................................................................................................................................91
Fitting to targets for soft speech.........................................................................................................................................91
Fitting to targets for average speech .................................................................................................................................92
Adjusting the Maximum Output Level..............................................................................................................................94
Open fittings in Speechmap...............................................................................................................................................95
Verifying Frequency Compression/ Frequency-Lowering Hearing Instruments in Speechmap......................................95
FM fitting and verification.................................................................................................................................................97
Speechmap stimuli.............................................................................................................................................................99
Stimulus levels....................................................................................................................................................................99
Microphone location effects.............................................................................................................................................100
Deep insertion compensation...........................................................................................................................................101
Speech signal analysis......................................................................................................................................................101
Self test failures................................................................................................................................................................102
Initialize Function............................................................................................................................................................102
Test box high distortion or noise......................................................................................................................................103
Test box curves inconsistent............................................................................................................................................103
Test box curves differ from specifications......................................................................................................................103
Test box speaker overdriven............................................................................................................................................103
No test box reference mic. detected.................................................................................................................................104
Invalid test box calibration...............................................................................................................................................104
No on-ear ref. mic. detected.............................................................................................................................................104
Invalid on-ear calibration.................................................................................................................................................104
Sound-field speaker overdriven.......................................................................................................................................105
Barcode scanner malfunction...........................................................................................................................................105
General..............................................................................................................................................................................108
Test box............................................................................................................................................................................108
On-Ear...............................................................................................................................................................................108
Sensory Loss Simulator....................................................................................................................................................109
Manufacturer Disclosure Statement for Medical Device Security.................................................................................119
4
Axiom®User's Guide Version 1.8  May 2015
1 About Axiom
This section describes the Audioscan Axiom, provides contact, warranty and trademark information, safety warnings and notices and instructions for accessing the electronic User’s Guide.
Note that the User's Guide may be viewed on the Axiom at any time by clicking . (For long Help pages, use the mouse to switch between the Help index and the Help page and to scroll through the page).
The electronic User’s Guide also contains a glossary and additional reference materials and is located on the updater USB flash drive included with the Axiom.
Product description
The Axiom is a hearing aid analyzer intended to be used by hearing care professionals such as audiologists and hearing aid specialists to verify the electro-acoustic performance of a hearing aid connected to a standard earphone coupler or while worn on the ear of the end user. It consists of:
a) an integrated acoustically-treated test chamber which houses a loudspeaker, a reference microphone for controlling the signal from the loudspeaker, and a standardized earphone coupler connected to a measuring microphone for the purpose of measuring the sound level produced in the standard coupler by a hearing aid.
b) signal generation, measurement and control electronics.
c) two real-ear measurement microphone assemblies, each housing a reference microphone for controlling the signal from the sound-field speakers and a probe microphone connected to a thin silicone tube which may be inserted into the ear canal for the purpose of measuring the sound level in the ear canal produced by a hearing aid.
d) a miniature earphone used to measure the real-ear to coupler difference (RECD) useful in estimating the sound level produced in an individual ear from measurements in the standard earphone coupler.
There are 4 connectors for USB devices (flash drives, a QWERTY keyboard, mouse, printer, barcode scanner), a LAN port, and connectors for the external power supply (supplied), external loudspeaker (supplied) and 2 connectors for external HDMI video monitors (not supplied).
Electrical supply input requirement: 100 – 240 Vac 47 – 63 Hz 1.35A
A hospital grade grounded outlet is required.
Associated items and supplies
VA-120 Barcode scanner for reading barcoded audiometric data on printouts from Audioscan analyzers
VA-201 NOAH® module allows a networked PC running NOAH to exchange data with Audioscan analyzers
RE367-36 Probe microphone tubes for single patient use (36 per bag)
SAFETY WARNINGS and NOTICES
For purposes of IEC 60601-1, this product is Class I with Type BF applied part.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
5
Axiom®User's Guide Version 1.8  May 2015
received, including interference that may cause undesired operation
This Class A digital apparatus complies with Canadian ICES-003
WARNING: To avoid the risk of electric shock, this product must be used only with the power supply
supplied with the product.
WARNING: To avoid the risk of electric shock, this product must be connected only to a supply mains with protective earth (ground).
WARNING: To avoid the risk of electrical shock, any line-powered peripheral equipment connected to this product must comply with UL/IEC 60601-1 OR comply with UL or IEC and ISO safety standards for such equipment AND a) be operated from an isolating transformer complying with UL/IEC 60601-1 OR b) be kept at least 6 feet (1.8 m) from the patient.
WARNING: This equipment is not suitable for use in an oxygen-rich environment or in the presence of flammable anesthetic mixtures with air or with oxygen or nitrous oxide.
WARNING: No modification of this equipment is permitted
This symbol on the product is a WARNING that failure to follow instructions in this part of the User’s and/or Quick Start Guides could place the operator or patient at risk.
This symbol on the product means that the parts applied to the patient meet the safety requirements of IEC 60601-1 for type BF isolated (floating) applied parts
Environmental safety
This symbol on the product means that this product is not to be disposed of in unsorted municipal waste
because electrical and electronic waste may contain hazardous substances which could endanger the environment and human health.
This product and its associated items must be disposed of in accordance with local disposal regulations for electrical
and electronic waste. Consult your local waste disposal authority regarding applicable regulations.
The microphone probe tubes and the foam eartips used with the RECD transducer are for single patient use. After use, they may be disposed of in unsorted municipal waste or as required by your facility's waste management policy.
Declaration of Electromagnetic Compatibility (EMC)
Medical electrical equipment needs special precautions regarding EMC and needs to be installed and put into service according to the following information:
• The Axiom should not be used adjacent to or stacked on other equipment. If this is necessary, its operation
should be verified as normal in this configuration.
• Portable and mobile RF communications equipment can affect medical electrical equipment and may affect
the performance of the Axiom.
• Performance degradation due to electromagnetic disturbances (including electrostatic discharge) is
considered normal and acceptable
6
Axiom®User's Guide Version 1.8  May 2015
The compliances listed in the following table are met with the supplied RECD transducer, microphones, speaker and mouse connected, with 2 LCD monitors connected and with a, terminated Ethernet cable and unterminated USB cables (3) connected. The connection of other devices may result in increased emissions.
Guidance and manufacturer’s declaration - electromagnetic emissions
The Axiom is intended for use in the electromagnetic environment specified below. The user of the Axiom should
assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/ flicker
emissions
IEC 61000-3-3
Group 1
Class A
Class A
Complies
The Axiom uses RF energy only for internal function. Therefore RF emissions are very low and not likely to
cause any interference in nearby electronic equipment.
The Axiom is suitable for use in all establishments
other than domestic and those directly connected to
the public low-voltage power supply network that
supplies buildings used for domestic purposes.
Warranty, Trademarks, Acknowledgments
The Audioscan Axiom is manufactured by Etymonic Design Inc., 20 Ludwig St., Dorchester, Ontario, Canada, N0L 1G4. Web site www.audioscan.com.
Phone: 800-265-2093 (USA only); 519-268-3313 Fax: 519-268-3256
Email: info@audioscan.com or service@audioscan.com
The authorized representative for this product in the European Community is:
P.C. Werth, Audiology House, 45 Nightingale Lane, London, UK, SW12 8SP.
Phone: +44 (0) 181-675 5151 Fax +44 (0) 181-675 7577.
Warranty: The Axiom is warranted against defects for two years from date of purchase. Within this period, it will be repaired without charge for parts, labor or return shipping when returned prepaid to your authorized Audioscan service agent. This warranty does not apply to equipment that, in our sole judgment, has been subject to misuse, or unauthorized alteration or repair.
Trademarks:
Audioscan, Axiom, Speechmap, Verifit and Viewport, are registered trademarks of Etymonic Design Inc. DSL
is a registered trademark of Western University. All rights reserved. HP LASERJET is a registered trademark of Hewlett-Packard Company. NOAH is a registered trademark of the Hearing Instrument Manufacturer's Software Association. QUEST is a trademark of Quest Technologies Inc. PostScript is a registered trademark of Adobe Systems, Inc.
Acknowledgments:
DSL 5.0 is used under license from Western University which is solely responsible for its content. We acknowledge the support received from past and present staff at the National Centre for Audiology at Western
7
Axiom®User's Guide Version 1.8  May 2015
University in implementing the DSL method.
CAMFIT is used under license from Prof. Brian C.J. Moore, University of Cambridge, UK. We are indebted to the University of Memphis Hearing Aid Research Laboratory for permission to use some of their recorded speech material.
NAL-NL1 is used under license from the National Acoustics Laboratories, Australia.
NAL-NL2 is used under license from Hearworks Pty Ltd, Australia.
Software licenses:
Audioscan distributes selected software components under various open source licenses. These licenses generally give you the right to copy and change the affected component's software source code. For details, see the license files distributed with the software, or contact Audioscan.
8
Axiom®User's Guide Version 1.8  May 2015
EC Declaration of Conformity
9
Axiom®User's Guide Version 1.8  May 2015
Electronic User’s Guide
You can download the current User's Guide directly from www.audioscan.com. A printable User’s Guide is on the updater USB flash drive supplied with a new instrument. This User's Guide will be updated each time you download new software from www.audioscan.com to the updater USB flash drive. Except for some additional
reference material, this same information is available to you at any time by clicking on the Axiom.
A .pdf file viewer, such as Acrobat Reader (5.0 or higher) or Foxit Reader is required to view the User’s Guide. To view the User's Guide:
1. Insert the updater USB flash drive into a USB port on your PC.
2. If your PC does not open the flash drive automatically, select My Computer, then the Removable Disk drive (usually E or F).
3. Double click the User_Guide folder to open it.
4. Double click the english folder and copy the Axiom Users Guide.pdf file to an appropriate location on your PC. Double click on the file to open it for viewing.
When you have finished copying the file from the USB flash drive, click on the safely remove icon on your PC and remove the flash drive when you are notified that it is safe to do so.
STORE THE UPDATER USB FLASH DRIVE IN A SAFE PLACE. YOU WILL REQUIRE IT TO INSTALL FUTURE SOFTWARE UPDATES.
How to Avoid Undesirable Side Effects
During the development of the hearing aid analyzer, Audioscan performed a rigorous Risk Assessment to identify any undesirable side effects that a user could be exposed to during the use of the Axiom, and incorporated numerous risk reduction design elements into the Axiom to minimize the risk to users and patients.
Following are the actions which a user should take to ensure that these risk control measures continue to be effective
Loud Sounds:
The Axiom is designed to produce sound pressure levels as high as 85 dB at the probe reference microphone. Exposure to these levels for more than 7 hours can produce hearing damage. When such levels are amplified by a hearing aid, the level in the ear canal will be determined by the settings of the hearing aid but may reach levels that can produce hearing damage in less than 30 seconds. To avoid this possibility,
1. hearing aids should be adjusted to limit sound pressure levels to safe levels
2. the maximum TM SPL setting (see Max TM SPL Setup) should be used to terminate tests if an unsafe level is detected in the ear canal
3. test levels should be limited to 70 dB SPL except when necessary to verify the limiting levels of the hearing aid, in which case, the test should not last longer than 15 seconds
4. be aware of the test signal and patient reaction during a test and be prepared to respond to any sign of discomfort by reducing the SPL setting, switching off the equipment or the hearing aid, or removing the patient from the area.
When using the equipment to measure the Real-Ear to Coupler Difference in small ear canals, it is possible to induce a hearing loss if the test is allowed to continue for more than 1 hour. Since accurate results can be
10
Axiom®User's Guide Version 1.8  May 2015
obtained in less than 10 seconds, this possibility should never occur in normal practice.
Power and Grounding:
This product contains numerous safety features to ensure that the probability of electrical shock is as low as reasonably practicable. In order to ensure that all of the safety features work optimally you must ensure that the power cord is plugged into a grounded outlet. Any line-powered peripherals connected to the Axiom must comply with UL/IEC 60601-1 OR comply with UL or IEC or ISO safety standards for such equipment, AND a) be operated from an isolating transformer complying with UL/IEC 60601-1, OR b) be kept at least 6 feet (1.8m) from the patient.
Ear Infection:
Probe tubes or RECD foam tips should not be re-used on another patient. There is a possibility of transferring an ear infection to the other patient. Probe tubes and RECD foam tips are for single-patient use only. Do not attempt to clean or re-use.
Ear Canal Discomfort:
An otoscopic examination should always be performed prior to inserting a probe tube into the ear canal to ensure that it is healthy and free of obstructions. Care is needed when inserting probe tubes into the ear canal. Although the probe tubes are made of soft, flexible material specially designed for this application, it is possible to scrape the ear canal or touch the eardrum causing brief discomfort. You should carefully follow the instructions in “Positioning the probe tube” section of this User’s Guide.
11
Axiom®User's Guide Version 1.8  May 2015
2 Getting Started
This section provides instructions for unpacking the Axiom and connecting various components and associated items.
Unpacking and connecting
1. Carefully unpack the components of the Axiom from the shipping box and check the contents against the enclosed packing list.
2. Locate the Axiom on a solid surface in a quiet room and choose a location for the speaker and the client such that they will be about 2' (0.6 m) apart and both at least 4' (1.2 m) from any reflective surface. If the speaker is to be mounted on a desk, it should be at the edge facing outward. A room with sound-absorbing floor, ceiling and walls is recommended.
3. Turn the Axiom over and connect the on-ear probe microphones and the RECD transducer as shown.
4. Dress the leads out the sides, front or rear of the Axiom as appropriate for your work setup and turn the Axiom over, placing it on its rubber feet in the place where you will use it.
5. Open the lid of the test chamber by using your thumb to roll the rubber roller toward the front of the Axiom. This is made easier by placing your fingers under the front lip. When sealing the chamber in its closed position, place your fingers on top of the lid and use your thumb to roll the rubber roller toward the rear of the Axiom.
12
Axiom®User's Guide Version 1.8  May 2015
6. Plug the reference microphone and coupler microphone in to their respective connectors in the test chamber.
7. Connect the speaker to the speaker connector on the rear connector panel.
8. Connect a video monitor (HDMI or DVI with adapter) to the PRIMARY MONITOR connector on the rear
13
Axiom®User's Guide Version 1.8  May 2015
connector panel. This connector must be used if a single monitor is connected. An additional monitor may be connected to the second MONITOR connector.
9. When connecting both of the Axiom's monitor connectors to TV displays -- The set-up procedure should be as follows:
1. Connect both HDMI cables.
2. Power on TV's & assign proper input on both
3. Power on Axiom & Wait 45 sec for boot up until splash/welcome screen would appear
4. Power cycle TV if video isn’t displayed
5. If video does not appear on either TV, first try power cycling the TV, then try re-booting the Axiom.
Failure to follow operating instructions could place the user or operator at risk.
WARNING: To avoid the risk of electrical shock, monitors connected to the Axiom must comply with UL/IEC 60601-1 OR comply with UL or IEC and ISO safety standards for monitors AND a) be operated from an isolating transformer complying with UL/IEC 6061-1 OR b) be kept at least 6 feet (1.8 m) from the patient.
10. Connect a USB mouse (included) to one of the USB connectors on either side of the Axiom.
11. Connect the Axiom power supply (included) to the power connector on the rear connector panel.
12. Connect the power cord (included) from the Axiom power supply to a GROUNDED electrical outlet. In the USA and Canada, this outlet should be marked Hospital Grade.
WARNING: To avoid the risk of electrical shock, use only the power supply and power cord supplied with
the Axiom and connect it only to a grounded (protectively earthed) electrical outlet.
WARNING: To allow electrical power to be rapidly disconnected in the event of an emergency, position the
power supply in an accessible location so that the power cord may be quickly disconnected.
General care instructions
Probe tubes are for single patient use only. They may be wiped with alcohol wipes for re-use with the same
14
patient, but must not be used with multiple patients. Attempts at ultrasonic cleaning usually result in cerumen becoming lodged in the lateral end which causes irreparable damage to the probe microphones.
The case can normally be cleaned/dusted with a damp cloth, however if it is soiled we recommend wiping with a mild solution of water and detergent, or with alcohol-impregnated wipes deemed safe for use on electronic equipment. Parts that come into contact with patients (the probe module body, cable, and blue lanyard) should be regularly wiped down with alcohol wipes.
Hearing instruments should be cleaned prior to introduction to the test chamber due to the difficulty of sanitizing the acoustic foam. Custom hearing instruments must be cleaned with disinfectant towlettes (i.e. audiowipes) prior to placing in the test for this reason and to minimize contamination of the blue putty used with the HA-1 coupler. The acoustic foam in the floor of the test chamber is easily removed and should be replaced if badly worn or soiled.
Audioscan recommends periodic replacement of the blue putty used with the HA-1 coupler to ensure cleanliness. Both couplers and coupler mic can be wiped down with alcohol wipes as needed.
Ensure that all safety and usage recommendations on cleaning product packages are followed.
Microphone care
Coupler microphone:
Axiom®User's Guide Version 1.8  May 2015
1. DO NOT twist the cable when attaching a coupler to the coupler microphone. Turn only the coupler or unplug the coupler microphone before turning it.
2. DO NOT leave the coupler microphone plugged in when transporting.
3. DO make sure that the 2cc coupler is tightly screwed to the coupler microphone when performing hearing instrument tests. Coupler leakage can cause feedback and erratic response curves.
4. DO make sure the tubing on the BTE (HA-2) coupler is free from any cracks/tears.
5. DO make sure that any replacement tubing used on the BTE coupler is either obtained from Audioscan, or is #13 heavy wall earmold tubing exactly 10 mm in length.
Probe microphone:
Debris can alter the probe module reference microphone calibration and frequency response and can permanently clog the probe module port.
1. DO NOT reuse probe tubes. Probe tubes can be wiped with alcohol wipes for re-use with the same patient, but must not be used with multiple patients. Attempts at ultrasonic cleaning usually result in cerumen becoming lodged in the lateral end which causes irreparable damage to the probe microphones.
2. DO NOT attempt to open or repair the probe microphone. Attempting to repair the probe module may lead to damage or alteration of the factory calibration.
3. DO keep the probe module and probe tubes in a clean area.
4. DO stow the probe module when not in use or when transporting the Axiom.
15
Axiom®User's Guide Version 1.8  May 2015
switch between A/B test box data
3 General Operation
This section describes the use of a mouse or QWERTY keyboard to control the Axiom and to enter data, and the use of the (optional) barcode scanner to enter data from printouts produced by Audioscan analyzers. It also provides instructions for updating the Axiom operating software.
Switching ON/OFF
See Getting Started for instructions on connecting the Axiom to its external power supply module, the module to an electrical outlet and the location of the standby switch.
To start the Axiom, set the standby switch to its "ON" position. The green light on the right rear corner will light and the instrument will begin its start-up sequence which will take a few seconds.
To shut down the Axiom, switch the standby switch to its "OFF" position.
Note that the Axiom receives low voltage electrical power from the external power supply module. The standby switch on the rear of the Axiom disconnects this electrical supply but the power supply module is always on
as long as it is connected to a live electrical outlet. The green light on the power supply module indicates that it is receiving electrical power from the outlet.
Input device operation
The Axiom is operated by using a USB mouse (included) or a QWERTY keyboard (not included) to select icons and menu items, operate on-screen buttons and to enter audiometric data.
To activate an on-screen icon or button, or to select an item from a menu, use the mouse to place the screen pointer over the icon, button or menu item and left click. To enter a data point on a chart, such as an audiogram, place the screen pointer over the desired point on the chart and left click. To move the data point, place the screen pointer near the new location and left click. To delete a data point, place the screen pointer on the data point and left click. To summon a cursor on a graph, place the screen pointer on the graph and left click, then navigate to the point you want to identify; left click again to hide the cursor. The scroll wheel may be used to traverse the Help contents, multiple Help pages or long menu lists. Note that mouse speed can be changed by
clicking and [Display].
The functions of the screen icons and QWERTY keyboard keys are explained in the following table:
Screen icon Function QWERTY Key
Continue. Proceed from current state
Cancel. Revert to previous state [Esc]
Show menu of available tests [F3]
Switch between Left/Right on-ear data or
[F5]
Show on-line help [F1]
Show the setup menu [F2]
16
Axiom®User's Guide Version 1.8  May 2015
data with network files or USB memory
button or menu item
Activate a screen icon or button, or select an item from a menu (mouse left click)
keypad
Print screen to an external printer or a file [Print Screen]
Barcode data input
In Speechmap and Insertion gain tests, audiometric data in barcode form on an Audioscan analyzer printout may be entered by scanning the appropriate barcode. In Speechmap, air and bone threshold, UCL, RECD, audiometric transducer and age are encoded. In Insertion gain, threshold and audiometric transducer type are encoded. The type of data and the ear (left, right) is shown below the barcode. Only data for the displayed ear are imported. Barcodes may be scanned in any order and it does not matter if the barcode is 'upside down'.
1. Select Speechmap or Insertion Gain from the Tests menu.
Show menu for erasing data or exchanging
Position the screen pointer over the icon,
[F4]
[Arrow keys]
[Enter] on numeric
2. Hold the printout so that the barcode is flat. With the scanner 6 – 8 in. (15 – 20 cm) from the barcode, press the trigger on the scanner and center the illuminated red line along the length of the barcode.
3. When the scan is successful, the scanner will 'beep', the red line will extinguish and a Barcode Entry poster will appear on the screen. A green checkmark on the poster shows which data have been accepted. A message will advise if the barcode does not contain data for the screen you are viewing.
4. When all desired data have been accepted, select [Done] to apply the data.
See Barcodes, tabular data, headers and comments on printouts under Printing and Storing Results.
17
Axiom®User's Guide Version 1.8  May 2015
Screen messages and Help
The Title bar (top line of the display screen) informs you of the selected Test (e.g., Speechmap).
The Message bar (bottom line of the display screen) suggests the next step in a test or informs you of the state of the instrument or conditions that could affect your data. For example, it will inform you if the microphones need to be calibrated.
Context-sensitive help is available by clicking on or pressing F1 on a connected QWERTY keyboard. The Help index (left panel) or Help page (right panel) may be selected by left clicking the mouse on either panel or by pressing the F5 key on a QWERTY keyboard. The side sliders on each panel may be used to scroll through the Help index or long Help pages. This may also be accomplished using scroll wheel on the mouse or the arrows on a QWERTY keyboard.
Software updating
The software currently running on your Axiom is stored in internal memory. A USB flash drive was shipped with your Axiom. It will be required to transfer future software updates from a PC to the Axiom. STORE IT IN A SAFE PLACE. You may download the latest software from www.audioscan.com or request that a CD-ROM be mailed to you. Instructions for transferring the software update from your PC to the Axiom will be included with the software download or the CD-ROM.
18
Axiom®User's Guide Version 1.8  May 2015
4 General Setup
This section covers Date and Time setup, Display settings (including mouse pointer speed setting) and Saving test setup.
Date and time setup
To set the date and time that appears on printouts and calibration screens:
1. Left click on
2. Left click on [Date & Time] on the Setup menu
3. To change the date, left click on the month, date or year windows and make your selection from the drop­down lists by left clicking on an item.
4. To change the time, left click on the hour or minute window and make your selection from the drop-down lists by left clicking on an item. Left click on am/pm window to toggle between am and pm.
5. To exit the Setup menu, click on
Display settings
To change the screen language, screen saver timing and the background color for charts:
1. Left click on
2. Left click on [Display] on the Setup menu
3. To change the language used on the screen, left click on the Language window and select from available languages (Deutsch, English, Español, Français, Português).
4. To change the idle time before the screen saver blanks the screen to prolong display life, left click on the Screen saver window and make your selection from the drop-down list by left clicking on a time.
5. To change the background color for charts, left click on the Color window to toggle between Black and White.
6. In this screen you can also click on the Mouse pointer speed button and select the response speed from the drop-down list.
7. To exit the Setup menu, left click on
Saving test setup
This feature lets you retain the last-used stimulus type and level for most tests when the power is turned off and the last-used target method and transducer type in Speechmap and Insertion Gain tests. This feature also lets
you determine how assessment parameters, test levels and stimuli are treated when you click on and select [Erase data].
To enable/disable saving of test levels, stimuli and assessment parameters:
1. Left click on
19
Axiom®User's Guide Version 1.8  May 2015
2. Left click on [Save option] on the Setup menu.
3. Left click on the Yes/No windows to enable/disable the save options indicated.
4. To exit the Setup menu, left click on
20
Axiom®User's Guide Version 1.8  May 2015
5 Networking
Connection to a computer network allows screen images to be printed on a network printer or on a shared printer on a networked PC. Images and underlying data may also be saved to a shared folder on a networked PC. See Printing and Storing Results for details. The Axiom may also be connected to a single computer using a network router, switch or hub. Note that sharing data with NOAH is done over this network connection.
Failure to follow operating instructions could place the user or operator at risk.
Networking requirements
Connection of the Axiom to a wired computer network (LAN) requires a Cat 5, RJ-45 cable.
Connection of the Axiom to a wireless computer network (WLAN) requires the optional Audioscan Axiom WiFi Adapter, part # AX-100.. Connection speeds will be determined by the type of wireless connection provided and distance from the wireless router. The standard 802.11a, b, g, or n wireless networks can be connected to the Axiom.
The current supported forms of wireless encryption (network security) are as follows:
• WPA / WPA2 (using pass-phrase for authentication), most common
• WEP (10 or 26 digit hex key)
• None (open network)
The Axiom can connect to a local area network (LAN or WLAN) using either automatic or static internet address assignment. Most home and small-office networks use automatic addressing. These networks have a DHCP server (Dynamic Host Configuration Protocol). Special-purpose networks might use static address assignment provided by the network administrator.
Remote Operation of the product requires a valid network connection, whether it be wired or wireless the Axiom must have an active network connection .
Networking setup
Check Networking requirements and connect the Axiom to your network.
1. Click and then choose [Network] from the Setup menu.
2. Click Network [Change].
3. To turn networking off select the Off position in the [Network] drop down.
21
Axiom®User's Guide Version 1.8  May 2015
1. Select [Change] to set [Network] to the Wired option.
2. In most cases, your network will support automatic address assignment (DHCP) and you need to only
enable [Auto].
3. Click [Test connection] to test your settings.
4. If the test is successful, your Axiom's IP address will be reported.
5. Click to apply your settings.
4. Connecting to a wireless (WLAN) network
1. Ensure Audioscan AX-100 WiFi adapter is connected to a USB port on the Axiom.
2. Select [Change] to set [Network] to the Wireless option.
3. Click [Scan].
4. Once the scan is complete, select the your wireless network from the list. If your network is not visible,
you may type the network name into the [SSID] box.
Note: wifi networks containing {}[]"'|\ will not be displayed in the pull-down menu.
5. Confirm the wireless security type for your network. If you are unsure of the security type, please consult
your network administrator.
6. Type the security key or pass phrase into the [Password] text field.
7. Click [Test connection] to test your settings.
22
Axiom®User's Guide Version 1.8  May 2015
8. Click to apply your changes.
5. To assign a network address automatically using DHCP:
1. Simply enable [Auto].
2. Click [Test settings] to test your settings.
3. If the test is successful, your Axiom network address will be displayed (e.g., 172.30.1.44).
4. Click to continue.
Large, institutional computer networks sometimes use static address assignment. Ask your network administrator for help in performing the following steps.
6. To assign a static network address:
1. Disable Auto (DHCP).
2. Click the [Change] button.
3. Enter the network address details in the Change network address poster.
4. Click to apply your changes.
23
Remote Operation
Check Networking requirements and connect the Axiom to your network.
1. Click and then choose [Network] from the Setup menu.
1. Click Remote Operation [Change].
2. Click [Off] or [On] to turn Remote Operation off or on.
3. Input a password in the Password field. If password is not manually entered, the default will be audioscan
4. Click to apply your settings to the remote operation service.
Axiom®User's Guide Version 1.8  May 2015
Note: “On top mode” and “Telehealth” applications can both be achieved by the “Remote Operation” feature.
Changing the Remote Operation port
Consult your Network Administrator before changing the Remote Operation port. Changing the port successfully requires understanding the security polices on your Windows PC and computer network.
The Audioscan Remote Operation application communicates with the Axiom through the Remote Operation network service. The Axiom provides the Remote Operation service on a TCP port. The Windows computer running the module must be configured to access the same TCP port, which is 5900 by default. Some Windows anti-virus software packages and some network firewalls prevent access to specific ports, including 5900. Using the Remote Operation application in the presence of such security settings may necessitate changing the Remote Operation service port.
1. Press <Change> next to the Remote Operation port.
2. Select the appropriate five digits to enter the desired port number. The software will prevent you from entering the same port as the Product web service (typically port 80).
24
Axiom®User's Guide Version 1.8  May 2015
NOAH Service Port
Consult your Network Administrator before changing the NOAH service port. Changing the port successfully requires understanding the security polices on your Windows PC and computer network.
The Audioscan NOAH Module communicates with the Axiom through the NOAH network service. The Axiom provides the NOAH service on a TCP port. The Windows computer running the module must be configured to access the same TCP port, which is 8080 by default. Some Windows anti-virus software packages and some network firewalls prevent access to specific ports, including 8080. Using the NOAH module in the presence of such security settings may necessitate changing the NOAH service port.
Note that changing the NOAH service port requires restarting the Axiom software.
Changing the NOAH service port
1. Press <Change> next to the NOAH service port.
2. Select the appropriate five digits to enter the desired port number. The software will prevent you from entering the same port as the Product web service (typically port 80).
3. Click .
4. You will be prompted to restart the equipment. Click to restart, or to enter a different port number.
25
Axiom®User's Guide Version 1.8  May 2015
Testing the NOAH service port
The Axiom provides the NOAH service using the HTTP protocol. Communication between the Windows PC and the Axiom can be tested using an ordinary web browser.
1. On the Windows PC, enter the Axiom network address and port number into a web browser following this example:
http://172.30.86:8080/noah
2. If the communication is successful, the web browser will display NOAH data formatted in XML:
<noah> Example XML </noah>
26
Axiom®User's Guide Version 1.8  May 2015
6 Single computer connection
The Axiom can be networked to a single computer with two methods, depending on the network hardware available. The computer must be running Windows XP professional or higher (Vista, Windows 7, Windows 8) and have an available, functioning network port.
Note: The single computer connection instructions assume the PC is not on any other network, including wireless. If your PC has a network or internet connection, see 5. Networking:Networking Requirements.
Automatic connection (recommended)
Automatic connection requires a small network router. It may be wireless or not, but must have at least two hardware Ethernet connections. Most routers have DHCP address assignment active by default and do not require installation of software on the PC to establish a simple connection with a Axiom.
1. Connect a Cat 5, RJ-45 cable from one router port to the Axiom network connector.
2. Connect a second cable from a router port to the network connector on the PC.
3. On the Axiom, press <Setup> and then choose [Network] from the Setup menu.
4. Select [Enable]. Ensure the Auto checkbox is checked, and choose [Test].
A network address will be provided by the router and should show up in the 'Network address' window. By default, Windows 7/8, Vista, and XP computers have networking and DHCP enabled so at this point your connection should be complete. To check your PC settings:
1. On Windows XP go to Control Panel / Network Connections. On Windows 7/8/Vista go to Control Panel /
Network and Sharing Center then select 'Change Adapter Settings' on the left-hand panel.
2. Right-click on Local Area Connection and choose Properties. Ensure that Internet Protocol (TCP/IP or
TCP/IPv4) is checked. Select this and select the Properties button. Ensure that 'Obtain an IP address automatically' is selected.
Static connection
A static connection requires an Ethernet hub or switch. The Network addresses must be manually entered into the Axiom and PC.
1. Connect a Cat 5, RJ-45 cable from one port on the switch or hub to the Axiom network connector.
2. Connect a second cable from a switch/hub port to the network connector on the PC.
3. On Windows XP go to Control Panel / Network Connections. On Windows 7/8/Vista go to Control Panel /
Network and Sharing Center then select 'Change Adapter Settings' on the left-hand panel.
4. Right-click on Local Area Connection and choose Properties. Ensure that Internet Protocol (TCP/IP or
TCP/IPv4) is checked. Select this and select the Properties button.
5. Check 'Use the following IP address' and enter the following in the IP address box: 172.30.1.1. Enter
255.255.255.0 in the Subnet mask box.
6. On the Axiom, uncheck Auto on the Setup network screen and click the Change button. Then set the network
addresses as shown below by clicking on the down arrow buttons and selecting from the drop-down lists.
27
Axiom®User's Guide Version 1.8  May 2015
7. Click to apply your settings.
7. Click on the Test button to check that a connection has been established.
28
Axiom®User's Guide Version 1.8  May 2015
7 Printing and Storing Results
The Axiom can print results for future reference, as well as store results in computer files for future use. Using a web browser, you can capture the Axiom's screen image for printing or saving on any computer. The Axiom can also store audiometric data and test results in the optional Audioscan NOAH Module.
Printed output includes the graphical screen image that is showing when you select [Print]. Printed output can optionally include tabular results, text notes, and printed guidelines for handwritten notes. The Printing Setup controls which of these optional components are included in the output, as well as whether output is sent to a printer or saved in a file.
With the Axiom connected to a network, you can capture the Axiom screen image through your computer's web browser. You can then print or save the screen image using the computer's printer or file system.
The Axiom can store its input data and test results in session files. Restoring a session file restores the patient assessment data and test results as the Axiom was when the file was saved. The Session Setup controls where session files are stored. Session files can be stored locally on a local USB drive, or in a Windows-shared folder on a network.
Storing data in NOAH
The Axiom can store data using the optional Audioscan NOAH Module that runs in the NOAH framework on a Windows PC. Using the Module requires that both the Axiom and the Windows NOAH PC be connected to the same network.
The NOAH Module allows you to store the client assessment data, such as HL, UCL and BCT audiograms, and the WRECD, for use in future client visits. Since the assessment data are stored in the HIMSA NOAH public data format, then they can also be obtained from or exchanged with other NOAH modules that comply with the public standard. For example, the Axiom can restore audiograms from another manufacturer's audiometer.
The data are stored as actions in NOAH client records. The Axiom can later restore the assessment data from the Module as the starting point for follow-on measurements with the same client. The Module stores Axiom test results as screen images. The NOAH Module can display or print the stored screen images for comparison with the future test results.
Contact Audioscan or visit www.audioscan.com for details about the Audioscan NOAH Module.
! NOTE: If a printout or session file identifies the printed or saved data as belonging to an individual client, it becomes Individually Identifiable Health Information and must be protected under the HIPAA Security Rule. See Appendix 1: Manufacturer Disclosure Statement for Medical Device Security.
Printing results
The Axiom can print results on a printer or save results in a file for future printing and viewing. Printing Setup allows you to select the printer or file location, as well as to select the file output format. The Page Setup options allow you to select the content to be printed or saved. Results are printed as graphical images of the Axiom screen, and can optionally include the tabular view for tests that define it. Additional printed elements include informational headers and footers, as well as typed notes and guidelines. The following sections describe how to set up printers and files.
Printing setup
Use Printing Setup to control the output and page setup options for printed output. To enable printing, check [Enable]. To send the output to a printer, select Printer. To save the output to a file for printing or viewing later,
29
Axiom®User's Guide Version 1.8  May 2015
select File. In either case, to select the optional components to include in the output, click the [Page setup] button. To test your selected options, click the [Print test page] button.
Printer connection
When using the Printer output option, you must also select the printer Connection and Type. If the printer connects directly to your Axiom through a standard USB cable, select USB. If the printer is accessible on a local area network (LAN), then select either Windows Share or Network.
Choose Windows Share if the printer connects through a Windows laptop, PC, or server computer. Windows shared printers are common in both small and large offices. See the section below, Windows-shared printers and folders, for instructions about setting up a Windows-shared printer.
Choose Network if the printer connects directly to the network through its own interface and cable. See the section below, Network printer, for instructions about setting up a Network printer.
Both Windows Share and Network printer connection options require that your Axiom be connected to a local area network. See Network Setup for details.
Printer types
You must select the printer type for the connected printer. Many laser printers and large office printers support the Postscript printer language. Otherwise, you must select a Hewlett-Packard printer model. See HP printer, described below.
Printing setup
30
