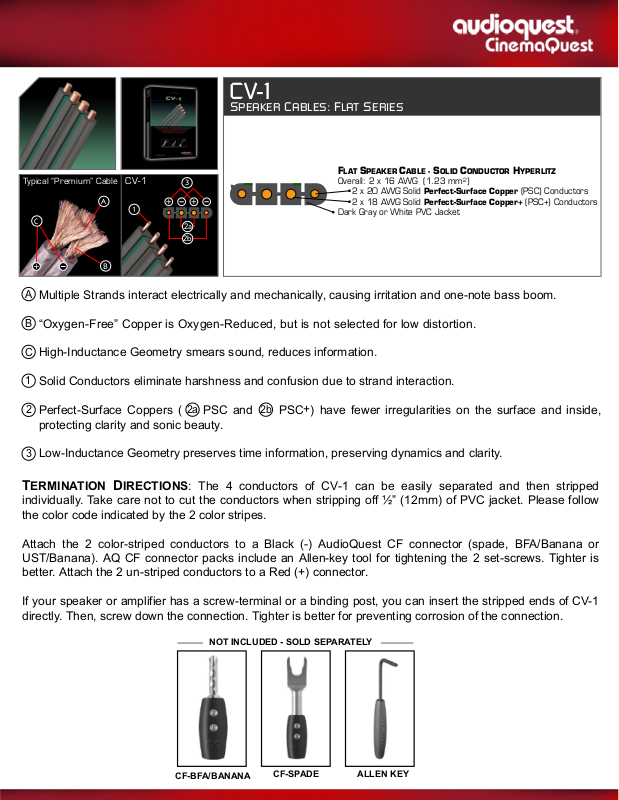

CV-1
SPEAKER CABLES: FLAT SERIES
F
LAT SPEAKER CABLE - SOLID CONDUCTOR HYPERLITZ
Typical “Premium” Cable
C
A
Multiple Strands interact electrically and mechanically, causing irritation and one-note bass boom.
B
“Oxygen-Free” Copper is Oxygen-Reduced, but is not selected for low distortion.
C
High-Inductance Geometry smears sound, reduces information.
1
Solid Conductors eliminate harshness and confusion due to strand interaction.
CV-1
A
1
B
3
2a
2b
Overall: 2 x 16 AWG (1.23 mm2)
2 x 20 AWG Solid
2 x 18 AWG Solid
Dark Gray or White PVC Jacket
Perfect-Surface Copper (PSC) Conductors
Perfect-Surface Copper+ (PSC+) Conductors
2
Perfect-Surface Coppers ( PSC and PSC
2a 2b
+
) have fewer irregularities on the surface and inside,
protecting clarity and sonic beauty.
3
Low-Inductance Geometry preserves time information, preserving dynamics and clarity.
TERMINATION DIRECTIONS: The 4 conductors of CV-1 can be easily separated and then stripped
individually. Take care not to cut the conductors when stripping off ½” (12mm) of PVC jacket. Please follow
the color code indicated by the 2 color stripes.
Attach the 2 color-striped conductors to a Black (-) AudioQuest CF connector (spade, BFA/Banana or
UST/Banana). AQ CF connector packs include an Allen-key tool for tightening the 2 set-screws. Tighter is
better. Attach the 2 un-striped conductors to a Red (+) connector.
If your speaker or amplifier has a screw-terminal or a binding post, you can insert the stripped ends of CV-1
directly. Then, screw down the connection. Tighter is better for preventing corrosion of the connection.
NOT INCLUDED - SOLD SEPARATELY
CF-BFA/BANANA
CF-SPADE
ALLEN KEY
