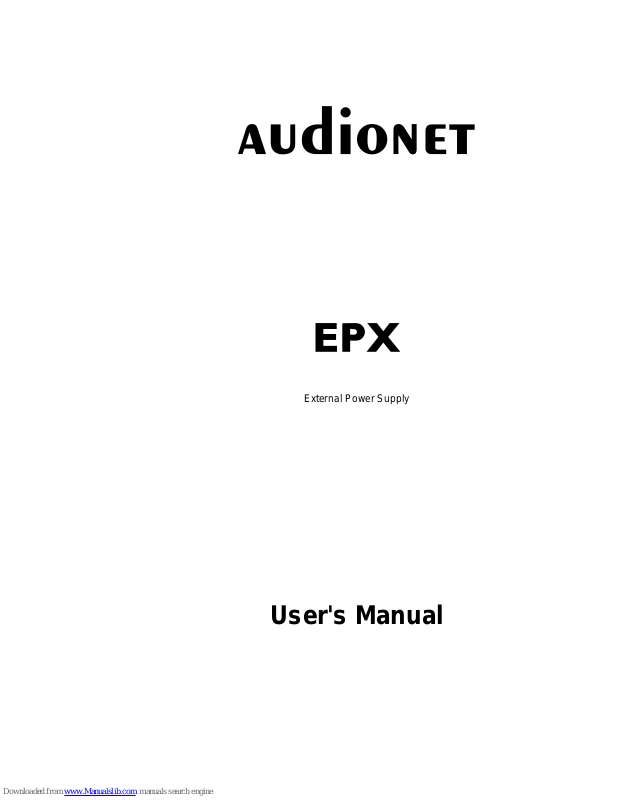

Audionet EPX User Manual

1

External Power Supply

User's Manual

2

Contents

1 Preface........................................................................................3

1.1 Included.........................................................................................3

1.2 Transport.......................................................................................3

2 Overview front panel...............................................................4

3 Overview back panel...............................................................5

4 Installation and connection...................................................6

4.1 Placement......................................................................................6

4.2 Mains connection..........................................................................6

4.3 Connecting the mother unit...........................................................7

5 Usage...........................................................................................8

5.1 Powering up..................................................................................8

5.2 Switching on/off............................................................................8

5.3 Mains phase detection...................................................................9

6 Protection system....................................................................9

7 Technical Information...........................................................10

7.1 Features.......................................................................................10

8 Security advice .......................................................................11

9 Technical data.........................................................................12

3

1 Preface

The Audionet-Team would like to congratulate you for purchasing the
Audionet EPX! Surely you are a satisfied owner of an Audionet device.
With the external power supply EPX you have the possibility to provide
all connected units a more sophisticated foundation.
Please read this manual before first use to make sure that you are able to
use all provided functions of your new unit. In case of occurring ques­tions, please do not hesitate to contact your local Audionet dealer or our
factory directly.

1.1 Included

Included you will find the following items:

• The Enhanced Power Supply EPX

• The user's manual (that you are currently reading)

• One EPX connection cable

• One standard mains cord

1.2 Transport

Important

• Please transport the EPX only in the included package.

• Always use the plastic bag to prevent scratches on the casing.

• Please allow the EPX to adapt to the climatic conditions in your lis-

tening room before you switch on the unit for the first time after
transport.

4

2 Overview front panel

LED

(power indicator)
