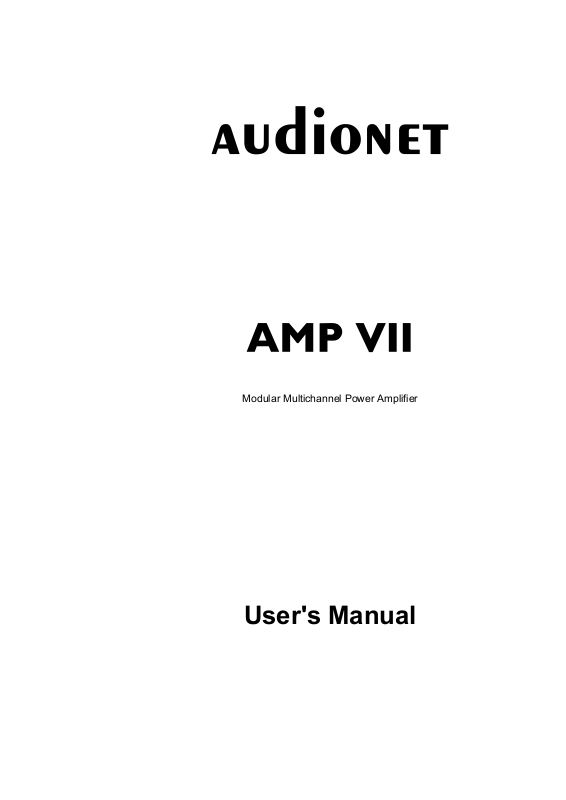

Audionet AMP VII User Manual
Modular Multichannel Power Amplifier
User's Manual
1
2
Contents
1 Preface.........................................................................................5
1.1 Included........................................................................................6
1.2 Transport.......................................................................................6
2 Overview control elements.........................................................7
2.1 Frontpanel.....................................................................................7
3 Overview connections.................................................................8
3.1 Back panel....................................................................................8
4 Installation and power supply...................................................9
4.1 Placement.....................................................................................9
4.2 Mains connection..........................................................................9
4.3 Orientation of mains plug...........................................................10
5 Inputs and outputs....................................................................11
5.1 Inputs..........................................................................................11
5.2 Speaker terminals.......................................................................11
5.3 Audionet Link.............................................................................12
6 Operating...................................................................................13
6.1 Powering up................................................................................13
6.2 Switching on/off.........................................................................13
6.3 Mains phase detection................................................................14
6.4 Using Audionet link...................................................................15
6.5 AutoStart function......................................................................15
6.6 Warm Up countdown.................................................................15
7 Protection system......................................................................17
8 Setup menu................................................................................18
8.1 Set Dim Level.............................................................................20
8.2 Set Display..................................................................................20
8.3 Set Input......................................................................................21
8.4 Set AutoStart..............................................................................22
8.5 Set Off-Text................................................................................22
8.6 Overview factory defaults..........................................................23
3
9 Technical information..............................................................24
9.1 Design.........................................................................................24
9.2 Circuitry......................................................................................24
9.3 Power supply..............................................................................24
9.4 Handling.....................................................................................24
10 Security advice..........................................................................25
11 Technical data...........................................................................26
4
1 Preface
The Audionet Team congratulates you on your purchase of this unit.
Audionet's latest amplifier AMP VII gives you the chance to combine all
power amplifiers of your home cinema in one cabinet. Equipped with up
to 7 separate channels, the AMP VII renders possible even modern 7.1
home cinema with only one amplifier unit. And you might as well expand
existing stereo or multichannel systems due to its modular design and
configurable number of amplifier modules.
With a maximum power of 360 Watts in 2 Ohms for each channel simultaniously the AMP VII easily lives up to power demanding loudspeakers.
But not only the pure power and rock-solid stability impresses the listener. The AMP VII unites them with excessive richness of information
and subtle details as well as perfect immaculateness of sound. Following
Audionet's finest traditions, the AMP VII proofs to be an audiophile mate
for high quality multichannel music reproduction.
The modular design allows the user to configure the AMP VII from at
least 4 channels up to the maximum of 7 channels. If required, expanding
the unit with additional channels is possible at any time making it futureproof and very easy to adjust the unit to every music or home cinema
system.
But before you start listening to your new Audionet AMP VII, please
read this manual carefully so you are able to use and enjoy all functions
of this unit without drawback on music quality.
5
1.1 Included
Included you will find the following items:
· the modular multichannel power amplifier AMP VII
· the user's manual (that you are currently reading)
· two standard mains cords
1.2 Transport
Important
· Please transport the AMP VII only in the included package.
· Always use the plastic bag to prevent scratches on the housing.
· Please allow the AMP VII to adapt to the climatic conditions in your
listening room before you switch on the unit for the first time after
transport.
6
2 Overview control elements
power
AMP VII
2.1 Frontpanel
Display
Multichannel power amplifier
power key
Mains switch
Note
· The mains switch is located at the front right side on the bottom of
the unit.
7
3 Overview connections
1
8
9
10
18
3.1 Back panel
14
15
13
12
16
Speaker terminal channel 4 19 Speaker terminal channel 3 20 Speaker terminal channel 2 21 Speaker terminal channel 1 22 Marking mains phase 1 23 Mains input 1 24 Marking mains phase 2 25 Mains input 2 26 Audionet Link input
10 11
17
9
8
18
7
6
Cinch input channel 5 11 Balanced (XLR) input channel 6 12 Cinch input channel 6 13 Balanced (XLR) input channel 7 14 Cinch input channel 7 15 Speaker terminal channel 7 16 Speaker terminal channel 6 17 Speaker terminal channel 5
5
4
20 19
Balanced (XLR) input channel 5
3
2
21
1
Balanced (XLR) input channel 1 2 Cinch input channel 1 3 Balanced (XLR) input channel 2 4 Cinch input channel 2 5 Balanced (XLR) input channel 3 6 Cinch input channel 3 7 Balanced (XLR) input channel 4
Cinch input channel 4
26
25
24
22
23
8
4 Installation and power supply
Important
· For connecting or removing loudspeakers and/or the pre amplifier your AMP VII must be switched off to prevent damage to the
amplifier or the connected units.
· Please make sure that all cables are in absolute best conditions!
Broken shields or short-cut loudspeaker cables could damage
speakers and/or amplifiers.
4.1 Placement
The compact design of the AMP VII requires the unobstructed heat dissipation during operation. Please mind the following security notes:
Important
· Please find a place for your Audionet AMP VII that is sufficiently
ventilated to allow the heat to dissipate.
· Do not cover the ventilation slots of the unit.
· Please make sure that the microprocessor controlled fan units on the
bottom side of the AMP VII are able to intake cool air without any
obstruction. Particularly avoid placing the unit onto soft surfaces like
furry carpets or similar squashy materials the AMP VII might sink in.
· We strongly advise you not to operate the AMP VII inside a confined
space, e.g. small cabinets.
· Do not expose the unit to direct sunlight.
· Do not place the AMP VII in close range to heat sources like radia-
tors or fan heaters.
· Due to the heavy weight of the AMP VII, please check the carrying
capacity of your rack or table before placing the unit onto it.
4.2 Mains connection
Both mains inputs 23 * and 25 are on the back panel of the AMP VII.
To connect the unit to mains use the included cords. If you prefer to use
different power cords make sure they meet the specifications for your
home country.
*
see numbers in section 'Back panel' on page 8
9
