Lesen Sie diese Bedienungsanleitung sorgfältig durch.
1.1Bestimmungsgemäße Verwendung
Dieses Telefon ist geeignet für das Telefonieren innerhalb eines
Telefonnetzes. Jede andere Verwendung gilt als nicht
bestimmungsgemäß. Eigenmächtige Veränderungen oder Umbauten
sind nicht zulässig. Öffnen Sie das Gerät in keinem Fall selbst und
führen Sie keine eigenen Reparaturversuche durch.
1.2Aufstellungsort
Das Telefon ist für den Betrieb in Innenäumen mit einem
Temperaturbereich von 10 °C bis 30 °C ausgelegt. Die Basisstation darf
nicht in Feuchträumen wie Bad oder Waschküche aufgestellt werden.
Vermeiden Sie Belastungen durch Rauch, Staub, Erschütterungen,
Chemikalien, Feuchtigkeit, Hitze oder direkte Sonneneinstrahlung.
Stellen Sie die Basisstation mit einem Mindestabstand von 1 m zu
anderen elektronischen Geräten auf, da es sonst zu gegenseitiger
Störung kommen kann.
Verwenden Sie das Mobilteil nicht in explosionsgefährdeten Bereichen.
1.3Netzteil
Verwenden Sie nur das mitgelieferte Steckernetzteil, da andere Netzteile
das Telefon zerstören können. Sie dürfen den Zugang zum
Steckernetzteil nicht durch Möbel oder andere Gegenstände versperren.
1.4Telefonanschlusskabel
Achten Sie beim Austauschen des mitgelieferten
Telefonanschlusskabels auf die identische Steckerbelegung.
1.5Aufladbare Akkus
Werfen Sie Akkus nicht ins Feuer und tauchen Sie sie nicht ins Wasser.
1.6Stromausfall
Bei Stromausfall kann mit dem Telefon nicht telefoniert werden. Halten
Sie für Notfälle ein schnurgebundenes Telefon bereit, welches ohne eine
externe Stromversorgung arbeitet.
1.7Nebenstellenanlagen
Sie können das Telefon an einer Nebenstellenanlage anschließen. Es
kann nicht garantiert werden, dass das Telefon an jeder
Nebenstellenanlage funktioniert.
3
− Sicherheitshinweise −
1.8Hinweis für medizinische Geräte
Benutzen Sie das Telefon nicht in der Nähe von medizinischen Geräten.
Eine Beeinflussung von Herzschrittmachern kann nicht völlig
ausgeschlossen werden. DECT
unangenehmen Brummton verursachen.
1.9Reinigung und Pflege
Reinigen Sie die Gehäuseoberflächen mit einem weichen und
fusselfreien Tuch. Verwenden Sie keine Reinigungsmittel oder
Lösungsmittel. Die Gummifüße der Basisstation sind nicht gegen alle
Reinigungsmittel beständig.
1.10Entsorgung
Die Umsetzung europäischen Rechts in nationale Gesetze und
Verordnungen verpflichtet Sie zur sachgerechten Entsorgung von
Gebrauchsgütern. Das nebenstehende Symbol auf Ihrem Telefon
bedeutet, dass elektrische und elektronische Altgeräte und Akkus
getrennt vom Hausmüll zu entsorgen sind.
Elektrische oder elektronische Geräte entsorgen Sie bei einer
Sammelstelle eines geeigneten Entsorgungsträgers.
Akkus entsorgen Sie beim batterievertreibenden Handel sowie
zuständigen Sammelstellen, die entsprechende Behälter
bereitstellen.
Verpackungsmaterialien entsorgen Sie entsprechend den
lokalen Vorschriften.
1
−Telefone können in Hörgeräten einen
1
DECT: Digitally Enhanced Cordless Telephone = Standard für
kabellose Telefone.
4
− Inbetriebnahme −
2Inbetriebnahme
Diese Zusatzbedienungsanleitung beschreibt die Inbetriebnahme eines
weiteren Mobilteils am AUDIOLINE DECT A 180 oder einem anderen
DECT/GAP Schnurlostelefonsystem. Allerdings stehen nur in
Verbindung mit dem AUDIOLINE DECT A 180 alle Funktionen zur
Verfügung, die dieses Mobilteil unterstützt.
Für die komplette Bedienungsanleitung und
Konformitätserklärung des DECT A 180, die auch für dieses
Erweiterungsset gelten, nutzen Sie bitte den kostenlosen
Download von unserer Website www.audioline.de
2.1Sicherheitshinweise
Achtung: Lesen Sie vor der Inbetriebnahme unbedingt die
Sicherheitshinweise in Kapitel 1.
2.2Verpackungsinhalt prüfen
Zum Lieferumfang gehören:
eine Ladestation mit Netzteilzwei Standard−Akkus
ein Mobilteileine Bedienungsanleitung
2.3Ladestation anschließen
Stellen Sie die Ladestation für das zweite Mobilteil in der Nähe einer
Netzsteckdose auf. Stecken Sie das Steckernetzteil in eine
vorschriftsmäßig installierte Netzsteckdose mit 230 Volt.
Versperren Sie den Zugang zum Steckernetzteil nicht durch
Möbel oder andere Gegenstände.
2.4Standard−Akkus einsetzen
Drücken Sie auf den unteren Rand des Batteriefachdeckels (1) und
entfernen Sie den Batteriefachdeckel nach oben (2).
Legen Sie die Standard−Akkus ein (3).
Achten Sie auf die richtige Polung!
Schließen Sie das Batteriefach.
3
.
2
1
5
− Inbetriebnahme −
2.5Aufladen der Standard−Akkus
Stellen Sie das Mobilteil bei der ersten Inbetriebnahme mit dem Display
nach vorne für mindestens 14 Stunden in die Basisstation. Wenn das
Mobilteil richtig hineingestellt wurde, wird ein Bestätigungston
wiedergegeben. Bei nicht richtig geladenen Standard−Akkus kann es zu
Fehlfunktionen des Telefons kommen.
Die wiederaufladbaren Standard−Akkus Ihres Mobilteils besitzen eine
Standby−Zeit bei Zimmertemperatur von max. 110 Stunden. Die
maximale Gesprächsdauer beträgt 8 Stunden.
Der aktuelle Akkuladezustand wird im Display angezeigt:
VollHalbSchwachLeer
Wenn der Akkuladezustand sehr gering ist, zeigt das Display die
Meldung
Um die Basisstation des anderen Herstellers in den Registriermodus zu
bringen, folgen Sie den Hinweisen in der Bedienungsanleitung des
Fremdherstellers. Benutzen Sie zur Anmeldung den PIN−Code des
Fremdherstellers.
Dem Mobilteil wird eine interne Rufnummer gegeben. Das
bereits angemeldete Mobilteil hat die interne Rufnummer 1.
Das zweite angemeldete Mobilteil erhält die interne
Rufnummer 2. Diese interne Rufnummer wird im Display
rechts neben dem Namen des Telefons angezeigt.
Reichweite (Außen/Innen)300 m, 50 m
Standbybis zu 110 h
Max. Gesprächsdauerbis zu 8 h
Aufladbare Standard−Akkus2 x 1.2 V/ 650mAh, Größe: AAA
WahlverfahrenTon−Wahlverfahren (MFV)
Zulässige Umgebungstemperatur 10°C bis 30°C
Zulässige relative Luftfeuchtigkeit 20% bis 75%
Flash−Funktion100 ms, 300 ms
DECT: Digitally Enhanced Cordless Telephone = Standard für kabellose
Telefone.
GAP: Generic Access Profile = Standard für das Zusammenwirken von
Mobilteilen und Basisstationen anderer Hersteller.

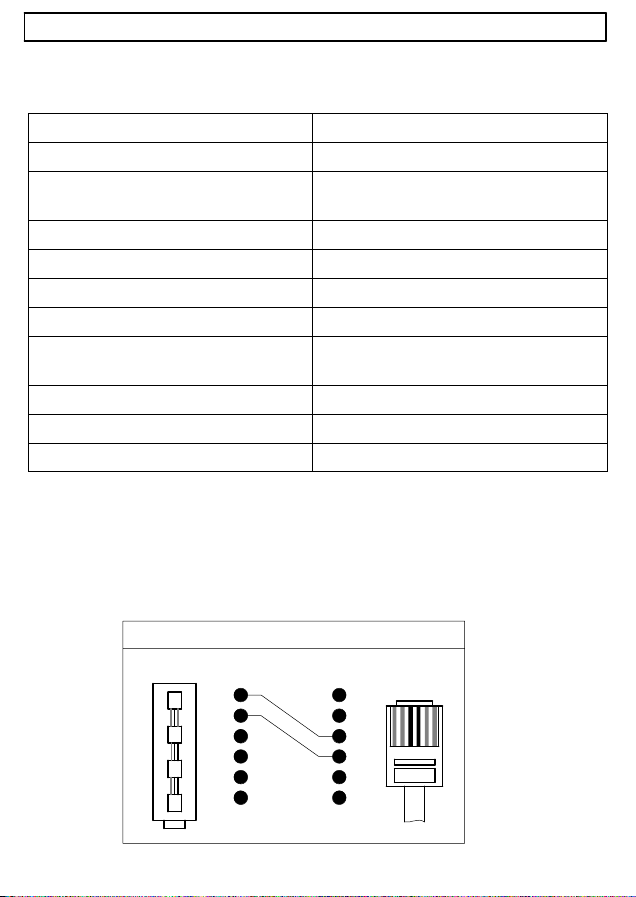

3.2Telefonkabel austauschen
Müssen Sie Ihr Telefonkabel austauschen, finden Sie anhand der
folgenden Zeichnung das passende Kabel bei Ihrem Händler.
Wert
Ausgang: 6VDC 150mA
Impuls−Wahlverfahren (IWV)
F−Code − IMPORT standard
TAE−FRj11 6/2
1
4
5
6
2
3
3
2
4
5
1
6
1
2
3
4
5
6
6543
21
7
8
− Safety Information −
1Safety Information
Please read this operating instruction manual thoroughly.
1.1Intended use
The telephone is suitable for telephoning within a public telephone
network system. Any other use is considered unintended use.
Unauthorised modification or reconstruction is not permitted. Under no
circumstances open the device or complete any repair work yourself.
1.2Installation location
The telephone is designed for use indoors in rooms with a temperature
range from 10 °C to 30 °C. The base station should not be used in rooms
exposed to moisture, such as bathrooms or laundries. Prevent excessive
exposure to smoke, dust, vibration, chemicals, moisture, heat and direct
sunlight. Position the base station with a distance of 1 m to other
electronic devices or there is a risk of mutual disturbance.
Do not use the handset in potentially explosive areas.
1.3Power supply
Only use the power adapter plug supplied because other power supplies
could destroy the telephone. Ensure access to the power adapter plug is
not obstructed by furniture or such.
1.4Telephone connection cable
If the telephone connection cable supplied needs to be replaced, ensure
the pin assignment is identical on the new one.
1.5Rechargeable batteries
Do not throw batteries into a fire or immerse them in water.
1.6Power failure
The telephone cannot be used to make calls in the event of a power
failure. Always keep a cord connected telephone which operates without
an external power supply available in the case of emergency situations.
1.7Private branch exchanges
The telephone can be connected to a private branch exchange. There is
no guarantee that the telephone will work on every private branch
exchange.
9
− Safety Information −
1.8Note on medical equipment
Never use the telephone in the vicinity of medical equipment. It cannot
be fully ruled out that it will not affect heart pacemakers. DECT
telephones can cause an unpleasant humming sound in hearing aids.
1.9Cleaning and upkeep
Clean the housing surfaces with a soft, fluff−free cloth. Never use
cleaning agents or solvents. The rubber footpads on the base station are
not resistant to all cleaning agents.
1.10Disposal
The implementation of European law in national laws and
directives obliges you to dispose of consumable goods
appropriately. The adjacent symbol on the telephone
indicates that electrical and electronic apparatus and
batteries no longer required must be disposed of separate
from domestic waste.
Electrical and electronic devices must be disposed of at a
suitable collection point provided by the public waste
authorities.
Batteries must be disposed of at the point of sale or at the
appropriate collection points provided by the public waste
authorities.
Packaging materials must be disposed of according to local
regulations.
1
1
DECT: Digitally Enhanced Cordless Telephone = Standard for
cordless telephones.
10
− Starting Up −
2Starting Up
This supplementary manual describes how to setup a further handset in
the AUDIOLINE DECT A 180 system or another DECT/GAP cordless
telephone system. However, all the functions supported by this handset
are only available when connected to the AUDIOLINE DECT A 180.
To obtain the complete operating manual and Declaration of
Conformity of DECT A 180 applicable to this extension kit,
please refer to the free download available from our web site,
www.audioline.de
2.1Safety Information
Caution: It is essential to read the Safety Information in Chap-
ter 1 before starting up.
2.2Checking the package contents
The package contains:
.
a charging station with power
adapter plug
a handsetan operating manual
2.3Connecting the charging station
Place the charging station for the second handset in the vicinity of a
power outlet. Plug the power adapter plug in a properly installed 230 Volt
power outlet.
Ensure access to the power adapter plug is not obstructed by
furniture or other objects.
2.4Inserting the standard batteries
Press on the lower edge of the battery compartment cover (1) and
remove the battery compartment by lifting it up (2).
Insert the standard batteries (3).
Pay attention to correct polarity.
Close the battery compartment cover.
two standard batteries
3
2
11
1
− Starting Up −
2.5Charging the standard batteries
When preparing to use the handset for the first time, place it in the base
station, with its display facing, the front for at least 14 hours. When the
handset is placed in the base properly, an acoustic signal is issued as
confirmation. Failure to charge the standard batteries properly can lead
to telephone malfunction.
The rechargeable standard batteries in the handset have a maximum
standby time of 110 hours at room temperature. The maximum talk time
is 8 hours.
The current battery charge status is indicated in the display:
FullHalf emptyLowEmpty
When the battery charge level is very low, the
appears in the display.
2.7Registering a handset on a DECT/GAP base station from
Follow the instructions in the operating manual from the original
manufacturer to set the base station from the external manufacturer to
Registration mode. Use the PIN code from the external manufacturer for
the registration.
The handset is assigned an internal call number. The handset
already registered has the internal call number 1. The second
handset registered is assigned the internal call number 2. This
internal call number appears in the display to the right of the
name of the telephone.
another manufacturer
, OSelect and open the submenu
station
BATTERIE
message
12
− Important Information −
3Important Information
3.1Technical data
Feature
StandardDECT−GAP
Power supplyInput: 230V, 50Hz
Range (outdoors/indoors)300 m, 50 m
StandbyUp to 110 h
Max. talk timeUp to 8 h
Rechargeable standard batteries2 x 1.2 V/650 mAh, size: AAA
Dialling methodTone dialling (DTMF)
Permissible ambient temperature10°C to 30°C
Permissible relative humidity20% to 75%
Flash function100 ms, 300 ms
DECT: Digitally Enhanced Cordless Telephone = Standard for cordless
telephones.
GAP: Generic Access Profile = Standard for the interoperation of
handsets and base stations from other manufacturers.
3.2Replacing the telephone connection cable
If the telephone connection cable needs to be replaced, refer to the
diagram below for the cable required.
Value
Output: 6VDC 150mA
Pulse dialling
F−Code − IMPORT standard
TAE−FRj11 6/2
1
4
5
6
2
3
3
2
4
5
1
6
1
2
3
4
5
6
6543
21
13
14
15
Wichtige Garantiehinweise
Die Garantiezeit für Ihr AUDIOLINE − Produkt beginnt mit dem
Kaufdatum. Ein Garantieanspruch besteht bei Mängeln, die auf Material−
oder Herstellungsfehler zurückzuführen sind. Der Garantieanspruch
erlischt bei Eingriffen durch den Käufer oder durch Dritte. Schäden, die
durch unsachgemäße Behandlung oder Bedienung, natürliche
Abnutzung, durch falsches Aufstellen oder Aufbewahren, durch
unsachgemäßen Anschluss oder Installation sowie durch höhere Gewalt
oder sonstige äußere Einflüsse entstehen, fallen nicht unter die
Garantieleistung.
BITTE WENDEN SIE SICH IM GARANTIEFALL AUSSCHLIESSLICH
AN DEN HÄNDLER, BEI DEM SIE DAS GERÄT GEKAUFT HABEN,
UND VERGESSEN SIE NICHT, DEN KAUFBELEG VORZULEGEN.
UM UNNÖTIG LANGE WARTEZEITEN ZU VERMEIDEN, SENDEN
SIE REKLAMATIONSGERÄTE BITTE NICHT
BÜROADRESSE.
BEI FRAGEN ZUR BEDIENUNG UND GARANTIELEISTUNG LESEN
SIE BITTE DIE BEDIENUNGSANLEITUNG ODER WENDEN SIE
SICH AN UNSERE HOTLINE:
0180 500 13 88 (Kosten Telekom bei Drucklegung: 12ct/min)
