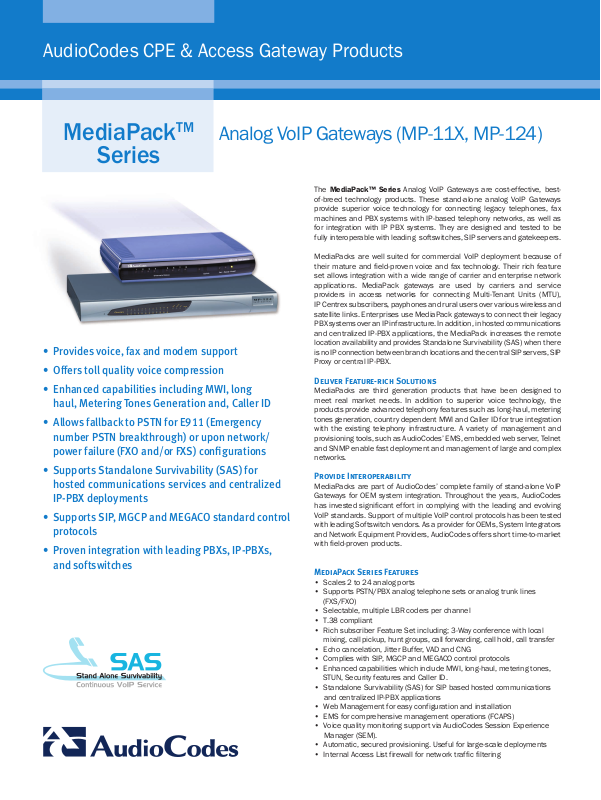

AudioCodes MP-11X, MP-124 User Manual

AudioCodes CPE & Access Gateway Products

TM

MediaPack

Analog VoIP Gateways (MP-11X, MP-124)

Series

The MediaPack™ Series Analog VoIP Gateways are cost-effective, best-
of-breed technology products. These stand-alone analog VoIP Gateways
provide superior voice technology for connecting legacy telephones, fax
machines and PBX systems with IP-based telephony networks, as well as
for integration with IP PBX systems. They are designed and tested to be
fully interoperable with leading softswitches, SIP servers and gatekeepers.

MediaPacks are well suited for commercial VoIP deployment because of
their mature and field-proven voice and fax technology. Their rich feature
set allows integration with a wide range of carrier and enterprise network
applications. MediaPack gateways are used by carriers and service
providers in access networks for connecting Multi-Tenant Units (MTU),
IP Centrex subscribers, payphones and rural users over various wireless and
satellite links. Enterprises use MediaPack gateways to connect their legacy
PBX systems over an IP infrastructure. In addition, in hosted communications
and centralized IP-PBX applications, the MediaPack increases the remote
location availability and provides Standalone Survivability (SAS) when there

• Provides voice, fax and modem support

• Offers toll quality voice compression

• Enhanced capabilities including MWI, long
haul, Metering Tones Generation and, Caller ID

• Allows fallback to PSTN for E911 (Emergency
number PSTN breakthrough) or upon network/
power failure (FXO and/or FXS) configurations

• Supports Standalone Survivability (SAS) for
hosted communications services and centralized
IP-PBX deployments

• Supports SIP, MGCP and MEGACO standard control
protocols

• Proven integration with leading PBXs, IP-PBXs,
and softswitches

is no IP connection between branch locations and the central SIP servers, SIP
Proxy or central IP-PBX.

Deliver Feature-rich Solutions

MediaPacks are third generation products that have been designed to
meet real market needs. In addition to superior voice technology, the
products provide advanced telephony features such as long-haul, metering
tones generation, country dependent MWI and Caller ID for true integration
with the existing telephony infrastructure. A variety of management and
provisioning tools, such as AudioCodes’ EMS, embedded web server, Telnet
and SNMP enable fast deployment and management of large and complex
networks.

Provide Interoperability

MediaPacks are part of AudioCodes’ complete family of stand-alone VoIP
Gateways for OEM system integration. Throughout the years, AudioCodes
has invested significant effort in complying with the leading and evolving
VoIP standards. Support of multiple VoIP control protocols has been tested
with leading Softswitch vendors. As a provider for OEMs, System Integrators
and Network Equipment Providers, AudioCodes offers short time-to-market
with field-proven products.

MediaPack Series Features

• Scales 2 to 24 analog ports

• Supports PSTN/PBX analog telephone sets or analog trunk lines
(FXS/FXO)

• Selectable, multiple LBR coders per channel

• T.38 compliant

• Rich subscriber Feature Set including; 3-Way conference with local

mixing, call pickup, hunt groups, call forwarding, call hold, call transfer

• Echo cancelation, Jitter Buffer, VAD and CNG

• Complies with SIP, MGCP and MEGACO control protocols

• Enhanced capabilities which include MWI, long-haul, metering tones,
STUN, Security features and Caller ID.

• Standalone Survivability (SAS) for SIP based hosted communications

and centralized IP-PBX applications

• Web Management for easy configuration and installation

• EMS for comprehensive management operations (FCAPS)

• Voice quality monitoring support via AudioCodes Session Experience

Manager (SEM).

• Automatic, secured provisioning. Useful for large-scale deployments

• Internal Access List firewall for network traffic filtering

AudioCodes CPE & Access Gateway Products

MediaPack

TM

Series

Specifications

Interfaces

Voice Ports 2 ports 4 and 8 ports 24 ports
Telephone Interfaces FXS, RJ-11 FXS, FXO or mixed FXS/FXO, RJ-11 FXS, 50-pin Telco
Connector
Lifeline Automatic cut through of a single analog line
Network Interface 10/100 BASE-T, RJ-45
Indicators Channel status and activity LEDs

Voice, Fax, Modem

Voice over Packet G.168-2004 Echo Cancelation, VAD, CNG, Dynamic programmable Jitter
Capabilities Buffer, modem detection and auto-switch to PCM
Voice Compression G.711, G.723.1, G.726 ADPCM, G.727 ADPCM, G.729A/B, G.722
Fax over IP T.38 compliant
Group 3 fax relay up to 14.4 kbps with automatic switching to PCM or ADPCM
3-Way Conference 3-Way conference with local mixing
VLAN QoS DiffServ, TOS, 802.1 p/Q VLAN tagging, RTCP-XR
IP Transport SIP over UDP/TCP/TLS, IPV4 / IPV6**, RTP/RTCP

Signaling

Signaling FXS Loop-start FXS, FXO Loop-start FXS Loop-start
In-band Signaling DTMF (TIA 464B)

 User-denedandcallprogresstones

Out-of-Band Signaling DTMF Relay (RFC 2833), DTMF via SIP INFO/NOTIFY
Control SIP (RFC 3261), MGCP (RFC 2- 05)

Provisioning

Protocols BootP, DHCP, TFTP and HTTP for Automatic Installation
DHCP options 66.67 in auto update mode

Remote management using Web browser
EMS (Element Management System) / SNMP V3

 RS-232forbasicconguration(viaCLI)
 VoiceMenuusingtouchtonephoneforbasicconguration

Security

Media SRTP
Control IPSEC, TLS/SIPS, SIP (RFC 3261), MGCP (RFC 2- 05), MEGACO (H.248)
Management HTTPS, Access List, IPSEC

Additional Features

Message Waiting Indication (MWI) High (Neon) and Low (LED) Voltage, FSK, Stutter Dial Tone

PSTNFallback SupportofPSTNfallbackduetoPowerfailure,iftheIPconnectionisdownorduetocustomerdenedIPQOSthresholds

Stand Alone Survivability (SAS) Supports SAS of up to 25 SIP users (UA) per MediaPack
Ring voltage Sine: 54 V
Ring Frequency 25-100Hz
Voice Quality Monitoring AudioCodes Session Experience Manager (SEM)
Maximum Ringer Load REN3
Loop Impedance Up to 1500 ohm for the MP-11x, Up to 1600 ohm for the MP-124
(including phone impedance)
Line current up to 32 MA on 4 ports

Lifeline SupportedinallportsofMixedFXS/FXOandinrstportofMP-114/FXSandMP-118/FXSusingspecialLifelinecable

Caller ID Bellcore GR-30-CORE Type 1 using Bell 202 FSK modulation, ETSI Type 1, NTT, Denmark, India, Brazil, British and DTMF ETSI CID
(ETS 300-659-1)
Polarity Reversal / Wink Immediate or smooth to prevent erroneous ringing
Metering Tones 12/16 KHz sinusoidal bursts, Generation on FXS
Distinctive Ringing By frequency (15-100 Hz) and cadence patterns

Management

OAM&P Browser-basedGUI,SNMP,INICongurationle

Outdoor Protection

Over-voltage protection and Routing of FXS telephony cables outdoors can be done only in conjunction with AudioCodes’ approved primary surge protector and
surge immunity proper installation and grounding. When done correctly, the installation will meet ITU-T K.21 (basic) standards.

Physical

Power 100-240 V AC/50-60 Hz or -48V DC*
Environmental Operational: 5 to 40o C 41 to 104o F
Storage: -25 to 85o C -13 to 185o F
Humidity: 10 to 90% non-condensing
Dimensions (HxWxD) 42x172x220mm (MP-112) 42x172x220mm (MP-112 and MP-118) 44x445x269mm (MP-124)
Mounting Rack mount, Table top, Wall mount
Weight MP-1xx: 0.5 kg (1.1 lbs.) approx. MP-124: 1.8 kg (4 lbs.)

Homologation

EMC EN55022 Class B , CFR Part 15 Class B, EN55024,
EN61000-3-3, EN61000-3-2, VCCI Class X1 (equal to class B)
Safety EN60950-1 Safety of information technology equipment
Telecom TBR-21, TIA-968

* -48V DC is supported only on the MP-124
** IPV6 is supported only on MP-124 on a dedicated software version

MP-112 MP-114 and MP-118 MP-124

typical (balanced ringing only)

RMS

Applications

• Survivable IP Centrex for hosted services and
central IP-PBX IP Centrex for hosted services

• Multi-Tenant Units

• POTs and fax extensions for IP-PBX

• Voice VPN

• VoIP-enabled PBX

• Unified Messaging and recording

• IP-PBX FXS Analog extensions and FXO
Trunking
