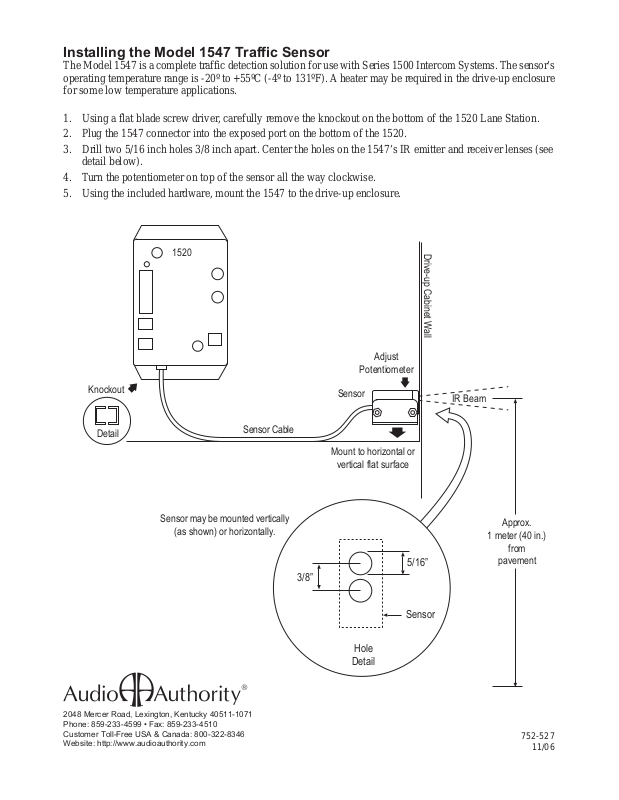

Installing the Model 1547 Traffic Sensor
The Model 1547 is a complete traffic detection solution for use with Series 1500 Intercom Systems. The sensor’s
operating temperature range is -20º to +55ºC (-4º to 131ºF). A heater may be required in the drive-up enclosure
for some low temperature applications.
1. Using a flat blade screw driver, carefully remove the knockout on the bottom of the 1520 Lane Station.
2. Plug the 1547 connector into the exposed port on the bottom of the 1520.
3. Drill two 5/16 inch holes 3/8 inch apart. Center the holes on the 1547’s IR emitter and receiver lenses (see
detail below).
4. Turn the potentiometer on top of the sensor all the way clockwise.
5. Using the included hardware, mount the 1547 to the drive-up enclosure.
Knockout
Detail
1520
Sensor Cable
Sensor may be mounted vertically
(as shown) or horizontally.
3/8”
Adjust
Potentiometer
Sensor
Mount to horizontal or
vertical flat surface
5/16”
Drive-up Cabinet Wall
IR Beam
Approx.
1 meter (40 in.)
from
pavement
2048 Mercer Road, Lexington, Kentucky 40511-1071
Phone: 859-233-4599 • Fax: 859-233-4510
Customer Toll-Free USA & Canada: 800-322-8346
Website: http://www.audioauthority.com
Sensor
Hole
Detail
752-527
11/06
