Audio Authority 1372A User Manual
User Manual
DATE LTR REVISION RECORD AUTH DR CK
1T-SX-632
v1.3
2x1 SWITCHER
1 2
ENHANCE POWERINPUT
MMC-CLUX21AP-UTE
3//08 A Release DAF
Model 1372A
2X1 Switcher
INPUT ENHANCE POWER
1 2
v1.3

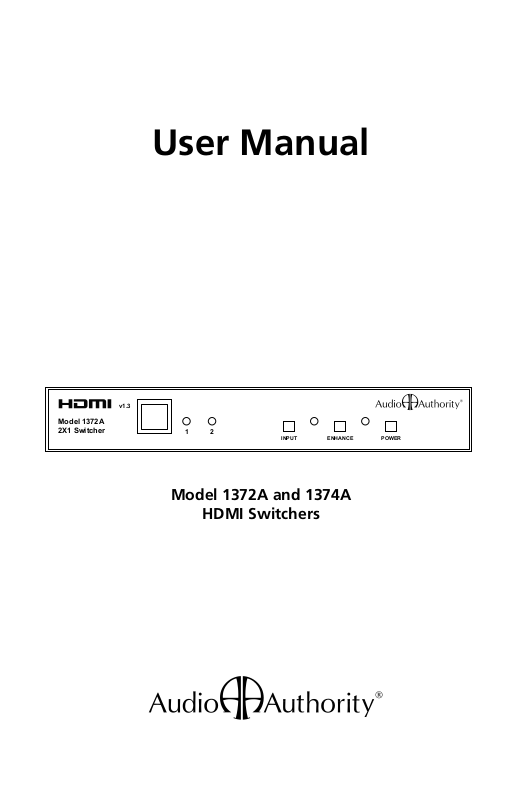

Model 1372A and 1374A
HDMI Switchers
3
Table Of Contents
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . 3
2.0 Getting the Best Results . . . . . . . . . . . . . . . . . 4
3.0 Checking Package Contents . . . . . . . . . . . . . . . 4
4.0 Connecting The Hardware . . . . . . . . . . . . . . . 5
5.0 Operating the Unit . . . . . . . . . . . . . . . . . . . . 6
6.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 8
7.0 Specications . . . . . . . . . . . . . . . . . . . . . . . 9
8.0 Limited Warranty . . . . . . . . . . . . . . . . . . . 10
9.0 Regulatory Compliance . . . . . . . . . . . . . . . . 11
10.0 Contact Information . . . . . . . . . . . . . . . . . . 11
Liability Statement
Every effort has been made to ensure that this product is free of defects. Audio Authority
cannot be held liable for the use of this hardware or any direct or indirect consequential
damages arising from its use. It is the responsibility of the user of the hardware to check
that it is suitable for his/her requirements and that it is installed correctly. All rights reserved.
No parts of this manual may be reproduced or transmitted by any form or means electronic
or mechanical, including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
Audio Authority reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This statement
does not affect the legal rights of the user in any way.
Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority
Corp. Copyright April, 2006, all rights reserved. All third party trademarks and copyrights
are recognized.
Dolby and Dolby Digital are trademarks of Dolby Laboratories, Incorporated.
DTS is a registered trademark of DTS, Inc.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
2
1.0 INTRODUCTION
Thank you for purchasing this HDMI switcher from Audio Authority. The
Model 1372A and 1374A switchers are designed to allow selection of 2
or 4 inputs respectively for display on an HDMI compliant television or
signal distribution system. These version 1.3 HDMI switchers support all
standard HDTV formats, PC formats from 1024x768 through 1920x1200,
and embedded HD-Audio. The switchers can be controlled via the front
panel, the included infrared remote control and/or RS-232 control.
Audio Authority also offers an extensive line of audio and video
switchers, converters and distribution amps available for purchase online
at www.audioauthority.com.
1.1 FEATURES
• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
• Allows switching of 2 or 4 inputs
• Supports 10/12 bit color depth display
• PC resolutions through 1920x1200
• HDTV resolutions through 1080p@60Hz
• SDTV resolutions 480i and 576i
• Supports embedded high bit rate audio: Audio Dolby® Digital TrueHD,
DTS-HD, and LPCM
• Signal enhancement feature enables longer cable runs
• Accepts HDMI locking cables
• Infrared remote control included
• RS-232 control capable
3
5
2.0 GETTING THE BEST RESULTS
Many factors inuence the quality and reliability of HDMI switcher
installations. Consider the following and take basic precautions
suggested below to ensure the best possible performance.
• Output display device. The quality of the output signal depends
largely upon the type and quality of the HDMI display device used;
some televisions simply look better than others.
• Distance between the sources and the display. Long distances are
possible, but premium quality cables and advanced HDMI extenders
with DDC correction may be necessary for the longest runs.
• Input/output connection cables. HDMI cable design and quality
are extremely important in long cable runs where capacitance can
severely degrade performance. Cables should be of the best quality;
low quality cables are susceptible to interference. Always use locking
cables or good strain relief methods to prevent cables from becoming
loose over time.
• Interference from nearby electrical devices can have an adverse
effect on signal quality. For example, older computer monitors often
emit a very high electromagnetic eld that can interfere with the
performance of video equipment in its proximity.
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this switcher, please check the packaging and
make certain the following items are contained in the shipping carton:
• HDMI Switcher
• Infrared Remote Control
• 5 VDC Power Adapter
• User Manual
Note: please keep the original packing material in case the unit ever needs to be
returned. If you nd any items are missing, contact Audio Authority immediately. Have
the model number and invoice available for reference when you call.
4
