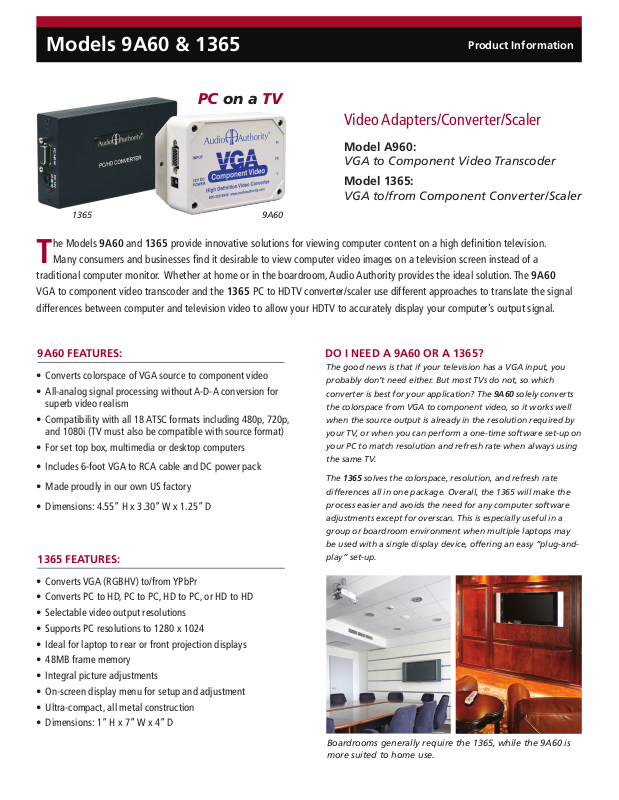

Audio Authority 1365, 9A60 User Manual

Models 9A60 & 1365

PC on a TV

Product Information

Video Adapters/Converter/Scaler

Model A960:

VGA to Component Video Transcoder

Model 1365:
VGA to/from Component Converter/Scaler

1365

9A60

he Models 9A60 and 1365 provide innovative solutions for viewing computer content on a high definition television.

T

Many consumers and businesses find it desirable to view computer video images on a television screen instead of a
traditional computer monitor. Whether at home or in the boardroom, Audio Authority provides the ideal solution. The 9A60
VGA to component video transcoder and the 1365 PC to HDTV converter/scaler use different approaches to translate the signal
differences between computer and television video to allow your HDTV to accurately display your computer’s output signal.

9A60 FEATURES:

• Converts colorspace of VGA source to component video

• All-analog signal processing without A-D-A conversion for

superb video realism

• Compatibility with all 18 ATSC formats including 480p, 720p,

and 1080i (TV must also be compatible with source format)

• For set top box, multimedia or desktop computers

• Includes 6-foot VGA to RCA cable and DC power pack

• Made proudly in our own US factory

• Dimensions: 4.55” H x 3.30” W x 1.25” D

1365 FEATURES:

DO I NEED A 9A60 OR A 1365?

The good news is that if your television has a VGA input, you

probably don’t need either. But most TVs do not, so which

converter is best for your application? The 9A60 solely converts

the colorspace from VGA to component video, so it works well

when the source output is already in the resolution required by

your TV, or when you can perform a one-time software set-up on

your PC to match resolution and refresh rate when always using

the same TV.

The 1365 solves the colorspace, resolution, and refresh rate

differences all in one package. Overall, the 1365 will make the

process easier and avoids the need for any computer software

adjustments except for overscan. This is especially useful in a

group or boardroom environment when multiple laptops may

be used with a single display device, offering an easy “plug-and-

play” set-up.

• Converts VGA (RGBHV) to/from YPbPr

• Converts PC to HD, PC to PC, HD to PC, or HD to HD

• Selectable video output resolutions

• Supports PC resolutions to 1280 x 1024

• Ideal for laptop to rear or front projection displays

• 48MB frame memory

• Integral picture adjustments

• On-screen display menu for setup and adjustment

• Ultra-compact, all metal construction

• Dimensions: 1” H x 7” W x 4” D

Boardrooms generally require the 1365, while the 9A60 is
more suited to home use.

THE VERSATILE 1365

1365

HD DVD

PC

Monitor

DVD

1365

HD

Projector

BLU-RAY

HDTV

1365

1365

HD DVD

PC

Monitor

1365

DVD

1365

HD

Projector

BLU-RAY

HDTV

1365

1365

HD DVD

PC

Monitor

1365

DVD

1365

HD

Projector

DVD

1365

PC

Monitor

BLU-RAY

HDTV

1365

1365

HD DVD

PC

Monitor

1365

HDTV

1365

DVD

DVD

1365

HD

Projector

The Model 1365 Video Scaler/Converter is capable of many types
of signal conversion. Below are some of the many examples of
the solutions it provides.

Blu-ray to HDTV

Any

HD Res

YPbPr

Any

HD Res

YPbPr

PC to HDTV

Any

PC Res

RGBHV

Any

HD Res

YPbPr

HDTV

PC to PC

1365

Any
HD Res
RGBHV

Any

PC Res

RGBHV

DVD to PC

DVD to HDTV

DVD to Projector

HD DVD to PC

480p

YPbPr

Any

HD Res

YPbPr

1365 SPECIFICATIONS:

Input Connector: HD-15 Female
Output Connector: HD-15 Female
Physical Input Format: RGBHV
Physical Output Format: RGBHV
Electrical Input Format: RGBHV, YPbPr, YCbCr
Electrical Output Format: RGBHV, YPbPr
PC Input Resolutions: 640x480 to 1280x1024
HDTV Input Resolutions: Interlace: 480i/p, 576i/p, 720p*
HDTV Output Resolutions: 480p, 576p, 720p 1080i/540p*

Input Signal Controls: Clock frequency, phase
Output Signal Controls: Brightness, contrast, color,

red-green-blue levels,

Horizontal and Vertical Position

*1080i output is actually a doubled 540p signal. It appears as 1080i on most displays; however, it is not a true 1080i signal format.

9A60 SPECIFICATIONS:

Input:
RGB Video Input:
HV Sync Inputs:
Output:
Y Video Output:
Pb Output:
Pr Output:
Y Sync Output:

RGBHV on HD-15 VGA connector

Y Pb Pr Component video to 3 RCA jacks

701G + .212R + .087B

500B - .384G - .116R

.500R - .445G - .055B

300mV negative bilevel, 600nS horizontal,

unprocessed vertical

700mV p-p

5 volt TTL

Size (H-W-D): 1x7x4 inches (25x175x100mm)
Weight (Net): 1.5lb (680g)
Limited Warranty: 1 year replacement
Operating Temperature: +32° to +120° F (0° to +48° C)
Operating Humidity: 10% to 85%, non-condensing
Storage Temperature: -40° to +150° F (-40° to +65° C)
Storage Humidity: 10% to 85%, non-condensing
External Power Supply: 115VAC to 12VDC @ 800mA

Regulatory Approvals: Scaler: FCC, CE

Accessories Included: 3 ft HD-15 to YPbPr (3 RCA)

Video Bandwidth:
Size (H x W x D):
Warranty:
Power Requirements:
Regulatory Approvals:
Accessories Included:

Any

PC Res

RGBHV

YCbCr

480p

YPbPr

Any

PC Res

RGBHV

480i

Any

PC Res

RGBHV

Any

HD Res

YPbPr

Power Supply: UL, CE, CSA

AC Power Adapter

-3dB @ 250MHz

4.55” X 3.30” X 1.25”
One Year Replacement

100-240 VAC, 50-60Hz

6-foot VGA male-to-male cable,

12 volt DC power pack

PC

Monitor

maximum

FCC
