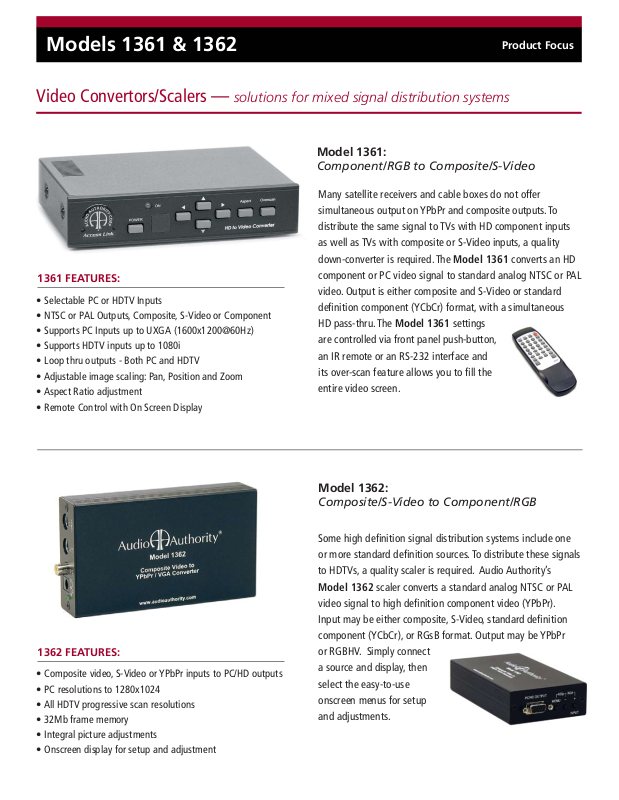

Audio Authority 1362 User Manual

Models 1361 & 1362

Video Convertors/Scalers — solutions for mixed signal distribution systems

Model 1361:

Component/RGB to Composite/S-Video

Many satellite receivers and cable boxes do not offer
simultaneous output on YPbPr and composite outputs. To
distribute the same signal to TVs with HD component inputs
as well as TVs with composite or S-Video inputs, a quality
down-converter is required. The Model 1361 converts an HD

1361 FEATURES:

• Selectable PC or HDTV Inputs

• NTSC or PAL Outputs, Composite, S-Video or Component

• Supports PC Inputs up to UXGA (1600x1200@60Hz)

• Supports HDTV inputs up to 1080i

• Loop thru outputs - Both PC and HDTV

• Adjustable image scaling: Pan, Position and Zoom

• Aspect Ratio adjustment

• Remote Control with On Screen Display

component or PC video signal to standard analog NTSC or PAL
video. Output is either composite and S-Video or standard
definition component (YCbCr) format, with a simultaneous
HD pass-thru. The Model 1361 settings
are controlled via front panel push-button,
an IR remote or an RS-232 interface and
its over-scan feature allows you to fill the
entire video screen.

Product Focus

1362 FEATURES:

• Composite video, S-Video or YPbPr inputs to PC/HD outputs

• PC resolutions to 1280x1024

• All HDTV progressive scan resolutions

• 32Mb frame memory

• Integral picture adjustments

• Onscreen display for setup and adjustment

Model 1362:
Composite/S-Video to Component/RGB

Some high definition signal distribution systems include one
or more standard definition sources. To distribute these signals
to HDTVs, a quality scaler is required. Audio Authority’s
Model 1362 scaler converts a standard analog NTSC or PAL
video signal to high definition component video (YPbPr).
Input may be either composite, S-Video, standard definition
component (YCbCr), or RGsB format. Output may be YPbPr
or RGBHV. Simply connect
a source and display, then
select the easy-to-use
onscreen menus for setup
and adjustments.

Video Converters/Scalers

MODEL 1361

Video Input Connectors

HDTV Component (YPbPr) Three RCA female (loops to output)
PC One HD-15 female (loops to output)

Video Output Connectors

Composite One RCA female
S-Video 4-pin Mini-DIN female
Component (YPbPr) Three RCA female

Input Signal

HDTV Resolution Supported 480i/p, 576i/p, 720p,1080i
PC Resolution Supported VGA, SVGA, XGA, SXGA, UXGA

Output Signal
Composite/S-Video NTSC or PAL, interlaced
Component YCbCr

Control Methods

Local Push buttons on unit + OSD
Remote IR remote control w/OSD + RS-232

Mechanical
Size (H-W-D) 2”x 8”x6” (50 x 204 x 155mm)
Weight (Net) 2.2 lbs. (1kg)

MODEL 1362

Video Input Connectors

Composite One RCA female
S-Video 4-pin Mini-DIN female
YUV 8-pin Mini-DIN w/breakout cable

Video Output Connectors

HDTV/PC HD-15

Input Signal

Input Format Composite Video, S-Video, YUV (Y,R-Y,B-Y)
Input Signal Levels One HD-15 female (loops to output)

Output Signal

Output Format RGBHV, YPbPr
Output Signal Levels RGB @ 0.7V p-p, 75
p-p, TTL

Control Methods

Local Front Panel Buttons
Adjustments
H&V Peaking
Mechanical
Size (H-W-D) 1.2”x 5.25”x 3” (30 x 133 x 76mm)
Weight (Net) .62 lbs. (280 g)

Brightness, Contrast, Color, Tint, Sharpness,

Ω. H&V Sync @ 3-5V

Warranty
Limited Warranty 1 year replacement

Power Requirement
External Power Supply 5 VDC @ 2A

Regulatory Approvals

1361 FCC, CE
Power Supply UL, CE, CSA

Accessories Included
Power adapter, HD-15 to HD-15 VGA cable, 3-RCA to 3-RCA cable,
RCA to RCA component cable, S-Video cable, IR remote control,
Application Software CD, User manual

Warranty
Limited Warranty 1 year replacement

Power Requirement
External Power Supply 5 VDC @ 2A

Regulatory Approvals

1362 FCC, CE
Power Supply UL, CE, CSA

Accessories Included
Power adapter, 8 pin Mini DIN to 3 RCA cable, HD-15 to 3 RCA cable, User
manual
