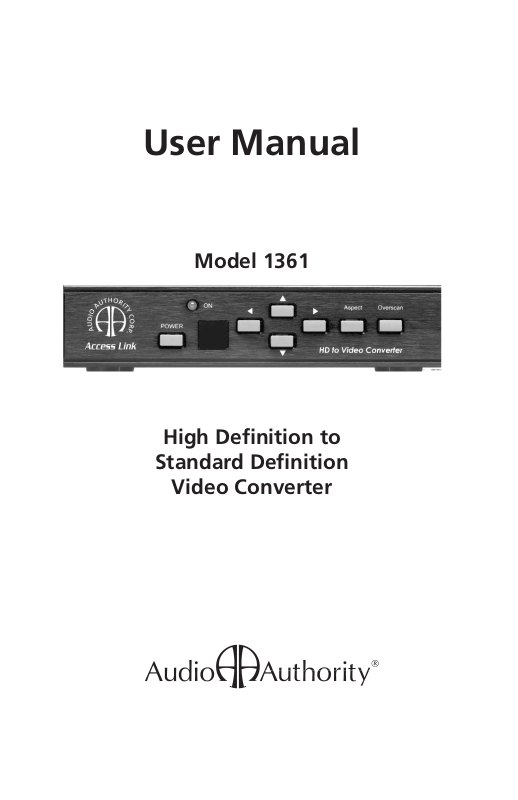

Audio Authority 1361 User Manual

Video Converter

3

Table Of Contents

2.0

3.0

Checking Package Contents

6

4.0

Connecting The Hardware

6

Operating The Unit

7

6.0

Troubleshooting

7.0

8.0

9.0

Contact Information

Thank you for purchasing this 1361 Video Converter from Audio

Authority. The 1361 has many uses, but the vital need it answers

and cable boxes do not offer simultaneous output on YPbPr and

composite ouputs. To distribute the same signal to TVs with HD

component inputs as well as TVs with composite or S-Video inputs,

a quality down-converter is required. Model 1361 converts an HD

component or PC video signal to standard analog NTSC or PAL

video. Output is either composite and S-Video or standard de nition

component (YCbCr) format, with a simultaneous HD pass-thru. Audio

Authority also offers an extensive line of audio and video switchers,

converters and distribution amps available for purchase online at

www.audioauthority.com.

errors. Audio Authority cannot be held liable for the use of this

from its use. It is the responsibility of the user of the hardware

to check that it is suitable for his/her requirements and that it is

or mechanical, including photocopying, recording or by any

of the publisher.

Audio Authority reserves the right to revise any of its hardware and

software following its policy to modify and/or improve its products

where necessary or desirable. This statement does not affect the

All third party trademarks and copyrights are recognized. The Audio

Authority logo and Double A logo are the registered Trademarks

of Audio Authority. All other trademarks are the property of their

Switchable PC or HDTV inputs up to (1600x1200@60Hz) and 1080i

Adjustable aspect ratio and image scaling: pan, position and zoom

2.0 SPECIFICATIONS

Video Input Connectors

HDTV Component (YPbPr)

Three RCA female (loops to output)

PC

One HD-15 female (loops to output)

Video Output Connectors

Composite

One RCA female

S-Video

4-pin Mini-DIN female

Component (YPbPr)

Three RCA female

HDTV Video

PC

Input Signal Characteristics

HDTV Inputs Resolution Supported

480i, 480p, 576i, 576p, 720p, 1080i

PC Resolutions Supported

VGA, SVGA, XGA, SXGA, UXGA

Output Signal Characteristics

Composite, S-Video

NTSC or PAL, interlaced

Component

YCbCr

Control Methods

Local

Push buttons on unit + OSD

Remote

IR remote control w/OSD + RS-232

Size (H-W-D)

2”x8”x6” (50x204x155mm)

Weight (Net)

2.2 lbs. (1kg)

Warranty

Limited Warranty

Power Requirements

External AC Adaptor

5 VDC @ 2A

Regulatory Approvals

Model 1361

FCC, CE

AC Power Adaptor

UL, CE, CSA

Accessories Included

AC Power Adapter (USA)

User Manual

HD-15 to HD-15 VGA cable

3-RCA to 3-RCA cable

RCA to RCA component cable

S-Video cable

IR remote control

Application Software CD

6

3.0 CHECKING PACKAGE CONTENTS

carton:

AC Power Adapter (USA)

3-RCA to 3-RCA cable

S-Video cable

Application Software CD

the unit. If you  nd any items are missing, contact Audio Authority immediately. Have

the Model Number, Serial Number and Invoice available for reference when you call.

4.0 CONNECTING THE HARDWARE

signal inputs, outputs and control locations on the 1361.

The POWER key switches between “standby” and “on“. When

the unit is turned on, the LED marked ON lights up. The infrared

window, next to the POWER key, must remain unblocked so that the

the arrows are used to position and pan the image. The ASPECT key

allows switching between wide screen and standard display modes

and the OVERSCAN key allows magni cation of the image.

The inputs and outputs on the rear panel are clearly marked.

Connect the appropriate cables to the inputs making certain that

the cables are in good condition. The power switch (upper right in

the view above) removes or applies power to the unit. If the switch

The switch next to the power connector is used to switch between PC

These instructions will focus on using the remote, since it has the

complete array of functions, while the front panel buttons offer

only the basic functions. Most of the 1361 buttons can be quickly

explanation for the complex functions. Refer to the explanations on

the following pages to become familiar with all of the keys on the

OVERSCAN OUTPUT FREEZE

POWER

CONTRAST

BRIGHT

COLOR

SHARP

V-RESET

NTSC/PAL

COLORBARSYS-RESET

POS/PAN

ZOOM

ASPECT

DEFAULT

SIZE/EXP

1 2 3

4 5 6

7 8 9

8

The four keys in the corners shown below (ZOOM, ASPECT, POS/

ASPECT, POS/PAN, and SIZE/EXP functions are shown below.

OVERSCAN OUTPUT FREEZE

POWER

CONTRAST

1 2 3

OVERSCAN: Toggles between over-scanned and under-scanned normal image

OUTPUT: Toggles between composite, S-Video and component outputs

OVERSCAN OUTPUT FREEZE

POWER

CONTRAST

BRIGHT

COLOR

SHARP

V-RESET

NTSC/PAL

COLORBAR

SYS-RESET

POS/PAN

ZOOM

ASPECT

DEFAULT

SIZE/EXP

1 2 3

4 5 6

7 8 9

ZOOM: Press the ZOOM key to enlarge a section of

the picture. Press it again to return to normal image

size. When the ZOOM key is pressed, the picture

zone) you want to enlarge. The ARROW keys can

also be used to move across the image.

this button allows the user to position the under-

scanned image anywhere on the raster using the

arrow keys. If the unit is in the over-scan mode,

scanned image using the arrow keys.

ASPECT: This key toggles three modes. Full is

the regular 4:3 aspect mode. The second toggle

activates the Pan and Scan mode wherein you can

adjust the image horizontally and vertically. The

 nal toggle activates the letterbox mode.

SIZE/EXP: When in the under-scan mode, pressing

this button allows the arrow keys to expand or

shrink the image within the monitor’s raster. If the

system is in over-scan mode, the arrow keys set the

degree of overscan.

9

FREEZE

POWER

CONTRAST

BRIGHT

COLOR

SHARP

V-RESET

NTSC/PAL

COLORBARSYS-RESET

POS/PAN

ASPECT

SIZE/EXP

1 2 3

4 5 6

7 8 9

CONTRAST, BRIGHTNESS, COLOR & SHARP: These keys

allow adjustment to be made to the labeled signal

to make adjustments.

V-RESET: Restores factory default settings to the Contrast,

SYS-RESET: Restores factory presets to all parameters

(Overscan, NTSC, 4:3 Aspect Ratio, Signal Parameters and

CV/SV Output).

COLORBAR: Causes an internally generated color bar signal

to appear on the unit’s outputs.

Software is included to allow control of the

Compatability: Windows 98/ME/2000/XP

setup.exe function from the CD.

The computer will probably update some

 les causing the need to reboot after the

Once fully installed, click the taskbar

to start the RS-232 software.

Pinouts for RS-232 Cable

Connector

Connector

2, TxD

2, RxD

3, RxD

3, TxD

4, NC

4, NC

6, NC

6, NC

7, NC

7, NC

8, NC

8, NC

9, NC

9, NC

A main panel appears containing 15 icons that provide the control

functions of the unit (icons 15 through 18 pertain to the application

Connection Status - If gray, there is no connection

2

3

System Reset

Zoom

6

Over/Under-scan

Option

8

Aspect

9

Output Format

Screen Freeze

Video Settings

Close

System Tray

About

8

9

23467

Certain keys cause a sub-menu to appear where the adjustments

can be made. These keys are ZOOM, POSITION/PAN, SIZE/EXPAND,

VIDEO SETTINGS, MAGNIFIER, OPTION, and ABOUT. Wherever the

arrow and number keys appear, their function is just like the remote

control. The upward facing arrow at the lower right returns to the

Zoom

The sub-menu below appears when you click the Zoom icon. Use the

arrow keys or the number keys to make adjustments.

The sub-menu below appears when you click either the Position/Pan

or Size/Expand icons.

Video Settings

The sub-menu below appears when you click the Video Settings icon.

The R icon on this panel resets these settings to factory default.

Option

Click on the desired option.

About

Software and  rmware information.

This panel allows the adjustment of picture size. It is only available in

2.0

S

Generate an undersize image

Arrows

X

Close sub-menu

6.0 TROUBLESHOOTING

connections. Unexpected results may also be caused by choosing the

wront output setting. Make sure the input resolution and refresh

format selected (composite, S-Video or YCbCr) is correct for the type

of cable and connector being used at the output. Also make certain

that you have selected the correct television standard (NTSC or PAL).

contact the Audio Authority Technical Service department via email:

[e-mail], or call 800/322-8346 or 859/233-4599.

7.0 LIMITED WARRANTY

Should any consumer use product from Audio Authority fail due to

defects in materials or workmanship within one year from the date

of the original sale to the end-user, Audio Authority guarantees that

we will replace the defective product at no cost. Freight charges for

the replacement unit will be paid by Audio Authority (Ground service

only). A copy of the invoice showing the item number and date of

to the factory for repair at a nominal charge, if not damaged beyond

the point of repair. All freight charges for out-of-warranty returns

for repair are the responsibility of the customer. Units returned for

factory.

This is a limited warranty and is not applicable for products which,

either expressed or implied, including limitation warranties as to

there are no allowances or credits available for service work or

Warranty Service Procedures

Service Department at

800/322.8346

or

859/233.4599

for assistance in

verifying the problem. If a defect or potential defect is suspected, a

the Manufacturer’s Suggested Retail Price which is debited to the

Customer’s Credit Card at the time of shipment. Once we receive

the defective unit back at the factory, it will be evaluated under the

conditions of this warranty and if found to be in-warranty, a full

credit will be issued to the Customer’s Credit Card. Return freight

charges for the defective unit are the customer’s responsibility.

concerning all in and out of warranty service matters.

We appreciate your con dence in our products and services and will

always strive to meet or exceed your needs.

8.0 REGULATORY COMPLIANCE

This product complies with the relevant standards for FCC and CE

approval.

The Power Adaptor/Supply has been tested for compliance with UL,

CSA & CE Regulations.

9.0 CONTACT INFORMATION

Should you have questions or require assistance with this product in

areas not covered by this manual, please contact Audio Authority

Audio Authority Technical Service

800/322-8346 M-F 8:30 AM to 5:00 PM, EST

Send email to: [e-mail]

Audio Authority Corporation

2048 Mercer Road

2048 Mercer Road, Lexington, Kentucky 40511-1071

Customer Toll-Free USA & Canada: 800/322-8346

Website: http://www.audioauthority.com

752-504

2/06
