Audio Authority 1311 User Manual

User Manual

Model 1311

DVI+Digital Audio to HDMI Converter

Model 1312

HDMI to DVI+Digital Audio Converter

233

Table Of Contents

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . 4

2.0 Specications . . . . . . . . . . . . . . . . . . . . . . 5

3.0 Checking Package Contents . . . . . . . . . . . . . . . 6

4.0 Connecting The Hardware . . . . . . . . . . . . . . . 6

5.0 Operating The Unit . . . . . . . . . . . . . . . . . . . 7

6.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 8

7.0 Limited Warranty . . . . . . . . . . . . . . . . . . . . 9

8.0 Regulatory Compliance . . . . . . . . . . . . . . . . 10

9.0 Contact Information . . . . . . . . . . . . . . . . . . 10

5

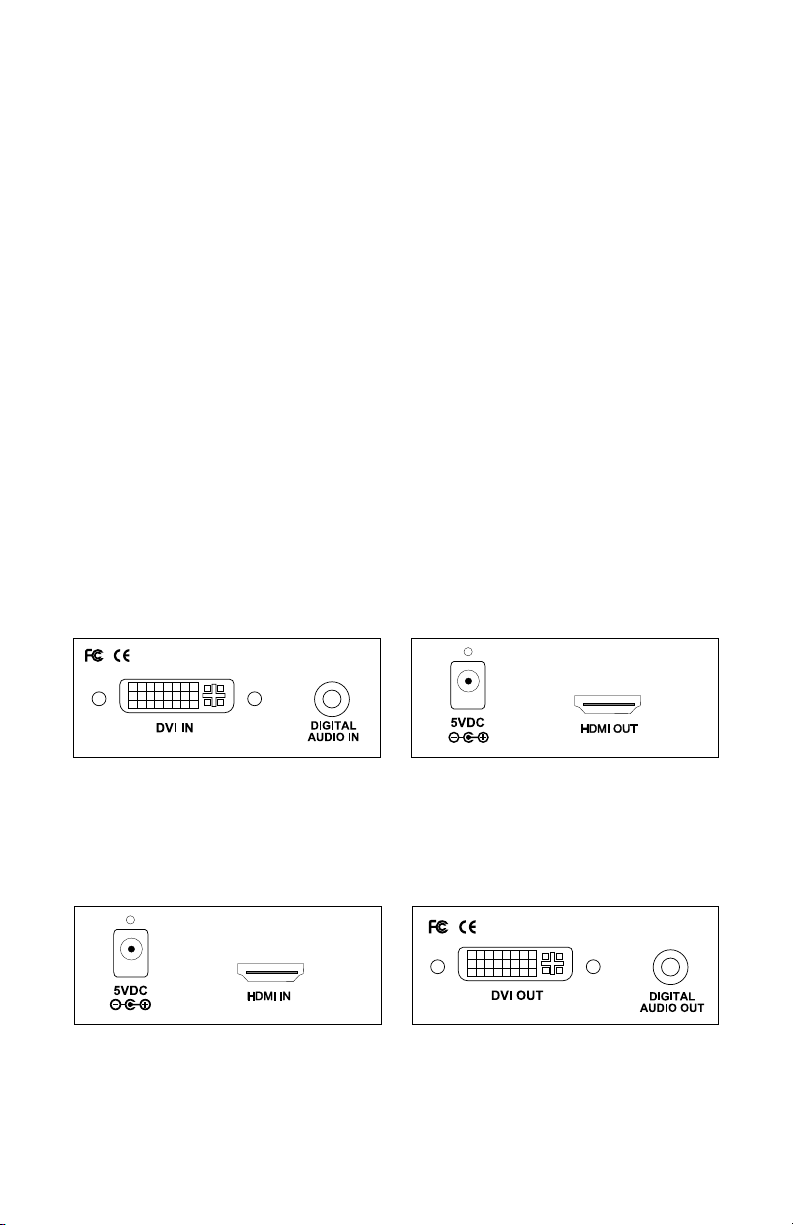

1.0 INTRODUCTION

Thanks for purchasing this 1311 or 1312 AV signal converter from
Audio Authority. The 1312 converts HDMI inputs to Digital DVI

signals and provides an S/PDIF Audio output. The converted HDMI
video signal can then be connected to an HDTV with a DVI input
or to a DVI switcher’s inputs. The 1311 converts a Digital DVI
signal and S/PDIF Audio input to an HDMI format allowing the
viewing or switching of a digital AV signal on an HDMI system.
Both the 1311 and 1312 are HDCP compliant. Audio Authority
also offers an extensive line of audio and video switchers,
converters and distribution amps available for purchase online at
www.audioauthority.com.

1.1 Liability Statement

Every effort has been made to ensure that this product is free of
errors. Audio Authority cannot be held liable for the use of this
hardware or any direct or indirect consequential damages arising
from its use. It is the responsibility of the user of the hardware
to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may
be reproduced or transmitted by any form or means electronic
or mechanical, including photocopying, recording or by any
information storage or retrieval system without the written consent
of the publisher.

Audio Authority reserves the right to revise any of its hardware and
software following its policy to modify and/or improve its products
where necessary or desirable. This statement does not affect the
legal rights of the user in any way.

All third party trademarks and copyrights are recognized. The Audio
Authority logo and Double A logo are the registered Trademarks
of Audio Authority. All other trademarks are the property of their
respective holders.

1.2 FEATURES

The 1311 and 1312 have many features that enable them to perform
in a superior manner. Among those features you will nd:

• Supports HDCP (High-bandwidth Digital Coontent Protection)

• Input format Auto Detection: RGBHV or YPbPr

• S/PDIF Audio

• Supports the full 165MHz bandwidth

• Improved Video Quality via Digital interface

• Supports resolutions to WUXGA and 480i, 480p, 720p, 1080i, 1080p

4
