AuCom MVE User Manual

Download

Page 1

USER MANUAL

MVE Soft Starter

Page 2

Contents

CONTENTS

1. About This Manual ...................................................... 2

1.1 User Manual Version .............................................................. 2

2. Caution Statements .................................................... 3

3. General Description.................................................... 4

3.1 Overview .................................................................................... 4

3.2 Feature List .............................................................................. 4

3.3 Key Features ............................................................................ 5

3.4 Model Code ............................................................................... 6

3.5 Accessories .............................................................................. 7

4. Specifications .............................................................. 8

5. Receiving and Storage .............................................. 11

5.1 Receiving ................................................................................. 11

5.2 Storage .................................................................................... 11

6. Installation ................................................................ 12

6.1 Lifting and Moving ................................................................. 12

6.2 Dimensions and Weights ..................................................... 13

6.3 Mounting Points .................................................................... 14

6.4 Clearance Requirements .................................................... 14

6.5 Power Terminations ............................................................. 15

6.6 Earth Terminations ............................................................... 17

6.7 Controller Mounting ............................................................. 18

6.8 Terminations on the Controller .......................................... 18

6.9 Wiring for Remote Control .................................................. 19

6.10 Terminations on the Power Interface Board ................... 20

6.11 Terminations for Adapter Board and Gate Drive Board 22

6.12 Power Circuits ....................................................................... 23

6.13 CT Current Measurement ................................................... 25

6.14 Internal Panel Wiring ........................................................... 27

6.15 Operation mode selector switch (S1) ................................ 28

6.16 Phase arm power supply switching ................................... 28

6.17 Approved switch mode power supply units ..................... 28

6.18 Internal Fibre-Optic Connections ....................................... 29

7. Controller .................................................................. 30

7.1 Starter Status LEDs .............................................................. 30

7.2 Menu Shortcuts ..................................................................... 30

7.3 Displays ................................................................................... 30

7.4 Display Calibration ................................................................ 32

7.5 Commissioning Menu (Tools) ............................................. 32

7.6 Set Date and Time ................................................................. 32

7.7 Simulation Tools ................................................................... 33

7.8 Input/Output Status .............................................................. 34

7.9 Reset Thermal Models......................................................... 35

7.10 Programming Menu ............................................................. 35

7.11 Monitoring .............................................................................. 37

7.12 Operation ................................................................................ 38

7.13 Standard Menu ...................................................................... 42

7.14 Extended Menu ...................................................................... 43

7.15 Parameter Descriptions ...................................................... 46

8. Commissioning .......................................................... 61

8.1 Physical Checks: Mechanical Assemblies ....................... 61

8.2 Physical Checks: Electrical Assemblies ........................... 61

8.3 Operating Tests ..................................................................... 62

9. Troubleshooting ........................................................ 66

9.1 Protection Responses .......................................................... 66

9.2 Trip Messages ....................................................................... 66

9.3 General Faults ....................................................................... 70

10. Maintenance .............................................................. 72

10.1 Safety ....................................................................................... 72

10.2 Maintenance Schedule ........................................................ 72

10.3 Tools required ....................................................................... 72

10.4 Thermal Image ...................................................................... 72

11. Appendix ..................................................................... 73

11.1 Parameter Defaults .............................................................. 73

11.2 Slip-Ring Motor Connection................................................ 77

MVE User Manual (710-17074-00G) | 1

Page 3

ABOUT THIS MANUAL

WARNING

CAUTION

NOTE

Software versions: Control software, interface software, Keypad

1. About This Manual

The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is subject to change at any time and without prior notice. In no event will responsibility or liability be accepted for direct, indirect or consequential damages resulting from the use or application of this equipment.

Indicates a hazard that may cause personal injury or death.

Indicates a hazard that may damage the equipment or installation.

Provides helpful information.

1.1 User Manual Version

This user manual (710-17074-00G) is compatible with MVE soft starters using version 1.33 control software and version 2.36 interface software. For other software versions, please contact AuCom for the correct user manual.

Software versions are displayed on the screen at power up.

Ready

Welcome

1.33 / 2.36 / 2.02

As AuCom is continuously improving its products it reserves the right to modify or change the specification of its products at any time

without notice. The text, diagrams, images and any other literary or artistic works appearing in this document are protected by

copyright. Users may copy some of the material for their personal reference but may not copy or use material for any other purpose

without the prior consent of AuCom Electronics Ltd. AuCom endeavours to ensure that the information contained in this document

including images is correct but does not accept any liability for error, omission or differences with the finished product.

2 | MVE User Manual (710-17074-00G)

Page 4

CAUTION STATEMENTS

WARNING - ELECTRICAL SHOCK HAZARD SHORT CIRCUIT

GROUNDING AND BRANCH CIRCUIT PROTECTION

ARC FLASH HAZARD

2. Caution Statements

Caution Statements cannot cover every potential cause of equipment damage but can highlight common causes of damage. It is the installer's responsibility to read and understand all instructions in this manual prior to installing, operating or maintaining the equipment, to follow good electrical practice including applying appropriate personal protective equipment and to seek advice before operating this equipment in a manner other than as described in this manual.

• Read and understand the entire manual before installing operating, or maintaining the MVE. Follow all applicable

local and national codes.

• Apply appropriate personal protective equipment (PPE) and clothing, and follow safe electrical work practices.

• Disconnect all power and ensure that the MVE is de-energised before servicing the equipment.

• Do not rely on visual indications such as switch position or fuse removal for determining a de-energised condition.

Always assume that a terminal is energised until it is checked and ensure that a terminal is de-energised and grounded.

• Isolate the MVE completely from the power supply before attempting any work on the MVE or motor.

• Always use a properly rated voltage sensing device to confirm power is off.

• Before servicing the MVE, ensure that all static charge has been discharged by grounding it with an appropriate

grounding device.

• Metal swarf in the cabinet can cause equipment failure.

• The control inputs are powered by the soft starter. Do not apply external voltage to the control input terminals.

• Contacts or switches operating the control inputs must be suitable for low voltage, low current switching (ie gold

flash or similar).

• Cables to the control inputs must be segregated from mains voltage and motor cabling.

• Some contactor coils are not suitable for direct switching with PCB mount relays.

The MVE contains dangerous voltages when connected to mains voltage. Only a qualified electrician should carry out the electrical installation. Improper installation of the motor or the MVE may cause equipment failure, serious injury or death. Follow this manual and local electrical safety codes.

The MVE is not short circuit proof. After severe overload or short circuit, the operation of the MVE should be fully tested by an authorised service agent.

It is the responsibility of the user or person installing the MVE to provide proper grounding and branch circuit protection according to local electrical safety codes.

Medium voltage equipment has a potential risk of arc flash. When insulation or isolation between electrified conductors is breached or can no longer withstand the applied voltage, a short circuit occurs through the air. This may cause a phase-to-ground and/or a phase-to-phase fault.

Although unlikely, arc fault can be caused by:

• Contamination in the insulation caused by deterioration over time

• Inadequate insulation system on cable terminals

• Overvoltage

• Incorrect protection coordination settings

• Overheating of the contact area, due to incorrect tightening of connections

• Introduction of foreign matter, including swarf, vermin, tools or maintenance equipment left in the starter

AuCom medium voltage equipment has been designed to mitigate an arc fault, however it is the responsibility of the

site engineer to ensure that personnel are protected from serious injury that may result from an arc fault.

MVE User Manual (710-17074-00G) | 3

Page 5

GENERAL DESCRIPTION

Starting

Stopping

Protection

Extensive input and output options

Comprehensive feedback

Accessories (optional)

3. General Description

3.1 Overview

The MVE provides compact and robust soft start solutions for control of medium voltage motors. MVE soft starters provide a complete range of motor and system protection features and have been designed for reliable performance in the most demanding installation situations.

The main components of a MVE soft starter are:

• Power assembly (3 x phase arms)

• Multilingual controller with FO cables

• Power interface board

3.2 Feature List

• Constant Current

• Current Ramp

• Coast To Stop

• Soft stop

• Undervoltage / Overvoltage (27, 59)

• Mains frequency (81)

• Phase sequence (47)

• Shorted SCR (3)

• Motor Overload (thermal model) (49, 51)

• Instantaneous Overcurrent (two stages) (50)

• Time-overcurrent (51)

• Ground Fault (50G)

• Undercurrent (37)

• Current Imbalance (46, 60)

• Motor thermistor (26, 49)

• Excess Start Time (48)

• Power circuit (32)

• Auxiliary trip (94, 95)

• 3 x CTs – 1000:1

• Remote control inputs

(3 x fixed, 2 x programmable)

• Relay outputs

(3 x fixed, 3 x programmable)

• Analog output

(1 x programmable)

• Serial port (with module)

• Starter status LEDs

• Date and time stamped event logging

• Operational counters (number of starts, hours-run, kWh)

• Performance monitoring (current, voltage, power factor, kWh)

• User-programmable monitoring screen

• Multi-level password protection

• Communication modules: Ethernet (Profinet, Modbus TCP,

Ethernet/IP), Profibus, DeviceNet, Modbus RTU, and USB

4 | MVE User Manual (710-17074-00G)

Page 6

GENERAL DESCRIPTION

Example:

NOTE NOTE

3.3 Key Features

MVE soft starters offer several special functions to ensure ease of use and to provide optimal motor control in all environments and applications.

• Customisable Protection

The MVE offers comprehensive protection to ensure safe operation of the motor and soft starter. The protection characteristics can be customised extensively to match the exact requirements of the installation.

Use

4 Protection Settings

Use parameter 4C

Use

Use parameter 16C

MVE soft starters have built-in trip points to ensure operation remains within the soft starter's capability. These internal trips cannot be overridden. Certain faults within the MVE will also prevent the soft starter from operating. Refer to

on page 48 to set the conditions in which each protection mechanism will activate.

Delay

to set a delay on the trip.

16 Protection Action

Undercurrent

to set the level for an undercurrent trip and parameter 4D

Undercurrent

on page 60 to select the soft starter's response when a protection mechanism activates. Each protection can be set to trip the starter, activate a warning flag, or be ignored. All protection activations are recorded in the event log, regardless of the protection class setting.

Undercurrent

to select the response for an undercurrent trip (trip, warn or write to log).

The default response is trip.

Troubleshooting

on page 66 for details.

• Advanced Thermal Modelling

Intelligent thermal modelling allows the soft starter to predict whether the motor can successfully complete a start. The MVE uses information from previous starts to calculate the motor's available thermal capacity, and will only permit a start which is predicted to succeed.

This feature can be enabled or disabled using parameter 4N

Motor Temperature Check

• Comprehensive Event and Trip Logging

The MVE has a 99-place event log to record information on soft starter operation. A separate trip log stores detailed information about the last eight trips. Refer to download the software, visit www.aucom.com.

Starter Trip and Event Logger Software

on page 7 for details. For further information, or to

• Informative Feedback Screens

A digital display screen allows the MVE to display important information clearly. Comprehensive metering information, details of starter status and last start performance allow easy monitoring of the starter's performance at all times.

• Dual Parameter Set

The MVE can be programmed with two separate sets of operating parameters. This allows the soft starter to control the motor in two different starting and stopping configurations.

The secondary motor settings (parameter groups 9 and 10) are ideal for conventional (squirrel-cage) motors which may start in two different conditions (such as loaded and unloaded conveyors).

The MVE is not suitable for controlling two separate motors. The secondary parameter set should only be used for a

The MVE will use the secondary motor settings to control a start when instructed via a programmable input (refer to parameters 6A and 6F,

secondary configuration of the primary motor.

Input A or B Function

• Fibre-Optics

The MVE uses two-line fibre-optic connections between the low voltage and high voltage zones for electrical isolation. This fibre-optic link simplifies installation of chassis mount MVE starters into custom panels.

MVE User Manual (710-17074-00G) | 5

Page 7

GENERAL DESCRIPTION

–

Control Voltage

Supply Voltage

Current Rating

0070 = 70 A 0700 = 700 A

3.4 Model Code

MVE-

–

C12 = 85 ~ 264 VAC or 90 ~ 350 VDC*

V02 = 2300 VAC 50/60 Hz V03 = 3300 VAC 50/60Hz V04 = 4160 VAC 50/60 Hz V06 = 6600 VAC 50/60 Hz V11 = 11000 VAC 50/60 Hz V13 = 13800 VAC 50/60 Hz

@ AC53b 4-30 : 1770

0110 = 110 A 0800 = 800 A 0200 = 200 A 0900 = 900 A 0220 = 220 A 1000 = 1000 A 0250 = 250 A 1100 = 1100 A 0300 = 300 A 1200 = 1200 A 0400 = 400 A 1300 = 1300 A 0450 = 450 A 1400 = 1400 A 0500 = 500 A 1500 = 1500 A 0540 = 540 A 1600 = 1600 A 0600 = 600 A 1700 = 1700 A

* Control voltage input range using an approved switch mode power supply unit with 24 VDC, 10 A (minimum) output capacity.

6 | MVE User Manual (710-17074-00G)

Page 8

GENERAL DESCRIPTION

Protocol

Order code

DeviceNet

PIM-DN-01

Modbus RTU

PIM-MB-01

Profinet

PIM-PN-01

3.5 Accessories

Communication Interfaces

MVE soft starters support network communication via easy-to-install communications interfaces. Each soft starter can support one communications interface at a time.

Available protocols:

Ethernet (Profinet, Modbus TCP, Ethernet/IP), Profibus, DeviceNet, Modbus RTU, and USB.

Ethernet/IP PIM-EI-01

Modbus TCP PIM-MT-01

Profibus PIM-PB-01

USB PIM-USB-01

• Installing Communication Modules

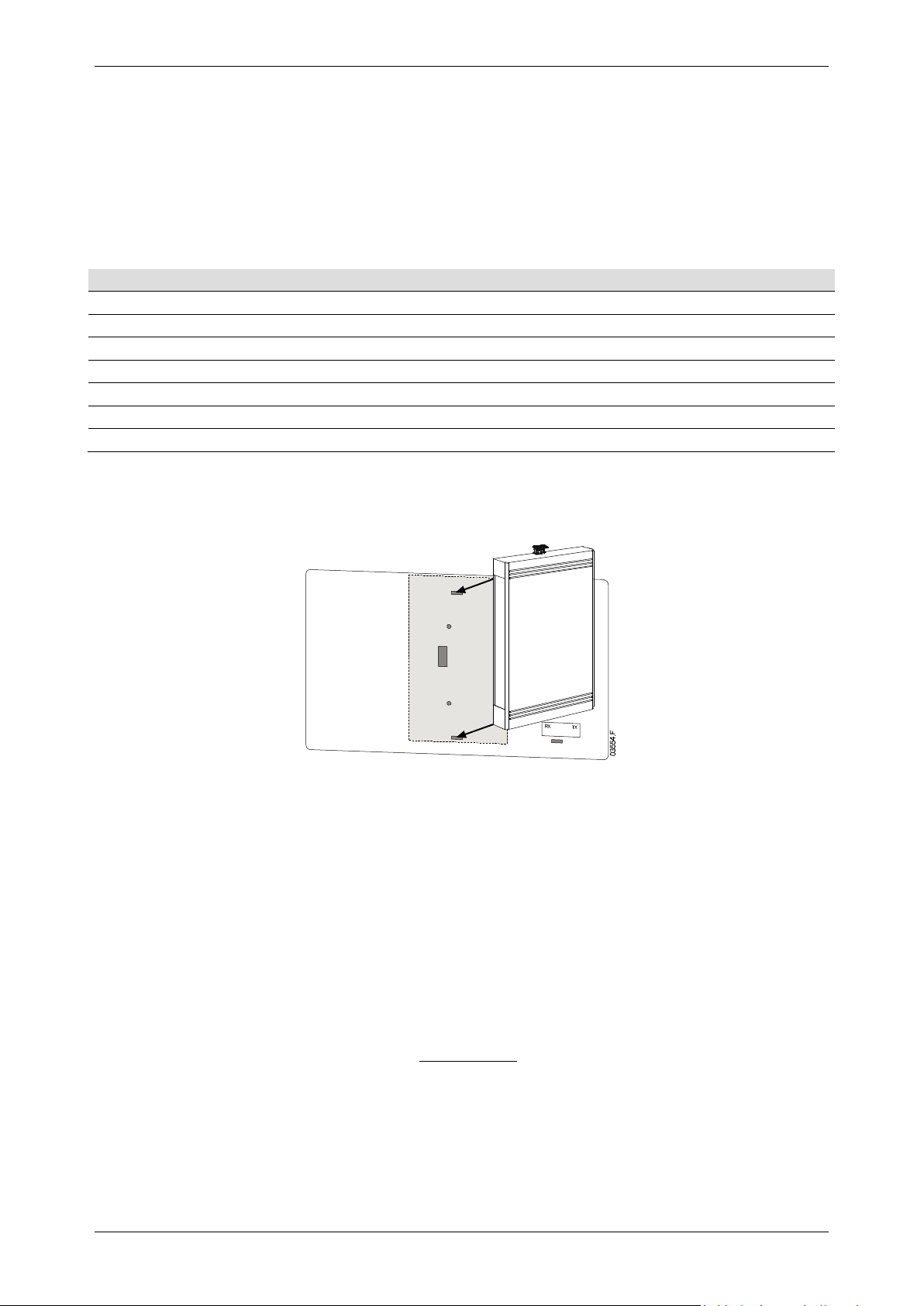

Communication modules attach to the back of the controller:

LV motor test resistor assembly

LV motor test resistor assemblies are used for low voltage motor testing. They reduce the resistance across a phase arm, increasing the strength of the non-conduction feedback signals. For more information, refer to Low Voltage Test Mode.

Starter Trip and Event Logger Software

The Starter Trip and Event Logger Software allows you to download the trip and event logs from the soft starter, for separate analysis.

The software is compatible with all AuCom medium voltage soft starters using control software version 1.29 or later.

To use the Starter Trip and Event Logger Software with the MVE, the soft starter must be fitted with a USB Module (PIM-USB-01) or a Modbus Module (PIM-MB-01).

For further information, or to download the software, visit www.aucom.com.

MVE User Manual (710-17074-00G) | 7

Page 9

SPECIFICATIONS

Supply

4. Specifications

Mains Voltage (Ur)

MVE-xxxx-V02 ............................................................................................................................................ 2.3 kV Phase-phase

MVE-xxxx-V03 ............................................................................................................................................ 3.3 kV Phase-phase

MVE-xxxx-V04 .......................................................................................................................................... 4.16 kV Phase-phase

MVE-xxxx-V06 ............................................................................................................................................ 6.6 kV Phase-phase

MVE-xxxx-V11 .......................................................................................................................................... 11.0 kV Phase-phase

MVE-xxxx-V13 .......................................................................................................................................... 13.8 kV Phase-phase

Rated Frequency (fr) .............................................................................................................................................................. 50/60 Hz

Rated lightning impulse withstand voltage (U

MVE-xxxx-V02 ~ V06 ............................................................................................................................................................ 60 kV

MVE-xxxx-V11 ...................................................................................................................................................................... 75 kV

MVE-xxxx-V13 ...................................................................................................................................................................... 95 kV

Rated power frequency withstand voltage (U

MVE-xxxx-V02 ~ V06 ............................................................................................................................................................ 20 kV

MVE-xxxx-V11 ~ V13 ...................................................................................................................................................... ~ 42 kV

Rated normal current (l

MVE-0070-Vxx ....................................................................................................................................................................... 70 A

MVE-0110-Vxx ..................................................................................................................................................................... 110 A

MVE-0200-Vxx ..................................................................................................................................................................... 200 A

MVE-0220-Vxx ..................................................................................................................................................................... 220 A

MVE-0250-Vxx ..................................................................................................................................................................... 250 A

MVE-0300-Vxx ..................................................................................................................................................................... 300 A

MVE-0360-Vxx ..................................................................................................................................................................... 360 A

MVE-0400-Vxx ..................................................................................................................................................................... 400 A

MVE-0450-Vxx ..................................................................................................................................................................... 450 A

MVE-0500-Vxx ..................................................................................................................................................................... 500 A

MVE-0540-Vxx ................................

MVE-0600-Vxx ..................................................................................................................................................................... 600 A

MVE-0700-Vxx ..................................................................................................................................................................... 700 A

MVE-0800-Vxx ..................................................................................................................................................................... 800 A

MVE-0900-Vxx ..................................................................................................................................................................... 900 A

MVE-1000-Vxx ................................................................................................................................................................... 1000 A

MVE-1100-Vxx ................................................................................................................................................................... 1100 A

MVE-1200-Vxx ................................................................................................................................................................... 1200 A

MVE-1300-Vxx ................................................................................................................................................................... 1300 A

MVE-1400-Vxx ................................................................................................................................................................... 1400 A

MVE-1500-Vxx ................................................................................................................................................................... 1500 A

MVE-1600-Vxx ................................................................................................................................................................... 1600 A

MVE-1700-Vxx ................................................................................................................................................................... 1700 A

Rated short-time withstand current (symmetrical RMS) (l

MVE-xxxx-V02 ~ V06 ........................................................................................................................................................... 48 kA

MVE-xxxx-V11 ~ V13 ........................................................................................................................................................... 50 kA

Form designation ................................................................................................ Bypassed semiconductor motor starter form 1

Control voltage ................................................................................................................................ 85 ~ 264 VAC or 90 ~ 350 VDC

Rated Frequency .................................................................................................................................................................... 50/60 Hz

Typical power consumption ................................................................................................................................. 70 W continuous

..................................................................................................................................... 540 A

8 | MVE User Manual (710-17074-00G)

Page 10

SPECIFICATIONS

Inputs Inputs on Controller

NOTE

Outputs

Environmental

EMC Emission (Designed to IEC 60947-4-2)

Start (C23, C24) ................................................................................................................................................. 24 VDC, 8 mA approx

Stop (C31, C32) ................................................................................................................................................. 24 VDC, 8 mA approx

Reset (C41, C42) ............................................................................................................................................... 24 VDC, 8 mA approx

Input A (C53, C54) ............................................................................................................................................. 24 VDC, 8 mA approx

Input B (C63, C64) ............................................................................................................................................. 24 VDC, 8 mA approx

Motor thermistor (B4, B5) .................................................................................................................................... Trip point > 3.6 kΩ

....................................................................................................................................................................................................... Reset > 1.6 kΩ

Inputs on power interface board

Bypass readback input (C73, C74) ................................................................................................................. 24 VDC, 8 mA approx

Fan Fail (C1, C2) ............................................................................................................................................... 24 VDC, 8 mA approx

DOL protection activated (C3, C4) .................................................................................................................. 24 VDC, 8 mA approx

Power supply fail input (C5, C6) ..................................................................................................................... 24 VDC, 8 mA approx

All control inputs are potential free. Do not apply external voltage to these inputs.

Outputs on Controller

Output Relay A (43, 44) ...................................................................................................................................... Normally Open

Output Relay B (51, 52, 54) ..................................................................................................................................... Changeover

Output Relay C (61, 62, 64) ...................................................................................................................................... Changeover

Analog output (B10, B11) ........................................................................................................................ 0-20 mA or 4-20 mA

Ratings of output relays on Controller

.................................................................................................................................................................. 10 A @ 250 VAC resistive

................................................................................................................................................................... 6 A @ 250 VAC 15 p.f. 0.3

.................................................................................................................................................................... 10 A @ 30 VDC resistive

Outputs on power interface board

Main contactor (13, 14) ..................................................................................................................................... Normally Open

Bypass contactor (23, 24) ................................................................................................................................. Normally Open

Run Output/ PFC (33, 34) .................................................................................................................................. Normally Open

Phase arm power supply control relay output (43, 44) ................................................................................ Normally Open

Degree of Protection

Power Assembly .................................................................................................................................................................. IP00

Controller ........................................................................................................................................................... IP54/ NEMA 12

Operating temperature ........................................................................................ - 10 ˚C to + 60 °C, above + 50 °C with derating

Humidity ......................................................................................................................................... 5%~95% Relative Humidity

Storage temperature ............................................................................................................................................ - 25 ˚C to + 70 ˚C

Humidity ......................................................................................................................................... 5%~95% Relative Humidity

Operating Altitude ............................................................................................................. 0~1000 m, above 1000 m with derating

Pollution degree ................................................................................................................................................... Pollution Degree 3

Vibration ............................................................................................................................................ Designed to IEC 60068-2-6-Fc

Equipment class (EMC) ........................................................................................................................................................... Class A

Conducted radio frequency emission ................................................................................... 10 kHz to 150 kHz: < 120 - 69 dB µV

..................................................................................................................................................... 0.15 MHz to 0.5 MHz: < 79 dB µV

................................................................................................................................................................. 0.5 to 30 MHz: < 73 dB µV

Radiated radio frequency emission .................................................................................. 0.15 MHz to 30 MHz: < 80-50 dB µV/m

..................................................................................................................................................... 30 to 100 MHz: < 60-54 dB µV/m

............................................................................................................................................. 100 MHz to 2000 MHz: < 54 dB µV/m

This product has been designed as Class A equipment. Use of this product in domestic environments may cause radio interference, in which case the user may be required to employ additional mitigation methods.

MVE User Manual (710-17074-00G) | 9

Page 11

SPECIFICATIONS

EMC Immunity (Designed to IEC 60947-4-2)

Electrostatic Discharge ............................................................................................... 6 kV contact discharge, 8 kV air discharge

Radio Frequency Electromagnetic Field .................................................................................................. 80 to 1000 MHz: 10 V/m

Fast Transients 5/50 ns (main and control circuits) .............................................................. 2 kV line to earth, 1 kV line to line

Surges 1.2/50 µs (main and control circuits) .......................................................................... 2 kV line to earth, 1 kV line to line

Higher ratings may be available on request.

Short circuit current, with appropriately rated fuses fitted.

Control voltage input range using an approved switch mode power supply unit with 24 VDC, 10 A (minimum) output capacity.

Excludes contactors and/or circuit breakers.

Voltage dip and short time interruption (safe shutdown) ...................................................... 5000 ms (at 0% nominal voltage)

10 | MVE User Manual (710-17074-00G)

Page 12

RECEIVING AND STORAGE

NOTE

Relative humidity

5% ~ 95%

Rate of change of temperature

0.5 °C/min

STORAGE

5. Receiving and Storage

5.1 Receiving

Inspect equipment as soon as possible for any damage that may have occurred during transit. Before accepting delivery, examine packaging for any signs of damage. A damaged package may indicate that the panel and internal components may also be damaged.

Check that the shipping manifest accounts for all equipment delivered. Any missing or damaged equipment should be noted on the freight bill and the carrier notified immediately. A record of the missing or damaged equipment should also be sent to AuCom.

Avoid using heavy or sharp-edged tools while unpacking, as these may damage the equipment. Use nail pliers to

5.2 Storage

If immediate installation is not possible, the equipment should be stored in its original packaging in a clean and dry area indoors. Always store panels upright on their wooden pallets to keep them off the floor and allow air to pass under it freely.

The following storage conditions should be met:

Temperature - 25 ˚C to + 70 ˚C

separate all four sides of the wooden packaging box.

Equipment can be stored for a maximum of 12 months from the date of packaging as the quality of the packaging material degrades over time.

The MVE must be stored in its original packaging in a clean and dry environment. The MVE should be unpacked only after the equipment room is ready for installation. Particular care should be taken to avoid exposure of the electronics to cement and/or concrete dust.

MVE User Manual (710-17074-00G) | 11

Page 13

INSTALLATION

WARNING

CAUTION

19726.A

6. Installation

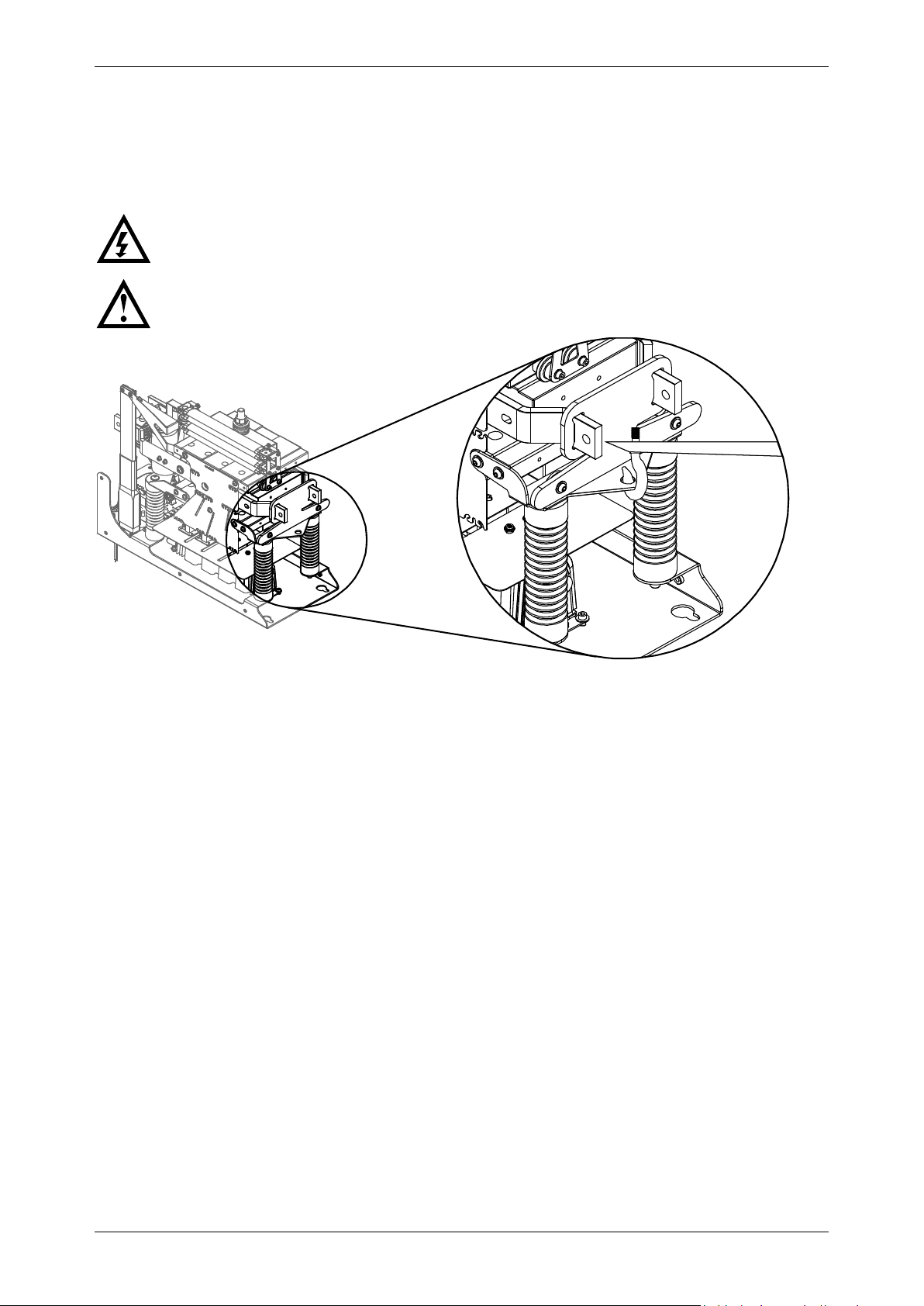

6.1 Lifting and Moving

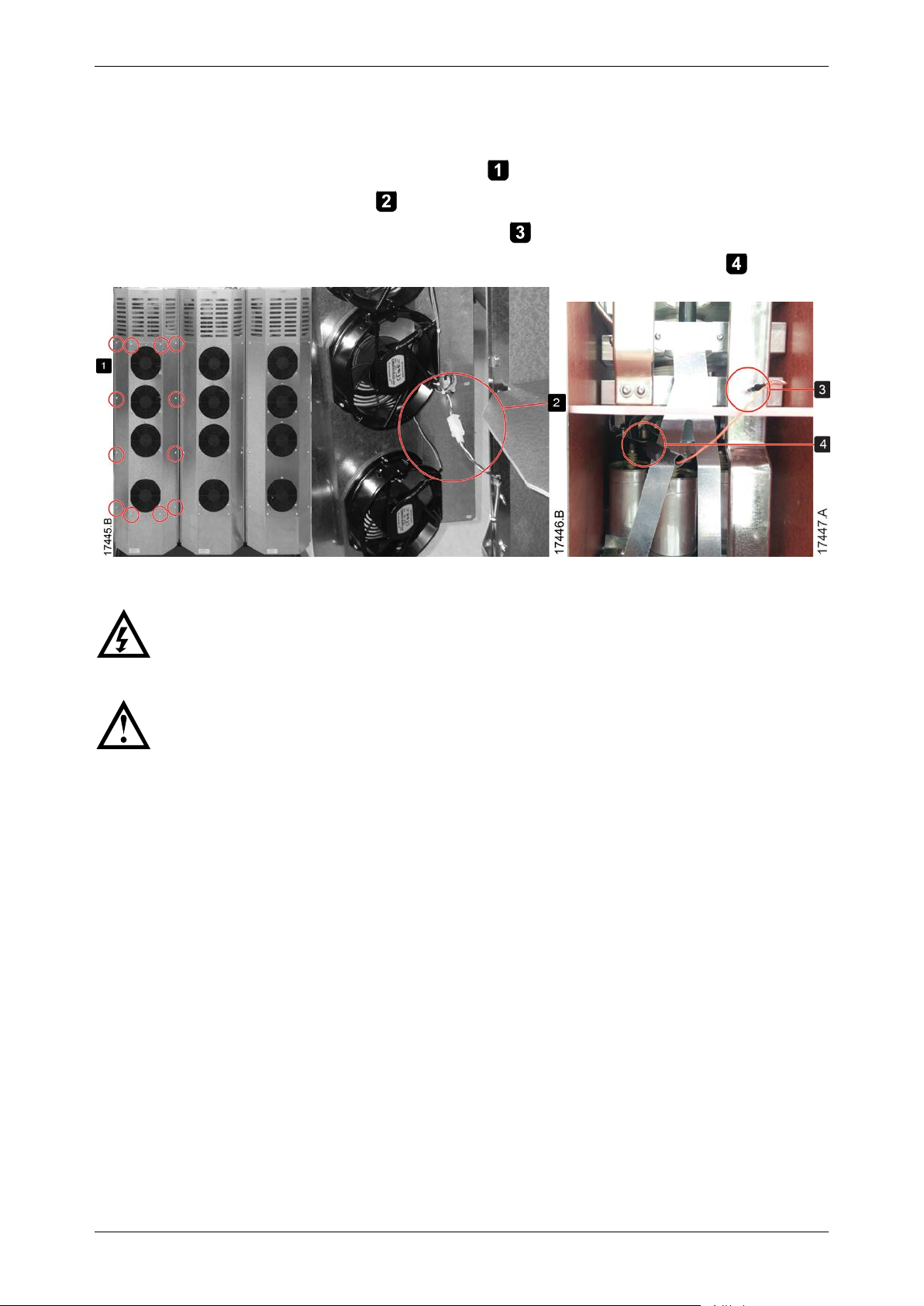

Use a lifting hook to lift each phase arm.

MVE phase arms are heavy (>30 kg). Do not attempt to lift by hand.

To avoid damage, only use the lifting eye.

12 | MVE User Manual (710-17074-00G)

Page 14

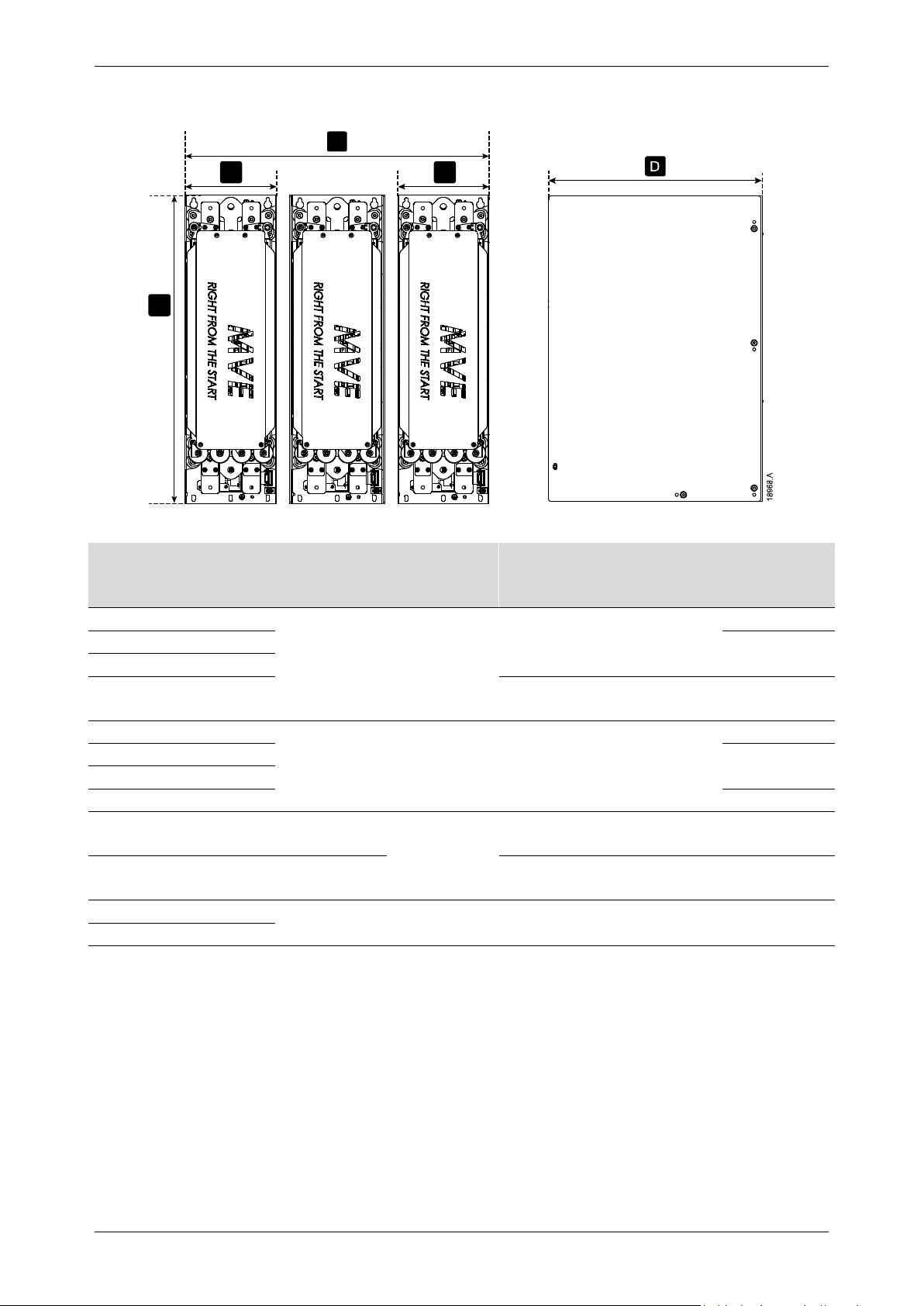

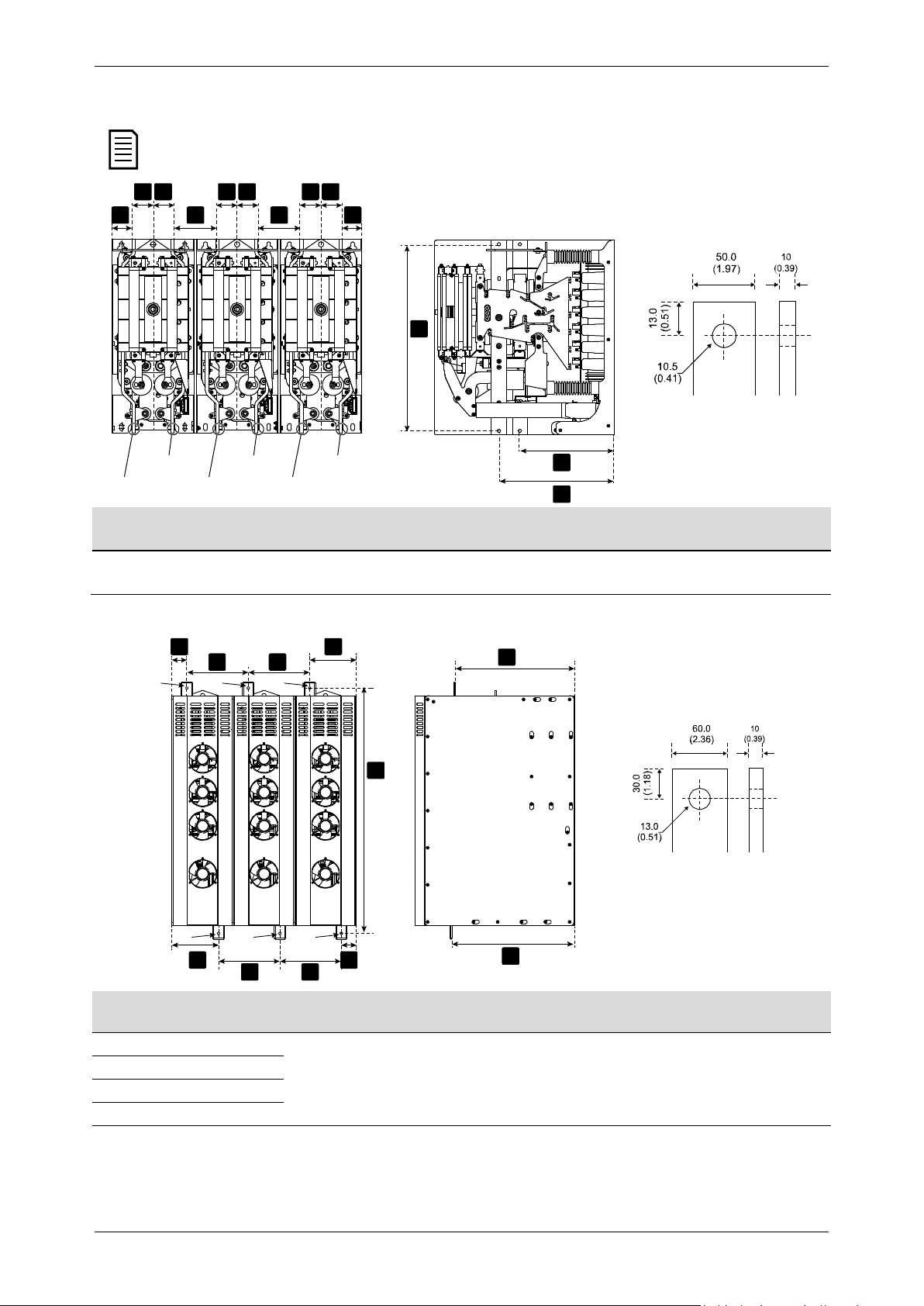

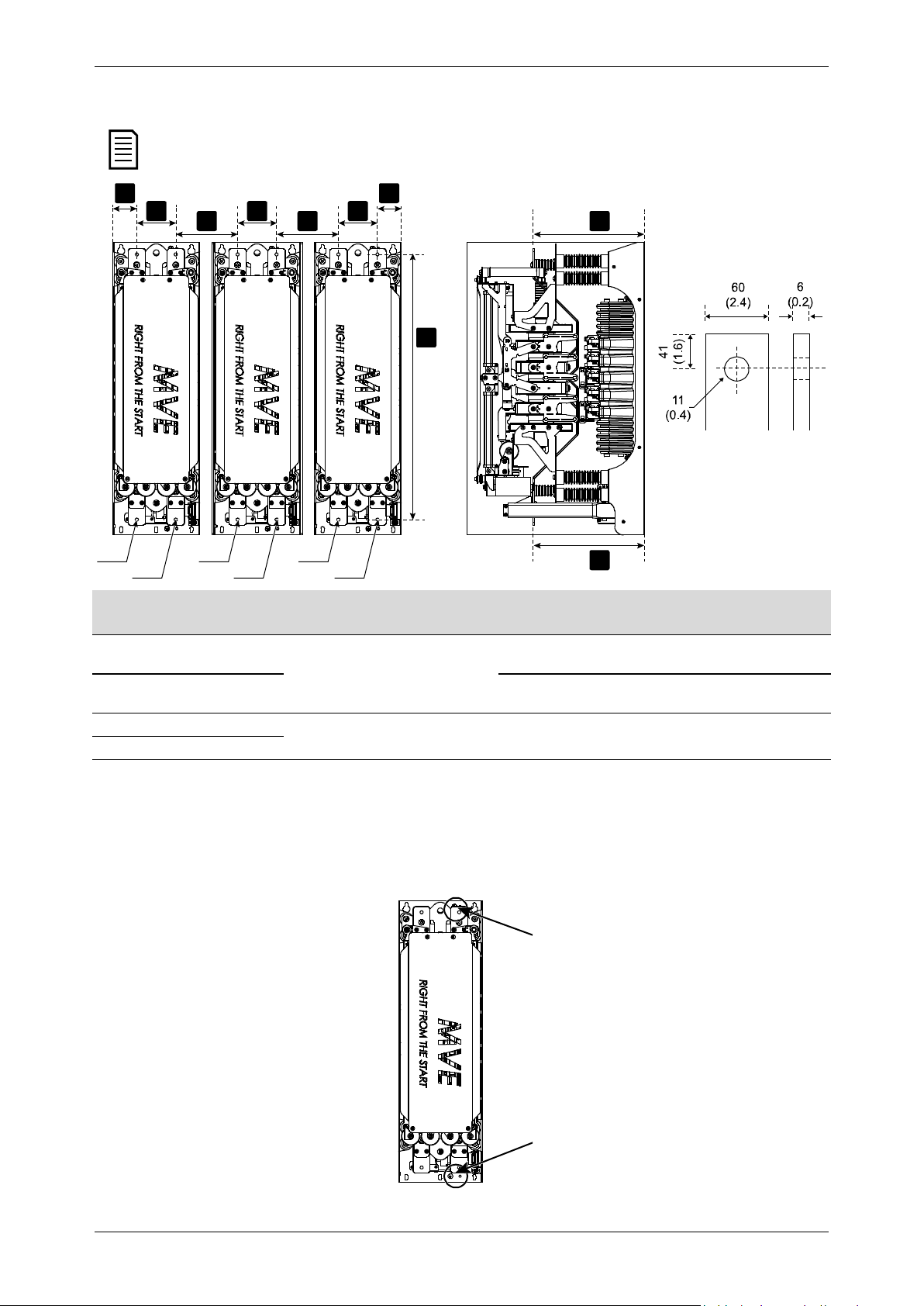

6.2 Dimensions and Weights

Front view

Side view

A B C

Weight

(phase arm)

MVE-V03: 0070~0540

750

246

(23.0)

(20.0)

39.5 (87.1)

MVE-V02: 0600~1700

140.5 (309.7)

MVE-V06: 0600~1700

209.3 (461.4)

MVE-V11: 0070~0540

978

308

1000

602

105 (231.5)

MVE-V11: 0600~1700

INSTALLATION

mm (inch) mm (inch) mm (inch) mm (inch) kg (lb)

MVE-V02: 0070~0540

MVE-V04: 0070~0540 (29.5) (9.7)

MVE-V06: 0070~0540

584 508 38.4 (84.7)

652

(25.7)

666

(26.2)

58.9 (127.9)

MVE-V03: 0600~1700 961 320 1340 832 175

MVE-V04: 0600~1700 (37.8) (12.6) (52.8) (32.8) (385.8)

(38.5)

MVE-V13: 0070~0540 1048

(41.3)

MVE-V13: 0600~1700

(12.1) 1100

For typical values, please consult AuCom

(39.4)

(43.3)

(23.7)

764

(30.1)

125 (275.6)

MVE User Manual (710-17074-00G) | 13

Page 15

INSTALLATION

V02~V06

V11~V13

0070 A ~ 0540 A

0600 A ~ 1700 A

0070 A ~ 0540 A

130 130

18967.A

18973.A

120

(4.7)

120

(4.7)

120

(4.7)

120

(4.7)

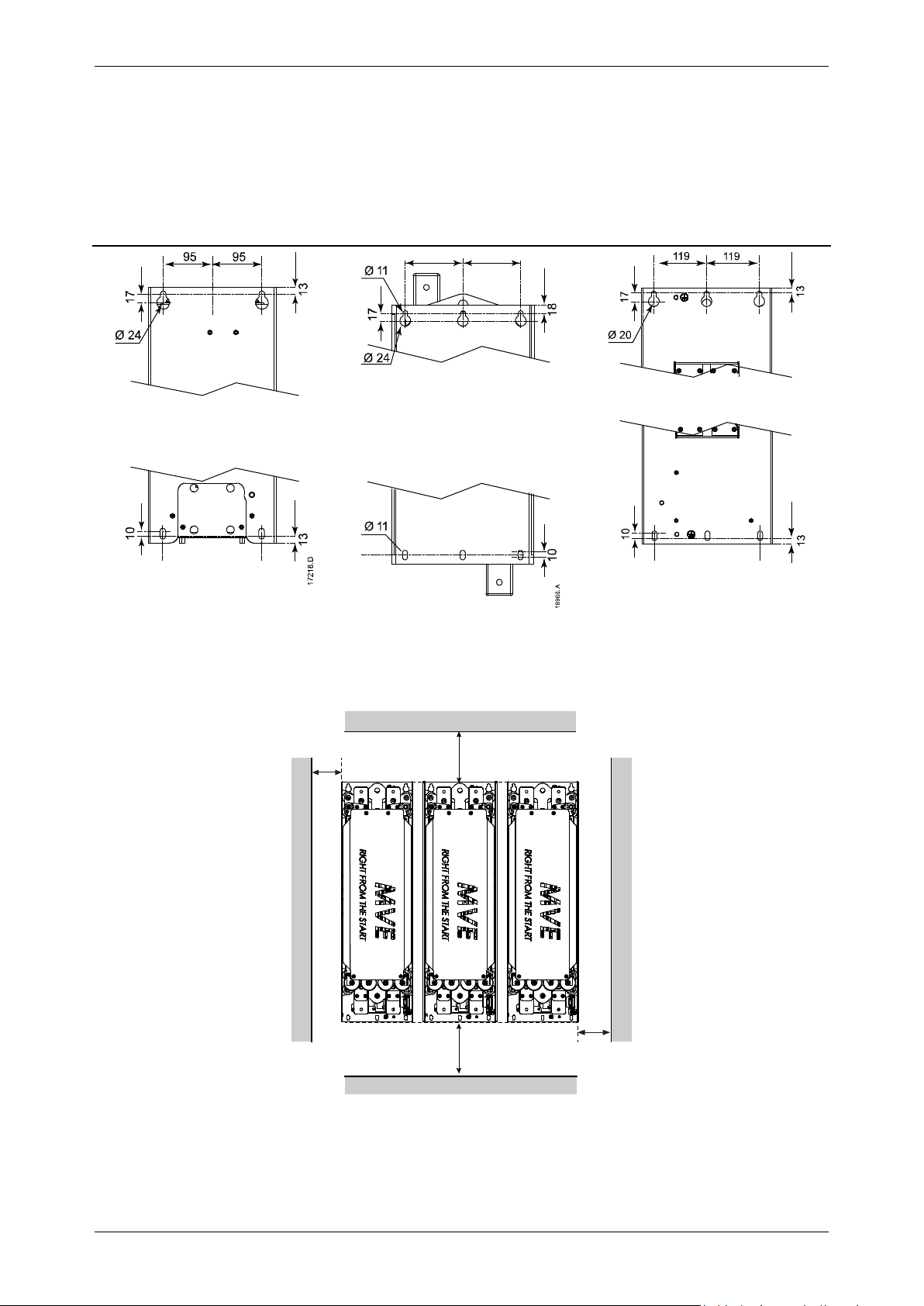

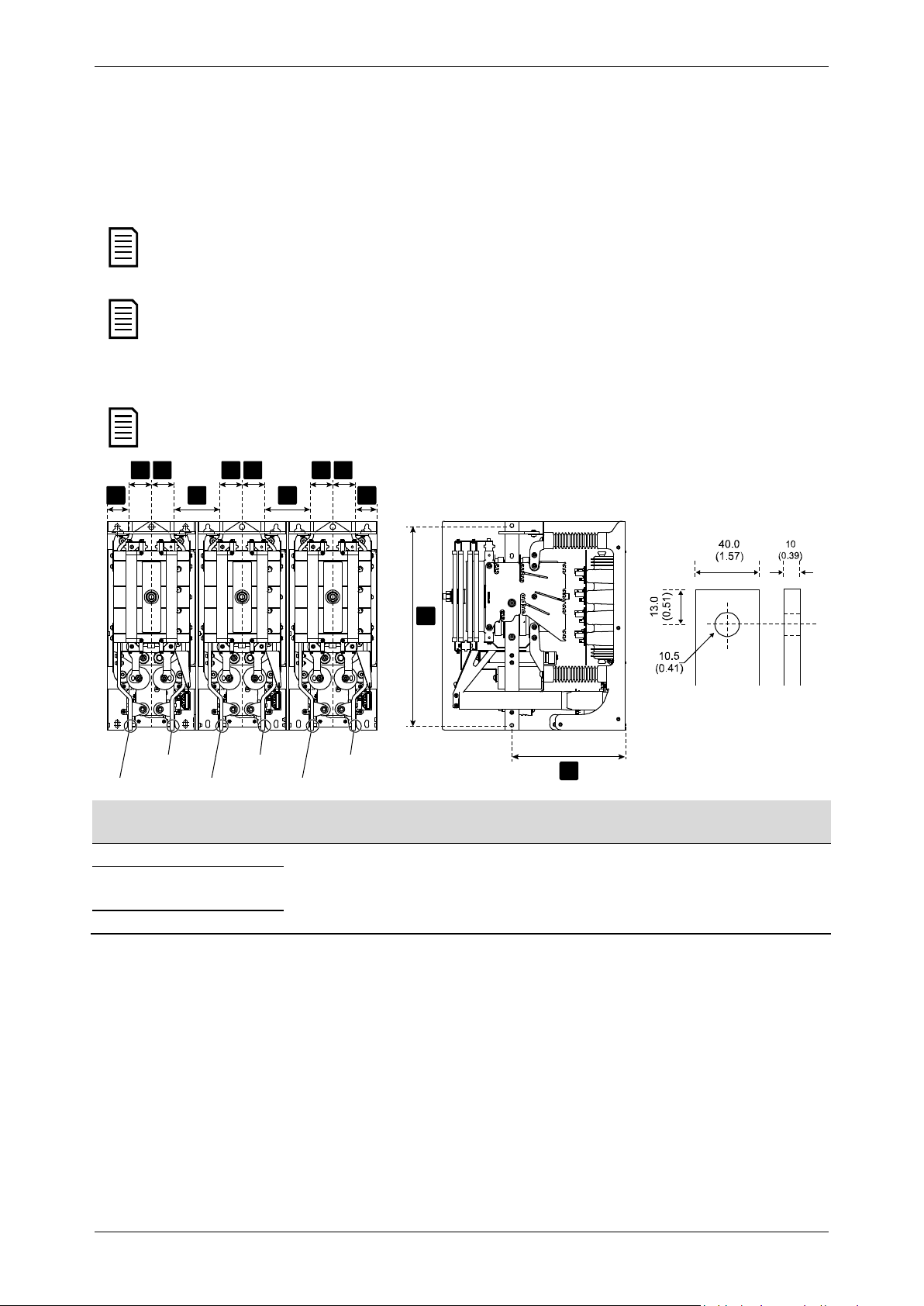

6.3 Mounting Points

Each phase arm is mounted in place using M10 bolts. The bolts must be grade 8.8 or better.

Fix the top bolts in place in the enclosure, then position the phase arm over the bolts. Secure the phase arm in position with the bottom bolts.

MVE-0600~1700, V11~V13: For typical values, please consult AuCom.

6.4 Clearance Requirements

The phase arms are rated IP00 and must be installed inside an enclosure.

14 | MVE User Manual (710-17074-00G)

Page 16

6.5 Power Terminations

NOTE

NOTE NOTE

17888.C

A AC C

B B B B B B

2/T1 4/T2 6/T3

1/L1 3/L2 5/L3

mm (inch)

Use only M10 high tensile grade 8.8 threaded fasteners for all terminations.

Use a pre-load torque setting between 28 ~ 30 Nm.

Use only Belleville washers.

Aluminium busbars must be free from oxide and contaminants, and the connection must be pasted with anti-oxidant

MVE-0070~0540, V02 ~ V04

compound.

After the phase arm has been installed in the panel, perform an earth bonding test between the mounting frame and the main earth bus to confirm that the frame is adequately earthed.

For these models, terminations can be made at either end of the input and output busbars.

INSTALLATION

MVE-0070-V02 ~ MVE-0540-V02

MVE-0070-V03 ~ MVE-0540-V03

MVE-0070-V04 ~ MVE-0540-V04

(2.4)

(2.5)

126

(5.0)

558

(22.0)

315

(12.4)

MVE User Manual (710-17074-00G) | 15

Page 17

INSTALLATION

NOTE

19213.A

B B

B B B B

2/T1 4/T2 6/T3

1/L1 3/L2 5/L3

mm (inch)

A C

17206.A

L2 L3

T1 T2 T3

mm (inch)

MVE-0070~0540, V06

For these models, terminations can be made at either end of the input and output busbars.

MVE-0070-V06 ~ MVE-0540-V06

MVE-0600-1700, V02~V06

(2.4)

(2.5)

126

(5.0)

626

(24.6)

336

(13.2)

406

(16.0)

MVE-0600-V02 ~ MVE-1700-V02

MVE-0600-V03 ~ MVE-1700-V03

MVE-0600-V04 ~ MVE-1700-V04

MVE-0600-V06 ~ MVE-1700-V06

16 | MVE User Manual (710-17074-00G)

(3.1)

320

(12.6)

242

(9.5)

1280

(50.4)

620

(24.4)

640

(25.2)

Page 18

MVE-V11-V13

NOTE

A B C D E

mm (inch)

MVE-0070-V11 ~ MVE-0540-V11

232

1000

378

MVE-0070-V13 ~ MVE-0540-V13

197

1100

148

18974.A

A A

B B

18969.B

2/T1

1/L1 3/L2 5/L3

4/T2 6/T3

For these models, terminations can be made at either end of the input and output busbars.

INSTALLATION

MVE-0600-V11 ~ MVE-1700-V11

MVE-0600-V13 ~ MVE-1700-V13

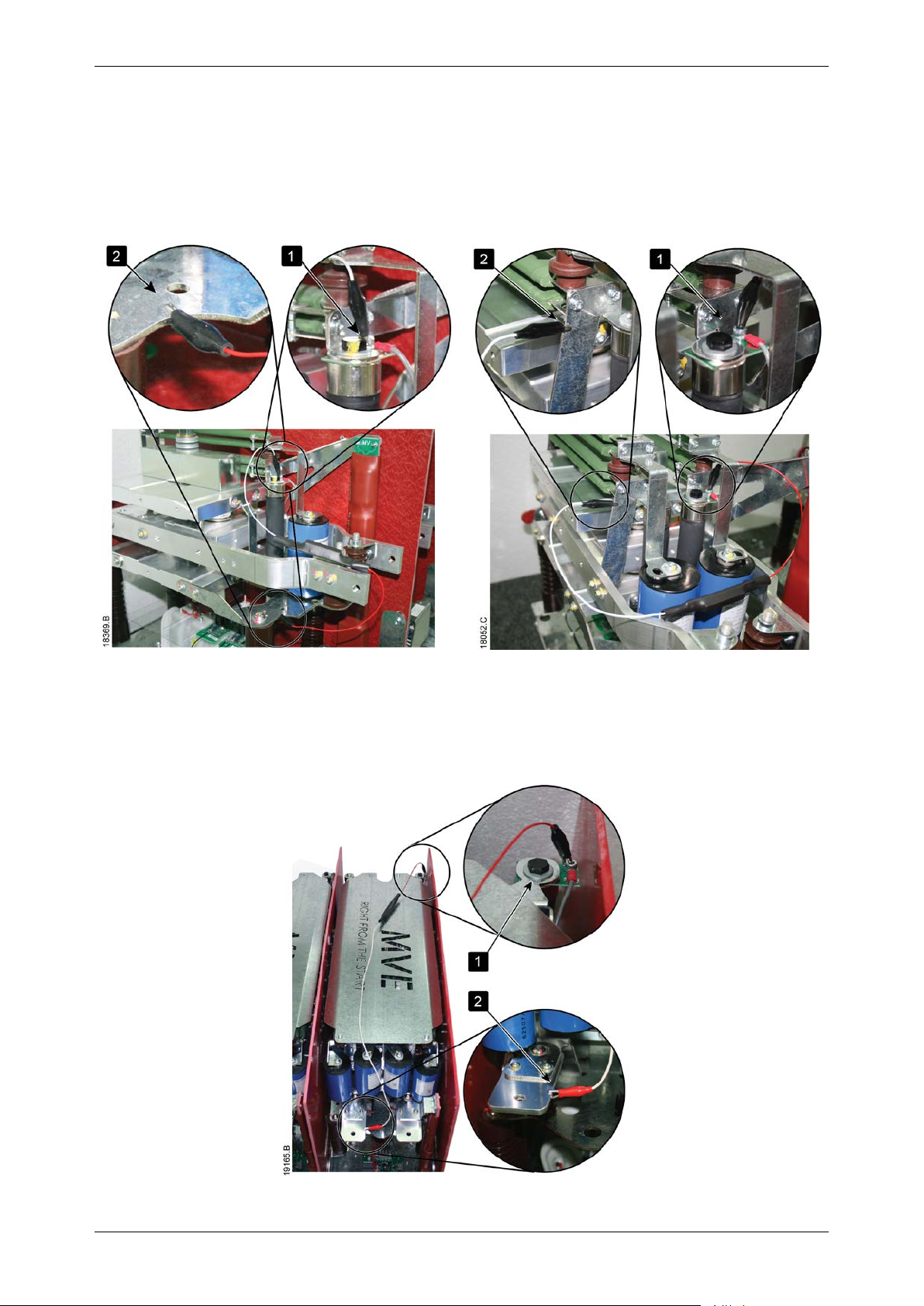

6.6 Earth Terminations

Models V02~V06 do not include earth studs.

Models V11~V13 have two 10 mm earth studs, at the rear of each phase arm close to the mounting points. Use only M10 high tensile grade 8.8 threaded fasteners for all terminations. Use a pre-load torque setting between 28 ~ 30 Nm. Use only Belleville washers.

88 132

(12.1) (5.2)

(7.8)

(9.1)

For typical values, please consult AuCom

(39.4)

(43.3)

(14.9)

(16.5)

MVE User Manual (710-17074-00G) | 17

Page 19

INSTALLATION

(13.

)

220.0 (8.66

)

(3.14)

INPUTB

INPUTA

RESET

STOP

START

Run Trip LocalReady

Menu Store

Logs

Alt

Tools

Rese t

LCL RMT

StopStar t

112 (4.41)

300 (11.81) 310 (12.20) 340 (13.39)

220 (8.66)

196 (7.72)

186 (7.32)

11073.A

Output A

Output B

Out

put

Motor

Thermistor

24VAC/DC

Relay Outputs

Control Supply

Control Inputs

Fibre Optic Connection

ToPowerAssembly

Analog Output

art

Stop

Prog A

Prog B

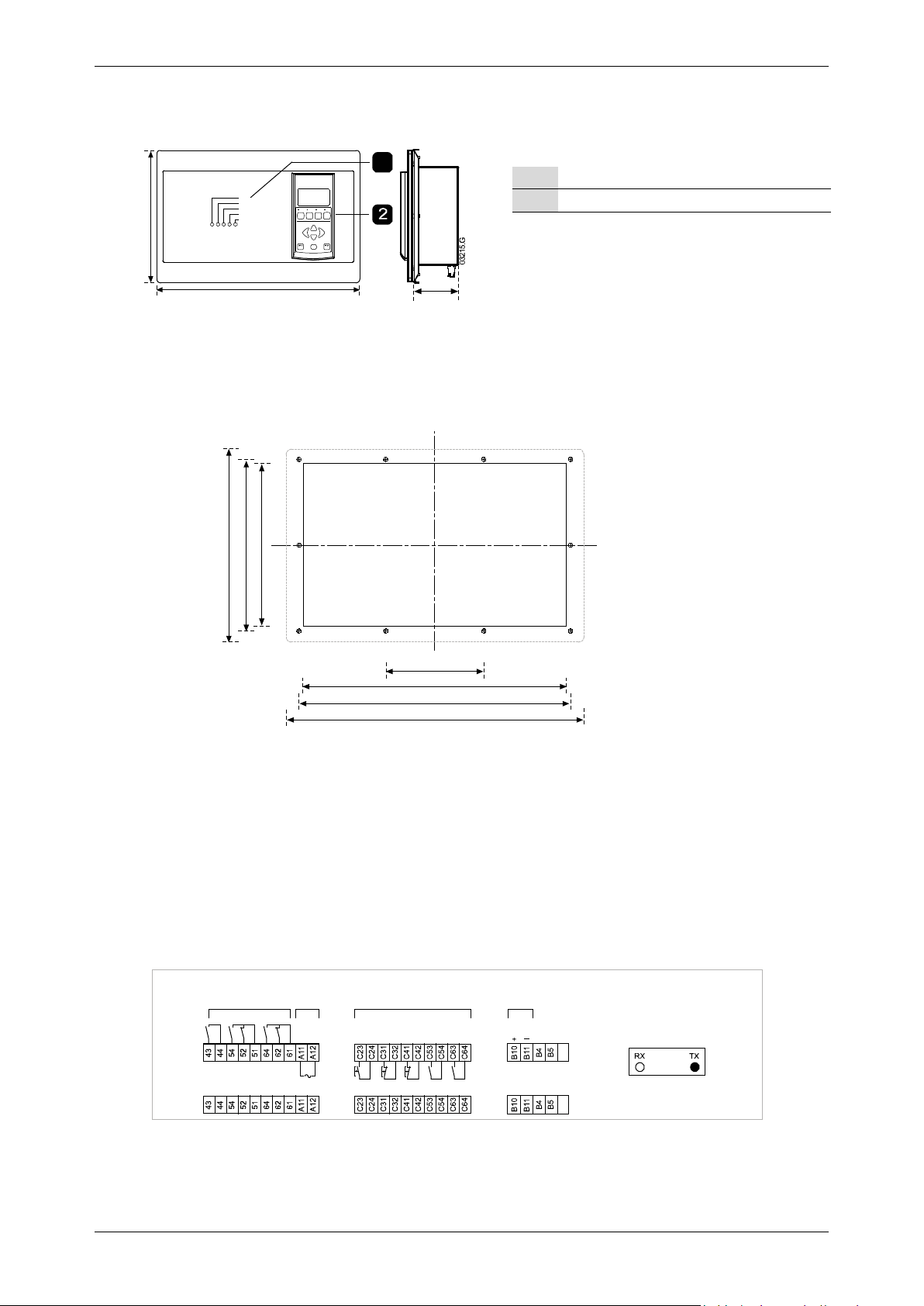

6.7 Controller Mounting

The controller is suitable for use with all MVE soft starters.

Control input LEDs

Keypad

Dimensions are shown in mm (inch).

Mounting Instructions - Controller

The controller is secured into place using ten M4 nuts, affixed to the studs on the back of the controller.

Weight: 2.1 kg (4.63 lb)

To mount the controller, make a 186 mm x 300 mm cutout at the desired mounting location. Ensure adequate clearance (>85 mm) is available behind the mounting location. If you intend to use a communication module, allow for a minimum clearance of 120 mm behind the mounting panel.

Drill 5 mm holes to accommodate the studs on the controller. Fit the MVE Controller through the cutout and tighten the nuts onto the studs.

6.8 Terminations on the Controller

Terminal Block (controller)

Terminations on the controller use plug-in terminals. Unplug the terminal blocks, complete the wiring, then re-plug the terminal blocks into the controller.

18 | MVE User Manual (710-17074-00G)

Page 20

INSTALLATION

A B

C32

C31

C24

C23

C42

C41

03943.D

C32

C31

C24

C23

C42

C41

C32

C31

C24

C23

C42

C41

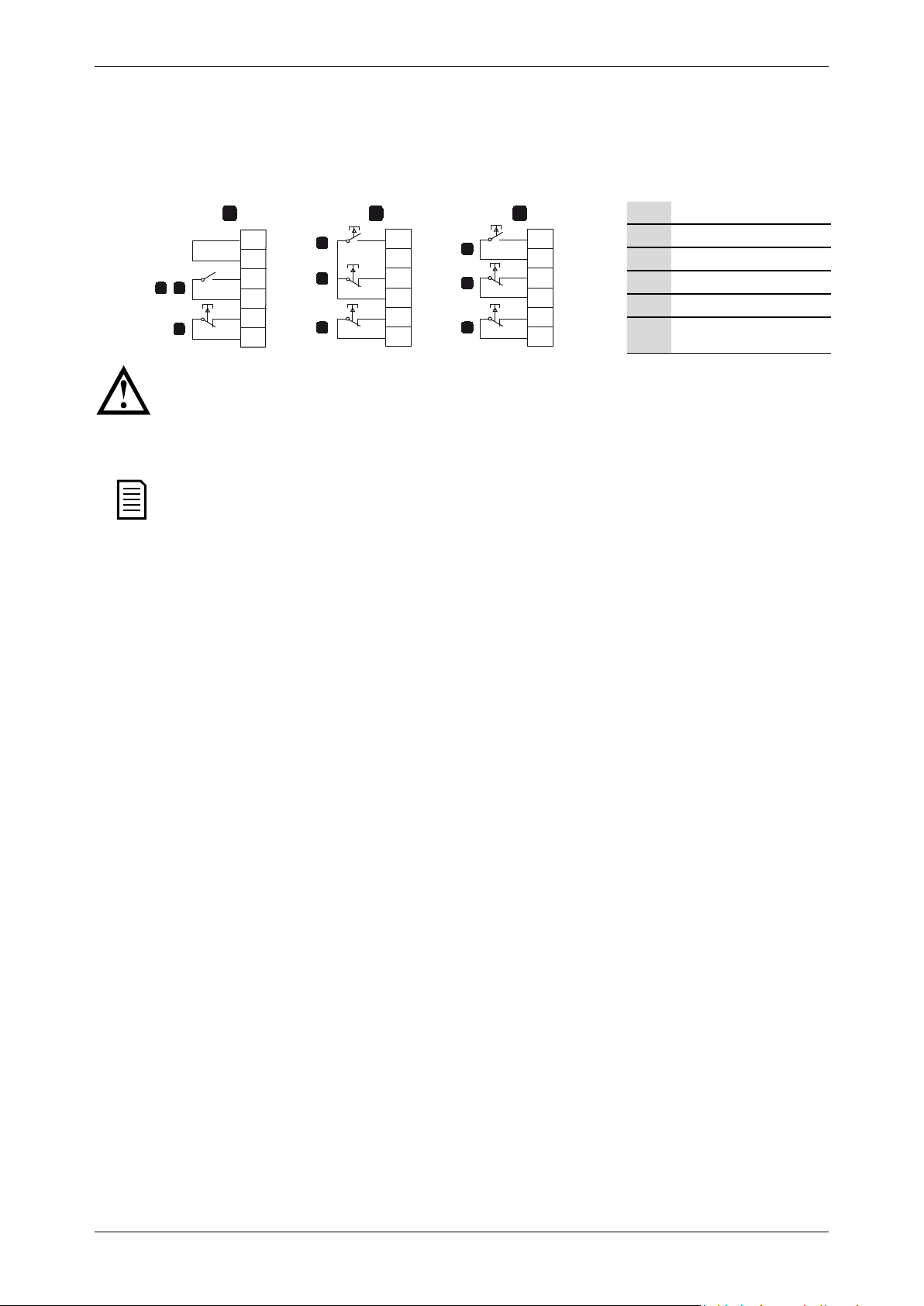

Two-wire control

Three-wire control

Four-wire control

Start

Stop

Reset

CAUTION NOTE

6.9 Wiring for Remote Control

Control Wiring

The MVE has three fixed inputs for remote control. These inputs should be controlled by contacts rated for low voltage, low current operation (gold flash or similar).

The control inputs are powered by the soft starter. Do not apply external voltage to the control input terminals.

The reset input can be normally open or normally closed. Use parameter 6M to select the configuration.

Cables to the control inputs must be segregated from mains voltage and motor cabling.

Reset input is normally closed by default.

MVE User Manual (710-17074-00G) | 19

Page 21

INSTALLATION

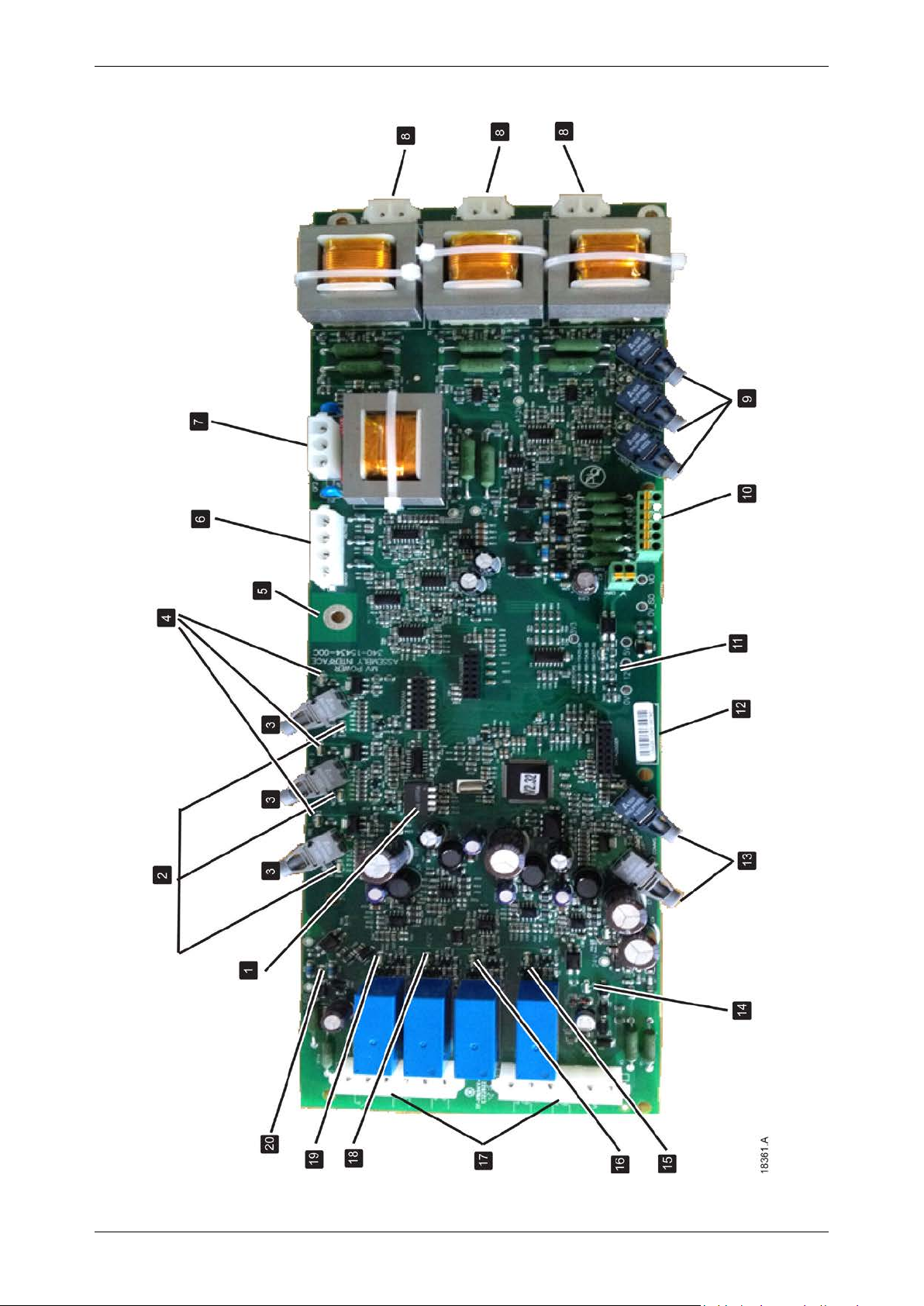

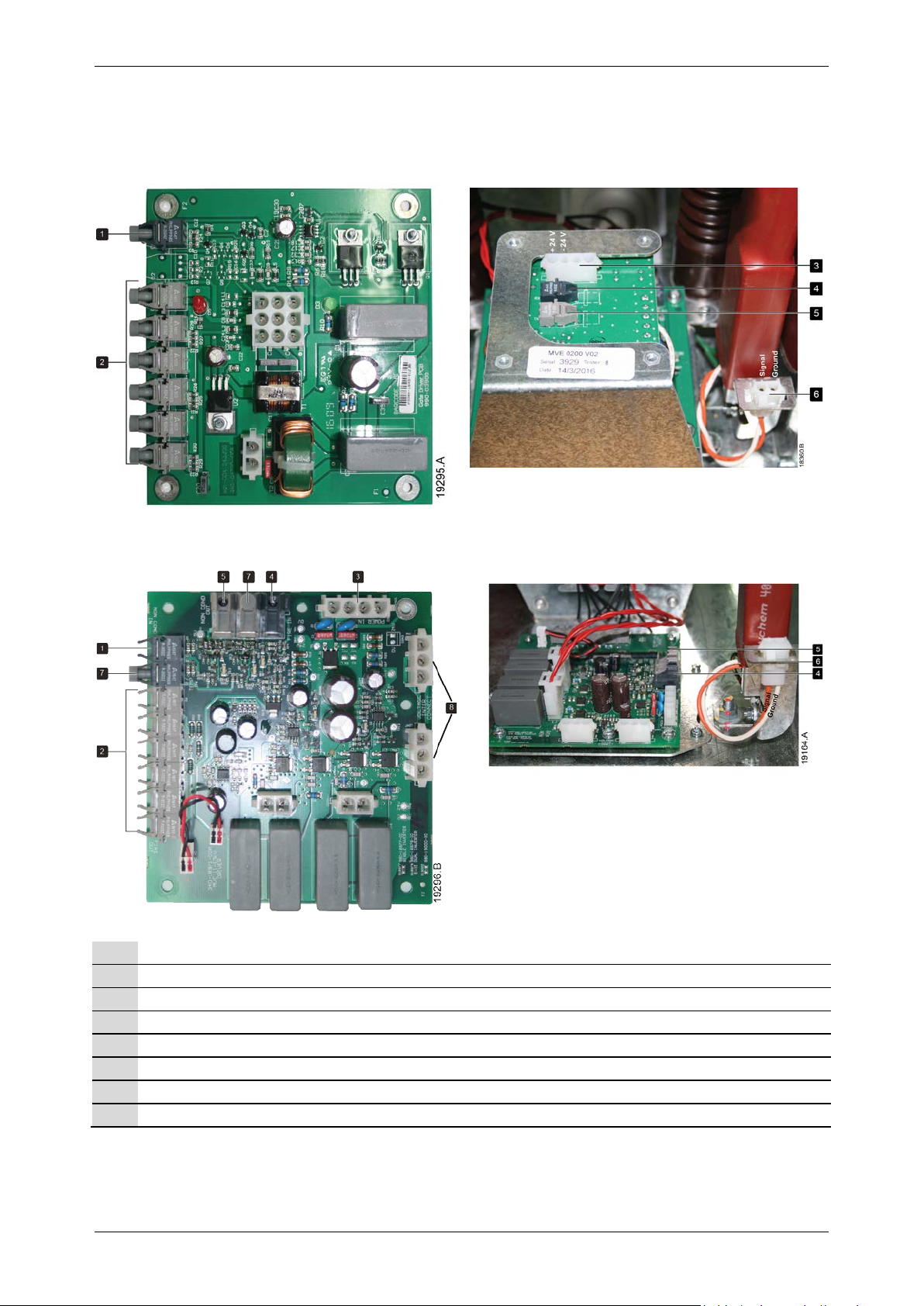

6.10 Terminations on the Power Interface Board

20 | MVE User Manual (710-17074-00G)

Page 22

CT ratio selector DIP switch S1 (refer to

CT Current Measurement

on page 25)

Non-conduction LEDs (green)

Gate firing fibre-optic connectors

Firing status LEDs (red)

Earth termination point (for voltage sensing ground connections)

NOTE

Voltage sensing input connector (V0 ~ V3)

Ground fault CT connector (GF1, GF2)

Line CT connectors (CT1 [L11/L12], CT2 [L21/L22], CT3 [L31/L32])

Non-conduction readback fibre-optic connectors

Fan Fail (C1, C2), DOL protection activated (C3, C4) and Power supply fail input (C5, C6)

ID resistors

Serial number

Fibre-optic connections and LEDs to controller (Rx = Green, Tx = Red)

Control supply input and LED (green)

Phase arm power supply control relay output and LED (green)

PFC contactor relay output and LED (green)

Control terminals (refer to

Internal Panel Wiring

on page 27)

C73, C74 Bypass readback input (BPR)

13, 14 Main device relay output (MC)

23, 24 Bypass device relay output (BC)

33, 34 PFC contactor relay output (PF)

43, 44 Phase arm power supply control relay output (PAPS)

V In (A1, A2) Control supply input

Bypass device relay output and LED (green)

Main device relay output and LED (green)

Bypass readback input and LED (green)

The fan fail (C1, C2) and power supply fail (C5, C6) inputs are wire linked and inactive by default.

INSTALLATION

MVE User Manual (710-17074-00G) | 21

Page 23

INSTALLATION

Gate drive board - Layout view

Adapter board - Installed view

Voltage sensing connector

Reserved

- do not use

Reserved

- do not use

6.11 Terminations for Adapter Board and Gate Drive Board

• MVE-0070~0540, V02~V06

• MVE-0070~0540, V11~V13

Gate drive board - Layout view Gate drive board - Installed view

Non-conduction fibre-optic connector (Rx)

Firing transformer fibre-optic connectors (Tx)

Power supply connector (24 VDC)

Firing signal (Rx) from power interface board

Non-conduction signal (Tx) to power interface board

22 | MVE User Manual (710-17074-00G)

Page 24

INSTALLATION

CAUTION

19108.A

19122.A



6.12 Power Circuits

Overview

MVE soft starters are designed to operate as part of a system including other components. A bypass contactor or circuit breaker is required in all installations. MVE can also be installed with a main contactor. In this case, MVE must be installed with fuses.

Additional components may also be required to comply with soft starter panel specifications.

Main Switching Device

The MVE can be installed with a main contactor or a circuit breaker.

• Select a contactor with an AC3 rating greater than or equal to the full load current rating of the connected motor.

• Select a circuit breaker greater than or equal to the full load current rating of the connected motor.

The main switching device is associated with terminals L1, L2, L3 on the supply side of the soft starter. The coil is associated with output terminals 13, 14 of the MV-DS (refer to

To ensure that the potentially dangerous medium voltage area is isolated from the low voltage control area, power is supplied to the main switching device coil from the control voltage terminal block (refer to

Bypass Switching Device

The MVE must always be installed with a bypass contactor or circuit breaker.

• Select a contactor with an AC1 rating greater than or equal to the full load current rating of the connected motor.

• Select a circuit breaker greater than or equal to the full load current rating of the connected motor.

The bypass switching device is associated with terminals L1, L2, L3 on the supply side of the soft starter, and bypass terminals T1B, T2B, T3B on the motor side. The coil is associated with output terminals 23, 24, and the auxiliary Normally Open contact is associated with input terminals C73, C74 of the soft starter (refer to

To ensure that the potentially dangerous medium voltage area is isolated from the low voltage control area, power is supplied to the bypass switching device coil from the control voltage terminal block (refer to

Power Circuit Configuration

on page

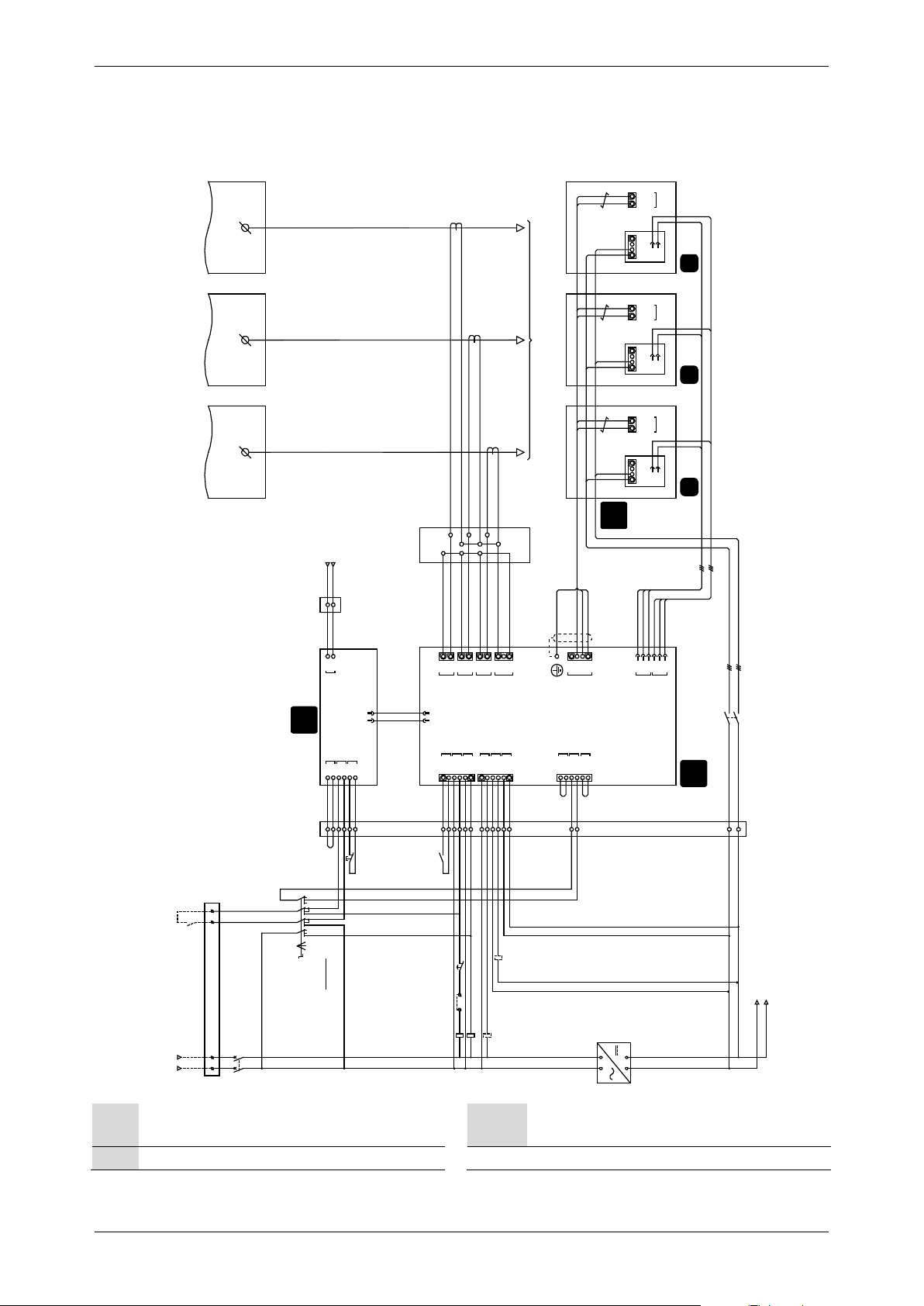

Internal Panel Wiring

on page 27).

on page 24).

on page 27).

R Rated Protection Fuses

If the MVE is installed with a main contactor, R Rated protection fuses must be installed on the supply side of the soft starter to provide Type 1 coordination and short circuit protection for the motor branch circuit. Select the appropriate fuse based on the motor's rated full load current.

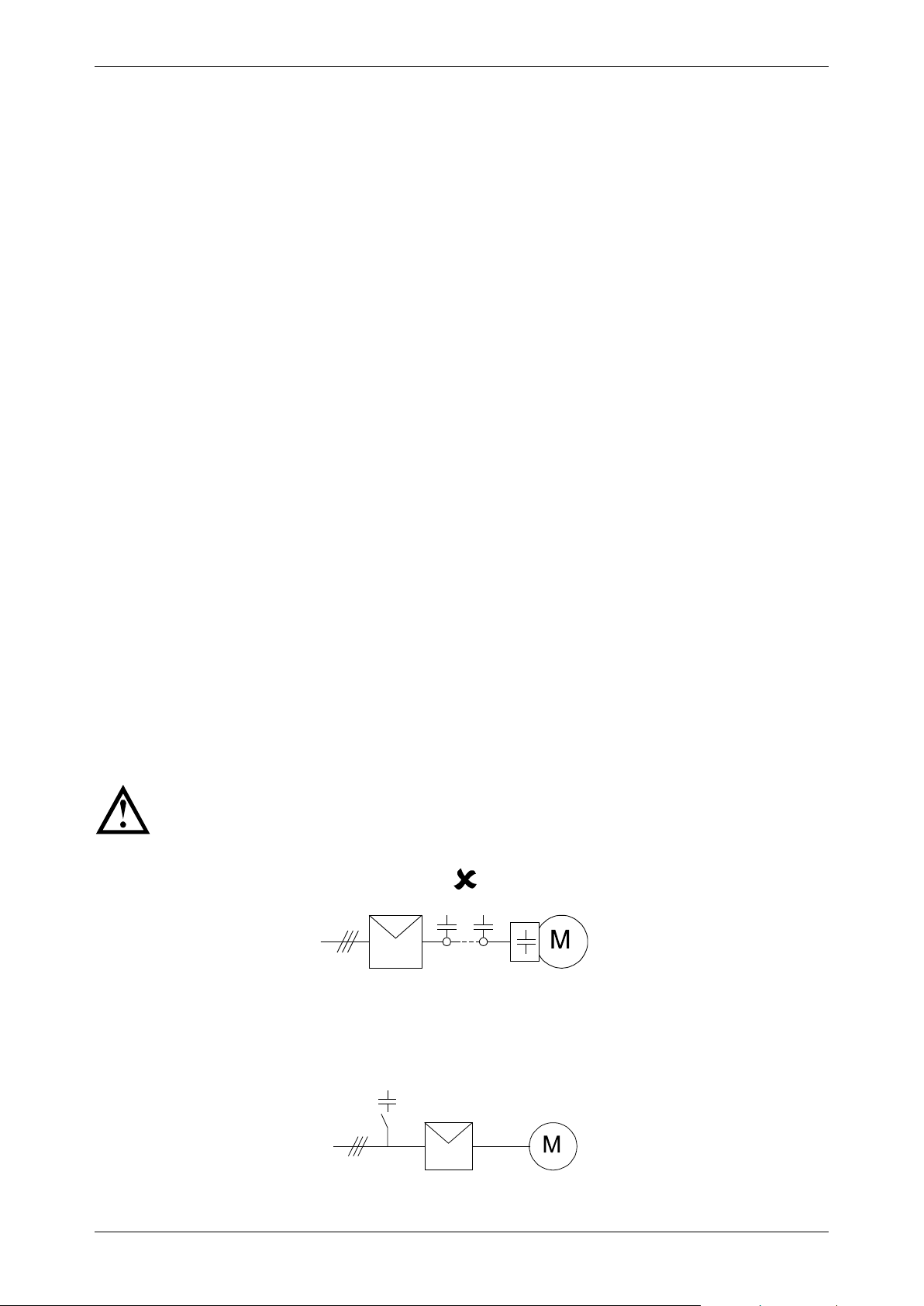

Power Factor Correction

Power factor correction capacitors must be connected to the input side of the soft starter. Connecting power factor correction capacitors to the output side will damage the soft starter

Incorrect installation

Power factor correction capacitors should be selected based on the motor data and the required final power factor. Select a contactor according to the required kVAr.

Power factor correction capacitors must be connected to the supply side of the soft starter.

Correct installation

The soft starter must control the power factor correction capacitor contactor. Use the run output (terminals 33, 34 on the power interface board).

MVE User Manual (710-17074-00G) | 23

Page 25

INSTALLATION

S1 S2

P1 P2

S1 S2

L3 L2 L1

T3 T2 T1

A1-1

A1-2

A1-3

1 2

L1A

L1B

L2B

L3B

L2A

L3 L2 L1

T3 T2 T1

CT3

CT2

CT1

5 6

Soft starter panel

L1-L3

Input power terminals (supply side)

A1-1 ~ A1-3

Phase arms 1 ~ 3

T1-T3

Output power terminals (motor side)

7 3

Motor cables

Main contactor

Three-phase supply

Bypass contactor

Supply cables

Main isolator / Earth switch

Transient/ Overvoltage Protection

Overvoltage protection should be installed if there is a risk of high voltage transients at the installation. Contact your local supplier for details.

Line Inductors

Output line inductors may be required depending on various factors, including the soft starter model, the system operating voltage, the cable type, and the length of the cable run between the soft starter and the motor.

If required, line inductors are typically installed in a shielded caged enclosure at the soft starter end of the motor cable.

To find out if line inductors are required for your specific installation, contact your local supplier for advice. You will need to provide information about the motor output cable, including the cable length and its capacitance per km.

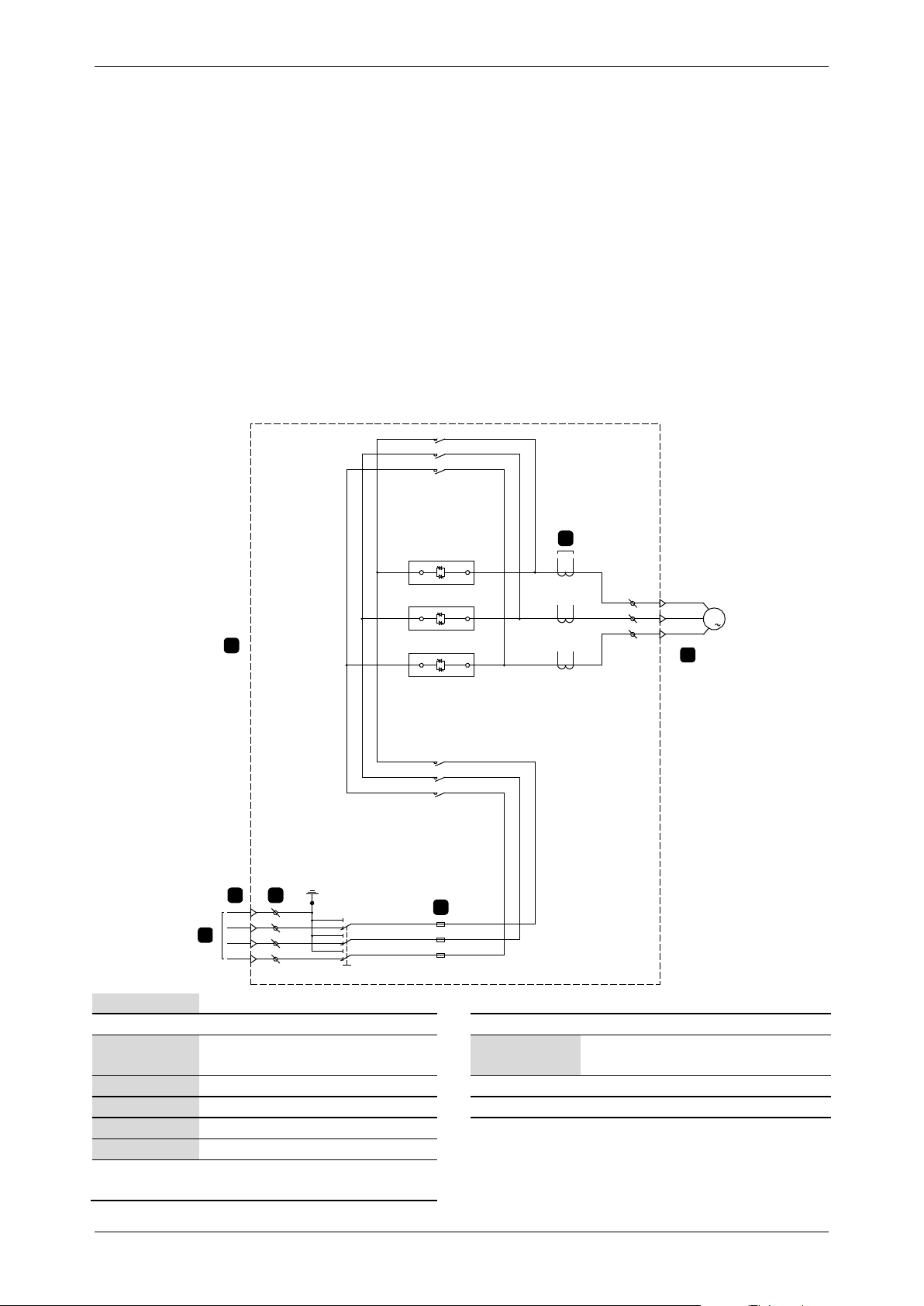

Power Circuit Configuration

MVE power circuit with main contactor, bypass contactor, main isolator/ earth switch, R Rated fuses and current transformers. MVE must be installed with backup/R-rated fuses.

24 | MVE User Manual (710-17074-00G)

Current transformers (refer to

on page 27)

Panel Wiring

Panel earth bar

disconnector

Internal

Fuses (F1-3)

Page 26

INSTALLATION

L1 L2 L3

L21

L22

L11

L12

L32

L31

GF2

GF1

17971.C

Line current transformers (1000:1)

Ground current input to Power Interface PCB

NOTE

Line CT ratio

Switch setting

1 1

1100

16533.B

NOTE

6.13 CT Current Measurement

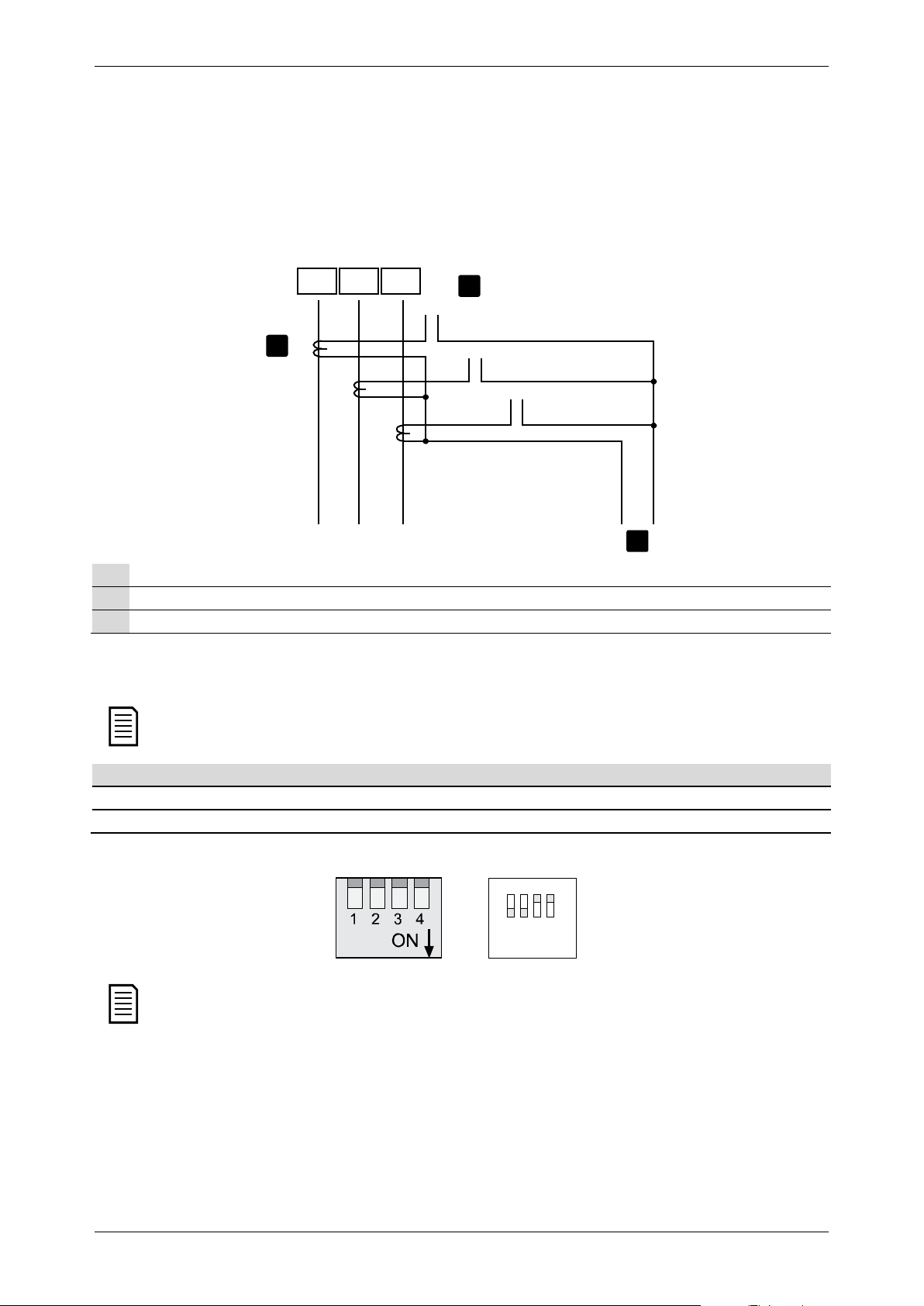

The MVE supports the summation and zero sequence methods of ground current measurement.

The line current transformers supplied with the soft starter are 1000:1 ratio. The MVE also supports customer-supplied 500:1 CTs if required. If 500:1 CTs are used, the setting of switch S1 on the power interface board must be changed.

Summation method ground current measurement

• Connection diagram: ground current summation CTs

• Switch settings for summation method

• Example settings for S1

Individual phase inputs to Power Interface PCB

The soft starter will check the switch settings when control power is applied. If the switch settings are changed, control power must be cycled for the new setting to take effect.

500:1 0100

1000:1 1100

Dip switch 1 on S1 is closest to the control terminal connectors. Dip switch 4 is closest to the CT connectors.

MVE User Manual (710-17074-00G) | 25

Page 27

INSTALLATION

NOTE

L21 L22

L11 L12

L32

L31

GF2

GF1

17972.C

NOTE

Line CT ratio

Zero sequence CT ratio

Switch setting

1 1

0 0

= 1100

16533.B

NOTE

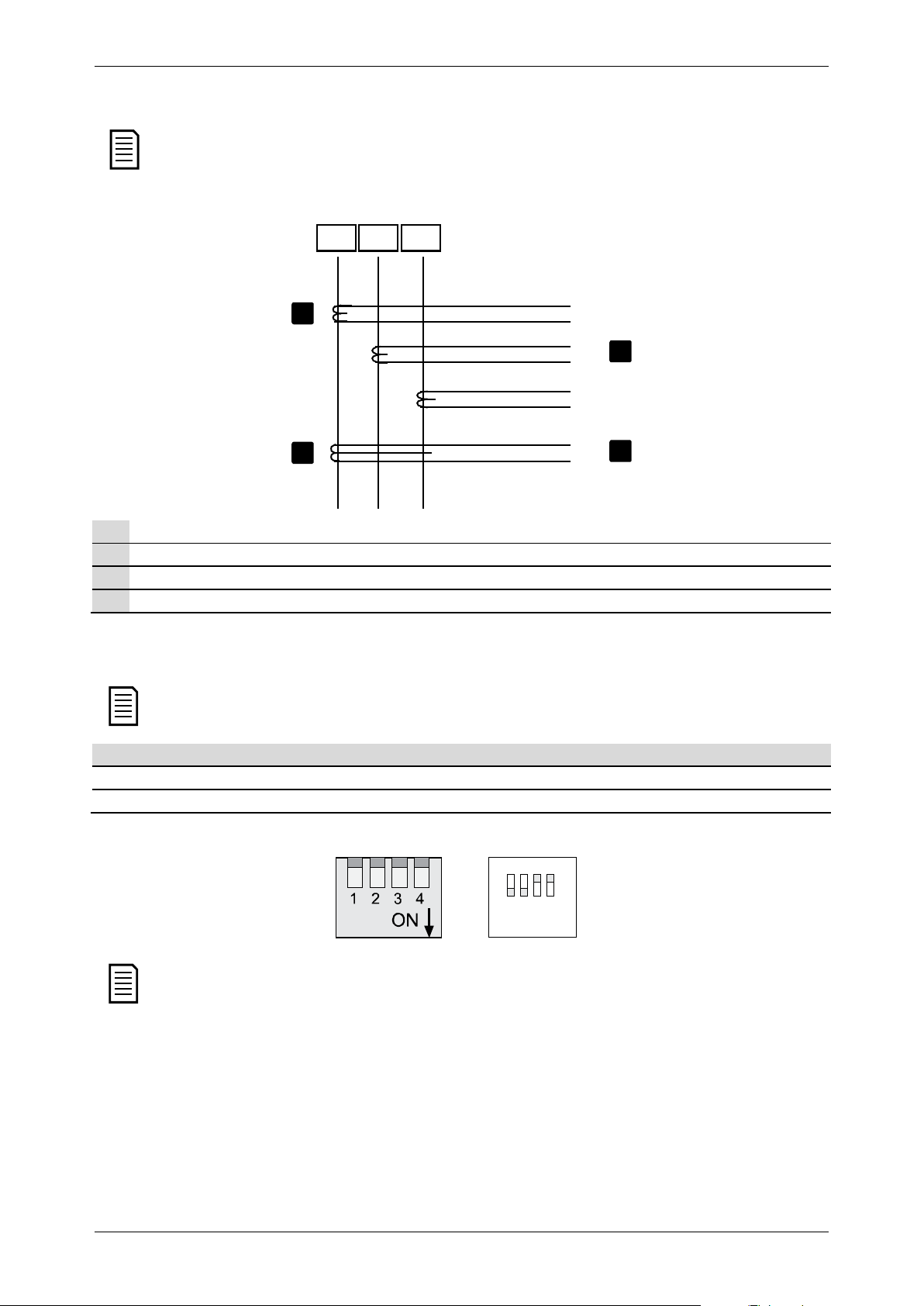

Zero sequence method ground current measurement

Zero sequence ground current measurement requires an additional customer-supplied ground current CT. In all cases, the CT must be 1000:1, 1 VA, minimum protection class rating 5P10.

• Connection diagram: ground current zero sequence CTs

Line current transformers (1000:1)

Individual phase inputs to Power Interface PCB

Zero sequence current transformer (1000:1)

Ground current input to Power Interface PCB

• Switch settings for zero sequence method

The soft starter will check the switch settings when control power is applied. If the switch settings are changed, control power must be cycled for the new setting to take effect.

500:1 1000:1 1010

1000:1 1000:1 1100

• Example settings for S1

Dip switch 1 on S1 is closest to the control terminal connectors. Dip switch 4 is closest to the CT connectors.

26 | MVE User Manual (710-17074-00G)

Page 28

INSTALLATION

T1 T2 T3

MVE PHASE ARM 1 MVE PHASE ARM 2 MVE PHASE ARM 3

EXTERNAL

CONTROL SUPPLY

(110-240VAC)

EXTERNAL

2-WIRE MOT OR

START/STOP SIGNAL

Q10

K1K2K3

24 VDC SUPPLY

TO CONTROLLER "A 4"

INPUT:

110-240 VAC

OUTPUT:

24VDC, 20 A

(Operation

10A

MCB

(+ 24 VDC)

(- 24 VDC)

(+ 24 VDC)

(- 24 VDC)

Mode)

SEENOTES

XT XT

24VDCSUPPLY

FROM"SMPS"

(Aux N/O)

EMS

(MVE Reset)

DOL

SST

START

STOP

RESET

SUPPLY

DOL+

C74

C731314232433344344

A1(+)

A2(-)

C1C2C3C4C5

BYPASSREADBACK

M.C. OUTPUT

BYPASSOUTPUT

PFCOUTPUT

SUPPLY

FANFAILINPUT

PROT.ACTIVE INPUT

SUPPLYFAILINPUT

CTGD

CT3

CT2

CT1

C23 A11

C24

C31

C32

C41

C42

A12

VOLTAGE

SENSOR

INPUTS

Tx Rx

L32

L31

L22

L21

L12

L11

GF2

GF1

V0V1V2

GND

FR1

NC1

FR2

NC2

FR3

NC3

(Wh,Gn,Gy)

(Ye)

(Pk)

(Bn)

(CABLE:3PR +SC, 0.75mm)

123AB

(Screen)

CT1

A1-1

MV OUTPUT CONNEC

TIONS TO MOTOR

S1 P1

S2 P2

CONN ECTIONS ON PHASEA RM 1 CONNECTIONS ON PHASE ARM 2

VOLTAGE

SENSOR

OUTPUT

Signal

Ground

+24v

-24v

+24v

-24v

(Ye)

(Gn)

CT2

-24v +24v

+24v

-24v

(Pk)

(Gy)

CT3

CONN ECTIONS ON PHASEA RM 3

A1-2 A1-3

VOLTAGE

SENSOR

OUTPUT

Signal

Ground

VOLTAGE

SENSOR

OUTPUT

Signal

Ground

-24v +24v

+24v

-24v

(Bn)

(Wh)

(+24VDC)

(-24VDC)

Rx Tx

L N

KPA

PHASEARM POWER

SUPPLYOUTPUT

KPA

(2 x N/O)

cba

18358.C

Power interface board (A3)

a ~ c

Phase arm 1 ˜ Phase arm 3 (A1-1 ~ A1-3)

6.14 Internal Panel Wiring

Internal connection wiring diagram. This information is intended for panel builders when integrating and wiring the MVE into a panel.

Controller (A4)

Gate drive adapter PCB and voltage sensing connectors

MVE User Manual (710-17074-00G) | 27

Page 29

INSTALLATION

NOTE

NOTE CAUTION

6.15 Operation mode selector switch (S1)

The MVE can soft start the motor, or can DOL start the motor with or without protection. Use the operation mode selector switch (S1) to select the start mode.

SST position (soft start)

• The customer's external control signals start and stop the motor.

• The MVE performs a normal soft start.

• All soft starter protections are active.

DOL+ position (DOL with protection)

• Relay outputs on the soft starter's power interface board control the line, bypass and PFC contactors.

• The customer's external control signals start and stop the motor.

• The line and bypass contactors start the motor DOL.

• All soft starter protections are active.

• Relay outputs on the soft starter's power interface board control the line, bypass and PFC contactors.

This mode allows the motor to be started when there is a fault with one of the soft starter phase arms. The controller and power interface board must be in healthy working state.

DOL position (DOL without protection)

• The customer's external control signals start and stop the motor.

• The line and bypass contactors start the motor DOL.

• All soft starter protections are bypassed.

• The line and bypass contactors are controlled by the start and stop control signals.

• The PFC contactor (if used) must be controlled by a separate manual switch.

This mode allows emergency operation of the motor when there is a major failure of any soft starter component. Back-up fuses provide short circuit protection. Additional protections such as motor protection or RTD overtemperature may be available if separate protection equipment is installed.

6.16 Phase arm power supply switching

The 24 VDC power supply to each phase arm must be switched via a control relay operated from output 43, 44 on the power interface board. Refer to

The control relay (KPA) must have a contact switching rating > 9A @ 24 VDC.

Internal Panel Wiring

on page 27.

6.17 Approved switch mode power supply units

The following 24 VDC switch mode power supplies are tested and approved for use with MVE:

1. Delta power supply DRM-24V480W1PN

2. LUTZ power supply CPSB1-480-24

Use of other power supplies is at the risk of the installer and/or end user. AuCom accepts no responsibility for damage or incorrect operation resulting from the use of unapproved power supplies.

28 | MVE User Manual (710-17074-00G)

Page 30

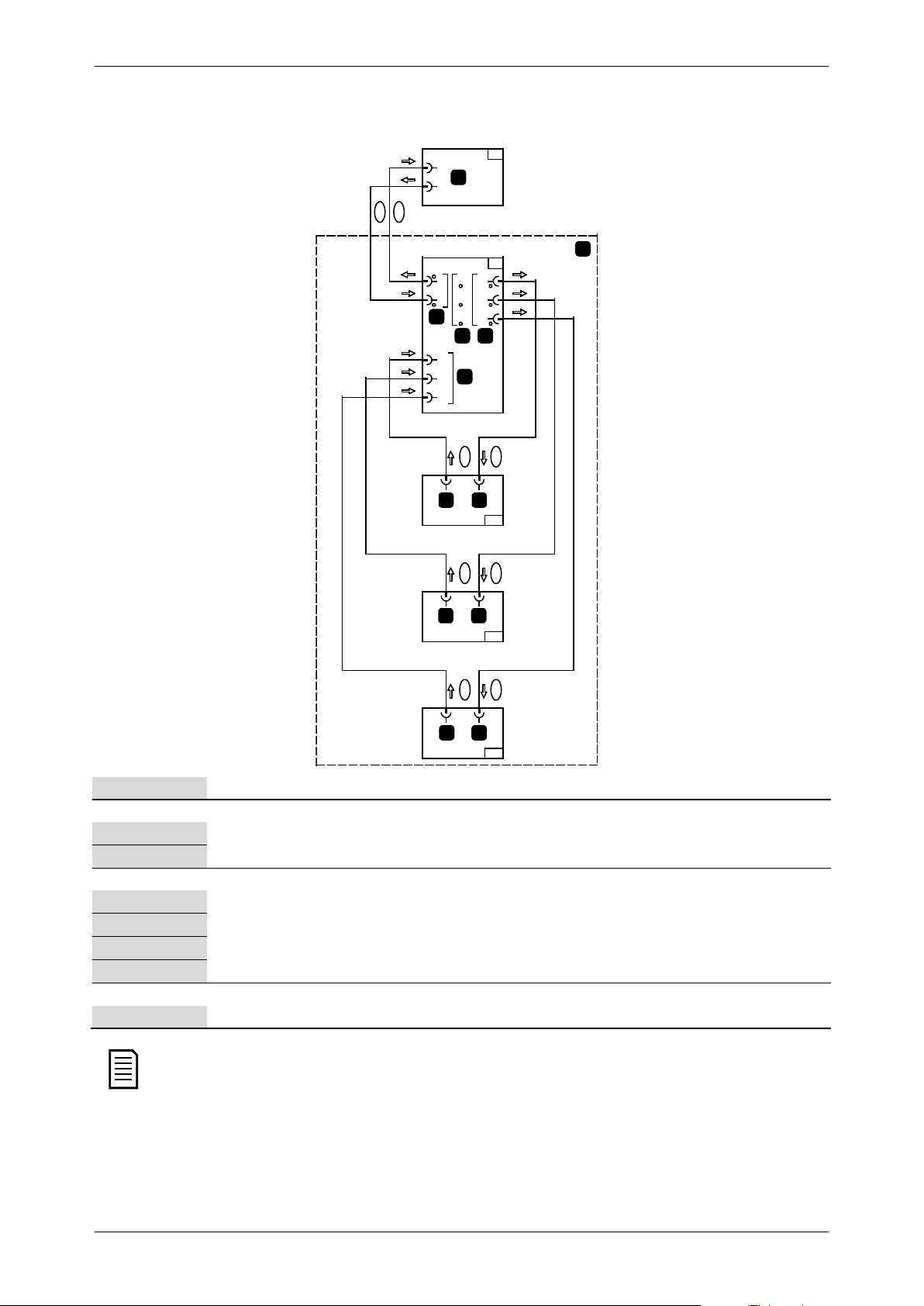

6.18 Internal Fibre-Optic Connections

RX TX

PH1 PH2 PH3

TX RX

A1-1

A1-2

A1-3

PH1 PH2 PH3

18359.A

Power assembly (including 3 phase arms)

A1-1 ~ A1-3

Non-conduction PCBs mounted at bottom of each phase arm

Interface PCB

NOTE

Internal fibre-optic cable connection diagram. This information is intended for panel builders.

INSTALLATION

Non-conduction [Tx] connector

Firing [Rx] connector

Non-conduction status LEDs (green)

Firing [Tx] connectors and Firing status LEDs (red)

Non-conduction [Rx] connectors

Connectors to controller [Rx, Tx] and status LEDs (green / red)

Controller Connectors to interface PCB [Rx, Tx] and status LEDs (green / red)

The connector sockets for the fixed fibre-optic Transmit (Tx) and Receive (Rx) are mounted on the Interface PCB (A3) and on the three Non-conduction PCBs (A1-1, A1-2 and A1-3).

• Transmit (Tx) fibre-optic sockets are light grey colour.

• Receive (Rx) fibre-optic sockets are dark grey colour.

MVE User Manual (710-17074-00G) | 29

Page 31

CONTROLLER

Run Trip LocalReady

Exit

Menu Store

Logs

Alt

Tools

Reset

LCL

RMT

StopStart

04186.B

1 2

LED name

Flashing

Ready

The motor is stopped and the starter is ready to start.

The motor is stopped and the starter is waiting for the NOTE

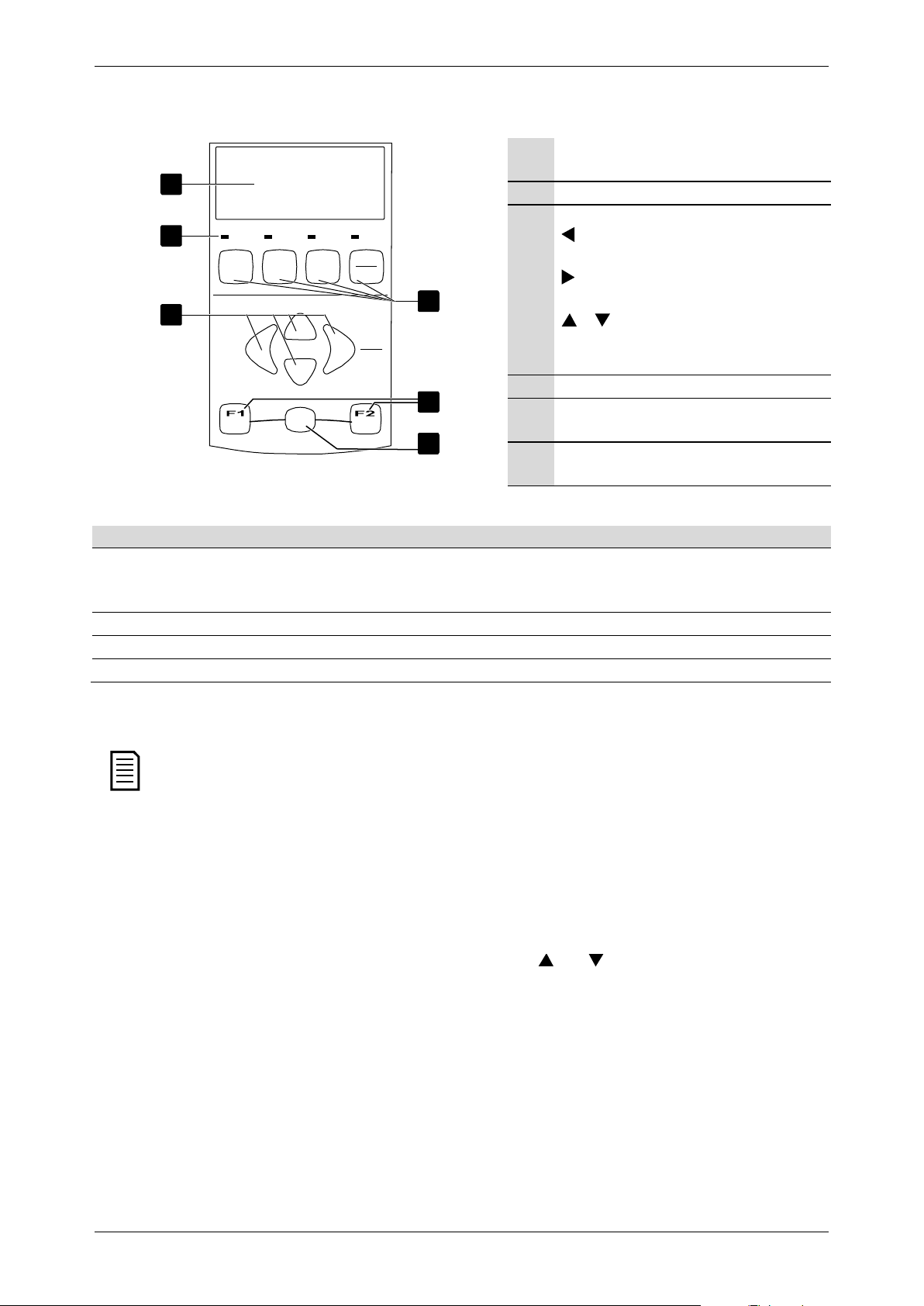

7. Controller

Four-line display for status and programming details.

Status LEDs

Menu navigation buttons:

: Exit the menu or parameter, or cancel a parameter change. : Enter a menu or parameter, or save a parameter change. / : Scroll to the next or previous menu or parameter, or change the setting of the current parameter.

Soft starter local control buttons

Shortcut buttons for quick access to common tasks.

Alt button. Use with F1 or F2 to open performance logs or commissioning tools.

7.1 Starter Status LEDs

Restart Delay Check

Run The motor is in run state (receiving full voltage). The motor is starting or stopping.

Trip The starter has tripped. The starter is in warning state.

Local The starter is in Local control mode. --

If the starter is in remote control mode, the Local LED will be off.

If all LEDs are off, the starter is not receiving control voltage.

When the Controller is powered up, the Ready LED flashes for 5 seconds as part of the initialisation routine.

(parameter 4M) or

(parameter 4N).

Motor Temperature

7.2 Menu Shortcuts

The F1 and F2 buttons offer keyboard shortcuts to the Auto-Stop menu. Use parameters 8B and 8C (

on page 56) to select the shortcut target.

Action

8B, 8C – F1 and F2 Button

7.3 Displays

The controller displays a wide range of performance information about the soft starter. The top half of the screen shows real-time information on current or motor power (as selected in parameter 8D). Use the shown on the bottom half of the screen.

• Starter status

• User programmable screen

• Motor temperature

• Current

• Motor power

• Voltage

• Last start information

• Date and time

• Performance graphs

• SCR conduction

and buttons to select the information

30 | MVE User Manual (710-17074-00G)

Page 32

CONTROLLER

NOTE

M1 000% M2 000%

NOTE

00000 00000 00000

Operating Feedback

Screens shown here are with the default settings.

• Starter Status

The starter status screen shows details of the starter's operating status, including motor current, power and temperature.

0A Ready M1 000% 000.0kW

• Programmable screen

The MVE's user-programmable screen can be configured to show the most important information for the particular application. Use parameters 8E to 8H to select which information to display.

0A Ready 00000 kWh 00000hrs

• Motor Temperature

The temperature screen shows which motor data set is in use, and the temperature of the motor as a percentage of total thermal capacity.

0A Primary Motor Set

M2 xxx% temperature is not applicable to this product.

• Current monitoring screen

The current screen shows real-time line current on each phase.

0A Phase Currents (Gnd Crnt XX.XA)

000.0A 000.0A 000.0A

• Motor Power

The motor power screen shows motor power (kW, HP and kVA) and power factor.

000.0kW 0000HP 0000kVA -. - - pf

• Voltage

The voltage screen shows real-time line voltage across each phase.

0A Line Voltages

• Last Start Information

The last start information screen shows details of the most recent start:

• start duration (seconds)

• maximum start current drawn (as a percentage of motor full load current)

0A Last start 000 s 000 % FLC ∆ Temp 0%

• calculated rise in motor temperature

MVE User Manual (710-17074-00G) | 31

Page 33

CONTROLLER

10166.A

0000 A 0%-400%

L3 Cond

ALT

TOOLS

• Date and Time

The date/time screen shows the current system date and time (24 hour format). For details on setting the date and time, refer to

Set Date and Time

0A DD MMM YYYY HH:MM:SS

on page 32.

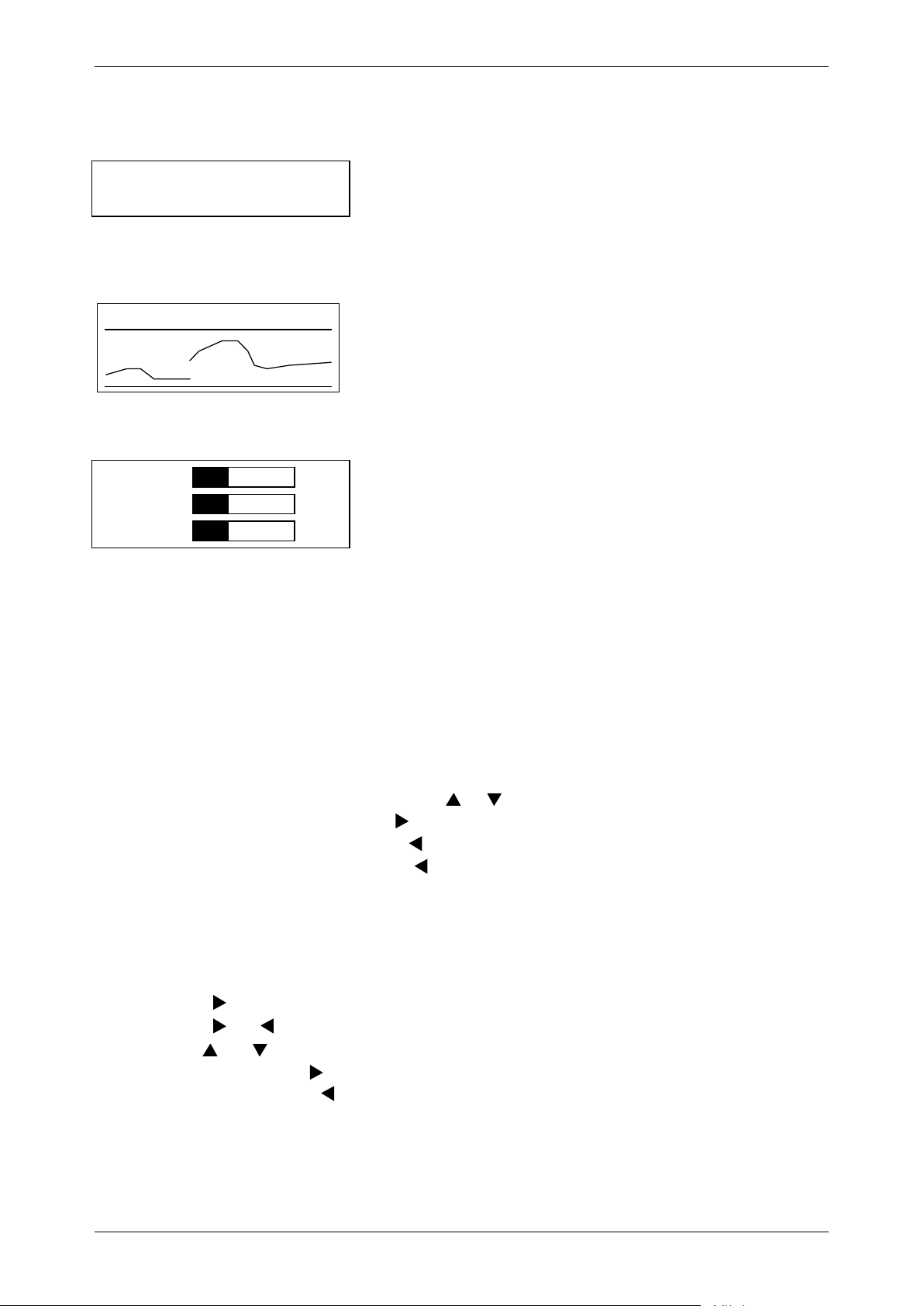

• Performance Graph

The performance graph provides a real-time display of operating performance. Use parameters 8I~8L to select which information to display.

• SCR Conduction Bargraph

The SCR conduction bargraph shows the level of conduction on each phase.

L1 Cond

L2 Cond

7.4 Display Calibration

The displayed values for current, voltage and power factor can be calibrated if required. Contact your local supplier for advice.

7.5 Commissioning Menu (Tools)

The Commissioning Menu provides access to commissioning and testing tools.

Press

then

The Commissioning Menu is protected by the access code.

The default access code is 0000.

To navigate through the Commissioning Menu:

• to scroll to the next or previous item, press the

• to open an item for viewing, press the

• to return to the previous level, press the

• to close the Commissioning Menu, press

to open the Tools.

or button.

button.

repeatedly.

7.6 Set Date and Time

To set the date and time:

1. Open the Commissioning Menu.

2. Scroll to the date/time screen.

3. Press the button to enter edit mode.

4. Press the

5. Use the and buttons to change the value.

6. To save changes, press the button. The MVE will confirm the changes.

32 | MVE User Manual (710-17074-00G)

To cancel changes, press the button.

and buttons to select which part of the date or time to edit.

Page 34

CONTROLLER

NOTE

Apply Start Signal

3. Press START or activate the start input. The MVE simulates its pre-start checks

STORE

NOTE

STORE

Apply Stop Signal

6. Press STOP or activate the stop input. The MVE simulates stopping. The Run LED

STORE

NOTE

3. Use the and buttons to select the protection you want to simulate.

5. The screen is displayed momentarily. The soft starter's response depends on the

7.7 Simulation Tools

Software simulation functions let you test the soft starter's operation and control circuits without connecting the soft starter to mains voltage.

The simulation tools are accessed via the Commissioning Menu. The simulations are only available when the soft starter is in Ready state, control voltage is available and the controller is active.

Access to the simulation tools is protected by the security access code.

Run Simulation

To use the run simulation:

1. Open the Commissioning Menu.

2. Scroll to Run Simulation and press

The default access code is 0000.

and closes the main contactor relay. The Run LED flashes.

Run Simulation Ready

Run Simulation Pre-Start Checks

to Continue

If mains voltage is connected, an error message is shown. Remove mains voltage and proceed to the next step.

4. Press . The MVE simulates starting. The Run LED flashes.

5. Press . The MVE simulates running. The Run LED stays on without flashing

and the bypass contactor relay closes.

flashes and the bypass contactor relay opens.

7. Press . The Ready LED flashes and the main contactor relay opens.

8. Press to return to the commissioning menu.

Run simulation can be exited at any stage by pressing the

Protection Simulation

Run Simulation ATTENTION! Remove Mains Volts

to Continue

Run Simulation Starting X:XXs

to Continue

Run Simulation Running

Run Simulation Stopping X:XXs

to Continue

Run Simulation Stopped

to Continue

The protection simulation simulates activation of each protection mechanism to confirm that the soft starter and associated control circuits are responding correctly.

To use the protection simulation:

1. Open the Commissioning Menu.

2. Scroll to Protection Simulation and press .

4. Press and hold to simulate the selected protection.

Protection Action setting (parameter group 16).

6. Use or to select another simulation, or press to exit.

0.0A Tripped Selected Protection

MVE User Manual (710-17074-00G) | 33

Page 35

CONTROLLER

NOTE

1. Open the Commissioning Menu.

This screen shows the state of the motor thermistors and RTD/PT100s.

S = Shrt H=Hot C=Cld O=Opn

NOTE

This screen shows the current status of the digital inputs and outputs.

If the protection trips the soft starter, reset before simulating another protection. If the protection action is set to 'Warn and Log', no reset is required.

If the protection is set to 'Warn and Log', the warning message can be viewed only while the

If the protection is set to 'Log only', nothing appears on the screen but an entry will appear in the log.

button is pressed.

Output Signal Simulation

The output signal simulation simulates output signalling to confirm that outputs and associated control circuits are operating correctly.

To test operation of the flags (motor temperature and low/high current), set an output relay to the appropriate function and monitor the relay's behaviour.

To use the output signal simulation:

2. Scroll to Output Signalling Simulation and press .

3. Use the and buttons to select a function to simulate, then press .

4. Use the and buttons to turn the signal on and off.

To confirm correct operation, monitor the state of the output.

5. Press to return to the simulation list.

Prog Relay A Off

Analog Output Simulation

The analog output simulation uses the and buttons to change the analog output current at terminals B10, B11 of the controller.

Analog Output 0% 4 mA

Attach an external current measuring device to terminals B10, B11 of the controller. Use the or button to adjust the percentage value in the lower left hand corner of the display. The current measuring device should indicate the same level of current as shown at the lower right corner of the display.

7.8 Input/Output Status

Temperature Sensors State

Temp Sensors State Thermistor: 0 RTDs A-->G:OOOOOOO

The use of RTDs is not supported by this product and this screen will always indicate 0 (ie Open) for RTDs A->G.

Digital I/O State

Digital I/O State Inputs: 1000000

The top line of the screen shows the start, stop, reset and programmable inputs A and B, then '00'. The screen shows input C23~C24 closed with all other inputs open.

The bottom line of the screen shows programmable output A, the fixed Run output, programmable outputs B and C, then '000'. The screen shows all outputs open.

Outputs: 0000000

34 | MVE User Manual (710-17074-00G)

Page 36

CONTROLLER

NOTE

STORE

Store to Reset

When the thermal model has been reset, the screen will display a confirmation message

CAUTION

Analog I/O State

This screen shows the current status of the Analog I/O.

Input is not supported by this product and this screen will always indicate Input: - - - - %

Analog I/O State Input: - - - - % Output A: 04.0mA

7.9 Reset Thermal Models

The soft starter's thermal modelling software constantly monitors the motor's performance. This allows the starter to calculate the motor's temperature and ability to start successfully at any time.

The thermal model for the active motor can be reset if required.

1. Open the Commissioning Menu.

2. Scroll to Reset Thermal Models and press .

3. At the confirmation prompt press

to confirm or to cancel the action. You

may have to enter your access code.

Reset Thermal Models M1 X% M2 X%

4. Select Reset and press .

Selecting Do Not Reset returns to previous screen.

Reset Thermal Models Do Not Reset Reset

then return to the previous screen.

Resetting the motor thermal model will compromise thermal model protection and may compromise motor life. Only reset the thermal model in an emergency.

7.10 Programming Menu

The Programming Menu lets you view and change programmable parameters that control how the MVE operates.

You can access the Programming Menu at any time, including while the soft starter is running. Any changes to the start profile take effect immediately.

To open the Programming Menu, press the

To navigate through the Programming Menu:

• to scroll through parameter groups, press the or button.

• to open a submenu, press the

• to view the parameters in a group, press the

• to return to the previous level, press the

• to close the Programming Menu, press

button while viewing the monitoring screens.

button.

repeatedly.

Adjustment Lock

You can lock the Programming Menu to prevent users from altering parameter settings. The adjustment lock can be turned on and off using parameter 15B.

To lock the programming menu:

1. Open the Programming Menu.

2. Open the Extended Menu.

3. Select 'Advanced'.

4. Enter the Access Code.

5. Select parameter 15B

6. Select and store 'Read Only'.

Adjustment Lock

MVE User Manual (710-17074-00G) | 35

Page 37

CONTROLLER

Adj Lock is On

STORE

EXIT

NOTE

1. Open the Programming Menu

STORE

Yes

STORE

0###

STORE

SUPERVISOR

If a user attempts to change a parameter value when the adjustment lock is active, an error message is displayed:

Access Denied

Altering Parameter Values

To change a parameter value:

• scroll to the appropriate parameter in the Programming Menu and press

to enter edit mode.

• to alter the parameter setting, use the and buttons. Pressing or once will increase or decrease

the value by one unit. If the button is held for longer than five seconds, the value will increase or decrease at a faster rate.

• to save changes, press

. The setting shown on the display will be saved and the controller will return to the

parameter list.

• to cancel changes, press

saving changes.

. The controller will ask for confirmation, then return to the parameter list without

Load/Save Settings

The Load/Save Settings menu requires an access code and allows users to:

• Load the MVE's parameters with default values

• Load parameter settings from an internal file

In addition to the factory default values file, the MVE can store two user-defined parameter files. These files contain default values until a user file is saved.

To load or save settings:

2. Scroll to Load/Save Settings and press the button.

3. Scroll to the required function and press the

• Save the current parameter settings to an internal file

Load defaults will not reset any changes to parameter group 20 'Restricted'.

button. Enter the access code

when prompted.

Load Defaults Load Backup Load User Set 1

4. At the confirmation prompt, select YES to confirm or NO to cancel and then

to load/save the selection.

When the action has been completed, the screen will briefly display a confirmation message, then return to the Load/Save Settings screen

Load Defaults No

Access Code

Critical parameters (parameter group 15 and higher) are protected by a four-digit security access code, preventing unauthorised users from viewing or modifying parameter settings.

When a user attempts to enter a restricted parameter group, the controller prompts for an access code. The access code is requested once for the programming session, and authorisation continues until the user closes the menu.

To enter the access code, use the four digits match your access code, press

Enter Access Code

Access Allowed

To change the access code, use parameter 15A.

and buttons to select a digit, and the and buttons to change the value. When all

. The controller will display an acknowledgement message before continuing.

36 | MVE User Manual (710-17074-00G)

Page 38

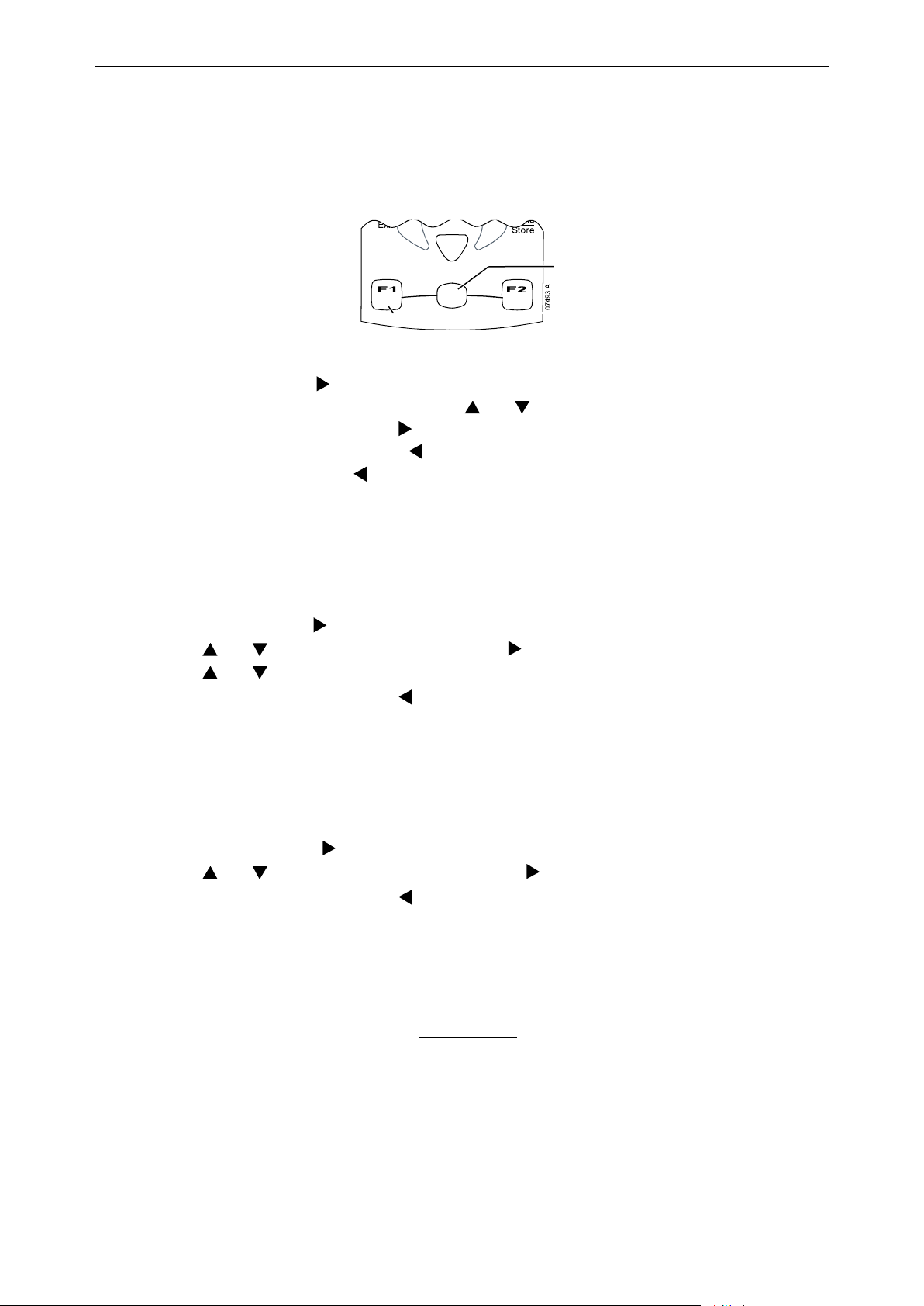

7.11 Monitoring

ALT

LOGS

Logs

Alt

Tools

ALT

LOGS

ALT

LOGS

ALT

LOGS

Logs Menu

The Logs Menu provides information on events, trips and starter performance.

To open the Logs Menu, press

To navigate through the Logs Menu:

• to open a log, press the button.

• to scroll through the entries in each log, press the and buttons.

• to view details of a log entry, press the

• to return to the previous level, press the

• to close the Logs Menu, press

then

while viewing the metering screens.

button.

repeatedly.

CONTROLLER

• Trip Log

The Trip Log stores details of the eight most recent trips, including the date and time the trip happened. Trip 1 is the most recent and trip 8 is the oldest stored trip.

To open the Trip Log:

1. Press

2. Scroll to Trip Log and press

then

to open the Logs.

3. Use the and buttons to select a trip to view, and press to display details.

4. Use the and buttons to scroll through available details.

To close the log and return to the main display, press

repeatedly.

• Event Log

The Event Log stores time-stamped details of the starter's 99 most recent events (actions, warnings and trips), including the date and time of the event. Event 1 is the most recent and event 99 is the oldest stored event.

To open the Event Log:

1. Press

2. Scroll to Event Log and press

3. Use the

To close the log and return to the main display, press

then

to open the Logs.

and buttons to select an event to view, and press to display details.

repeatedly.

• Starter Trip and Event Logger Software

The Starter Trip and Event Logger Software allows you to download the trip and event logs from the soft starter, for separate analysis.

The software is compatible with all AuCom medium voltage soft starters using control software version 1.29 or later.

For further information, or to download the software, visit www.aucom.com.

MVE User Manual (710-17074-00G) | 37

Page 39

CONTROLLER

STORE

CAUTION

LCL/RMT

STOP

START

STOP

RESET

STOP

RESET

• Performance Counters

The performance counters store statistics on the starter's operation:

• Hours run (lifetime and since counter last reset)

• Number of starts (lifetime and since counter last reset)

• Motor kWh (lifetime and since counter last reset)

• Number of times the thermal model has been reset

The resettable counters (hours run, starts and motor kWh) can only be reset if the & Write.

To view the counters:

1. Open the Logs Menu.

2. Scroll to Counters and press .

3. Use the

4. To reset a counter, press

and buttons to scroll through the counters. Press to view details.

(enter access code if required) then use the button to select Reset. Press

confirm the action.

To close the counters and return to the main display, press the repeatedly.

7.12 Operation

Adjustment Lock

(parameter 15B) is set to Read

We recommend testing the soft starter's setup on a low voltage motor before beginning operation on a medium voltage motor. This allows the operator to test that the soft starter is correctly connected to the auxiliary equipment.

Start, Stop and Reset Commands

The soft starter can be controlled in three ways:

• using the buttons on the controller

• via remote inputs

• via a serial communication link

The

button controls whether the MVE will respond to local control (via the controller) or remote control (via the remote

inputs).

The Local LED on the controller is on when the soft starter is in local control mode and off when the soft starter is in remote control mode.

Control via the fieldbus communication network is always enabled in local control mode, and can be enabled or disabled in remote control mode (parameter 6R

Comms in Remote

). Control via the serial communication network requires an optional

communication module.

The

button on the controller is always enabled.

Using the Soft Starter to Control a Motor

To soft start the motor, press the start mode selected in parameter 2A.

To stop the motor, press the mode selected in parameter 2H.

To reset a trip on the soft starter, press the

To stop the motor with a coast to stop, regardless of the setting of parameter 2H buttons at the same time. The soft starter will remove power from the motor and open the main contactor, and the motor will coast to stop.

button on the controller or activate the Start remote input. The motor will start using the

button on the controller or activate the Stop remote input. The motor will stop using the stop

button on the controller or activate the Reset remote input.

Stop Mode

, press the local

and

38 | MVE User Manual (710-17074-00G)

Page 40

CONTROLLER

NOTE

09294.B

Initial Current

(parameter 2C)

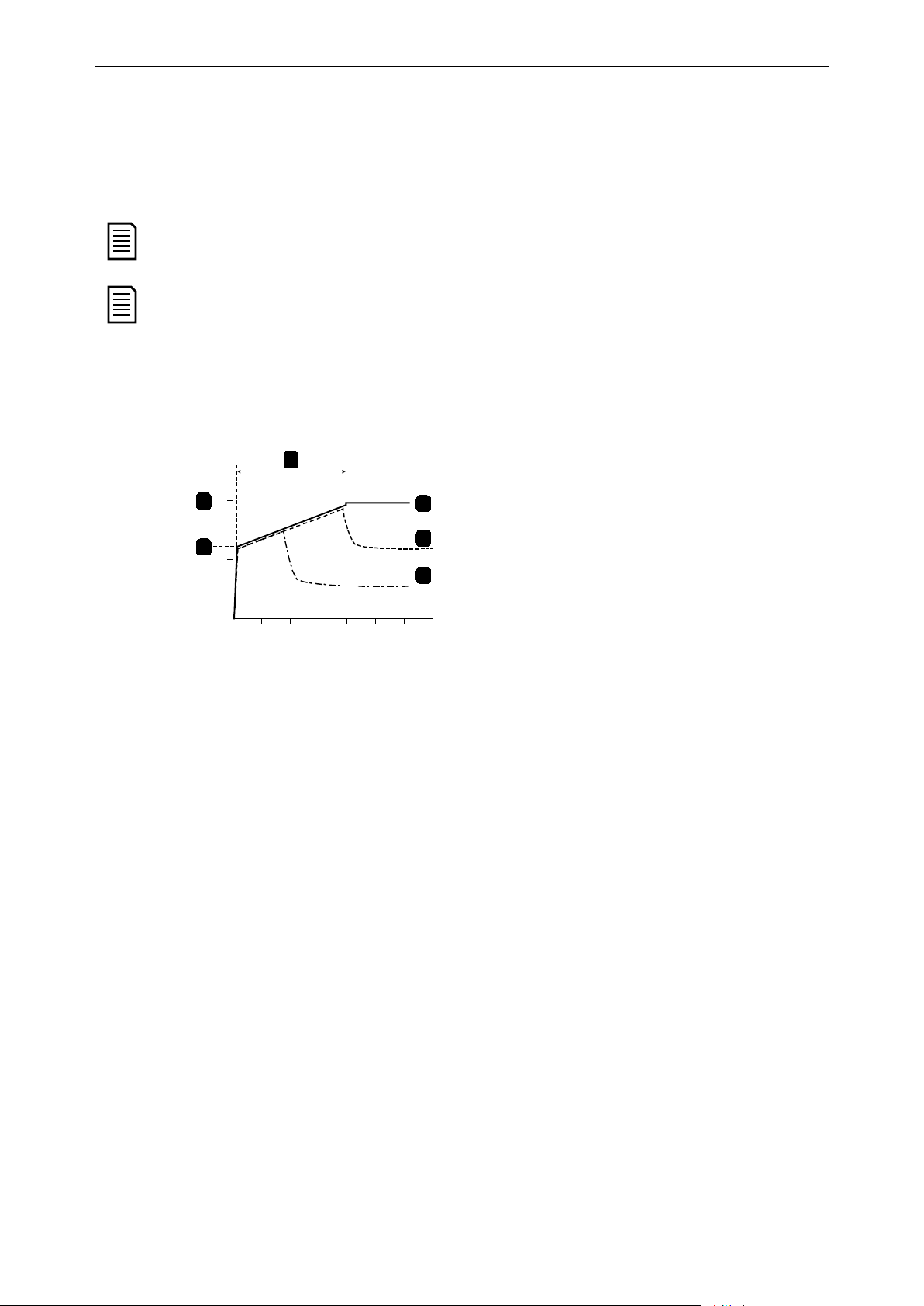

Timed Voltage Ramp

Timed voltage ramp (TVR) soft starting ramps the application of voltage to the motor over a defined time period. The voltage ramp reduces the initial starting torque and slows the motor's rate of acceleration.

TVR starting can be useful for applications where multiple motors of different sizes are connected in parallel, and/or the loads are not mechanically linked.

TVR soft starting is not suitable for high inertia loads (such as fans), which require a high level of voltage to accelerate the load.

For multiple motors of the same sizes, and/or mechanically coupled loads, use constant current starting.

For a timed voltage ramp start, the following are typical values and can be adjusted to suit your specific application:

1. Add the FLC value of all the connected motors. Use this combined value to set parameter 1A

Current

. (Note that the combined value must not exceed the starter rating.)

2. Set parameter 2C

(parameter 2B

Initial Current

Start Ramp Time

to 100%, parameter 2D ).

Current Limit

Start Ramp Time

to 600% and set the ramp time as required

(parameter 2D)

(parameter 2B) 4: Full voltage 5: Motor 1 current 6: Motor 2 current

Motor Full Load

Time

MVE User Manual (710-17074-00G) | 39

Page 41

CONTROLLER

07717.

21 4 65

a d

c fe

1 2

Starter State

Starter actions

1 2

3 4

State

Function

Not ready

Perform system checks.

Ready

Wait for start command.

Start command received

Main contactor closes.

Pre-Start Checks

Perform connection checks.

Starting

Ramp up SCR firing angles.

Trip command

Turn SCRs off then open main contactor.

Tripped

Wait for reset command.

Reset command received

Trip cleared and starter returns to Not Ready state or Ready state.

State

Starter action

Full conduction

SCRs at 100% conduction. Verify current is < 120% FLC then close bypass contactor.

Running

Normal motor run state (bypassed mode).

Trip command

Open bypass contactor. Turn SCRs off then open main contactor.

Tripped

Wait for reset command.

Reset command received

Trip cleared and starter returns to Not Ready or Ready state.

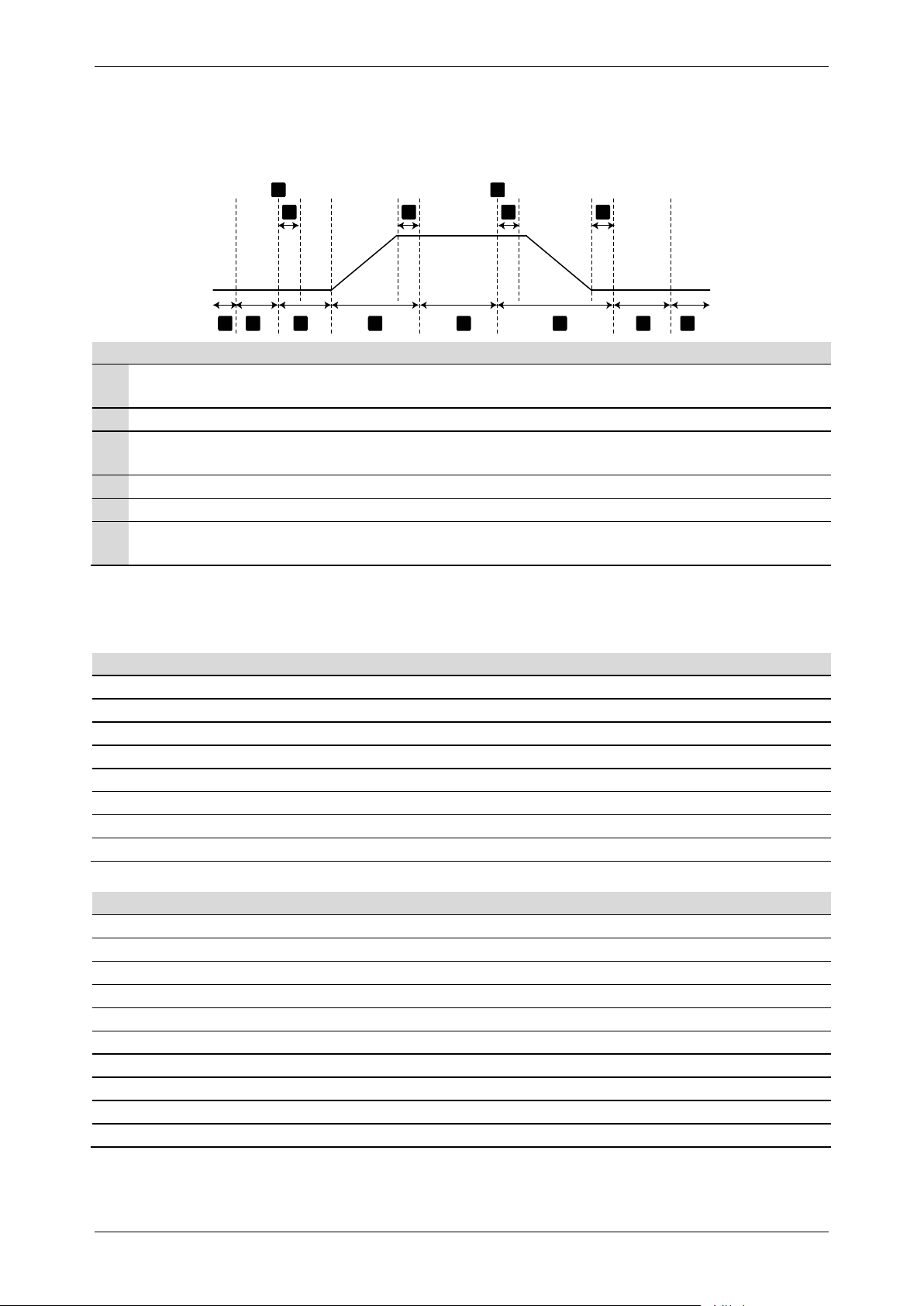

Operating States

• Start and Run States

The MVE soft starter has six operating states, and performs the following actions in each state:

Not ready

Control power is on. The starter may be in Restart Delay mode or waiting for the motor to cool down before allowing a start.

Ready The starter is initialised and waiting for a start command.

Pre-start checks

A start command has been received (a). The main contactor closes (b) and the starter performs a series of internal and external checks.

Starting The starter ramps the SCRs up to full conduction and closes the bypass contactor (c).

Running The motor is running normally.

Stopping

A stop command has been received (d). The starter opens the bypass contactor (e), ramps the SCRs down to no conduction, then opens the main contactor (f).

• Trip States

The starter's response to a trip depends on the starter's state when the trip occurs.

 Trip while starting (bypass contactor not yet closed)

 Trip while running (bypass contactor closed)

Not ready Perform system checks.

Ready Wait for start command.

Start command received Main contactor closes.

Pre-Start Checks Perform connection checks.

Starting Ramp up SCR firing angles.

The main contactor opens immediately, regardless of the starter's state.

40 | MVE User Manual (710-17074-00G)

 Instantaneous Overcurrent Stage 2 trip

Page 42

CONTROLLER

04013

Locked rotor current

Motor Protection

• Motor, System and Soft Starter Protection Mechanisms

The MVE incorporates extensive protection features to ensure safe operation of the motor, system and soft starter. Most protection features can be customised to suit the installation. Use parameter group 4 Protection Settings to control the situation where the protections will activate and parameter group 16 Protection Action to select the soft starter's response. The default response is to trip the soft starter.

 Protection Coordination

Check protection settings on the supply side of the starter to ensure correct coordination with the parameters of the soft starter.

When using fuse and main contactors, set the upstream circuit breaker protection parameters according to the ratings for fuse and contactor. The contactor must not open if the current is above its maximum breaking current value. The fuse must act first or the upstream breakers instantaneous trip level must be less than the contactor's maximum breaking current level.

If using circuit breakers only, set the soft starter's maximum instantaneous trip time < 150 ms. Always use a suitable external protection relay with a circuit breaker to ensure instantaneous overcurrent trip functionality.

Voltage must not be continuously maintained on the phase arms while the motor is off. Short circuit protective equipment must be installed in all cases.

 Motor Overload Protection

The MVE offers thermal model motor overload protection which monitors the performance of the motor and calculates its temperature in all states. This protection is based on the motor information programmed in parameter groups 1 and 9, and the thermal model adjusts itself according to the motor's recent operating history (including temperature rise from previous operation).

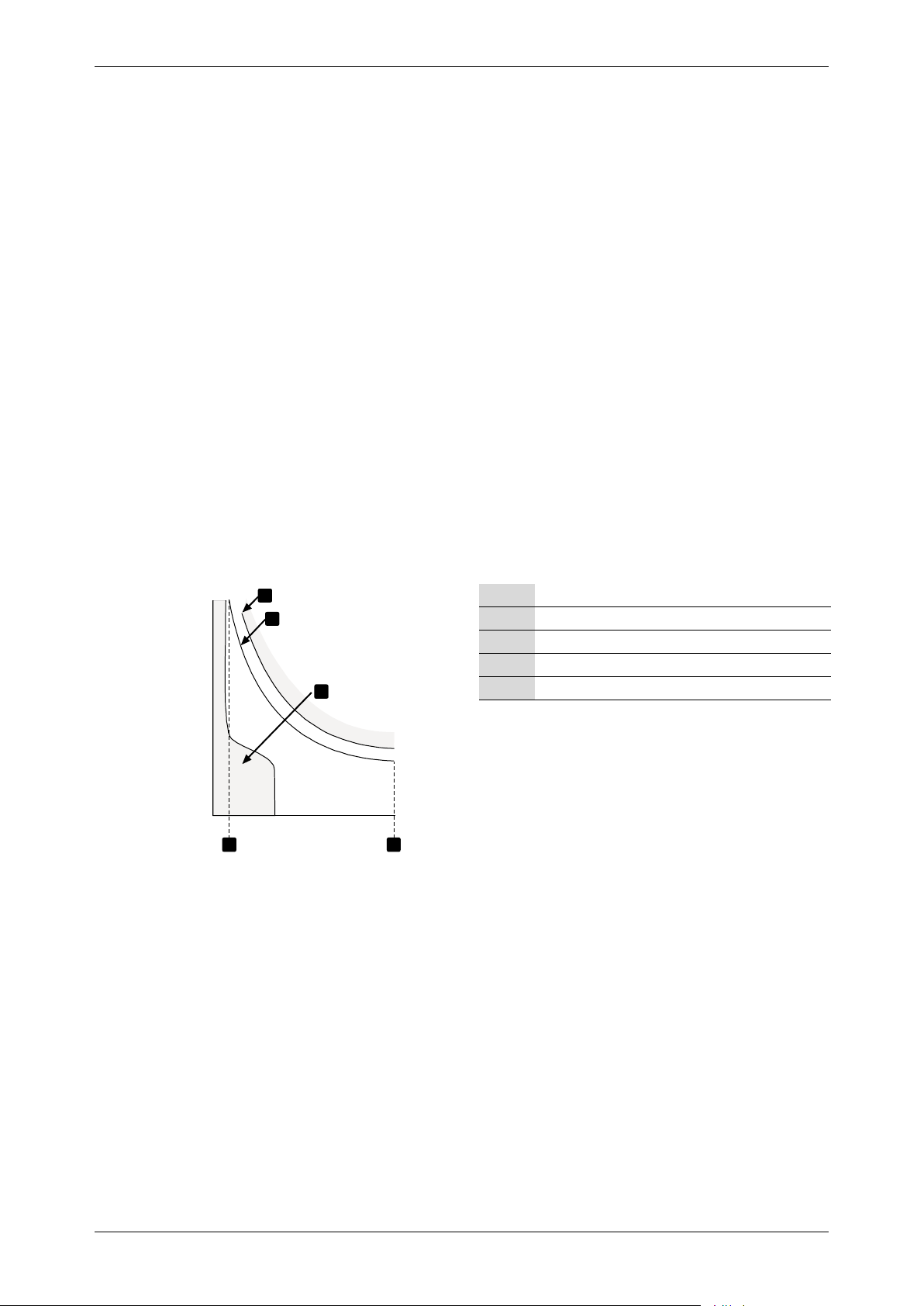

Motor service factor

Motor failure curve

Motor thermal model protection curve

Typical motor operating current

Time

Current

• Motor Thermal Model Protection Set-up

To enable motor and starter protection using the motor thermal model, the soft starter must be programmed with accurate information on the motor's characteristics.

1. Set parameters 1B

datasheet.

2. Use instantaneous overcurrent protection (parameters 4E, 4F) to provide protection for locked rotor situations. Refer to

individual parameters for details.

3. Use instantaneous overcurrent protection stage 2 (parameters 4U, 4V) to trip circuit breaker or main contactor in the

event of extreme overcurrent situations.

Locked Rotor Time

, 1C

Locked Rotor Current

and 1D

Motor Service Factor

according to the motor

MVE User Manual (710-17074-00G) | 41

Page 43

CONTROLLER

Motor Data-1

Start/Stop Modes-1

Auto-Start/Stop

Protection

Excess Start Time

Undercurrent

Undercurrent Delay

Instantaneous Overcurrent

Instantaneous Overcurrent Delay

Phase Sequence

Inputs

Input A Function

Input A Name

Input A Trip

Input A Trip Delay

Input A Initial Delay

Input B Function

Input B Name

Input B Trip

Outputs

7.13 Standard Menu

The standard menu provides access to commonly used parameters, allowing the user to configure the MVE as required for the application. For details of individual parameters, refer to

Parameter Descriptions

on page 46.

Motor Full Load Current

Start Mode Start Ramp Time Initial Current Current Limit Stop Mode Stop Time

Auto-Stop Type Auto-Stop Time

Input B Trip Delay Input B Initial Delay

Relay A Function Relay A On Delay Relay A Off Delay Relay B Function Relay B On Delay Relay B Off Delay Relay C Function Relay C On Delay Relay C Off Delay Low Current Flag High Current Flag Motor Temperature Flag

42 | MVE User Manual (710-17074-00G)

Page 44

CONTROLLER

Display

Motor Data-1

Start/Stop Modes-1

Start Mode

Start Ramp Time

Initial Current

Current Limit

Reserved

Kickstart Time

Kickstart Level

Stop Mode

Stop Time

Auto-Start/Stop

Reserved

Auto-Stop Type

Auto-Stop Time

Protection

Excess Start Time

Excess Start Time-2

Undercurrent

Language F1 Button Action F2 Button Action Display A or kW User Screen - Top Left User Screen - Top Right User Screen - Bottom Left User Screen - Bottom Right

7.14 Extended Menu

The extended menu gives access to all of the MVE's programmable parameters.

Motor Full Load Current Locked Rotor Time Locked Rotor Current Motor Service Factor

Undercurrent Delay Instantaneous Overcurrent Instantaneous Overcurrent Delay Phase Sequence Current Imbalance Current Imbalance Delay Frequency Check Frequency Variation Frequency Delay Restart Delay Motor Temperature Check Ground Fault Level

MVE User Manual (710-17074-00G) | 43

Page 45

CONTROLLER

Auto-Reset Trips (

Reserved

)

Inputs

Input B Initial Delay

Reserved

Remote Reset Logic

Reserved

Local/Remote

Comms in Remote

Outputs

Relay A Function

Relay A On Delay

Relay A Off Delay

Relay B Function

Relay B On Delay

Relay B Off Delay

Relay C Function

Relay C On Delay

Ground Fault Delay Undervoltage Undervoltage Delay Overvoltage Overvoltage Delay Instantaneous Overcurrent S2 Instantaneous Overcurrent Delay S2

Reserved

Input A Function Input A Name Input A Trip Input A Trip Delay Input A Initial Delay Input B Function Input B Name Input B Trip Input B Trip Delay

44 | MVE User Manual (710-17074-00G)

Relay C Off Delay Reserved Reserved Reserved Low Current Flag High Current Flag Motor Temperature Flag Analog Output A Analog A Scale Analog A Maximum Adjustment Analog A Minimum Adjustment

Page 46

CONTROLLER

Display

Motor Data-2

Reserved

Motor FLC-2

Reserved

Start/Stop Modes-2

10A

Start Mode-2

10B

Start Ramp-2

10C

Initial Current-2

10D

Current Limit-2

10E

Reserved

10F

Kickstart Time-2

10G

Kickstart Level-2

10H

Stop Mode-2

10I

Stop Time-2

11 RTD/PT100 (

Reserved

)

11A

Reserved

Slip-Ring Motors

Advanced

Protection Action

Reserved Reserved Reserved Reserved

Language F1 Button Action F2 Button Action Display A or kW User Screen - Top Left User Screen - Top Right User Screen - Bottom Left User Screen - Bottom Right Graph Data Graph Timebase Graph Maximum Adjustment Graph Minimum Adjustment Mains Reference Voltage

12A

12B

12C

12D

15A

15B

15C

16A

16B

Motor Data-1 Ramp Motor Data-2 Ramp Changeover Time Slip Ring Retard

Access Code Adjustment Lock Emergency Run

Motor Overload Excess Start Time

MVE User Manual (710-17074-00G) | 45

Page 47

CONTROLLER

16V

Undervoltage

16W

Overvoltage

1A – Motor FLC

Range:

Default:

Description:

1B – Locked Rotor Time

Range:

Default:

Description:

1C – Locked Rotor Current

Range:

Default:

Description:

1D – Motor Service Factor

Range:

Default:

Description:

2A – Start Mode

Options:

Description:

16C

16D

16E

16F

16G

16H

16I

16J

16K

16L

16M

16N

16O

16P

16Q

16R

16S

16T

16U

Undercurrent Instantaneous Overcurrent Current Imbalance Frequency Input A Trip Input B Trip Motor Thermistor Starter Communication Network Communication Reserved Battery/Clock Ground Fault Reserved Reserved Reserved Reserved Reserved Reserved Reserved

7.15 Parameter Descriptions

1 Motor Data-1

The parameters in Motor Data-1 configure the soft starter to match the connected motor. These parameters describe the motor's operating characteristics and allow the soft starter to model the motor's temperature.

100% - 120%

5 - 1200 A

100 A

Matches the starter to the connected motor's full load current. Set to the full load current (FLC) rating shown on the motor nameplate.

0:01 - 2:00 (minutes:seconds)

10 seconds

Sets the maximum length of time the motor can sustain locked rotor current from cold before reaching its maximum temperature. Set according to the motor datasheet.

400% - 800% FLC

600%

Sets the locked rotor current of the connected motor, as a percentage of full load current. Set according to the motor datasheet.

105%

Sets the motor service factor used by the thermal model. If the motor runs at full load current, it will reach 100%. Set according to the motor datasheet.

2 Start/Stop Modes-1

46 | MVE User Manual (710-17074-00G)

Constant Current (default)

Selects the soft start mode.

Page 48

2B – Start Ramp Time

Range:

Default:

Description:

2C – Initial Current

Range:

Default:

Description:

2D – Current Limit

Range:

Default:

Description:

2E – Reserved

Description:

2F – Kickstart Time

Range:

Default:

Description:

2G – Kickstart Level

Range:

Default:

Description:

CAUTION

2H – Stop Mode

Options:

Description:

2I – Stop Time

Range:

Default:

Description:

WARNING

3A, 3B – Reserved

Description:

3C – Auto-Stop Type

Options:

Off (default)

The soft starter will not auto-stop.

Description:

0:01 - 3.00 (minutes:seconds)

Sets the ramp time for current ramp starting (from the initial current to the current limit).

50% - 600% FLC

Sets the initial start current level for current ramp starting, as a percentage of motor full load current. Set so that the motor begins to accelerate immediately after a start is initiated. If current ramp starting is not required, set the initial current equal to the current limit.

50% - 600% FLC

Sets the current limit for constant current and current ramp soft starting, as a percentage of motor full load current.

This parameter is reserved for future use.

0 – 2000 milliseconds

Sets the kickstart duration. A setting of 0 disables kickstart.

100% - 700% FLC

Sets the level of the kickstart current.

Kickstart subjects the mechanical equipment to increased torque levels. Ensure the motor, load and couplings can handle the additional torque before using this feature.

Coast To Stop (default) TVR Soft Stop

Selects the stop mode.

0:00 - 4:00 (minutes:seconds)

Sets the time for soft stopping the motor using timed voltage ramp. If a main contactor is installed, the contactor must remain closed until the end of the stop time.

CONTROLLER

1 second

400%

0000 milliseconds

500%

0 second

3 Auto-Stop

The MVE can be programmed to stop automatically, after a specified delay or at a specified time of day.

This function should not be used in conjunction with remote two-wire control. The soft starter will still accept start and stop commands from the remote inputs or serial communication network. To disable local or remote control, use parameter 6Q.

These parameters are reserved for future use.

Timer The soft starter will auto-stop after a delay from the next start, as specified in parameter 3D. Clock The soft starter will auto-stop at the time programmed in parameter 3D.

Selects whether the soft starter will auto-stop after a specified delay, or at a time of day.

MVE User Manual (710-17074-00G) | 47

Page 49

CONTROLLER

3D – Auto-Stop Time

Range:

Default:

Description:

CAUTION

4A – Excess Start Time

Range:

Default:

Description:

4B – Excess Start Time-2

Range:

Default:

Description:

4C – Undercurrent

Range:

Default:

Description:

4D – Undercurrent Delay

Range:

Default:

Description:

4E, 4F – Instantaneous Overcurrent

Range:

Default:

Description:

Range:

Default:

Description:

NOTE

00:01 - 24:00 (hours:minutes)

Sets the time for the soft starter to auto-stop, in 24 hour clock format.

1 minute

4 Protection Settings

These parameters determine when the soft starter's protection mechanisms will activate. The activation point for each protection mechanism can be set to suit the installation.

The soft starter responds to protection events by tripping, warning, or writing the event to the event log. The response is determined by the Protection Action settings. The default response is a trip.

The protection settings are vital for safe operation of the soft starter and motor. Defeating the protection may

Excess start time is the maximum time the MVE will attempt to start the motor. If the motor does not transition to Run mode within the programmed limit, the starter will trip. Set for a period slightly longer than required for a normal healthy start. A setting of 0 disables excess start time protection.

The MVE can be configured to trip if the average current of all three phases exceeds a specified level while the motor is running.

Parameter 4E

Parameter 4F

compromise the installation and should only be done in the case of emergency.

0:00 - 2:00 (minutes:seconds)

20 seconds

Set as required.

0:00 - 2:00 (minutes:seconds)

20 seconds

Set as required.

0% - 100%

20%

Sets the trip point for undercurrent protection, as a percentage of motor full load current. Set to a level between the motor's normal working range and the motor's magnetising (no load) current (typically 25% to 35% of full load current). A setting of 0% disables undercurrent protection.

0:00 - 4:00 (minutes:seconds)

5 seconds

Slows the MVE's response to undercurrent, avoiding trips due to momentary fluctuations.

Refer to

4U, 4V – Instantaneous Overcurrent Stage 2

Instantaneous Overcurrent

80% - 600% FLC

on page 50 for more information and examples.

400%

Sets the trip point for instantaneous overcurrent protection, as a percentage of motor full load current.

Instantaneous Overcurrent Delay

0:00 - 1:00 (minutes:seconds)

0 second

Slows the MVE's response to overcurrent, avoiding trips due to momentary overcurrent events.

This protection is only active during run and must be coordinated with 4U, 4V).

48 | MVE User Manual (710-17074-00G)

Instantaneous Overcurrent Stage 2

(parameters

Page 50

4G – Phase Sequence

Options:

Description:

4H – Current Imbalance

Range:

Default:

Description:

4I – Current Imbalance Delay

Range:

Default:

Description:

NOTE

4J – Frequency Check

Options:

Description:

4K – Frequency Variation

Options:

Description:

4L – Frequency Delay

Range:

Default:

Description:

NOTE

4M – Restart Delay

Range:

Default:

Description:

4N – Motor Temperature Check

Options:

Description:

Any Sequence Positive Only (default) Negative Only

Selects which phase sequences the soft starter will allow at a start. During its pre-start checks, the starter examines the sequence of the phases at its input terminals and trips if the actual sequence does not match the selected option.

10% - 50%

Sets the trip point for current imbalance protection.

0:00 - 4:00 (minutes:seconds)

Slows the MVE's response to current imbalance, avoiding trips due to momentary fluctuations.

The MVE will display a Current Imbalance trip only when phase loss at the supply terminals occurs during Run mode. When a phase loss occurs during other modes of operation, the MVE will trip on Motor Connection.

Do Not Check Start Only Start/Run Run Only (default)

Determines when and if the starter will monitor for a frequency trip.

± 2 Hz ± 5 Hz (default) ± 10 Hz ± 15 Hz

Selects the soft starter's tolerance for frequency variation.

0:01 - 4:00 (minutes:seconds)

Slows the MVE's response to frequency disturbances, avoiding trips due to momentary fluctuations.

If the mains frequency drops below 35 Hz or rises above 75 Hz, the starter will trip immediately, irrespective of the settings for Frequency Trip parameters.

00:01 - 60:00 (minutes:seconds)

The MVE can be configured to force a delay between the end of a stop and the beginning of the next start. During the restart delay period, the display shows the time remaining before another start can be attempted.

Do Not Check (default) Check

Selects whether the MVE will verify the motor has sufficient thermal capacity for a successful start. The soft starter compares the motor's calculated temperature with the temperature rise from the last motor start and only operates if the motor is cool enough to start successfully.

CONTROLLER

30%

5 seconds

30 minutes

MVE User Manual (710-17074-00G) | 49

Page 51

CONTROLLER

4O – Ground Fault Level

Range:

Default:

Description:

4P – Ground Fault Delay

Range:

Default:

Description:

NOTE

4Q – Undervoltage Level

Range:

Default:

Description:

4R – Undervoltage Trip Delay

Range:

Default:

Description:

4S – Overvoltage Level

Range:

Default:

Description:

4T – Overvoltage Trip Delay

Range:

Default:

Description:

4U, 4V – Instantaneous Overcurrent Stage 2

Range:

Default:

Description:

Range:

Default:

Description:

NOTE

1 A - 40 A

1 A

Sets the trip point for ground fault protection. Ground fault is a dynamic trip based on phase current measurements every half-cycle.

0:01 - 4:00 (minutes:seconds)

3 seconds

Slows the MVE's response to ground fault variation, avoiding trips due to momentary fluctuations.

Ground fault accuracy is within ± 1 A of the set value.

100 – 18000 V

Sets the trip point for undervoltage protection. Set as required.

100 V

0:00 – 4:00 (minutes:seconds)

5 seconds

Slows the MVE's response to undervoltage, avoiding trips due to momentary fluctuations.

100 – 18000 V

Sets the trip point for overvoltage protection. Set as required.

7200 V

0:00 – 4:00 (minutes:seconds)

5 seconds

Slows the MVE's response to overvoltage, avoiding trips due to momentary fluctuations.

The MVE has two instantaneous trip functions, stage 1 and 2. These protection functions are configured to be complementary.

Stage 1 must be configured to protect the motor against a locked rotor (shearpin) situation during run mode. Stage 1 should trigger at lower current/higher time values than Stage 2.

Stage 2 must be configured to protect the main switching device. When Stage 2 triggers, the starter opens the main switching device.

If the main switching element is a contactor (protected by a fuse), then this function must be coordinated with the fuse to ensure that the contactor does NOT open until the fuse ruptures.

If the main switching element is a breaker, then the delay must be minimised to provide the best possible protection to the SCR.

Parameter 4U

Parameter 4V

Instantaneous Overcurrent S2

30 A – 4400 A

4400 A

Sets the trip point for instantaneous overcurrent stage 2 protection in amperes. Set as required.

Instantaneous Overcurrent Delay S2

10 – 1000 ms

10 milliseconds

Sets the duration required for current to exceed the level set in parameter 4U before a trip occurs. Set as required.

This protection is active during starting, running and stopping. It must be coordinated with (parameters 4E, 4F).

50 | MVE User Manual (710-17074-00G)

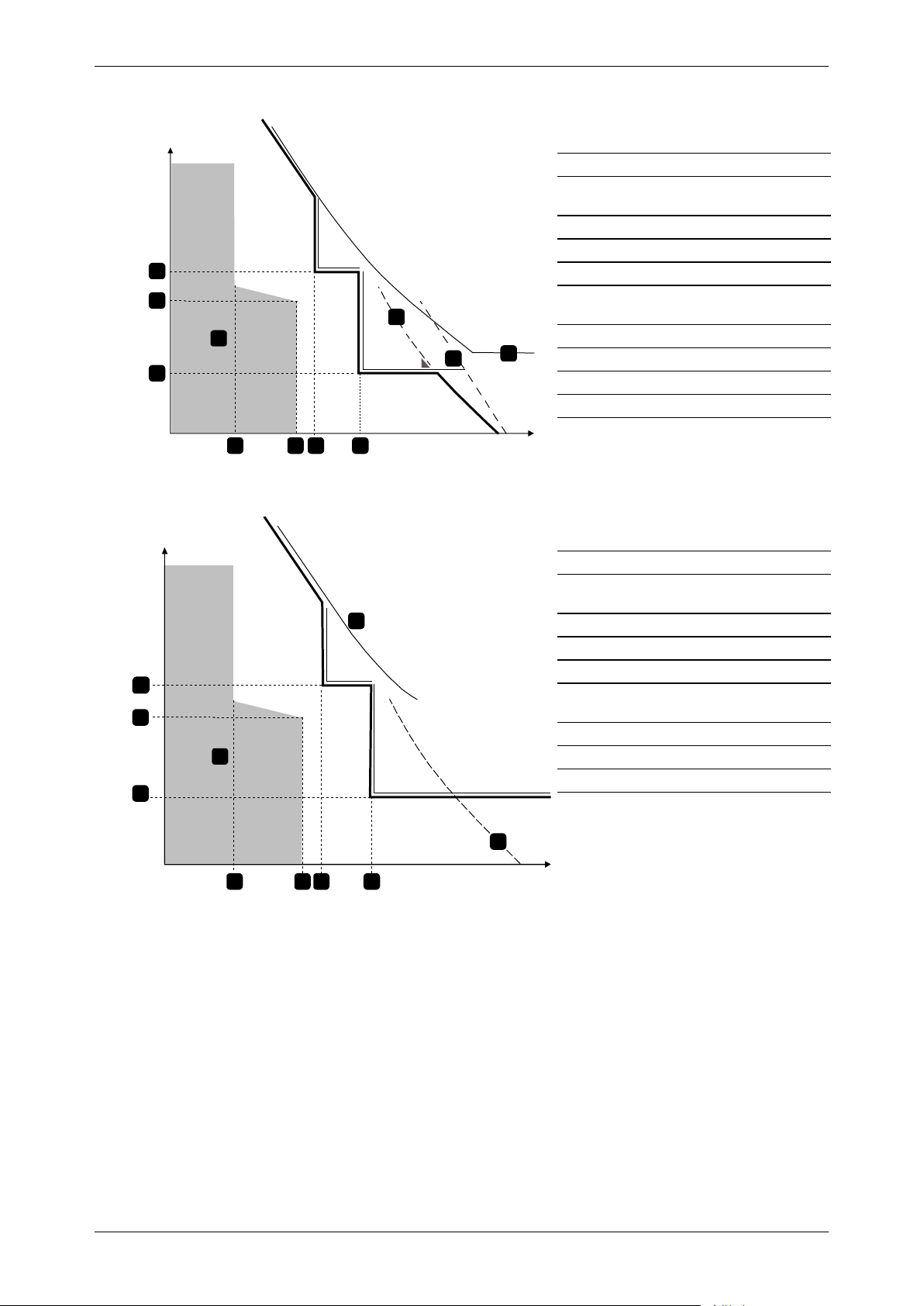

Instantaneous Overcurrent

Page 52

CONTROLLER

07248.F

6 754

Instantaneous Overcurrent Delay - Stage 1

3 4

7 8

Fuse

6 754

07249.D

1 2

Motor start time

Instantaneous Overcurrent Delay - Stage 2

FLC 5 Motor start time

Instantaneous Overcurrent -Stage 1 (4E)

Instantaneous Overcurrent -Stage 2 (4U)

Example: Contactor and Fuse

Time

Example: Circuit Breaker

(4F)

Motor start time

Instantaneous Overcurrent Delay - Stage 2 (4V)

FLC

Motor start current

Instantaneous Overcurrent- Stage 1 (4E)

Instantaneous Overcurrent - Stage 2 (4U) to trip external upstream breaker

SCR

Thermal model curve

Motor operation (shaded area of graph)

Current

Instantaneous Overcurrent Delay - Stage 1 (4F)

Time

Current

5 Auto-Reset Trips (Reserved)

This parameter group is reserved for future use.

(4V)

to trip main breaker

SCR

Thermal model curve

Motor operation (shaded area of graph)

MVE User Manual (710-17074-00G) | 51

Page 53

CONTROLLER

6A – Input A Function

Options:

Motor Set Select

The MVE can be configured with two separate sets of motor data.

Input Trip (N/C)

When parameter 6A is set to Input Trip (N/C), an open circuit across

Local/Remote Select

Input A can be used to select between local and remote control, instead

LCL/RMT

START

LCL/RMT

Description:

6B – Input A Name

Options:

Description:

6C – Input A Trip

Options:

Operating Only

A trip can occur while the soft starter is running, stopping or starting.

Run Only

A trip can only occur while the soft starter is running.

Description:

6D – Input A Trip Delay

Range:

Default:

Description:

6 Inputs

The MVE has two programmable inputs, which allow remote control of the soft starter.

To use the secondary motor data, parameter 6A must be set to 'Motor Set Select' and C53, C54 must be closed when a start command is given. The MVE checks which motor data to use at a start, and will use that motor data for the entire start/stop cycle.

Input Trip (N/O) (default)

Input A can be used to trip the soft starter. When parameter 6A is set to Input Trip (N/O), a closed circuit across C53, C54 trips the soft starter. (Refer to parameters 6C, 6D, 6E)

C53, C54 trips the soft starter. (Refer to parameters 6C, 6D, 6E)

Always Active (default) A trip can occur at any time when the soft starter is receiving power.

of using the

button on the controller. When the input is open, the starter is in local mode and can be controlled via the controller. When the input is closed, the starter is in remote mode. The

buttons are disabled, and the soft starter will ignore any Local/Remote select command from the serial communications network. To use Input A to select between local and remote control, parameter 6Q must be set to 'LCL/RMT Anytime' or 'LCL/RMT When Off'.

Emergency Run

In emergency run the soft starter continues to run until stopped, ignoring all trips and warnings (refer to parameter 15C for details). Closing the circuit across C53, C54 activates emergency run. Opening the circuit ends emergency run and the MVE stops the motor.

Starter Disable

The MVE can be disabled via the control inputs. An open circuit across C53, C54 will disable the starter. The MVE will not respond to start commands. If running, the soft starter will allow the motor to coast to stop, ignoring the soft stop mode set in parameter 2H.

Selects the function of Input A.

Input Trip (default) Controller Low Pressure PLC High Pressure Vibration Pump Fault Field Trip Low Level Interlock Trip High Level Motor Temp No Flow Motor Prot Starter Disable Feeder Prot

Selects a message for the controller to display when Input A is active.

and

52 | MVE User Manual (710-17074-00G)

Selects when an input trip can occur.

0:00 - 4:00 (minutes:seconds)

Sets a delay between the input activating and the soft starter tripping.

0 second

Page 54

CONTROLLER

6E – Input A Initial Delay

Range:

Default:

Description:

6F, 6G, 6H, 6I, 6J – Input B Trip

Default:

6K, 6L – Reserved

6M – Remote Reset Logic

Options:

Description:

6N, 6O, 6P – Reserved

6Q – Local/Remote

Options:

LCL/RMT Anytime (default)

LCL/RMT button is always enabled.

LCL/RMT

Remote Control Only

The START and LCL/RMT) buttons are disabled.

Description:

LCL/RMT

STOP

RESET

WARNING

STOP

6R – Comms in Remote

Options:

Description:

00:00 - 30:00 (minutes:seconds)

0 second

Sets a delay before an input trip can occur, after the soft starter has entered the state selected in 6C.

Parameters 6F~6J configure the operation of Input B, in the same way as parameters 6A~6E configure Input A. Refer to Input A for details.

• 6F

Input B Function

• 6G

• 6H

• 6I

• 6J

Input B Name

Input B Trip (

Input B Trip Delay

Input B Initial Delay

(

Input Trip (N/O))

Input Trip)

Always Active)

0:00)

These parameters are reserved for future use.

Normally Closed (default) Normally Open

Selects whether the MVE's remote reset input (terminals C41, C42) is normally open or normally closed.

These parameters are reserved for future use.

LCL/RMT When Off Local Control Only The

Selects when the disables the local control buttons and remote control inputs. The The reset input and

The if the remote start/stop and reset inputs are still active.

button on the controller is always enabled. When using two-wire remote control, the soft starter will restart

Disable Control in RMT Enable Control in RMT (default)

Selects whether the starter will accept Start, Stop and Reset commands from the serial communication network when in Remote mode. The Force Comms Trip and Local/Remote commands are always enabled.

button on the controller is always enabled.

button can be used to switch between local and remote control, and enables or

button on the controller are always enabled.

button is enabled when the starter is off.

button and remote start/stop inputs are disabled.

MVE User Manual (710-17074-00G) | 53

Page 55

CONTROLLER

7A – Relay A Function

Options:

Off

Relay A is not used.

Main Contactor (default)

The relay closes when the MVE receives a start command, and remains Trip

The relay closes when the starter trips (refer to parameter 16A to 16X).

Warning

The relay closes when the starter issues a warning (refer to parameter

High Current Flag

The relay closes when the high current flag activates while the motor is Input A Trip

The relay closes when Input A activates to trip the soft starter.

Input B Trip

The relay closes when Input B activates to trip the soft starter.

Undercurrent

The relay closes when the starter trips on Undercurrent.

Instantaneous overcurrent

The relay closes when the starter trips on Instantaneous Overcurrent.

Phase Loss

The relay closes when the starter trips on Phase Loss.

Undervoltage

The relay closes when the mains voltage drops below the level set in

Description:

7B – Relay A On Delay

Range:

Default:

Description:

7C – Relay A Off Delay

Range:

Default:

Description:

7D~7I – Output Relays B and C

Default:

7 Outputs

The MVE has three programmable outputs, which can be used to signal different operating conditions to associated equipment.

closed as long as the motor is receiving voltage.

Run The relay closes when the starter changes to run state.

16A to 16X).

Low Current Flag

The relay closes when the low current flag activates while the motor is running (refer to parameter 7M

Low Current Flag

Motor Temperature Flag

running (refer to parameter 7N The relay closes when the motor temperature flag activates (refer to parameter 7O

Motor Temperature Flag

High Current Flag

Motor Overload The relay closes when the starter trips on Motor Overload. Current Imbalance The relay closes when the starter trips on Current Imbalance.

Frequency The relay closes when the starter trips on Frequency. Ground Fault The relay closes when the starter trips on Ground Fault. Heatsink Overtemperature Not applicable

Motor Thermistor The relay closes when the starter trips on Motor Thermistor. Changeover Contactor

The relay closes when the high rotor resistance current ramp has reached full voltage, allowing use with a slip-ring motor.

parameter 4Q.

Ready The relay closes when the starter transitions into Ready mode. Local

The relay is open when the starter is in local control mode, and closed in remote control mode.

Selects the function of Relay A (normally open).

0:00 - 5:00 (minutes:seconds)

Sets the delay for closing Relay A.

0 second

0:00 - 5:00 (minutes:seconds)

Sets the delay for re-opening Relay A.

0 second

Parameters 7D~7I configure the operation of Relays B and C in the same way as parameters 7A~7C configure Relay A. Refer to Relay A for details.

Relay B is a changeover relay.

• 7D

• 7E

• 7F

Relay B Function

Relay B On Delay

Relay B Off Delay

Run

0 second

54 | MVE User Manual (710-17074-00G)

Page 56

CONTROLLER

Default:

7J, 7L – Reserved

7M – Low Current Flag

Range:

Default:

Description:

7N – High Current Flag

Range:

Default:

Description:

7O – Motor Temperature Flag

Range:

Default:

Description:

7P, 7Q, 7R, 7S – Analog Output A

Options:

Motor kW (%)

Motor kilowatts. 100% is motor FLC (parameter 1A) multiplied by mains

Motor kVA (%)

Motor kilovolt amperes. 100% is motor FLC (parameter 1A) multiplied

Description:

Range:

Description:

Relay C is a changeover relay.

• 7G

• 7H

• 7I

Relay C Function

Relay C On Delay

Relay C Off Delay

Trip

0 second

These parameters are reserved for future use.

The MVE has low and high current flags to give early warning of abnormal operation. The current flags can be configured to indicate an abnormal current level during operation, between the normal operating level and the undercurrent or instantaneous overcurrent trip levels. The flags can signal the situation to external equipment via one of the programmable outputs.

The flags clear when the current returns within the normal operating range by 10% of the programmed flag value.

1% - 100% FLC

50%

Sets the level at which the low current flag operates, as a percentage of motor full load current.

50% - 600% FLC

100%

Sets the level at which the high current flag operates, as a percentage of motor full load current.

The MVE has a motor temperature flag to give early warning of abnormal operation. The flag can indicate that the motor is

operating above its normal operating temperature but lower than the overload limit. The flag can signal the situation to external equipment via one of the programmable outputs.

0% - 160%

80%

Sets the level at which the motor temperature flag operates, as a percentage of the motor's thermal capacity.

The MVE has an analog output, which can be connected to associated equipment to monitor motor performance.

Parameter 7P

Analog Output A

Current (% FLC) (default) Current as a percentage of motor full load current.

Motor Temp (%)

Motor temperature as a percentage of the motor rated current (calculated by the soft starter's thermal model).

√3 . V . IFLC . pf

1000

√3 . V . IFLC

1000 Motor pf Motor power factor, measured by the soft starter. Voltage (%Mains)

Parameter 7Q

Selects which information will be reported via Analog Output A.

Analog A Scale

0-20 mA 4-20 mA (default)

Selects the range of the analog output.

voltage. Power factor is assumed to be 1.0.

by mains voltage.

The average voltage measured on three phases as a percentage of the mains voltage.

MVE User Manual (710-17074-00G) | 55

Page 57

CONTROLLER

Range:

Default:

Description:

Range:

Default:

Description:

7T~7W – Reserved

8A – Language

Options:

Description:

8B, 8C – F1 and F2 Button Action

Options:

Description:

Default:

8D – Display A or kW

Options:

Description:

8E, 8F, 8G, 8H – User-Programmable Screen

Options:

Blank

Displays no data in the selected area, allowing long messages to be Motor pf

The motor's power factor, measured by the soft starter.

Motor Temp

The motor's temperature, calculated by the thermal model.

kWh

The number of kilowatt hours the motor has run via the soft starter.

Mains Voltage

The average voltage measured on three phases.

Description:

Default:

Parameter 7R

Parameter 7S

These parameters are reserved for future use.

Analog A Maximum Adjustment

0% - 600%

Calibrates the upper limit of the analog output to match the signal measured on an external current measuring device.

Analog A Minimum Adjustment

0% - 600%

Calibrates the lower limit of the analog output to match the signal measured on an external current measuring device.

8 Display

These parameters allow the controller to be tailored to individual users' requirements.

English (default) Português Chinese Français Español Italiano Deutsch Russian

Selects which language the controller will use to display messages and feedback.

None Setup Auto-Start/Stop

Selects the function of the F1 and F2 buttons on the controller.

• 8B

• 8C

Current (default) Motor kW

Selects whether the MVE will display current (amperes) or motor kilowatts on the main monitoring screen.

F1 Button Action

F2 Button Action

Setup Auto-Start/Stop

None

100%

Starter State

Motor Current The average current measured on three phases.

Mains Frequency The average frequency measured on three phases. Motor kW The motor's running power in kilowatts. Motor HP The motor's running power in horsepower.

Hours Run The number of hours the motor has run via the soft starter. Analog Input n/a

Selects which information will be displayed on the programmable monitoring screen.

• 8E

User Screen - Top Left

User Screen - Top Right

• 8F

• 8G

• 8H

User Screen - Bottom Left

User Screen - Bottom Right

56 | MVE User Manual (710-17074-00G)

shown without overlapping. The starter's operating state (starting, running, stopping or tripped). Only available for top left and bottom left positions on the screen.

Starter State

Blank

kWh

Hours Run

Page 58

8I, 8J, 8K, 8L – Performance Graphs

Options:

Current (% FLC) (default)

Current as a percentage of motor full load current.

Motor Temp (%)

Motor temperature as a percentage of the motor rated current

√3 . V . I

. pf

1000

Motor kilovolt amperes. 100% is motor FLC (parameter 1A) multiplied Motor pf

Motor power factor, measured by the soft starter.

Voltage (%Mains)

The average voltage measured on three phases as a percentage of the

Description:

Options:

Description:

Range:

Default:

Description:

Range:

Default:

Description:

8M – Mains Reference Voltage

Range:

Default:

Description:

NOTE

The MVE has a real-time performance graph to report the behaviour of critical operating parameters.

Parameter 8I

Graph Data

(calculated by the soft starter's thermal model).

Motor kW (%)

Motor kilowatts. 100% is motor FLC (parameter 1A) multiplied by mains voltage. Power factor is assumed to be 1.0.

FLC

Motor kVA (%)

by mains voltage.

√3 . V . IFLC

1000

mains voltage.

Parameter 8J

Selects which information the graph will display.

Graph Timebase

10 seconds 10 minutes 30 seconds 30 minutes 1 minute (default) 1 hour 5 minutes

Parameter 8K

Parameter 8L

Sets the graph time scale. The graph will progressively replace the old data with new data.

Graph Maximum Adjustment

0% – 600%

400%

Adjusts the upper limit of the performance graph.

Graph Minimum Adjustment

0% – 600%

Adjusts the lower limit of the performance graph.

100 – 14000 V

400 V

Provides the reference voltage for the analog output and performance graphs.

CONTROLLER

9 Motor Data-2

The MVE can support two different starting and stopping motor data sets.

To select the secondary motor data set, a programmable input must be configured to parameter set selection (parameters 6A and 6F) and the input must be active when the soft starter receives a start signal.

You can only choose which motor data set to use while the soft starter is stopped.

MVE User Manual (710-17074-00G) | 57

Page 59

CONTROLLER

9A ~ 9E – Secondary Motor Settings

Range:

Default:

Description:

10A ~ 10I – Start/Stop-2

Options:

Description:

Range:

Default:

Description:

Range:

Default:

Description:

Range:

Default:

Description:

Range:

Default:

Description:

Range:

Default:

Description:

Options:

Description:

Range:

Default:

Description:

Parameter 9A

Reserved

This parameter is reserved for future use.

Parameter 9B

Parameter 9C

Motor FLC-2

5 - 1000 A

Sets the secondary motor's full load current.

Reserved

This parameter is reserved for future use.

Parameter 9D

Reserved

This parameter is reserved for future use.

Parameter 9E

This parameter is reserved for future use.

Reserved

10 Start/Stop-2

Refer to Start/Stop-1 (parameters 2A~2I) for details.

Parameter 10A

Parameter 10B

Parameter 10C

Parameter 10D

Parameter 10E

Parameter 10F

Parameter 10G

Parameter 10H

Parameter 10I

Start Mode-2

Constant Current (default)

Selects the soft start mode.

Start Ramp-2

0:01 - 3.00 (minutes:seconds)

Sets the ramp time for current ramp starting (from the initial current to the current limit).

Initial Current-2

50% - 600%

Current Limit-2

50% - 600% FLC

Sets the current limit for constant current and current ramp soft starting, as a percentage of motor full load current.

Reserved

This parameter is reserved for future use.

Kickstart Time-2

0 - 2000 (milliseconds)

Sets the kickstart duration. A setting of 0 disables kickstart.

Kickstart Level-2

100% - 700% FLC

Sets the level of the kickstart current.

Stop Mode-2

Coast To Stop (default) TVR Soft Stop

Selects the stop mode.

Stop Time-2

0:00 - 4:00 (minutes:seconds)

Sets the stop time.

100 A

1 second

400%

0000 milliseconds

500%

0 second

58 | MVE User Manual (710-17074-00G)

Page 60

11 RTD/PT100 (Reserved)

12A – Motor 1 Ramp

Options:

Description:

12B – Motor 2 Ramp

Options:

Description:

12C – Changeover Time

Range:

Default:

Description:

12D – Slip-Ring Retard

Range:

Default:

Description:

15A – Access Code

Range:

Default:

Description:

STORE

NOTE

15B – Adjustment Lock

Options:

Read Only

Prevents users altering parameter values in the Programming Menu.

Description:

15C – Emergency Run

Options:

Description:

This parameter group is reserved for future use.

12 Slip-Ring Motors

These parameters allow the soft starter to be configured for use with a slip-ring motor.

100 - 500 (milliseconds)

10% - 90%

Single Ramp (default) Dual Ramp

Selects whether to use a single or dual current ramp profile for soft starting. Set to single ramp for non-slip ring induction motors, or dual ramp for slip-ring induction motors.

Single Ramp (default) Dual Ramp

Selects whether to use a single or dual current ramp profile for soft starting. Set to single ramp for non-slip ring induction motors, or dual ramp for slip-ring induction motors. Parameter 12B selects the ramp configuration for the secondary motor.

Sets the delay between the rotor resistance relay closing and the low resistance current ramp starting. Set so that the contactor has enough time to close, but the motor does not slow down. Parameter 12C only applies if parameter 12A or 12B is set to 'Dual Ramp', and an output relay is set to 'Changeover Contactor'.

Sets the level of conduction after the rotor resistance contactor closes, as a percentage of full conduction. Set so that no current pulse occurs, but the motor retains enough speed to start correctly.

CONTROLLER

150 milliseconds

50%

15 Advanced

Read & Write (default) Allows users to alter parameter values in the Programming Menu.

0000 - 9999

Sets the access code to control access to restricted sections of the menus. Use the and buttons to select which digit to alter and use the and buttons to change the value. After the last digit is set press

In the event of a lost access code, contact your supplier for master access code that allows you to re-program a new access code.

Selects whether the controller will allow parameters to be changed via the Programming Menu.

Disable (default) Enable

Selects whether the soft starter will permit emergency run operation. In emergency run, the soft starter will start (if not already running) and continue to operate until emergency run ends, ignoring stop commands and trips. Emergency run is controlled using a programmable input.

0000

Parameter values can still be viewed.

MVE User Manual (710-17074-00G) | 59

Page 61

CONTROLLER

CAUTION

16A~16W – Protection Actions

Options:

Description:

Continued use of Emergency Run is not recommended. Emergency Run may compromise the starter life as all protections and trips are disabled.

Using the starter in 'Emergency Run' mode will void the product warranty.

16 Protection Action

These parameters define how the soft starter will respond to different protection events. The soft starter can trip, issue a warning, or ignore different protection events as required. All protection events are written to the event log. The default action for all protections is to trip the soft starter.

Defeating the protection may compromise the starter and motor, and should only be done in the case of emergency.

Trip Starter (default) Warn and Log Log Only

Selects the soft starter's response to each protection.

• 16A

• 16B

• 16C

• 16D

• 16E

• 16F

• 16G

• 16H

• 16I

• 16J

• 16K

• 16L

• 16M

• 16N

• 16O~16U

• 16V

• 16W

Motor Overload

Excess Start Time Undercurrent

Instantaneous Overcurrent Current Imbalance Frequency

Input A Trip

Input B Trip

Motor Thermistor

Starter Communication

Network Communication Reserved

Battery/Clock

Ground Fault

Undervoltage

Overvoltage

Reserved

20 Restricted

These parameters are restricted for Factory use and are not available to the user.

60 | MVE User Manual (710-17074-00G)

Page 62

8. Commissioning

V02

V03-V04

V06

V11

100 kΩ

200 kΩ

300 kΩ

500 kΩ

There are three main stages when commissioning the MVE:

1. Physical checks - mechanical assemblies (power assembly and enclosure)

2. Physical checks - electrical assemblies (power supplies and subsystem)

3. Operating tests (motor simulation, low voltage test mode, medium voltage commissioning test)

8.1 Physical Checks: Mechanical Assemblies

Power assembly

COMMISSIONING

Before beginning the commissioning process, ensure that the power assembly is in good condition (see also and all connections are correct.

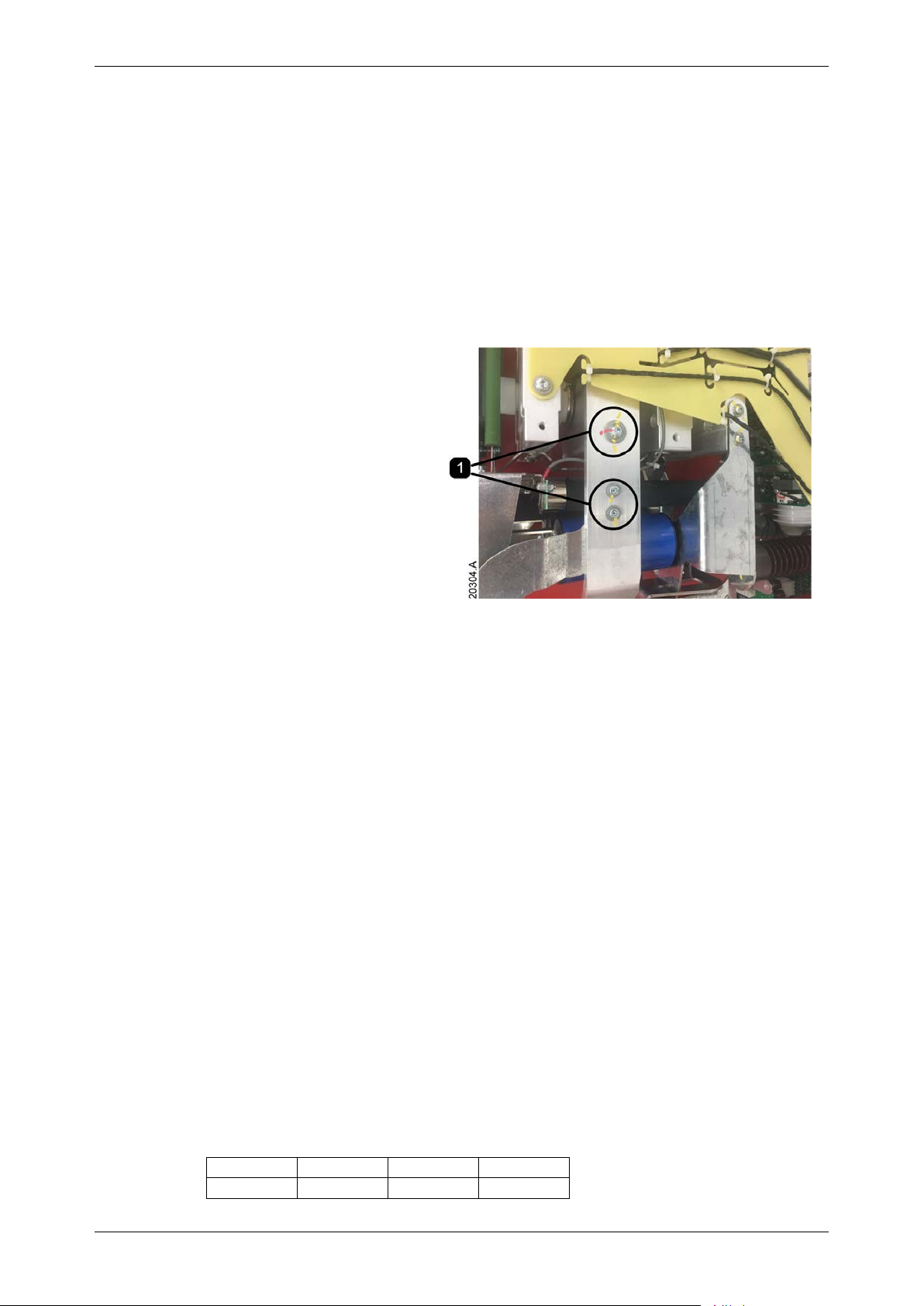

1. All critical bolts on the power assembly are

checked and marked in the factory (1). Check that all marks are still aligned. If any marks are out of alignment, contact your local supplier for advice. See on page 15 for details on phase arm termination.

2. Check the fibre-optic connections for any loss/poor

connection. Check also the fibre-optic cables for any sign of visible damage or sharp bend.

3. Check all other connections and leads on PCBs.

4. Check each phase arm visually for any sign of

damage.

Power Terminations

Receiving

on page 11)

Enclosure

Check that the enclosure contains all agreed components (a list is included in the electrical drawings) and is in a fit state for commissioning, including safety precautions and adequate isolation between the low voltage and medium voltage compartments.

1. Check that all agreed components have been installed into the enclosure and have been fitted correctly, with adequate

insulation and tight connections:

• power circuit as per electrical drawing, including terminations, etc.

• cable connections

• earth bonding

• isolator / earthing switch mechanism

• input / output bushing

2. Check that all LV connections < M5 (e.g. LV control terminals) are tight.

3. Check that there is no swarf, dust or other foreign material in the enclosure.

8.2 Physical Checks: Electrical Assemblies

Power supplies and subsystem

Run the following test to ensure that the MVE power supply and electrical subsystem show the expected characteristics.

1. Disconnect the power supply connector on the controller.

2. Disconnect the power supply and relay connectors on the power interface board.

3. For each phase arm, disconnect the power supply to the gate drive board and adaptor board (depending on the model,

see

Terminations for Adapter Board and Gate Drive Board

4. To check the SCRs, perform an insulation resistance test with a voltage range of 500 ~ 1000 V (using a resistance

insulation tester).

1. Test L1~L3 to earth and T1~T3 to earth. The result must be > 1 MΩ.

2. Test L1~T1, L2~T2, L3~T3. The result must be as follows:

on page 22)

MVE User Manual (710-17074-00G) | 61

Page 63

COMMISSIONING

5. Either

• check the test report on insulation resistance values for motor, input and output cables etc., or

• witness the test performed by others

6. Check that the auxiliary/control supply is as expected.

1. Measure and record the voltage between each phase and a neutral point.

2. Measure and record the voltage between each phase and earth.

7. Check that the neutral point is properly earthed (at least on the LV supply transformer side, but preferably also at the

main distribution board).

Measure and record the voltage between the neutral point and earth.

• Check that the voltage at all electronic power supply connectors is 22-26 VAC.

• Check that the voltage for the contactors (at the connector block) match the voltage for the contactor coil circuit (as

specified on schematic diagrams, see 13-A2).

8. Connect the 24 VAC connector to the power interface PCB. Ensure that the power supply LED illuminates and the

fibre-optic TX LED flashes. For more information on LED locations, see page 20.

9. Connect the 24 VAC connector to the controller. Ensure that the start-up message is displayed on the LCD (indicating the

software versions, see

10. Connect the 24 VAC connectors to the gate drive circuits. Ensure that the LEDs on each circuit board illuminate. For

more information on the gate drive board applicable to your product version,

Gate Drive Board

User Manual Version

on page 22.

on page 2).

Terminations on the Power Interface Board

see Terminations for Adapter Board and

8.3 Operating Tests

Motor simulation

Use the MVE simulation functions to ensure that the soft starter is connected correctly to associated equipment.

1. Disconnect the soft starter from the mains supply.

2. Set the date and time and all necessary parameters.

3. Operate the Run Simulation using the keypad on the controller (see

1. Check that the relays on the power interface PCB operate and activate the MV contactors. Also ensure that the firing

signals are received at the gate drive board on each phase’s power assembly.

2. Check that the following LEDs activate at each stage of the simulation (see

Board

on page 20):

• LEDs ‘FIRE 1’ and ‘MC’ during starting

• LEDs ‘FIRE 2’, ‘BC’ and ‘BPR’ during running

• LEDs ‘FIRE 3’ and ‘MC’ during stopping.

4. Operate the Protection Simulation and confirm that the MVE responds as expected (see

33).

5. Operate the Output Signal Simulation and confirm that the MVE provides output signalling as expected (see

Signal Simulation

6. Confirm that the soft starter trips if the thermistor link is not present.

on page 34).

Low Voltage Test Mode

Run Simulation

Terminations on the Power Interface

on page 33).

Protection Simulation

on page

Output

The MVE can be connected to a low voltage motor (≤ 500 VAC) for testing. To conduct the low voltage test you need to use an LV motor test resistor assembly (part number 995-03946-00). This allows the user to thoroughly test the soft starter and its associated power and control circuits. The low voltage test mode provides a means of testing the soft starter's configuration without requiring a full medium voltage test facility.

During the low voltage test, the soft starter's control input, relay output and protection settings can be tested. Low voltage mode is not suitable for testing soft starting or soft stopping performance.

The FLC for the low voltage motor must be ≥ 5 A (see parameter 1A

Current Limit

is 130%.

Motor Full Load Current

). The typical value for parameter 2D

62 | MVE User Manual (710-17074-00G)

Page 64

COMMISSIONING

V11~V13

• Connect the LV motor test resistor assembly

 MVE-0070~0540

1. Clip one end of the resistor assembly to the bolt on the non-conduction PCB. The non-conduction PCB is located on the

side of the phase arm, at the top of the long round grading resistor (refer to illustrations).

2. Clip the other end of the assembly to the steel bracket behind the grading resistor on the other side of the phase arm.

V02 V04~V06

 MVE-0070~0540, V11-V13

1. Clip one end of the resistor assembly to the bolt on the non-conduction PCB. The non-conduction PCB is located at the

back right corner of the phase arm.

2. Clip the other end of the assembly to the busbar at the front left of the phase arm (refer to illustrations).

MVE User Manual (710-17074-00G) | 63

Page 65

COMMISSIONING

WARNING CAUTION

 MVE-0900~1700, V06

The fan assembly must be removed from each phase arm before the resistor assembly can be connected. The same process must be followed for each phase arm.

1. Remove the 12 screws holding each fan assembly in place

2. Disconnect the fan control wiring plug

3. Clip one end of the resistor assembly to the bolt on the busbar

4. Clip the other end of the assembly to the small bolt just below the bushing under the insulating panel

. Do not remove the 3 screws holding each fan in place.

• Low Voltage Operation

After low voltage mode testing, ensure that the LV motor test resistor assembly is removed from each phase arm before connecting the soft starter to a medium voltage motor. If the LV motor test resistor assemblies remain on the

To operate the MVE in low voltage test mode:

phase arms, the soft starter may suffer severe damage.

After low voltage mode testing, any fan control wiring must be reconnected and the fan assemblies must be screwed to the front of each phase arm before connecting to the medium voltage mains supply.

1. Isolate the soft starter from the motor and the mains supply.

2. Connect one LV motor test resistor assembly to each phase arm.

3. Connect T1, T2, T3 of the soft starter to a three phase motor with full load current ≥ 5 A. Connect L1, L2, L3 of the soft

starter to three phase mains supply with voltage less than 500 VAC (frequency 50 Hz or 60 Hz).

4. Set parameter

1A Motor Full Load Current

to the value shown on the motor name plate.

5. Switch on control and mains supply, and use the MVE to start the motor. The start command can be sent from the

controller or via the remote input. Monitor the soft starter's display and verify the line current and voltage readings.

6. Stop and restart the motor several times to confirm correct and consistent operation.

7. When testing is complete, isolate the soft starter from the mains and control supply. Disconnect the soft starter from the

motor.

Medium Voltage Commissioning Test

Check the motor datasheets and motor terminal boxes to ensure that no capacitors are installed internally or cabled to the motor terminal box.

Check that no capacitors are directly connected onto the soft starter output connection (see

Review the parameter settings for MV motor operation.

1. Ensure that all LV motor test resistor assemblies or linking wires are removed from each phase arm.

2. Set parameters according to the motor data and application requirements.

3. Program inputs and outputs as per site requirement.

64 | MVE User Manual (710-17074-00G)

Power Factor Correction

on page 23).

Page 66

COMMISSIONING

4. Connect the soft starter to the medium voltage supply, and connect the motor to the soft starter. Do not connect motor

to the load (i.e. the motor must be uncoupled from the load).

5. Use the soft starter to operate the motor and verify that the rotation meets the site requirements with quick start/stop.

6. Stop the motor.

7. Connect the MV motor to the load and use the soft starter to operate the motor.

8. Monitor parameters such as Voltage, Current, and Power. Calibrate the voltage and current readouts as required.

9. Once calibration is completed, record all parameter settings in

10. Use the Load/Save Settings menu to save the programmed settings as "User set 1" (see

Parameter Defaults

on page 73).

Load/Save Settings

on page 36).

MVE User Manual (710-17074-00G) | 65

Page 67

TROUBLESHOOTING

RESET

Response actions

Protection response

setting

LED "Trip"

Trip relay output

(parameter 7A, 7D, 7G =

'Trip')

Write to event log

Write to trip log

Display

Possible cause/Suggested solution

NOTE

9. Troubleshooting

The MVE provides extensive information to help the operator diagnose and remedy any operating difficulties.

In addition to the motor and load protection features already described, the MVE reports in detail on the starter's own state. Any internal failure will cause the soft starter to trip, and full details will be recorded in the Trip Log and Event Log.

9.1 Protection Responses

When a protection condition is detected, the MVE will write this to the event log and may also trip or issue a warning. The soft starter's response depends on the Protection Action setting (parameter group 16).

Some protection responses cannot be adjusted by the user. These trips are usually caused by external events (such as phase loss) or by a fault within the soft starter. These trips do not have associated parameters and cannot be set to Warn or Log.

If the MVE trips you will need to identify and clear the condition that triggered the trip, then reset the soft starter before restarting. To reset the starter, press the

If the MVE has issued a warning, the soft starter will reset itself once the cause of the warning has been resolved.

Summary of soft starter responses to protection events

button on the controller or activate the Reset remote input.

Trip Starter On Yes Yes Yes

Warn and Log Flashing No Yes No

Log Only Off No Yes No

9.2 Trip Messages

This table lists soft starter's protection mechanisms and the probable cause of the trip. Some of these can be adjusted using parameter group 4 Protection Settings and parameter group 16 Protection Action, other settings are built-in system protections and cannot be set or adjusted.

Battery/clock

Bypass fail (bypass contactor)

Controller

A verification error has occurred on the real time clock, or the backup battery voltage is low. If the battery is low and the power is off, date/time settings will be lost. The MVE will continue to soft start and soft stop correctly. Reprogram the date and time. The battery is not removable. In order to replace the battery, the main control PCB must be replaced. Related parameters: 16M

The bypass contactor has welded closed or is not operating correctly. There may be a problem with the control circuit or the contactor coil. Check the condition of the bypass contactor's main poles. Check the operation of the contactor control circuitry and contactor coil. This trip is not adjustable.

You can use the Run Simulation to check the bypass contactor's operation without mains voltage connected.

This is a name selected for a programmable input. Refer to Input A trip.

66 | MVE User Manual (710-17074-00G)

Page 68

Display

Possible cause/Suggested solution

Current imbalance

Current imbalance can be caused by problems with the motor, the environment or the installation, such

An error occurred loading data from the EEPROM to RAM when the controller powered up.

This is a name selected for a programmable input. Refer to Input A trip.

The mains frequency has gone beyond the specified range.

This is a name selected for a programmable input. Refer to Input A trip.

The soft starter's programmable input is set to a trip function and has activated. Resolve the trigger

as:

• An imbalance in the incoming mains voltage

• A problem with the motor windings

• A light load on the motor

• A phase loss on input terminals L1, L2 or L3 during Run mode

An SCR that has failed open circuit. A failed SCR can only be definitely diagnosed by replacing the SCR and checking the starter's performance. Related parameters: 4H, 4I, 16E

Current Read Err Lx

Where 'X' is 1, 2 or 3. Internal fault (PCB fault). The output from the CT circuit is not close enough to zero when the SCRs are turned off. Contact your local supplier for advice. This trip is not adjustable. Related parameters: None

EEPROM fail

•

• "Load User Set" has been selected but no saved file is available.

Reset the fault and then reload the default settings. If the problem persists, contact your local distributor. Related parameters: None

Excess start time

The motor was unable to accelerate to full speed in the time allowed. Excess start time trip can occur in the following conditions:

• parameter 1A

• parameter 2D

• parameter 2B

Motor Full Load Current Current Limit

has been set too low

Start Ramp Time

is not appropriate for the motor

has been set greater than the setting for 4A

setting

• The motor may have experienced an abnormal increase in loading or might be jammed. Related parameters: 1A, 2A-2D, 4A, 16B

Feeder Prot

Field Trip

Frequency

Check for other equipment in the area that could be affecting the mains supply, particularly variable speed drives and switch mode power supplies (SMPS). If the MVE is connected to a generator set supply, the generator may be too small or could have a speed regulation problem. Related parameters: 4J, 4K, 4L, 16F

Ground fault

Ground current (monitored through a dedicated current transformer) has exceeded the selected level. Test the insulation of the output cables and the motor. Identify and resolve the cause of any ground fault. Related parameters: 4O, 4P, 16N

Heatsink overtemperature

The soft starter is operating at a dangerously high temperature.

• Check if ventilation and cooling are adequate.

• Reduce the number of consecutive starts by increasing the value set in parameter 4M

Delay

Related parameters: 4M

High Level

High Pressure

Input A trip

condition. Related parameters: 6A, 6B, 6C, 6D, 6E, 6F, 6G, 6H, 6I, 6J, 16G, 16H

TROUBLESHOOTING

Excess Start Time

Restart

MVE User Manual (710-17074-00G) | 67

Page 69

TROUBLESHOOTING

Display

Possible cause/Suggested solution

There has been a sharp rise in motor current, probably caused by a locked rotor condition (shearpin)

This is a name selected for a programmable input. Refer to Input A trip.

There has been an internal communication error within the soft starter. Remove then restore control

There is a problem with the non-conduction fibre-optic connections. Internal Fault 99 corresponds to

The MVE has tripped on an internal fault. Contact your local supplier with the fault code (X).

During prestart checks the starter has detected a shorted power assembly or a short within the bypass

Control voltage to the controller has dropped below the required level.

Instantaneous overcurrent

while running. This may indicate a jammed load. A trip may also occur when a medium level fault current has been detected. This may indicate a system short circuit. Related parameters: 4E, 4F, 16D

Instantaneous overcurrent S2

There has been a sharp rise in output current, possibly caused by a short circuit condition. Identify and resolve the cause of the fault. Related parameters: 4U, 4V, 16D

Int Comms Fail

Communication has failed between the controller and the power interface board.

• Check that the controller is receiving control voltage within the specified range (terminals A11,

A12).

• Check that the fibre-optic cables between the controller and the interface board are firmly

connected.

• Check that each fibre-optic cable is emitting light at the Rx end. This trip is not adjustable.

Interlock Trip

Internal fault 94 ~ Internal fault 98

power. This trip is not adjustable.

Internal fault 99 Internal fault 101

phase 1, Internal Fault 100 corresponds to phase 2, Internal Fault 101 corresponds to phase 3.

• Check that the fibre-optic cable is properly connected between the non-conduction PCB on the

phase arm and the non-conduction readback connector on the power interface board.

• If the problem persists, replace the fibre-optic cable. This trip is not adjustable.

Internal fault 105

The power interface board is faulty or damaged. Replace the board. This trip is not adjustable.

Internal fault 106

The selected configuration for the CT ratio selection switches on the power interface board is not valid.

• Check the DIP switch settings on the interface PCB. Refer to This trip is not adjustable.

Internal fault 107

Mains voltage has been applied to the starter but no start signal has been received.

• The starter will wait 5 seconds for a start signal, after mains voltage is applied.

• The starter will wait 30 seconds after a stop signal, before checking for mains voltage.

This trip is not adjustable.

Internal fault X

Related parameters: None

L1 phase loss L2 phase loss L3 phase loss

During pre-start checks the starter has detected a phase loss as indicated. In run state, the starter has detected that the current on the affected phase has dropped below 2% of the starter's nominal FLC for more than 1 second, indicating that either the incoming phase or connection to the motor has been lost. Check the supply and the input and output connections at the starter and at the motor end. Phase loss can also be caused by a failed SCR, particularly an SCR that has failed open circuit. A failed SCR can only be definitely diagnosed by replacing the SCR and checking the starter's performance. Related parameters: None

L1-T1 shorted L2-T2 shorted L3-T3 shorted

Low Control Volts

contactor as indicated. This trip is not adjustable.

• Check that supply voltage at the power interface board is 24 VAC/VDC (± 20 %).

Low Level

This trip is not adjustable.

This is a name selected for a programmable input. Refer to Input A trip.

CT Current Measurement

68 | MVE User Manual (710-17074-00G)

Page 70

Display

Possible cause/Suggested solution

Low Pressure

This is a name selected for a programmable input. Refer to Input A trip.

There is a problem with the soft starter's connection to the motor. If only one phase is affected, the error

The motor has reached its maximum thermal capacity. Overload can be caused by:

There is a network communication problem, or the network master may have sent a trip command to The phase sequence on the soft starter's input terminals (L1, L2, L3) is not valid.

This is a name selected for a programmable input. Refer to Input A trip.

The starter is not receiving mains supply on one or more phases when a start command is given.

Motor connection

message will indicate which phase (T1, T2, T3).

• Ensure the motor is connected to terminals T1, T2, T3 using in-line (three wire) connection. The

MVE does not support inside delta (six wire) connection.

• Check that the fibre-optic cables between the power interface board and the MVE are firmly

connected.

• Check each output phase of the soft starter for power circuit continuity. This trip will also occur when there is a phase imbalance across the soft starter’s input terminals L1, L2, L3, during starting and stopping. Related parameters: None

Motor Connection Tx

Where 'X' is 1, 2 or 3. The motor is not connected correctly to the soft starter.

• Check individual motor connections to the soft starter for power circuit continuity. Check connections at the motor terminal box. This trip is not adjustable. Related parameters: None

Motor overload

• The soft starter protection settings not matching the motor thermal capacity

• Excessive starts per hour or start duration

• Excessive current

• Damage to the motor windings

Resolve the cause of the overload and allow the motor to cool. Related parameters: 1A, 1B, 1C, 1D, 9B, 16A

Motor Prot

Motor Temp

Motor thermistor

This is a name selected for a programmable input. Refer to Input A trip.

The external resistance across the motor thermistor input (terminals B4, B5) has exceeded 2.4 kΩ.

• If the starter tripped at power-up, no thermistor is present at terminals B4, B5. If you are not using

a thermistor, you must attach a link across terminals B4-B5.

• If the starter tripped during operation, the temperature of the motor winding has increased.

Resolve the cause of the overheating.

Related parameters: 16I

Network communication (between device and network)

No Flow

Overvoltage

the starter. Check the network for causes of communication inactivity.

This is a name selected for a programmable input. Refer to Input A trip.

There has been a voltage surge on the mains. Causes can include problems with a transformer tap regulator or off-loading of a large transformer load.

• Check that the starter is configured appropriately for local conditions.

• Monitor the mains voltage to determine the cause of the voltage fluctuation, and resolve the cause.

Related parameters: 4S, 4T, 16W

Phase sequence

Check the phase sequence on L1, L2, L3 and ensure the setting in parameter 4G is suitable for the installation.

PLC

Power loss

• Check that the main contactor closes when a start command is given, and remains closed until the

end of a soft stop.

• Check MVE fuses and confirm that all three mains supply phases are present. This trip is not adjustable.

TROUBLESHOOTING

MVE User Manual (710-17074-00G) | 69

Page 71

TROUBLESHOOTING

Display

Possible cause/Suggested solution

This is a name selected for a programmable input. Refer to Input A trip.

There could be a problem with the connection between the soft starter and the optional communications

Symptom

Probable Cause

START

RESET

LCL/RMT

The soft starter does not respond to

• The soft starter may be in Local control mode. When the soft starter is in Local

LCL/RMT

NOTE

LCL/RMT

Pump Fault

Starter communication (between device and soft starter)

Starter Disable

Undercurrent

Undervoltage

Vibration Alarm

VZC Fail Px

module. Remove and reinstall the module. If the problem persists, contact your local distributor. The communications module has been powered down while the soft starter remains powered up. Related parameters: 16J

This is a name selected for a programmable input. Refer to Input A trip.

The motor has experienced a sharp drop in current, caused by loss of load. Causes can include broken components (shafts, belts or couplings), or a pump running dry. Related parameters: 4C, 4D, 16C

Mains voltage has fallen below the level selected in parameter 4Q. Causes can include an undersized supply or adding a large load to the system.

• Check that the starter is configured appropriately for local conditions.

• Monitor the mains voltage to determine the cause of the voltage fluctuation, and resolve the cause.

Related parameters: 4Q, 4R, 16V

This is a name selected for a programmable input. Refer to Input A trip.

Where 'X' is 1, 2 or 3. The voltage detection system has failed. The voltage dividing resistors have failed or the power interface board may be faulty. Contact AuCom for advice.

9.3 General Faults

This table describes situations where the soft starter does not operate as expected but does not trip or give a warning.

The soft starter does not respond to the

button on the

controller.

commands from the control inputs.

The soft starter does not respond to a start command from either the local or remote controls.

• The soft starter may be in Remote control mode. When the soft starter is in

Remote control mode, the Local LED on the starter is off. Press the button once to change to Local control.

control mode, the Local LED on the starter is on. Press the to change to Remote control.

• The control wiring may be incorrect. Check that the remote start, stop and reset

inputs are configured correctly (refer to

Control Wiring

on page 19 for details).

• The signals to the remote inputs may be incorrect. Test the signalling by activating

each input signal in turn. The appropriate remote control input LED should activate on the starter.

• The soft starter may be waiting for the restart delay to elapse. The length of the

restart delay is controlled by parameter 4M

• The motor may be too hot to permit a start. If parameter 4N

Check

is set to Check, the soft starter will only permit a start when it calculates that

Restart Delay

Motor Temperature

the motor has sufficient thermal capacity to complete the start successfully. Wait for the motor to cool before attempting another start.

• The starter may be disabled via a programmable input. If parameter 6A is set to

Starter Disable and there is an open circuit on C53, C54, the MVE will not start. If there is no further need to disable the starter, close the circuit on the input.

Parameter 6Q

Local/Remote

controls when the

button is

enabled.

button once

70 | MVE User Manual (710-17074-00G)

Page 72

Symptom

Probable Cause

Motor does not reach full speed.

• If the start current is too low, the motor will not produce enough torque to

NOTE

Erratic motor operation.

Soft stop ends too quickly.

The soft stop settings may not be appropriate for the motor and load. Review the

Remote start/stop command is

• Auto-Stop should only be used in remote mode with three-wire or four-wire

STORE

EXIT

ATTENTION! Remove Mains Volts

• The soft starter will not activate Run Simulation with three-phase power

Current values shown on the display are

Check that the setting of the CT ratio selector DIP switch on the power interface

TROUBLESHOOTING

accelerate to full speed. The soft starter may trip on excess start time.

Make sure the motor starting parameters are appropriate for the application and that you are using the intended motor starting profile. If a programmable input is set to Motor Set Select, check that the corresponding input is in the expected state.

• The load may be jammed. Check the load for severe overloading or a locked rotor

situation.

• The SCRs in the MVE require at least 5 A of current to latch. If you are testing the

soft starter on a motor with full load current less than 5 A, the SCRs may not latch correctly.

•

soft stop settings.

• If the motor is very lightly loaded, soft stop will have limited effect.

overriding Auto-Stop settings when using remote two-wire control.

Parameter settings cannot be stored.

incorrect.

control.

• Make sure you are saving the new value by pressing the

adjusting a parameter setting. If you press

, the change will not be saved.

• Check that the adjustment lock (parameter 15B) is set to

adjustment lock is set to

Read Only

, settings can be viewed but not changed. You

button after

Read & Write

. If the

need to know the security access code to change the adjustment lock setting.

• The EEPROM may be faulty on the controller. A faulty EEPROM will also trip the

soft starter, and the controller will display the message Parameter Out Of Range. Contact your local supplier for advice.

connected. This prevents unintentional direct on-line (DOL) start.

•

board matches the ratio of the CT used. Refer to

CT Current Measurement

MVE User Manual (710-17074-00G) | 71

Page 73

MAINTENANCE

NOTE

Part

Instructions

Timing

Cable lugs

Check tightness

Every 2 years

10. Maintenance

10.1 Safety

The MVE is not user serviceable. The unit should only be serviced by authorised service personnel. Unauthorised

Electrical shock risk

The voltages present in the following locations can cause severe electric shock and may be lethal:

The AC supply must be disconnected from the starter using an approved isolation device before any cover is removed from the starter or before any servicing work is performed.

10.2 Maintenance Schedule

The table below lists the minimum maintenance requirements. Your maintenance program may include more frequent maintenance. In certain environmental conditions (such as dusty or humid environments), increase the frequency of maintenance to every year.

tampering with the unit will void the product warranty.

• AC supply cables and connections

• Output cables and connections

• Many internal parts of the starter, and external option units

Filters Check and clean Every 3 months (every 6 weeks in dusty environments)

Control terminals Check tightness Every 2 years

Earthing terminals Check tightness Every 2 years

General MVE Cleanliness Every 2 years

10.3 Tools required

MVE starters can be serviced with the following tools:

• Allen keys (standard metric)

• 16 mm spanners

• 16 mm socket

• Torque wrench ≥20 Nm

• Torx drive screwdriver #20

• Small flat bladed screwdriver 3 mm

• Multimeter

10.4 Thermal Image

After completing commissioning of the MVE and after the motor has been running fully loaded, take a thermal image of the busbars and other critical parts.

As part of the maintenance program, compare a recent thermal image with the post-commissioning image.

Perform the usual inspection for dust and debris.

72 | MVE User Manual (710-17074-00G)

Page 74

11. Appendix

Primary Motor Settings

User Set 1

User Set 2

Default Value

Locked Rotor Time

00m:10s

Start/Stop Modes-1

Start Mode

Constant Current

Current Limit

400% FLC

Stop Mode

Coast To Stop

Auto-Start/Stop

Reserved

Protection Settings

Undercurrent Delay

00m:05s

Phase Sequence

Positive Only

Current Imbalance

30%

Frequency Variation

±5 Hz

Ground Fault Level

1 A

Undervoltage Delay

00m:05s

Overvoltage

7200 V

Instantaneous Overcurrent Delay S2

10 ms

11.1 Parameter Defaults

If you require assistance from your supplier or a service technician, please note all parameter settings in the table below.

APPENDIX

Motor Full Load Current

Locked Rotor Current Motor Service Factor

Start Ramp Time Initial Current

Reserved Kickstart Time Kickstart Level

Stop Time

Auto-Stop Type Auto-Stop Time

100 A

600% FLC

105%

00m:01s

400% FLC

0 ms

500% FLC

00m:00s

Off

00h:01m

Excess Start Time Excess Start Time-2 Undercurrent

Instantaneous Overcurrent Instantaneous Overcurrent Delay

Current Imbalance Delay Frequency Check

Frequency Delay Restart Delay Motor Temperature Check

Ground Fault Delay Undervoltage

Overvoltage Delay Instantaneous Overcurrent S2

00m:20s

20% FLC

400% FLC

00m:00s

00m:05s

Run

00m:05s

30m:00s

Do Not Check

00m:03s

100 V

00m:05s

4400 A

MVE User Manual (710-17074-00G) | 73

Page 75

APPENDIX

Auto-Reset Trips (

Reserved

)

Reserved

6 Inputs

Input A Trip

Always Active

Input B Name

Input Trip

Input B Initial Delay

00m:00s

Reserved

Comms in Remote

Enable Control in RMT

Outputs

Relay A On Delay

00m:00s

Relay A Off Delay

00m:00s

Relay B Off Delay

00m:00s

Reserved

Low Current Flag

50% FLC

High Current Flag

100% FLC

Analog A Scale

4-20 mA

Reserved

Input A Function Input A Name

Input A Trip Delay Input A Initial Delay Input B Function

Input B Trip Input B Trip Delay

Reserved Remote Reset Logic

Reserved Reserved Local/Remote

Relay A Function

Input Trip (N/O)

Input Trip

00m:00s

Input Trip (N/O)

Always Active

00m:00s

Normally Closed (N/C)

LCL/RMT Anytime

Main Contactor

Relay B Function Relay B On Delay

Relay C Function Relay C On Delay Relay C Off Delay

Reserved Reserved

Motor Temperature Flag Analog Output A

Analog A Maximum Adjustment Analog A Minimum Adjustment Reserved

Reserved Reserved

Run

00m:00s

Trip

00m:00s

80%

Current (% FLC)

100%

74 | MVE User Manual (710-17074-00G)

Page 76

APPENDIX

Display

Language

English

F1 Button Action

Setup Auto-Start/Stop

User Screen - Top Left

Starter State

Graph Data

Current (% FLC)

Graph Minimum Adjustment

Mains Reference Voltage

400 V

Motor Data-2

Motor FLC-2

100 A

Start/Stop Modes-2

10C

Initial Current-2

400% FLC

10D

Current Limit-2

400% FLC

10G

Kickstart Level-2

500% FLC

RTD/PT100 (

Reserved

)

11A

Reserved

Slip-Ring Motors

12B

Motor Data-2 Ramp

Single Ramp

12C

Changeover Time

150 ms

Advanced

15A

Access Code

0000

10A

10B

F2 Button Action Display A or kW

User Screen - Top Right User Screen - Bottom Left User Screen - Bottom Right

Graph Timebase Graph Maximum Adjustment

Reserved

Reserved Reserved Reserved

Start Mode-2 Start Ramp-2

None

Current

Blank

kWh

Hours Run

10 seconds

400%

Constant Current

00m:01s

10E

10F

10H

10I

12A

12D

15B

15C

Reserved Kickstart Time-2

Stop Mode-2 Stop Time-2

Motor Data-1 Ramp

Slip Ring Retard

Adjustment Lock Emergency Run

0 ms

Coast To Stop

00m:00s

Single Ramp

50%

Read & Write

Disable

MVE User Manual (710-17074-00G) | 75

Page 77

APPENDIX

Protection Action

16A

Motor Overload

Trip Starter

16B

Excess Start Time

Trip Starter

16E

Current Imbalance

Trip Starter

16I

Motor Thermistor

Trip Starter

16L

Reserved

16M

Battery/Clock

Warn and Log

16P

Reserved

16T

Reserved

16W

Overvoltage

Trip Starter

Restricted

16C

16D

16F

16G

16H

16J

16K

16N

16O

16Q

16R

16S

16U

16V

Undercurrent Instantaneous Overcurrent

Frequency Input A Trip Input B Trip

Starter Communication Network Communication

Ground Fault Reserved

Reserved Reserved Reserved

Reserved Undervoltage

Trip Starter

Warn and Log

Trip Starter

76 | MVE User Manual (710-17074-00G)

Page 78

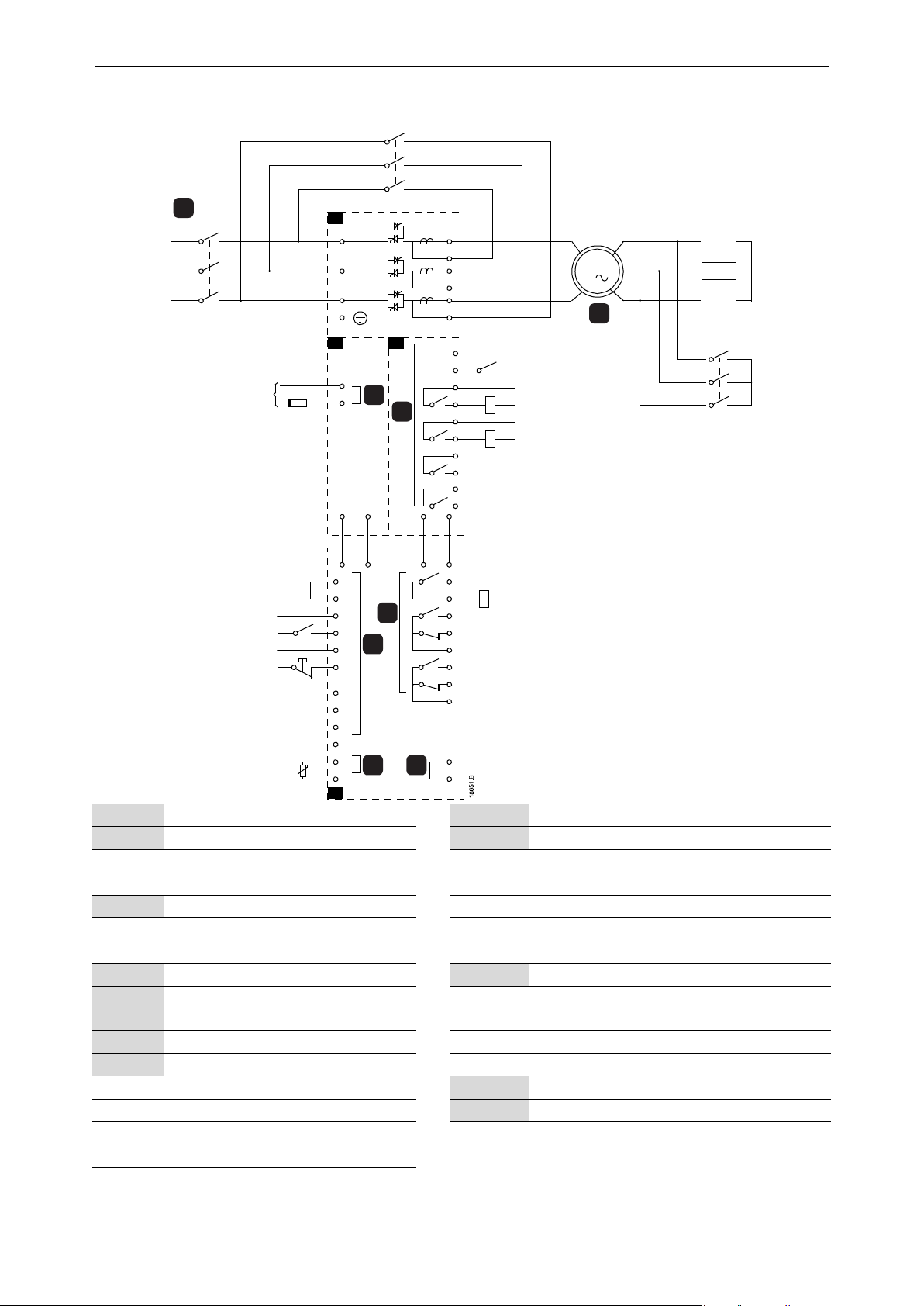

11.2 Slip-Ring Motor Connection

-15

+10

T3B

(Wh)(Bk)

(Bk)(Wh)

A3A2

T1B

T2B

A1 A3

C23 C24 C31 C32

C53 C54 C63 C64 B4 B5

14 23 24

44 54 52

51 64 62

B10

B11

C41 C42

C74

C73

A11 A12

TX RX

RX TX

85-264VAC 

or 

90-350 VDC

Main contactor

C23~C24

Control Input - Start

Bypass contactor

C31~C32

Control Input - Stop

Changeover contactor

C63~C64

Control Input - Programmable input B

Power interface board

51, 52, 54

Relay output B

13~14

Main contactor K1

8 Analog output

Phase arm power supply control relay

APPENDIX

Power assembly

3 Phase 50/60 Hz Supply

Motor

R1 Slip-ring rotor resistance

Control voltage terminals

Control supply

Relay outputs

C73~C74 Bypass contactor feedback signal

23~24 Bypass contactor K2

33~34 Run relay output

43~44

output

C41~C42 Control Input - Reset

C53~C54 Control Input - Programmable input A

43, 44 Relay output A

61, 62, 64 Relay output C

Controller

Remote control inputs

Programmable outputs

(7A= Changeover contactor)

Motor thermistor input

MVE User Manual (710-17074-00G) | 77

Page 79

APPENDIX

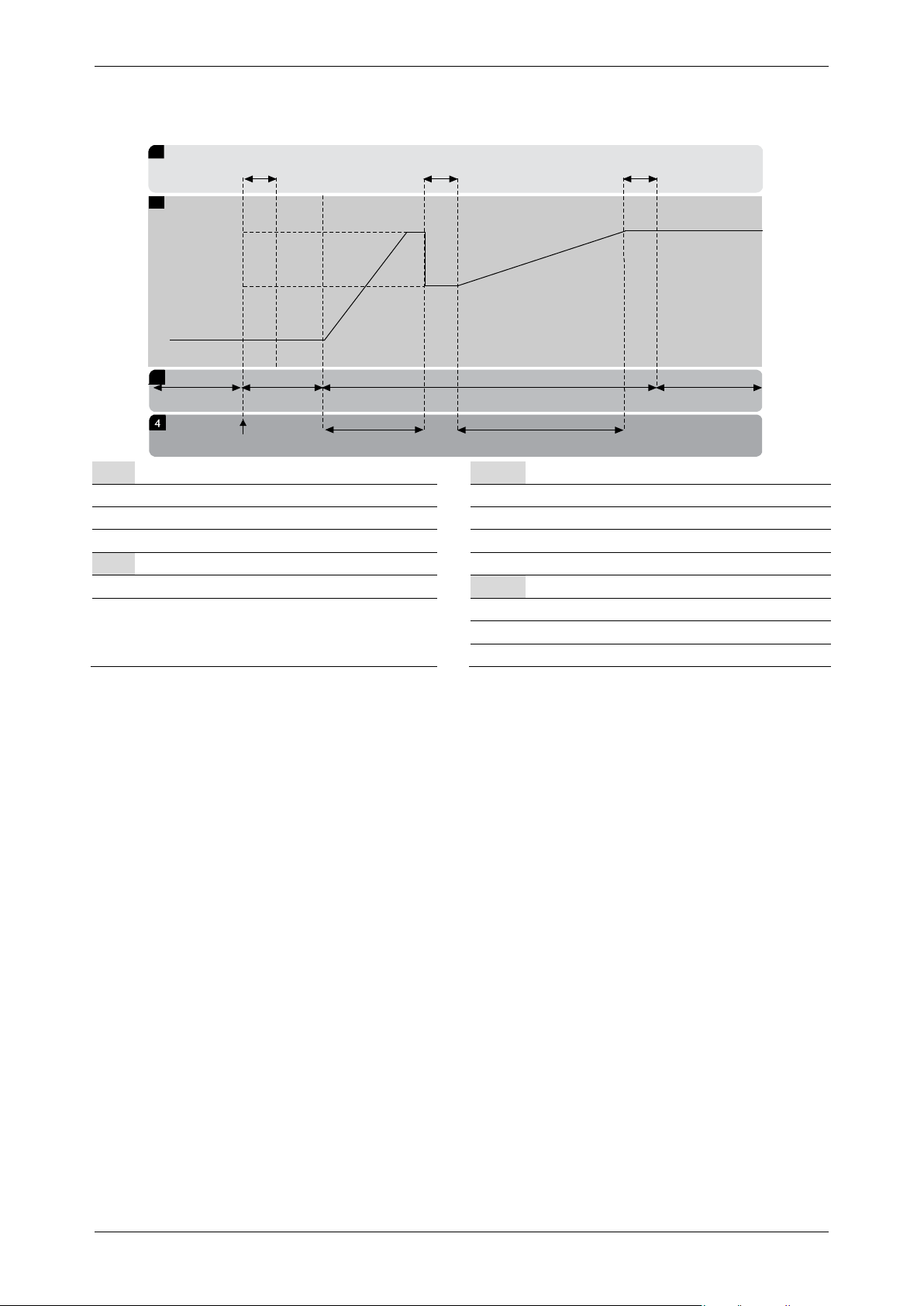

03986.C

t1 t2 t3

P1 P2 P3

S2 S3 S4

Rotor resistance contactor close time

Pre-start tests

Bypass contactor close time

Starting

Slip-ring retard voltage

Start command

Rotor resistance current ramp

Using the MVE to Control a Slip-Ring Motor

The MVE can be used to control a slip-ring motor, using rotor resistance.

Sub-states

t1 Main contactor close time

S1 Ready

States

Output voltage

V1 100% voltage

S4 Running

Phases of operation

P3 Shorted rotor current ramp

• Commissioning

1. Configure the MVE as follows:

Parameter settings:

• Parameter 7A

Relay A Function

• Select 'Changeover Contactor'

• Parameter 7B

Relay A On Delay

• Set this to the maximum time (5m:00s).

• Parameter 12A

Motor Data-1 Ramp

• Select 'Dual Ramp' (for slip-ring induction motor control)

• Parameter 12C

Changeover Time

• Default setting is 150 milliseconds. Set this to a value just greater than the changeover contactor (K3) pole

closing time.

• Parameter 12D

2. Start the motor under normal load conditions and record the time it takes to reach a constant speed with external rotor

• Default setting is 50%. Set this parameter to a value which is high enough to cause the motor to instantly

accelerate once the rotor resistance (R1) has been bridged out and low enough to avoid a motor current pulse.

Slip Ring Retard

resistance (R1) in the circuit. Stop the motor soon after a constant speed has been reached. Change parameter 7B to the recorded time value.

3. Start the motor under normal load conditions and monitor the motor speed behaviour and motor current when the

changeover contactor (K3) switches in to short-out the rotor resistance (R1) If the motor does not start to accelerate immediately after changeover, increase the setting of parameter 12D. If there is a pulse in motor current immediately after changeover, reduce the setting of parameter 12D.

78 | MVE User Manual (710-17074-00G)

Page 80

APPENDIX

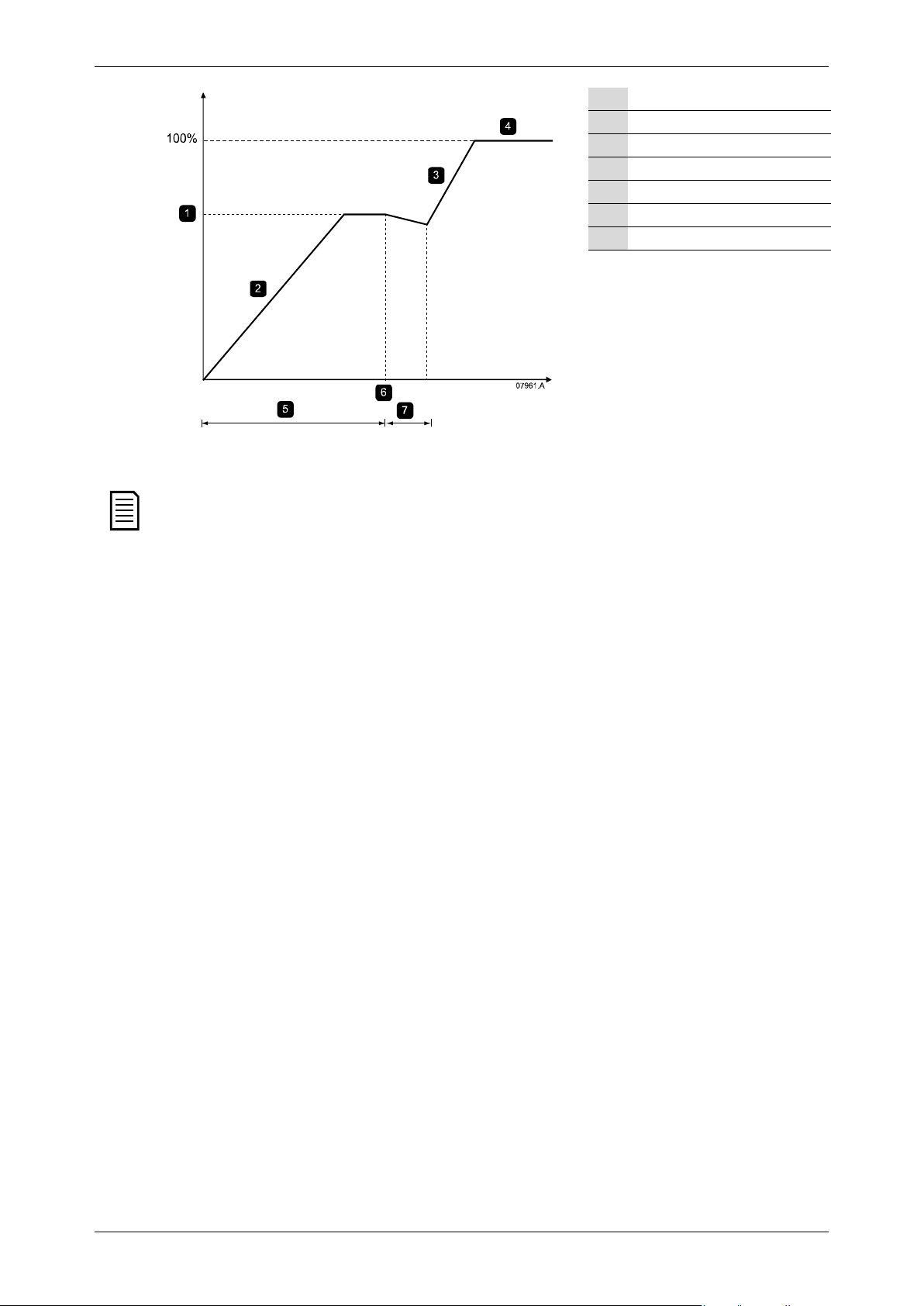

Speed

R1 constant speed

First ramp

Second ramp

Run mode (I < 120% FLC)

NOTE

Parameter 7B

K3 closes

Parameter 12C

Time

To use the secondary motor settings, parameter 12B

Motor Data-2 Ramp

must be set to 'Dual Ramp'.

MVE User Manual (710-17074-00G) | 79

Page 81

APPENDIX

80 | MVE User Manual (710-17074-00G)

Page 82

New Zealand

123 Wrights Road, PO Box 80208, Christchurch 8440, New Zealand

T +64 3 338 8280 F +64 3 338 8104

China

203-1 JH Plaza, 2008 Huqingping Road, Shanghai 201702, China

T +86 21 5877 5178 F +86 21 5877 6378

Germany

Borsigstraße 6, 48324 Sendenhorst, Germany

T +49 2526 93880 0 F +49 2526 93880 100

Middle East

10th Floor, Jumeirah Lakes Towers, Dubai, UAE

T +971 4279 8349 F +971 4279 8399

North America

2528 Lovi Road, Building 2-2A, Freedom, PA 15042, USA

T 855 928 2666 (855 AUCOM NA), +1 724 987 4952 F +1 724 510 3005

http://my.aucom.com
