Introduction

Thank you for purchasing the E05SH. Before using your E05SH, be sure to read the E05SH Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.

Manuals for the E05SH

The E05SH comes with the Basic Manual and Instruction Manual.

● For learning the basics:

Read the E05SH Basic Manual (this manual).

● For learning details on using each function:

Read the supplied E05SH Instruction Manual (Japanese). Be sure to read the Safety Precautions “安全上のご注意” to ensure proper usage of the E05SH.

The Online Manual is also available on the au homepage: http://www.au.kddi.com/business/manual/e05sh/index.html

To access from EZweb: M

•

⇒ au one Top ⇒

オンラインマニュアル

auお客さまサポート

(Online Manual)

(au Customer Support) ⇒

Scan this QR code to access the Online Manual.

For using your E05SH in “OFFICE FREEDOM”, KDDI mobile extension solution, please refer to the “OFFICE

• FREEDOM Booklet”.

▶

Page 3

Illustrations and Screenshots in This Manual

■

Note on Illustrations

The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below.

■

Note on Screenshots

The screenshots in this manual are simplified and may look different from the actual cell phone screens.

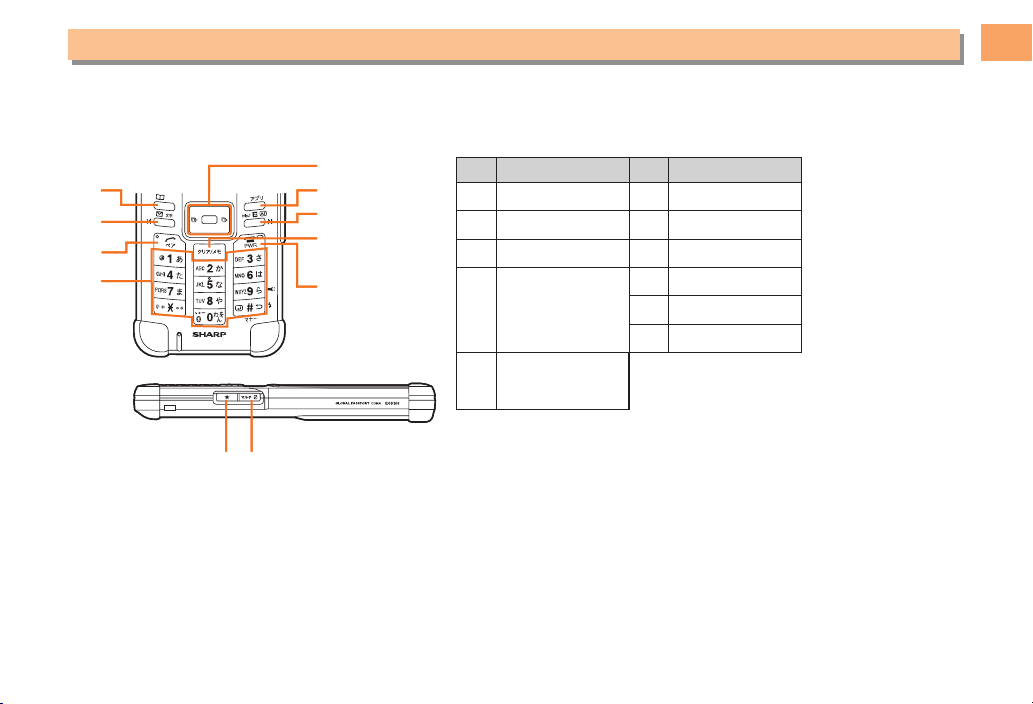

F G

G H

Key Illustration Key Illustration

K L

123 456 789 *0#

[EGF ABDC

M R S

T W

Illustrations and Screenshots in This Manual

Page 4

Notes on Cell Phone Use

Cell Phone Etiquette

Notes on Cell Phone Use

The cell phone always emits weak radio waves when power is on. Use the cell phone in an enjoyable and safe manner without forgetting to be considerate of others around you.

●

Use of cell phones is not allowed in some places.

•

Do not use the cell phone while you are driving. Doing so is both dangerous and prohibited by law.

•

Using a cell phone in an aircraft is prohibited by law. Administrative functions of the cell phone may cause the power to turn on automatically, so set Airplane Mode to ON and turn the power off.

●

Radio waves from cell phones may interfere with medical electrical equipment.

•

Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the cell phone off in such places.

•

Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry cell phones.

●

Be considerate of where you use the cell phone and how loudly you talk.

Do not make calls in theaters, museums, libraries, and

• other similar places. Turn power off or turn on manner mode not to disturb others around you by ring tones. Do not use the cell phone on a street where you might

• interrupt the flow of pedestrians. Move to areas where you will not inconvenience others

• on trains or in hotel lobbies.

•

Refrain from talking in a loud voice.

•

Obtain the permission of other people before you take their photos with the cell phone’s camera. Do not record information with the cell phone’s camera

• in bookstores and other locations where taking photos is not permitted.

Do Not Use the Cell Phone While Driving!

Turn off your cell phone or put it in Drive Mode while driving.

Do not use the cell phone while driving a car/motorcycle or riding a bicycle. It may result in a traffic accident. Using a cell phone while driving is prohibited by law. Using a cell phone while riding a bicycle may also be punishable by law.

Prohibited!

Looking at a cell phone display

• Talking on a cell phone while holding it

•

Drive Mode

In Drive Mode, a Japanese message meaning “I’m driving now, so I can’t answer your call.” is played when a call is received, and asks the caller to leave a message on the answer memo. When the standby screen is displayed, press

{eE to select Tools and then press {[ (Select), use gG to select Manner Mode Setup and then press {[

(Select), use (Set).

gG to select Drive, and then press {[

{[, use

Page 5

Disaster Message Board Service

When a large scale disaster occurs, you can register your safety information from EZweb. The registered information can be referred from anywhere in Japan from EZweb or Internet.

•

Registering

safety

information

Inquiring

for safety

information

Access

•

The maximum storage period of the registered information is 72 hours. The maximum available number of registrations is ten

• per phone number. When the number of registrations exceeds ten, the oldest one is overwritten.

When a large scale disaster occurs, from an au phone, you can register your safety information (i.e. your condition and comments) to the 災害用伝言板 (Disaster Message Board) created on the EZweb. After registration of your safety

• information, e-mail is sent to your family or acquaintances you have previously designated to notify that your safety information has been uploaded to the 災害用伝言板 (Disaster Message Board).

•

You can inquire for safety information of a person by entering his/her phone number from EZweb or Internet.* * To inquire from other carriers’ cell

phone, a PHS or PC, access “http://dengon.ezweb.ne.jp/”.

⇒ au one Top ⇒

M Message Board)

http://dengon.ezweb.ne.jp/

災害用伝言板

(Disaster

•

The demonstration of this service can be referred to anytime by pressing

サポート

⇒ (Demo Version)).

•

To view the Disaster Message Board in English, select English from the top menu of the Disaster Message Board.

(au Customer Support) ⇒

災害用伝言板（デモ版）

mM ⇒ au one Top ⇒

調べる

(Disaster Message Board

auお客さま

(Search )

Water Resistance

The E05SH complies with IPX5*¹ and IPX7*² water protection standards (JIS C 0920).

*1 IPX5 compliant means that this cell phone continues

to function as a phone after being subjected to a water jet (approximately 12.5 liters/min.) discharged from a nozzle (inner diameter: 6.3 mm), from all directions (approximately three meters from the cell phone) for three minutes or more.

*2 IPX7 compliant means that this cell phone

continues to function as a phone and no water seeps inside after being gently lowered into a tank filled with still tap water (at normal temperature) to the depth of one meter, and immersed at the bottom for approximately 30 minutes.

•

The E05SH is resistant to fresh or tap water at normal temperature (5°C - 35°C) only.

•

The E05SH is resistant to water when the cover of the external connection jack is closed firmly and the battery pack screws are tightened.

•

Malfunction resulting from misuse is not covered by the warranty.

Notes on Cell Phone Use

Page 6

Introduction

Illustrations and Screenshots in This Manual

Contents

Notes on Cell Phone Use 2

Cell Phone Etiquette …………………………………… 2 Do Not Use the Cell Phone While Driving! …………… 2 Disaster Message Board Service …………………… 3 Water Resistance ……………………………………… 3

Contents 4

Getting Ready 6

Checking the Contents of the Box …………………… 6 Names of Parts ………………………………………… 7 Replacing the Battery Pack …………………………… 8 Charging the Battery Pack …………………………… 9 Learning the Basics …………………………………… 10 Turning On Power ……………………………………… 11 Switching the Display Language to English ………… 11 Initial Setup of E-mail and EZweb …………………… 11 Checking Your Phone Number and E-mail Address Display Indicators ……………………………………… 12 Using Main Menu ……………………………………… 13 Changing Your E-mail Address ……………………… 14 Security Code and Passwords ………………………… 15

Making and Answering Calls 16

Making a Call …………………………………………… 16

…11

Making an International Call …………………………… 16 Answering a Call ……………………………………… 17 Returning a Call (Outgoing History/Incoming History) One-ring Calls …………………………………………… 18 Adjusting the Earpiece Volume during a Call ……… 18 Turning On Manner Mode ……………………………… 18 Changing the Incoming Ring Tone …………………… 19 Adjusting the Incoming Ring Tone Volume ………… 19 Turning On the Answer Memo ………………………… 20

…18

Global Function 21

Setting the Area ………………………………………… 21 Obtaining the Latest PRL (Preferred Roaming List) … 21 Calling Japan from Overseas ………………………… 22

Character Input 23

Character Entry Modes ………………………………… 23 Entering Alphanumeric Characters …………………… 23 Entering E-mail Addresses …………………………… 24 Entering Pictograms …………………………………… 25

Phone Book 26

Saving a Phone Book Entry …………………………… 26 Dialing from the Phone Book ………………………… 26 Editing Phone Book Entries …………………………… 26 Saving a Phone Number from the Incoming or Outgoing History …………………………………… 27

Pair Function 28

Registering a Pair Partner …………………………… 28 Making a Call to a Pair Partner ……………………… 28 Sending Mail to a Pair Partner ………………………… 28

Page 7

Mail 29

Using E-mail …………………………………………… 29 Creating and Sending E-mail Messages …………… 29 Reading Received E-mail Messages ………………… 30 Reading an E-mail Message with an Attached Photo or Movie ……………………… 30 Replying to Received E-mail Messages ……………… 30 Rejecting Spam ………………………………………… 31 Using C-mail …………………………………………… 32 Creating and Sending C-mail Messages …………… 32 Reading Received C-mail Messages ………………… 32

Camera 33

Photo Taking Tips ……………………………………… 33 About Photo Modes …………………………………… 33 Taking a Photo ………………………………………… 34 Viewing Photos ………………………………………… 34

EZweb 35

Accessing Sites ………………………………………… 36 Bookmarking Frequently Accessed Pages ………… 37 Viewing Bookmarked Pages ………………………… 37 Checking Charges ……………………………………… 38 Downloading Chaku-Uta

……………………………… 38

EZ News Flash/au one Gadget 39

Basic Operations ……………………………………… 39 Setting EZ News Flash ………………………………… 39

EZ Navi 41

Passenger Seat Navi for People in the Passenger Seat to Check the Route ………… 41 Security Navi to Check Where Your Kids Are ……… 41 EZ Navi Walk for When You Go Out ………………… 42 Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters …………………… 43

In Case of Loss of Your E05SH 44

Setting Conditions for Activating the Remote Ctrl Lock …………………………………… 44 Remotely Activating the Remote Ctrl Lock on Your E05SH ………………………………………… 44 Activating the Remote Ctrl Lock by the Security Lock Service ………………………… 45

Troubleshooting 46

Index 48

Contents

Page 8

Getting Ready

Checking the Contents of the Box

The box contains the cell phone and accessories.

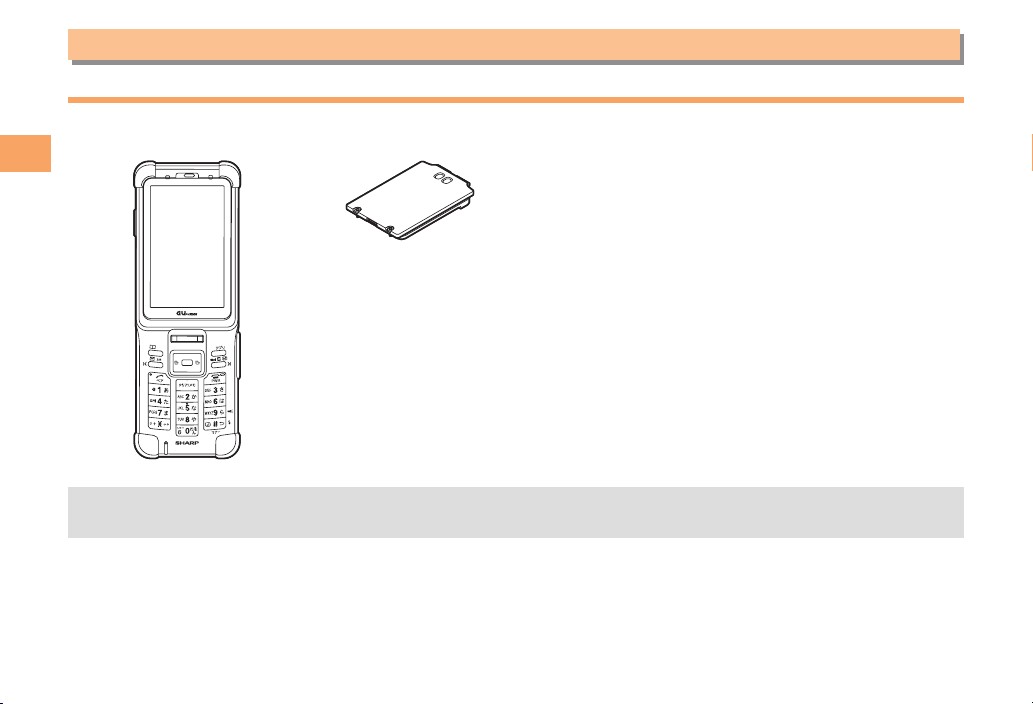

Cell Phone• Battery Pack• CD-ROM

Getting Ready

An AC adapter, desktop holder, earphone plug adapter 01 for external connection jack, USB cable, stereo earphone,

• microSD memory card, and Battery Pack L are not included with your cell phone. Purchase these items separately.

•

Instruction Manual (Japanese)

•

Warranty (Japanese)

•

Safety Precautions (Japanese)

•

Global Passport CDMA Owner’s Guide (Japanese)

•

Osaifu-Keitai

•

Notice Sheet (Japanese)

•

Corporate Applications Guide (Japanese)

•

Screwdriver for Battery Pack (Sample)

Guide (Japanese)

Page 9

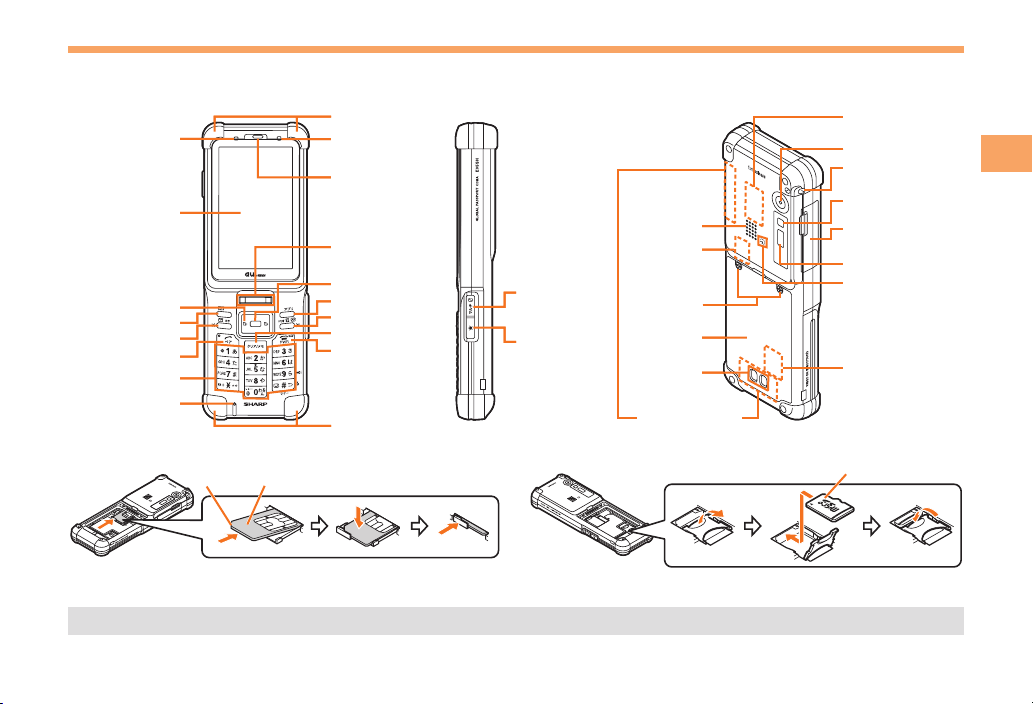

Names of Parts

From the Front ■

Protectors

Light sensor

Display

Cursor key

Address book key

Mail/Character key

Answer/Pair key

Number keys

Microphone

au IC-Card*Cutout

* Do not remove this card unnecessarily as your phone number is recorded

on it.

Incoming/

Incoming/ Charge indicator

Charge indicator

Earpiece

Fingerprint

Fingerprint sensor

sensor

Center key

Center key Application key

Application key EZ key

EZ key Clear/Memo key

Clear/Memo key Power/End key

Power/End key

Protectors

From the Side■ Diagonally from the Back■

For procedures on removing/attaching the battery pack, see page 8.•

Speaker

Internal

au IC-Card

Multi/Color veil

Multi/Color veil view key (side)

view key (side)

Customization

Customization key (side)

key (side)

* Insert this card with the microSD logo side up.

Screws for

Battery pack

Charging

terminals

Internal antennas

SDIO expansion

SDIO expansion slot

slot Camera Lens

Camera Lens Strap eyelet

Strap eyelet

Mobile light/ﬂash

External connection

External connection jack/cover

jack/cover Infrared Port

Infrared Port

FeliCa Mark

microSD memory

microSD memory card slot

card slot

microSD memory card*

Getting Ready

Page 10

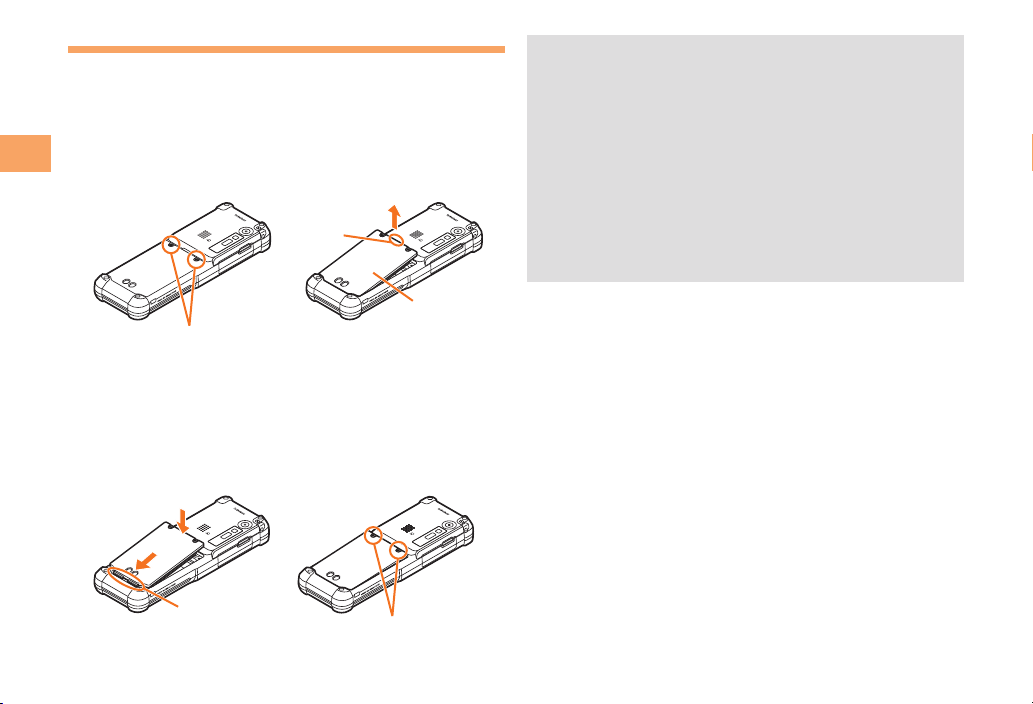

Replacing the Battery Pack

Removing the Battery Pack

■

Loosen the battery pack screws on the back of

➡

the cell phone (counterclockwise).

Hold the battery pack by the recess, and lift it

➡

Getting Ready

up and then remove it.

Recess

Screws

Attaching the Battery Pack

■

Attach the battery pack by inserting the two

➡

tabs of the battery pack into grooves of the E05SH.

Tighten the battery pack screws (clockwise).

➡

Battery pack

•

The screwdriver (sample) for attaching and removing the battery pack is included with the cell phone.

•

When removing the battery pack, turn the cell phone power off.

•

Before attaching the battery pack, make sure that the au IC-Card is inserted.

•

When attaching the battery pack, make sure that the waterproof seal and the case are clean before securely tightening the screws. Failure to follow the correct procedure when removing

• or attaching the battery pack may result in damage to the battery pack or main body.

Tabs

Screws

Page 11

Charging the Battery Pack

The battery pack is not fully charged at the time of purchase. Be sure to charge the battery pack before using the cell phone for the first time.

An AC adapter is not included with your cell phone.

• Purchase a specified AC adapter (sold separately).

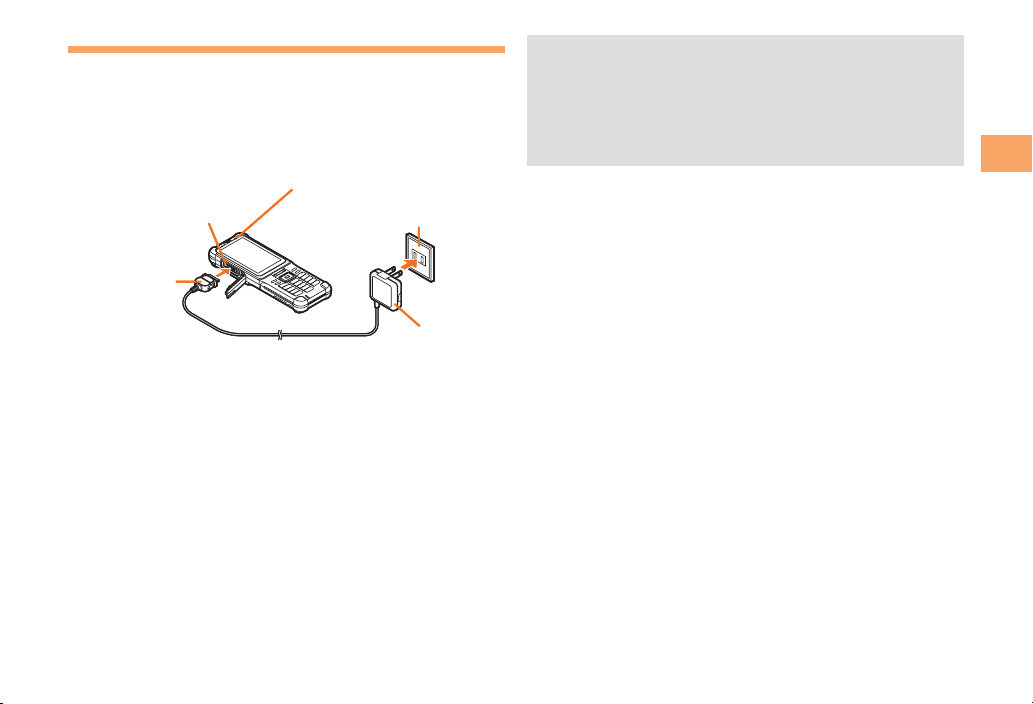

Incoming/Charge indicator

External connection jack

Connector

Connect a specified AC adapter to the cell

➡

phone with the battery pack attached.

Open the cover of the external connection jack. Check

• the shape of the connector of the AC adapter, and plug it straight into the external connection jack.

Unfold the power plug of the AC adapter and

➡

then plug it into a 100 V AC power outlet.

Confirm that the incoming/charge indicator

➡

lights.

Charging: The incoming/charge indicator lights.

• Charging finished: The incoming/charge indicator

• goes out.

100 V AC power outlet

AC adapter

•

Be sure to close the cover of the external connection jack when charging is finished.

•

Do not pull or twist the cover of the external connection jack forcibly. Be sure to use the common AC adapter 02 (sold

• separately) when charging overseas.

Getting Ready

Page 12

Learning the Basics

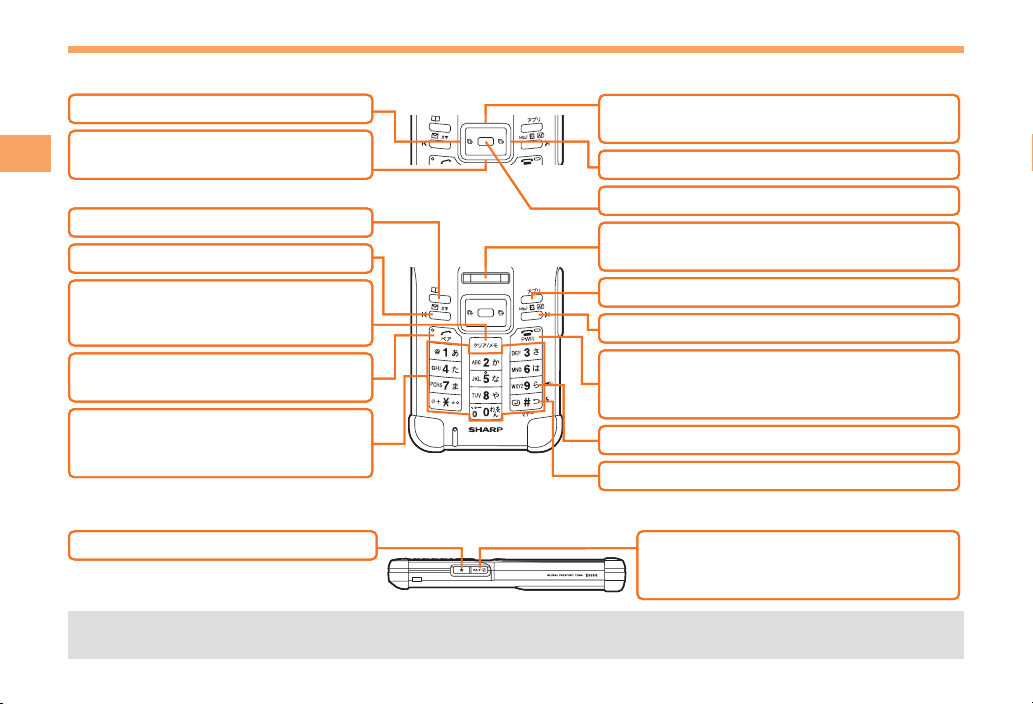

Key Assignments

■

: Display Incoming History.

: Display Notiﬁcation icon/

User-deﬁned icon.

Getting Ready

User-deﬁned icon.

: Use Phone Book.

: Display E-mail/C-mail menu.

: Set/cancel Answer memo.

 Delete characters.

Cancel operation.

: Make/answer calls.

Use the Pair function.

0〜9*#

Input phone numbers and

Input phone numbers and characters.

characters.

■

Side Key Assignments

: Start user-deﬁned function.

If you lose track of where you are or if you make a mistake, press rR to return to the previous screen. Return to the

• standby screen by holding down

: Display the ticker ﬁeld, search window,

info pane and gadget (setting icon).

: Display Outgoing History.

: Display Main menu.

[

Unlock the cell phone using the ﬁngerprint

Unlock the cell phone using the ﬁngerprint authentication, instead of entering the Lock No.

authentication, instead of entering the Lock No.

: Display EZapps menu.

: Display EZ Service menu.

: Turn power on/off.

End call/communication.

End call/communication. Cancel operation.

sS for at least one second.

Cancel operation.

: Turn on the mobile light (long press).

: Set/cancel manner mode (long press).

: Start another function during a

call or operation, and set/cancel

call or operation, and set/cancel Color veil view (long press).

Color veil view (long press).

Page 13

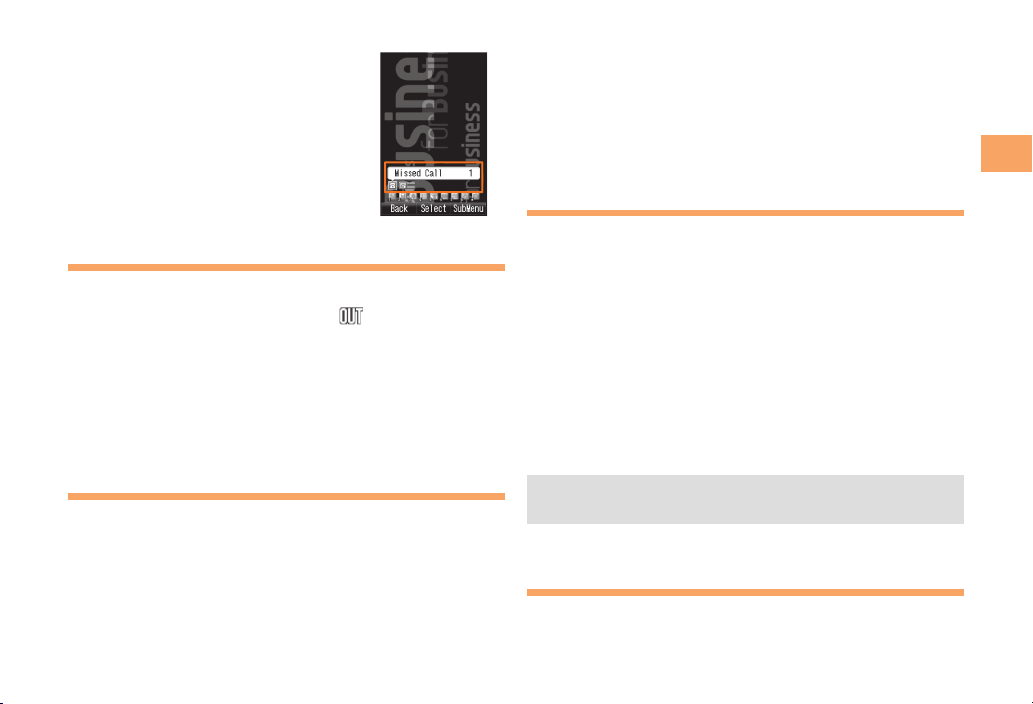

Hiding/Redisplaying the

■

Notification Display

Notification Icon

When the notification icon is displayed on the standby screen, you can temporarily hide it by pressing K (Back), and then display the Main menu by pressing [. To redisplay the hidden notification icon, press B when the standby screen is displayed.

Turning On Power

Hold down S for at least one second.

You cannot receive or make calls if (out of range

• indicator) is displayed.

Turning Off Power

■

When the standby screen is displayed, hold down S for at least one second.

Switching the Display Language to English

You can switch the display language for function names and other items to English.

When the standby screen is displayed, press [.

Use E to select

➡

[ (選択 [Select]).

設定

(Settings) and then press

Use G to select

➡

画面表示

(Screen Display) and

then press [ (選択 [Select]). Use G to select Set Language and then press

➡

[ (選択 [Select]). Use G to select English and then press

➡

[ (Set).

Initial Setup of E-mail and EZweb

To use e-mail and EZweb, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the au Customer Service Center. Also, before use, you need to configure initial settings. Your e-mail address is assigned automatically in the initial setup.

When the standby screen is displayed, press L.

➡

Press [ (OK).

After a short while, your e-mail address is displayed.

➡

Press [ (OK).

The initial settings are complete.

You can also configure initial settings by pressing

• or

jJ.

Checking Your Phone Number and E-mail Address

When the standby screen is displayed, press [ and then 0.

Getting Ready

Page 14

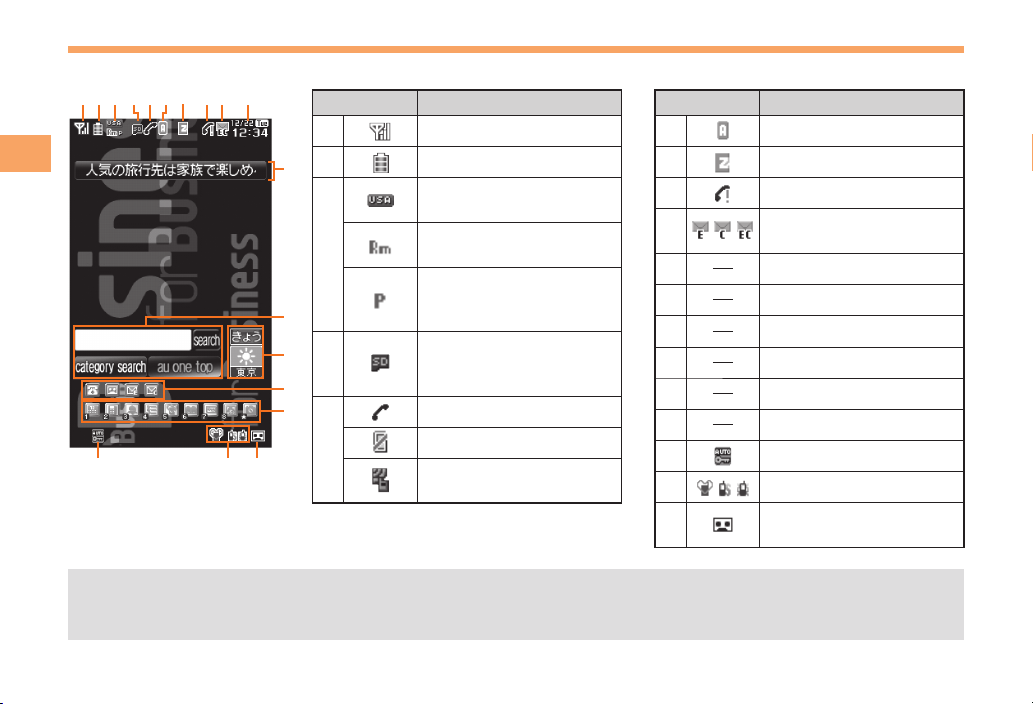

Display Indicators

N O

Display indicators inform you of mail arrival, current settings, etc.

AC E I

BDFGH J

Getting Ready

P QR

The date and time are set automatically.

• If display information is set to ON in advance, you can hide the ticker field, info pane and search window by pressing

•

sS. To redisplay the hidden items, press gG and then sS.

Indicator Description

Signal strength

Battery level

Current overseas area (e.g. USA)

Calling available in current overseas area

Packet communication available in current overseas area

A microSD memory card (commercially available) inserted

During a call

Color veil view set

Receiving EZ News Flash information

Indicator Description

EZapps activated

Connecting to EZweb

Missed calls

New or unread e-mail/Cmail

Current date and time

Ticker field

Search window

Info pane

Notification icons

User-defined icons

Auto Lock activated

Manner mode set

Answer memo or manner mode set

Page 15

Using Main Menu

You can access various functions from the Main menu. Each Main menu pattern has a different set of items.

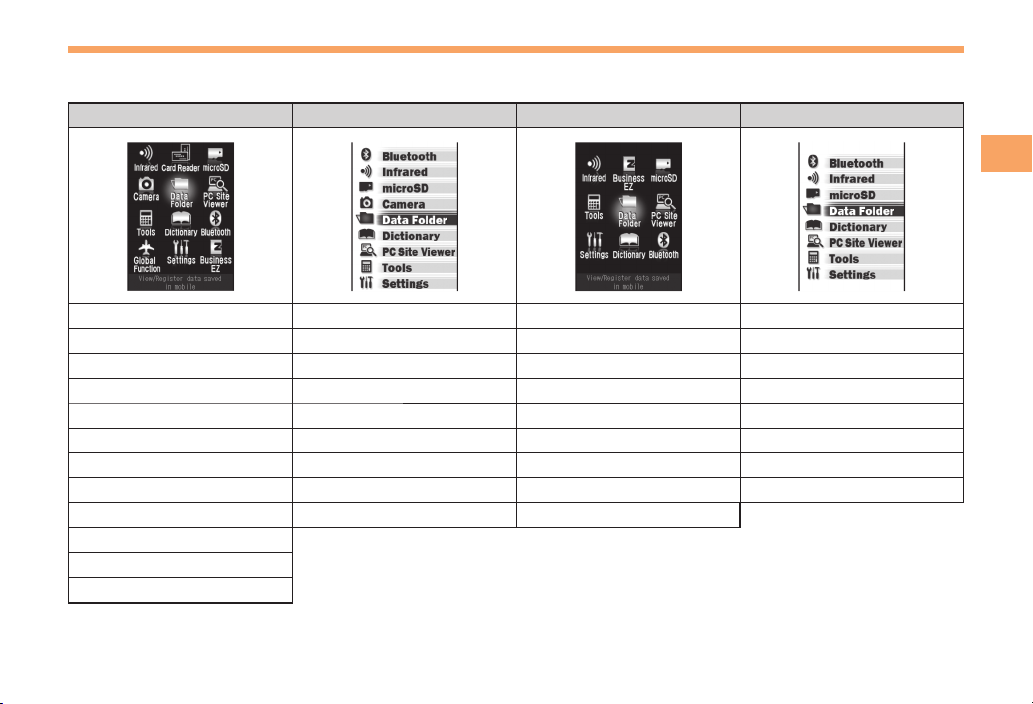

Black menu White menu Black menu(no Camera) White menu(no Camera)

Infrared Bluetooth Infrared Bluetooth

Card Reader Infrared Business EZ Infrared

microSD microSD microSD microSD

Camera Camera Tools Data Folder

Data Folder Data Folder Data Folder Dictionary

PC Site Viewer Dictionary PC Site Viewer PC Site Viewer

Tools PC Site Viewer Settings Tools

Dictionary Tools Dictionary Settings

Bluetooth Settings Bluetooth

Global Function

Settings

Business EZ

Getting Ready

Page 16

Changing Your E-mail Address

You can change the account name of your e-mail address.

Getting Ready

When the standby screen is displayed, press L.

Use G to select E-mail Setup and then press

➡

[ (Select). Use G to select Other and then press

➡

[ (Select).

The cell phone connects to the server.

➡

Use G to select E-mail Address) and then press [ (Select).

➡

Use G to select the entry box, press [ (Input), enter your security code, and then press [ (OK).

Your security code is the four-digit number you wrote

• on your subscription form. If the security code is incorrectly entered three times

• consecutively during a single day, the e-mail address change operation will be disabled until the next day.

Use G to select 送信 (Send) and then press

➡

[ (Select).

Eメールアドレスの変更

E-mail address

△△△@ezweb.ne.jp

Account name Domain name

(Change

Use G to select

➡

承諾する

(Accept) and then

press [ (Select). Use G to select the entry box, press [ (Input),

➡

enter an e-mail address using single-byte alphanumeric characters, and then press [ (OK).

For details on entering e-mail addresses, see page 24.

•

Use G to select 送信 (Send) and then press

➡

[ (Select). Use G to select OK, press [ (Select) and then

➡

[ (OK).

Check that the e-mail address has been updated

•

before pressing [ (OK).

Your e-mail address cannot be changed if the new

• address you enter in the above procedure is already being used. In this case, enter a different e-mail address.

Page 17

Security Code and Passwords

You can use a security code and other passwords described below. Take care not to forget your security code and passwords, because they are required for performing various operations and using subscription services.

Security Code

■

①Using the Answering Service (Voice

Mail) and Call Transfer remotely from a fixed-line phone

Usage Example

Initial Setting

■

Lock No.

Usage Example

Initial Setting 1234

②Making inquiries, applications, and

changes while using au Customer Service Center voice guidance, au web pages, and EZweb

③Changing the settings of Mail Filter or

Other under E-mail Setup

The four-digit number you wrote on your subscription form

Changing various settings of the cell phone

EZ Password

■

Usage Example

Initial Setting

■

Premium EZ Password

Usage Example

Initial Setting

■

Administrator Lock No.

Usage Example

Initial Setting 1234

Subscribing or canceling subscriptions to EZweb fee-based contents

The four-digit number you wrote on your subscription form

①Subscribing or canceling subscriptions

to EZweb fee-based contents paid by

まとめて

Payment Service)

②Purchasing products from EZweb sites

using

まとめて

Payment Service)

The four-digit number you wrote on your subscription form

When the administrator restricts which functions can be used

支払い

Getting Ready

(au Collective

Page 18

Making and Answering Calls

Making a Call

When the standby screen is displayed, use 0 to 9 to enter a phone number.

•

When calling to a fixed-line phone, you also need to enter the area code.

Making and Answering Calls

Press Q.

➡

To end the call, press S.

•

After you enter a phone number, you can add 184 or

• 186 to the phone number as follows:

Press

➡ ➡

➡

184: When you do not want to inform the other party of

186: When you want to inform the other party of your

{[ (Call).

Use

gG to select Add Special No. and then press

{[ (OK).

Use

gG to select 184 or 186 and then press

{[ (Add).

your phone number.

phone number.

Making an International Call

au International Call Service

■

Available without any additional application Example: To call 212-123-△△△△ in the USA

Press 005345.

International access code

Press 1.

➡

↑

Country code (USA)

➡

Press 212.

↑

Area code

➡

Press 123△△△△.

↑

Phone number

➡

Press Q.

International call charges are billed together with

• monthly local call charges. For more information on au International Call Service,

• dial the following number:

From au cell phones (toll-free):

157 (area code not required)

From fixed-line phones (toll-free):

0077-7-111

(Open 9:00 to 20:00 everyday)

↑

Page 19

001 International Call Service

■

Available without any additional application Example: To call 212-123-△△△△ in the USA

Enter the access code, a country code, area code and phone number, and then press Q.

001

↑

Accesscode

010

212 123-△△△△

1010

212 123-△△△△

↑

Country

code

(USA)

↑

Areacode↑Phonenumber

Answering a Call

To answer a call, press Q.

•

To end the call, press S.

Display When a Call is Received

■

The phone number of the caller appears. If the caller’s phone number and name are in the phone book, the name is also displayed. When the phone number of the caller is not displayed, one of the following indicators may appear.

Indicator Meaning

ID Unsent

Payphone

Not Support

■

Missed Call Notification

If you did not answer a call, and Missed Call are displayed to let you know that you missed a call. To check the caller’s phone number, use F to select Missed Call and then press [ (Select). You can then return the call (see page 18).

The caller has not notified of his/her phone number.

The call is from a pay phone.

The caller is using a phone that does not have a calling number identification function.

Making and Answering Calls

Page 20

Returning a Call (Outgoing History/ Incoming History)

Example: Returning a call to a phone number in the

When the standby screen is displayed, press D.

•

Making and Answering Calls

➡

•

incoming history

Press C while the standby screen is displayed to display the Outgoing History screen.

Use G to select the phone number you want to call and then press [ (Detail).

Press C to display the Outgoing History screen.

•

Press Q.

The cell phone can store up to 50 phone numbers in each of the incoming and outgoing history.

One-ring Calls

What is a One-ring Call?

■

A one-ring call is a call from an unknown caller that only rings once, causing it to be stored in the incoming history. One-ring calls are often used to get you to return the call, which will connect you to a dating service or some other service that charges you at high rates.

One-ring Indicator

■

(blue) indicator on the Incoming History screen indicates you have received a one-ring call (a call rang for three seconds or shorter). Be careful when you return a call to an unknown caller.

Adjusting the Earpiece Volume during a Call

During a call, use G.

•

A: Increases the volume.

•

B: Decreases the volume.

Press [ (OK).

➡

Turning On Manner Mode

When the standby screen is displayed, hold down # for at least one second.

This turns on manner mode, and displays , and on the standby screen. This also turns on Answer memo, which is indicated by

Turning Off Manner Mode

■

When the standby screen is displayed, hold down # for at least one second. Turning off manner mode causes from the standby screen. Answer memo is also turned off, which is indicated by screen.

Even in manner mode, the cell phone still emits a

• sound when autofocusing, a shutter sound when you take a photo.

on the standby screen.

, and to disappear

disappearing from the standby

Page 21

Changing the Incoming Ring Tone

When the standby screen is displayed, press [.

Use E to select Settings and then press

➡

[ (Select).

➡

Use G to select Sound/Vib/Lamp and then press [ (Select).

➡

Use G to select Incoming Setup and then press [ (Select).

➡

Use G to select Incoming Call and then press [ (Select).

➡

Use G to select

(Ringtone) and then press

[ (Select).

➡

Use G to select Original and then press [ (Select).

➡

Use G to select a ring tone and then press [ (Set).

The incoming ring tone is set.

If you press K (Play), the tone plays.

•

Press J (OK).

➡

Adjusting the Incoming Ring Tone Volume

When the standby screen is displayed, press [.

Use E to select Settings and then press

➡

[ (Select).

➡

Use G to select Sound/Vib/Lamp and then press [ (Select).

➡

Use G to select Incoming Setup and then press [ (Select).

➡

Use G to select Incoming Call and then press [ (Select).

➡

Use G to select then press [ (Select).

➡

Use G to adjust the volume and then press [ (Set).

Each press of G changes the volume one step.

•

STEP ↑ STEP↓

Maximum ↑ Standard ↓ Minimum

OFF

The ring tone volume gradually increases.

The ring tone volume gradually decreases.

The ring tone sounds at the set volume.

The ring tone does not sound.

(Ringtone Volume) and

Making and Answering Calls

Press J (OK).

➡

Page 22

Turning On the Answer Memo

When the standby screen is displayed, hold down R for at least one second.

is displayed on the standby screen.

Turning Off the Answer Memo

■

When the standby screen is displayed, hold down R for

Making and Answering Calls

at least one second. The answer memo is turned off and

disappears from the standby screen.

The cell phone can record a maximum of ten

• messages, each up to 60 seconds long. Answer memo is a function that automatically answers

• calls and allows callers to record messages. Use the Answering Service (Voice Mail) when your phone is turned off or when you are in a location where a signal cannot be received.

Playing a Message

■

If a message is recorded, Answer Memo appears on the standby screen.

Use F to select Answer Memo and then press

➡

[ (Select). Use G to select the message you want to play

➡

and then press [ (Play).

To stop playing the message, press [ (Stop).

•

Deleting a Message

■

When the standby screen is displayed, press R.

Use G to select Answer Memo and then press

➡

[ (Select).

➡

Use G to select Answer Memo List and then press [ (Select).

➡

Use G to select the message you want to delete and then press J (SubMenu).

➡

Use G to select Delete and then press [ (OK).

➡

Use G to select Delete One and then press [ (OK).

➡

Use G to select YES and then press [ (OK).

Page 23

Global Function

The E05SH supports Global Passport CDMA services. You can use your E05SH overseas without any additional application.

Setting the Area

When the standby screen is displayed, press [.

Use E to select Global Function and then press

➡

[ (Select).

Precautions are displayed.

➡

Check the precautions and then press [ (OK).

➡

Use G to select Area Setting and then press [ (Select).

➡

Use G to select Overseas and then press [ (Select).

➡

Use G to select YES and then press [ (OK).

Some functions are not available when Area Setting is

• not set to Japan.

Obtaining the Latest PRL (Preferred Roaming List)

Manually update and set the PRL (preferred roaming list) before traveling abroad.

When the standby screen is displayed, press [.

Use E to select Global Function and then press

➡

[ (Select).

Precautions are displayed.

➡

Check the precautions and then press [ (OK).

➡

Use G to select PRL Setting and then press [ (Select).

➡

Use G to select PRL Manual Update and then press [ (Select).

The cell phone connects to the server.

➡

Use G to select PRL and then press [ (ダウンロード [Download]).

The latest PRL is downloaded.

•

The PRL (preferred roaming list) is the area information of overseas carriers offering international roaming service in partnership with KDDI (au). To obtain (download) the PRL, you need to subscribe

• to EZweb and make initial settings (see page 11) while in Japan.

ダウンロード

(Download PRL)

Global Function

Page 24

Calling Japan from Overseas

When the standby screen is displayed, use 0 to 9 to enter a phone number.

Press [ (Call).

➡ ➡

Use G to select Voice Call and then press [ (OK).

➡

Use G to select Call to Japan and then press

Global Function

[ (OK).

➡

Press [ (Call).

When you make an international call from Japan to a

• Global Passport CDMA-compatible cell phone, you can do it in the same way as making domestic calls within Japan.

Page 25

Character Input

Character Entry Modes

When a character entry screen is displayed, you can select a character entry mode if you press L (Char.).

Menu Items

■

漢 : Kanji conversion mode ア : Double-byte katakana mode ア

: Single-byte katakana mode

Ａ : Uppercase alphanumeric (double-byte) mode ａ : Lowercase alphanumeric (double-byte) mode A

: Uppercase alphanumeric (single-byte) mode

: Lowercase alphanumeric (single-byte) mode

１ : Double-byte number mode 1

: Single-byte number mode

区 : Code entry mode Use F to select a character entry mode and then press [ (OK).

The entry modes that you can select differ depending

• on the function you are using.

Entering Alphanumeric Characters

You can use the keys 0 to 9 to enter characters. More than one character is assigned to each key. The following table shows the key assignment for entering characters.

Number of Times to Press the Key

Key 123456789101112

．

2 ａｂｃ2

3 ｄｅｆ3

4 ｇｈｉ4

5 ｊｋｌ5

6 ｍｎｏ6

7 ｐｑｒｓ7

8 ｔｕｖ8

9 ｗｘｙｚ9

0 0

When you change your e-mail address, you cannot use the characters in address to the left of @).

＠−＿／：

Switches the entry mode between uppercase and lowercase. (When character entry has not yet been confirmed, switches the characters being entered between uppercase and lowercase.)

Adds a line break. (When character entry has not yet been confirmed, returns to the previous character.)

■

for the account name (part of the

〜

Inputs symbols

Character Input

Page 26

Entering Two or More Characters

■

Assigned to the Same Key

After you enter the first character, press C and then enter the next character.

■

Deleting Characters

To delete one character at a time, move the cursor to the character you want to delete and then press R. To delete all characters to the right of the cursor, hold down R for at least one second. If there are no characters to the right of the cursor, holding down R will delete all the characters.

Character Input

■

Starting a New Line

Press #.

•

Certain functions such as C-mail do not support entering new lines.

Entering E-mail Addresses

E-mail Address Compatible Characters

■

Before you enter an e-mail address, switch to the

• lowercase alphanumeric (single-byte) mode. When changing your e-mail address, you can enter up

• to 30 single-byte alphanumeric and symbol characters for the account name (part to the left of @). Note the following:

- Uppercase characters cannot be used.

Period (.) or zero (0) cannot be used as the first character.

How to Enter E-mail Addresses

■

Example: Entering “[email protected]”

Enter “taro.23”.

t : Press 8 once. a : Press 2 once. r : Press 7 three times. o : Press 6 three times. . : Press 1 once. 2 : Press 2 once and then #. 3 : Press 3 once and then #.

Press [ (OK).

➡

Enter “@”.

➡

@: Press 1 twice.

➡

Press B.

The cursor moves to the conversion candidate list.

➡

Use E to select @ezweb.ne.jp and then press [ (OK).

Page 27

Entering Pictograms

When a character entry screen is displayed, press K (

➡

・Sym・(^0^)).

Use E to select the pictogram you want to enter and then press [ (Select).

You can enter pictograms consecutively if you press

•

J (Repeat) instead of [ (Select).

Character Input

Page 28

Phone Book

Saving a Phone Book Entry

When the standby screen is displayed, hold down K for at least one second.

➡

Use G to select [ (Select).

➡

Enter a name and then press [ (OK).

The [Reading] for the name is entered automatically.

➡

Use G to select [Phone No.1] and then press [ (Select).

Phone Book

➡

Enter a phone number and then press [ (OK).

If the phone number is for a fixed-line phone, enter the

• phone number starting with the area code.

Use G to select a phone number type and

➡

then press [ (Select).

Follow the next step to enter an e-mail address. If

• you do not want to enter an e-mail address, press J (Reg).

Use G to select [E-mail Address1] and then

➡

press [ (Select).

Enter an e-mail address and then press

➡

[ (OK). Use G to select an e-mail address type and

➡

then press [ (Select). Press J (Reg).

➡

[Name] and then press

The phone book can store up to 1,000 entries.

• The cell phone automatically saves an entry to the

• lowest available memory number from 000 to 999. You can save five phone numbers and five e-mail

• addresses for each phone book entry. You can also assign a group No., and enter birthday,

• address, and other information.

Dialing from the Phone Book

When the standby screen is displayed, press K.

Use E to select the entry containing the

➡

phone number you want to dial and then press [ (Detail).

Use G to select the phone number and then

➡

press [ (Select). Use G to select Voice Call and then press

➡

[ (OK).

Editing Phone Book Entries

When the standby screen is displayed, press K.

Select an entry and then press [ (Detail).

➡

Press K (Edit).

➡

Edit the contents and then press J (Reg).

➡

Use G to select Overwrite and then press

➡

[ (OK).

Page 29

Saving a Phone Number from the Incoming or Outgoing History

Example: Saving a phone number from the incoming history

When the standby screen is displayed, press D and then use G to select the phone number you want to save.

➡ ➡

➡

to the phone book

Press J (SubMenu). Use G to select Reg to Adrs Book and then

press [ (OK). Use G to select Register New and then press

[ (Select). Use G to select a phone number type and

then press [ (Select).

For details on saving a phone book entry, see page

•

26.

Phone Book

Page 30

Pair Function

You can register a maximum of five pair partners you contact often to easily call or send mail.

Registering a Pair Partner

Making a Call to a Pair Partner

When the standby screen is displayed, press Q.

Use F to select the person you want to call.

➡

Use G to select Call and then press [ (Select).

➡

When the standby screen is displayed, press Q.

Use F to select a blank screen and then

➡

press [ (Select). Use G to select YES and then press [ (OK).

➡

Use E to select a pair partner, press [ (Detail)

➡

and then [ (Select).

When registering a phone book entry with multiple

•

Pair Function

phone numbers and e-mail addresses as pair partner, select the phone number and e-mail address to use with the Pair function.

When you delete a phone book entry registered in the

• pair partner, the phone book entry is also deleted from the Pair function.

Sending Mail to a Pair Partner

When the standby screen is displayed, press Q.

➡

Use F to select the person you want to send mail.

➡

Use G to select E-mail or C-mail and then press [ (Select).

To create an e-mail message, see “ Creating and

• Sending E-mail Messages” on page 29. To create a C-mail message, see “ Creating and Sending C-mail Messages” on page 32.

Page 31

Mail

Using E-mail

To use e-mail, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the au Customer Service Center. Also, before use, you need to configure initial settings. You can send and receive e-mail with other cell phones that support e-mail, and with PCs. In addition to text messages of up to 5,000 double-byte (or 10,000 singlebyte) characters, you can also send photos and movies by e-mail.

•

The packet communication charge for sending and receiving e-mail applies to the amount of data sent and received.

•

You can send an e-mail message to up to 30 different addresses at one time.

•

You can send up to 1,000 e-mail messages per day (a message with multiple recipients is counted as more than one message).

•

Sending and receiving e-mail messages that include attachment data may take a while.

Creating and Sending E-mail Messages

When the standby screen is displayed, press L.

Use G to select Create New and then press

➡

[ (Select).

➡

Use G to select

Address and then press

[ (Select). Use G to select Quote Adrs Book and then

➡

press [ (OK). Use E to select a phone book entry and then

➡

press [ (Detail). Use E to select an address and then press

➡

[ (Select). Use G to select

➡

[ (Select).

➡

Enter a subject and then press [ (OK).

You cannot enter single-byte katakana characters or a

• new line in a subject.

Use G to select (Text) and then press

➡

Subject and then press

Mail

[ (Select). Enter text and then press [ (OK).

➡

You cannot enter single-byte katakana characters.

•

Press K (Send).

➡

Page 32

Reading Received E-mail Messages

When you receive an e-mail message, E-mail appears on the standby screen.

Use F to select E-mail and then press

➡

[ (Select).

is displayed for a folder containing new message.

•

Use G to select a folder and then press

➡

[ (Select).

: Indicates a read message.

•

: Indicates an unread message.

Use G to select the new message and then

➡

press [ (Select).

Reading an E-mail Message from the E-mail Menu

■

When the standby screen is displayed, press L to display

Mail

the E-mail menu, use G to select Inbox and then press [ (Select).

For subsequent operations, see “Reading Received E-mail Messages” above.

Reading an E-mail Message with an Attached Photo or Movie

Example: Viewing an attached photo

Display the e-mail message that has an attached photo (above).

Use G to select the file name and then press

➡

[ (Select). Use G to select the file name and then press

➡

[ (Receive). Press [ (Play).

➡

Selecting the file name or pressing

• may be unnecessary for some files to be displayed, depending on the file size.

Replying to Received E-mail Messages

(Receive)

{[

When the standby screen is displayed, press L.

Use G to select Inbox and then press

➡

[ (Select). Use G to select a folder and then press

➡

[ (Select). Use G to select the message you want to

➡

reply to and then press [ (Select). Press K (

➡

“Re:” is prefixed to the subject, and the text of the message is quoted.

➡

Refer to “ Creating and Sending E-mail

Messages” (page 29) for subsequent operations.

Page 33

Rejecting Spam

Setting mail filters to reject spam is recommended. The

サポート設定

mail filters easily by answering questions that appear on the screen.

Setting Mail Filters

■

Example: Connecting to

When the standby screen is displayed, press L.

Use G to select E-mail Setup and then press

➡

[ (Select). Use G to select Mail Filter and then press

➡

[ (Select). Use G to select

➡

[ (Select).

➡

Use G to select the input box and then press [ (Input).

➡

Enter your security code and then press [ (OK).

➡

Use G to select [ (Select).

➡

Use G to select Settings) and then press [ (Select).

(Supportive Settings) helps you to set

サポート設定

(Next) and then press

送信

(Send) and then press

サポート設定

(Supportive Settings)

(Supportive

カンタン設定 (Simple Settings)

■

Set the filter by answering

サポート設定

(Supportive Settings)

フィルターレベル（高）

Filter Level (High)

フィルターレベル（中）

Filter Level (Medium)

フィルターレベル（低）

Filter Level (Low)

You can also prevent spam by changing your e-mail

• address. For details on changing your e-mail address, see page 14.

questions

This is recommended for users who want to configure settings while confirming conditions.

Shut out all mail from PCs

This is recommended for users who only want to send mail to and receive mail from cell phones.

Block unsolicited advertisement, spoof e-mail and mail from specific addresses

This is recommended for users bothered by certain senders or spam mail.

Block unsolicited advertisement and spoof e-mail

This is the minimum level recommended for all users.

Mail

Page 34

Using C-mail

C-mail is a service that uses phone numbers as addresses to exchange messages between au cell phones that support C-mail. A C-mail message can contain up to 50 double-byte (or 100 single-byte) characters.

The C-mail send charge applies when sending C-mail.

•

C-mail Safety Block

■

C-mail safety block is a function that allows you to reject C-mails that include URLs (http://△△△, https://△△△) or phone numbers in the C-mail message text. C-mail safety block is valid by default. Cancel the setting if you want to receive C-mails that include URLs and phone numbers in the message text.

Creating and Sending C-mail Messages

Mail

When the standby screen is displayed, hold down L for at least one second.

Use G to select Create New and then press

➡

[ (Select). Use G to select

➡

[ (Select).

➡

Use G to select Quote Adrs Book and then press [ (OK).

➡

Use E to select a phone book entry and then press [ (Detail).

[Address] and then press

Use E to select a phone number and then

➡

press [ (Select). Use G to select

➡

[Text] and then press

[ (Select).

➡

Enter text and then press [ (OK).

➡

Press K (Send).

Reading Received C-mail Messages

When you receive a C-mail message, C-mail appears on the standby screen.

➡

Use F to select C-mail and then press [ (Select).

is displayed for a folder containing new message.

•

Use G to select a folder and then press

➡

[ (Select).

: Indicates a read message.

•

: Indicates an unread message.

Use G to select the new message and then

➡

press [ (Select).

Reading a C-mail Message from the C-mail Menu

■

When the standby screen is displayed, hold down L for at least one second to display the C-mail menu, use G to select Inbox and then press [ (Select). For subsequent operations, see “Reading Received C-mail Messages” above.

Page 35

Camera

Your cell phone has a CMOS camera with approximately

2.03 effective megapixels for shooting photos and movies. You can use the self-timer and autofocus. Shot images can be used for the standby screen, and attached to e-mail messages.

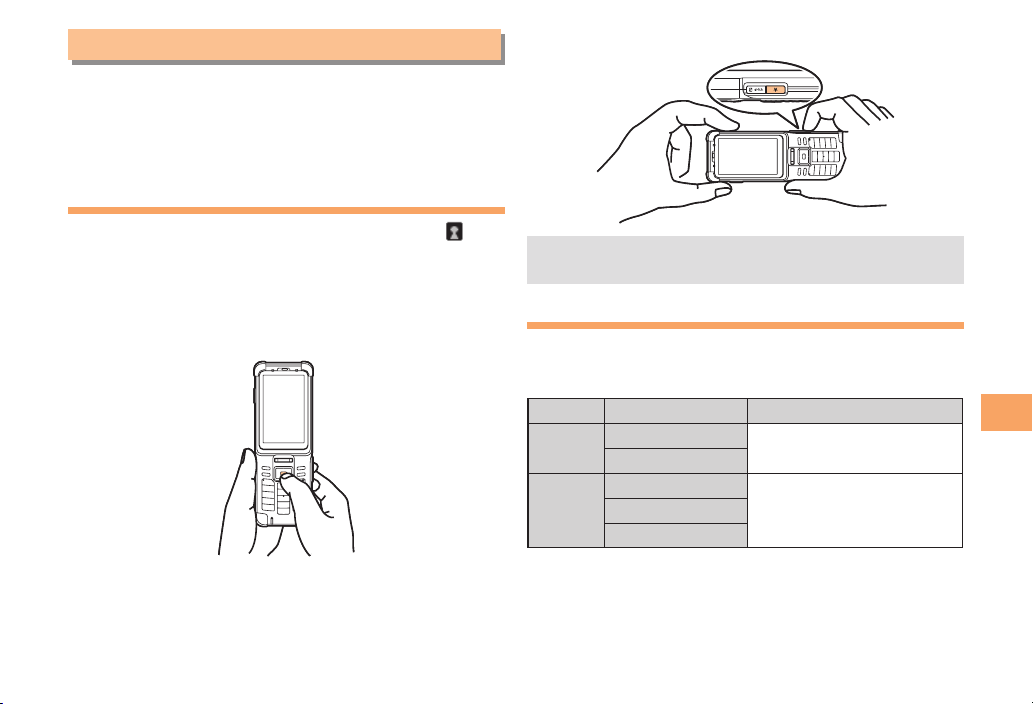

Photo Taking Tips

When taking photos, position the cell phone so that is not displayed upside down or inclined. Frame the subject within the display and hold the cell phone steady with both hands to avoid shaking.

Portrait Position■

■

Landscape Position

Confirm the positions of the lens and mobile light, and

• take care not to cover them with a strap or finger.

About Photo Modes

The following modes are available for taking photos. At the time of purchase, W.paper (Wide) is set to Photo (W.paper) mode and 2M is set to Photo (DSC) mode.

Mode Photo Size Storage Location

Photo (W.paper)

Photo (DSC)

* When a microSD memory card (commercially available) is

not inserted, the files are saved to the Data Folder of the cell phone.

W.paper (Normal)

W.paper (Wide)

0.3M

The Photo Folder in the Data Folder of the cell phone

The DSC Folder in the Data Folder of a microSD memory card*

Camera

Page 36

Taking a Photo

Viewing Photos

When the standby screen is displayed, hold down T for at least one second.

The monitor screen appears.

Point the AF frame at the subject and then

➡

press [ (Shoot).

The camera focuses automatically and the shutter clicks. The preview screen is displayed.

Using T to Take a Photo

■

Point the AF frame at the subject, press M to focus, and then press T to release the shutter.

■

Saving a Photo

Press [ (Save) on the preview screen.

•

Camera

If you do not want to save the photo, press preview screen.

rR in the

When the standby screen is displayed, press [.

Use E to select Data Folder and then press

➡

[ (Select). Use G to select Photo Folder and then press

➡

[ (Select). Use G to select a folder and then press

➡

[ (Select). Use E to select the photo you want to view

➡

and then press [ (Select).

Page 37

EZweb

EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta pages. To use EZweb, you need to apply for an EZweb subscription. If you did not apply for an EZweb subscription at the time of purchase, contact an au shop or the au Customer Service Center. Also, before use, you need to configure initial settings.

•

The packet communication charge for EZweb connection applies to the amount of data sent and received, not to the length of time connected.

•

In addition to communication charges, some sites charge for providing information.

, news, and other contents from web

&;XFC4VCTDSJQUJPO3FRVJSFE&;XFC4VCTDSJQUJPO3FRVJSFE

EZweb

Page 38

Accessing Sites

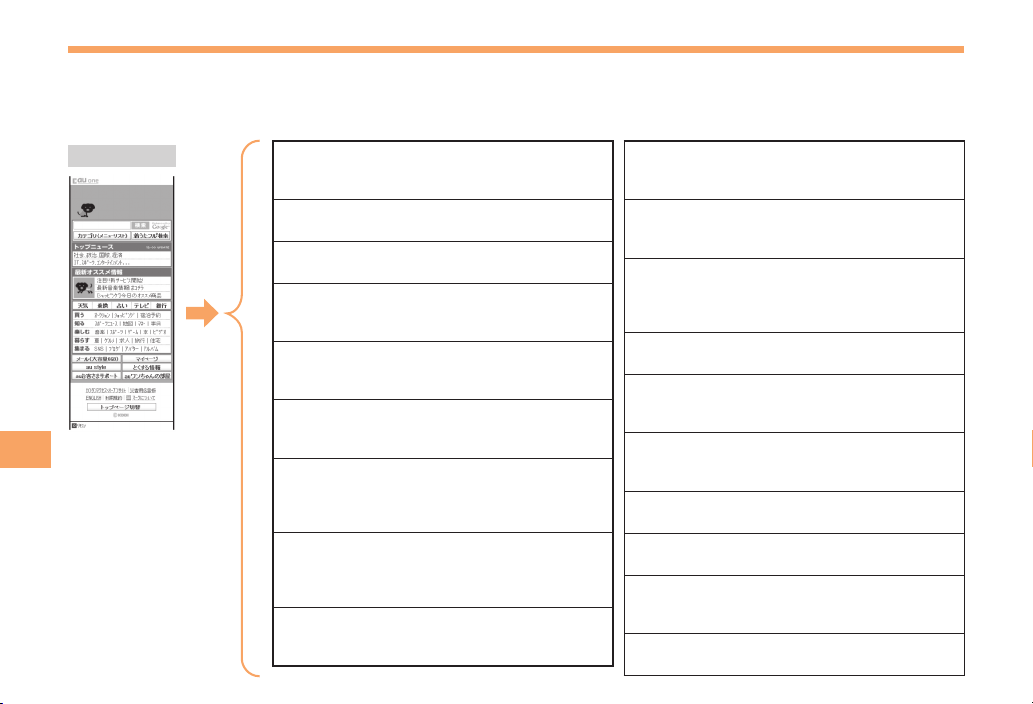

Viewing the au one Top

■

You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press M, use G to select au one Top and then press [ (Select).

EZweb

au one Top

キーワード検索機能 (Search by Keyword)

Provides a search function for searching for information by keyword.

カテゴリ（メニューリスト） (Category (Menu List))

Provides a list of various content provider sites.

トップニュース (Top News)

Provides automatic updates of the latest news.

最新オススメ情報 (Latest News)

Introduces up-to-date information concerning entertainment, daily life, etc.

天気・乗換・占い・テレビ・銀行 (Weather, Transportation, Horoscope, TV & Bank)

Provides direct access to these au one services.

買う (Shopping & Auctions)

Provides a list of shopping and auction sites available from your cell phone.

知る (Tips & Tools)

Provides information on sports and stock prices, as well as useful tools such as maps and dictionaries.

楽しむ (Hobbies & Culture)

Provides the latest information, such as games, music, books, hobbies and entertainment.

暮らす (Lifestyle)

Provides travel, restaurant and other lifestyle-oriented information.

集まる (Community)

Provides interesting and useful information that you can use for SNS or blogs.

メール (Mail)

Provides an extra e-mail address that can be used on your PC.

マイページ (My Page)

Provides useful information and tools tailored to your cell phone usage and a large data storage area.

austyle

Introduces information and sites that au recommends.

とくする情報 (Valuable Information)

Presents gifts and push information to the EZweb subscriber for free.

auお客さまサポート (au Customer Support)

Provides information about charges, various applications, online manual and notices from au.

auワンちゃんの部屋 (au Doggy’s Room)

Introduces au Doggy.

カンタンアクセス・オープンサイト (Simple Access & Open Site)

Provides easy access and introduces open sites.

災害用伝言板 (Disaster Message Board)

ENGLISH

Introduces English sites.

Page 39

Basic Operations

■

Use G to select the site you want to access and then press [ (Select). Press L or R to return to the previous screen. Hold down either key for at least one second to return to the au one Top.

The following describes the basic operations that are available while accessing sites.

Key

Operation

L,R

Exits EZweb.

Moves the cursor up and down. When there is data available above or below the current screen, scrolls up and down the screen one line at a time.

When there is data available above or below the current screen, scrolls the screen page by page.

D：Scrolls one page up. C：Scrolls one page down.

Returns to the previous screen.

Description

Bookmarking Frequently Accessed Pages

When the page you want to bookmark is displayed, press J (Browser Menu).

Use G to select New bookmark and then press

➡

[ (OK).

Some pages cannot be bookmarked.

•

Press J (Reg).

➡

The displayed page is bookmarked, and its title and URL are added to the Bookmark.

The Bookmark can contain up to 100 titles and URLs.

•

Viewing Bookmarked Pages

When the standby screen is displayed, press M.

Use G to select Bookmark(s) and then press

➡

[ (Select). Use G to select the bookmark for the page

➡

you want to view and then press [ (Connect).

The cell phone connects to the site.

EZweb

Page 40

Checking Charges

When the standby screen is displayed, press [.

Use E to select Settings and then press

➡

[ (Select).

➡

Use G to select Time/Toll/Sub and then press [ (Select).

➡

Use G to select Inquire Toll and then press [ (Select).

➡

Use G to select YES and then press [ (OK).

Select the item you want to check and then follow the

• on-screen instructions.

Downloading Chaku-Uta

When the standby screen is displayed, press M.

Use G to select au one Top and then press

➡

[ (Select). Use G to select

➡

EZweb

➡

(Category (Menu List)) and then press [ (OK). Use G to select

press [ (Select).

カテゴリ（メニューリスト）

着うた

(Chaku-Uta®) and then

Use G to select the site you want to access

➡

and then press [ (Select).

The download instructions appear.

Fee-based information sites require entry of EZ

• password or Premium EZ password. Follow the onscreen instructions to enter either password. See page 15 for details.

Follow the on-screen instructions.

➡

Download is completed.

Downloaded data is saved automatically to the Data

• Folder.

Press K (Play).

➡

The downloaded Chaku-Uta® plays.

•

This procedure is only an example for the purpose of explanation and may differ from actual procedures. Follow the instructions on the site from which you want to download the data.

Page 41

EZ News Flash/au one Gadget

Use the EZ News Flash/au one Gadget to display flash news, or activate the set gadget on the standby screen. You can check the news details and other information by selecting the ticker field. You can use the EZ News Flash and au one Gadget by making a few simple settings following the EZweb initial setup.

&;XFC4VCTDSJQUJPO3FRVJSFE&;XFC4VCTDSJQUJPO3FRVJSFE

Basic Operations

Select the ticker field.

Check the news.

Press A on the standby screen.

•

The EZ News Flash information is automatically received at no charge. Note, however, that packet communication charges may be incurred for manual updates and connecting to EZweb sites. In this case, a confirmation screen for network connection is displayed.

Select the info pane.

Select the gadget setting icon.

Check weather information and your fortune.

Set au one Gadget.

•

Packet communication charges are incurred for using au one Gadget applications that require network connection for information updates. The EZ News Flash information is updated at regular

• time intervals.

appears while receiving information.

Setting EZ News Flash

The EZ News Flash is available free of charge. You have only to make a few simple settings. After following the procedure in “ Initial Setup of E-mail and EZweb” on page 11, configure EZ News Flash settings. If you did not configure the EZ News Flash settings at the time of the initial setup, follow the steps below.

When the standby screen is displayed, select the ticker field and then press [ (OK).

Follow the on-screen instructions.

➡

The setup procedure is completed.

When the standby screen returns, a message asking

• you to wait for a while until the next update takes place appears in the ticker field.

EZ News Flash/au one Gadget

Page 42

Canceling EZ News Flash

■

When the standby screen is displayed, select the ticker field and then press [ (News).

Press J (メニュー[Menu]), use G to select

➡

サービス設定解除

EZ News Flash/au one Gadget

then press [ (選択[Select]).

Follow the on-screen instructions.

➡

Changing the Reception Settings for

■

(Service Cancellation) and

EZ News Flash Information

You can change the ring tone, vibrator and LED settings under M216 NewsFlash Receive for reception of EZ News Flash information. If you do not want the ring tone to sound when receiving EZ News Flash information, set the volume to OFF.

You can configure the au one Gadget settings from the

• gadget setting icon on the standby screen.

Page 43

EZ Navi

Using GPS (Global Positioning System), EZ Navi provides useful positional information services.

&;XFC4VCTDSJQUJPO3FRVJSFE&;XFC4VCTDSJQUJPO3FRVJSFE

When the standby screen is displayed, press M and then use F to select the EZnavi.

•

The packet communication charges for using EZ Navi services apply to the amount of data sent and received. Some services may require a separate information fee. Before using EZ Navi, you must configure initial

• settings of EZweb (page 11).

Passenger Seat Navi for People in the Passenger Seat to Check the Route

Passenger Seat Navi guides the passengers to the destination with the best route using voice and map.

Drivers are not allowed to use Passenger Seat Navi.

Security Navi to Check Where Your Kids Are

The Security Navi application is made up of the following three functions:

いつでも位置確認 (Auto Position Search [monthly charge]), エリア通知 (Area Message [no monthly charge]), 位置確認メール (Position Search Mail [no monthly charge])

Using these functions, you can check the position of an au cell phone that supports Security Navi; and automatically send a notification to the specified au cell phones when you enter (or are in) or leave (or are no longer in) the set area within a predetermined period of time.

EZ Navi

Page 44

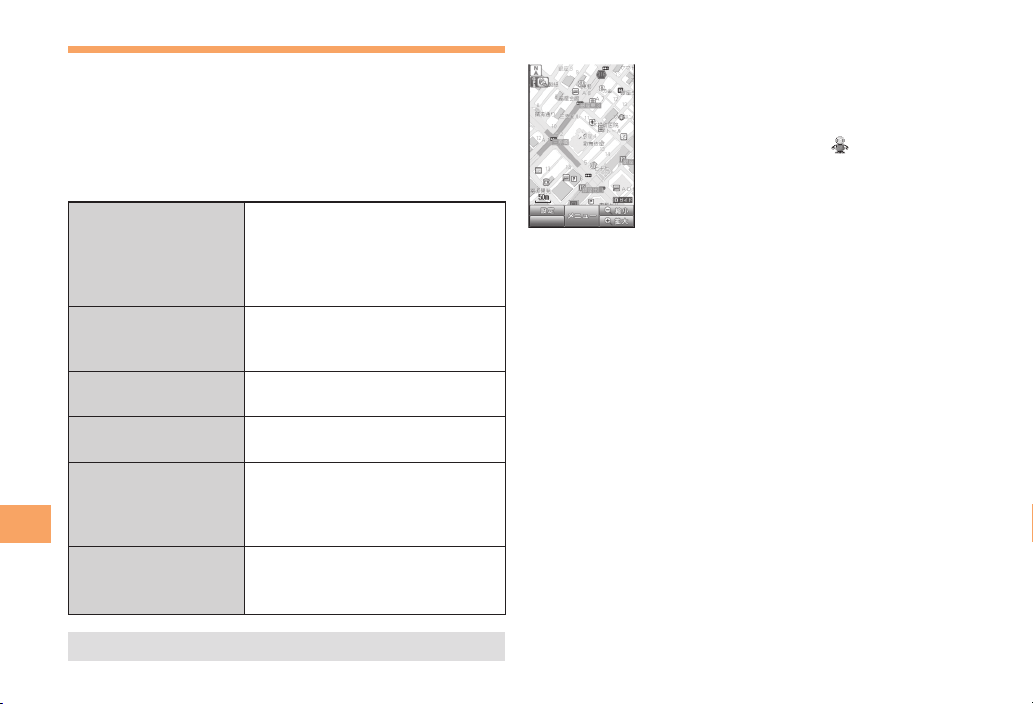

EZ Navi Walk for When You Go Out

Displays various useful menu items for when you are out. There are two menu modes: the Full Mode menu for those who want to use all the convenient functions including the latest features, and the Simple Mode menu with limited functions allowing you to use the service with simple operation. The following table describes the Full Mode menu.

Find the most preferable

トータルナビ／地図

(Total Navigation/Map)

乗換／時刻表

(Connection/Timetable)

お店／施設／イベント (Shop/Facility/Event)

EZ Navi

ドライブ／渋滞情報

(Road/Traffic Information)

オススメ便利メニュー (Useful Menu)

設定／会員登録／インフォ

(Setting/Membership Registration/Information)

combination of transportation (trains, airplanes, buses and taxis), and check out maps of your current location and places you like to go.

Search for train connections, timetables and other public transportation information.

Search for local stores, facilities or events.

Check out road traffic information in real time.

View information on services that are available on PCs, and use advanced functions of EZ Navi Walk that you can enjoy.

Configure various settings, sign up as a member or check out various useful information.

Viewing Your Current Location

■

★ represents your initial location. As you start moving, changes of your location are tracked by continuous positioning and indicated in real time by

現在地の地図

The displays your current location in real time.

3D Navi

■

Shows a 3D view at guidance points and around the destination area.

(Map of Your Current Location) option

Some of the menu options require a monthly charge.•

Page 45

Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters

Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the E05SH ( Other useful contents can be downloaded from the

ナビ

(Evacuate Navi) section of the EZweb site.

•

Some contents require a monthly charge.

•

Use the information on the screen as a reference and always follow the instructions of police, fire and other municipal authorities.

•

When using Evacuate Navi, checking your current position may take more time than usual depending on the status of the GPS satellites.

避難所マップ

[Evacuate Area Map] ).

災害時

EZ Navi

Page 46

In Case of Loss of Your E05SH

The Remote Ctrl Lock allows you to remotely activate the Auto Lock, FeliCa Lock, and Address Book Lock, preventing others from using your cell phone.

Setting Conditions for Activating the Remote Ctrl Lock

You can activate the Remote Ctrl Lock by calling your E05SH a set number of times from a registered phone

In Case of Loss of Your E05SH

number within a specified period of time.

When the standby screen is displayed, press [.

➡

Use E to select Settings and then press [ (Select).

➡

Use G to select Privacy/Rstr and then press [ (Select).

➡

Use G to select Security Lock and then press [ (Select).

➡

Use G to select Rem. Ctrl Lock and then press [ (Select).

➡

Enter Lock No., and then press [ (OK).

➡

Use G to select Valid No. and then press [ (Select).

➡

Use G to select [Register New] and then press [ (Select).

Use G to select Direct Input, press [ (OK),

➡

enter a phone number, and then press [ (OK). Press J (Comp).

➡

Use G to select Duration(min) and then press

➡

[ (Select). Enter a time and then press [ (Set).

➡

This sets the time limit for receiving the set number of

• calls after the first call is received. You can set a time from one to ten minutes.

•

Use G to select No. of Incm and then press

➡

[ (Select).

Enter a number of calls, and then press

➡

[ (Set).

This sets the number of calls to receive to activate the

• Remote Ctrl Lock. You can set a number of calls from three to ten.

•

Press J (Save).

➡

Remotely Activating the Remote Ctrl Lock on Your E05SH

Call the E05SH from the registered phone number repeatedly within the set time limit.

When the specified number of calls are received, the

• Remote Ctrl Lock is activated and a message plays telling you that the cell phone is locked.

Page 47

Activating the Remote Ctrl Lock by the Security Lock Service

Even if the Remote Ctrl Lock is not set in advance, the Remote Ctrl Lock can be activated by calling au Customer Service Center or completing the application process on au Customer Support from a PC. The Security Lock Service is available free of charge.

Calling au Customer Service Center for

■

Activating/Canceling the Remote Ctrl Lock

From an au cell phone: 113 without a prefix (toll free) From any other cell phone or fixed-line phone:

0077-7-113 (toll free)

Open 24 hours

Follow the voice guidance to complete the application process.

Activating/Canceling the Remote Ctrl

■

Lock from a PC

Login to au Customer Support (https://cs.kddi.com/) and complete the application process by following the onscreen instructions.

The Remote Ctrl Lock cannot be activated when

• the E05SH is turned off or out of the service area, or Emission OFF is set to ON.

•

You must fill out an application to use au Customer Support (the application can be filled out even after your cell phone is lost).

In Case of Loss of Your E05SH

Page 48

Troubleshooting

Symptom Possible Cause Remedy Page

Cannot turn on power.

Cannot make calls.

Troubleshooting

Cannot receive calls.

No response when a key is pressed.

A warning tone sounds and power turns off.

●Is the battery pack charged?

●Did you hold down S for at least one

second?

●Is power turned on? Hold down S for at least one second.

●Is

(out of range indicator)

displayed?

●Is your hand or a metal object covering

the area around the internal antenna?

● Did you enter the phone number

starting with the area code?

●Is (out of range indicator)

displayed?

●Is power turned on? Hold down S for at least one second.

●Is there enough power left in the battery

pack?

Charge the battery pack. 9

Hold down S for at least one second.

Move to a location where indicator) is no longer displayed, and try again. Also check the Area Setting.

Make sure your hand or any other metal object is not covering the area around the internal antenna.

When making a call to a phone other than a cell phone, you need to enter the area code even if you are inside the same area.

Move to a location where indicator) is no longer displayed. Also check the Area Setting.

Charge the battery pack. 9

(out of range

11, 21

Page 49

Symptom Possible Cause Remedy Page

Calls are answered automatically.

Cannot hear the other party.

When making a call, a beeping sound is heard from the earpiece and a connection cannot be established.

The incoming LED flashes but the ring tone does not play.

Cannot charge the battery pack.

When the camera is activated, no subject is displayed.

•

For more detailed information, visit the following au troubleshooting sites:

- From an au cell phone: M ⇒ au one Top ⇒

オンラインマニュアル

- From a PC: http://www.au.kddi.com/business/manual/e05sh/index.html

Some functions may be restricted depending on the setting of administrative restriction.

•

●Is Answer memo turned on?

●Is the earpiece volume too low?

●Is

●Is the wireless line busy or is the phone

●Is manner mode turned on?

●Is

●

●Are the plug and connector of the AC

●Is a finger or other object covering the

(out of range indicator) displayed? Or are you in a location where the signal is too weak?

you are calling on another line?

(ring tone off indicator) displayed?

Is the battery pack attached properly?

adapter inserted properly?

camera lens?

auお客さまサポート

(Online Manual) ⇒

故障診断Q&A

(Troubleshooting FAQ)

Hold down R for at least one second to turn off Answer memo.

Press A during a call to increase the earpiece volume.

Move to a location where indicator) is no longer displayed. Also check the Area Setting.

End the call and try again later. 16

Hold down # for at least one second to turn off manner mode.

Increase the volume of the incoming call ring tone.

Attach the battery pack properly. 8

Insert the plug and connector firmly. 9

Check the position of the camera lens and remove the obstacle.

(au Customer Support) ⇒

(out of range

11, 21

Troubleshooting

Page 50

Index

Accessories …………………………………………………… 6 Administrator Lock No. …………………………………… 15 Answer memo ……………………………………………… 20

Playback…………………………………………………… 20 Turning off ………………………………………………… 20 Turning on ………………………………………………… 20

au one Gadget……………………………………………… 39

Gadget setting icon ……………………………………… 39

Battery level ………………………………………………… 12 Battery pack………………………………………………6, 8, 9

Camera……………………………………………………… 33

Photo taking tips ………………………………………… 33 Taking a photo …………………………………………… 34

Cell phone etiquette…………………………………………… 2 Character input……………………………………………… 23

Character entry modes…………………………………… 23 Deleting characters ……………………………………… 24

Index

Entering characters from the same key………………… 24 Starting a new line………………………………………… 24

Charging the battery pack …………………………………… 9 Checking charges…………………………………………… 38

C-mail………………………………………………………… 32

C-mail safety block ……………………………………… 32 Creating and sending …………………………………… 32 Reading received mail…………………………………… 32

Contents………………………………………………………… 4

Disaster Message Board Service…………………………… 3 Display …………………………………………………… 7, 12 Domain ……………………………………………………… 14 Downloading Chaku-Uta

 ………………………………… 38

Earpiece volume …………………………………………… 18 E-mail………………………………………………………… 29

Creating and sending …………………………………… 29 Initial settings……………………………………………… 11 Reading received mail…………………………………… 30 Replying…………………………………………………… 30 Viewing attached images………………………………… 30

E-mail address……………………………………………… 11

Available characters……………………………………… 23 Changing ………………………………………………… 14 Entering …………………………………………………… 24

Entering pictograms………………………………………… 25 Evacuate Navi ……………………………………………… 43 EZ Navi……………………………………………………… 41 EZ Navi Walk ……………………………………………… 42 EZ News Flash……………………………………………… 39

Page 51

Canceling ………………………………………………… 40 Changing the reception settings ……………………… 40 Info pane…………………………………………………… 39 Setting……………………………………………………… 39 Ticker field………………………………………………… 39

EZ password………………………………………………… 15 EZweb ……………………………………………………… 35

Accessing sites…………………………………………… 36 au one Top………………………………………………… 36 Basic operations ………………………………………… 37 Initial settings……………………………………………… 11

Global function……………………………………………… 21

Calling Japan from Overseas…………………………… 22 Obtaining the Latest PRL (Preferred Roaming List)…21 Setting the Area…………………………………………… 21

Incoming history …………………………………………… 18 Indicators …………………………………………………… 12 Initial settings ……………………………………………… 11

E-mail ∙ EZweb …………………………………………… 11

International Call …………………………………………… 16 Internet ……………………………………………………… 35

Sites………………………………………………………36, 37

Key assignments…………………………………………… 10

Language …………………………………………………… 11 Learning the basics………………………………………… 10 Lock No.……………………………………………………… 15

Mail…………………………………………………………… 29

C-mail……………………………………………………… 32 E-mail ……………………………………………………… 29

Mail filters …………………………………………………… 31

Simple settings …………………………………………… 31

Main menu…………………………………………………… 13 Manner mode ……………………………………………… 18

Names of parts………………………………………………… 7 Notification icon …………………………………………… 11

One-ring calls ……………………………………………… 18 Outgoing history …………………………………………… 18

Pair Function………………………………………………… 28

Making a call to a pair partner ………………………… 28 Registering a pair partner ……………………………… 28 Sending mail to a pair partner…………………………… 28

Passenger Seat Navi ……………………………………… 41

Index

Page 52

Passwords…………………………………………………… 15 Phone (call) ………………………………………………… 16

184/186 …………………………………………………… 16 Answering ………………………………………………… 17 International Call ………………………………………… 16 Making……………………………………………………… 16 Returning ………………………………………………… 18

Phone book ………………………………………………… 26

Dialing……………………………………………………… 26 Editing……………………………………………………… 26 Saving……………………………………………………… 26 Saving a phone number from the incoming or outgoing history…………………………………………… 27

Phone number……………………………………………… 11 Photos ……………………………………………………… 33

Photo modes……………………………………………… 33 Taking ……………………………………………………… 34 Viewing …………………………………………………… 34

Playback

Answer memo …………………………………………… 20

Premium EZ password …………………………………… 15

Remote Ctrl Lock…………………………………………… 44 Replacing the battery pack…………………………………… 8 Ring tones

Index

Changing the type………………………………………… 19 Changing the volume …………………………………… 19

Security code ……………………………………………… 15 Security Lock Service……………………………………… 45 Security Navi………………………………………………… 41 Signal strength……………………………………………… 12 Sites ………………………………………………………… 36

Bookmarking……………………………………………… 37 Viewing from bookmarks………………………………… 37

Spam………………………………………………………… 31

Troubleshooting …………………………………………… 46 Turning on/off power ……………………………………… 11

Viewing

Photos……………………………………………………… 34

Water resistance ……………………………………………… 3

Page 53

Forinquiries,call:auC ustome rServi ceCente r

Forgeneralinformationandcharges(tollfree)

Fromﬁxed-linephones:

PRESSINGZE ROWILLCONNEC TYOUTOANOPERATOR

AFTERCALLING157ONYOURauCELLPHONE

Forloss,theftordamageandoperationinformation

(tollfr ee)

Fromﬁxed-linephones:

FromEZweb:

AccessMethod

Fromaucellphones:

areacoden otrequire d

Fromaucellphones:

areacoden otrequire d

EZauoneTopauお客さまサポート

(Inquiries)

お問い合わせ ・Menusaresubjecttochangewithoutpriornotice.

(auCustomerSupport)

Cellphonea ndPHSoperato rscollectan drecycleunuse d telephon es,batteriesa ndbatteryc hargersatsto res bearingthel ogoregardl essofbrandandm anufacture r toprotectth eenvironmenta ndreusevalua bleresource s.

なるほど!au

みんなでつくる、auQ&Aサイト

AccessMethod

Readthiscodeforaneasy accesstoなるほど!au (auUsersForum). ・Thepacketcommunication

chargeapplies.

EZauoneTopauお客さまサポート

みんなでQ&A

「なるほど!au」



(auCustomerSupport)

(auUsersForum)

Readthiscodefor aneasyaccessto Onlin eManual.

April2009Edition

Sales:KD DICORP ORATION  OKINAWACELLULARTELEPHONECOMPANY Manufa cturedby:SHARPCO RPORATIO N

•
