AU Qua phone PX Basic Manual

Download

Page 1

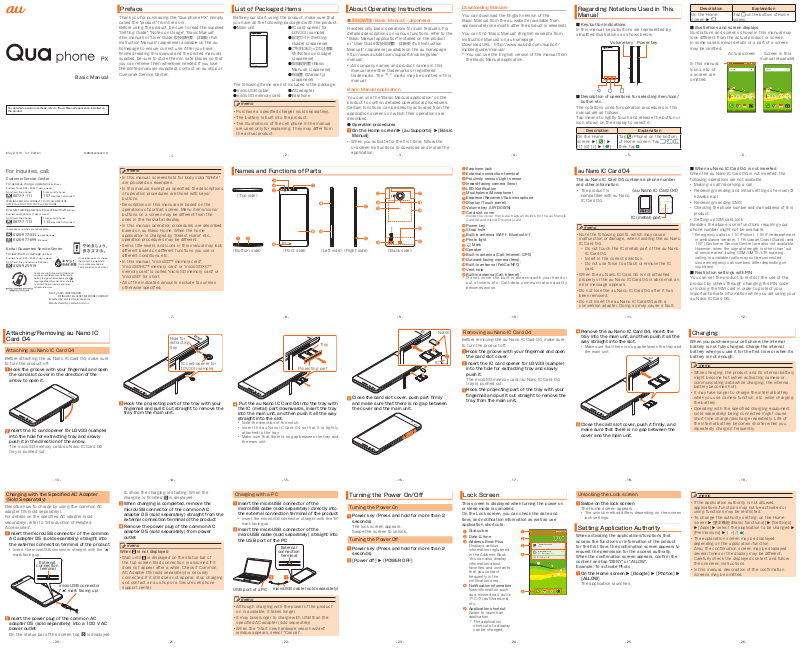

Basic Manual

memo

《Back side》

Projecting part

microUSB connector

memo

USB port of a PC

microUSB cable (sold separately)

memo

IC (metal) part

《au Nano IC Card 04》

memo

For detailed operation methods, refer to "Basic Manual" application installed on the product.

May 2016, 1st Edition

MBM65403002(1.0)

Preface

Thank you for purchasing the "Qua phone PX" (simply called the "product" from here on). Before using the product, be sure to read the supplied "Setting Guide", "Notes on Usage", "Basic Manual" (this manual) or "User Guide 取扱説明書　詳細版 (Full Instruction Manual)" (Japanese) available on the au homepage to ensure correct use. After you have nished reading this manual and the printed manuals supplied, be sure to store them in safe places so that you can retrieve them whenever needed. If you lose the printed manuals (supplied), contact an au shop or Customer Service Center.

- 1 -

List of Packaged Items

Before your start using the product, make sure that you have all the following packaged with the product.

●Main unit

The following items are not included in the package.

●microUSB cable

●microSD memory card

• Purchase a specied charger (sold separately).

• The battery is built into the product.

• The illustrations of the cell phone in the manual are used only for explaining. They may di󱐯er from the actual product.

● IC card opener for LGV33 (sample)

● 設定ガイド (Setting Guide) (Japanese)

●

ご利用にあたっての注意事項

(Notes on Usage)

(Japanese)

● 取扱説明書 (Basic Manual) (Japanese)

● 保証書 (Warranty) (Japanese)

●AC adapter

●Earphone

- 2 - - 3 - - 4 - - 5 -

About Operating Instructions

●取扱説明書 (Basic Manual) (Japanese)

Handles only basic operations for main features. For detailed descriptions on various functions, refer to the "Basic Manual application" installed on the product or "User Guide 取扱説明書　詳細版 (Full Instruction Manual)" (Japanese) available on the au homepage. http://www.au.kddi.com/support/mobile/guide/ manual/

• All company names and product names in this manual are either trademarks or registered trademarks. The manual.

Basic Manual application

You can use the "Basic Manual application" on the product to conrm detailed operational procedures. Certain functions can be directly activated from the application screens on which their operations are described.

● Operation procedures

On the Home screen u [au Supports] u [Basic

Manual]

• When you activate for the rst time, follow the onscreen instructions to download and install the application.

TM, ®

marks may be omitted in this

Downloading Manuals

You can download the English version of the Basic Manual from the au website (available from approximately one month after the product is released).

You can nd "Basic Manual" (English excerpts from Instruction Manual) on au homepage. Download URL: http://www.au.kddi.com/support/ mobile/guide/manual/ * You can use the English version of the manual from

the Basic Manual application.

Regarding Notations Used in This Manual

■■ Key/button■indications

In this manual, keys/buttons are represented by simplied illustrations as shown below.

Volume key Power key

■■ Description■of■operations■for■selecting■item/icon/ button■etc.

The notations used for operation procedures in this manual are as follows. Tap means to lightly touch and release the button or icon shown on the display to select it.

Description Explanation

(Phone) on the bottom

On the Home screen u [ [1] [4] [1] u [

Tap

]

of Home screen. Tap

]

then tap

Description Explanation

On the Home screen u "

Tap

on the bottom of Home

screen.

■■ Illustrations■and■screen■displays■

Illustrations and screens shown in this manual may look di󱐯erent from the actual product or screen. In some cases, minor details or a part of a screen may be omitted.

Actual screen Screen in this

manual (example) In this manual, icons, etc. of a screen are omitted.

- 6 -

For inquiries, call:

Customer Service Center

For general, charge, operations (toll free)

Business hours 9:00 – 20:00

From fixed-line phones:

0077-7-111

PRESSING ZERO WILL CONNECT YOU TO AN OPERATOR AFTER CALLING 157 ON YOUR au CELL PHONE

For service canceling procedure in case of loss or theft

Business hours 24-hour (7 days a week)

From fixed-line phones:

0077-7-113

In case above numbers are not available,

0120-977-033 (except Okinawa) 0120-977-699 (Okinawa)

Keitai Guarantee Service Center

For loss, theft or damage (toll free)

Business hours 9:00 – 20:00 (7 days a week)

From fixed-line phones/au cell phones,

0120-925-919

(7 days a week)

From au cell phones:

157

area code not required

From au cell phones:

113

area code not required

Cell phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing the logo regardless of brand and manufacturer to protect the environment and reuse valuable resources.

Sold by: KDDI CORPORATION,

OKINAWA CELLULAR TELEPHONE COMPANY Imported by: LG Electronics Japan Inc. Manufactured by: LG Electronics Inc.

(toll free)

It is very dangerous to charge the product in a wet state, this could cause abnormal heat generation or a burnout.

• In this manual, screenshots for body color "White" are provided as examples.

• In this manual, except as specied, the descriptions of operation procedures are those with keys/ buttons.

• Descriptions in this manual are based on the operations of portrait screen. Menu items/icons/ buttons on a screen may be di󱐯erent from the ones in the horizontal display.

• In this manual, operation procedures are described based on au Basic Home. When the home application is changed by "Select Home" etc., operation procedures may be di󱐯erent.

• Items, title levels, and icons in this manual may look di󱐯erent based on di󱐯erent functions you use or di󱐯erent conditions, etc.

• In this manual, "microSD™ memory card", "microSDHC™ memory card" or "microSDXC™ memory card" is called "microSD memory card" or "microSD" for short.

• All of the indicated amounts exclude tax unless otherwise specied.

- 7 - - 8 - - 9 - - 10 - - 11 -

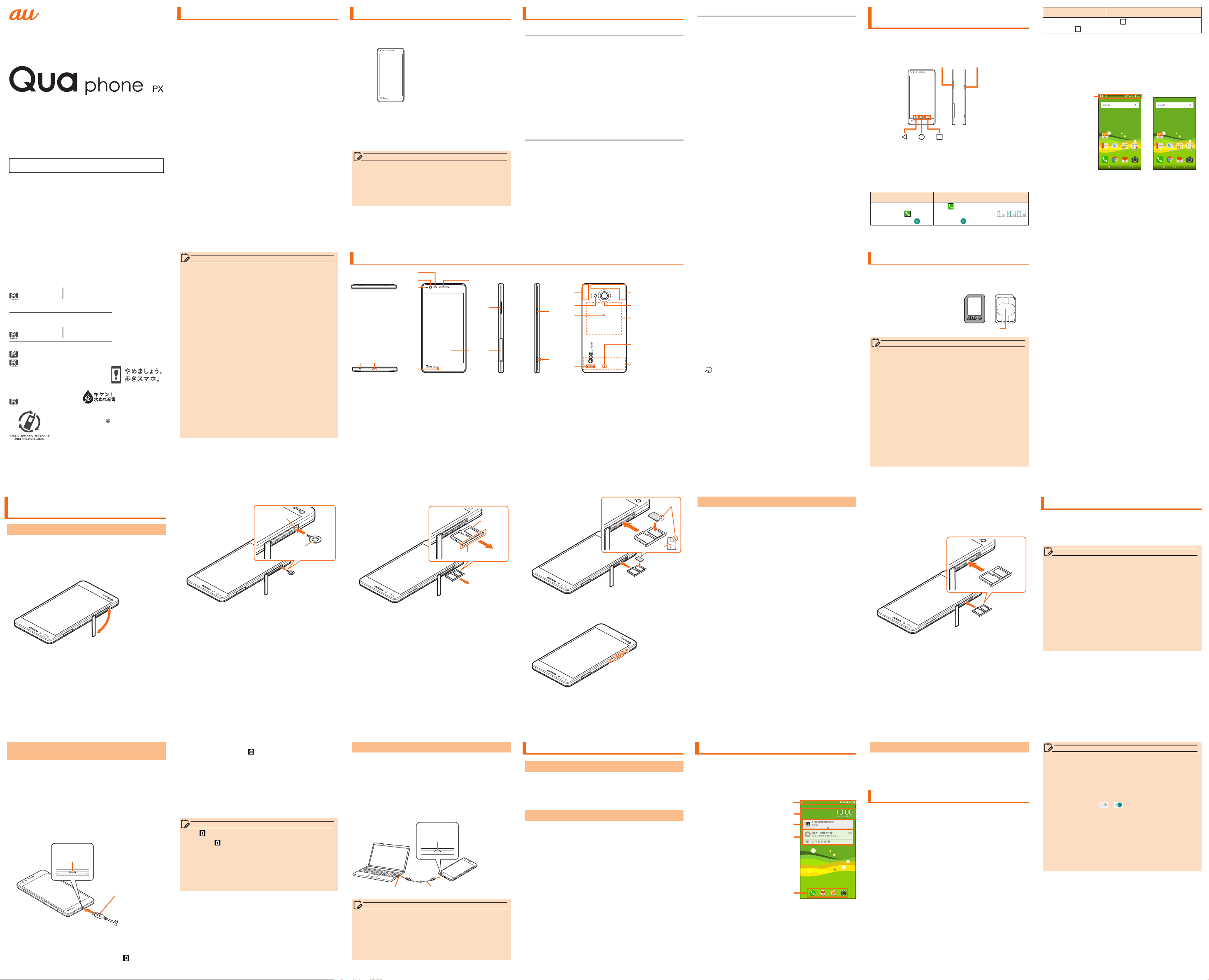

Names and Functions of Parts

c d e

《Top side》

Earphone■jack

External■connection■terminal

Proximity■sensor/Light■sensor

Inward-facing■camera■(lens)

LED■Notication

Mouthpiece■(Microphone)

Earpiece■(Receiver)/Sub■microphone

Display■(Touch■panel)

Volume■key■(UP/DOWN)

Card■slot■cover

Inside the cover, there are trays and slots for the au Nano IC Card 04 and microSD memory card.

Power■key

Strap■hole

Built-in■antenna■(Wi-Fi

Photo■light

■Mark

Speaker

Built-in■antenna■(Call,■Internet,■GPS)

Outward-facing■camera■(lens)

Built-in■antenna■(FeliCa/NFC)

Vent■hole

Built-in■antenna■(Call,■Internet)

* Do not cover the built-in antenna with your hand or

put stickers etc. Call/data communication quality becomes worse.

,■Bluetooth®)

au Nano IC Card 04

The■au■Nano■IC■Card■04■contains■a■phone■number■ and■other■information.

• The product is compatible with au Nano IC Card 04.

• Note the following points, which may cause

malfunction or damage, when handling the au Nano IC Card 04.

- Do not touch the IC (metal) part of the au Nano IC Card 04.

- Insert in the correct direction.

- Do not use force to attach or remove the IC card.

• When the au Nano IC Card 04 is not attached properly or the au Nano IC Card 04 is abnormal, an error message appears.

• Do not lose the au Nano IC Card 04 after it has been removed.

• Do not insert the au Nano IC Card 04 with a

■■ When■au■Nano■IC■Card■04■is■not■inserted

When the au Nano IC Card 04 is not inserted, the following operations are not available.

• Making a call

/receiving a call

• Receiving/sending and initial settings of e-mail (@ ezweb.ne.jp)

• Receiving/sending SMS Checking the phone number and mail address of this

• product.

• Setting up SIM card lock

Besides the above, some functions requiring your phone number might not be available.

* Emergency calls to 110 (Police), 119 (Fire department

or ambulance service), 118 (Japan Coast Guard), and 157 (Customer Service Center) are also not available. However, when the signal strength is other than "out of service area" during GSM/UMTS/LTE roaming, calling is available (calls may not be connected since emergency call numbers di󱐯er depending on countries).

■■ Restriction■settings■with■PIN

You can set the product to restrict the use of the product by others through changing the PIN code or locking the SIM card in order to protect your important private information while you are using your au Nano IC Card 04.

conversion adapter. Doing so may cause a fault.

- 12 -

Attaching/Removing au Nano IC Card 04

Attaching■au■Nano■IC■Card■04

Before attaching the au Nano IC Card 04, make sure to turn the product o󱐯.

Hook the groove with your ngernail and open

the card slot cover in the direction of the arrow to open it.

Insert the IC card opener for LGV33 (sample)

into the hole for extracting tray and slowly push it in the direction of the arrow.

The microSD memory card/au Nano IC Card 04 tray is pushed out.

- 13 - - 14 - - 15 - - 16 - - 17 - - 18 -

Hole for extracting tray

IC card opener for LGV33 (sample)

Hook the projecting part of the tray with your

ngernail and pull it out straight to remove the tray from the main unit.

Tray

Put the au Nano IC Card 04 into the tray with

the IC (metal) part downwards, insert the tray into the main unit, and then push it all the way straight into the slot.

• Note the direction of the notch.

• Insert the au Nano IC Card 04 so that it is tightly attached to the tray.

• Make sure that there is no gap between the tray and the main unit.

Close the card slot cover, push part rmly ○

and make sure that there is no gap between the cover and the main unit.

Notch

Removing■au■Nano■IC■Card■04

Before removing the au Nano IC Card 04, make sure to turn the product o󱐯.

Hook the groove with your ngernail and open

the card slot cover. Insert the IC card opener for LGV33 (sample)

into the hole for extracting tray and slowly push it.

The microSD memory card/au Nano IC Card 04 tray is pushed out.

Hook the projecting part of the tray with your

ngernail and pull it out straight to remove the tray from the main unit.

Remove the au Nano IC Card 04, insert the

tray into the main unit, and then push it all the way straight into the slot.

• Make sure that there is no gap between the tray and the main unit.

Close the card slot cover, push it rmly, and

make sure that there is no gap between the cover and the main unit.

Charging

When■you■purchase■your■cell■phone,■the■internal■ battery■is■not■fully■charged.■Charge■the■internal■ battery■when■you■use■it■for■the■rst■time■or■when■its■ battery■is■not■enough.

• While charging, the product and its internal battery might become hot (when activating camera or communicating data while charging, the internal battery becomes hot).

• It may take longer to charge the internal battery when you use camera function, etc. while charging the battery.

• Operating with the specied charging equipment (sold separately) being connected might cause short-time charge/discharge repeatedly. Life of the internal battery becomes shorter when you repeatedly charge it frequently.

- 19 -

Charging with the Specied AC Adapter (Sold Separately)

Describe how to charge by using the common AC adapter 05 (sold separately). For details on the specied AC adapter (sold separately), refer to "Introduction of Related Accessories".

Insert the microUSB connector of the common

AC adapter 05 (sold separately) straight into the external connection terminal of the product

• Insert the microUSB connector straight with the "▲" mark facing up.

External

connection

terminal

Insert the power plug of the common AC

adapter 05 (sold separately) into a 100 V AC

("▲" mark facing up)

power outlet

On the status bar of the screen top, is displayed

- 20 - - 21 - - 22 - - 23 - - 24 - - 25 -

to show the charging is starting. When the charging is nished,

When charging is completed, remove the

is displayed.

microUSB connector of the common AC adapter 05 (sold separately) straight from the external connection terminal of the product

Remove the power plug of the common AC

adapter 05 (sold separately) from power outlet

When■ ■is■not■displayed

• Wait until

is displayed on the status bar of the top screen. Bad connection is assumed if it does not appear after a while. Check if Common AC Adapter 05 (sold separately) is securely connected. If it still does not appear, stop charging and contact an au shop or a Secure cell phone support center.

Charging■with■a■PC

Insert the microUSB connector of the

microUSB cable (sold separately) directly into the external connection terminal of the product

• Insert the microUSB connector straight with the "B" mark facing up.

Insert the microUSB connector of the

microUSB cable (sold separately) straight into the USB port of the PC

External

connection

terminal

• Although charging with the power of the product on is available, it takes longer.

• It may take longer to charge with USB than the specied AC adapter (sold separately).

• When the "Start new hardware search wizard" window appears, select "Cancel".

Turning the Power On/O󱐯

Turning■the■Power■On

Power key (Press and hold for more than 2

seconds)

The lock screen appears. Swipe the screen to unlock.

Turning■the■Power■O󱐯

Power key (Press and hold for more than 2

seconds) [Power o󱐯] u [POWER OFF]

Lock Screen

This■screen■is■displayed■when■turning■the■power■on■ or■sleep■mode■is■canceled. On■the■Lock■screen,■you■can■check■the■date■and■ time,■and■notication■information■as■well■as■use■ application■shortcuts.

Status■bar

Date■&■time

Address■Book■Plus

Displays various information registered in the Address Book. You can also display information about favorites and contacts that you contact frequently in the notication area.

Notication■information

New informaiton such as a missed call, auシェアリンク (au ShareLink) etc.

Application■shortcut

Swipe to launch an application.

* The application

shortcuts to display can be changed.

Unlocking■the■Lock■screen

Swipe on the lock screen

The Home screen appears.

• The unlock method differs depending on the screen lock settings.

Setting Application Authority

When■activating■the■applications/functions■that■ access■the■functions■or■information■of■the■product■ for■the■rst■time,■the■conrmation■screen■appears■to■ request■the■permission■for■the■access■authority. When■the■conrmation■screen■appears,■conrm■the■ content■and■tap■"DENY"■or■"ALLOW". Example:■To■activate■Photo

On the Home screen u [Google] u [Photos] u

[ALLOW]

The application launches.

• If the application authority is not allowed, applications/functions may not be activated or using functions may be restricted.

• To change the authority setting, on the Home screen u [基本機能 (Basic functions)] u [Settings]

[Apps] u select the application to be changed u

[Permissions] u [

]/[ ].

• The explanation screen may be displayed depending on the application/function. Also, the conrmation screen may be displayed several times or the display may be di󱐯erent. Carefully check the displayed content and follow the onscreen instructions.

• In this manual, description of the conrmation screens may be omitted.

- 26 -

Page 2

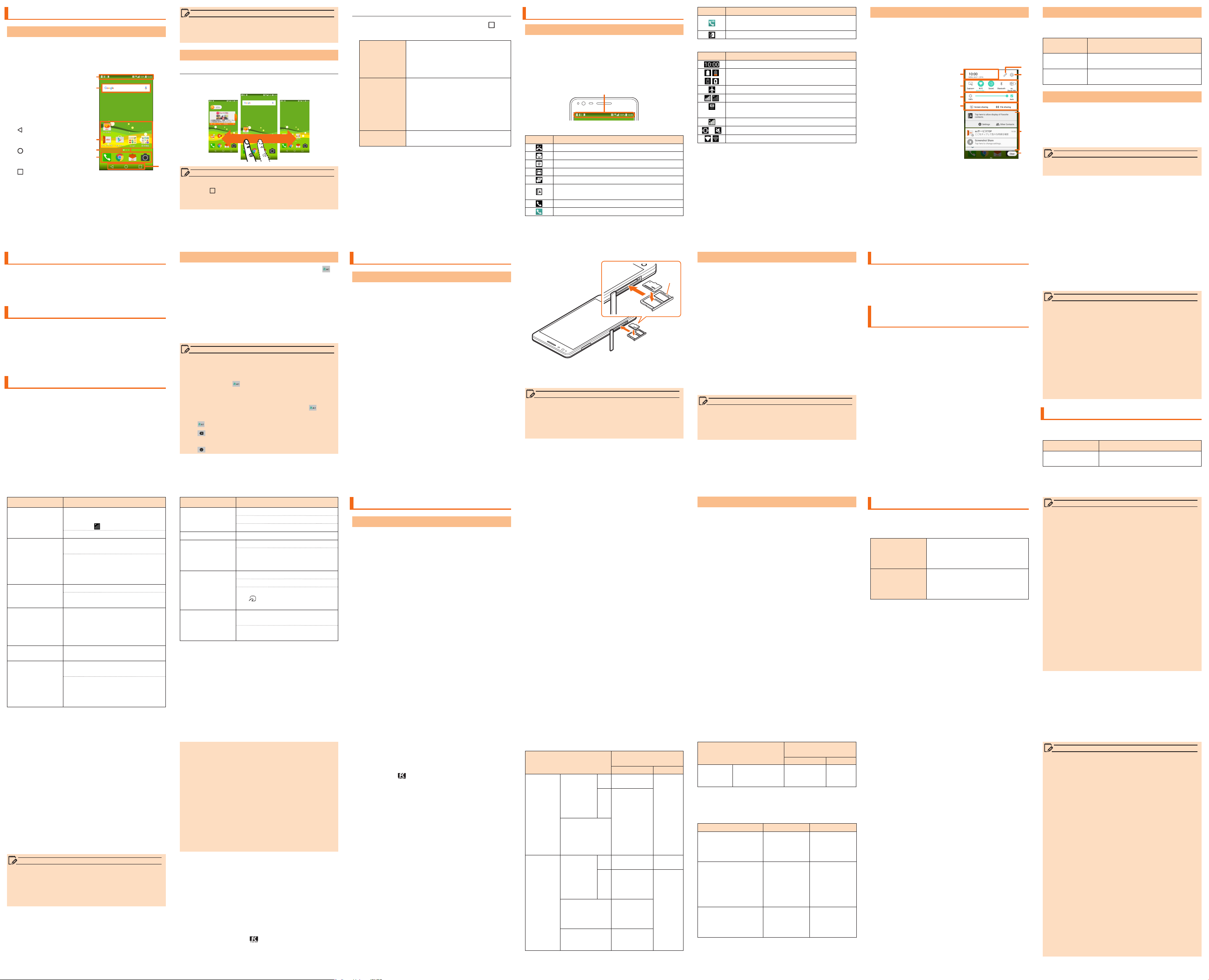

Using the Home Screen

memo

Viewing■Home■Screen

At the time of purchase, the setting for the Home screen is set to "au Basic Home" where you can use frequently used applications with a smartphone in a single operation. The Home screen can be switched.

Status■bar

Quick■search■box■

(widget) Application/Folder

Indicator

Quick■launch■area

Home■touch■button

■

Back■button

■

Returns to the previous screen.

■

Home■button

Displays Home screen.

■ ■

Task■button

Check running applications list.

Touch and hold to make settings such as wallpaper, widgets, etc.

* On the Home screen u [基本機能 (Basic functions)]

[Settings] u [Display] u [Home touch buttons] to change the types, location, or color of the button.

- 27 - - 28 - - 29 - - 30 - - 31 - - 32 -

• When you tap an icon to use its functions, communication fee may be charged depending on the function.

Using■the■Home■Screen

Switching the Home Screen

The Home screen consists of multiple screens. Slide/ick right or left to switch them.

• Thumbnails can be displayed by touching and holding "

" on the Home screen to perform operations such as switching the Home screen, etc.

Setting Wallpaper/Widget

On the Home screen u Touch and hold "

Tap an item shown below

WALLPAPERS Select from the wallpaper gallery,

images, etc.

[Pick■image]/[Wallpaper■gallery]■u■ select■a■wallpaper■u■[SET■WALL■ PAPER]

WIDGETS You can add widgets such as au

widgets, calendar, etc. You can add shortcut of settings menu also.

Touch■and■hold■widgets/ shortcuts■u■drug■to■the■area■to■ add■widgets/shortcuts

SETTINGS Set the grid number, loop scroll,

etc.

■■ Adding■a■folder

On the Home screen u touch and hold the

application to be stored into a folder Drag onto another application and release your

nger.

Application is stored into the folder.

Checking The Product State

Understanding■Icons

Notication icons such as a missed call, new mail, or other operations in use are displayed on the left side of status bar. On the right side, status icons showing the state of the product are displayed. Also slide the status bar downwards to display the notication panel.

Status bar

Icon

Displayed when high quality sound call with au VoLTE compatible phone Enable Screenshot setting

■■ Major■status■icons

Icon Overview

Time Battery level

Airplane mode Signal reception (signal reception area) 4G (LTE/WiMAX 2+)* data communication

status Roaming

■■ Major■notication■icons

Icon

Missed call New mail message (E-mail) New mail message (PC mail) New Gmail message (Gmail)

Overview

* In Japan, you can use "LTE" and "WiMAX 2+" networks.

Vibrate only/Silent

Wi-Fi® signal strength

"4G" is displayed for both networks. According to the signal congestion etc., the product is connected to the less congested network.

New SMS message Display notication for Address Book Plus setting Receiving a call

Overview

Notication■Panel

When a notication icon appears on the status bar, slide the status bar down to open the notication panel to check the notication or launch the application.

Slide the status bar downwards

Date■&■time

Quick■Settings

Brightness

Screen■sharing/File■

sharing

Share images, voices, etc. with another device by using the Miracast function or Bluetooth Low Energy function.

Notication■panel■

editing Settings

Notication■

information Clear

Clear notication information and notication icons.

c d

LED■Notication

LED notication informs battery level while charging, missed calls, etc. by lighting on or ashing.

LED color and

Description

movement

Red Indicates that it is receiving a call,

Red blinking Indicates missed call or notication

charging, or an alarm is sounding.

message.

Checking■Your■Phone■Number

On the Home screen u [基本機能 (Basic

functions)] u [Settings] u [About phone] u

[Status]

Status screen appears and your phone number is shown in My phone number eld.

• For details on making/receiving a call, refer to "Setting Guide".

Calling

- 33 -

Setting Silent mode

Set■the■Silent■mode■(Sound■prole)■not■to■ inconvenience■people■around■you■in■a■public■place.

Open the notication panel u [Sound]/

[Vibrate]/[Silent]

Setting Airplane mode

When■Airplane■mode■is■set,■wireless■functions■are■ disabled■(telephone,■packet■transmission,■wireless■ LAN■(Wi-Fi

),■Bluetooth®).

Power key (Press and hold for more than 2 seconds)

［Turn on Airplane mode］

u [TURN

ON]

Entering Text

Use■the■software■keyboard■to■enter■characters. To■display■the■software■keyboard,■tap■a■character■ input■box■in■the■character■input■screen■when■adding■ contacts,■creating■a■message,■etc.

- 34 - - 35 - - 36 - - 37 - - 38 - - 39 -

Switching■the■Software■Keyboard

Character input screen u Touch and hold [

[Keyboard type] u [10-key keyboard]/

[QWERTY keyboard]/[50-key keyboard]

• On the 10-key keyboard, tap the same key repeatedly or flick up/down/left/right to enter the desired character.

• On the QWERTY keyboard or 50-key keyboard, tap the key of your desired character to enter. Romaji input is applied for "Hiragana-Kanji" mode of the QWERTY keyboard.

• "Japanese keyboard" is initially installed as an input software.

• To switch input mode, character input screen u touch and hold [

] u [Input mode] to select the

input mode.

• To set ringtone and vibration for key operations, character input screen u touch and hold [

] u

[Keyboard settings] u [Key operation].

to switch Input Mode.

• Tap

to delete the selected character or

• Tap characters on the left side of cursor.

to enter pict/symbol/smiley.

• Tap

Using a microSD Memory Card

]

Attaching■microSD■Memory■Card

Before attaching a microSD memory card, make sure to turn the product o󱐯.

Open the card slot cover

Insert the IC card opener for LGV33 (sample)

into the hole for extracting tray and slowly push it.

The microSD memory card/au Nano IC Card 04 tray is pushed out.

Hook the projecting part of the tray with your

ngernail and pull it out straight to remove the tray from the main unit.

Put the microSD memory card into the tray

with the logo upwards, insert the tray into the main unit, and then push it all the way straight into the slot.

• Insert the microSD memory card so that it is tightly attached to the tray.

• Make sure that there is no gap between the tray and the main unit.

Tray

Close the card slot cover, push it rmly, and

make sure that there is no gap between the cover and the main unit.

• Make sure that the front and back/top and bottom of the microSD memory card are facing correctly. Trying to force a wrongly oriented card into the slot could make it impossible to remove the card and result in damage.

Removing■a■microSD■Memory■Card

Before removing the microSD memory card, make sure to turn the product o󱐯.

Open the card slot cover

Insert the IC card opener for LGV33 (sample)

into the hole for extracting tray and slowly push it.

The microSD memory card/au Nano IC Card 04 tray is pushed out.

Hook the projecting part of the tray with your

ngernail and pull it out straight to remove the tray from the main unit.

Remove the microSD memory card

Close the card slot cover, push it rmly, and

make sure that there is no gap between the cover and the main unit.

• Do not touch connector part of microSD memory card.

• microSD memory card might become warm after using a long time. It is not malfunction.

Viewing the Setting Menu

Dispaly■the■setting■menu■of■the■product■such■as■ communication■settings,■device■settings,■etc.

On the Home screen u [基本機能 (Basic

functions)] u [Settings]

Introduction of Related Accessories

■■ au■Carrying■Case■G■Black■(0106FCA)■(sold■ separately)

■■ AC■Adapter■(sold■separately)

• Common AC adapter 03 (0301PQA)

• Common AC adapter 03 Navy (0301PBA)

• Common AC adapter 03 Green (0301PGA)

• Common AC adapter 03 Pink (0301PPA)

• Common AC adapter 03 Blue (0301PLA)

• Common AC adapter 05 (0501PWA)

• AC Adapter JUPITRIS (White) (L02P001W)

• AC Adapter JUPITRIS (Red) (L02P001R)

• AC Adapter JUPITRIS (Blue) (L02P001L)

• AC Adapter JUPITRIS (Pink) (L02P001P)

• AC Adapter JUPITRIS (Champagne Gold)

(L02P001N)

■■ Common■DC■adapter■03■(0301PEA)■(sold■ separately)

■■ microUSB■Cable■(sold■separately)

• microUSB cable 01 (0301HVA)

• microUSB cable 01 Navy (0301HBA)

• microUSB cable 01 Green (0301HGA)

• microUSB cable 01 Pink (0301HPA)

• microUSB cable 01 Blue (0301HLA)

■■ Portable■Charger■02■(0301PFA)■(sold■separately)

• Portable charger 02 (sold separately) might not fully charge the product.

• For the latest information on accessories, visit the au homepage (http://www.au.kddi.com/) or contact the Customer Service Center.

• This product does not support ASYNC/Fax transmission.

• You can purchase accessories on this page from au online shop. Some accessories may not be purchased due to the availability. http://auonlineshop.kddi.com/

Troubleshooting

Before■you■assume■that■this■product■is■ malfunctioning,■check■the■following:

Symptom Check item

Cannot charge the battery.

Is the AC adapter securely plugged into an outlet?

- 40 -

Symptom Check item

Battery usage time is short.

Do you use this product more in the places without signal reception

Is the internal battery end-of-life? Cannot operate touch panel as intended.

Are you operating with gloved

hands?

Make sure you are not operating

with your nger tip or there is no

foreign object in the middle of

the panel. Cannot operate the keys/touch panel. Screen response is slow when you tap on the screen/press the keys. "No SIM card" is displayed. Cannot make calls.

Is the screen lock set?

Turn o󱐯 the power and turn it on

again.

Screen response may slow down

when a large amount of data is

stored in the product or being

transmitted between the product

and a microSD memory card.

Is your au Nano IC Card 04

inserted?

Is your au Nano IC Card 04

inserted?

Did you enter the wrong phone

number?

(Did you enter the phone number

starting with an area code?)

- 41 - - 42 - - 43 - - 44 - - 45 - - 46 -

(out of service)?

Symptom Check item

Cannot receive calls.

Is reception good enough? Are you out of service area?

Is Call forwarding service set? Display is dark. Is "Brightness" set to dark? Cannot hear the other party.

Is the earpiece volume too low?

Do you bring earpiece close to

your ear? Put the earpiece close

to your ear hold. Cannot use NFC/ Osaifu-Keitai

Has the battery run out?

Is "NFC/Osaifu-Keitai lock" set?

Do you hold this product so that

mark area is placed over

the

the reader? Cannot recognize a microSD memory card.

Is a microSD memory card

inserted properly?

Is the microSD memory card

unmounted?

If the symptom does not improve after checking the above items, contact the below au website or au customer support. http://www.au.kddi.com/support/mobile/trouble/repair

Updating Software

Notes■on■Software■Update

• You are charged for data communication when connecting to the Internet from the product by using packet communication.

• When software update is necessary, you will be informed on au homepage, etc.

an au shop or Customer Service Center (

toll-free). In addition, users of this product will receive a notice from au, when software update is necessary to improve the functionality of the product.

• Make sure to charge your phone before software update. If battery is not enough, software update may fail.

• Check out the signal reception. Software update may fail if you are at a place with bad signal reception.

• Data registered on the product (Contacts, mail, still images, music, etc.) and setting information will not be changed even after software is updated. However, note that data might not be protected depending on the state of the product (malfunction, damage, getting wet, etc.). You are recommended to back up your data before updating software.

For details, contact

157/call

• If software update has failed or stopped, update the software again.

• Update is unavailable during international roaming.

Do■not■conduct■the■following■operations■during■ software■update.

• Do not move this product during software update.

The■following■operations■are■not■available■during■ software■update

• Operations are not available during software update. Calls to 110 (Police), 119 (Fire department or ambulance service), 118 (Japan Coast Guard) and 157 (Customer Service Center) are also not available. Also, alarm, etc. cannot be used.

When■software■update■is■not■available,■etc.

• If you fail to update software, it may become impossible to operate the product. In that case, bring the product to an au shop or PiPit (not accepted by some shops).

Downloading■and■Updating■Software

On the Home screen u [基本機能 (Basic

functions)] u [Settings] u [About phone] u [Update Center] u [Software Update]

[Check now for update]

Check if there is new software. Software update screen is displayed when software update s available.

Select a communication method to download

Select a communication method to download software.

[Download]

A new software download starts.

[Install now]

Software update starts. The product will restart a couple of times during the software update.

[OK]

After-sales Service

■■ When■asking■for■repair

For repair, contact a Secure cell phone support center.

During■the■ warranty■period

Outside■the■ warranty■period

Repairs will be done based on the terms of services of the free-ofcharge repair warranty described on the warranty card. We shall repair the product for a charge as requested by the customer if repair renders it usable.

• Before handing in the product for repair, make a backup of the contents of memory since they may disappear during repair. Note that the Company shall not be liable for any damages and loss of income should the contents of memory be altered or lost.

• Recycled parts that meet the Company's quality standards are sometimes used for repair.

• Collected au cell phones by Replacement cell phone delivery service which you used before are recycled to cell phones for replacement after repairs. Also replaced parts by au after-sales service are collected and recycled by KDDI. They are not returned to customers.

• For the products that are processed, modied, analyzed (including altering the software, analyzing (including rooting), reverse-engineering, engineering, decompiling, and disassembling) or repaired by repair o󱐰ces other than the ones the company specied, they are not covered by the warranty or repair may be refused.

■■ Performance■parts■for■repair

The Company retains performance parts for repair of the Qua phone PX main unit and its peripherals for 4 years after discontinuation of production. "Performance parts for repair" refers to parts required for maintaining the functions of the product.

- 47 -

■■ Warranty■card

At the store of purchase, thoroughly check and read the name of the retailer, date of purchase and other necessary details lled in on the warranty card, and be sure to keep it in a safe place.

■■ Keitai■Guarantee■Service■Plus■LTE

An after-sales service membership program on a monthly basis called "Keitai Guarantee Service Plus LTE" (monthly fee: 380 yen, tax excluded) is available for using your au cell phone for a long time without worries. This service expands coverage for many troubles including malfunction, theft and loss. For details of this service, refer to au homepage or contact a Secure cell phone support center.

• You can apply for membership only at the time of purchasing your au cell phone.

• Once you cancel the membership, you cannot reapply for it until you purchase an au cell phone next time.

• Note that when changing the model or purchasing an extra cell phone, this service only covers the most recently purchased au cell phone.

• When an au cell phone is handed over to you or someone else, the Keitai Guarantee Service Plus LTE membership is also handed over to the successor of the cell phone.

• When you get a new au cell phone by changing the model or purchasing an extra cell phone, the "Keitai Guarantee Service Plus"/"Keitai Guarantee Service Plus LTE" membership for the old au cell phone is automatically canceled.

• Service contents are subject to change without notice.

■■ au■Nano■IC■Card■04

The au Nano IC Card 04 is lent to you by au. In case of loss or damage, the card will be replaced at your expense. When a malfunction is suspected, or in case of theft or loss, contact an au shop or PiPit.

■■ After-sales■Service

If you are unsure about anything regarding after-sales service, contact the following service contact.

Customer■Service■Center■(for■service■canceling■ procedure■in■case■of■loss■or■theft)

From a land-line phone, 0077-7-113 (toll free) From an au mobile phone, 113 without area code (toll free)

- 49 - - 50 - - 51 - - 52 - - 53 -- 48 -

Business hours 24-hour (7 days a week)

Keitai■Guarantee■Service■Plus■(for■loss,■theft,■ damage)

From a land-line phone/From an au cell phone,

0120-925-919 (toll free)

Business hours 9:00 ～ 20:00 (7 days a week)

Online■Replacement■Desk■(24■hours■a■day■over■the■ Internet)

* Only available from PCs or smartphones https://cs.kddi.com/support/n_login.html

• The Application for the Internet acceptance, if "damage", "wet", "theft" and "loss" are eligible. In the case of spontaneous failure (not the cause damage, such as water wet, but does not power on, the screen does not function or other), it will be accepted by phone for interview is required.

• To apply for the Internet, you need the e-mail address.

■■ au■after-sales■service■information

Service Contents

Replacement cell phone delivery service

Holding over and repair

Spontaneous failure

Partial damage, water stained, irreparable damage, theft, or loss Spontaneous failure

Partial damage Customer

Water stained, irreparable damage

Keitai Guarantee Service

1st year 2nd

"Replacement year or

delivery service"

later

(Member) Refer

of the service

1st year 2nd year

year warranty) or later

Plus LTE

Member

Free N/A

mobile phone

to the table

charge

Free Free

Free (three-

charge

Upper limit:

5,000 yen

Customer

charge

10,000 yen

Nonmember

Actual

cost

Keitai Guarantee Service

Service Contents

Holding over and repair

Theft, loss N/A N/A

Plus LTE

Member

*Charge amounts are all tax excluded.

"Replacement mobile phone delivery service" (Member) Service charge

Applied condition 1st 2nd

Normal 5,000 yen/

Long

Benet 3,000 yen

4,000 yen/ Long

Benet 2,000 yen

4,500 yen/ Long

Benet 2,500 yen

Applied both "WEB 割引 (Discount for web application)" and "代用機なし割引 (Discount for nonuse of substitute)" Applied only "代用機なし割引 (Discount for nonuse of substitute)"

8,000 yen/ Long Benet 6,000 yen 7,000 yen/ Long Benet 5,000 yen

7,500 yen/ Long Benet 5,500 yen

* Charge amounts are all tax excluded

Nonmember

(model

change)

*1 This discount applies to customers who have used

au for 3 years (25 months) or more, and all the lines within that customer's Family Discount. For customers using a data communication device or tablet, this discount applies to customers who are subscribed to a set discount (WIN Single Set Discount or Smartphone Set Discount) and have been under the contract of the line eligible for the set discount for 3 years or more.

*2 WEB割引 (Discount for web application): If you apply

"Replacement mobile phone delivery service" from the au homepage, 500 yen will be discounted from service charge. "No substitution discount" is applied automatically as the substitution is not available for "WEB discount".

*3 代用機なし割引 (Discount for nonuse of substitute):

If you do not use the substitution when using "Replacement mobile phone delivery service", 500 yen will be discounted from service charge. For details, refer to au homepage.

Replacement■cell■phone■delivery■service

• When you have trouble with your au cell phone, a replacement cell phone (same model and same

) is delivered to the specied place by calling

color to. Return your damaged cell phone within 14 days after the replacement cell phone is delivered.

* If the provision of same model and same color is

difficult, specified model and colored replacement mobile device will be o󱐯ered.

• Available up to twice in a year from the day you use this service as a start day. If you do not use this service in the past year for the subscription to this service, it will be 1st time and if you use, it will be the 2nd.

* For details, refer to au homepage.

Holding■over■and■repair

• Damages and malfunctions intentionally caused by the customer as well as those due to modication (e.g. disassembly, change of parts, painting, etc.) by the customer are not covered by this service.

• You cannot receive a refund for replacement of the outer casing due to stains, scratches, paint removal, etc. on the outer casing.

• When the service is used and au IC Card is reissued due to theft, loss, etc., 1,900 yen is required for reissuing au IC Card.

- 54 -

Page 3

SIM Unlock

memo

The■product■supports■SIM■unlock.■By■unlocking■SIM■ lock,■you■can■use■non-au-SIM■cards.

• SIM unlock service is provided at the au homepage and au shops.

• When using non-au SIM card, some services, functions, etc. may be unavailable. The Company is not liable for any operations.

• To operate SIM unlock, on the Home screen u [基本機能 (Basic functions)] u [Settings] u [About phone] u [SIM card]

• For details, refer to au homepage.

https://cs.kddi.com/support/simcard/

- 55 - - 56 - - 57 - - 58 - - 59 -

Main Specications

Display Approx. 5.2 inches, Approx.

Weight Approx. 127g (including

Size■(W■x■H■x■D)

CPU MSM8937 (1.4 GHz ×

Internal■memory (Storage/RAM) Continuous■ calling■time

In■Japan Approx. 1,300 minutes Overseas■

(GSM) Continuous■ stand-by■ time

In■Japan Approx. 500 hours

Overseas■

(GSM) Continuous■tethering■ time Number■of■concurrent■ connections■with■ tethering

16.77 million colors, IPS liquid crystal 1920 × 1080 (FHD)

internal battery) Approx. 73 × 148 × 7.5 mm (Thickest part: 7.9 mm)

4 , 1. 1 G H z × 4 ) Storage: 16GB, RAM: 2GB

Approx. 960 minutes

Approx. 540 hours

Approx. 640 minutes

13 devices (Wi-Fi tethering; 8, Bluetooth

tethering; 4 and USB tethering; 1)

Charging■ time

AC■ adapter

Approx. 90 minutes (When using Common AC adapter 05 (sold separately))

DC■ adapter

Approx. 480 minutes (When using Common DC adapter 03 (sold separately))

* Continuous standby times are measurements in a

static state.

■■ Wireless■LAN■(Wi-Fi®)

Compatible■ Networks

IEEE802.11a/b/g/n/accompliant

Frequency■bands 2.4 GHz/5 GHz

■■ Bluetooth

Compatible■ Networks Output Bluetooth

Bluetooth® standard Ver.4.2 BLE

standard Power

Class1

Communication■

range

Within 10 m with no obstacles in the range

Supported■ Bluetooth■prole

GATT, ANP, FMP, TIP, PXP,

Android Bluetooth Low Energy Improvements, SPP (Serial Port Prole), apt-X, SCMS-T, Bluetooth SSP, HFP (HandsFree Prole), A2DP (Advanced Audio Distribution Prole), AVRCP (Audio/Video Remote Control Prole), HDP (Health Device Prole), HID (Human Interface Device Prole), HSP (Headset Prole), OPP (Object Push Prole), PAN (Personal Area Networking Prole), PAN NAP, PAN U, PBAP (Phone Book Access Prole)

, MAP (Message Access Prole), ScPP (Scan Parameters Prole), HOGP (HID Over GATT Prole) up Networking Prole)

, DUN (Dial-

Frequency■bands 2.4 GHz band

*1 Changes according to objects obstructing devices

and signal reception.

*2 Specications provided in Bluetooth

for making communication between Bluetooth compatible devices in accordance with their intended use.

*3 May not be displayed correctly on the receiver's

device depending on the content of the address book.

standards

*4 A prole compatible with Bluetooth

Ver.4.0.

*5 The prole supports part of car navigation systems.

Refer to the au homepage for use.

standard

• The continuous talk time and continuous standby time may drop to less than half depending on the battery charging status, usage environment such as temperature, reception condition at the location where the product is used, and the function settings.

■■ Outward-facing■camera

Image■pickup■

CMOS

device Number■of■

Approx. 16.1 million pixels

e󱐯ective■pixels

■■ Inward-facing■camera

Image■pickup■

CMOS

device Number■of■

Approx. 8 million pixels

e󱐯ective■pixels
