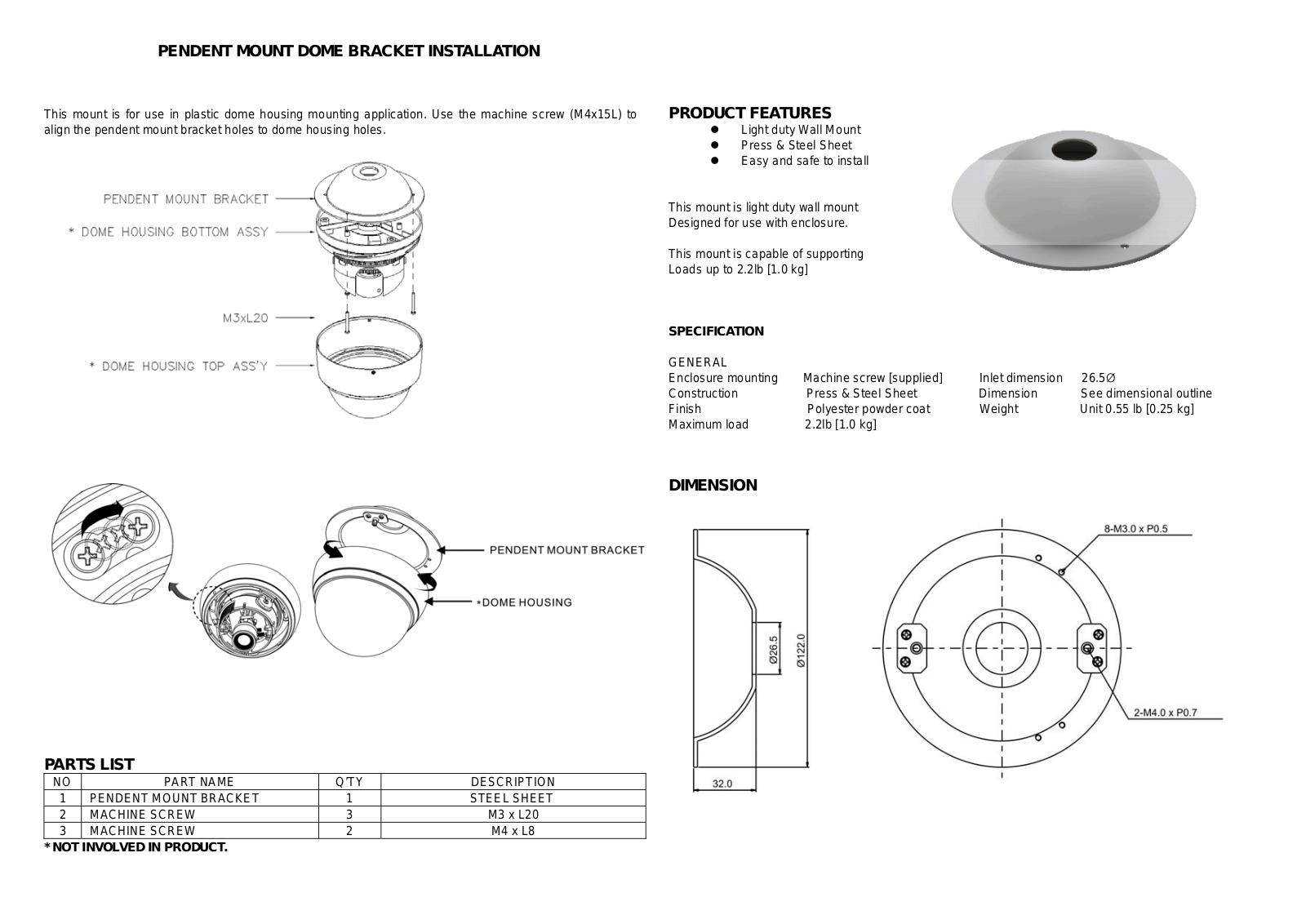

PENDENT MOUNT DOME BRACKET INSTALLATION

This mount is for use in plastic dome housing mounting application. Use the machine screw (M4x15L) to
align the pendent mount bracket holes to dome housing holes.

PARTS LIST

NO PART NAME Q’TY DESCRIPTION

1 PENDENT MOUNT BRACKET 1 STEEL SHEET
2 MACHINE SCREW 3 M3 x L20
3 MACHINE SCREW 2 M4 x L8

* NOT INVOLVED IN PRODUCT.

PRODUCT FEATURES

z Light duty Wall Mount
z Press & Steel Sheet
z Easy and safe to install

This mount is light duty wall mount
Designed for use with enclosure.

This mount is capable of supporting
Loads up to 2.2lb [1.0 kg]

SPECIFICATION

GENERAL
Enclosure mounting Machine screw [supplied] Inlet dimension 26.5Ø
Construction Press & Steel Sheet Dimension See dimensional outline
Finish Polyester powder coat Weight Unit 0.55 lb [0.25 kg]
Maximum load 2.2lb [1.0 kg]

DIMENSION
