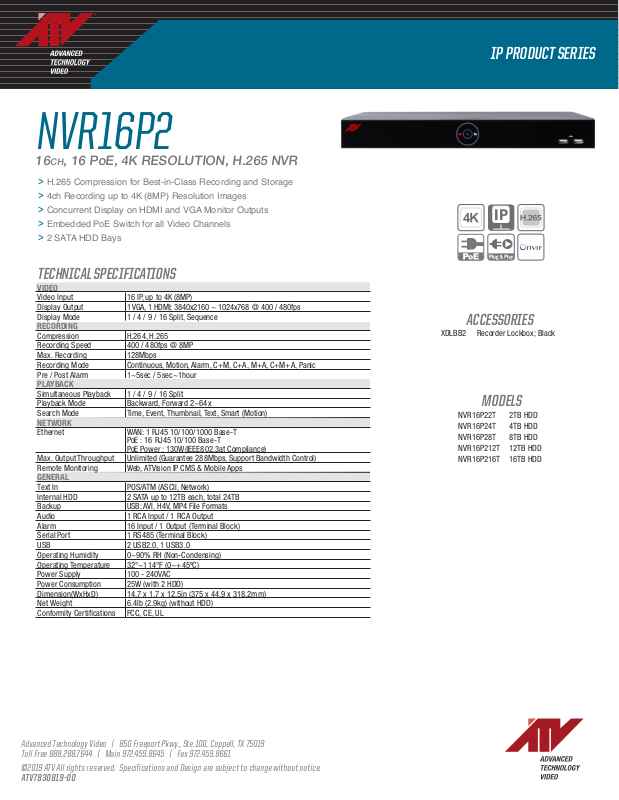

ATV NVR16P2, NVR16P212T, NVR16P216T, NVR16P22T, NVR16P24T Specsheet
...
NVR16P2
16ch, 16 PoE, 4K RESOLUTION, H.265 NVR
H.265 Compression for Best-in-Class Recording and Storage
>
4ch Recording up to 4K (8MP) Resolution Images
>
Concurrent Display on HDMI and VGA Monitor Outputs
>
Embedded PoE Switch for all Video Channels
>
2 SATA HDD Bays
>
TECHNICAL SPECIFICATIONS
VIDEO
Video Input 16 IP, up to 4K (8MP)
Display Output 1 VGA, 1 HDMI; 3840x2160 ~ 1024x768 @ 400 / 480fps
Display Mode 1 / 4 / 9 / 16 Split, Sequence
RECORDING
Compression
Recording Speed 400 / 480fps @ 8MP
Max. Recording 128Mbps
Recording Mode Continuous, Motion, Alarm, C+M, C+A, M+A, C+M+A, Panic
Pre / Post Alarm 1~5sec / 5sec~1hour
PLAYBACK
Simultaneous Playback 1 / 4 / 9 / 16 Split
Playback Mode Backward, Forward 2~64x
Search Mode
NETWORK
Ethernet WAN: 1 RJ45 10/100/1000 Base-T
Max. Output Throughput Unlimited (Guarantee 288Mbps, Support Bandwidth Control)
Remote Monitoring Web, ATVision IP CMS & Mobile Apps
GENERAL
Text In POS/ATM (ASCII, Network)
Internal HDD 2 SATA up to 12TB each, total 24TB
Backup USB: AVI, H4V, MP4 File Formats
Audio 1 RCA Input / 1 RCA Output
Alarm 16 Input / 1 Output (Terminal Block)
Serial Port 1 RS485 (Terminal Block)
USB 2 USB2.0, 1 USB3.0
Operating Humidity 0~90% RH (Non-Condensing)
Operating Temperature 32°~114°F (0~+45ºC)
Power Supply 100 - 240VAC
Power Consumption 25W (with 2 HDD)
Dimension(WxHxD) 14.7 x 1.7 x 12.5in (375 x 44.9 x 318.2mm)
Net Weight 6.4lb (2.9kg) (without HDD)
Conformity Certifications FCC, CE, UL
H.264, H.265
Time, Event, Thumbnail, Text, Smart (Motion)
PoE : 16 RJ45 10/100 Base-T
PoE Power : 130W(IEEE802.3at Compliance)
IP PRODUCT SERIES
IP
ACCESSORIES
XDLBB2 Recorder Lockbox; Black
MODELS
NVR16P22T 2TB HDD
NVR16P24T 4TB HDD
NVR16P28T 8TB HDD
NVR16P212T 12TB HDD
NVR16P216T 16TB HDD
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2019 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7830819-00
