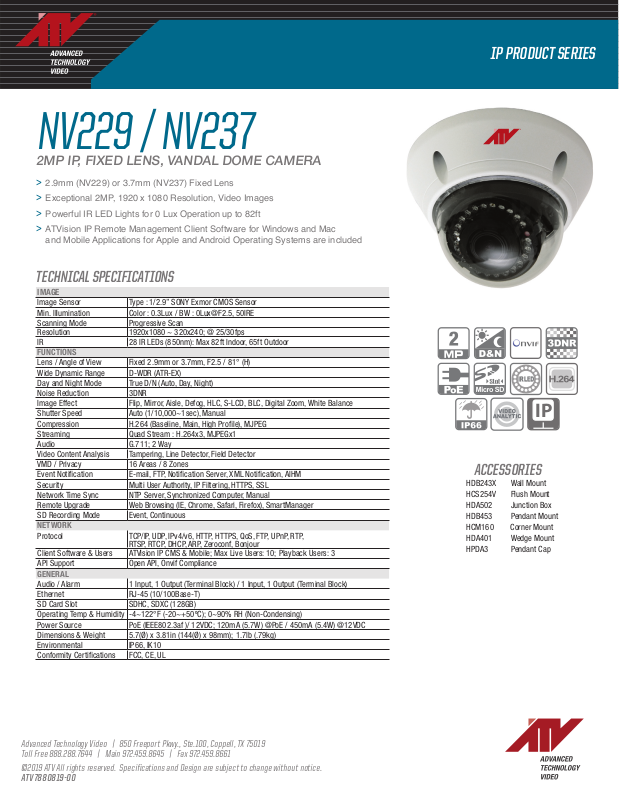

ATV NV237 Specsheet
NV229 / NV237
2MP IP, FIXED LENS, VANDAL DOME CAMERA
2.9mm (NV229) or 3.7mm (NV237) Fixed Lens
>
Exceptional 2MP, 1920 x 1080 Resolution, Video Images
>
Powerful IR LED Lights for 0 Lux Operation up to 82ft
>
ATVision IP Remote Management Client Software for Windows and Mac
>
and Mobile Applications for Apple and Android Operating Systems are included
TECHNICAL SPECIFICATIONS
Image Sensor Type : 1/2.9” SONY Exmor CMOS Sensor
Min. Illumination Color : 0.3Lux / BW : 0Lux@F2.5, 50IRE
Scanning Mode Progressive Scan
Resolution 1920x1080 ~ 320x240; @ 25/30fps
IR 28 IR LEDs (850nm): Max 82ft Indoor, 65ft Outdoor
FUNCTIONS
Lens / Angle of View Fixed 2.9mm or 3.7mm, F2.5 / 81° (H)
Wide Dynamic Range D-WDR (ATR-EX)
Day and Night Mode True D/N (Auto, Day, Night)
Noise Reduction 3DNR
Image Effect Flip, Mirror, Aisle, Defog, HLC, S-LCD, BLC, Digital Zoom, White Balance
Shutter Speed Auto (1/10,000~1sec), Manual
Compression H.264 (Baseline, Main, High Profile), MJPEG
Streaming Quad Stream : H.264x3, MJPEGx1
Audio G.711; 2 Way
Video Content Analysis Tampering, Line Detector, Field Detector
VMD / Privacy 16 Areas / 8 Zones
Event Notification E-mail, FTP, Notification Server, XML Notification, AIHM
Security Multi User Authority, IP Filtering, HTTPS, SSL
Network Time Sync NTP Server, Synchronized Computer, Manual
Remote Upgrade Web Browsing (IE, Chrome, Safari, Firefox), SmartManager
SD Recording Mode Event, Continuous
NETWORK
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP,
Client Software & Users ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3
API Support Open API, Onvif Compliance
GENERAL
Audio / Alarm 1 Input, 1 Output (Terminal Block) / 1 Input, 1 Output (Terminal Block)
Ethernet RJ-45 (10/100Base-T)
SD Card Slot SDHC, SDXC (128GB)
Operating Temp & Humidity -4~122°F (-20~+50ºC); 0~90% RH (Non-Condensing)
Power Source PoE (IEEE802.3af )/ 12VDC; 120mA (5.7W) @PoE / 450mA (5.4W) @12VDC
Dimensions & Weight 5.7(Ø) x 3.81in (144(Ø) x 98mm); 1.7lb (.79kg)
Environmental IP66, IK10
Conformity Certifications FCC, CE, UL
RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
IP PRODUCT SERIES
IP
ACCESSORIES
HDB243X Wall Mount
HCS254V Flush Mount
HDA502 Junction Box
HDB453 Pendant Mount
HCM160 Corner Mount
HDA401 Wedge Mount
HPDA3 Pendant Cap
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2019 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7880819-00
