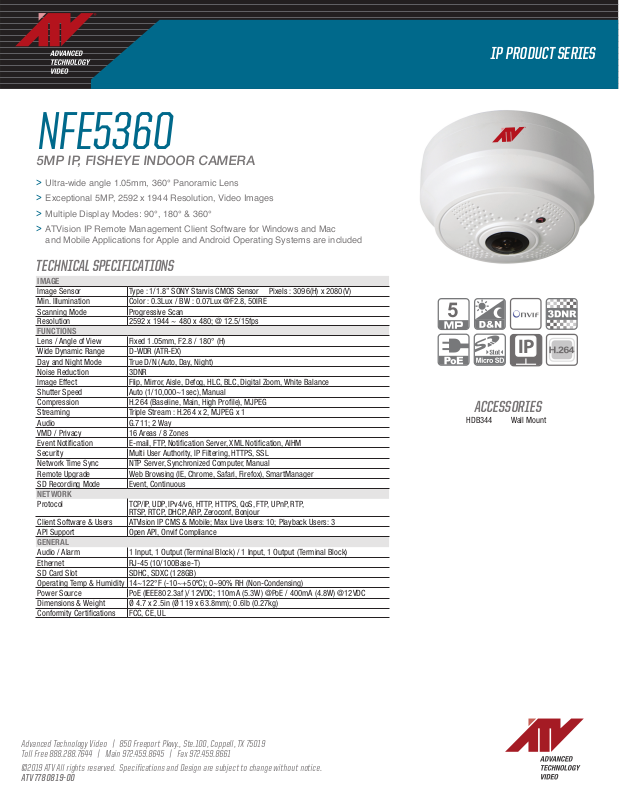

ATV NFE5360 Specsheet
NFE5360
5MP IP, FISHEYE INDOOR CAMERA
Ultra-wide angle 1.05mm, 360° Panoramic Lens
>
Exceptional 5MP, 2592 x 1944 Resolution, Video Images
>
Multiple Display Modes: 90°, 180° & 360°
>
ATVision IP Remote Management Client Software for Windows and Mac
>
and Mobile Applications for Apple and Android Operating Systems are included
TECHNICAL SPECIFICATIONS
Image Sensor Type : 1/1.8” SONY Starvis CMOS Sensor Pixels : 3096(H) x 2080(V)
Min. Illumination Color : 0.3Lux / BW : 0.07Lux @F2.8, 50IRE
Scanning Mode Progressive Scan
Resolution
FUNCTIONS
Lens / Angle of View Fixed 1.05mm, F2.8 / 180° (H)
Wide Dynamic Range D-WDR (ATR-EX)
Day and Night Mode True D/N (Auto, Day, Night)
Noise Reduction
Image Effect Flip, Mirror, Aisle, Defog, HLC, BLC, Digital Zoom, White Balance
Shutter Speed Auto (1/10,000~1sec), Manual
Compression H.264 (Baseline, Main, High Profile), MJPEG
Streaming Triple Stream : H.264 x 2, MJPEG x 1
Audio G.711; 2 Way
VMD / Privacy 16 Areas / 8 Zones
Event Notification E-mail, FTP, Notification Server, XML Notification, AIHM
Security Multi User Authority, IP Filtering, HTTPS, SSL
Network Time Sync NTP Server, Synchronized Computer, Manual
Remote Upgrade Web Browsing (IE, Chrome, Safari, Firefox), SmartManager
SD Recording Mode Event, Continuous
NETWORK
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP,
Client Software & Users ATVision IP CMS & Mobile; Max Live Users: 10; Playback Users: 3
API Support Open API, Onvif Compliance
GENERAL
Audio / Alarm 1 Input, 1 Output (Terminal Block) / 1 Input, 1 Output (Terminal Block)
Ethernet RJ-45 (10/100Base-T)
SD Card Slot SDHC, SDXC (128GB)
Operating Temp & Humidity 14~122°F (-10~+50ºC); 0~90% RH (Non-Condensing)
Power Source PoE (IEEE802.3af )/ 12VDC; 110mA (5.3W) @PoE / 400mA (4.8W) @12VDC
Dimensions & Weight Ø 4.7 x 2.5in (Ø 119 x 63.8mm); 0.6lb (0.27kg)
Conformity Certifications FCC, CE, UL
2592 x 1944 ~ 480 x 480; @ 12.5/15fps
3DNR
RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
IP PRODUCT SERIES
5
ACCESSORIES
HDB344 Wall Mount
IP
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2019 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7780819-00
