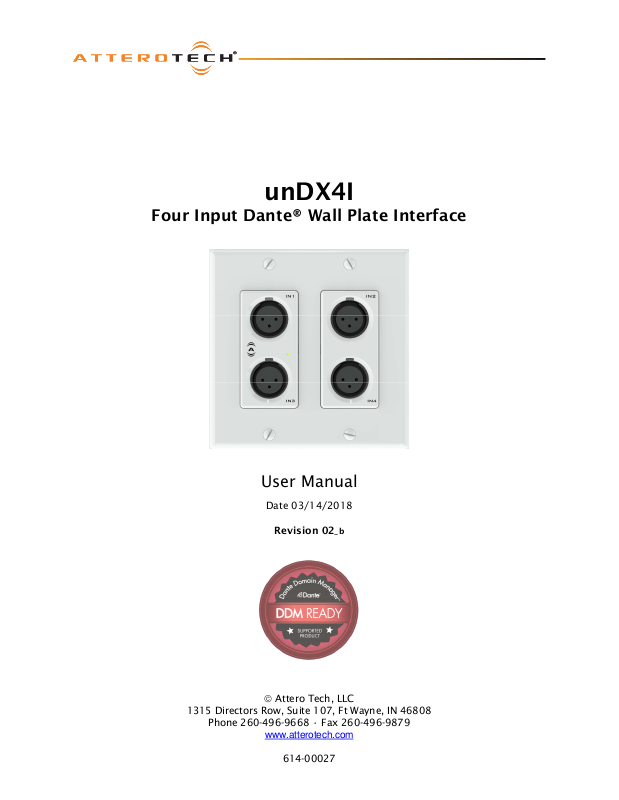

Page 1
unDX4I
Four Input Dante® Wall Plate Interface
User Manual
Date 03/14/2018
Revision 02
Attero Tech, LLC
1315 Directors Row, Suite 107, Ft Wayne, IN 46808
Phone 260-496-9668 • Fax 260-496-9879
www.atterotech.com
_b
614-00027
Page 2
unDX4I
User Manual
IMPORTANT SAFETY INSTRUCTIONS
The symbols below are internationally accepted symbols that warn of potential hazards with electrical products.
This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the
enclosure -- voltage that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the
accompanying literature. Please read the manual.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Protect the power cord (Ethernet cable) from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by Attero Tech
11. Unplug this apparatus during lightning storms.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
13. If rack mounting, provide adequate ventilation. Equipment may be located above or below this apparatus but
some equipment (like large power amplifiers) may cause an unacceptable amount of hum, or may generate too
much heat and degrade the performance of this apparatus.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
Attero Tech LLC 2017 Page 1 614-00027 Rev 02_a
Page 3
unDX4I
User Manual
LIMITED FIVE YEAR WARRANTY
The equipment is warranted for five years from date of purchase from Attero Tech, LLC against defects in materials or
workmanship. This warranty does not cover equipment which has been abused or damaged by careless handling or
shipping. This warranty does not apply to used or demonstrator equipment. Should any defect develop, Attero Tech, LLC
will, at our option, repair or replace any defective parts without charge for either parts or labor. If Attero Tech, LLC cannot
correct the defect in the equipment, it will be replaced at no charge with a similar new item. Attero Tech, LLC will pay for
the cost of returning your equipment to you. This warranty applies only to items returned to Attero Tech, LLC, shipping
costs prepaid, within five years from the date of purchase. This Limited Warranty is governed by the laws of the State of
Indiana. It states the entire liability of Attero Tech, LLC and the entire remedy of the purchaser for any breach of warranty
as outlined above. NEITHER ATTERO TECH, LLC NOR ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE
EQUIPMENT SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THIS EQUIPMENT EVEN IF ATTERO TECH, LLC HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF ATTERO TECH, LLC EXCEED THE PURCHASE PRICE OF ANY
DEFECTIVE EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which vary from state to state.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules and EN55022. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will be required to correct the interference at
their own expense
This symbol means the product must not be discarded as household waste, and should be delivered to
an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural
resources, human health and the environment. For more information on disposal and recycling of this
product, contact your local municipality, disposal service, or the business where you bought this product.
Attero Tech LLC 2017 Page 2 614-00027 Rev 02_a
Page 4
unDX4I
User Manual
Contents
1 – Overview..................................................................................................................................................................................................................... 4
1.1 – What’s in the Box ..................................................................................................................................................... 4
1.2 – Optional Extras ......................................................................................................................................................... 4
2 – Device Installation ................................................................................................................................................................................................. 5
2.1 – Mounting .................................................................................................................................................................. 6
2.2 – Error Reporting ......................................................................................................................................................... 7
2.3 – Hardware Connections ............................................................................................................................................. 7
2.3.1 – Input from an Unbalanced Source ................................................................................................................... 7
2.3.2 – Input from a Balanced Source .......................................................................................................................... 7
2.4 – Factory Reset ............................................................................................................................................................ 8
3 – Device Configuration ........................................................................................................................................................................................... 9
3.1 – IP Address Setup ...................................................................................................................................................... 9
3.2 – Software Control .................................................................................................................................................... 10
3.3 – 3rd Party Control .................................................................................................................................................... 10
3.4 – Command Interface Type ....................................................................................................................................... 10
3.5 – Using the Command Interface ............................................................................................................................... 10
4 – ARCHITECTS & ENGINEERING SPECIFICATION ...................................................................................................................................... 11
4.1 – unDX4I A&E Specifications ..................................................................................................................................... 11
4.2 – Device Specifications .............................................................................................................................................. 12
APPENDIX A – Reference Documents ...............................................................................................................................................................A-1
Attero Tech LLC 2017 Page 3 614-00027 Rev 02_a
Page 5
unDX4I
User Manual
1 – Overview
The unDX4I Dante Audio interface is a cost effective multi-IO wall box and is designed to fit into most dual gang US
junction boxes. Its size and I/O density make it easy to put Dante connectivity wherever it’s needed – near the audio
source or destination – thereby eliminating costly and interference prone analog wiring.

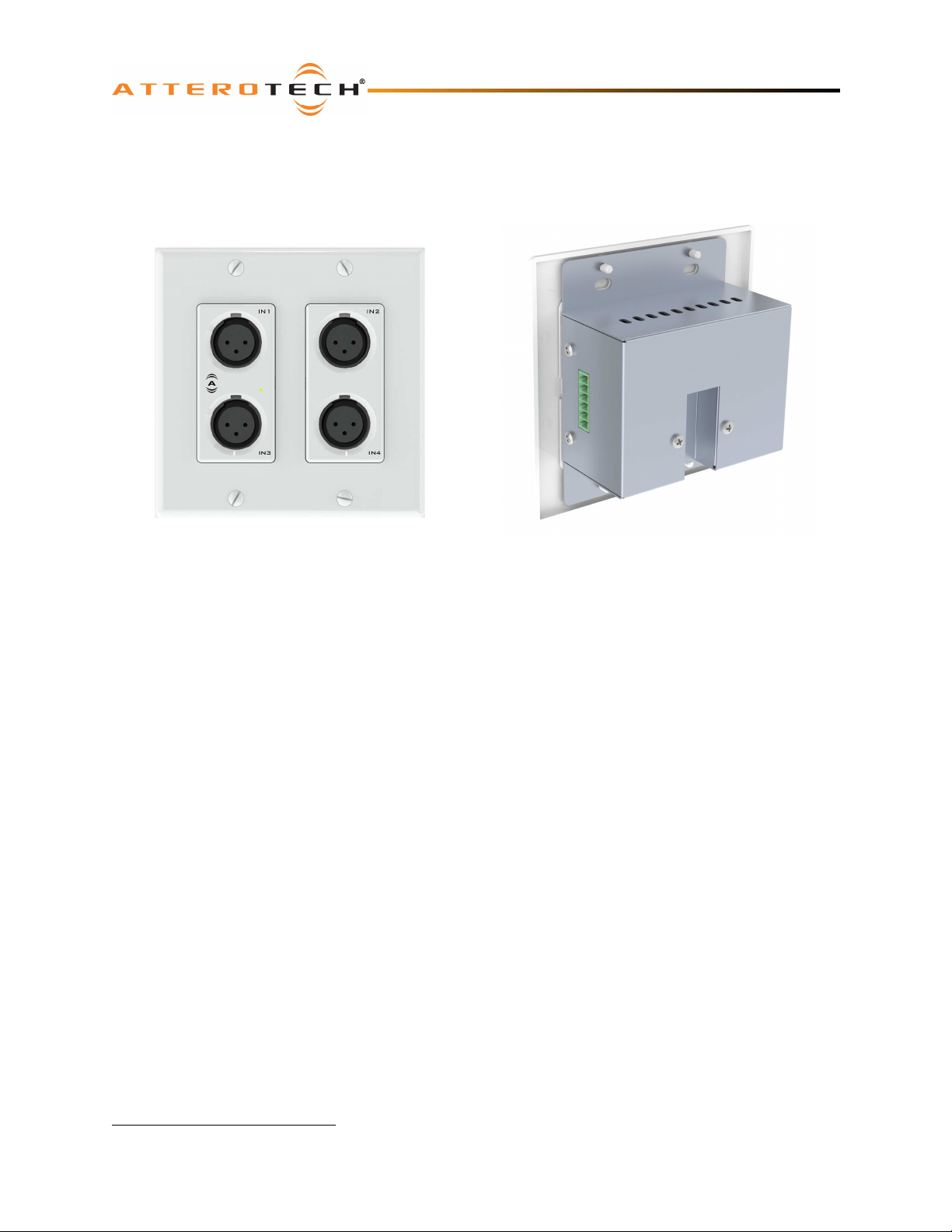

Figure 1 - unDX4I Front View
The unDX4I features four balanced mic/line XLR inputs with each input also supporting software controlled 48V phantom
power. Additionally, the unDX4I is equipped with two balanced line outputs available on in-wall Phoenix connector for
connection to an adjacently installed passive connector wall plate (sold separately). The outputs feature software
controlled volume control on each channel. All inputs and outputs can be used simultaneously and all audio channels are
available separately on the Dante network.
Connection to the Dante network is provided by a single Ethernet RJ45 connector on the back of the unit. The unDX4I is
PoE-enabled which allows the unDX4I to be powered over its network cable from a suitable PoE source (IEEE 802.3af)
eliminating the need for a local power supply. This is particularly useful as the unDX4I can then be mounted in remote
location where access to a mains outlet would be limited or indeed, non-existent.
Audinate’s Dante Controller or other 3rd party manufacturer's Dante routing software can be used to control the audio
routing configuration of the device while the Attero Tech unIFY Control Panel application or supporting DSP partner
software can be used to configure the device-specific features.
The unDX4I also supports control by third party systems allowing external configuration of its settings such as phantom
power and input gain in real time. This device is also compatible with Dante Domain Manager. Further information on 3rd
party control can be found later in this document in section 3.3.
Figure 2 - unDX4I Rear View
1.1 – What’s in the Box
The device comes supplied with the following:
o (1) unDX4I
o (1) 2-gang Decora cover plate cover w/mounting screws
1.2 – Optional Extras
The following are available as options for the unDX4I and that may be ordered separately:
o unXP2O - Passive dual XLR male single gang Decora wall plate (Comes with triple gang decora cover plate).
Dante is a trademark of Audinate Pty. Ltd.
Attero Tech LLC 2017 Page 4 614-00027 Rev 02_a
Page 6
unDX4I
User Manual

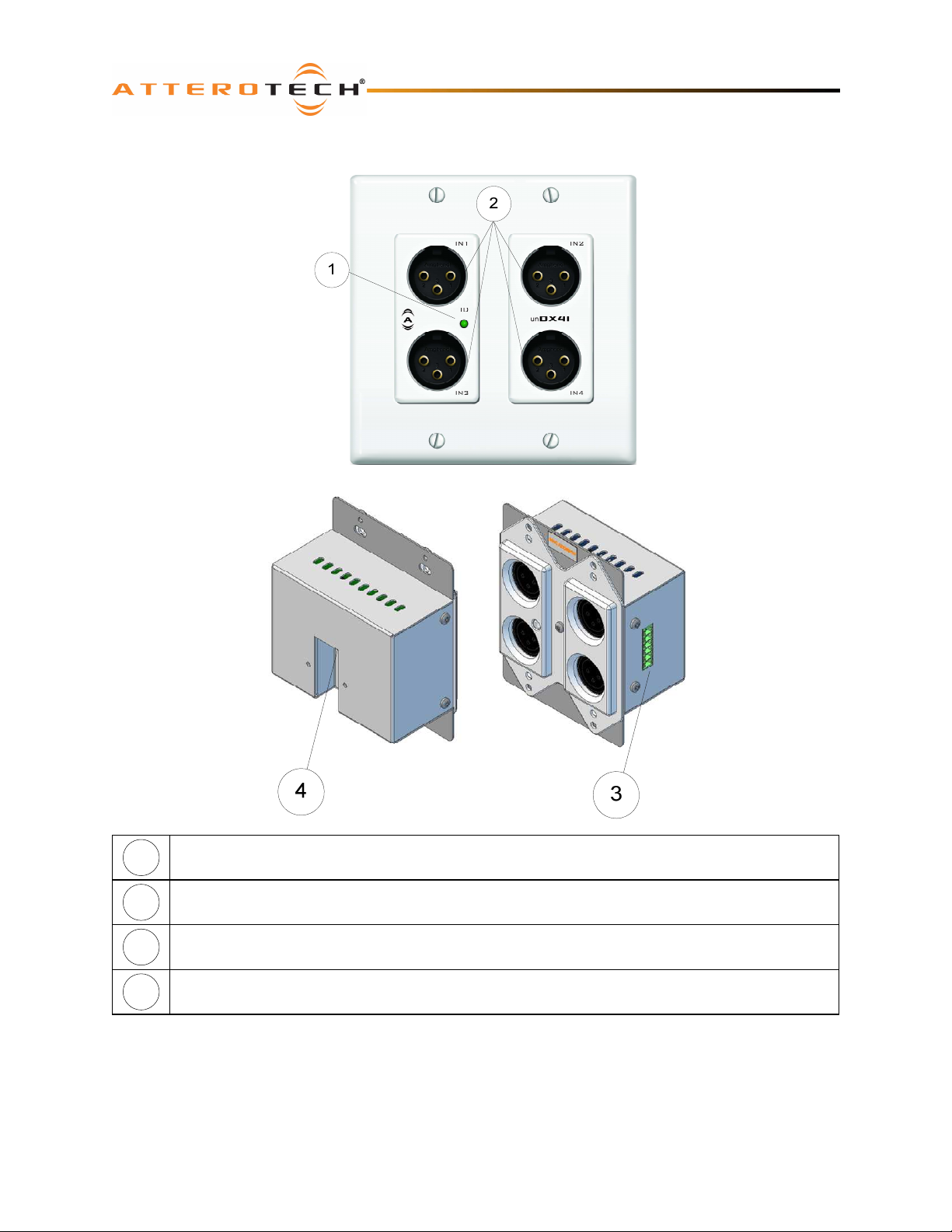

2 – Device Installation
Power/ ID LED
1
4 x Balanced audio inputs
2
2 x Balanced audio outputs
3
RJ-45 connector
4
*Note: The unDX4I has a label on the front of the metal housing at the top that shows the he devices MAC address. This
is important for initial device identification as the last six digits make up part of the devices default network name that
is shown when the device is detected by Dante Controller. The full MAC address is also given on the back of the unit.
Attero Tech LLC 2017 Page 5 614-00027 Rev 02_a
Page 7
unDX4I
User Manual
2.1 – Mounting
It is recommended that the unit be secured to a flat surface with a screw through each mounting flange. Dimensions for
mounting are show in the Figure 3 below. Use a No. 6 screw of a type and size that is applicable to the surface to which
the device will be attached.

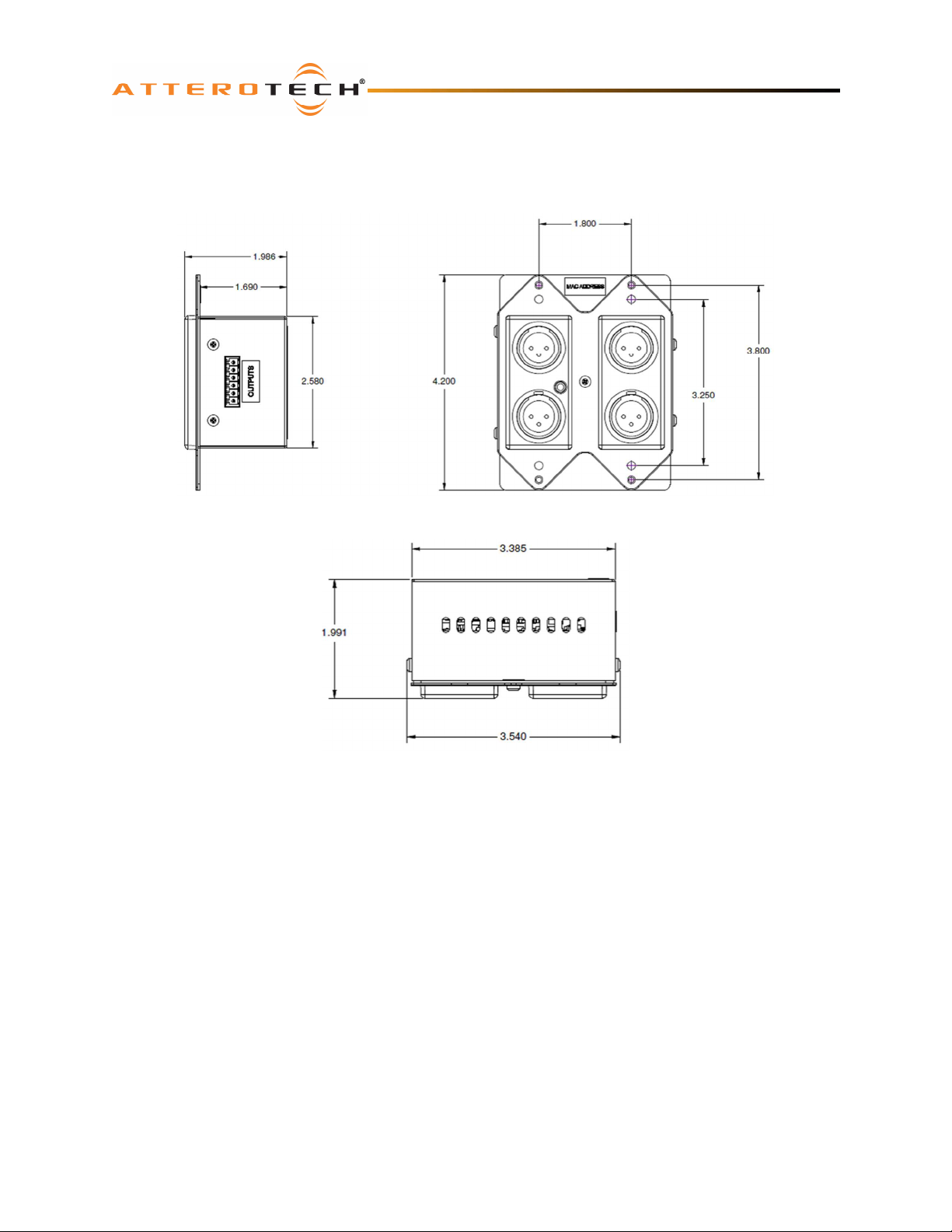

Figure 3 - Mounting Information
o Attach the PoE + Data Dante I/F port to a spare PoE-enabled port on a PoE switch using a CAT-5 cable. If a
midspan injector is being used, connect a spare input port to the Dante network switch using a CAT-5 cable,
and then connect the corresponding output port to the PoE + Data Dante I/F of the unDX4I.
o Attach any audio sources that will be used to the inputs. The inputs are balanced so be sure to check what
output type the source to be connected uses in order to find how to connect it correctly (see Hardware
Connections section).
o If the end user should need to change audio sources while the device is running, phantom power should be
disabled before disconnecting and reconnecting the audio cabling. Ideally, the corresponding input should be
muted as well in order to prevent undesirable and potentially damaging audio pops if the channel is currently
active in the system.
*Note: All Attero Tech products are tested using UTP cabling and it is recommended that UTP cabling be used when
installing them. STP cabling can be used for installation though care must be taken not introduce grounding issues into
the system by doing so.
If all steps are performed correctly, the power LED on the front should be lit. There may also be some activity on the
Dante I/F LED indicators. With no Dante network, both LEDs will remain off. If an active connection is made both LEDs will
come on and if there is network activity, the yellow LED will then flash.
Attero Tech LLC 2017 Page 6 614-00027 Rev 02_a
Page 8
unDX4I
User Manual
2.2 – Error Reporting
The unDX4I is equipped with error reporting features. Upon power up, the front panel LED will briefly light red and then
change to green if the device boots successfully. If the LED remains on solid red, this indicates a device failure.
2.3 – Hardware Connections
The unDX4I and unDX4I-L accept unbalanced or balanced audio from source devices. Refer to the following diagrams and
instructions for connecting different types of audio devices. Professional grade audio cabling is recommended to achieve
the best audio performance throughout the system.

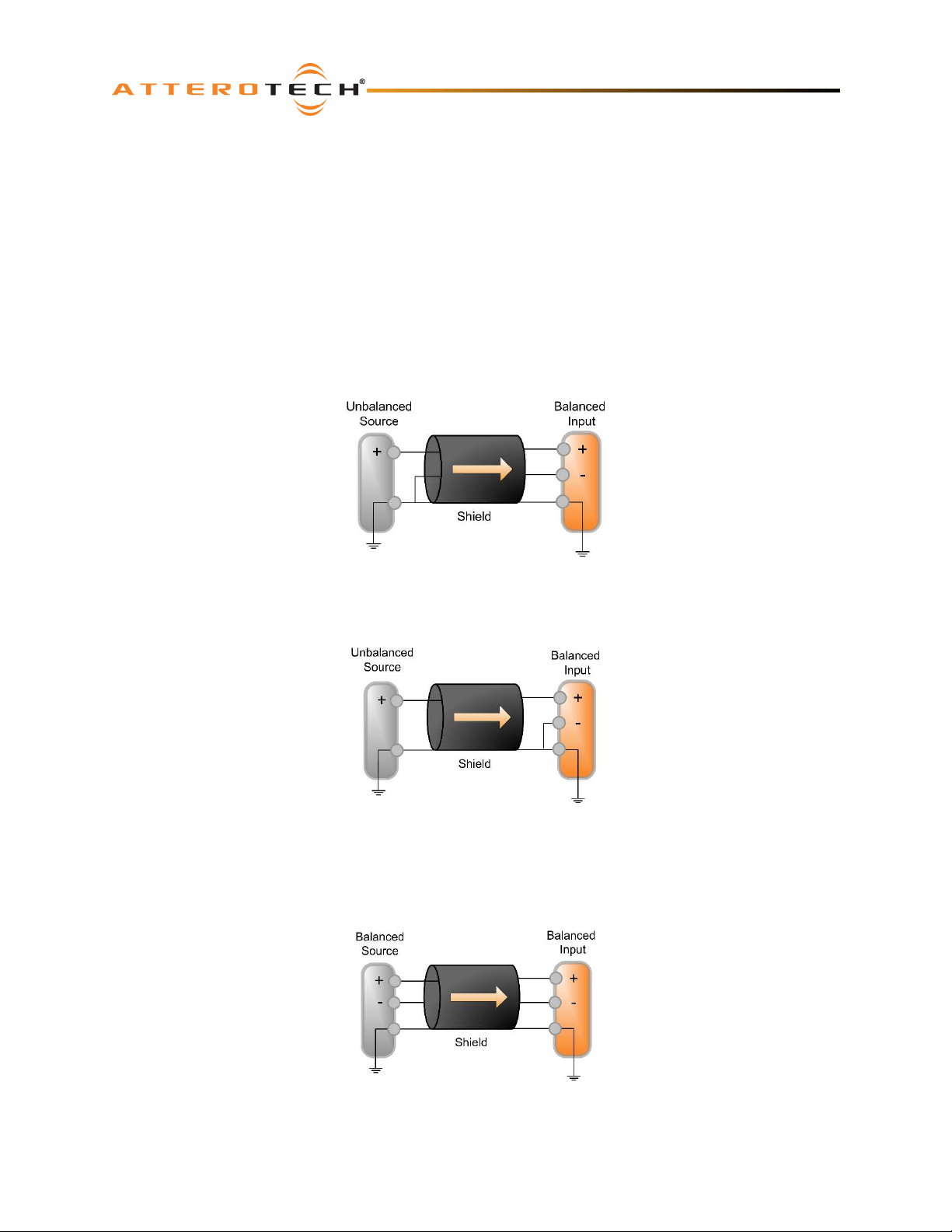

2.3.1 – Input from an Unbalanced Source
To connect a 2-wire unbalanced source to the unDX4I, connect the positive output of the unbalanced source to the positive
input of the unDX4I. Connect both the source and unDX4I input grounds together, and short the negative input of the
unDX4I to ground at the input of the unDX4I.
Figure 4 - 2-Wire Unbalanced Source Connection
To connect unbalanced sources with a 3-wire connection, short the negative conductor to the shield at the source
connection.
Figure 5 - 3-Wire Unbalanced Source Connection
2.3.2 – Input from a Balanced Source
To connect balanced sources to the unDX4I, connect positive output to positive input, negative output to negative input,
and connect the grounds together through the cable shield.
Figure 6 - Balanced Source Connection
Attero Tech LLC 2017 Page 7 614-00027 Rev 02_a
Page 9
unDX4I
User Manual
2.4 – Factory Reset
The unDX4I has a factory reset option. Using it will reset all the devices parameters back to their factory defaults including
all the Dante settings such as device name, channel names as well as the device settings such as input select. The devices
IP address mode is also reset back to getting a dynamic IP.

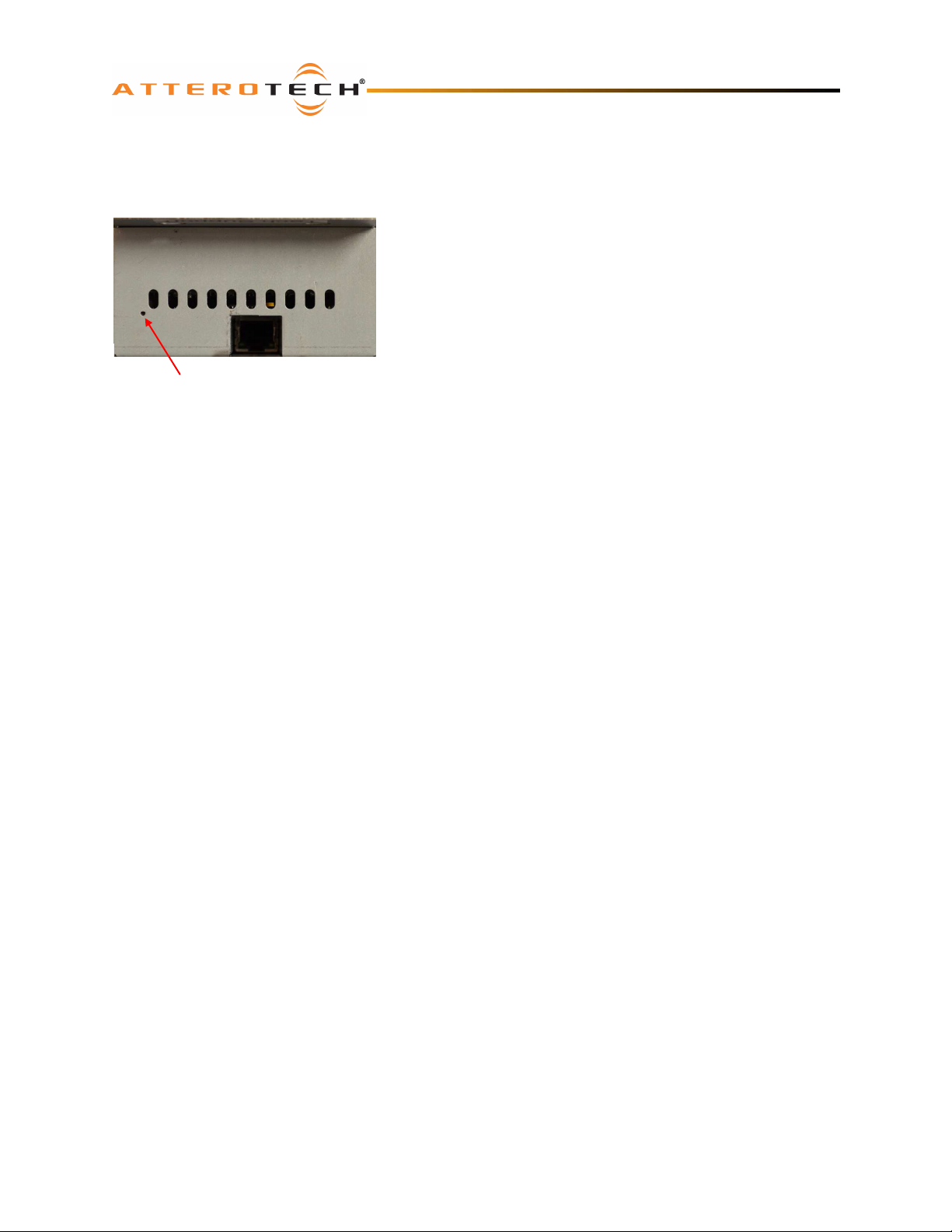

Access to the factory reset button is through a small circular hole on the
underside of the unit, next to the ventilation cutouts.
To use the factory reset, insert a small screwdriver or paperclip into the
hole to activate the factory reset switch. There should be a noticeable
“click” when it’s activated. Hold the switch in for 5 to 10 seconds then
release. If the factory reset was successful, the unit will actually reset
indicated by the power LED will turning red.
Attero Tech LLC 2017 Page 8 614-00027 Rev 02_a
Page 10
unDX4I
User Manual
3 – Device Configuration
There are two parts of the device that require software to setup. First the audio routing, and second the configurable
features of the device itself.
Certain 3rd party manufacturers provide audio routing functionality from within their own configuration application.
Check the applications manual/help or contact the manufacturer in question to see if this is supported. If not supported
by a 3rd party tool, the audio routing may be carried out using Audinate’s Dante Controller. Dante Controller can be
obtained from the Audinate website (www.Audiante.com) and is available for both Mac and PC. Instructions on how to
use this application and about setting up routes on a Dante network can also be found on Audinate’s website.
*Note: The unDX4I will be shown using a default device name of “unDX4I-######” where ‘######’ is the last six characters
of the devices MAC address.
Configuration of the unDX4I specific features is carried out using the Attero Tech unIFY Control Panel application. This
application is available from the Attero Tech website (http://www.atterotech.com/products/unify-control-panel/). It
should be used to examine and modify the device specific features such as mic/line gain level, and phantom power
settings.
3.1 – IP Address Setup
******************************************************** IMPORTANT ******************************************************
Failure to correctly configure IP addresses will not allow an unDX4I device to correctly authenticate in the unIFY Control
Panel software and while it will show up in Dante Controller, the input and output channels won’t be visible and routing
of audio to and from the device will not be possible.
****************************************************************************************************************************
In order to configure an unDX4I, both to set up internal parameters and also setup audio routing, the PC will need to be
able to communicate with the devices over the network. While all Dante devices will be discovered regardless of the IP
address setup on the PC, communication can only occur if the PC and the device have compatible IP addresses.
By default, the unDX4I is set to get a dynamic IP address. As with all Dante devices, if the unDX4I does not find a DHCP
server to retrieve an IP address from, it will give itself an local link address sometimes also known as an automatic private
IP address (APIPA) instead. A local link IP address is always in the range 169.254.x.y.
To ensure communication, the PC can either be set to get a dynamic IP address, or be given a static IP address in the
range 169.254.x.y y with a subnet mask of 255.255.0.0. The PC may require a restart if its IP address is changed for the
change to take effect.
In some applications, IP addresses of devices may need to be set to something specific and that can be done once initial
communication has been established. Bear in mind however that if a static IP address is assigned to a device and that
static IP address is in a different range to the IP it was previously using to communicate with the PC, the PC will lose
communication with the device until such time as the PC’s IP address is also changed to an IP in range of the devices new
IP address.
Further information on IP setup for an audio system using Dante can be found in the FAQ’s on the Audinate website
(https://www.audinate.com/resources/faqs).
Attero Tech LLC 2017 Page 9 614-00027 Rev 02_a
Page 11
unDX4I
User Manual
3.2 – Software Control
The unDX4I is fully supported in from unIFY Control Panel v1.7.5 onwards and for a full description of the software and
configuration features refer to the integrated help documentation within the unIFY Control Panel application.
3.3 – 3rd Party Control
The unDX4I supports 3rd party control, allowing external systems to manage the device's settings such as phantom power,
mic/line gain options and control of presets.
Information on the commands each device supports as well as details of how to use the Direct UDP interface can be found
in the unIFY 3rd party Software API document, available from the registered users section of the Attero Tech website (Go
to www.atterotech.com and click on the “log-in” option).
There are two control interface types available. The first type is a Dante proprietary interface (-C) which is typically used
by devices already that have built-in support for Attero Tech devices. The second type supports a 3rd party UDP interface
(-U) and is available to anyone to use with any device capable of sending and receiving UDP messages.
3.4 – Command Interface Type
The type of command interface a specific device supports is defined by the Dante firmware it has been loaded with. There
are two methods to determine which Dante firmware and thus which command interface that is:
1) unIFY Control Panel V2.0 or later: Right-clicking on the device in the device list, mouse over the “Device Info”
option and then look for the “Control Type” option. A “-C” means the device is using the Dante Proprietary
A devices initial control interface is chosen when ordering the unit. However, it can be easily changed though once the
unit is in the field by updating the device’s Dante firmware. Firmware updates can be done using the smart firmware
update option within our unIFY Control Panel application (V2.3 and later). Both unIFY and .SFU file for updating a device
can be obtained from the registered users section of the Attero Tech website (Go to www.atterotech.com and click on the
log-in option).
3.5 – Using the Command Interface
In order to make use of the command interface, regardless of type, the unDX4I simply needs to be configured with an IP
address that is compatible with the device doing the controlling. The control devices should then be able to converse with
the unDX4I without any further configuration necessary.
interface. A “-U” means the device is using the Direct UDP interface.
2) Dante Controller”: Double-click on the device in question in the routing grid to display the “Device View” form,
select the “Status” tab and look for the “Firmware Version” parameters in the “Device Information” section.
Firmware
Version
V1.0.0 Dante Proprietary (-C)
V2.0.0 Direct UDP (-U)
Control Interface
Attero Tech LLC 2017 Page 10 614-00027 Rev 02_a
Page 12
unDX4I
User Manual
4 – ARCHITECTS & ENGINEERING SPECIFICATION
4.1 – unDX4I A&E Specifications
The Dante interface unit shall provide four mic/line analog inputs on the rear panel via 3-pin depluggable connectors.
Selectable gains of -18dB, -3dB, +25dB, and +40dB and a +48V phantom power option shall be provided via software for
each input. The internal analog to digital signal conversion shall be performed at 24-bit resolution with a sampling
frequency of 48kHz. The Dante interface unit shall receive power over the Ethernet cable from an IEEE 802.3af PoE
compliant network switch or midspan injector.
The Dante interface unit shall be compatible with Attero Tech unIFY software and support control by a third party control
system for flexible control and monitoring in system applications. The Dante interface shall be compliant with the RoHS
directive. The Dante interface unit shall be Compliant with the EMI/EMC requirements for FCC and CE.
The Dante interface shall be DDM ready.
The Dante interface unit shall be the Attero Tech unDX4I.
Attero Tech LLC 2017 Page 11 614-00027 Rev 02_a
Page 13
unDX4I
User Manual
4.2 – Device Specifications
Audio Inputs
Input Type:
Gain:
Input
Impedance:
Maximum Input
Levels:
Phantom Power: +48V, software selectable
Audio Input Performance
EIN: -115dBu
THD+N:
Frequency
Response:
Output Type: Two balanced line level with
Attenuation
Range
Output
Impedance
Maximum
Output Levels:
Audio Output Performance
Dynamic Range: 100 dB
THD+N:
Frequency
Response
Four Balanced and RF filtered
inputs on XLR
-18dB, -3dB, +25dB and +40dB,
software selectable
>1.8K Ohms at any gain
+20dBu @ -18dB gain,
+6dBu @ - 3 dB gain,
-23dBu @ +25dB gain
-38dBu @ +40dB gain
<0.02% @ 1kHz for all gain
settings, input signal 3dB below
maximum
20Hz – 20kHz, +/- 1dB
(-18 and - 3 dB gain)
50Hz - 20kHz +/- 1dB
(+25dB and +40dB gain)
Audio Outputs
automatic muting on loss of
Dante signal on 3-pin
Depluggable Phoenix
Software controlled volume
(0 to -60dB, 1dB increments)
200 Ohms balanced
+20dBu at 0dB attenuation
<0.01% @ 1kHz, input signal
3dB below maximum
20Hz – 20kHz, +/- 1dB
(-18dB and - 3dB gain)
50Hz - 20kHz +/- 1dB
(+25 and +40 dB gain)
Dante Network
Physical Level: Standard Ethernet
Connector: Single RJ-45
Cable Quality: CAT-5e or better
Transmission Speed: 100 Mbps
Supported Sample Rates
Minimum Dante Network
Latency
Power Requirements
PoE
Power Consumption 6.5W Max
Cable Quality: CAT-5e or better
Physical Dimensions
Width 3.54"
Height 4.2"
Depth 2"
Weight 1.7lbs
Product Compliance
FCC CFR 47 Parts 15B
ICES-003
CE (EN55022)
RoHS
REACH
44.1kHz
48kHz
1ms
802.3af PoE PD
compliant
Attero Tech LLC 2017 Page 12 614-00027 Rev 02_a
Page 14
unDX4I
User Manual
APPENDIX A – Reference Documents
The following table lists the relevant reference documents.
Document Title Location
unIFY 3rd Party Software API Registered users area on website
Dante Firmware Update Quick Start Registered users area on website
Attero Tech LLC 2017 Page A-1 614-00027 Rev 02_a
Loading...
