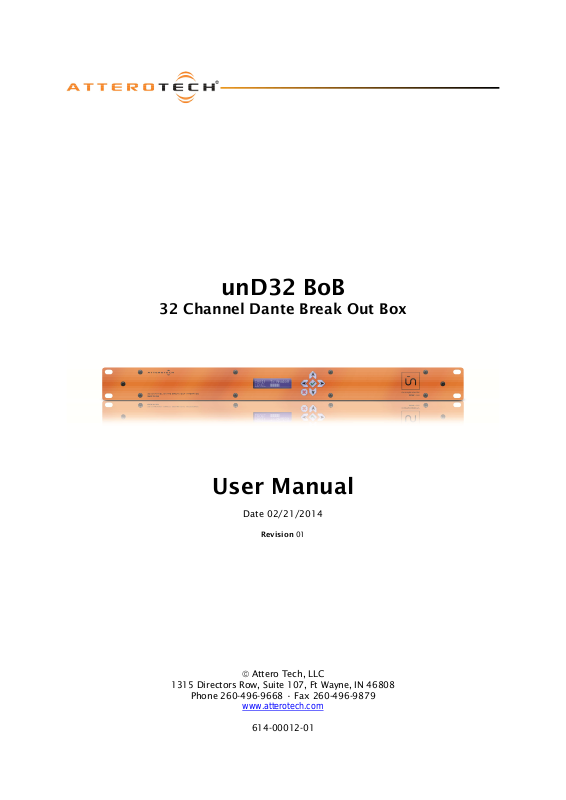

Attero Tech unD32 BoB User Manual

unD32 BoB

32 Channel Dante Break Out Box

User Manual

1315 Directors Row, Suite 107, Ft Wayne, IN 46808

Phone [phone] • Fax [phone]

Date 02/21/2014

Revision 01

 Attero Tech, LLC

www.atterotech.com

614-00012-01

unD32 BoB

User Manual

IMPORTANT SAFETY INSTRUCTIONS

The symbols below are internationally accepted symbols that warn of potential hazards with electrical products.

This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the
enclosure -- voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the
accompanying literature. Please read the manual.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and third grounding prong. The wider
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11. Only use attachments/accessories specified by Attero Tech

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus.

13. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.

16. This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

17. When permanently connected, on all-pole mains switch with a contact separation of at least 3mm in each pole

shall be incorporated in the electrical installation of the building.

18. If rack mounting, provide adequate ventilation. Equipment may be located above or below this apparatus but

some equipment (like large power amplifiers) may cause an unacceptable amount of hum of may generate too
much heat and degrade the performance of this apparatus,

19. This apparatus may be installed in a industry standard equipment rack. Use screws through all mounting

holes to provide the best support.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

 Attero Tech LLC 2013 Page 1 614-00012-01

unD32 BoB

User Manual

DECLARATION OF CONFORMITY

Attero Tech, LLC
1315 Directors Row
Fort Wayne, Indiana 46808

Equipment Description: 32 Channel Dante Audio Digital to Analog Converter
Equipment Model Designation: OutBox unD32

Application of Council Directive: 73/23/EEC on the harmonization of the laws related to Member States relating
to electrical equipment designed for use within certain voltage limits, as amended by: Council Directive
93/68/EEC and

Council Directive 89/336/EEC on the approximation of the laws related to Member States relating to electromagnetic
compatibility, as amended by: Council Directive 93/68/EEC.

Referenced Safety Standards: Referenced EMC Standards:

EN60950: EN61000-6-3: 2001

EN61000-6-1:2001

EN55022 Class A

EN61000-3-2

EN61000-3-3

EN61000-4-2

EN61000-4-3

EN61000-4-4

EN61000-4-5

EN61000-4-6

EN61000-4-11

The equipment specified above conforms to the above Directive(s) and Standard(s)

Note: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference, in which case the user will be required to correct the

interference at his own expense.

 Attero Tech LLC 2013 Page 2 614-00012-01

unD32 BoB

User Manual

Credits

Bonjour is a trademark of Apple Inc.

Dante is a trademark of Audinate Pty Ltd.

 Attero Tech LLC 2013 Page 3 614-00012-01

unD32 BoB

User Manual

Contents

1 – Overview.....................................................................................................................................................................................................................5

1.1 – What’s in the Box?.................................................................................................................................................... 5

1.2 – unD32 Unit Block Diagram....................................................................................................................................... 6

2 – Installation ................................................................................................................................................................................................................7

2.1 – Power Connection .................................................................................................................................................... 7

2.2 – Network Connections...............................................................................................................................................7

2.2.1 – Single Network Connection..............................................................................................................................7

2.2.2 – Redundant Network Connection ...................................................................................................................... 7

2.3 – Audio Connections................................................................................................................................................... 8

2.3.1 – Balanced Destination .......................................................................................................................................8

2.3.2 – Single Ended Destination.................................................................................................................................8

3 – Front Panel Operation (unD32 only).............................................................................................................................................................9

3.1 – Front Panel ............................................................................................................................................................... 9

3.2 – Cursor....................................................................................................................................................................... 9

3.3 – Transition between Screens..................................................................................................................................... 9

3.4 – Channel Select Screen............................................................................................................................................ 10

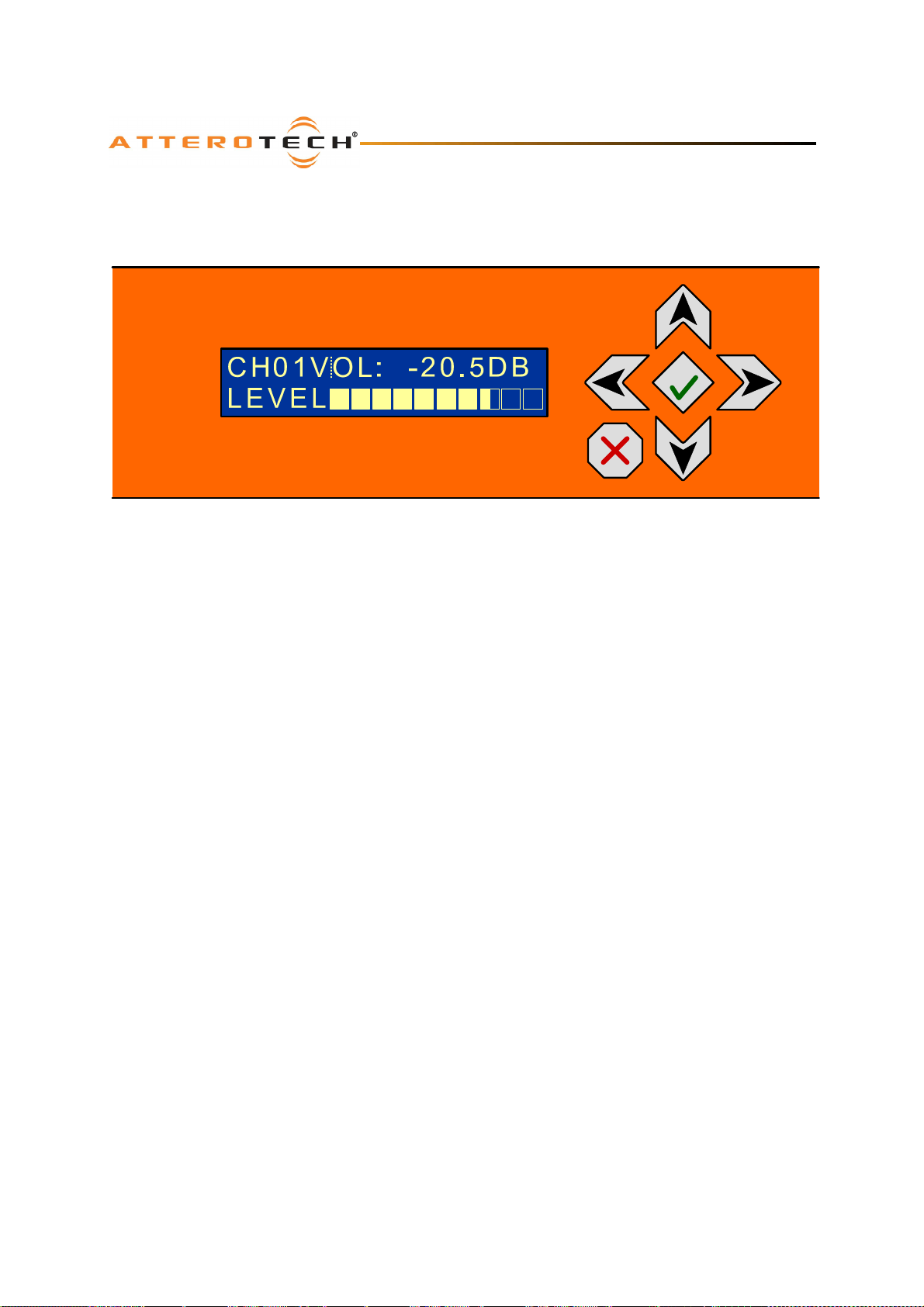

3.5 – Volume Select Screen.............................................................................................................................................11

3.6 – LCD Sleep (unD32 only) .........................................................................................................................................11

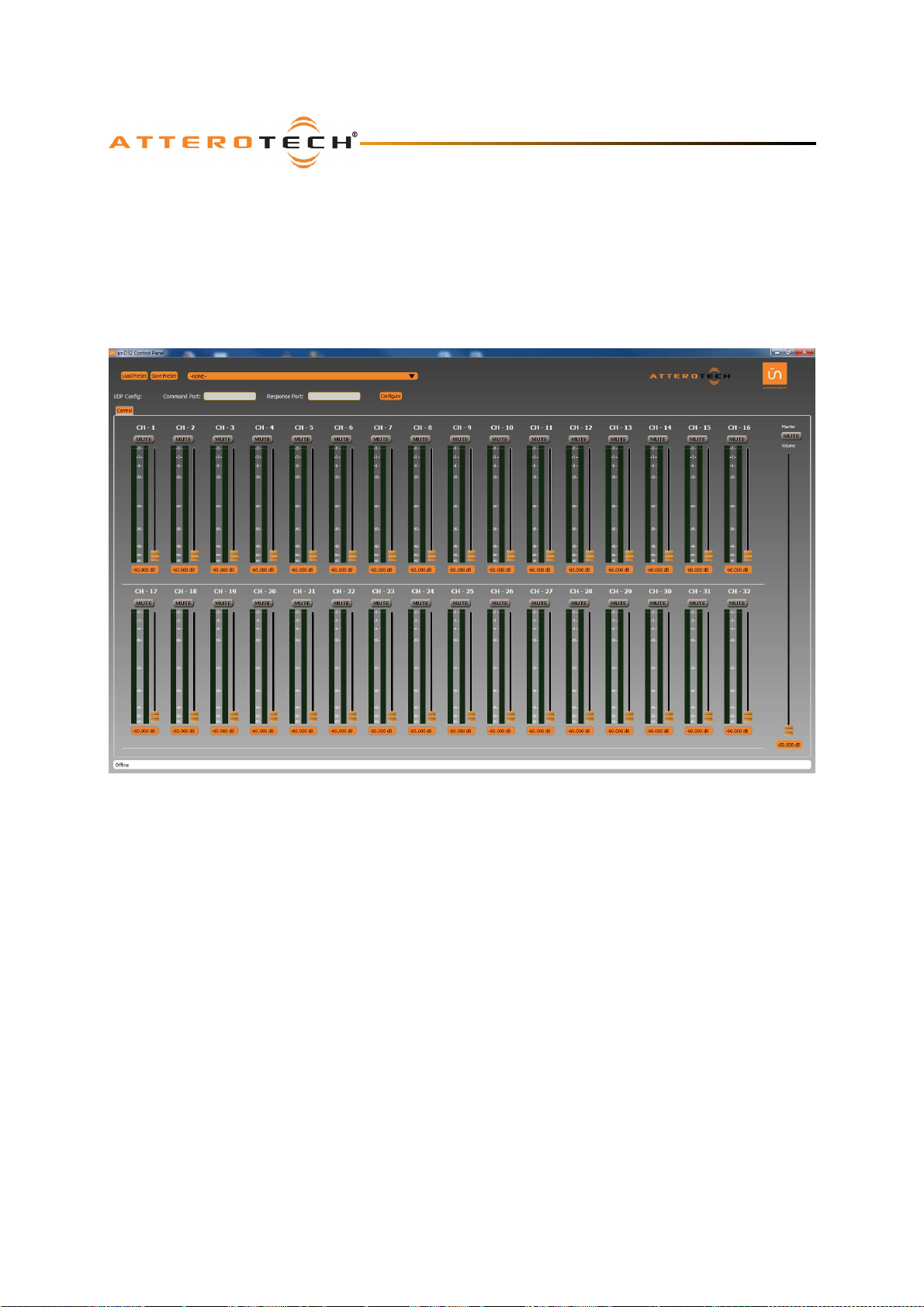

4 – Configuration using a GUI.............................................................................................................................................................................. 12

4.1 – Application Pre-Requisites .....................................................................................................................................12

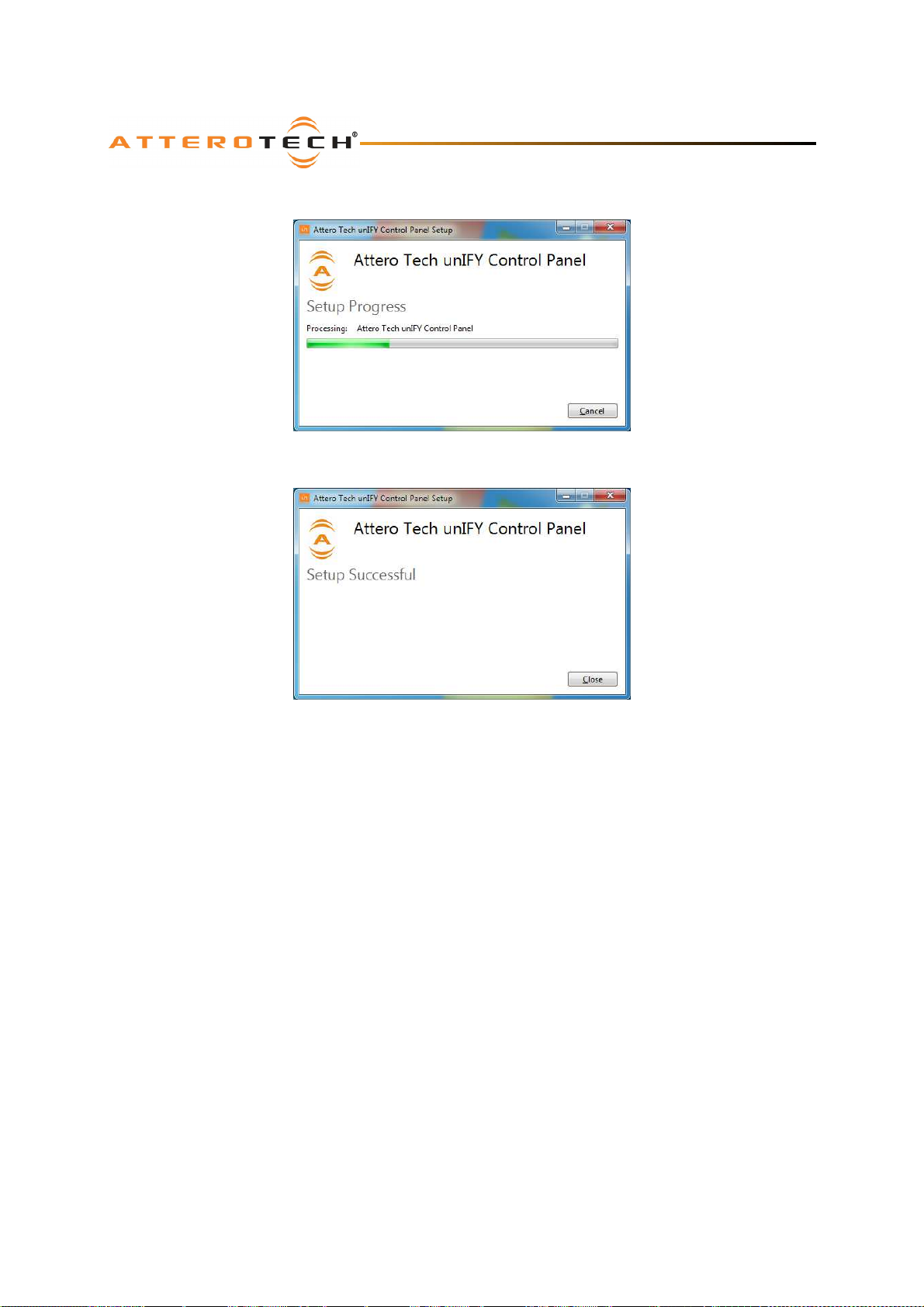

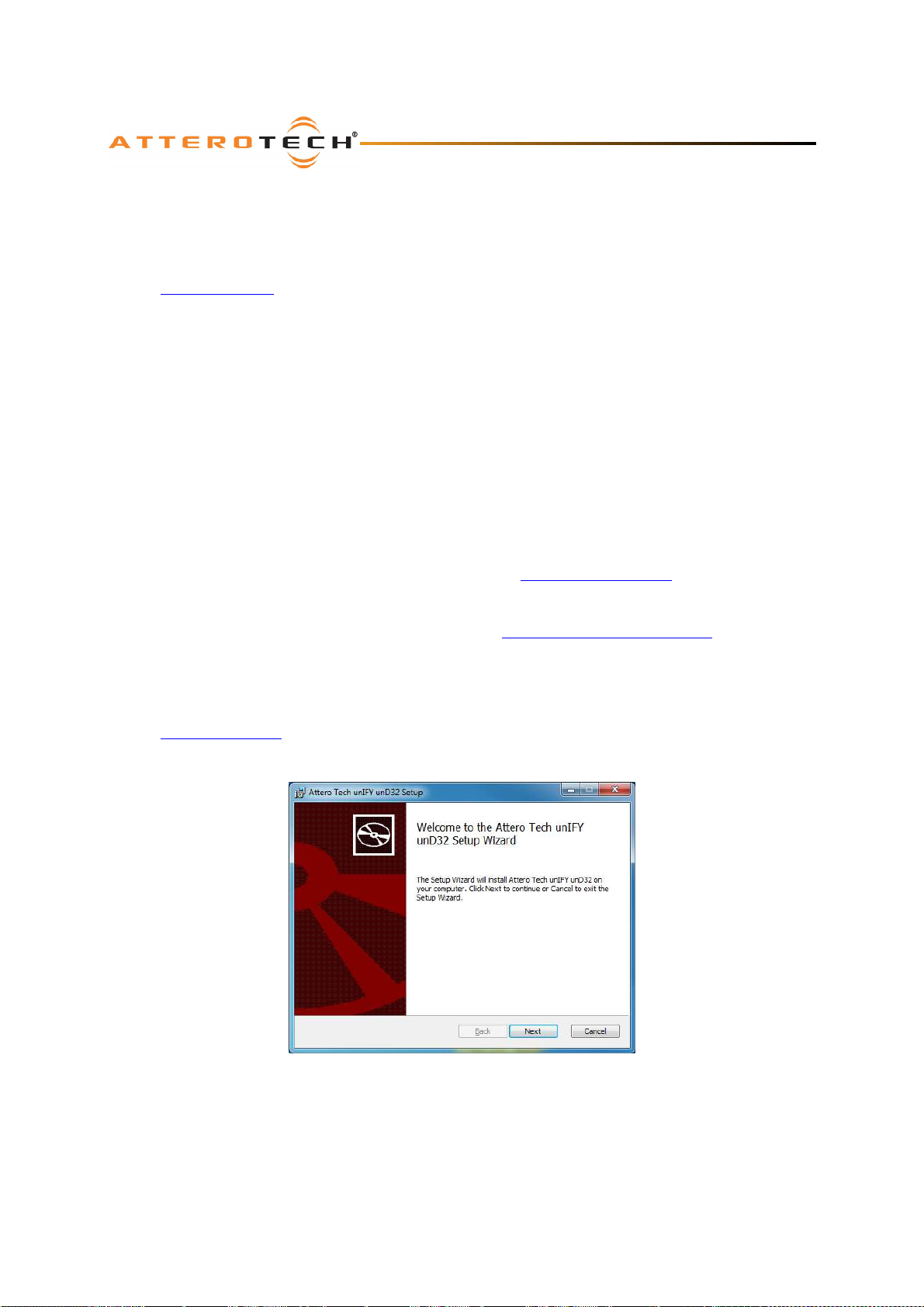

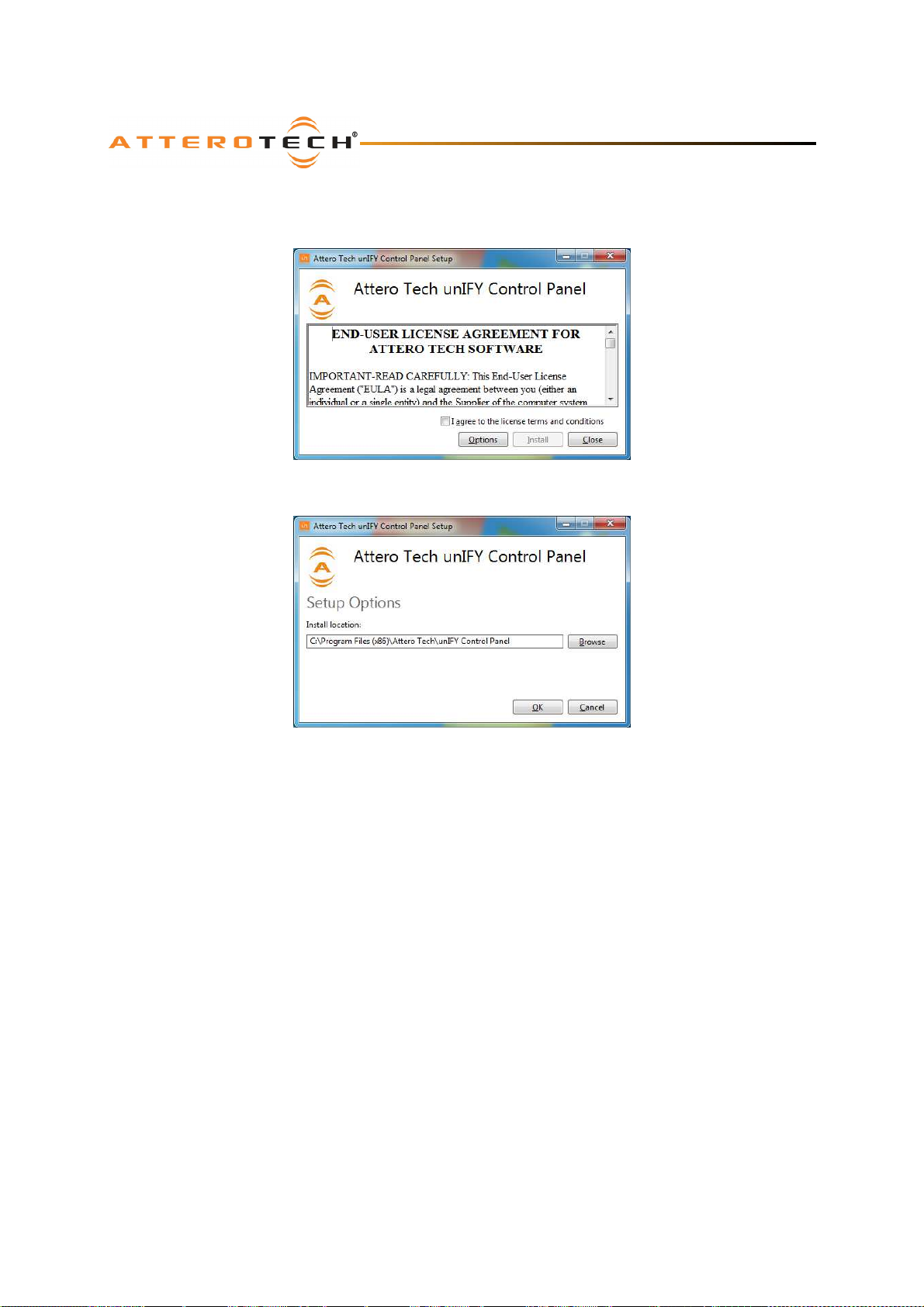

4.2 – Installation of unD32 Control Panel.......................................................................................................................12

4.3 – Running unD32 Control Panel ...............................................................................................................................17

4.4 – Connecting to a Device ..........................................................................................................................................17

4.5 – Third party Control ................................................................................................................................................ 18

4.6 – Trouble Shooting.................................................................................................................................................... 18

5 – Device Specifications ........................................................................................................................................................................................19

5.1 – Architects and Engineering Spec............................................................................................................................19

5.2 – Device Specifications.............................................................................................................................................. 19

6 – LIMITED TWO YEAR WARRANTY.................................................................................................................................................................. 20

APPENDIX A – Reference Documents.............................................................................................................................................................. A-1

 Attero Tech LLC 2013 Page 4 614-00012-01

unD32 BoB

User Manual

1 – Overview

The unD32 is a 32 channel Dante break out box (BoB). It provides 32 balanced line level analog output interfaces. Each
of these 32 analog outputs may be assigned to any Dante audio flow from the Dante system it is connected to.

There are two variants of the unD32. The first variant is the base model is called the unD32B. The second variant
called the unD32, has exactly the same rear connections and internal circuitry as the unD32B but includes front panel
controls which consist of a 16x2 backlit character display and a 6 button keypad. These can be used to assign named
Dante audio flows to each of the 32 balanced outputs and control the output volume of each channel directly on the
unit itself.

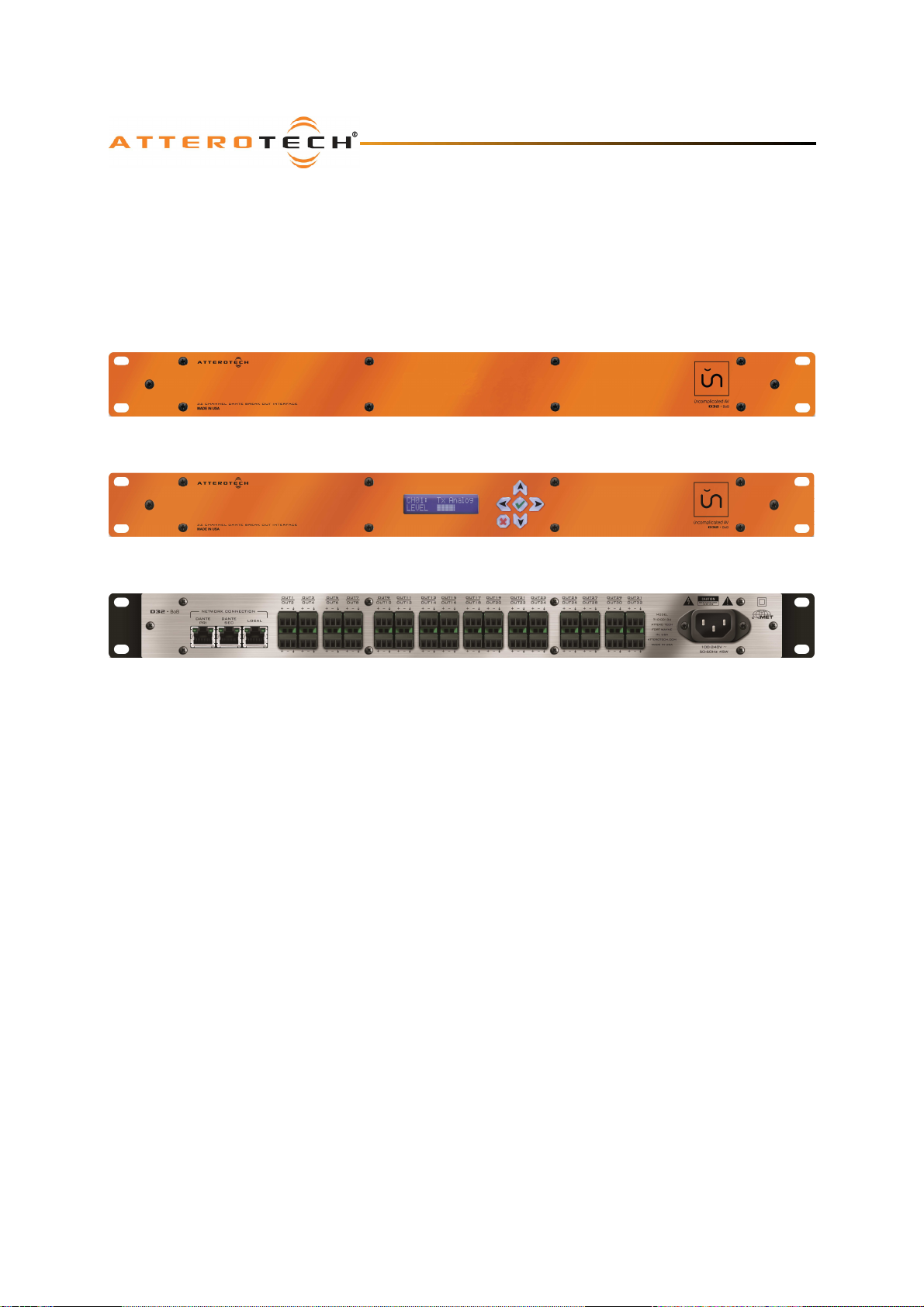

Figure 1 - unD32B Front

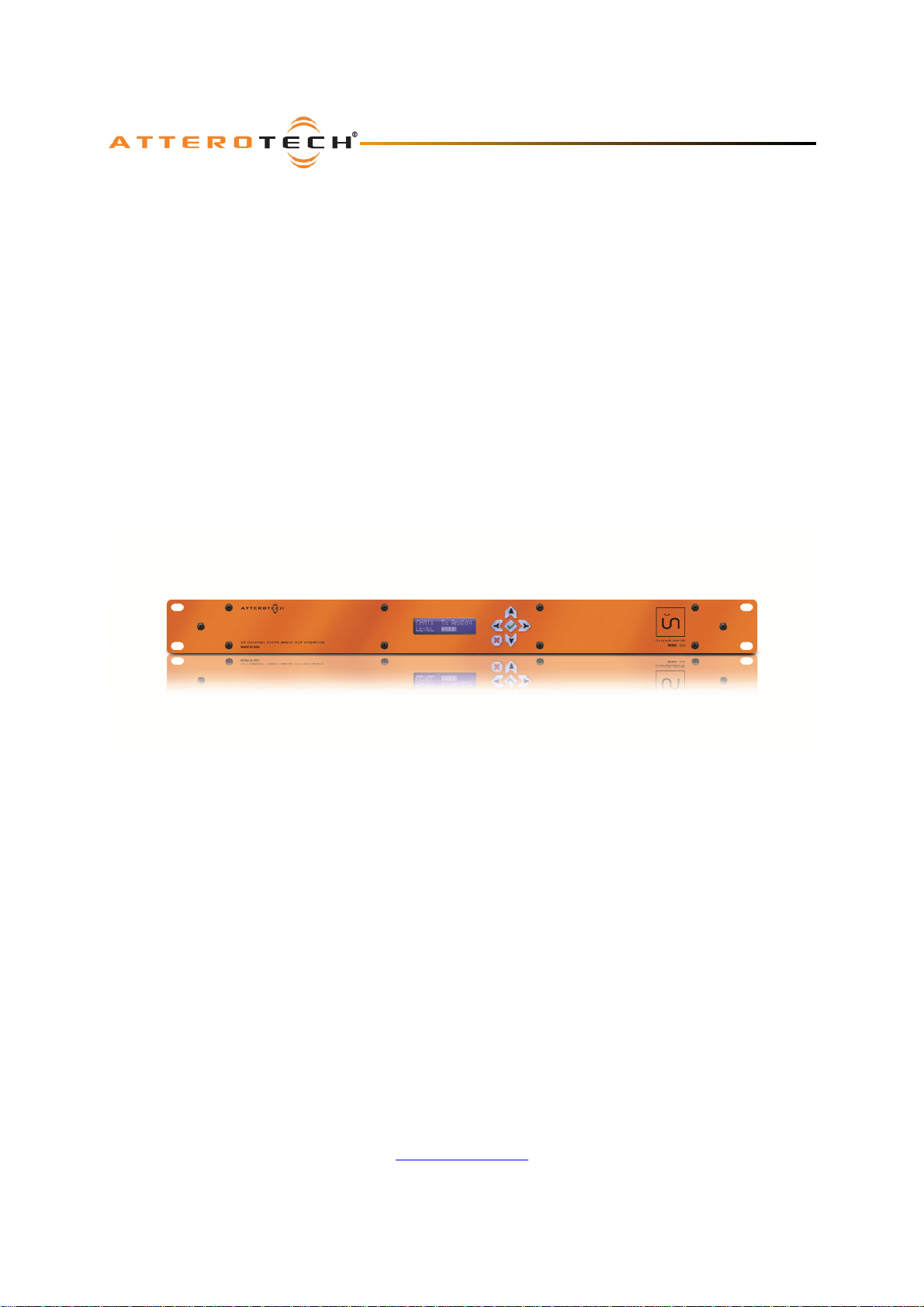

Figure 2- unD32 Front

Figure 3- unD32/unD32B rear panel

The second version is called the unD32B which has the same exact features but has no front panel controls.

*Note: For the remainder of this document the term unD32 will be used to denote both the unD32 and unD32B.

The 32 analog output channels are fully balanced with grounding and shielding per AES48-2005 standards. Each
output is:

o Available on the rear panel of the unit via a 3 pin Phoenix style connector receptacle with a pin pitch of

3.81mm (150mils)

o Capable of a maximum output level of +20dBu before clipping
o Individually controllable over a 60dB range with a mute facility
o Can be assigned a audio stream using Audinate’s Dante Controller application (or on the unD32, the devices

front panel)

The unD32 features both primary and secondary Gigabit Dante network connections for full redundancy, as well as a
third “local” Gigabit port. This port can provide network access to other equipment in the rack (e.g. amplifier
controllers, control devices, etc.), without the need for a separate Ethernet switch. All three of these network interfaces
are available via separate 8P8C modular connector receptacles (RJ-45) on the rear panel of the unit.

The unit is powered via a universal (100VAC - 240VAC, 50Hz - 60Hz) input IEC connector located on the rear of the unit.
The unit comes in a 19-inch 1RU rack mountable chassis that is approximately 7.5 inches deep.

1.1 – What’s in the Box?

The unD32 and unD32B comes supplied with the following:

o unD32 unit (710-00134-01) or unD32B unit (710-000134-02)
o Standard AC Power Cord (AK500/U-2-R, IEC 60320-1 C13)
o 32 Phoenix style connector plugs (RIA 31369103)

 Attero Tech LLC 2013 Page 5 614-00012-01

unD32 BoB

User Manual

1.2 – unD32 Unit Block Diagram

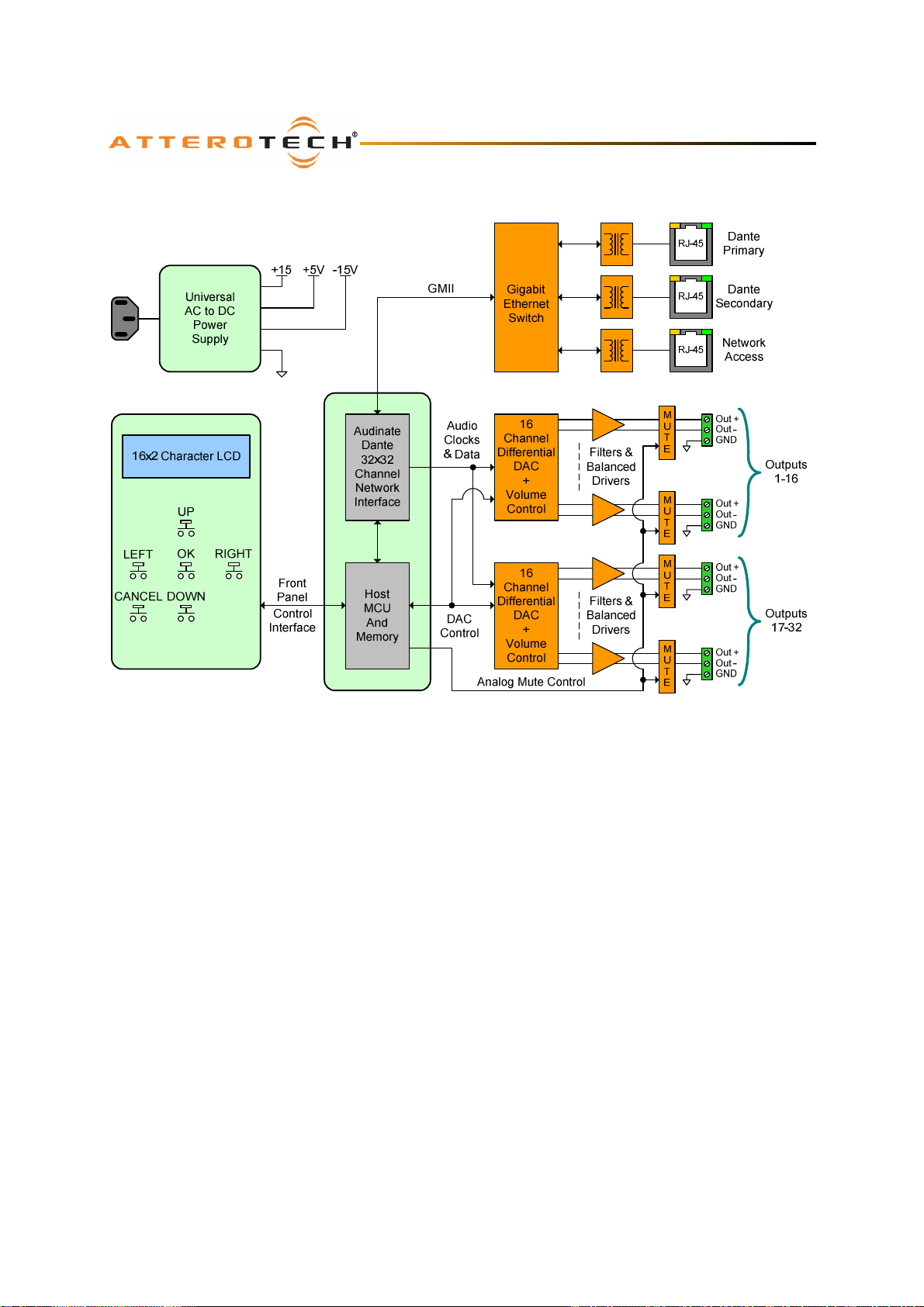

Figure 4 - unD32 Block Diagram

 Attero Tech LLC 2013 Page 6 614-00012-01

unD32 BoB

User Manual

2 – Installation

The unD32 comes ready to be mounted into a standard 1RU rack. The rack mount tabs are built in to the front panel of
the unit. Care should be taken when installing the unD32 to ensure the cooling vents on either side of the unD32 are
not blocked. Failure to do so may cause premature device failure due to overheating.

2.1 – Power Connection

The provided power cord should be used to connect the power connector at the rear of the unit to a standard AC outlet.
There is no “on” switch so the unit will power up as soon as the power connection is made.

2.2 – Network Connections

There are two configurations for network connectivity. Each is listed below. Select the configuration that best fits your
application.

2.2.1 – Single Network Connection

This type of network connection is probably the most common and uses a single Ethernet cable connecting the unD32
to the Ethernet switch that is providing the Dante network to the area of the facility where the unD32 is installed. The
Ethernet cable can be plugged into any of the three ports on the unD32.

*Note: This is the default configuration and the unD32 should require no configuration changes to work in this mode.
However, if problems occur when using this type of network topology, make sure the unD32 is configured for switch
mode (refer to Dante Controller User’s Guide for information on how to do this).

2.2.2 – Redundant Network Connection

This type of network connection relies on the Dante network in the area of the facility where the unD32 is to be
installed being provided by two network switches where each switch is part of a separate network. This type of network
topology provides redundancy through duplication to each of the devices units connected to the network. To use the
unD32 in such a system, connect the primary port to a switch on the primary network and then connect the secondary
port to a switch on the secondary network. When using this type of network topology please make sure the unD32 is
configured for redundant mode (refer to Dante Controller User’s Guide for information on how to do this).

*Note: It is recommended before using redundancy mode that the Audinate documentation on redundancy be reviewed
to ensure the full implication of its use on both the network design and the system design are understood. Problems will
result when redundancy mode is enabled on the unD32 if the audio networks are not designed and setup correctly to
work in this manner.

 Attero Tech LLC 2013 Page 7 614-00012-01

unD32 BoB

User Manual

2.3 – Audio Connections

The unD32 unit comes shipped with 32 Phoenix style, screw down, connectors pre-installed into the 32 audio output
connector ports.

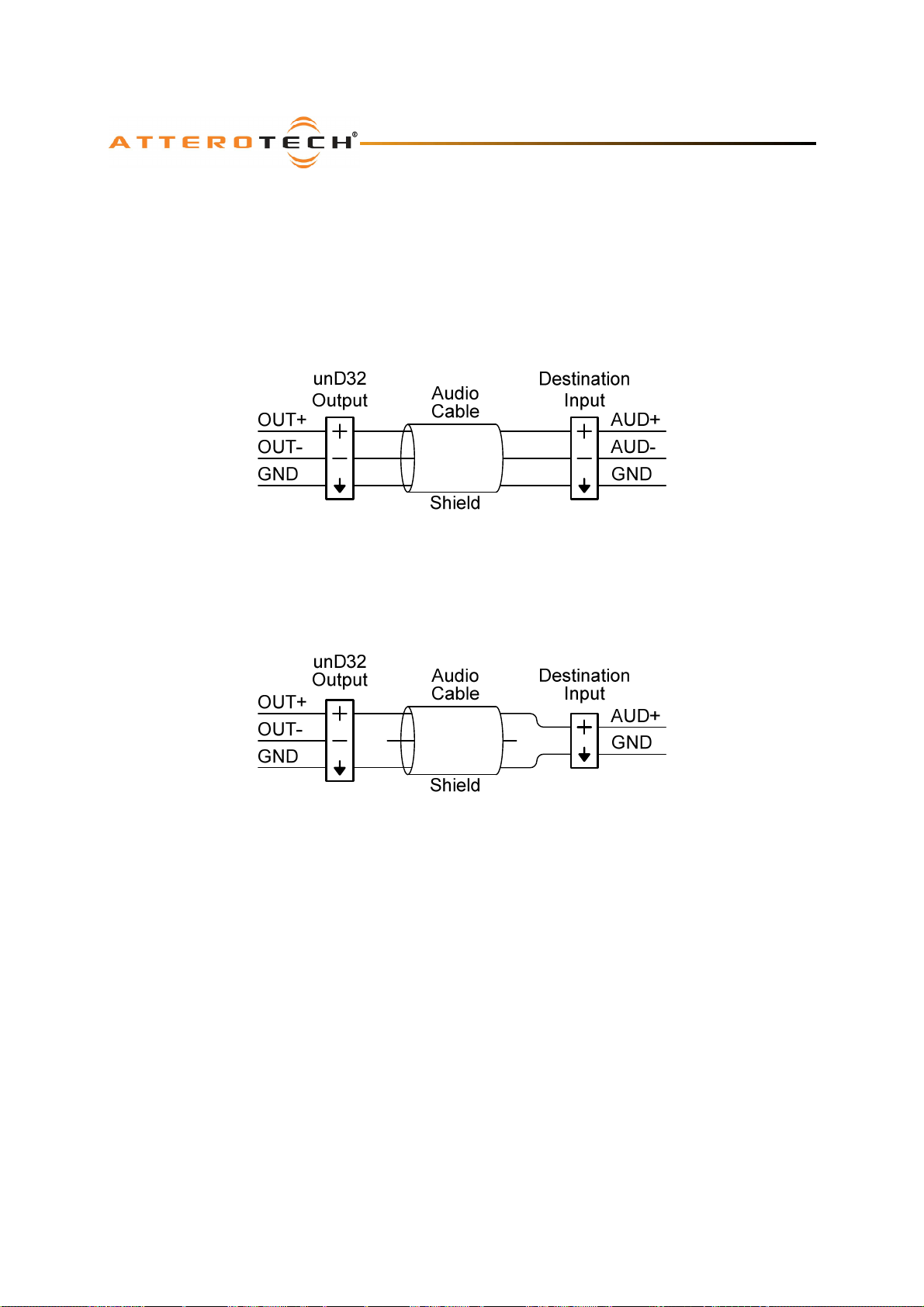

2.3.1 – Balanced Destination

To connect a balanced input on a destination device to an unD32 output, connect the positive and negative connections
of both the unD32 output and the destination devices input respectively. Use the shield of the cable to connect the two
GND pins together. If the cable does not have a shield, use a free internal core instead.

Figure 5 - unD32 Output to Balanced Destination

2.3.2 – Single Ended Destination

To connect a 2-wire unbalanced input to an unD32 output, connect the positive input of the destination device to the
positive output of the unD32. Connect the GNDs together through the cable shield. If the cable does not have a shield,
use a free core instead. Leave the unD32 negative output floating.

Figure 6 - unD32 Output to Single Ended Destination

 Attero Tech LLC 2013 Page 8 614-00012-01

unD32 BoB

User Manual

3 – Front Panel Operation (unD32 only)

The front panel allows the user to:

o View and select which of the available Dante audio channels is mapped to each of the unD32 audio outputs
o Adjust the signal level of each analog audio output from +20dB down to -40dB
o Individually mute each analog audio output

3.1 – Front Panel

The front panel contains a 16-character by 2-line LCD screen and a six button keypad. A depiction of the front panel is
shown in Figure 7.

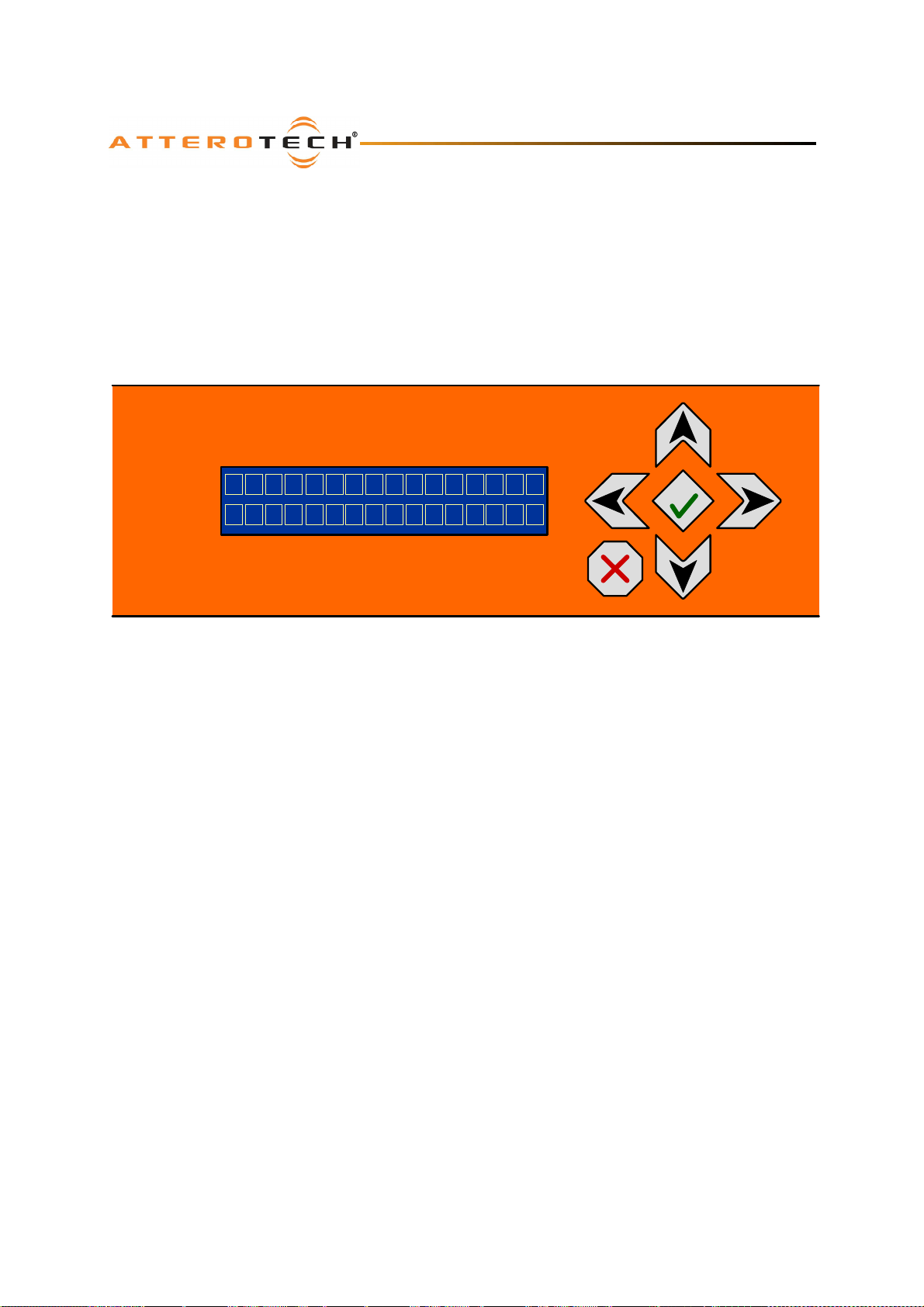

Figure 7 - unD32 Keypad & LCD

The six button keypad allows the user to traverse the various control screens. Four keys provide the ability to move the
cursor Up, Down, Left, and Right. The key in the center with a check mark is the Enter key. The key marked with a red
“X” at the bottom left is the Cancel Key.

3.2 – Cursor

The LCD will always display a cursor during operation of the unD32. The cursor is shown as a blinking block at the first
character of a field. The cursor indicates the field that is currently selected. The cursor will initially be in the first
character of the unD32 Output Channel field in the Channel Select screen.

3.3 – Transition between Screens

Each channel has two screens associated with it: the Channel Select screen and the Volume Select screen. These
screens are described in subsequent sections of this user’s manual.

A single press of either the Up or Down button will cause the screen to transition to the Volume Select screen for the
current channel. Another press of the Up or Down button will cause the screen to transition to the Channel Select
screen for the next higher or next lower Output Channel respectively.

*Note: The channel number wraps from 32 to 1 in the Up direction and 1 to 32 in the down direction.

 Attero Tech LLC 2013 Page 9 614-00012-01

unD32 BoB

User Manual

3.4 – Channel Select Screen

The Channel Select screen provides the user a method to select which available audio stream on a Dante network for
each individual output. This is also the initial screen the unD32 will show after power up. Figure 8 below shows a
representative of it.

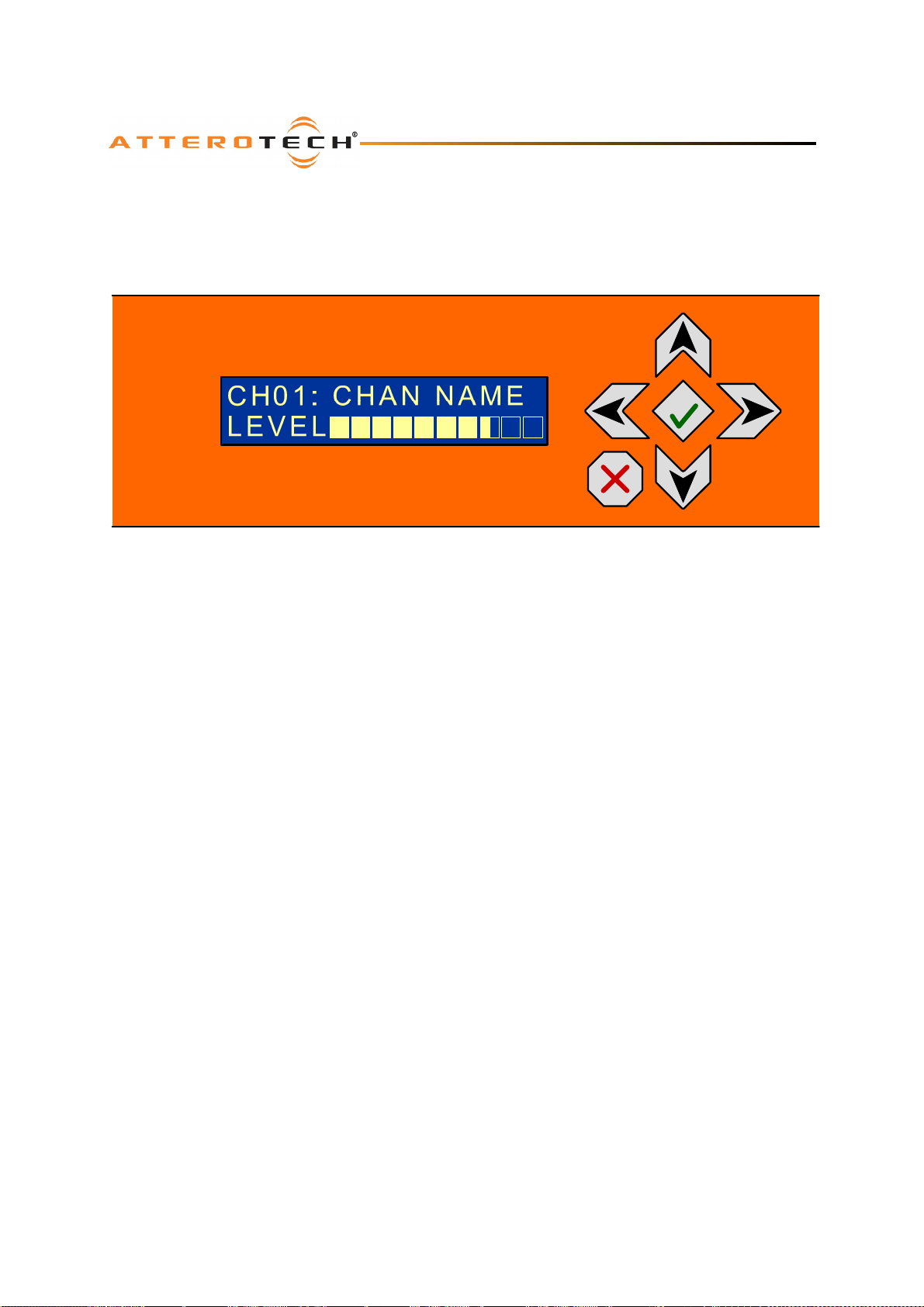

Figure 8 – Channel Select Screen

The top line shows the selected channel number (1 – 32) and name of the audio stream that the selected channel is
currently receiving from the Dante audio network. The channel number is always shown as two digits so channels less
than 10 will have a preceding ‘0’. Only the first 10 characters of the stream name will be visible. If no assignment has
been made, “NONE” is shown in this field.

The bottom line shows the signal level of the selected audio channel. The level meter provides an approximate analog
output level and is displayed as an extending horizontal bar. If no bar is shown, the output level is -40dB or below,
while a bar that extends up to the right-hand edge of the screen represents +20dB full scale output and possibly
clipping.

While in the Channel Select screen, pressing either the Left or the Right button will cause the cursor to move between
the first position of the channel number and channel name fields. To select a Dante audio channel the cursor should be
moved to the first position of the channel name field.

Once in the Channel Name field, the Up or Down buttons can be used to cycle through all the available audio channels
in the Dante network that can be received by the unD32. Once the desired channel to receive has been found, the
channel selection can be finalized by pressing the Enter button while the desired audio channel is displayed. No
channel is selected until the Enter button is pressed. The “None” option may also be selected to select no audio for a
channel.

To transition to another channel or to the Volume Select screen the cursor needs to be in the first character of the
Output Channel field. Pressing either the Left or Right buttons will accomplish this.

 Attero Tech LLC 2013 Page 10 614-00012-01

unD32 BoB

User Manual

3.5 – Volume Select Screen

The Volume Select screen provides the user a method to trim the output levels of the unD32 from the front panel and
the figure below shows a representative of it.

Figure 9 – Volume Select Screen

The top line on the Volume Select screen shows the channel number that is currently selected and the current volume
level.

The bottom line shows the signal level of the selected audio channel. The level meter provides an approximate analog
output level and is displayed as an extending horizontal bar. If no bar is shown, the output level is -40dB or below
while a full bar up to the right edge of the screen represents +20dB full scale output or clipping.

While in the Volume Select menu, pressing the Right/Left button will cause the cursor to move between the first
position of the Channel Volume and the Volume Select fields. To change the volume on an unD32 Output Channel, the
cursor should be moved to the first position of the Volume Select field.

Once in the Volume Select field, the Up and Down buttons will raise or lower the volume setting respectively. The
Up/Down buttons can be held down for greater than a half a second and the function will be auto-incremented to
enable fast changes of the volume. The volume can be adjusted between +20dB and -60dB. One press of the down
button when the volume setting is at -60dB will cause the channel to be muted and show ”MUTE” on the display.

To transition back to the Channel Menu, the cursor needs to be moved to the first character of the Channel Volume
field.

3.6 – LCD Sleep (unD32 only)

After five minutes of inactivity, the LCD will go into “Sleep” mode where the backlights for the LCD and the buttons are
turned off. Sleep mode only affects the backlights and all other operations will continue as normal. Pushing any button
will cause the LCD to “wake up” and the LCD and button backlights to illuminate again.

*Note: While changes to settings using the front panel are active immediately, they are only saved to non-volatile
memory when the LCD goes to “sleep”. If changes have been made to the unD32 settings using the front panel and the
unit is then powered down before the LCD has gone to “sleep”, any changes will be lost.

 Attero Tech LLC 2013 Page 11 614-00012-01

unD32 BoB

User Manual

4 – Configuration using a GUI

There are two parts of the device that can be configured using a GUI: audio routing and device specific parameters such
as mater volume, master mute and channel volumes and mutes.

The audio routing can be carried out using Audinate’s Dante Controller. This application is obtained from the Audinate
website (www.Audiante.com). Instructions on how to use this software and about setting up routes on a Dante network
can also be found on their website.

*Note: When using Dante controller, the unD32 will be shown using a default device name of unD32-###### where
‘######’ is the last six characters of the devices MAC address.

Configuration of the unD32 specific features is carried out using the Attero Tech unIFY unD32 Control Panel
application. This application is available from the Attero Tech website (http://www.atterotech.com/). It should be used
to examine and modify the device specific features such as channel volume and mute settings and master volume and
master mute.

4.1 – Application Pre-Requisites

The unD32 Control Panel application requires several pre-requisites. The hardware pre-requisites are shown below:

o PC running Windows XP or later
o Must be fitted with a wired Ethernet adapter

There are also several software support applications that need to be installed on the PC. These are shown below:

• Dante Controller Version 3.4.0 or later (for audio routing)

o Download the latest version from the Audinate website (http://www.audinate.com).
o Run the installation following the instructions provided

• Bonjour (for device discovery)

o Download the latest version from the Apple website (http://support.apple.com/kb/dl999)
o Run the installation following the instructions provided

4.2 – Installation of unD32 Control Panel

To install the Attero Tech unIFY unD32 Control Panel application, download the latest version from Attero Tech's
website (www.atterotech.com).

Run the installer by double-clicking the “unIFY-D32.msi” file.

Click the “Next button to proceed

 Attero Tech LLC 2013 Page 12 614-00012-01

unD32 BoB

User Manual

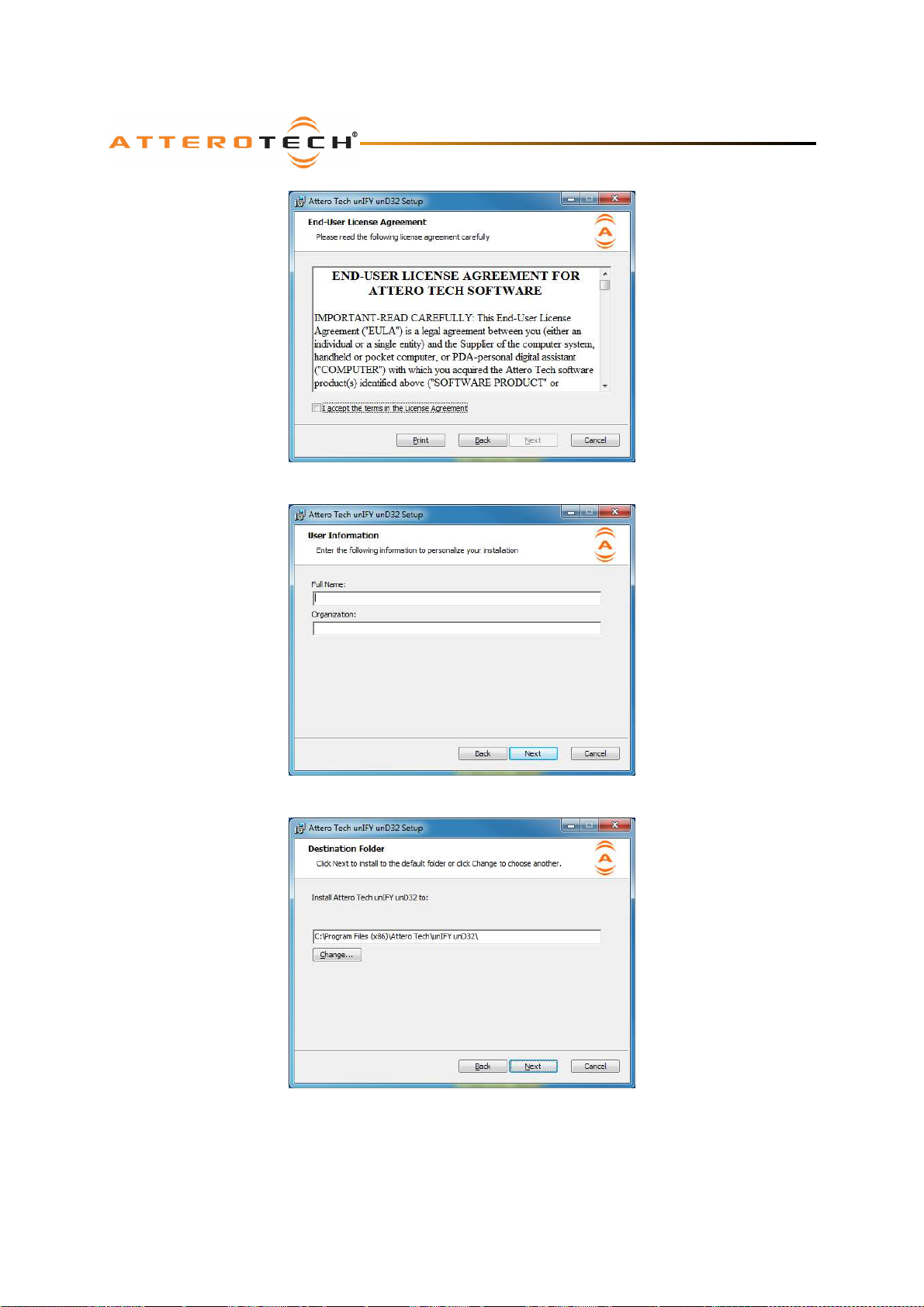

If you agree to the license agreement, click the “I Accept…” checkbox then click next

Enter the user name and Organization details. Then click the “Next” button.

Next enter the installation folder. A default location is provided automatically. Click “Next” to continue.

 Attero Tech LLC 2013 Page 13 614-00012-01

unD32 BoB

User Manual

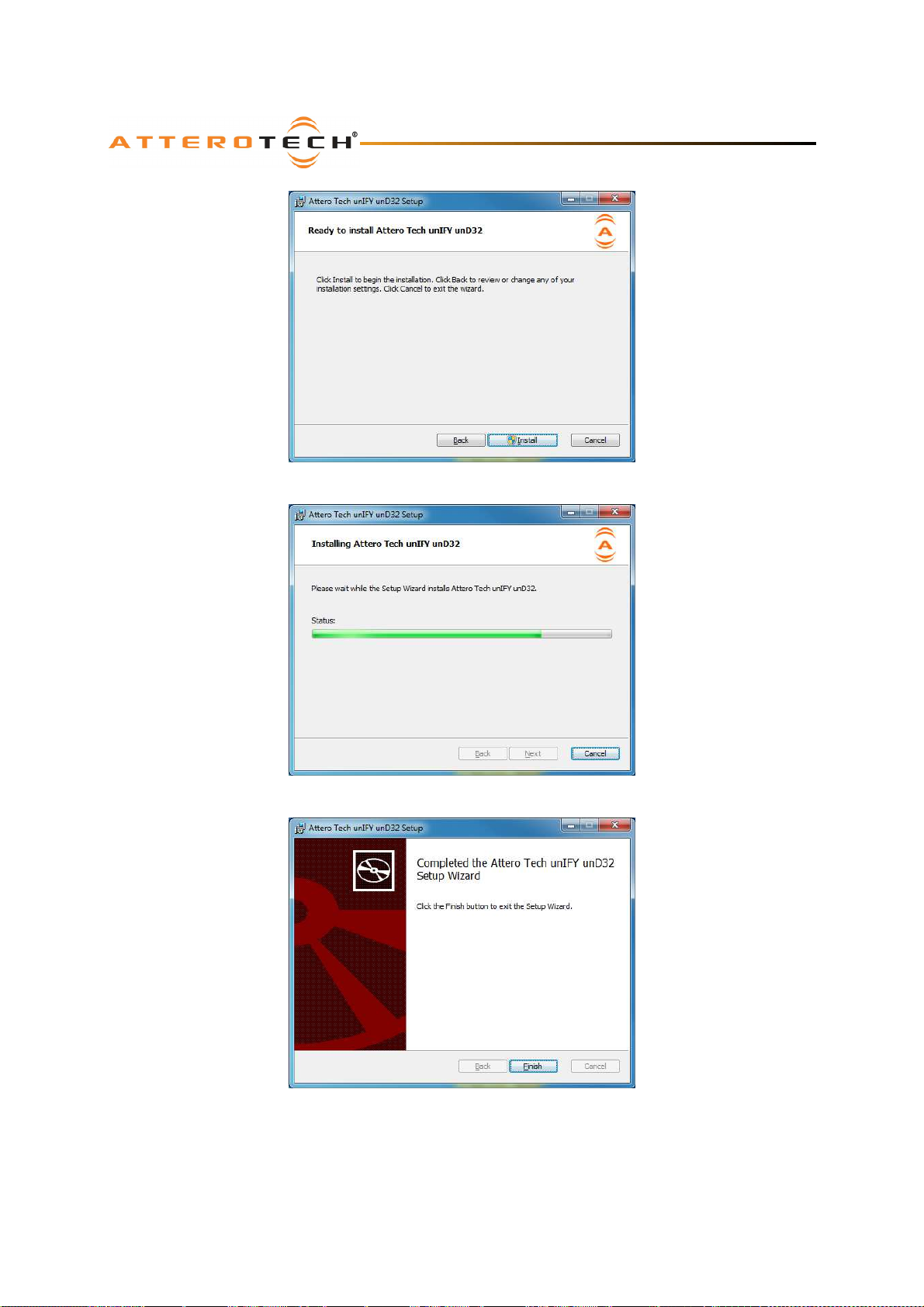

At this point the installation is ready to go. Click the “Install” to begin installing the files to your PC.

The software will then being installing the files, showing a progress bar as it proceeds.

If the installation completes successfully, you will see the screen above. Click finish to conclude the installation.

 Attero Tech LLC 2013 Page 14 614-00012-01

unD32 BoB

User Manual

After downloading the application, run the .exe and the first screen to appear will be the license agreement and options
screen.

The software will install to a default location of c:\program Files (x86)\Attero Tech\unIFY Control Panel). Clicking the
“Options” button allows the user to change the installation location if required though it’s not necessary to change it.

To continue the install, read the license agreement and check the “I agree…” check box. Doing so enables the “Install”
button. Click the now enabled “Install” button to start the transfer of files.

On Windows Vista or later if the PC has the UAC enabled, a warning pop up will now appear saying the installer is about
to make changes to your PC. This needs to be accepted for the installation to complete successfully.

 Attero Tech LLC 2013 Page 15 614-00012-01

unD32 BoB

User Manual

The installer will show a progress screen and will now being transferring files to your PC

Once the files are transferred, the installer will show a completion message show whether the installation was
successful or not.

If the installation was unsuccessful for any reason, the final screen will show an error message.

 Attero Tech LLC 2013 Page 16 614-00012-01

unD32 BoB

User Manual

4.3 – Running unD32 Control Panel

To run the GUI, click on the unIFY unD32 icon under Attero Tech in your programs list. When the GUI opens, the screen
above will be presented. The application will start in the offline state, noted in the status bar at the bottom of the
application window.

*Note: There may be a brief pause when the application starts while it initializes during which time the application may
appear unresponsive. This should only last a few seconds. Once initialized, the GUI will become responsive and show
itself to be in “Offline” mode.

4.4 – Connecting to a Device

All controls are enabled while in the offline state allowing the operator to create and work with preset configurations
without being connected to an unD32 appliance. These settings can then be saved to a file using the “Save Preset”
button and later loaded into a device once one is selected by using the “Load Preset” button.

The drop-down box on the main screen will be automatically populated with unD32 appliances that are discovered on
your network. To connect to a device, simply select a device from this drop-down. Selecting “None” will put you back in
the offline state.

*Note: Any changes made while to the controls in the offline state, including loading a preset configuration, will be lost
when a connection is established with a unD32 appliance as the GUI will update the displayed settings to reflect the
current state of the unD32 that is being connected, overwriting any previous values.

While connecting to an unD32 appliance the status bar at the bottom will read “connecting” and all controls will be
disabled until the connection is established and complete. This is indicated in the status bar with “connected” and the
bar will change colors to orange. Once connected the controls will be re-enabled and metering data will be present for
those channels which have a Dante route established. Each channel has two meters, the left is the signal strength
received while the right is the signal strength affected by the volumes and mutes.

*Note: Any changes made using the GUI while connected to an unD32 will result in those changes being persisted on
the unD32 appliance. However, the unD32 appliance does not persist those changes immediately. Since there is no
indicator when the persistence values have actually been written, it is recommended to leave the appliance powered for
up to 5 minutes after the last change to ensure the persistence has taken affect.

 Attero Tech LLC 2013 Page 17 614-00012-01

unD32 BoB

User Manual

4.5 – Third party Control

The unD32 allows direct access to its master and channel volume and mute settings. This is achieved by the control
system sending system formatted UDP messages to a specific port on the unD32. The port to send this information to
and the port to which the response is sent is set using the Command Port and Response Port values. To alter the port
used, simply change the values in the respective fields and click the “Configure” button to apply the values to the unit.

Further information on the protocol and the precise message format that the UDP messages use can be found in the
unIFY Software API document.

4.6 – Trouble Shooting

The metering data is transferred across the network using multi-cast packets. However there are situation which will
cause the application to not receive these packets. If you are not getting metering data and should, try the following.

1) If you have a firewall, ensure that it’s configured to allow the unD32 Control Panel as access to the network. If

the unD32 Control Panel software still does not work correctly, try turning disabling the firewall or turning it
off temporary while you use the application.

2) If Windows 7, enable “Reliable Multicast Protocol”.

*Note: This is enabled on the interface (network card) for the Dante audio, if your system has multiple
network interfaces.

See the following link for instructions: http://www.itechtalk.com/thread11886.html

3) Check that the device and the PC’s network card both have an IP address and they are both in the same

network range.

 Attero Tech LLC 2013 Page 18 614-00012-01

unD32 BoB

User Manual

5 – Device Specifications

5.1 – Architects and Engineering Spec

The Dante Break Out Interface shall have 32 balanced analog output channels. Each channel shall be capable of being
driven from a unique Dante audio flow, such that a maximum of 32 different audio signals can be output
simultaneously. The unit shall have a 16x2 character LED display and 6 buttons on the front panel which allow all
parameters of the unit to be adjusted and monitored. All parameter changes will be nonvolatile and self-restoring in
the event of AC power interruption. The unit’s display shall show Dante audio flow name, volume setting in dB, and
relative output level for each channel. The unit shall accept worldwide voltages from 100 - 240VAC,50Hz/60Hz and
have active PFC (power factor correction). The unit shall be compliant with FCC Part 15, CE, and UL requirements.
Analog output grounding and shielding shall be compliant with AES48-2005 guidelines. The unit shall be the Attero
Tech unD32 BoB.

5.2 – Device Specifications

Output Type:

Output Impedance:

Output Noise:

Dynamic Range:

Maximum Output Level:

System THD:

Output Channels:

Audio Network

Network Ports

Power Consumption:

Certifications:

Dimensions:

Weight

Balanced with automatic muting upon loss of Dante signal

200 ohms balanced, 100 ohms unbalanced (i.e. either “+” or “-” output with respect to
ground)

< -90dBu @ 0dB gain

> 110dB

+20dBu

< 0.05% at any gain, input signal 3dB below maximum

32

Dante

3

45 W maximum at 100V-240VAC

FCC Part 15 Class A, CE, UL. Compliant with AES48-2005 Grounding/EMI Guidelines

1.75” H x 19” W x 6” D

5 lbs

 Attero Tech LLC 2013 Page 19 614-00012-01

unD32 BoB

User Manual

6 – LIMITED TWO YEAR WARRANTY

The equipment is warranted for two years from date of purchase from Attero Tech, LLC against defects in materials or
workmanship. This warranty does not cover equipment which has been abused or damaged by careless handling or
shipping. This warranty does not apply to used or demonstrator equipment. Should any defect develop, Attero Tech,
LLC will, at our option, repair or replace any defective parts without charge for either parts or labor. If Attero Tech, LLC
cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item. Attero Tech, LLC
will pay for the cost of returning your equipment to you. This warranty applies only to items returned to Attero Tech,
LLC, shipping costs prepaid, within two year from the date of purchase. This Limited Warranty is governed by the laws
of the State of Indiana. It states the entire liability of Attero Tech, LLC and the entire remedy of the purchaser for any
breach of warranty as outlined above. NEITHER ATTERO TECH, LLC NOR ANYONE INVOLVED IN THE PRODUCTION OR
DELIVERY OF THE EQUIPMENT SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL, OR
INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THIS EQUIPMENT EVEN IF ATTERO TECH, LLC HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF ATTERO TECH, LLC
EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE EQUIPMENT.

This warranty gives you specific legal rights. You may have additional legal rights which vary from state to state.

 Attero Tech LLC 2013 Page 20 614-00012-01

unD32 BoB

User Manual

APPENDIX A – Reference Documents

The following table lists the relevant reference documents.

Document Title Revision

DANTE Controller User’s Guide V1.0

unIFY User’s Manual V1.0

unIFY Software API manual V1.0

 Attero Tech LLC 2013 Page A-1 614-00012-01
