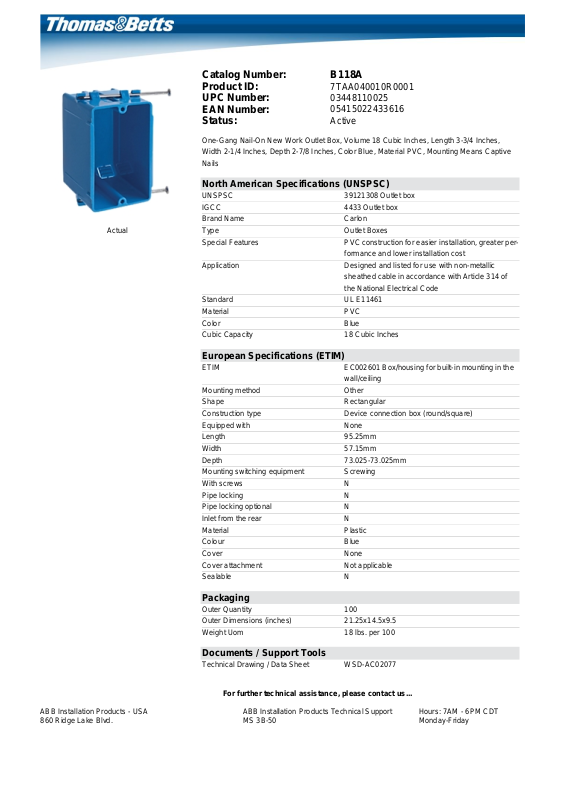

Page 1
Actual
Catalog Number: B118A
Product ID:
UPC Number:
EAN Number:
Status:
One-Gang Nail-On New Work Outlet Box, Volume 18 Cubic Inches, Length 3-3/4 Inches,
Width 2-1/4 Inches, Depth 2-7/8 Inches, Color Blue, Material PVC, Mounting Means Captive
Nails
North American Specifications (UNSPSC)
UNSPSC 39121308 Outlet box
IGCC 4433 Outlet box
Brand Name Carlon
Type Outlet Boxes
Special Features PVC construction for easier installation, greater per-
Application Designed and listed for use with non-metallic
Standard UL E11461
Material PVC
Color Blue
Cubic Capacity 18 Cubic Inches
7TAA040010R0001
03448110025
05415022433616
Active
formance and lower installation cost
sheathed cable in accordance with Article 314 of
the National Electrical Code
European Specifications (ETIM)
ETIM EC002601 Box/housing for built-in mounting in the
wall/ceiling
Mounting method Other
Shape Rectangular
Construction type Device connection box (round/square)
Equipped with None
Length 95.25mm
Width 57.15mm
Depth 73.025-73.025mm
Mounting switching equipment Screwing
With screws N
Pipe locking N
Pipe locking optional N
Inlet from the rear N
Material Plastic
Colour Blue
Cover None
Cover attachment Not applicable
Sealable N
Packaging
Outer Quantity 100
Outer Dimensions (inches) 21.25x14.5x9.5
Weight Uom 18 lbs. per 100
ABB Installation Products - USA
860 Ridge Lake Blvd.
Documents / Support Tools
Technical Drawing / Data Sheet WSD-AC02077
For further technical assistance, please contact us...
ABB Installation Products Technical Support
MS 3B-50
Hours: 7AM - 6PM CDT
Monday-Friday
