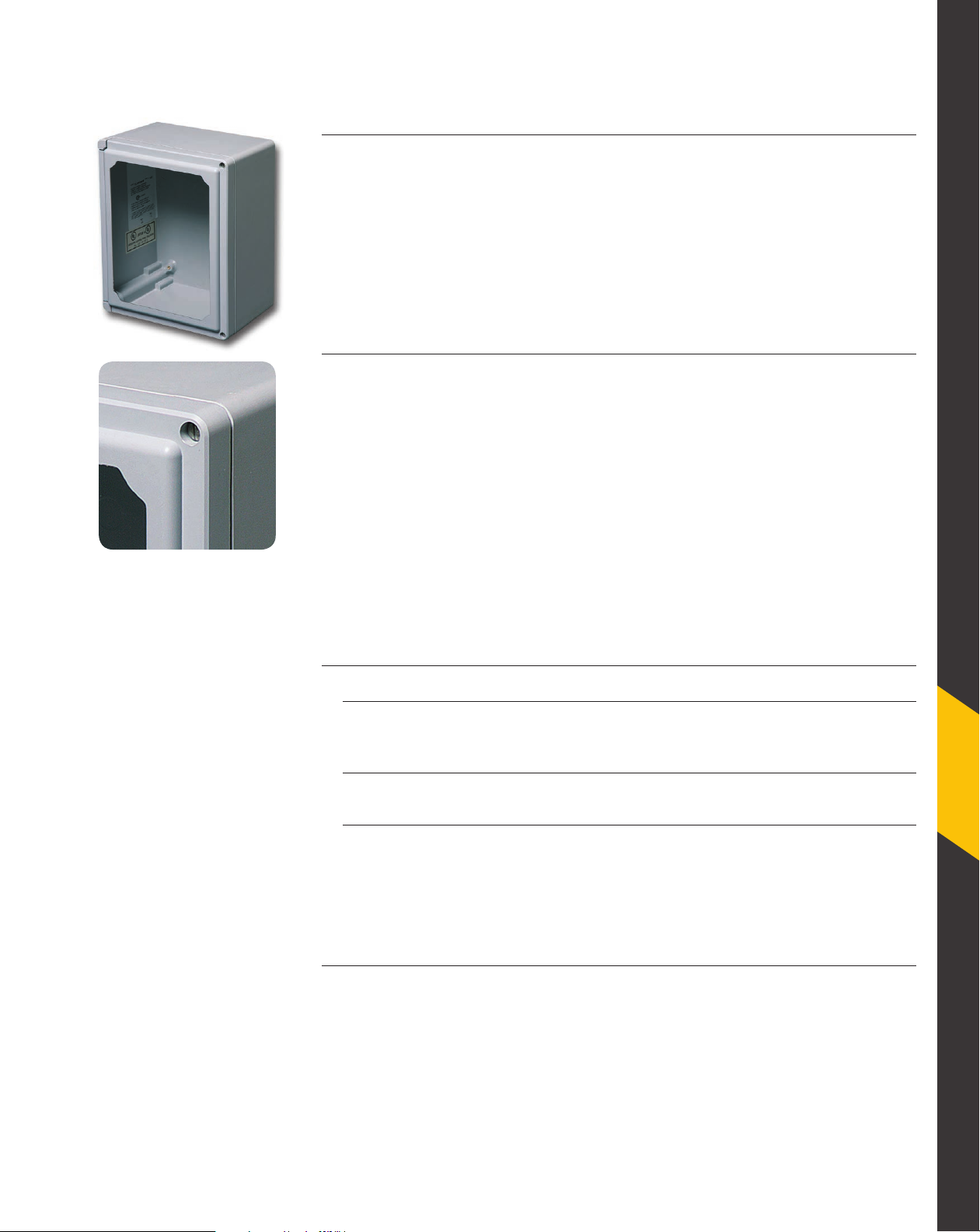

Centurion | Flush Bonded Window | HW
HINGED, 2 COVER SCREWS
CONSTRUCTION
Material (Box & Cover) Hot Compression Molded Fiberglass Reinforced Polyester (Thermoset)
Gasket Material Poured polyurethane seamless gasket
Window Acrylic - Super Abrasion Resistant (SAR)
Back Panel Screw Size #10-32 x 3/8
Cover Screw Material 304 Stainless Steel
Cover Screw Size #10-24 x 1
Cover Screw Torque 20-24 in.-lbs.
Hinge and Latch Hardware 304 Stainless Steel
Soft Edge Design Rounded Edges, Minimal Protrusions Or Exposed Pocket Areas
INDUSTRY STANDARDS
UL/cUL File # E64358
NEMA Ratings 1, 3, 3S, 3R, 4X, 12
(UL508A, UL50 & UL50e)
CSA Std. C22.2 File #
UL 1741 File # E333478
Temperature Range (-76°F to +274°F) (-60°C to +134°C)
Flammability Rating UL94-5V
Window Temperature Range (-26°F to +170°F) (-32°C to +76°C)
Window Flammability Rating UL94-HB
Self Extinguishing Non-Halogenated, Non-flame propagating
NFPA No. 101 Flame Spread Class A (1)
Certifications UL, CSA, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
LR069014
ACCESSORIES
BACK PANELS
Aluminum BP__A pg. 108
Carbon Steel BP__CS pg. 108
MOUNTING FEET
Mounting Feet pg. 113
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Custom Colors pg. 10-11
Silk Screening pg. 10-11
EMI/RFI Shielding pg. 10-11
Custom Window pg. 10-11
Custom Cutouts/Holes pg. 10-11
11
Centurion (CEW)
HW / HPL
87

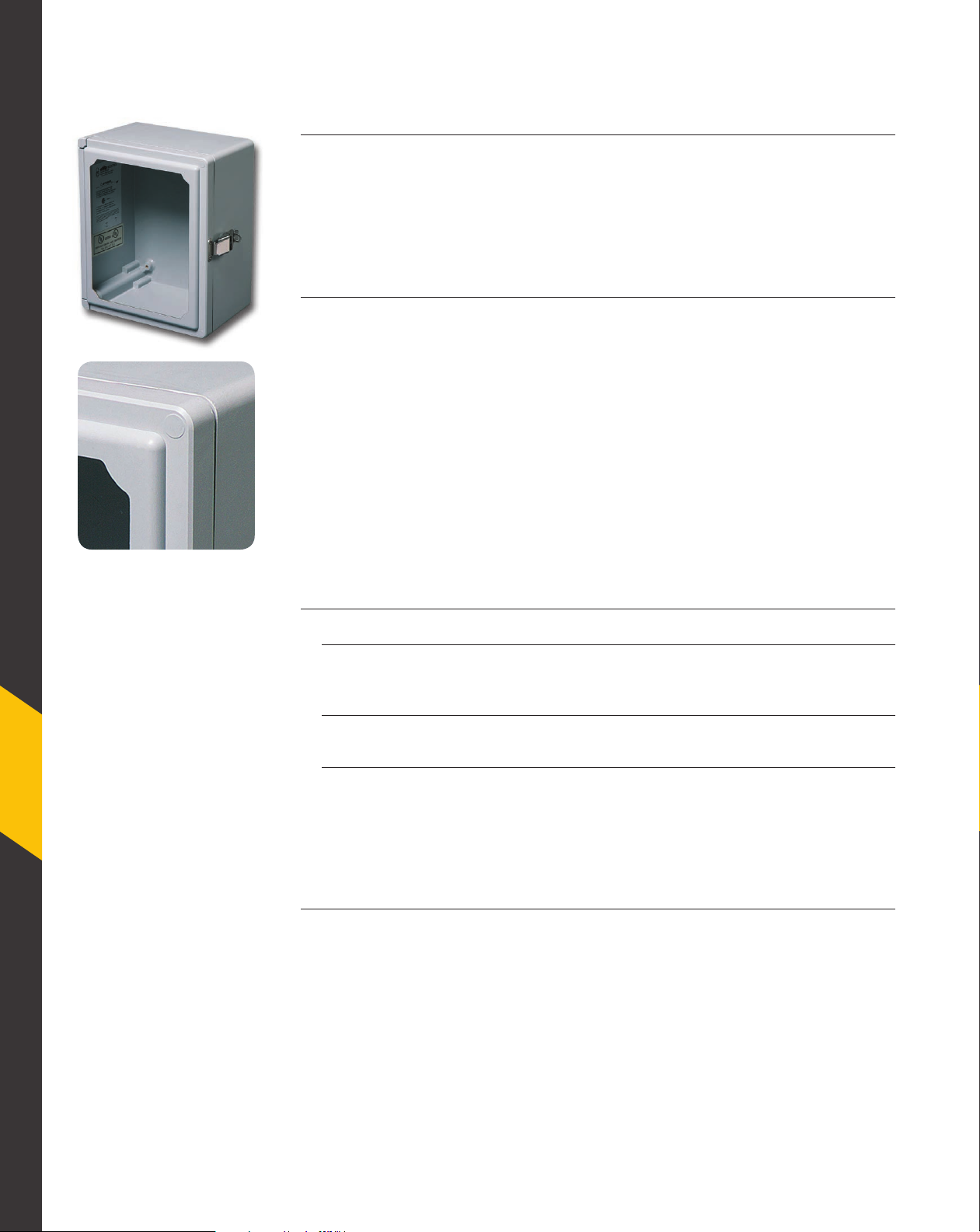

Centurion | Flush Bonded Window | HPL
HINGED, PADLOCK LATCH
CONSTRUCTION
Material (Box & Cover) Hot Compression Molded Fiberglass Reinforced Polyester (Thermoset)
Gasket Material Poured polyurethane seamless gasket
Window Acrylic - Super Abrasion Resistant (SAR)
Back Panel Screw Size #10-32 x 3/8
Hinge and Latch Hardware 304 Stainless Steel
Soft Edge Design Rounded Edges, Minimal Protrusions Or Exposed Pocket Areas
INDUSTRY STANDARDS
UL/cUL File # E64358
NEMA Ratings 1, 3, 3S, 3R, 4X, 12
(UL508A, UL50 & UL50e)
CSA Std. C22.2 File # LR069014
UL 1741 File # E333478
Temperature Range (-76°F to +274°F) (-60°C to +134°C)
Flammability Rating UL94-5V
Window Temperature Range (-26°F to +170°F) (-32°C to +76°C)
Window Flammability Rating UL94-HB
Self Extinguishing Non-Halogenated, Non-flame propagating
NFPA No. 101 Flame Spread Class A (1)
Certifications UL, CSA, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
11
Centurion (CEW)
HW / HPL
ACCESSORIES
BACK PANELS
Aluminum BP__A pg. 108
Carbon Steel BP__CS pg. 108
MOUNTING FEET
Mounting Feet pg. 113
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Custom Colors pg. 10-11
Silk Screening pg. 10-11
EMI/RFI Shielding pg. 10-11
Custom Window pg. 10-11
Custom Cutouts/Holes pg. 10-11
88

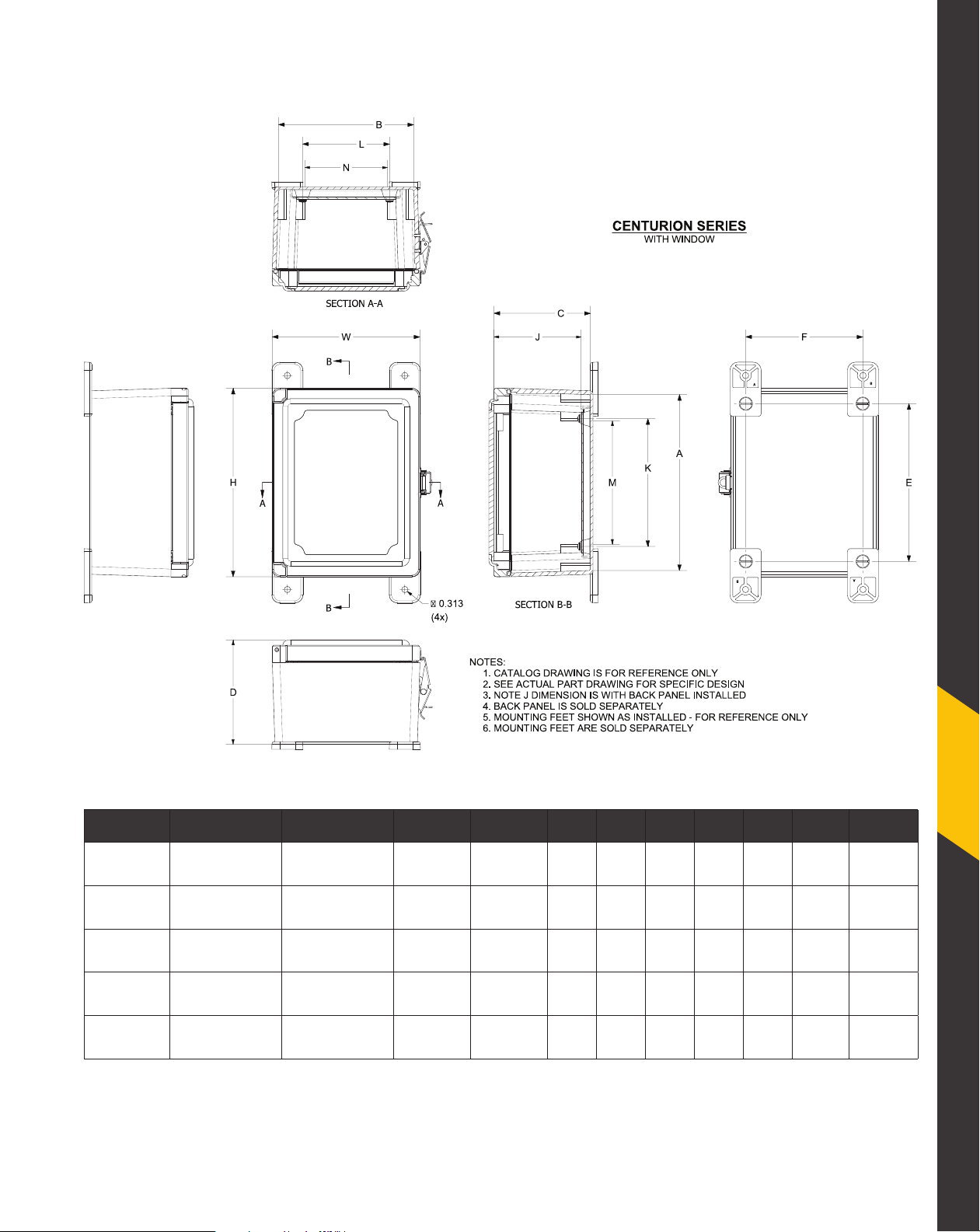

Centurion | Flush Bonded Window | HW & HPL
TECHNICAL DRAWINGS / DIMENSIONS
CENTURION WINDOW SERIES ENCLOSURES
SIZE ID
NUMBER
CEW707HW
CEW707HPL
CEW907HW
CEW907HPL
CEW1109HW
CEW1109HPL
CEW1311HW
CEW1311HPL
CEW1513HW
CEW1513HPL
OVERALL
H X W X D
7.21 x 7.21 x 5.09
(183 x 183 x 129)
9.21 x 7.21 x 5.09
(234 x 183 x 129)
11.21 x 9.21 x 6.09
(285 x 234 x 155)
13.21 x 11.21 x 6.59
(336 x 285 x 167)
15.21 x 13.21 x 7.09
(386 x 336 x 180)
INSIDE
A X B X C
6.65 x 6.65 x 4.84
(169 x 169 x 123)
8.59 x 6.59 x 4.84
(218 x 167 x 123)
10.59 x 8.59 x 5.84
(269 x 218 x 148)
12.59 x 10.59 x 6.34
(320 x 269 x 161)
14.55 x 12.55 x 6.84
(370 x 319 x 174)
WINDOW AREA
5.06 x 5.06
(129 x 129)
7.06 x 5.06
(179 x 129)
9.06 x 7.06
(230 x 179)
11.06 x 9.06
(281 x 230)
13.06 x 11.06
(332 x 281)
MAXIMUM
MOUNTING E X F J K L M N
5.71 x 5.71
(145 x 145)
7.71 x 5.71
(196 x 145)
9.71 x 7.71
(247 x 196)
11.71 x 9.71
(298 x 247)
13.71 x 11.71
(348 x 298)
4.39
(111)
4.39
(111)
5.39
(137)
5.89
(150)
6.39
(162)
4.25
(108)
6.25
(159)
8.25
(210)
10.25
(260)
12.25
(311)
4.25
(108)
4.25
(108)
6.25
(159)
8.25
(210)
10.25
(260)
4.04
(103)
6.04
(154)
8.04
(204)
10.04
(255)
12.04
(306)
4.04
(103)
4.04
(103)
6.04
(154)
8.04
(204)
10.04
(255)
SHIPPING
WEIGHT
4 lbs. BP66*
4.3 lbs. BP86*
6 lbs. BP108*
7.8 lbs. BP1210*
11.6 lbs. BP1412*
PANEL
NUMBER
11
Centurion (CEW)
HW / HPL
89
