Viking (V)

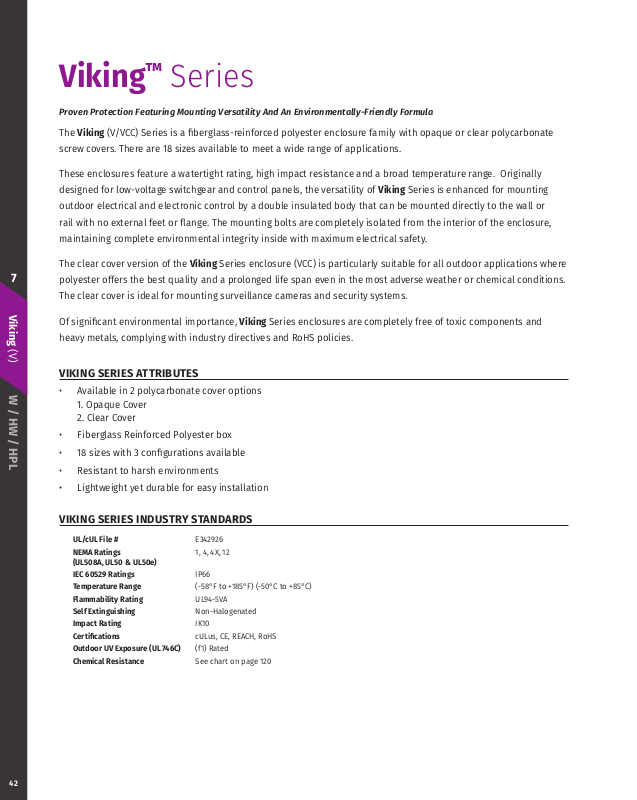

Viking™ Series
Proven Protection Featuring Mounting Versatility And An Environmentally-Friendly Formula
The Viking (V/VCC) Series is a fiberglass-reinforced polyester enclosure family with opaque or clear polycarbonate
screw covers. There are 18 sizes available to meet a wide range of applications.
These enclosures feature a watertight rating, high impact resistance and a broad temperature range. Originally
designed for low-voltage switchgear and control panels, the versatility of Viking Series is enhanced for mounting
outdoor electrical and electronic control by a double insulated body that can be mounted directly to the wall or
rail with no external feet or flange. The mounting bolts are completely isolated from the interior of the enclosure,
maintaining complete environmental integrity inside with maximum electrical safety.
The clear cover version of the Viking Series enclosure (VCC) is particularly suitable for all outdoor applications where
polyester offers the best quality and a prolonged life span even in the most adverse weather or chemical conditions.
The clear cover is ideal for mounting surveillance cameras and security systems.
Of significant environmental importance, Viking Series enclosures are completely free of toxic components and
heavy metals, complying with industry directives and RoHS policies.
VIKING SERIES ATTRIBUTES
W / HW / HPL
• Available in 2 polycarbonate cover options
• Fiberglass Reinforced Polyester box
• 18 sizes with 3 configurations available
• Resistant to harsh environments
• Lightweight yet durable for easy installation
VIKING SERIES INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
1. Opaque Cover
2. Clear Cover
IP66
42
Page 2
Viking | Opaque Cover (V)
AVAILABLE FALL OF 2017
W
HW
HPL
7
Viking (V)
W / HW / HPL
Viking | Clear Cover (VCC)
AVAILABLE FALL OF 2017
W
HW
HPL
43
Page 3
7
Viking (V)
Viking | Opaque Cover | W
4 COVER SCREWS, LIFT OFF COVER
CONSTRUCTION
Box Material Fiberglass reinforced polyester
Cover Material Polycarbonate
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material Polycarbonate
Cover Screw Size Custom
Cover Screw Torque 16 in.-lbs.
INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings IP66
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
W / HW / HPL
ACCESSORIES
BACK PANELS
Aluminum Back Panel BPV_A pg. 111
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
44
Page 4
Viking | Opaque Cover | HW
HINGED, 2 COVER SCREWS
CONSTRUCTION
Box Material Fiberglass reinforced polyester
Cover Material Polycarbonate
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material Polycarbonate
Cover Screw Size Custom
Cover Screw Torque 16 in.-lbs.
Hinge Material Polyamide
INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
IP66
7
Viking (V)
ACCESSORIES
BACK PANELS
Aluminum Back Panel BPV_A pg. 111
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
W / HW / HPL
45
Page 5
7
Viking (V)

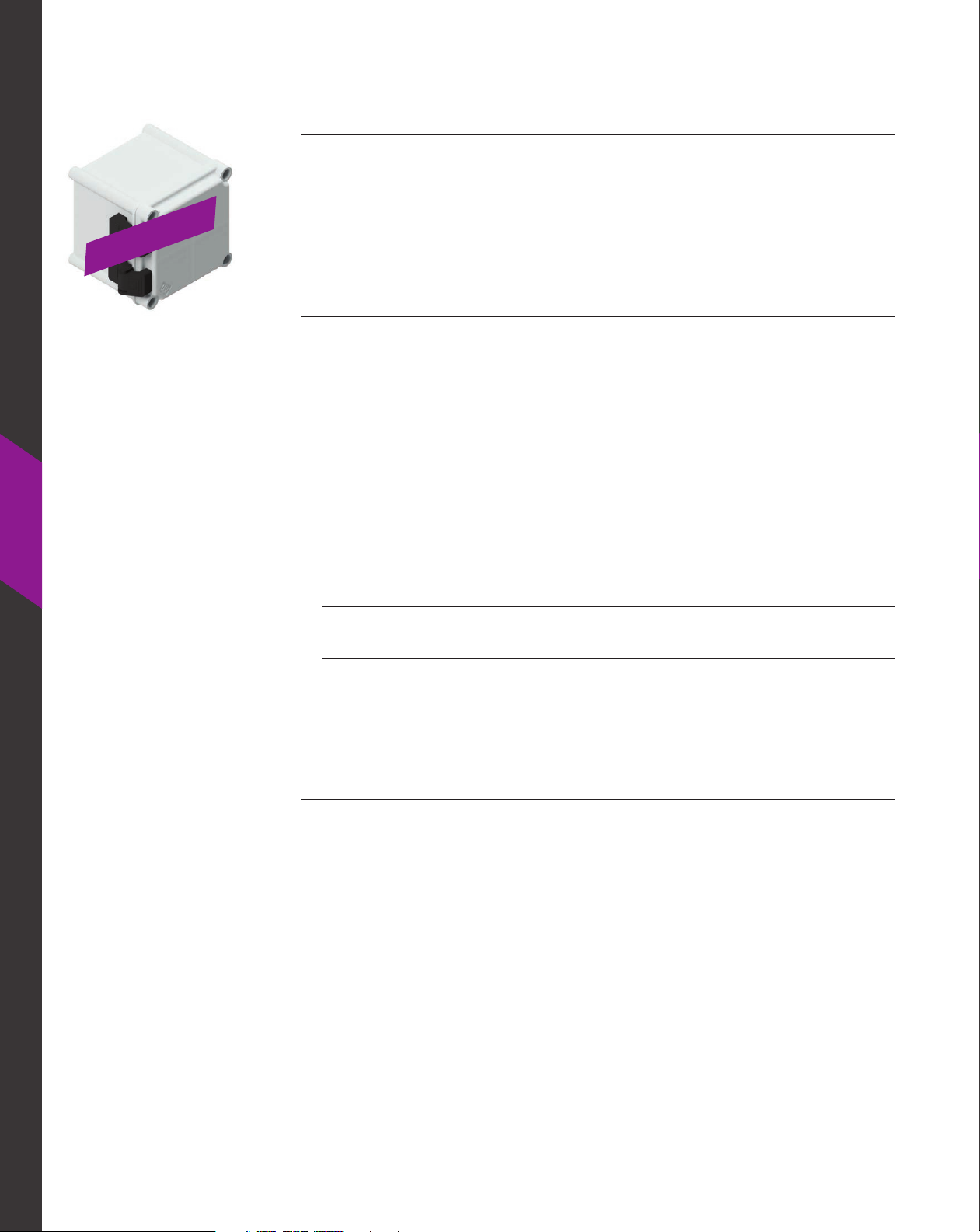

Viking | Opaque Cover | HPL
HINGED, PADLOCK LATCH
CONSTRUCTION
Box Material Fiberglass reinforced polyester
Cover Material Polycarbonate
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material Polycarbonate
Cover Screw Size Custom
AVAILABLE FALL OF 2017
Latch Hardware 304 Stainless Steel
Hinge Material Polyamide
INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings IP66
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
W / HW / HPL
ACCESSORIES
BACK PANELS
Aluminum Back Panel BPV_A pg. 111
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
46
Page 6
Viking | Opaque Cover | W, HW & HPL

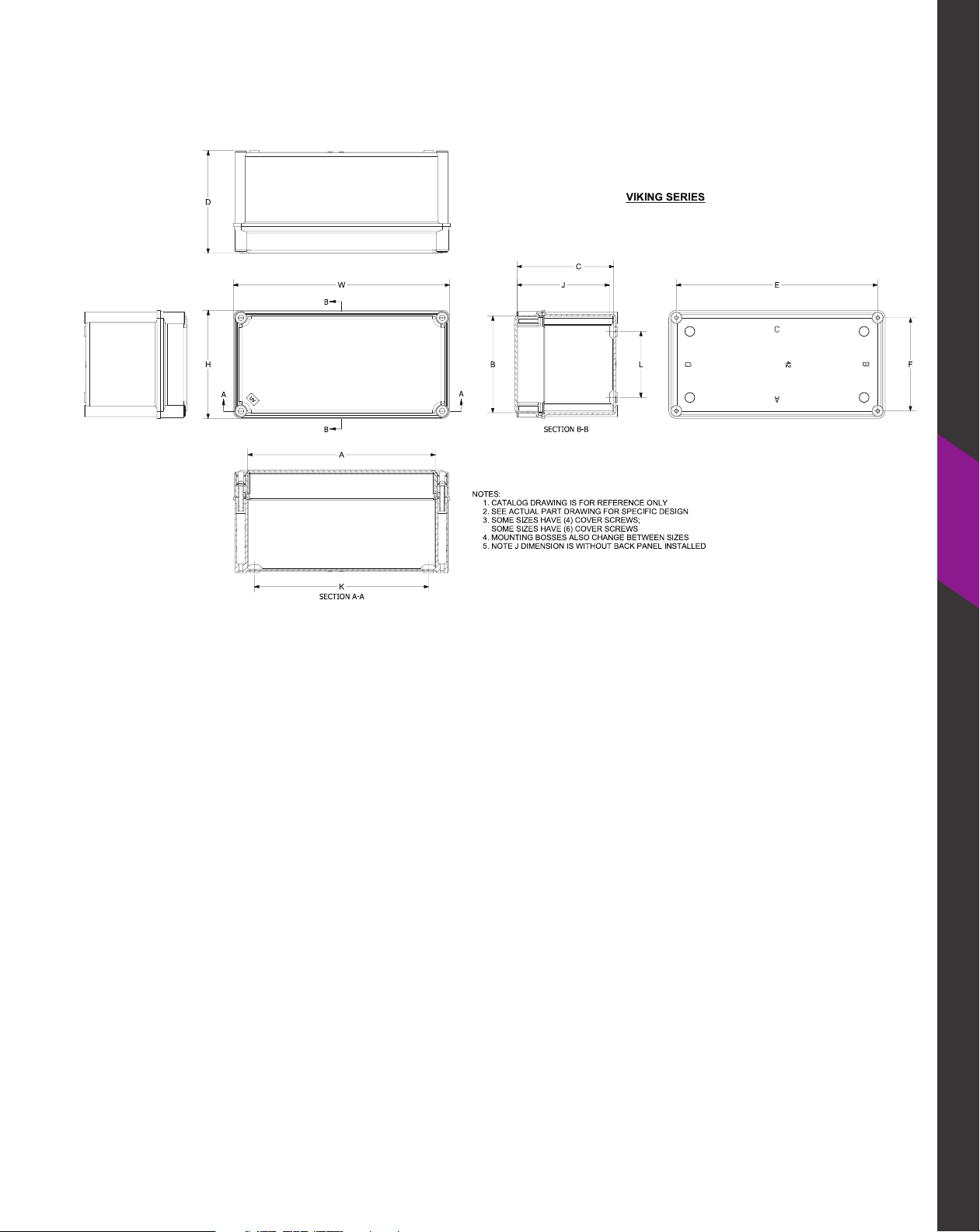

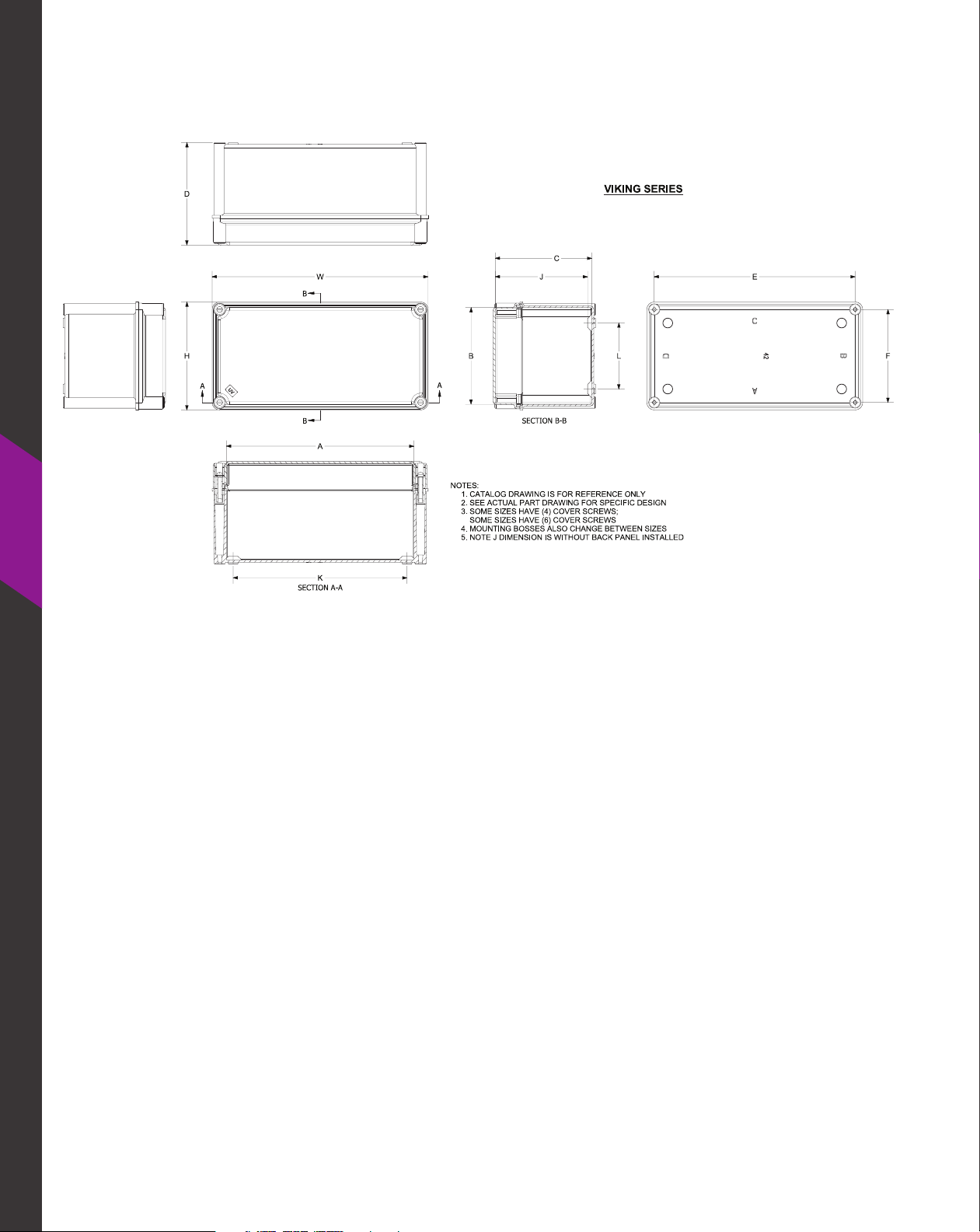

TECHNICAL DRAWINGS
7
Viking (V)
W / HW / HPL
47
Page 7
Viking | Opaque Cover | W, HW & HPL
DIMENSIONS
SIZE ID
NUMBER
V1076W
V1076HW
V1076HPL
V10106W
V10106HW
V10106HPL
V1476W
V1476HW
V1476HPL
V14106W
V14106HW
V14106HPL
V14108W
V14108HW
V14108HPL
7
Viking (V)
W / HW / HPL
V14146W
V14146HW
V14146HPL
V14148W
V14148HW
V14148HPL
V21106W
V21106HW
V21106HPL
V21108W
V21108HW
V21108HPL
V21146W
V21146HW
V21146HPL
V21148W
V21148HW
V21148HPL
V21216W
V21216HW
V21216HPL
V28148W
V28148HW
V28148HPL
V28218W
V28218HW
V28218HPL
V755W
V755HW
V755HPL
V775W
V775HW
V775HPL
V1055W
V1055HW
V1055HPL
V555W
V555HW
V555HPL
OVERALL
H X W X D
10.62 x 7.08 x 6.69
(270 x 180 x 170)
10.62 x 10.62 x 6.69
(270 x 270 x 170)
14.17 x 7.08 x 6.69
(360 x 180 x 170)
14.17 x 10.62 x 6.69
(360 x 270 x 170)
14.17 x 10.62 x 8.27
(360 x 270 x 210)
14.17 x 14.17 x 6.69
(360 x 360 x 170)
14.17 x 14.17 x 8.27
(360 x 360 x 210)
21.25 x 10.62 x 6.69
(540 x 270 x 170)
21.25 x 10.62 x 8.27
(540 x 270 x 210)
21.25 x 14.17 x 6.69
(540 x 360 x 170)
21.25 x 14.17 x 8.27
(540 x 360 x 210)
21.25 x 21.25 x 6.69
(540 x 540 x 170)
28.35 x 14.17 x 8.27
(720 x 360 x 210)
28.35 x 21.25 x 8.27
(720 x 540 x 210)
7.08 x 5.31 x 5.12
(180 x 135 x 130)
7.08 x 7.08 x 5.12
(180 x 180 x 130)
10.62 x 5.31 x 5.12
(270 x 135 x 130)
5.31 x 5.31 x 5.12
(135 x 135 x 130)
INSIDE
A X B X C
10.00 x 6.46 x 6.34
(254 x 164 x 161)
9.92 x 9.92 x 6.34
(252 x 252 x 161)
13.54 x 6.46 x 6.34
(344 x 164 x 161)
13.54 x 10.00 x 6.34
(344 x 254 x 161)
13.54 x 10.00 x 7.56
(344 x 254 x 192)
13.46 x 13.46 x 6.34
(342 x 342 x 161)
13.46 x 13.46 x 7.56
(342 x 342 x 192)
20.63 x 10.00 x 6.34
(524 x 254 x 161)
20.63 x 10.00 x 7.56
(524 x 254 x 192)
20.63 x 13.54 x 6.34
(524 x 344 x 161)
20.63 x 13.54 x 7.56
(524 x 344 x 192)
20.55 x 20.55 x 6.34
(522 x 522 x 161)
27.64 x 13.46 x 7.56
(702 x 342 x 192)
27.72 x 20.63 x 7.56
(704 x 524 x 192)
6.46 x 4.69 x 4.84
(164 x 119 x 123)
6.46 x 6.46 x 4.84
(164 x 164 x 123)
10.08 x 4.69 x 4.84
(256 x 119 x 123)
4.69 x 4.69 x 4.84
(119 x 119 x 123)
MOUNTING
E X F
9.65 x 6.10
(245 x 155)
9.65 x 9.65
(245 x 245)
13.19 x 6.10
(335 x 155)
13.19 x 9.65
(335 x 245)
13.19 x 9.65
(335 x 245)
13.19 x 13.19
(335 x 335)
13.19 x 13.19
(335 x 335)
20.28 x 9.65
(515 x 245)
20.28 x 9.65
(515 x 245)
20.28 x 13.19
(515 x 335)
20.28 x 13.19
(515 x 335)
20.28 x 20.28
(515 x 515)
27.36 x 13.19
(695 x 335)
27.36 x 20.28
(695 x 515)
6.30 x 4.53
(160 x 115)
6.30 x 6.30
(160 x 160)
9.96 x 4.53
(253 x 115)
4.53 x 4.53
(115 x 115)
J K L
5.99
(152)
5.99
(152)
5.99
(152)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
7.20
(183)
4.35
(111)
4.35
(111)
4.35
(111)
4.35
(111)
7.87
(200)
7.87
(200)
11.42
(290)
11.42
(290)
11.42
(290)
11.42
(290)
11.42
(290)
18.50
(470)
18.50
(470)
18.50
(470)
18.50
(470)
18.50
(470)
25.59
(650)
25.59
(650)
5.14
(131)
5.14
(131)
8.70
(221)
3.37
(86)
4.33
(110)
7.87
(200)
4.33
(110)
7.87
(200)
7.87
(200)
11.42
(290)
11.42
(290)
7.87
(200)
7.87
(200)
11.42
(290)
11.42
(290)
18.50
(470)
11.42
(290)
18.50
(470)
3.37
(86)
5.14
(131)
3.37
(86)
3.37
(86)
SHIPPING
WEIGHT
2.7 lbs. BPV107A
3.4 lbs. BPV1010A
2.9 lbs. BPV147A
3.9 lbs. BPV1410A
4.2 lbs. BPV1410A
5.1 lbs. BPV1414A
5.3 lbs. BPV1414A
6.1 lbs. BPV2110A
6.5 lbs. BPV2110A
9.6 lbs. BPV2114A
9.0 lbs. BPV2114A
12.3 lbs. BPV2121A
12.1 lbs. BPV2814A
16.7 lbs. BPV2821A
3.4 lbs. BPV75A
2.9 lbs. BPV77A
3.9 lbs. BPV105A
2.7 lbs. BPV55A
PANEL
NUMBER
48
Page 8

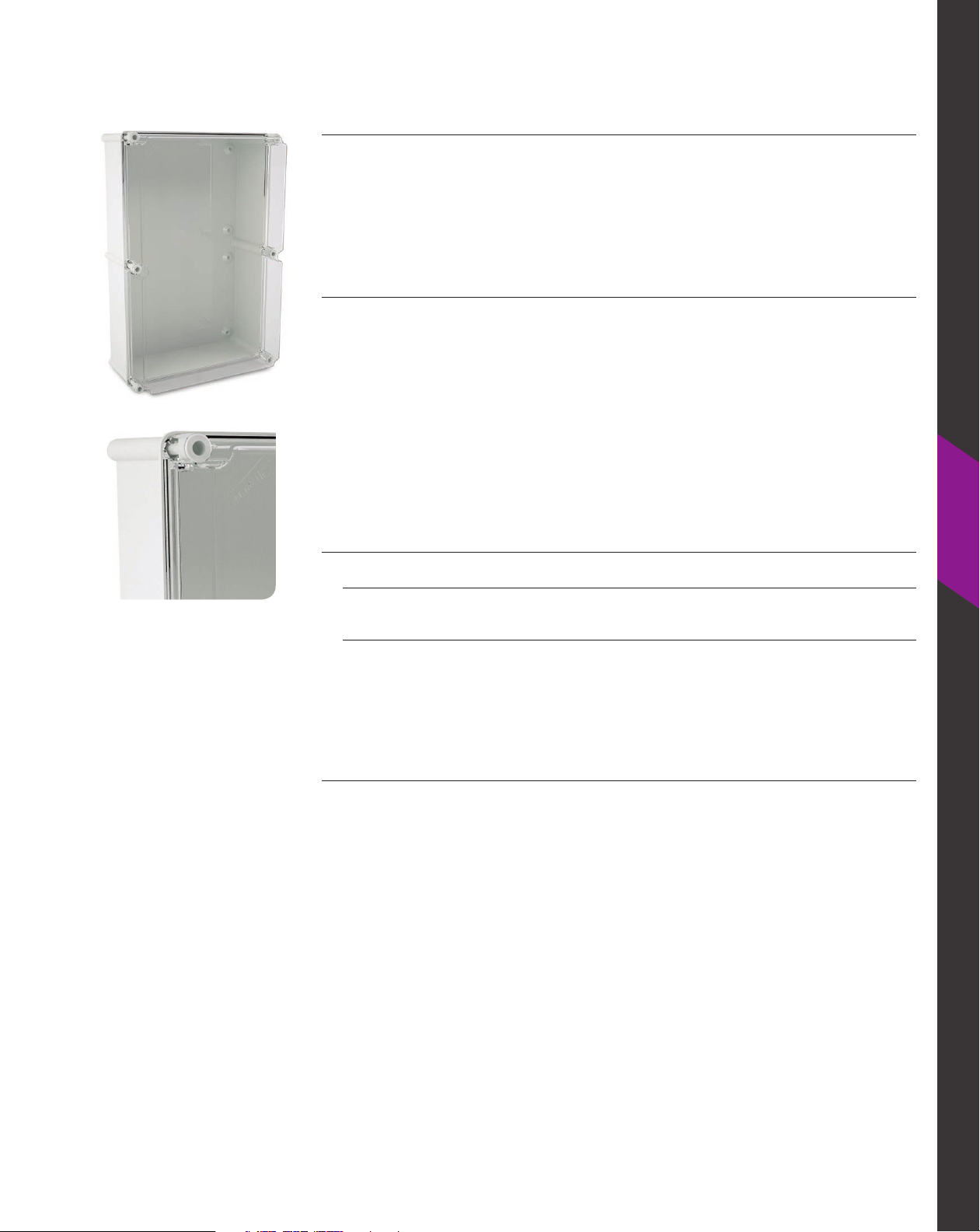

Viking | Clear Cover | W
4 COVER SCREWS, LIFT OFF COVER
CONSTRUCTION
Box Material Fiberglass reinforced polyester
Cover Material Polycarbonate
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material Polycarbonate
Cover Screw Size Custom
Cover Screw Torque 16 in.-lbs.
INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
IP66
7
Viking (V)
ACCESSORIES
BACK PANELS
Aluminum Back Panel BPV_A pg. 111
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
W / HW / HPL
49
Page 9
7
Viking (V)

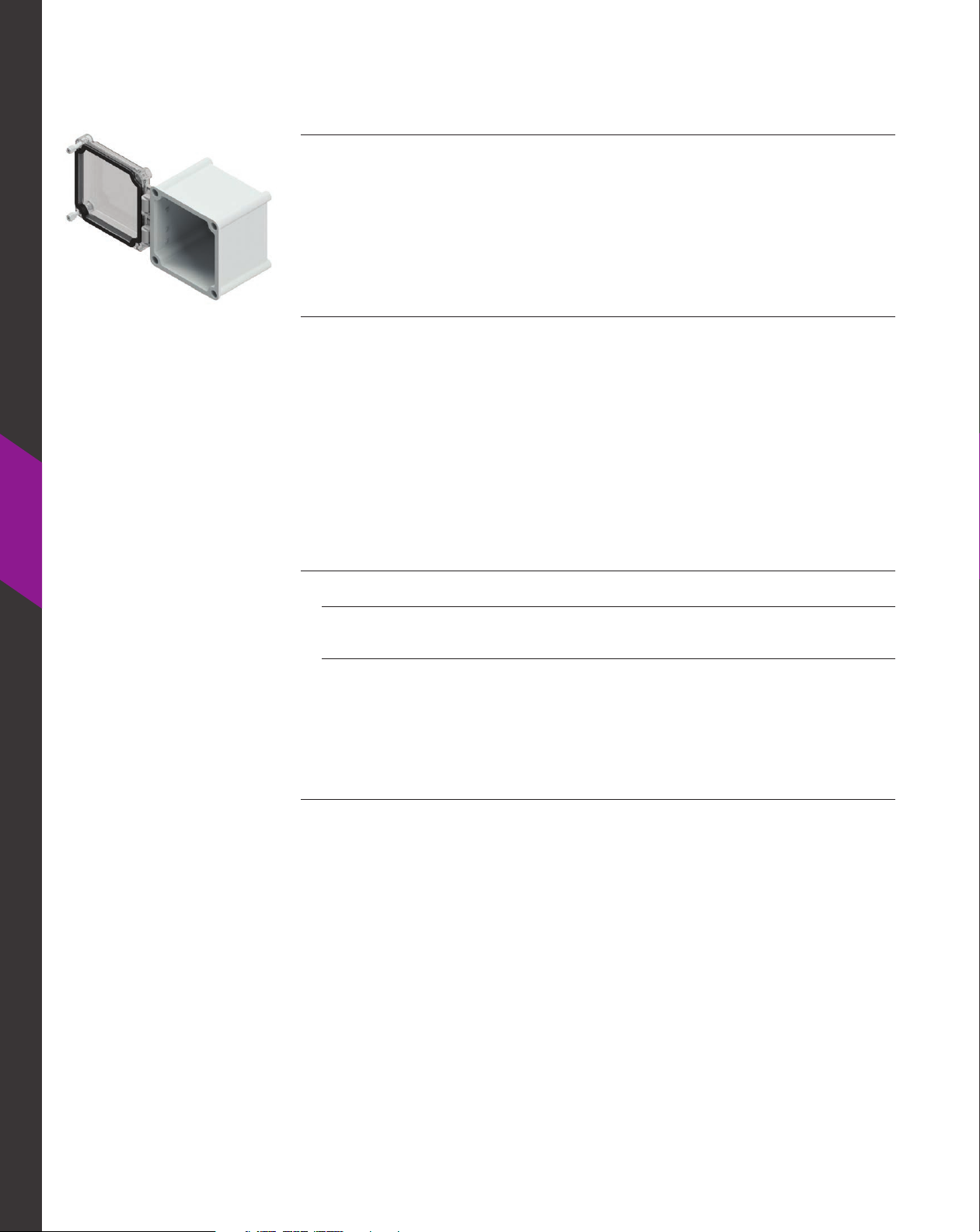

Viking | Clear Cover | HW
HINGED, 2 COVER SCREWS
CONSTRUCTION
Box Material Fiberglass reinforced polyester
Cover Material Polycarbonate
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material Polycarbonate
Cover Screw Size Custom
Cover Screw Torque 16 in.-lbs.
Hinge Material Polyamide
INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings IP66
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
W / HW / HPL
ACCESSORIES
BACK PANELS
Aluminum Back Panel BPV_A pg. 111
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
50
Page 10

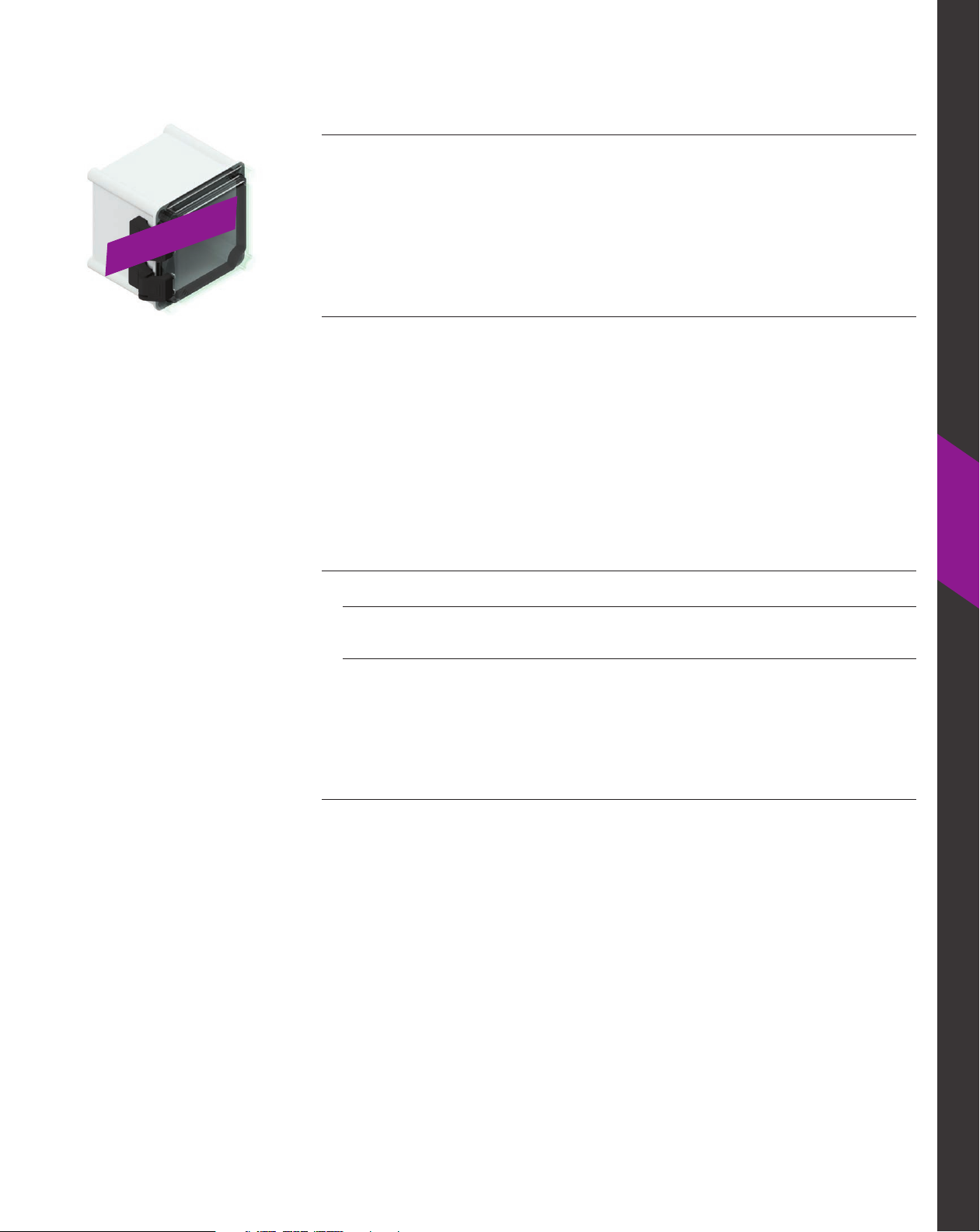

Viking | Clear Cover | HPL
HINGED, PADLOCK LATCH
CONSTRUCTION
Box Material Fiberglass reinforced polyester
Cover Material Polycarbonate
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material Polycarbonate
Cover Screw Size Custom
AVAILABLE FALL OF 2017
Latch Hardware 304 Stainless Steel
Hinge Material Polyamide
INDUSTRY STANDARDS
UL/cUL File # E342926
NEMA Ratings 1, 4, 4X, 12
(UL508A, UL50 & UL50e)
IEC 60529 Ratings
Temperature Range (-58°F to +185°F) (-50°C to +85°C)
Flammability Rating UL94-5VA
Self Extinguishing Non-Halogenated
Impact Rating IK10
Certifications cULus, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
IP66
7
Viking (V)
ACCESSORIES
BACK PANELS
Aluminum Back Panel BPV_A pg. 111
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
W / HW / HPL
51
Page 11
7
Viking (V)
Viking | Clear Cover | W, HW & HPL
TECHNICAL DRAWINGS
W / HW / HPL
52
Page 12
Viking | Clear Cover | W, HW & HPL
DIMENSIONS
SIZE ID
NUMBER
VCC1076W
VCC1076HW
VCC1076HPL
VCC10106W
VCC10106HW
VCC10106HPL
VCC1476W
VCC1476HW
VCC1476HPL
VCC14106W
VCC14106HW
VCC14106HPL
VCC14108W
VCC14108HW
VCC14108HPL
VCC14146W
VCC14146HW
VCC14146HPL
VCC14148W
VCC14148HW
VCC14148HPL
VCC21106W
VCC21106HW
VCC21106HPL
VCC21108W
VCC21108HW
VCC21108HPL
VCC21146W
VCC21146HW
VCC21146HPL
VCC21148W
VCC21148HW
VCC21148HPL
VCC21216W
VCC21216HW
VCC21216HPL
VCC28148W
VCC28148HW
VCC28148HPL
VCC28218W
VCC28218HW
VCC28218HPL
VCC755W
VCC755HW
VCC755HPL
VCC775W
VCC775HW
VCC775HPL
VCC1055W
VCC1055HW
VCC1055HPL
VCC555W
VCC555HW
VCC555HPL
OVERALL
H X W X D
10.62 x 7.08 x 6.69
(270 x 180 x 170)
10.62 x 10.62 x 6.69
(270 x 270 x 170)
14.17 x 7.08 x 6.69
(360 x 180 x 170)
14.17 x 10.62 x 6.69
(360 x 270 x 170)
14.17 x 10.62 x 8.27
(360 x 270 x 210)
14.17 x 14.17 x 6.69
(360 x 360 x 170)
14.17 x 14.17 x 8.27
(360 x 360 x 210)
21.25 x 10.62 x 6.69
(540 x 270 x 170)
21.25 x 10.62 x 8.27
(540 x 270 x 210)
21.25 x 14.17 x 6.69
(540 x 360 x 170)
21.25 x 14.17 x 8.27
(540 x 360 x 210)
21.25 x 21.25 x 6.69
(540 x 540 x 170)
28.35 x 14.17 x 8.27
(720 x 360 x 210)
28.35 x 21.25 x 8.27
(720 x 540 x 210)
7.08 x 5.31 x 5.12
(180 x 135 x 130)
7.08 x 7.08 x 5.12
(180 x 180 x 130)
10.62 x 5.31 x 5.12
(270 x 135 x 130)
5.31 x 5.31 x 5.12
(135 x 135 x 130)
INSIDE
A X B X C
10.00 x 6.46 x 6.34
(254 x 164 x 161)
9.92 x 9.92 x 6.34
(252 x 252 x 161)
13.54 x 6.46 x 6.34
(344 x 164 x 161)
13.54 x 10.00 x 6.34
(344 x 254 x 161)
13.54 x 10.00 x 7.56
(344 x 254 x 192)
13.46 x 13.46 x 6.34
(342 x 342 x 161)
13.46 x 13.46 x 7.56
(342 x 342 x 192)
20.63 x 10.00 x 6.34
(524 x 254 x 161)
20.63 x 10.00 x 7.56
(524 x 254 x 192)
20.63 x 13.54 x 6.34
(524 x 344 x 161)
20.63 x 13.54 x 7.56
(524 x 344 x 192)
20.55 x 20.55 x 6.34
(522 x 522 x 161)
27.64 x 13.46 x 7.56
(702 x 342 x 192)
27.72 x 20.63 x 7.56
(704 x 524 x 192)
6.46 x 4.69 x 4.84
(164 x 119 x 123)
6.46 x 6.46 x 4.84
(164 x 164 x 123)
10.08 x 4.69 x 4.84
(256 x 119 x 123)
4.69 x 4.69 x 4.84
(119 x 119 x 123)
MOUNTING
E X F
9.65 x 6.10
(245 x 155)
9.65 x 9.65
(245 x 245)
13.19 x 6.10
(335 x 155)
13.19 x 9.65
(335 x 245)
13.19 x 9.65
(335 x 245)
13.19 x 13.19
(335 x 335)
13.19 x 13.19
(335 x 335)
20.28 x 9.65
(515 x 245)
20.28 x 9.65
(515 x 245)
20.28 x 13.19
(515 x 335)
20.28 x 13.19
(515 x 335)
20.28 x 20.28
(515 x 515)
27.36 x 13.19
(695 x 335)
27.36 x 20.28
(695 x 515)
6.30 x 4.53
(160 x 115)
6.30 x 6.30
(160 x 160)
9.96 x 4.53
(253 x 115)
4.53 x 4.53
(115 x 115)
J K L
5.99
(152)
5.99
(152)
5.99
(152)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
5.99
(152)
7.20
(183)
7.20
(183)
4.35
(111)
4.35
(111)
4.35
(111)
4.35
(111)
7.87
(200)
7.87
(200)
11.42
(290)
11.42
(290)
11.42
(290)
11.42
(290)
11.42
(290)
18.50
(470)
18.50
(470)
18.50
(470)
18.50
(470)
18.50
(470)
25.59
(650)
25.59
(650)
5.14
(131)
5.14
(131)
8.70
(221)
3.37
(86)
4.33
(110)
7.87
(200)
4.33
(110)
7.87
(200)
7.87
(200)
11.42
(290)
11.42
(290)
7.87
(200)
7.87
(200)
11.42
(290)
11.42
(290)
18.50
(470)
11.42
(290)
18.50
(470)
3.37
(86)
5.14
(131)
3.37
(86)
3.37
(86)
SHIPPING
WEIGHT
2.7 lbs. BPV107A
3.4 lbs. BPV1010A
2.9 lbs. BPV147A
3.9 lbs. BPV1410A
4.2 lbs. BPV1410A
5.1 lbs. BPV1414A
5.3 lbs. BPV1414A
6.1 lbs. BPV2110A
6.5 lbs. BPV2110A
9.6 lbs. BPV2114A
9.0 lbs. BPV2114A
12.3 lbs. BPV2121A
12.1 lbs. BPV2814A
16.7 lbs. BPV2821A
3.4 lbs. BPV75A
2.9 lbs. BPV77A
3.9 lbs. BPV105A
2.7 lbs. BPV55A
PANEL
NUMBER
7
Viking (V)
W / HW / HPL
53
Loading...
