Trimline®Caller ID
Telephone 240
Please also read
Part 1 — Important
Product Information
USER’S MANUAL
Par t 2
AT&T and the globe symbol are registered trademarks of AT&T Corp.
licensed to Advanced American Telephones.
REVISED
3/25/02
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 1
© 2002 Advanced American Telephones.
All rights reserved.
Printed in China. Issue 1AT&T 03/02
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page i
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . .1
About Caller Identification . . . . . . . . . . . . . . . . .1
About Home Area Code and
Local Area Codes . . . . . . . . . . . . . . . . . . . . . . .1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Battery Installation . . . . . . . . . . . . . . . . . . . . . . .2
Telephone Installation . . . . . . . . . . . . . . . . . . . .3
FEATURE SETTINGS . . . . . . . . . . . . . . . . . . . . . .6
Feature Settings Summary . . . . . . . . . . . . . . . . . .6
Language Selection . . . . . . . . . . . . . . . . . . . . . . .6
Set Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Set Home Area Code . . . . . . . . . . . . . . . . . . . . . .7
Set Local Area Code(s) . . . . . . . . . . . . . . . . . . . .8
TELEPHONE OPERATION . . . . . . . . . . . . . . . . . .9
Making and Answering Calls . . . . . . . . . . . . . . . .9
Handset Volume . . . . . . . . . . . . . . . . . . . . . . . . .9
Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
New Call Light . . . . . . . . . . . . . . . . . . . . . . . . .10
Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Ringer Volume . . . . . . . . . . . . . . . . . . . . . . . . .10
TELEPHONE MEMORY . . . . . . . . . . . . . . . . . . .11
Directory Card . . . . . . . . . . . . . . . . . . . . . . . . .11
One-Touch Dialing . . . . . . . . . . . . . . . . . . . . . .12
Two-Touch Dialing . . . . . . . . . . . . . . . . . . . . . .12
Storing Memory Numbers . . . . . . . . . . . . . . . . .13
Storing a Pause in a Memory Number . . . . . . . .13
CALLER ID OPERATION . . . . . . . . . . . . . . . . . .14
About Caller Identification . . . . . . . . . . . . . . . .14
New Call Light . . . . . . . . . . . . . . . . . . . . . . . . .15
Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Reviewing Call History . . . . . . . . . . . . . . . . . . .15
Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Display Dial . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Display Dial Options . . . . . . . . . . . . . . . . . . . . .16
Storing a Call Record into Memory . . . . . . . . . .17
Removing Call Records from Call History . . . . .17
Display Screen Messages . . . . . . . . . . . . . . . . . .18
IN CASE OF DIFFICULTY . . . . . . . . . . . . . . . . .19
CONTENTS
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page iii
1
About Caller Identification
This product is designed to store and display
information about incoming telephone calls. It must
be used with Caller Identification service provided
by your local telephone company;there is a fee for
this service,and it may not be available in all areas.
This product can provide information only if
both you and the caller are in areas offering Caller
Identification service,and if both telephone
companies use compatible equipment.
When you use this product with Caller ID service,
you can see who’s calling before you answer the
phone. The unit keeps a record of the names and
numbers of the last 70 calls,whether you answer
the phone or not. Each call is numbered in the
call history,with older calls having lower numbers.
When the first call is received,the current time and
date are set automatically (you cannot set them),
and are reset each time a new call comes in.
About Home Area Code and
Local Area Codes
Always program your home area code and,if you
need them,up to four local area codes. Make sure
you read and follow all the directions in “Set Home
Area Code”and “Set Local Area Codes”on pages 7
and 8. Programming these area codes will change
how numbers are displayed in the call history,and
will allow for correct operation of the Display Dial
feature.
BEFORE YOU BEGIN
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 1
2
Battery Installation
This telephone requires three AA alkaline batter ies
in order for Caller ID, Memory,and the New Call
light to work.
NOTE: This telephone retains memory without
charged batteries for 5 minutes. If battery power
is lost for more than 5 minutes, the call history,
memory numbers and all feature settings will
be lost.
1 Press on battery
compartment tab
to open.
INSTALLATION
2 Install three AA
alkaline batteries
(not included)
in the compartment
as shown,and
replace the cover.
Battery compartment
cover
Battery
compartment
tab
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 2
3
Telephone Installation
Table/Desk
1 Plug one end of the long line cord into the
telephone line jack.
2 Feed the line cord through the channel (so the
phone will sit flat).
INSTALLATION
Line cord
Modular
telephone
wall jack
Modular telephone
wall jack
Channel
Telephone
line jack
3 Connect the other end to a wall jack.
Line cord
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 3
4
4 Plug the coiled cord into the jack on the
base. Plug the other end into the handset,then
hang up.
5 Lift the handset and listen for a dial tone. If
you can’t hear a dial tone,see IN CASE OF
DIFFICULTY.
INSTALLATION
Coiled
cord
Your phone will work immediately after installation
using the default feature settings (see “Feature
Settings Summary”on page 6).
NOTE: If you subscribe to Caller ID services
from your local telephone service provider, you
must follow the instructions in “Set Home Area
Code” on page 7 for your phone to properly
recognize and dial calls, and you may need to
follow the instructions in “Set Local Area Codes”
on page 8.
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 4
5

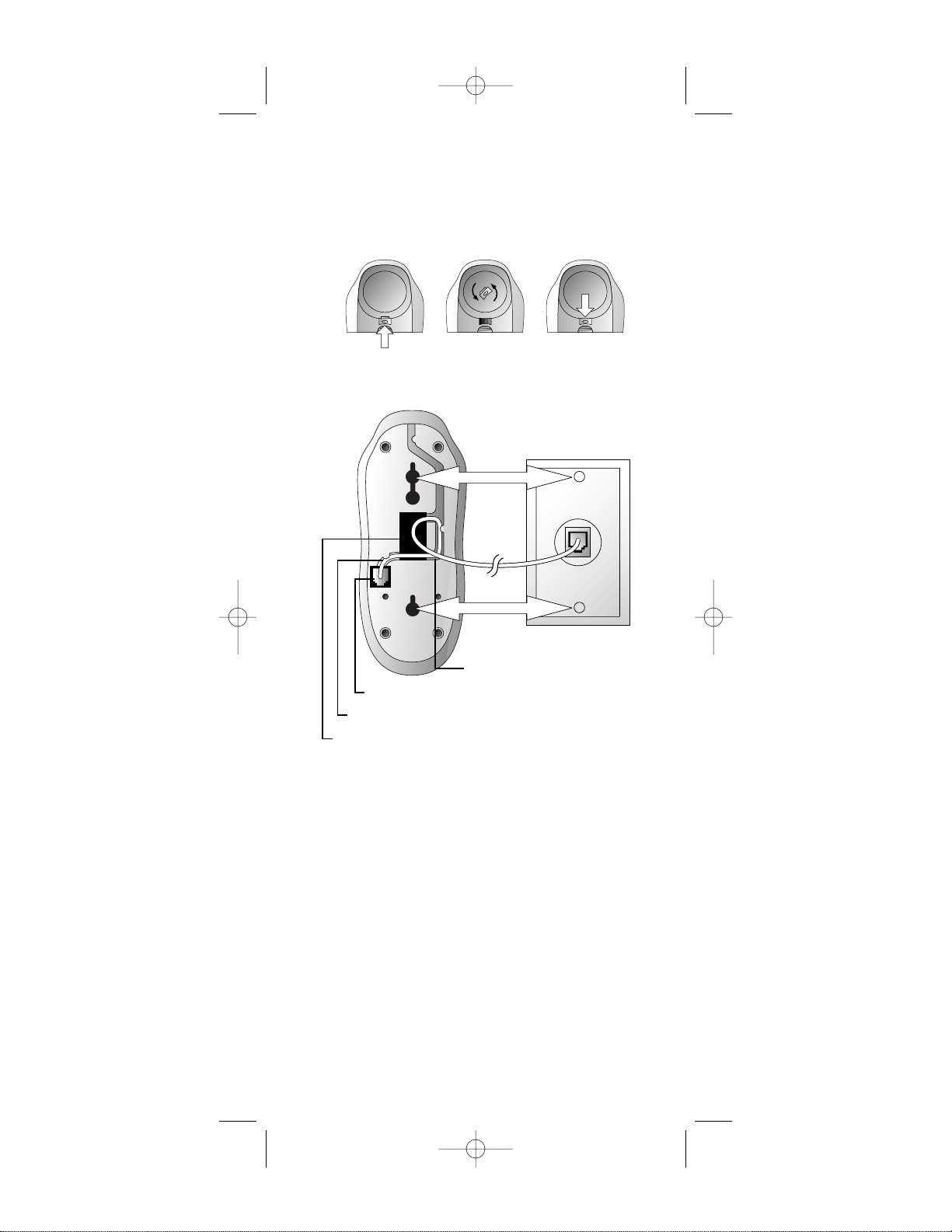

Wall Installation
1 Reverse the handset tab.
INSTALLATION
Modular
telephone
wall jack
Channel
Telephone line jack
Mounting area
Line Cord
3 Feed the line cord into the channel and wind it
around and out of the mounting area as shown.
4 Connect the other end to a wall jack.
5 Mount the phone on the wall as shown.
6 Follow Steps 4 and 5in “T able/Desk Installation. ”
Your phone will work immediately after installation
using the default feature settings (see “Feature
Settings Summary”on the next page).
NOTE: If you subscribe to Caller ID services from
your local telephone service provider, you must
follow the instructions in “Set Home Area Code”
on page 7 for your phone to properly recognize
and dial calls, and you may need to follow the
instructions in “Set Local Area Codes”on page 8.
2 Plug one end of the short line cord into the
telephone line jack.
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 5
6
Feature Settings Summary
Default settings are marked with an asterisk (*).
Option: Choice:
WHICH LANGUAGE Choose whether the
ENGLISH* display appears in English,
FRENCH French or Spanish.
SPANISH
CONTRAST Adjust screen lighting to
1 2 3* 4 5 a comfortable level,from
1 (light) to 5 (dark).
SET HOMEAREA CODE If you dial seven digits
HOME AREA CODE? for calls within your own
area code,you need to
program a Home Area
Code in order to use the
Display Dial feature for
these calls.
SET LOCAL AREA CODE(S) If you dial 10 digits for
LOCL AREA CODE? calls to some area codes,
you need to program
those area codes as Local
Area Codes in order to
use the Display Dial
feature for these calls.
NOTE: You can press at any time during
feature setup to exit programming and return to
the idle screen.
Language Selection
You can select English,French or Spanish as the
language in which your Caller ID information is
displayed.
1 Press N.
2 Press - until the screen displays your language
selection.
3 Press N to save your selection and move
on to set the next feature.
WHICH LANGUAGE?
FEATURE SETTINGS
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 6
7
Set Contrast
You can adjust the screen lighting to a comfortable
level from 1 (light) to 5 (dark).
1 Press and release N until the screen
displays the current level and SET CONTRAST.
2 Press - or + until the screen displays your
selection.
3 Press N.
Set Home Area Code
Your own area code is the area code associated with
your phone number. You need to program a Home
Area Code so your phone can properly recognize
and dial calls.
1 Press N twice.
2 Press - or + until the screen displays the first
digit of your home area code. Do not use the
keypad to enter digits.
3 Press
D.
4 Repeat Steps 2 and 3 for the second and third
digits of your area code.
5 Press N to save the Home Area Code. You
will not see or hear confirmation of the new
Home Area Code,but the screen will prompt you
to set the next feature.
HAC-___
HOME AREA CODE?
If you dial... For... Then, in Steps 2–4
7 digits Calls within your Enter your own
(phone number, own area code area code
no area code)
10 digits Calls within your Enter 000, then
(area code + own area code follow the directions
phone number) in “Set Local Area
— OR —
Code(s)” on page 8
11 digits
(1+ area code +
phone number)
FEATURE SETTINGS
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 7
8
Set Local Area Code(s)
Local Area Codes are area codes associated with
other phone numbers for which you must dial the
area code,but do not dial “1”. This includes your
own area code if you must dial the area code but
no “1”to make calls in your own area code.
You can program up to four Local Area Codes.
Do not program area codes for which you must dial
a “1”.
If you dial... For... Then, in Steps 2–4
11 digits All calls outside Make no entry
(1 + area code + your own area
phone number) code
10 digits Some calls Enter area codes
(area code + outside your that do not
phone number) own area code require a “1”
10 digits All calls within Your own area
(area code + your own area code
phone number) code
1 Press and release N until the screen
displays:
2 Press - or + until the screen displays the first
digit of the area code. Do not use the ke ypad
to enter digits.
3 Press
D.
4 Repeat Steps 2 and 3 for the second and third
digits.
5 Press N. The screen displays:
6 Repeat Steps 2–5 to enter the digits of the next
area code.
7 Repeat Steps 5 and 6 to program a third and
fourth Local Area Code.
8 Press N to save the displayed area code.
You will not see or hear confirmation of the
new Local Area Code(s),but the screen will
return to idle mode.
LAC2-___
LOCL AREA CODE?
LAC1-___
LOCL AREA CODE?
FEATURE SETTINGS
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 8
9

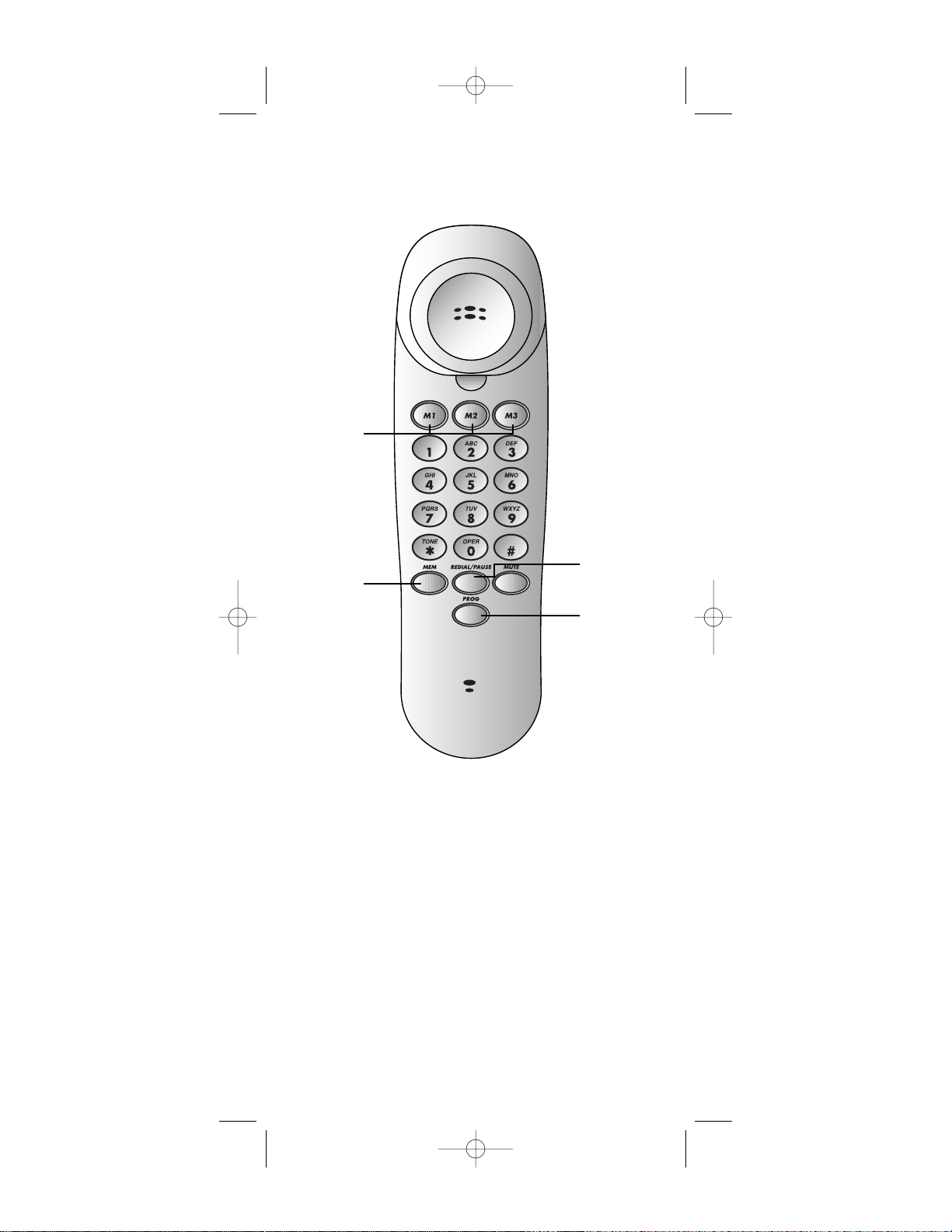

Making and Answering Calls
To make or answer a call, lift the handset.
1 Handset Volume
Adjust volume of what you hear through the
handset (
LO, MED or HI).
2 Redial
Lift the handset, then press to call
the last number dialed (up to 32 digits).
The number will be displayed on screen during
dialing.
3 Mute
Press and hold u to prevent the other party
from hearing you (you will still be able to hear
the other party). Release
u to return to
two–way conversation.
TELEPHONE OPERATION
1
2
3
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 9
10
1 New Call Light
This light flashes when you have unreviewed
call information in the call history.
2 Flash
Use F to activate phone company
subscriber services such as 3-Way Calling or
Call W aiting.
3 Clear
Press to exit dialing, to exit storing a
number in memory, to exit call history or at
any time to return to the idle screen without
saving any changes.
4 Ringer Volume
Adjust RINGER volume (LO or HI) or turn
RINGER
OFF.
TELEPHONE OPERATION
3
2
4
1
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 10
11
1 Directory Card
Lift the plastic cover off the directory card to
write the numbers (or names) stored in
telephone memory on the card. Then, replace
the plastic cover.
TELEPHONE MEMORY
This telephone can store 13 telephone numbers,
each up to 32 digits long. You can dial numbers
stored in memory by pressing one or two buttons.
NOTE: Numbers stored in memory may be lost
if the phone is unplugged from the line jack for
more than four hours.
All numbers stored in memory will be lost after
5 minutes without battery power.
1
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 11
12
1 One-Touch Dialing
1 Lift the handset.
2 Press a memory button. The number will be
displayed on screen during dialing.
2 Two-Touch Dialing:
1 Lift the handset.
2 Press and release m, then press the
number button (0–9) where the memory
number is stored. The number will be
displayed on screen during dialing.
TELEPHONE MEMORY
1
2
4
3
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 12
13
3 Storing a Pause in a Memory Number
1 Lift the handset.
2 Press and release once to store a
2.6-second pause in the dialing sequence,
twice for a 5.2-second delay, three times for
a 7.8-second delay.
NOTE: Each 2.6-second pause counts as
one digit when storing numbers in telephone
memory.
4 Storing Memory Numbers
1 Lift the handset.
2 Press and release P.
3 Dial the telephone number (up to 32 digits)
— OR —
Press
R to store the last number dialed
from this phone.
4 For one-touch dialing, press and release the
memory button where you want to store the
number (locations , , and )
— OR —
For two-touch dialing, press
m, then press
the number button (0–9) where you want
to store the number.
NOTE: Press on the back of the handset
while storing a memory number to exit
programming.
NOTE: If you try to enter more than 32 digits
in a memory number, you will hear an error
tone. You can then finish storing the number in
a memory location or press to exit and
start again.
M3
M2
M1
TELEPHONE MEMORY
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 13
14
About Caller Identification
When the first call is received,the unit sets the
current time and date automatically (you cannot set
them),and resets them each time a new call comes
in. (The time and date show 12:00 AM and 1-01
until Caller ID information is received.) The unit
automatically adjusts for daylight savings time. When
not in use,the unit displays the current date/time,
number of new calls received since the last review
of memory,and number of reviewed calls in call
history (up to 70).
For each call that comes in,the screen displays the
following information between the first and second
rings:
• Your caller’s name (up to 12 letter s are sent
by your telephone company);
• The caller’s area code and telephone number
(the area code is not displayed if it is
programmed as the Home Area Code);
• The time and date of the call;and
• The position of the call in call history.
CALLER ID OPERATION
1 Indicates unreviewed call information
2 Position of call in call history
3 Time call was received
4 Date call was received
5 Caller’s telephone number
6 Caller’s name
1
5
6
3 4
2
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 14
15
CALLER ID OPERATION
2
1
4
3
1 New Call Light
This light flashes when you have unreviewed
calls in call history. To turn the light off, review
all call records in call history.
2 Call History
This product assigns each incoming call a
number from 1 to 70. The most recent call will
have the highest number. When the memory is
full, the oldest call information is deleted to
make room for new incoming call information.
3 Reviewing Call History
The screen displays call information for about
10 seconds after it has been received.
1 To review earlier calls, press -.
2 To advance through call history from an
earlier call, press
+. When you reach the
end of call history, the screen displays
END OF LIST, then beg ins again.
4 Clear
Press to exit call history and return to idle screen.
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 15
16
1 Display Dial
Dial a displayed phone number while reviewing
calls in call history.
1 Press and release D. T he screen
displays the number being called. If the
screen displays
ERROR, the present number
cannot be dialed.
2 Lift the handset.
You cannot use this feature to dial PRIVATE calls.
2 Display Dial Options
You can check or change the way a number in
call history is dialed.
1 Press + or - until the screen displays the
number you want to call.
2 Press D to make the call
— OR —
Press
N to scroll through choices for
dialing the number (without a “1,”or with a
“1”followed by the area code).
CALLER ID OPERATION
2
1
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 16
17
Storing a Call Record into Memory
1 Lift the handset
2 Press + or - to display the call record you
wish to store in memory.
3 Press P.
4 For one-touch dialing,press and release the
memory button where you want to store the
number (locations , , and )
— OR —
For two-touch dialing,press m,then press
the number button (0–9) where you want to
store the number.
Removing Call Records from Call History
Removing a Specific Call Record
1 Press + or - to display the number you want
to remove from call history.
2 Press r. The screen displays:
3 Press r again to remove the call record.
The call record is deleted and all remaining
records in call history are renumbered.
Removing All Calls
1 From the idle screen,press and hold r
until the screen displays:
2 Press r again to remove all calls. The
screen displays:
NOTE: Once a call is removed from call history,
it cannot be retrieved.
0 CALLS 0 NEW
REMOVE ALL?
REMOVE?
M3M2M1
CALLER ID OPERATION
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 17
18
Display Screen Messages
Screen Displays: When:
PRIVATE NAME The other party is blocking
name information.
PPP The other party is blocking
number information.
UNAVAILABLE Your phone company is
unable to receive
information about this
caller’s name.
UUU Your phone company is
unable to receive
information about this
caller’s number.
NO INFORMATION Your phone company is
unable to receive any
information about this
caller.
ERROR PRESENT There is a problem with
Caller ID transmission from
the telephone company.
The call will not be saved
in call history.
CALLER ID OPERATION
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 18
19
If you have difficulty operating this phone,try the
suggestions below. For Customer Service,visit our
website at www.telephones.att.com or call
1 800 222–3111. Please retain your receipt as
your proof of purchase.
No Dial Tone
• Make sure all plugs are connected properly.
Inspect the line cord connections at the modular
jack and at the telephone. Also inspect the
coiled handset cord connections at both ends.
• Unplug the telephone and connect it to another
modular jack. If it still does not work,and other
telephones in your home are working,the
problem is with this telephone.
Telephone Does Not Ring
• Make sure the RINGER switch is not set to OFF.
• If there are several other telephones on the
same line,try disconnecting some of the other
telephones. Having too many telephones
connected can also create problems such as
low ringer volume or impaired sound quality
during calls.
Difficulty Storing Numbers in Memory
• Make sure you are pressing the correct
sequence of buttons for storing numbers.
• If you are interrupted b y a recorded
announcement telling you to hang up or by a
loud buzzing noise,hang up and try to enter
the number more quickly.
• Try calling the number you want to store in
memory. When the call is ended press P,
,then a one-touch button ( ,
or ) or m and a memory location (0–9).
• If someone lifts an extension phone while you
are storing numbers in memory,programming
might be interrupted. Make sure all extensions
are on hook while storing numbers in memory.
New Call Light Stays On
Make sure you have reviewed all calls.
M3
M2
M1
IN CASE OF DIFFICULTY
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 19
20
New Call Light Does Not Go On
• Make sure you have installed three AA alkaline
batteries with correct polarity.
• Replace old batter ies with three new ones.
Screen is Blank
• Make sure you have correctly installed three AA
alkaline batteries.
• The screen is blank until you receive a call.
• Make sure all line cords are correctly
connected.
• The phone does not display the time and date
until the first call is received.
• You must subscribe to service from your local
phone service provider to see call information
on the screen (see “About Caller Identification”
in BEFORE YOU BEGIN).
IN CASE OF DIFFICULTY
0240_Book_1ATTa_rev 3/25/02 9:27 AM Page 20
Loading...
