AT&T EL42108 User Manual
User’s manual
RECORD
ANNC.
REMOVE
EL42108
5.8 GHz cordless telephone/
answering system with
caller ID/call waiting
Congratulations
on purchasing your
new AT&T product.
Before using this AT&T product, please
read the Important safety instructions
on pages 49-51 of this manual.
Please thoroughly read the user’s
manual for all the feature operations
and troubleshooting information necessary to install
and operate your new
AT&T product. You can also visit our
website at www.telephones.att.com
or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
Model #: EL42108
Type: 5.8GHz cordless telephone/answering system
Serial #:
(found on the bottom of the telephone base)
Purchase date:
Place of purchase:
Both the model and serial number of your AT&T product can be found on the
bottom of the telephone base.
The ENERGY STARR program (www.energystar.gov) recognizes
and encourages the use of products that save energy and
help protect our environment. We are proud to mark this
product with the ENERGY STARR label indicating it meets the
latest energy efficiency guidelines.
© 2008 Advanced American Telephones. All rights reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a
AT&T Intellectual Property licensed to Advanced American Telephones. Printed in China.
You must install and charge
the battery before using
the telephone.
If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone base and the telephone wall jack (page 6). The filter will prevent
noise and caller ID problems caused by DSL interference. Please contact your
DSL service provider for more information about DSL filters.
Your product may be shipped with a protective sticker covering the handset
or telephone base display - remove it before use.
For customer service or product information, visit our website at
STOP!
See page 9
for easy instructions.
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
CAUTION: To reduce the risk of fire or injury to persons or damage to
the telephone, read and follow these instructions carefully:
• Use only the supplied rechargeable battery or replacement battery (part
number 89-1332-00-00) or equivalent. To order a replacement battery,
visit our website at www.telephones.att.com or call 1 (800) 222-
3111. In Canada, dial 1 (866) 288-4268.
• Do not dispose of the battery in a fire. Like other batteries of this type,
it could explode if burned. Check with local codes for special disposal
instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and
may cause damage to the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to create a short circuit. Do
not allow conductive materials such as rings, bracelets, or keys to touch
the battery. The battery or conductor may overheat and cause harm.
• Charge the battery provided with or identified for use with this product
only in accordance with the instructions and limitations specified in this
manual.
• Observe proper polarity orientation between the battery and battery
charger.
• Do not disassemble your telephone. There are no user-serviceable parts
inside. Refer to qualified service personnel for servicing.
Parts checklist
RECORD
ANNC.
REMOVE
RECORD
ANNC.
REMOVE
REMOVE
RECORD
ANNC.
Save your sales receipt and original packaging in the event warranty service is
necessary.
Your telephone contains the following items:
User’s manual
EL42108
5.8 GHz cordless telephone/
answering system with
caller ID/call waiting
Quick start guide
EL42108
5.8 GHz cordless telephone/
answering system with
caller ID/call waiting
Telephone base Battery for cordless
handset
Cordless handsetUser's manual Quick start guide
Battery compartment
cover
Power adapter for telephone
Telephone line cord
base
User’s manual
RECORD
ANNC.
REMOVE
EL42108
5.8 GHz cordless telephone/
answering system with
caller ID/call waiting
Table of contents
Getting started
Quick reference guide
handset ..................................................2
telephone base ..................................3
Handset main menu .............................. 4
Telephone base installation ............... 5
Installation options ................................ 7
Battery installation & charging ..............9
Telephone operation
Settings ......................................................11
Basic operation ......................................14
Options while on calls ........................17
Directory
Directory ....................................................18
Speed dial .................................................19
New directory entries .........................20
Directory search ....................................22
To change or dial entries .....................23
Caller ID
Caller ID history .....................................24
Review the Caller ID history ............27
Delete call history entries ................28
Add entries to the directory ............29
Appendix A
Screen icons, indicator lights
& tones .............................................. 39
Appendix B
Handset display screen
messages ..............................................40
Appendix C
Troubleshooting .....................................41
Appendix D
Important safety instructions ..........49
Appendix E
FCC part 68 & ACTA ............................52
Appendix F
FCC part 15 ..............................................54
Appendix G
Limited warranty ...................................55
Appendix H
Technical specifications .....................58
Appendix I
Index ............................................................59
Answering system
Answering system.................................30
Day & time announcements ............31
Outgoing announcements ................32
Changing feature options .................33
Message playback.................................34
Record & play memos ........................35
Message counter displays ................36
Answering system mode ...................37
Remote access .......................................38
1
REMOVE
Getting started
Quick reference guide - handset
CHARGE
The light is on when
a cordless handset is
properly positioned to
charge in the telephone
base.
CID/-VOLUME
When in a menu, press
to scroll down. When
the phone is not in use,
press to display caller ID
history entries (page 27).
While entering names
or numbers, press to
move the cursor to the
left. During a call, press
to decrease listening
volume.
PHONE/FLASH
Press to make or answer
a call. During a call, press
to receive an incoming
call if call waiting is
activated (page 17).
CHAN/REMOVE
When on a call, press to
scan for a clearer channel
when there is static or
interference on the line
(page 17). When in caller
ID mode, press to delete
the displayed caller ID
entry (page 28), or press
and hold to delete all
caller ID entries when the
phone is not in use
(page 28).
MENU/SELECT
Press to display menu.
Press to store a
programming option.
DIR /VOLUME+
When in a menu, press
to scroll up. When the
phone is not in use, press
to display directory entries
(page 22). While entering
names, press to advance
the cursor. During a call,
press to increase listening
volume.
OFF/CLEAR
During a call, press to
hang up (page 14). While
using menus, press to
cancel an operation, or
exit the menu.
REDIAL/PAUSE
When the phone is not
in use, press repeatedly
to display the last five
numbers called (page 15).
While dialing or entering
numbers to the directory,
press to insert a foursecond dialing pause
(page 21).
MUTE
While on a call, press to
mute the microphone.
Press again to resume your
conversation (page 17).
2
RECORD
ANNC.
RECORD
ANNC.
Getting started
Quick reference guide - telephone base
IN USE
• On steady when a handset is
in use.
• Flashes quickly while an
incoming call is ringing.
HANDSET LOCATOR
Press to make the handset
beep when a handset is not on
the telephone base (page 16).

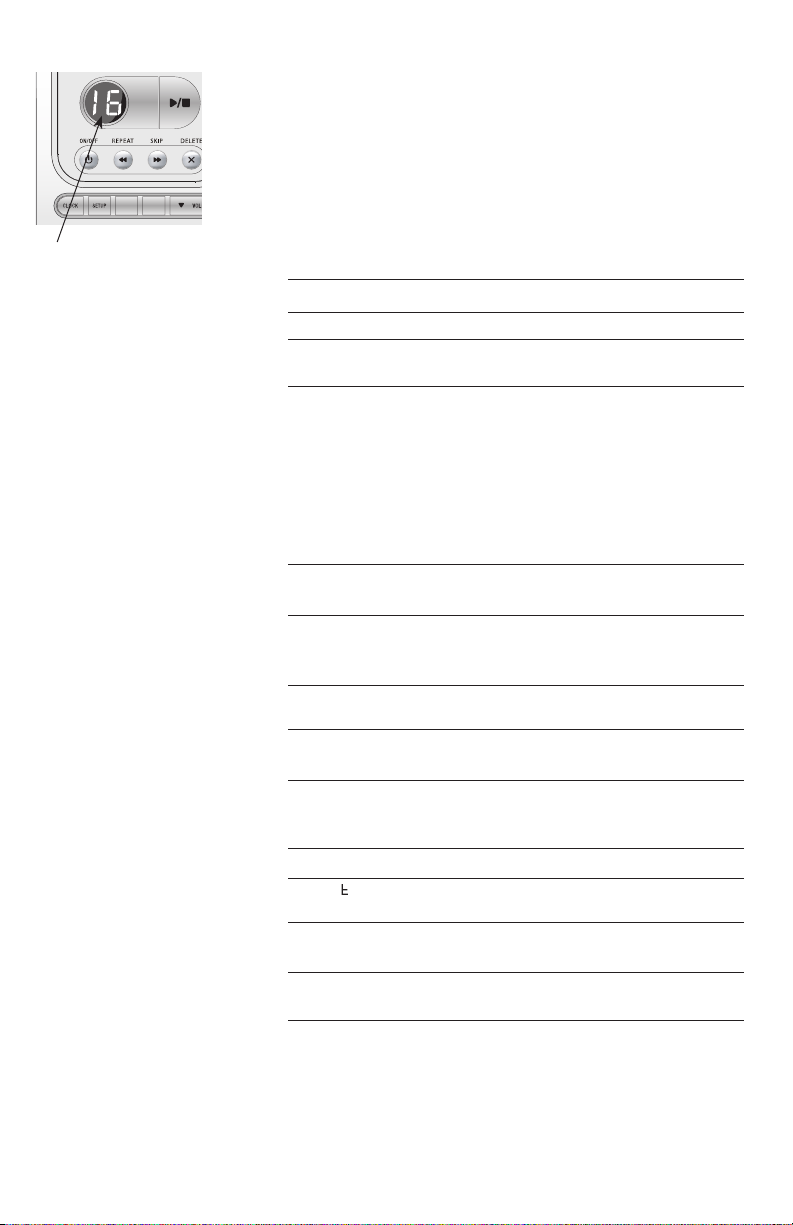

MESSAGE COUNTER
Number of messages
(or during playback,
message number
currently playing).
REPEAT
Press to repeat message;
press twice to play
previous message
(page 34).
ON/OFF
Press to turn answering
system on or off
(page 37).
CLOCK
Press to review or set
clock (page 31).
SETUP
Press to review or
change answering
system options
(page 33).
Answering
System
Functions
ANNC.
Press to review or
record announcement;
press again to quit
(page 32).
3
PLAY/STOP
Press to start or stop
message playback
(page 34).
SKIP
Press to skip message
(page 34).
DELETE
Press to delete message
currently playing; press
twice to delete all old
messages when the
phone is not in use
(page 34).
VOL
Press to adjust playback
volume (page 34).
RECORD
Press to record a
memo (page 35) or
after pressing ANNC.
to record an outgoing
announcement
(page 32).
Getting started
Handset main menu
To enter the main menu:
1. Press MENU/SELECT when the handset is not in use.
2. Press CID or DIR to select a handset feature menu, then press
MENU/SELECT to enter that menu.
To return to the idle mode, press OFF/CLEAR.
DIRECTORY allows you
to store and search for
names and numbers
(page 18).
DIRECTORY
RINGER VOL allows
you to set the ringer
volume (page 12).
RINGER VOL: HI
HOME AREA CODE
allows you to set your
home area code
(page 13).
SPEED DIAL allows
you to store or dial a
number in a speed dial
location (page 19).
DATE/TIME allows you
to set the date and
time (page 13).
DATE/TIME
LANGUAGE allows you
to set your handset
display language
(page 11).
RINGER allows you to
set the ringer
(page 12).
RINGER: 1SPEED DIAL
DIAL MODE allows you
to set tone or pulse
dialing (page 11).
DIAL MODE: TONE
HOME AREA CODE
LANGUAGE
4
Getting started
Telephone base installation
The telephone base can be placed on a flat surface or vertically mounted
on the wall (page 7). For optimum range and better reception, place the
telephone base in a central and open location.
Avoid placing the telephone base too close to:
• Communication devices such as: personal computers, computer routers,
television sets, VCRs, wireless routers (wireless broadband, wi-fi, or 802.11)
or other cordless telephones.
• Excessive heat sources.
• Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
• Excessive dust sources such as a workshop or garage.
• Excessive moisture.
• Extremely low temperature.
• Mechanical vibration or shock such as on top of the washing machine or
work bench.
5
Getting started
Telephone base installation
If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone base and the telephone wall jack. The filter will prevent noise
and caller ID problems caused by DSL interference. Please contact your DSL
service provider for more information about DSL filters.
Install the telephone base as shown below.
1. Plug the small
end of the power
adapter into the
power jack on
the underside of
the telephone
base.
5. Plug the
large end of
the power
adapter into an
electrical outlet
not connected
to a wall switch.
DSL filter
(available from your DSL Internet
provider)
Telephone line cord
2. Plug one end of
the telephone
line cord into the
telephone jack
on the underside
of the telephone
base.
3. Route cords
through slots.
4. Plug the other
end of the
telephone line
cord into a
telephone jack.
NOTES:
1. Use only the power adapter supplied with this product or equivalent. To order a replacement power
adapter, visit our website at www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
2. This power adapter is intended to be correctly oriented in a vertical or floor mount position. The
prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or
cabinet outlet.
6
Getting started
Installation options
The telephone base is designed for both desktop installation and wall mount
installation. If wall mounting is desired, a telephone outlet wall mounting
plate with mounting studs is required. This mounting plate is available for
purchase at many hardware or consumer electronics retailers and may require
professional installation.
Desktop to wall mount installation
1. Plug the telephone line cord
and power adapter into the
telephone base. Bundle the
telephone line cord and route
cords through the slots, then
secure with a twist tie.
2. Plug the power adapter and
telephone line cord into the wall
outlets, then align the mounting
studs on the telephone outlet
plate with the mounting holes
on the telephone base.
3. Place the telephone base
mounting holes just above the
mounting studs, then slide the
telephone base down until it is
secure.
1
2
7
Getting started
Installation options
Wall mount to desktop installation
To change the telephone base from the wall mount position to desktop
position, make sure that you first unplug the power adapter and telephone
line cord from the wall outlets before you begin.
1
1. Slide the telephone base
upwards, then pull the
telephone base away from the
wall off of the mounting studs.
2. Unplug the power adapter and
the telephone line cord from
the electrical outlet and the
telephone jack.
2
3. Plug the telephone line cord
into the telephone base and
telephone wall jack, then plug
the power adapter plug into the
telephone base and a power
outlet not connected to a wall
switch.
8
RECORD
ANNC.
REMOVE
Getting started
Battery installation & charging
Install the battery as shown below. After installing the battery, you can
make and receive short calls, but replace the handset in the telephone
base when not in use. For optimal performance, charge the handset battery
for at least 16 hours before use. When fully charged, the handset battery
provides approximately five hours of talk time or six days of standby time.
If the handset has not been used for a long time or if the battery inside is
completely depleted, put it on the telephone base for recharging.
Step 1
Insert the battery plug as
indicated, making sure that
it matches the color-coded
Step 2
Place the battery
and wires inside the
compartment.
label inside the battery
compartment.
Step 4
Charge the handset, by placing the
handset face up in the telephone
base. The CHARGE light on the
handset should be on as soon as
the handset is properly placed on
the telephone base.
Step 3
Slide the battery
compartment cover
up until it clicks.
CHARGE
light
9

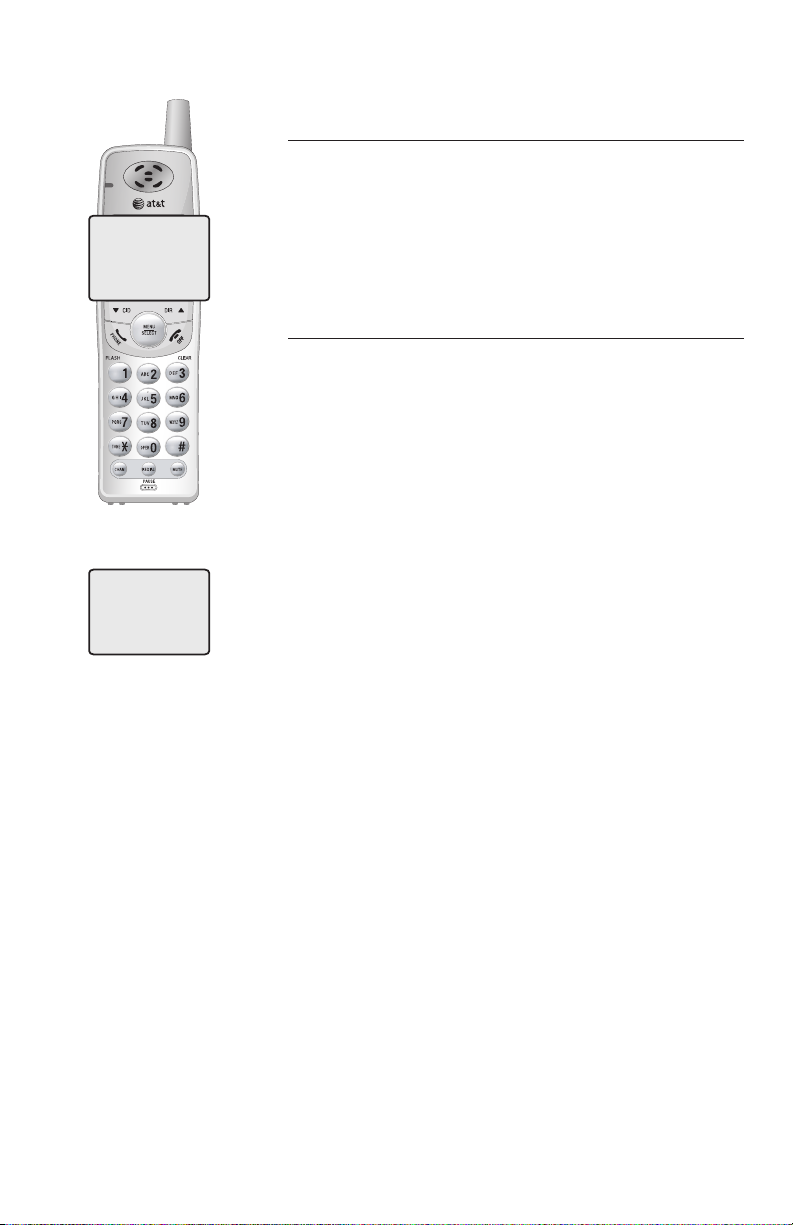

Getting started
Battery installation & charging
LOW BATTERY
Low battery indicator
Return the handset to the telephone base to recharge
10:08
AM
02/14
when this symbol flashes and the handset beeps or when
the handset screen displays LOW BATTERY.
To replace the battery, Press the tab and slide the
battery compartment cover downwards. Lift out the old
battery and disconnect it from the handset. Follow the
instructions on the previous page to install and charge
the new battery.
IMPORTANT INFORMATION
Use only the supplied rechargeable battery, replacement battery (part number 89-1332-00-00) or
equivalent. To order a replacement battery, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
10
Telephone operation
Telephone operation
Settings
To customize how the handset works:
LANGUAGE
DIAL MODE: TONE
1. Press
MENU/SELECT
in the idle mode to enter
the handset main menu.
2. Use CID or DIR to scroll to the desired
feature.
3. Press
MENU/SELECT
to select the feature.
To stop at any time, press OFF/CLEAR.
Language
To change the language to Espanol, or Francais:
1. Press
MENU/SELECT
in the idle mode to enter
the handset main menu
.
2. Press CID or DIR until the screen displays
LANGUAGE.
3. Press Press
MENU/SELECT
. The current setting is
flashing..
4. Press CID or DIR to choose ENGLISH,
FRANCAIS, or ESPANOL.
5. Press
MENU/SELECT
to save your selection and
return to the main menu.
Dial mode
The dial mode defaults to tone. If you do not have
touch tone service, you will need to change the
setting to pulse:
1. Press MENU/SELECT in the idle mode to enter
the handset main menu.
2. Press CID or DIR until the screen displays
DIAL MODE: and the current setting.
3. Press MENU/SELECT. The current setting is
flashing.
4. Press CID or DIR to display TONE or
PULSE.
5. Press
MENU/SELECT
to save your selection and
return to the main menu.
11
RINGER VOL: LOW
NOTES:
1. If you choose OFF, the
cordless handset ringer
will be turned off, and the
screen will display RINGER
OFF and when the
cordless handset is idle
(not in use). If there are
unreviewed calls, the screen
will display XX MISSED
CALLS and instead of
RINGER OFF and .
2. When the volume level is at
the HI or OFF setting, you
will hear two alert beeps.
Telephone operation
Settings
Ringer volume
You can set your handset to a ringer volume level
of HI, LOW, or OFF. To set the ringer level:
1. Press MENU/SELECT in the idle mode to enter
the handset main menu.
2. Press CID or DIR until the screen displays
RINGER VOL: and the current setting.
3. Press MENU/SELECT. The current setting is
flashing. You will also hear the current volume
level.
4. Press CID or DIR to choose the desired
volume level. You will hear a sample of each
ringer volume.
5. Press MENU/SELECT to save your selection and
return to the main menu.
-OR-
1. Press and hold CID or DIR when the
cordless handset is idle (not in use).
2. Press CID or DIR to choose the desired
volume level. You will hear a sample of each
ringer volume.
3. Press MENU/SELECT to save your selection and
return to the main menu.
RINGER: 1
Ringer
1. Press MENU/SELECT in the idle mode to enter
the handset main menu.
2. Press CID or DIR until the screen displays
RINGER: and the current setting.
3. Press MENU/SELECT. The current setting is
flashing. You also hear the current ringer
sound.
4. Press CID or DIR to display 1, 2, 3 or 4.
You will hear a sample of each ringer sound.
5. Press MENU/SELECT to choose the displayed
ringer sound and return to the main menu.
12
Telephone operation
Settings
Date & time
DATE/TIME
NOTES:
1. You can choose to set
the time manually, or
you can allow it to
be set automatically
with incoming caller ID
information. The time will
be set automatically only if
you subscribe to caller ID
service provided by your
local telephone company
(page 24). The date and
time for the answering
machine need to be set
separately (page 31).
2. Caller ID will not set the
year. See page 31 for
instructions on how to set
the year.
HOME AREA CODE
To manually set the date and time on the handset
display:
1. Press MENU/SELECT in the idle mode to enter
the handset main menu.
2. Press CID or DIR until the screen displays
DATE/TIME.
3. Press MENU/SELECT to view or set date and
time.
4. Press CID or DIR to change the month
in the date and time line at the bottom of the
display, then press MENU/SELECT.
5. Repeat step four to set the date, hour, minute,
and AM/PM.
6. Press MENU/SELECT to save selection and
return to the main menu.
Home area code
If you dial seven digits to make a local call (area
code not required), you can program your area
code into the telephone as the home area code.
After setting, if you receive a call from within
your home area code, the screen will display
the telephone number with the home area code.
However, the home area code will not be shown
when reviewing the caller ID history.
NOTE: If, in the future,
your telephone service
provider requires you to
dial 10 digits to make a
local call (area code +
phone number), program
your home area code to
000.
To program the home area code:
1. Press MENU/SEL when the phone is not in use
to enter the handset main menu.
2. Press CID or DIR until the screen displays
HOME AREA CODE.
3. Press MENU/SEL.
4. Press the dial pad keys to enter a three-digit
home area code.
5. Press MENU/SEL to save and return to the main
menu.
Please refer page 27 for other dialing options.
13
REMOVE
PHONE 0:00:30
Elapsed
time
Telephone operation
Basic operation
Make & end a call
To make a call:
• Press PHONE/FLASH, then enter the
telephone number.
To end a call:
• Press OFF/CLEAR or return the handset in the
telephone base.
On-hook dialing (predialing)
• Enter the telephone number, then press
PHONE/FLASH. To make corrections as you
enter the number, press CID or DIR to
move to the digit you want to erase, then press
CHAN/REMOVE.
The screen displays the elapsed time of the
current call (in hours, minutes and seconds).
Answer a call
To answer a call:
• Press PHONE/FLASH.
-OR-
• Press any keys (except CID, DIR and
OFF/CLEAR).
To end a call:
• Press OFF/CLEAR or return the handset in the
telephone base.
NOTE: During a call, pressing PHONE/FLASH to access
service from your local telephone service provider will
not affect the elapsed time.
14
REMOVE
Ringer
silenced
Telephone operation
Basic operation
Redial
While the phone is not in use, press
REDIAL/PAUSE repeatedly to display the last
five numbers called (up to 30 digits). To dial the
number displayed, press PHONE/FLASH. Or, after
pressing PHONE/FLASH, press REDIAL/PAUSE to
call the last dialed number.
To delete the redial memory, press REDIAL/PAUSE,
then press CHAN/REMOVE to delete one by one.
Press OFF/CLEAR to exit.
NOTE: While on a call, press REDIAL/PAUSE to review
the last number dialed. You cannot delete from redial
while on a call.
Temporary ringer silencing
While the telephone is ringing, press OFF/CLEAR
to silence the ringer temporarily. This will silence
the ringer without disconnecting the call. You can
answer the call or let the caller leave a message.
The next incoming call will ring normally.
Auto off
A call will be ended automatically when you put
the handset in the telephone base.
15
RECORD
ANNC.
REMOVE
Telephone operation
Basic operation
Handset locator
The handset locator feature is useful if you
misplace the handset.
To start the paging tone:
• Press HANDSET LOCATOR at the telephone
base. This starts the paging tone at the handset
for 60 seconds to help you locate the handset.
NOTE: If the handset is charging in the telephone base,
pressing HANDSET LOCATOR does not generate a
paging tone.
** PAGING **
To stop the paging tone:
• Press HANDSET LOCATOR on the telephone
base.
-OR-
• Place the cordless handset in the telephone
base.
NOTE: When paging, pressing OFF/CLEAR on the
cordless handset will cancel the page of the handset.
The handset locator feature will not be cancelled.
16
Loading...
