AT&T E5860 User Manual

User Manual (Part 2)

5.8 GHz Cordless Telephone/Answering System E5860

with Caller ID & Call Waiting

ATT-5860CIB-d2.qxd 1/3/2004 11:06 AM Page 1

AT&T and the Globe Design are trademarks of AT&T Corporation.,

licensed to Advanced American Telephones.

STOP!

See page 7

for easy instructions

You must install and charge the battery before using the telephone

Add new handsets to make your phone more versatile (see page 41)

Your telephone can accommodate up to 8 cordless handsets. You can add new handsets (sold separately) at any time. Up to 4 handsets at a time can be used.

The handset provided with your telephone is automatically registered as Handset 1. Additional handsets will be assigned numbers in the order they are registered (2, 3, 4, etc.) up to a maximum of 8 handsets.

Handset 1 Handset 2 Handset 3

For customer service or product information, visit our web site at

www.telephones.att.com

or call

1-800-222-3111

Please also read

Important Product Information

Enclosed in product package

ATT-5860CIB-d2.qxd 1/3/2004 11:07 AM Page 2

Table of contents

User Manual (Part 2)

5.8 GHz Cordless Telephone/Answering System E5860

Getting Started

Quick reference guide ........................2

Parts checklist .......................................4

Before you begin ..................................5

Telephone base installation................6

Battery installation & charging ..........7

Wall mounting ......................................8

Belt clip & optional headset...............9

Telephone Operation

Basic handset operation ...................10

Basic base operation .........................11

Options during calls ..........................12

Intercom calls .....................................13

Handset screen images.....................14

Handset sounds & alerts ..................15

Handset settings.................................16

Base settings........................................17

Phonebook Directory

New phonebook entries..................19

Phonebook search.............................20

To dial, edit or delete entries.........21

Handset Calls Log

To review voice messages ...............23

To review Caller ID log ...................24

To dial a Caller ID entry..................25

To review redial log ..........................26

Base Calls Log

To review Caller ID log ...................28

To dial a Caller ID entry..................29

Answering System Operation

Answering system operation ..........30

Day and time announcements ........31

Outgoing announcements................32

Announce Only mode ......................33

Changing feature options.................34

Message playback ...............................35

Recording and playing memos ........36

Message window displays.................37

Remote access....................................38

Appendix

Display screen status icons..............39

Alert tones & indicator lights..........40

Adding new handsets ........................41

Charging spare batteries ..................42

In case of difficulty .............................43

Technical specifications ....................45

INDEX..................................................46

Remote access wallet card ..............49

ATT-5860CIB-d2.qxd 1/3/2004 11:07 AM Page 1

Getting Started

NavKey

Press center button to display menus. Press NavKey buttons to navigate through menus. Press center button to select menu item highlighted.

Quick reference guide

Speaker

Press to activate handset speakerphone. Press again to switch call back to earpiece.

Softkeys

Press a softkey to select a menu item displayed just above the key.

Off/Cancel

During a call, press to hang up.

While using menus, press to cancel an operation, back up to the previous menu, or exit the menu display.

Phone/Flash

Press to begin a call, then dial a number.

During a call, press to receive an incoming call, if Call Waiting is activated (see page 12).

Sound Select

Press to customize speaker sound for clear speakerphone conversations.

Handset

Intercom

See page 13 See page 18 See page 22 See page 14 See page 15 See page 16

Vibrate Ringer Control Ringers

Low Batt Tone Keypad Tone Range Tone

Clock On/Off Set Time Contrast

Phone Setup Language Reset Settings

Directory Calls Log Pictures Sounds&Alerts Settings

Main menu

Sounds & Alerts menu Settings menu

Left Right

Select

Down

ATT-5860CIB-d2.qxd 1/3/2004 11:08 AM Page 2

Getting Started

Quick reference guide

Answering system controls (see pages 35-43)

ON/OFF ..................Press to turn answering system on or off

DELETE ..................Press to delete message currently playing

TIME SET................Press to set the answering system clock

MENU......................Press to review or change answering system options

CHANGE ................Press to change a menu option

RECORD ................Press to record a memo or outgoing announcement

Telephone function keys (see pages 11-13)

SOFTKEYS ............Press to select menu item displayed just above the key

CLEAR ....................Press to cancel an operation, back up to the

previous menu, or exit the menu display

INTERCOM ............Press to transfer a call or initiate an intercom conversation

FLASH ....................During a call, press to receive an incoming call, if

Call Waiting is activated

VOLUME ................Press to adjust speakerphone listening volume

MUTE ......................Press to silence microphone; press again to resume

SPEAKERPHONE....Press to turn speakerphone on or off (answer or end a call)

Base/Speakerphone

Answering system controls

Telephone function keys

Swivel antenna fully upright for best results

REDIAL MENU MEM

Press to play or stop playing messages

Press to repeat message. Press twice to hear previous message.

Press to skip to next message.

ATT-5860CIB-d2.qxd 1/3/2004 11:08 AM Page 3

Getting Started

Parts checklist

Remember to save your sales receipt and original packaging in case you ever need to ship your telephone for warranty service. Check to make sure the telephone package includes the following:

Telephone base

Telephone handset

Power adapter

Belt clip Battery compartment cover

Batteries

Long telephone line cord

Short telephone line cord

Wall mount bracket

ATT-5860CIB-d2.qxd 1/3/2004 11:08 AM Page 4

Getting Started

Before you begin

About Caller Identification

Caller ID with Call Waiting features in this telephone let you see who’s calling before you answer the phone, even when you’re on another call. These features require services provided by your local telephone company.

Contact your telephone service provider if:

• You have both Caller ID and Call Waiting, but as separate services (you may need combined service)

• You have only Caller ID service, or only Call Waiting service

• You don’t subscribe to any Caller ID or Call Waiting services.

You can use this phone with regular Caller ID service, and you can use its other features without subscribing to either Caller ID or combined Caller ID with Call Waiting service. There may be fees for these services, and they may not be available in all areas.

Caller ID features will work only if both you and the caller are in areas offering Caller ID service, and if both telephone companies use compatible equipment.

See Caller ID Operation, beginning on page 22, for more details about how these features work.

Telephone operating range

This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and base can communicate over only a certain distance — which can vary with the locations of the base and handset, the weather, and the construction of your home or office. For best performance, keep the base antenna fully upright.

If you receive a call while you are out of range, the handset might not

ring — or if it does ring, the call might not connect when you press PHONE. Move closer to the base, then press

PHONE to answer the call.

If you move out of range during a phone conversation, you might hear

noise or interference. To improve reception, move closer to the base.

If you move out of range without pressing OFF, your phone will be left

“off the hook.” To hang up properly, walk back toward the telephone base, periodically pressing OFF until the call is disconnected.

ATT-5860CIB-d2.qxd 1/3/2004 11:08 AM Page 5

Getting Started

Telephone base installation

Install the speakerphone base as shown below. Choose a location away from electronic equipment, such as personal computers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture.

Plug power cord transformer into electrical outlet

Plug long telephone line cord into telephone jack

NOTE:

Use only the power cord supplied with this product. If you need a replacement, call 1 800 222–3111.

Be sure to use an electrical outlet not controlled by a wall switch.

Route cords through slot in base

ATT-5860CIB-d2.qxd 1/3/2004 11:08 AM Page 6

DID YOU KNOW?

Optional spare batteries can be kept charged in the base, for quick replacement when handset batteries become depleted (see page47

Getting Started

Battery installation & charging

After installation, place the handset in the base and allow batteries to charge for 12 hours before use. You can keep batteries charged by returning the handset to the base after each use. When battery power is fully depleted, a full recharge takes about 8 hours.

Place handset in base to charge for 12 hours before first use.

Rotate antenna to fully upright position

DID YOU KNOW?

Optional spare batteries can be kept charged in the base, for quick replacement when handset batteries become depleted (see page 42).

LOW BATTERY

REDIAL CID LOG

2:10 PM

Press coin into slot on base of handset to release latch, then remove battery cover

Insert supplied batteries

Low battery indicator

Return handset to base to recharge when this symbol flashes. (Handset will beep when battery is low.)

Caution: Use only AT&T 2AA NiCad or NiMH rechargeable batteries. Do not use AA alkaline batteries.

Insert top tab first

To replace battery cover

Press down to click in place

ATT-5860CIB-d2.qxd 1/3/2004 11:09 AM Page 7

Getting Started

Wall mounting

The speakerphone base can be installed on any standard wall-phone outlet as shown below. Choose a location away from electronic equipment, such as personal computers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture.

Plug power cord transformer into electrical outlet

Connect cords as shown, then press and slide down firmly so base is held securely on outlet mounting pegs

Plug short telephone line cord into telephone jack

Clip wall-mount bracket securely into notches on underside of base

Place handset in base to charge for 12 hours before first use.

Rotate antenna to fully upright position

ATT-5860CIB-d2.qxd 1/3/2004 11:09 AM Page 8

Getting Started

Belt clip & optional headset

Install belt clip as shown below if desired.

For hands-free telephone conversations, you can use any industry standard 2.5 mm headset (purchased separately). For best results use an AT&T 2.5 mm headset.

Snap belt clip into notches on side of handset. Rotate and pull to remove.

Plug 2.5 mm headset into jack on side of handset (beneath small rubber cap)

ATT-5860CIB-d2.qxd 1/3/2004 11:09 AM Page 9

Telephone Operation

Basic handset operation

Making and answering calls

To answer a call, press PHONE or any dial pad key. To make a call, press PHONE, then dial a number. Press

OFF to hang up.

To preview numbers before dialing, enter numbers first, then press PHONE to dial. Press the left NavKey to make corrections as you are entering numbers. Press

PAUSE to add a 3-second dialing pause.

Hands-free speakerphone calls

To answer an incoming call, press SPEAKER. To make a call, press SPEAKER, then dial a number. During a call you can press SPEAKER to toggle between hands-free speakerphone and normal handset use. Press OFF to hang up.

Last number redial

Press REDIAL to display a list of numbers recently called. Use the NavKey control to select a number, then press

PHONE to dial (see page 26 to delete the number, or

copy it to your phonebook).

Hold and mute

Press HOLD to place a call on hold. Press PHONE to resume the call.

Press MUTE to silence the microphone. You will be able to hear, but your caller will not be able to hear you until you press MUTE again to resume speaking.

Call transfer

During a conversation you can transfer the call to the base speakerphone (or to another handset if you have more than one registered).

Press the middle NavKey button to display a list of sets. Press NavKey buttons to highlight the set you want, then press the middle NavKey button to transfer the call.

The call will be placed on hold. You can then press PHONE (or SPEAKERPHONE at the base) to resume speaking.

Transfer Call

BASE

HANDSET 2 HANDSET 3

CALL ON HOLD

HOLD MUTE

2:10 PM

1 H

Press NavKey

REDIAL CID LOG

2:10 PM

ATT-5860CIB-d2.qxd 1/3/2004 11:09 AM Page 10

Telephone Operation

Basic base operation

Answering calls

To answer an incoming intercom page or external call, press SPEAKERPHONE. Press SPEAKERPHONE again to hang up.

Hold and mute

Press HOLD to place a call on hold. Press SPEAKER-

PHONE to resume the call.

Press MUTE to silence the microphone. You will be able to hear, but your caller will not be able to hear you until you press MUTE again to resume speaking.

Call transfer

During a conversation you can transfer the call to a handset.

Press XFER to display a list of registered handsets. Use arrow buttons to highlight the set you want, then press

OK to transfer the call.

The call will be placed on hold. You can then press

PHONE or SPEAKER at the handset to resume speaking.

CALL ON

HOLD

XFER HOLD MUTE

PHONE ON

XFER HOLD MUTE

HANDSET 1

HANDSET 2 HANDSET 3

Volume

Speakerphone

ATT-5860CIB-d2.qxd 1/3/2004 11:09 AM Page 11

Telephone Operation

Options while on calls

To adjust volume or sound quality

Press VOLUME buttons on the handset or the base to adjust listening volume. Each button press raises or lowers volume by one level.

During a handset call you can press SOUND SELECT to change sound quality. You can choose Natural Audio, Bass Boost, Mid Boost or Treble Boost. Each button press changes to the next tone type.

Call waiting

If you have Call Waiting service, you will hear a beep if someone calls while you are already on a call. Press

FLASH to put your current call on hold and take the new

call. You can press FLASH at any time to switch back and forth between calls.

Ring silencing

Press OFF while the handset is ringing (or MUTE while the base is ringing) to silence the ringer. You can still answer, or let the caller leave a message.

3-way conference calls

During an outside call, you can use both the handset and base (or two local handsets) to allow a 3-way conversation.

While a call is in progress, others can press PHONE (or

SPEAKERPHONE at the base) to join the conference call.

Others can press OFF (or SPEAKERPHONE at the base) to drop out of the conference call, but the call will not be terminated until all sets hang up.

Temporary tone dialing

If you have dial pulse (rotary) service, you can switch to touch tone dialing during a call by pressing

*. This

can be useful if you need to send tone signals for access to answering systems or long-distance services.

Volume

Silence ringer

Sound quality

Flash

Tone

Flash

Volume

Mute

ATT-5860CIB-d2.qxd 1/3/2004 11:09 AM Page 12

Telephone Operation

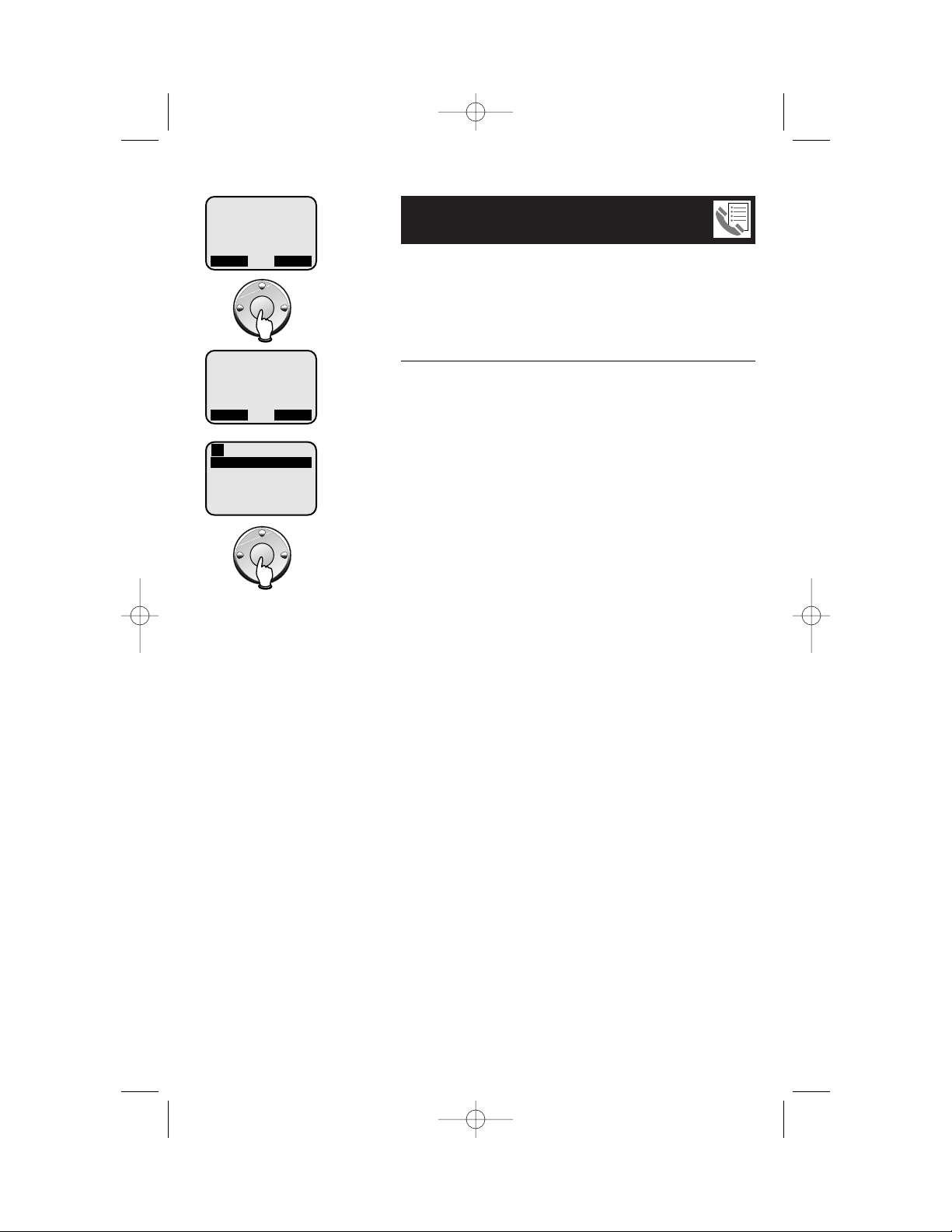

Intercom calls

The intercom allows conversation between the handset and base, or between handsets if you have registered additional handsets for use with your system.

Use the NavKeys to select INTERCOM at the handset, or press the INTERCOM button on the base.

Press the INTERCOM button at a handset or at the base. Scroll down to select a station, or select GLOBAL PAGE to page all stations. Press the middle NavKey button (or

OK at the base) to page the selected station.

At a handset, press PHONE to answer an intercom page. At the base, the phone will ring once, then answer the intercom page automatically.

When your intercom call is finished, press OFF at the handset (or INTERCOM at the base) to end the call.

Handling incoming calls

The phone will beep if you receive an outside call during an intercom conversation.

• At the handset, press PHONE to terminate the intercom call and answer the incoming call.

• At the base, press INTERCOM to terminate the intercom call, then press SPEAKERPHONE to answer the incoming call.

To allow the outside caller to join your intercom call, press SPEAKERPHONE without terminating the intercom call.

Intercom Call

Base

GLOBAL PAGE

Press base Intercom button

Intercom

Select Intercom

Display menu

HANDSET 1

GLOBAL PAGE

ATT-5860CIB-d2.qxd 1/3/2004 11:10 AM Page 13

Telephone Operation

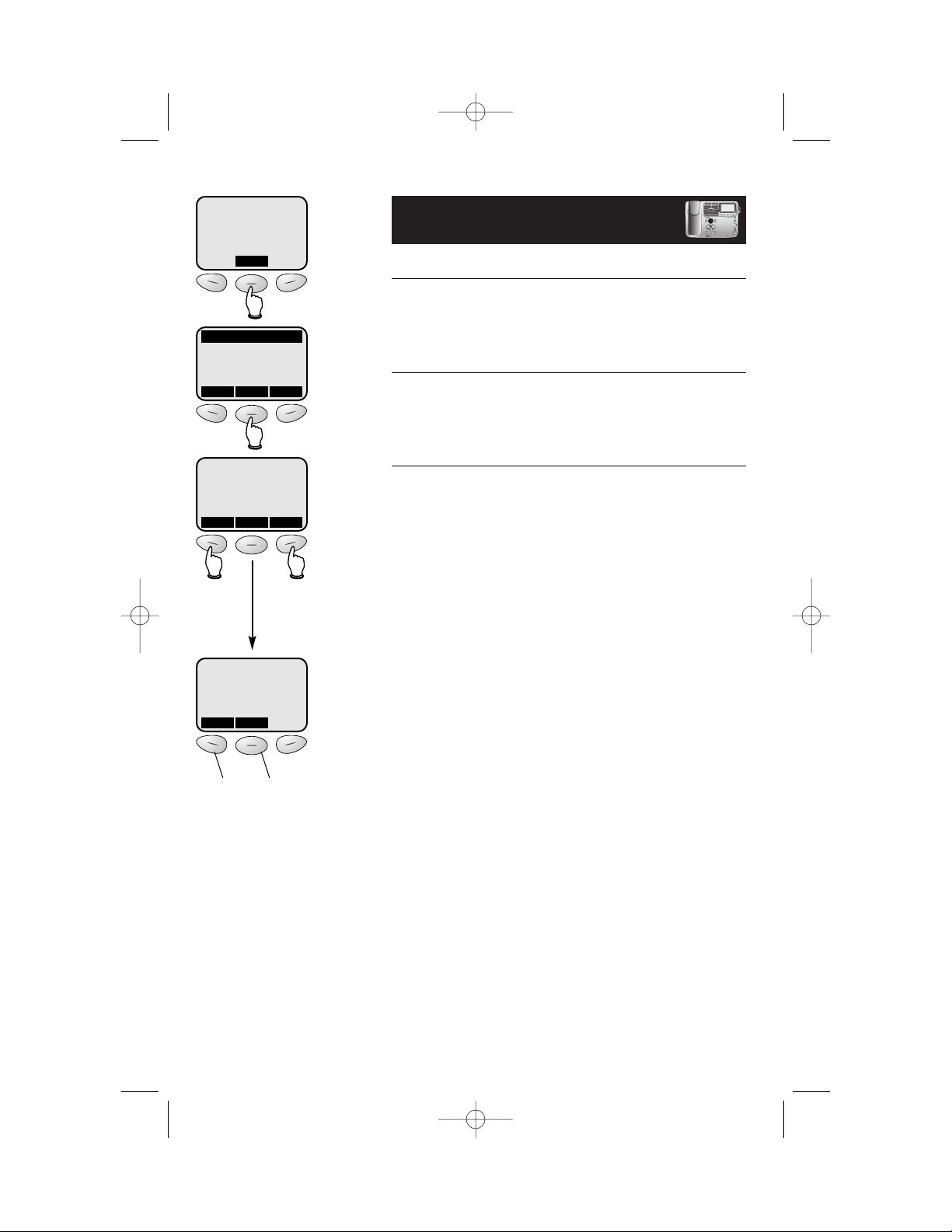

Handset screen images

This feature allows you to select an image or design as “wallpaper” to be displayed in the background of your handset display screen.

Press the middle NavKey button to display the menu, use navigation buttons to highlight PICTURES, then press the middle button again to select this option.

Choose a category (Images or Emotions), then use the NavKey buttons to display the available graphics. Press

SET to select an image.

To remove an image from your screen, use the NavKey buttons to select CLEAR WALLPAPER, then press the middle NavKey button.

Intercom

Display menu

Pictures

Select Pictures

Choose category

Browse images

Pictures

Images

Emotions Clear Wallpaper

Images

SET

1 of 16

Press SET to select desired image

ATT-5860CIB-d2.qxd 1/3/2004 11:10 AM Page 14

+ 36 hidden pages
