Quick Start Guide
5.8 GHz Cordless
Telephone/Answering
System
E5630/E5633/E5634B
with Caller ID & Call Waiting
96-005844-020-000-E5630 QSG Sep.16,05.qxd 2/13/1950 7:21 PM Page 1
Page 2
Battery installation & charging
After battery installation, place the handsets in their base unit or charger and allow to
charge for 15 hours before use. You can keep the batteries charged by returning the
handsets to their base unit or charger after each use. When the battery is fully depleted, a
recharge takes about 12 hours. Average talk time on a fully charged battery is about eight
hours depending on environmental conditions, standby time is approximately four days.
Place handset in base or
charger to charge for 15
hours before first use.
Insert supplied
battery.
Low battery indicator
Return handset to base to
recharge when this symbol
flashes. (Handset will beep
when battery is low.)
Caution: Use only supplied rechargeable battery or AT&T replacement battery model 2420 (SKU 00578. Part
number 80-5542-00-00).
LOW BATTERY
Press tab to open
battery compartment.
Replace compartment cover.
Plug power cord
transformer into
electrical outlet.
Plug telephone
line cord into
telephone jack.
96-005844-020-000-E5630 QSG Sep.16,05.qxd 2/13/1950 7:21 PM Page 2
Page 3
Off/Clear
During a call, press to hang up.
While using menus, press to cancel an
operation, back up to the previous
menu, or exit the menu display.

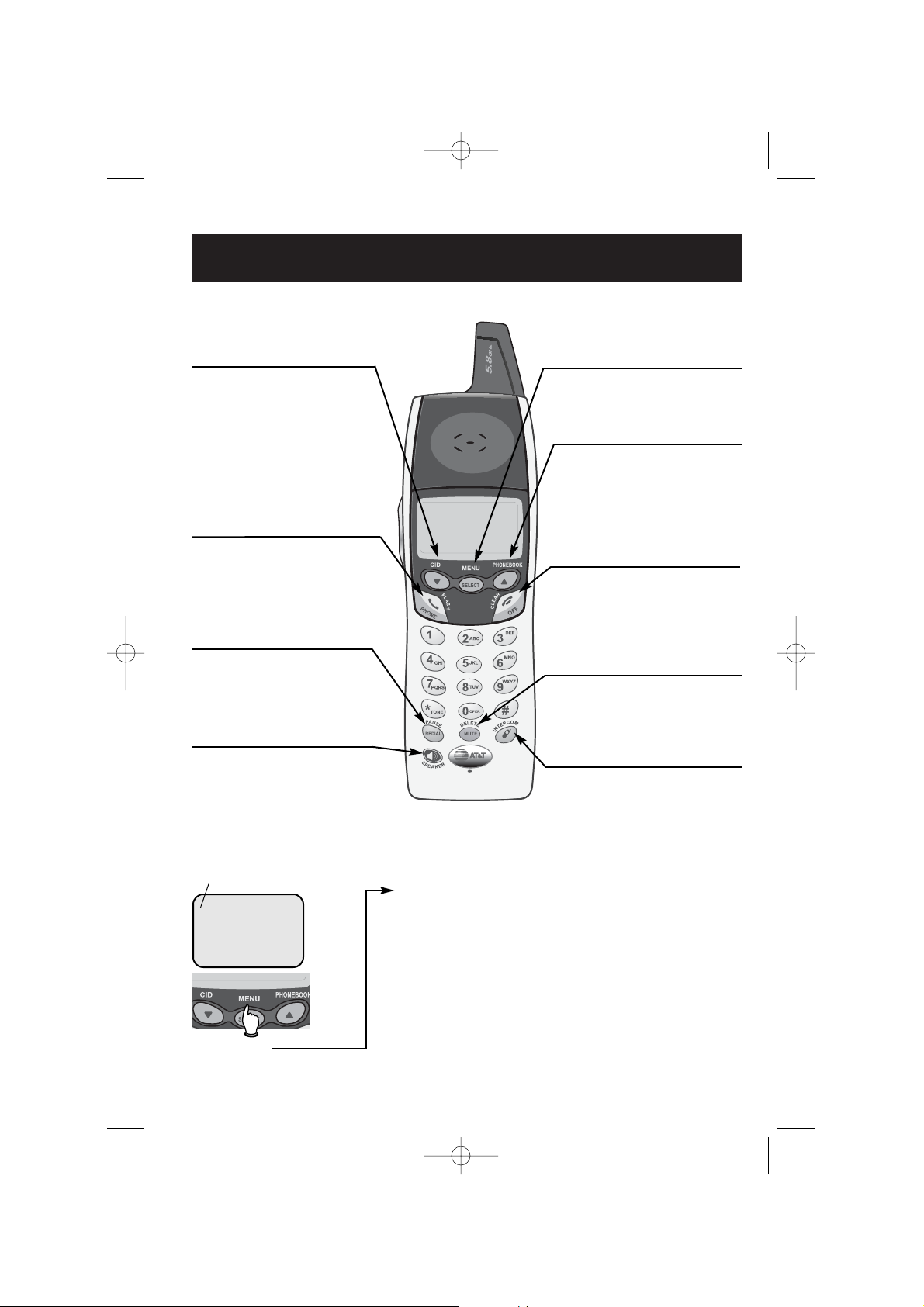

Quick reference guide
Redial/Pause
Press to view redial memory. While entering numbers, press and hold to insert a
dialing pause.
V CID
Press to scroll down in menus.
Press when phone is not in use to display
Caller ID information. While entering
names, press to move the cursor to the
left.
Speaker
Press to activate handset speakerphone.
Press again to resume normal handset use.
^ PHONE BOOK
Press to scroll up in menus.
Press when phone is not in use to display
phone book entries. While entering
names, press to advance cursor.
Phone/Flash
Press to begin a call, then dial a number.
During a call, press to receive an incoming
call, if Call Waiting is activated.
Mute/Delete
Press to mute microphone. While reviewing call log, press and hold to clear Caller
ID log.
Intercom
Press to initiate an intercom conversation
or transfer a call.
Handset
Feature menu
>PHONE BOOK
CALL LOG
Menu
Feature Menu
Phone book
Call Log
Ringer Volume
Ringer Tone
Key Tone
Language
Clear MSG WAIT
Dial Type
Press ^or Vto scroll
through menu items.
Press SELECT to select or
modify a highlighted item.
Press OFF to cancel an operation, back up to the previous
menu, or exit the menu display.
Select/Menu
Press to display menu, or to select
highlighted item from menu.
> shows highlighted item
96-005844-020-000-E5630 QSG Sep.16,05.qxd 2/13/1950 7:21 PM Page 3
Page 4

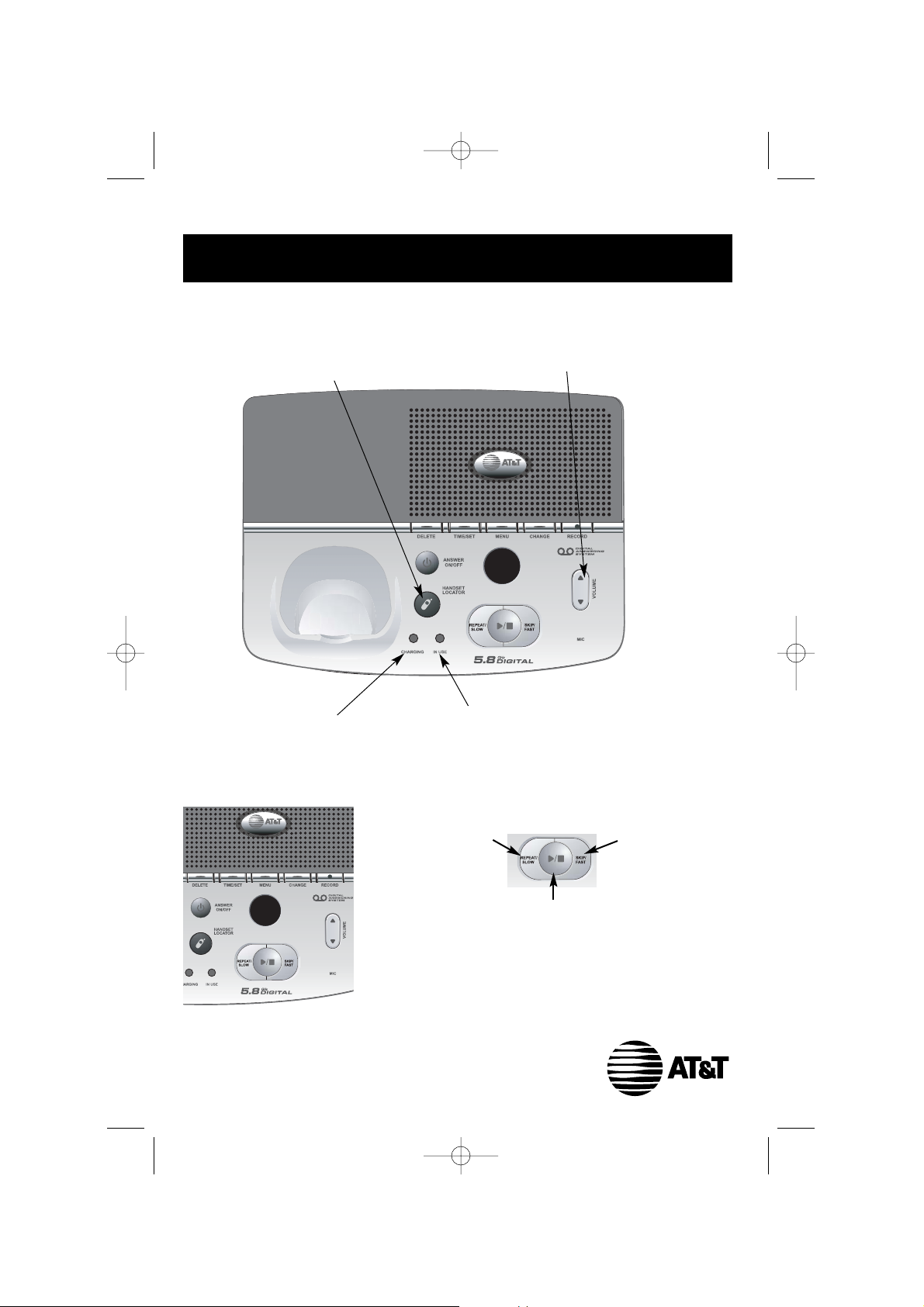

Answering System Controls
ANSWER ON/OFF..Press to turn answering system on or off.
DELETE ..................Press to delete message. Hold to delete all old messages.
TIME/ SET ..............Press to review or set the answering system clock.
MENU......................Press to review or change answering system options.
CHANGE ................Press to change a menu option.
RECORD ................Press to record a memo or outgoing announcement.
Quick reference guide
Telephone Base
In Use
On when handset is in use. Flashes when another phone
is in use on the same line, or answering system is
answering an incoming call.
Charging
On when handset battery is
charging.
Volume
Press to adjust message
playback volume.
Handset Locator
Press to locate handset if lost.
Press to play or stop playing messages.
Press to repeat message.
Hold to slow playback.
Press twice to hear
previous message.
Press to skip to next
message. Hold to speed
up playback.
Copyright © 2005 Advanced American Telephones. All Rights Reserved.
AT&T and the Globe Design are trademarks of AT&T Corp.,
licensed to Advanced American Telephones. Printed in China. Issue 2 AT&T 09/05.
96-005844-020-000.
