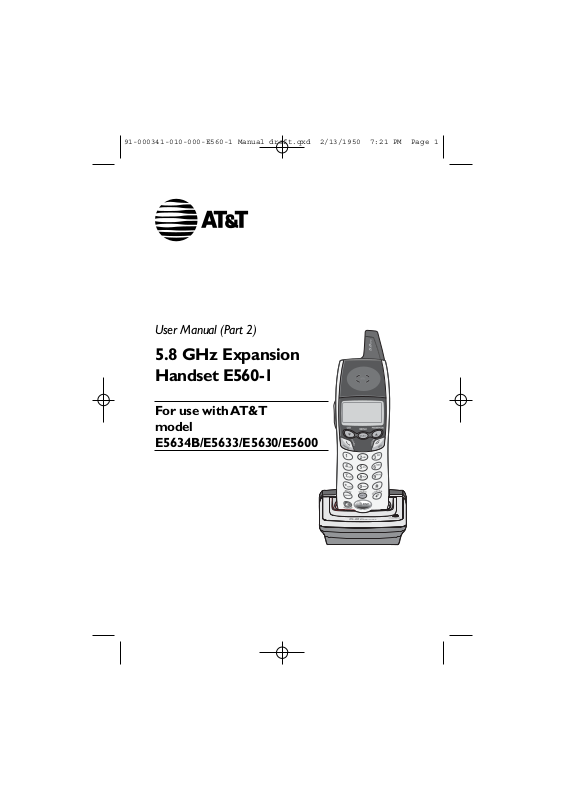

User Manual (Part 2)
5.8 GHz Expansion
Handset E560-1
For use with AT&T
model
E5634B/E5633/E5630/E5600
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 1
You must charge the
battery and register the
handset before use.
STOP!
See pages 2-3
for easy instructions.
Table of contents
For customer service or product
information, visit our web site at
www.telephones.att.com
or call 1-800-222-3111.
Please also read
Important Product
Information
Enclosed in product package.
Before you begin........................................1
Parts checklist ............................................1
Battery & charging installation ...............2
Registration.................................................3
Replacing a Handset..................................4
Re-Registering a Handset ........................5
Belt clip & optional headset....................6
Quick reference guide..............................7
Copyright © 2004 Advanced American Telephones. All Rights Reserved.
AT&T and the Globe Design are trademarks of AT&T Corp.,
licensed to Advanced American Telephones.
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 2
Before you begin
This cordless telephone
operates with the maximum
power allowed by the
Federal Communications
Commission (FCC). Even
so, this handset and base
can communicate over only
a certain distance — which
can vary with the locations
of the base and handset, the
weather, and the
construction of your home
or office.
If you receive a call
while you are out of
range, the handset might
not ring — or if it does
ring, the call might not
connect when you press
PHONE. Move closer to the
base, then press PHONE to
answer the call.
If you move out of range
during a phone
conversation, you might
hear noise or interference.
To improve reception, move
closer to the base.
If you move out of range
without pressing OFF,
your phone will be left off
the hook.To hang up
properly, walk back toward
the telephone base,
periodically pressing OFF
until the call is
disconnected.
Parts checklist
Remember to save your sales receipt and original packaging in
case you ever need to ship your telephone for warranty service.
Check to make sure the telephone package includes the
following:
Handset charger
Telephone
handset
Powe r
adapter
Belt clip
Battery
1
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 3
CHARGING
2
Battery & charger installation
After installation, place the handset in the charger and allow the
battery to charge for 12 hours before use.You can keep the battery
charged by returning the handset to the charger after each use.
When battery power is fully depleted, a full recharge takes about 10
hours.Average talk time on a fully charged battery is about eight
hours depending on environmental conditions, standby time is
approximately four days.
Light remains on while
battery is charging.
Plug power cord into jack on
underside of charger, then plug
transformer into electrical outlet.
Insert supplied
battery.
Low battery indicator
Return handset to base or
charger to recharge when
this symbol flashes.
(Handset will beep when
battery is low.)
Caution: Use only supplied
rechargeable battery or AT&T
replacement battery model 2420 (SKU
00578. Part number 80-5542-00-00).
LOW BATTERY
Press tab to open
battery
compartment.
Then replace
compartment
cover.
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 4
Registration
3
HANDSET 2
Before using a new E560-1 handset, you must register it with the E5633 /
E5630 / E5600 base. During registration, you must enter the 15-digit ID
number of the telephone base.The Base ID is located on the bottom of
the base unit.
The handset provided with your E5600/E5630 is
automatically registered as Handset 1. Additional
handsets will be assigned numbers in the order they
are registered (HS2, HS3, or HS4). You can register a
maximum of 4 handsets.
The E5633 has 3 handsets automatically registered as
Handset 1, 2 and 3. You can register one additional
handset, which will be assigned number 4.
The E5634B has 4 handsets automatically registered
as Handsets 1,2 ,3,and 4. Y
ou cannot register any
additional handsets to the E5634B.
To add a new handset:
• Make sure your handset batteries are properly
installed and charged.
• Your handset will display “SEARCHING...”
• Press and hold the
SELECT key until the handset
displays “ENTER BASE ID”.
• Enter the 15-digit Base ID number from the
bottom of the base unit. (E5600 or E5630 or
E5633)
• Press
SELECT to accept the code and complete
registration.
NOTE:
If an invalid base ID code is entered you will hear an error
tone and the handset will continue to display “ ENTER BASE ID ”. To
make corrections while entering the code, you can erase digits by pressing
the DELETE key.
Once a valid base ID code is entered and accepted by
the base unit, the new handset will be assigned the
next available handset number (HS2, HS3, or HS4).
You can register a maximum of four handsets per
base unit.
Handset 1
Enter base ID, then press SELECT.
ENTER BASE ID
Handset 2
Handset 3
Handset 4
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 5
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 6
Replacing a Handset
If you are replacing a handset on a system that has the maximum
number of handsets registered (4), or wish to change the
assigned handset number of your registered handsets-you must
first de-register the handsets, then re-register all handsets.
De-Register All Handsets
• Unplug the power supply from the base unit
(E5600/E5630/E5633/E5634B)
• Remove all handsets from the charge cradles and base
• Press and hold the Handset Locator button on the base
• Plug in the power supply again while pressing the Handset Locator
button
• Continue pressing Handset Locator until the IN USE, CHARGING and
MESSAGE WAITING indicators are lit. (this could take up to
10 seconds)
• Release the Handset Locator button
• All Handsets will display
ENTER BASE ID
Once the base indicators turn off (up to 30 seconds), the
handsets have been de-registered from the base, and can now be
re-registered (see page 5).
4
You can re-register handsets after de-registering from the base.
Or you can re-register handsets to a new base unit, if you have
replaced your base unit for any reason.
To re-register a handset:
• Make sure your handset batteries are properly installed and
charged.
• Your handset will display “SEARCHING...”
• Press and hold the
SELECT key until the handset displays
“ENTER BASE ID”.
• Enter the 15 digit Base ID number from the bottom of the
base.
• Press SELECT to accept the new code and complete
re-registration.
To re-register a handset to a new base unit:
• Make sure your handset batteries are properly installed and
charged.
• Unplug the old base unit
• Install the new base unit by plugging it into the electrical
outlet and phone jack
• Your handset will display “SEARCHING...”
• Press and hold the
SELECT key until the handset displays
“ENTER BASE ID”.
• Enter the new15-digit Base ID number from the bottom of
the new base unit.
• Press SELECT to accept the new code and complete
re-registration.
NOTE:
If an invalid base ID code is entered you will hear an error tone and the
handset will continue to display “ENTER BASE ID”. To make corrections while
entering the code, you can erase digits by pressing the DELETE key.
Once a valid base ID code is entered and accepted by the base
unit, the new handset will be assigned the next available handset
number (HS1, HS2, HS3, HS4).You can register a maximum of
four handsets per base unit.
Re-Registering a Handset
5
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 7
Belt clip & optional headset
Install belt clip as shown below if desired.
For hands-free telephone conversations, you can use any industry
standard 2.5 mm headset (purchased separately). For best results
use an AT&T 2.5 mm headset.
6
Snap belt clip into notches on
side of handset. Rotate and pull
to remove.
Plug 2.5 mm headset
into jack on side of
handset (beneath
small rubber cap)
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 8
For complete instructions, please refer to the manual provided with
your E5634B, E5633, E5630 or E5600 telephone.
Quick reference guide
7
Feature menu
>PHONE BOOK
CALL LOG
Menu
Feature Menu
Phone book
Call Log
Ringer Volume
Ringer Tone
Key Tone
Language
Clear MSG WAIT
Dial Type
Press^orVto scroll
through menu items.
Press SELECT to select or
modify a highlighted item.
Press OFF to cancel an
operation, back up to the
previous menu, or exit the
menu display.
> shows highlighted item
Off/Clear
During a call, press to hang up.
While using menus, press to cancel an
operation, back up to the previous
menu, or exit the menu display.
Redial/Pause
Press to view redial memory.
While entering numbers, press and hold
to insert a dialing pause .
V CID
Press to scroll down in menus.
Press when phone is not in use to
display Caller ID information . While
entering names, press to move the
cursor to the left.
Speaker
Press to activate handset speakerphone.
Press again to resume normal handset
use (earpiece).
^ PHONE BOOK
Press to scroll up in menus.
Press when phone is not in use to
display phone book entries.While
entering names, press to advance
cursor.
Phone/Flash
Press to begin a call, then dial a number.
During a call, press to receive an
incoming call, if Call Waiting is activated .
Mute/Delete
Press to mute microphone . While
reviewing call log, press and hold to
clear Caller ID log .
Intercom
Press to initiate an intercom
conversation or forward a call.
Handset
Select/Menu
Press to display menu, or to select
highlighted item from menu.
91-000341-010-000-E560-1 Manual draft.qxd 2/13/1950 7:21 PM Page 9
www.telephones.att.com
Copyright © 2004 Advanced American Telephones. All Rights Reserved.
AT&T and the Globe Design are trademarks of AT&T Corp.,
licensed to Advanced American Telephones. Printed in China. Issue 2 AT&T 03/05.
91-000341-010-000
