User Manual (Part 2)
5.8 GHz Expansion
Handset E560-1
For use with AT&T
model E5633/E5630/E5600
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 1
Page 2
You must charge the
battery and register the
handset before use.
STOP!
See pages 2-3
for easy instructions.
Table of contents
For customer service or product
information, visit our web site at
www.telephones.att.com
or call 1-800-222-3111.
Please also read
Important Product
Information
Enclosed in product package.
Before you begin........................................1
Parts checklist ............................................1
Battery & charging installation ...............2
Registering the handset............................3
Belt clip & optional headset....................4
Quick reference guide..............................5
Copyright © 2004 Advanced American Telephones. All Rights Reserved.
AT&T and the Globe Design are trademarks of AT&T Corp.,
licensed to Advanced American Telephones.
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 2
Page 3
Before you begin
This cordless telephone
operates with the maximum
power allowed by the
Federal Communications
Commission (FCC). Even
so, this handset and base
can communicate over only
a certain distance — which
can vary with the locations
of the base and handset, the
weather, and the construction of your home or office.
If you receive a call
while you are out of
range, the handset might
not ring — or if it does
ring, the call might not connect when you press
PHONE. Move closer to the
base, then press PHONE to
answer the call.
If you move out of range
during a phone conversation, you might hear
noise or interference.To
improve reception, move
closer to the base.
If you move out of range
without pressing OFF,
your phone will be left off
the hook.To hang up properly, walk back toward the
telephone base, periodically
pressing OFF until the call is
disconnected.
Parts checklist
Remember to save your sales receipt and original packaging in
case you ever need to ship your telephone for warranty service.
Check to make sure the telephone package includes the following:
Handset charger
Telephone
handset
Powe r
adapter
Belt clip
Battery
1
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 3
CHARGING
Page 4
2

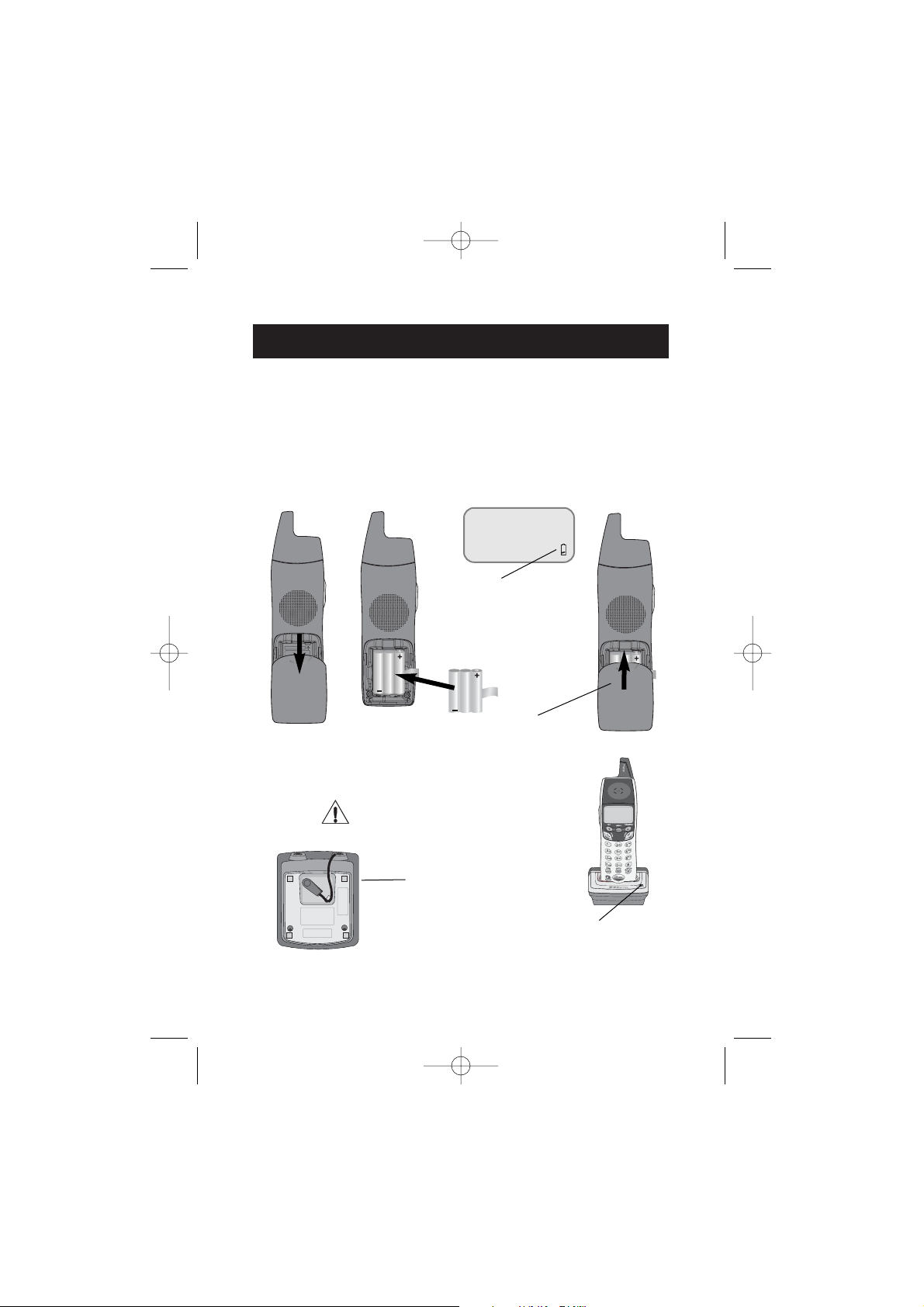

Battery & charger installation
After installation, place the handset in the charger and allow the battery to charge for 12 hours before use.You can keep the battery
charged by returning the handset to the charger after each use.
When battery power is fully depleted, a full recharge takes about 10
hours.Average talk time on a fully charged battery is about eight
hours depending on environmental conditions, standby time is
approximately four days.
Light remains on while
battery is charging.
Plug power cord into jack on
underside of charger, then plug
transformer into electrical outlet.
Insert supplied
battery.
Low battery indicator
Return handset to base or
charger to recharge when
this symbol flashes.
(Handset will beep when
battery is low.)
Caution: Use only supplied rechargeable battery or AT&T replacement battery model 2420 (SKU 00578. Part
number 80-5542-00-00).
LOW BATTERY
Press tab to open
battery compartment.
Then replace
compartment
cover.
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 4
Page 5

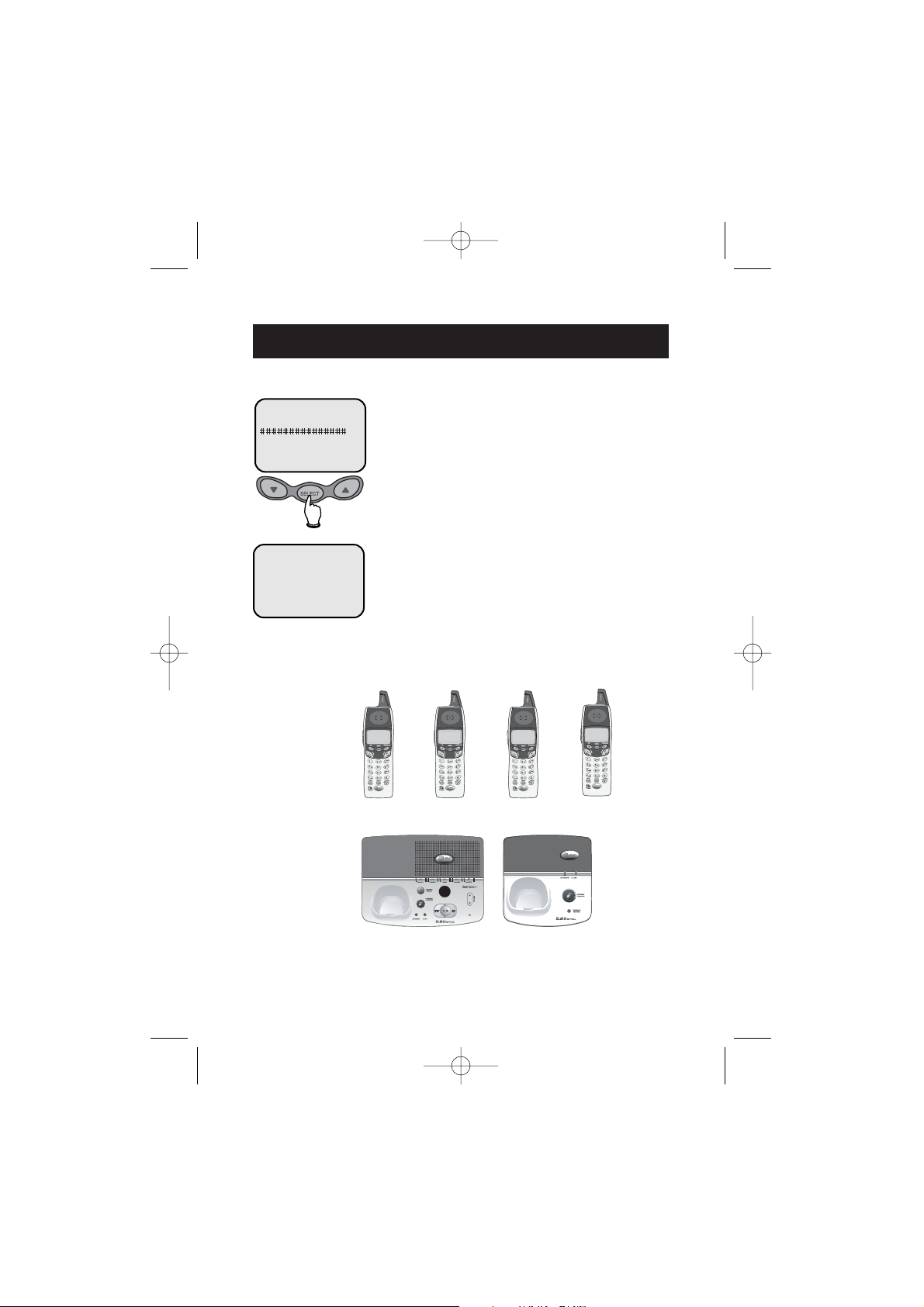

Registering the handset
Enter base ID, then press SELECT.
HANDSET 2
Handset 1 Handset 2 Handset 3
3
Before using a new E560-1 handset, you must
register it with the E5633 / E5630 / E5600
base. During registration, you must enter the
15-digit ID number of the telephone base.
The Base ID is located on the bottom of the
base unit.
Follow the instructions provided with your
new handset to register it for use with your
telephone.
The handset provided with your telephone is
automatically registered as Handset 1.
Additional handsets will be assigned numbers in the order they are registered (2, 3 or
4).You can register a maximum of four handsets.
Handset 4
ENTER BASE ID
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 5
Page 6

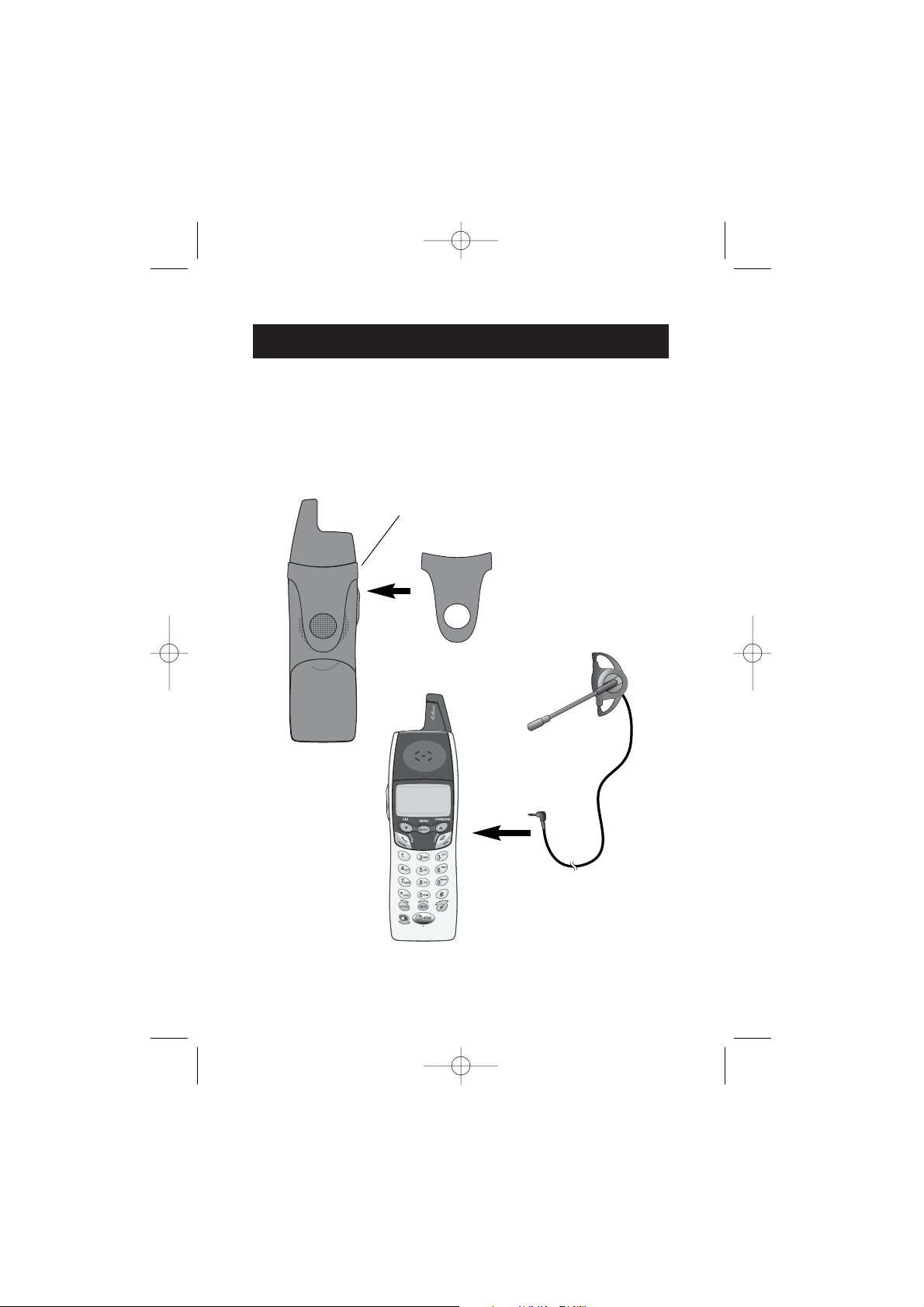

Belt clip & optional headset
Install belt clip as shown below if desired.
For hands-free telephone conversations, you can use any industry
standard 2.5 mm headset (purchased separately). For best results
use an AT&T 2.5 mm headset.
4
Snap belt clip into notches on
side of handset. Rotate and pull
to remove.
Plug 2.5 mm headset
into jack on side of
handset (beneath
small rubber cap)
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 6
Page 7
For complete instructions, please refer to the manual provided with
your E5633, E5630 or E5600 telephone.
Quick reference guide
5
Feature menu
>PHONE BOOK
CALL LOG
Menu
Feature Menu
Phone book
Call Log
Ringer Volume
Ringer Tone
Key Tone
Language
Clear MSG WAIT
Dial Type
Press^orVto scroll
through menu items.
Press SELECT to select or
modify a highlighted item.
Press OFF to cancel an operation, back up to the previous
menu, or exit the menu display.
> shows highlighted item
Off/Clear
During a call, press to hang up.
While using menus, press to cancel an
operation, back up to the previous
menu, or exit the menu display.
Redial/Pause
Press to view redial memory.
While entering numbers, press and hold
to insert a dialing pause .
V CID
Press to scroll down in menus.
Press when phone is not in use to display Caller ID information . While entering names, press to move the cursor to
the left.
Speaker
Press to activate handset speakerphone.
Press again to resume normal handset
use (earpiece).
^ PHONE BOOK
Press to scroll up in menus.
Press when phone is not in use to display phone book entries. While entering
names, press to advance cursor.
Phone/Flash
Press to begin a call, then dial a number.
During a call, press to receive an incoming call, if Call Waiting is activated .
Mute/Delete
Press to mute microphone . While
reviewing call log, press and hold to
clear Caller ID log .
Intercom
Press to initiate an intercom
conversation or forward a call.
Handset
Select/Menu
Press to display menu, or to select
highlighted item from menu.
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 7
Page 8
www.telephones.att.com
Copyright © 2004 Advanced American Telephones. All Rights Reserved.
AT&T and the Globe Design are trademarks of AT&T Corp.,
licensed to Advanced American Telephones. Printed in China. Issue 1 AT&T 12/04.
91-000183-010-000
91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 8
