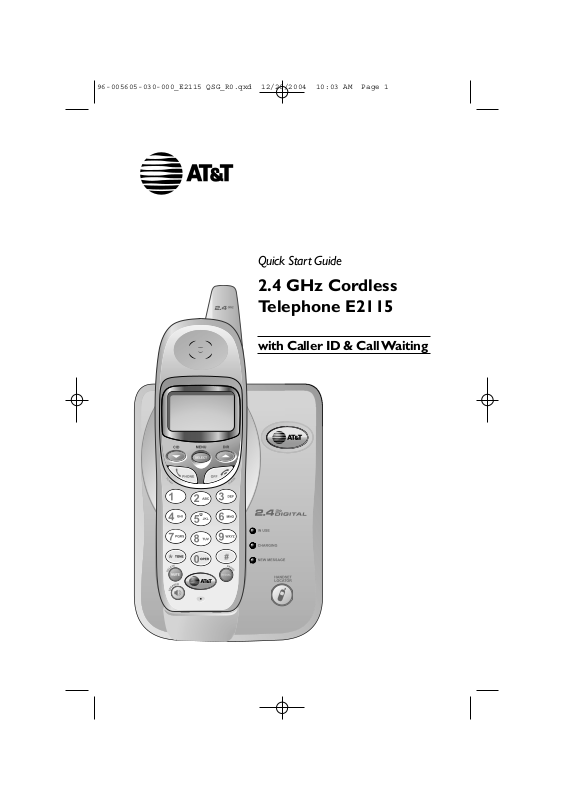

AT&T E2115 Quick Start Guide

Quick Start Guide
2.4 GHz Cordless Telephone E2115
with Caller ID & Call Waiting
96-005605-030-000_E2115 QSG_R0.qxd 12/20/2004 10:03 AM Page 1
Installation and setup
Connect the base and install batteries as shown below. After installation, place the handset in the base to charge for 15 hours before use. You can keep the batteries charged by returning the handset to the base after each use. When batteries are fully depleted, a recharge takes about 10 hours.Average talk time on a fully charged battery is about six hours depending on environmental conditions, standby time is approximately four days.
Plug power cord transformer into electrical outlet.
Plug telephone line cord into telephone jack.
Insert supplied battery
Place handset in base to charge for 15 hours before first use.
Caution: Use only supplied rechargeable battery or AT&T replacement battery model 2419/2420 (SKU 00578).
Insert top tabs first
Press down to click in place
Press coin into slot on base of handset to release latch, then remove battery cover.
96-005605-030-000_E2115 QSG_R0.qxd 12/20/2004 10:03 AM Page 2
Quick reference guide
Off/Clear
During a call, press to hang up. While using menus, press to cancel an operation, back up to the previous menu, or exit the menu display.
Mute/Delete
Press to mute microphone. While review­ing call log, press and hold to clear Caller ID log.
V CID
Press to scroll down in menus. Press when phone is not in use to display Caller ID information. While entering names, press to move the cursor to the left.
Speaker
Press to activate handset speakerphone. Press again to resume normal handset use (earpiece).
^ DIR
Press to scroll up in menus. Press when phone is not in use to display phone book entries. While entering names, press to advance cursor.
Phone/Flash
Press to begin a call, then dial a number. During a call, press to receive an incoming call, if Call Waiting is activated.
Redial/Pause
Press to view redial memory. While entering numbers, press and hold to insert a dialing pause.
Handset
Feature menu
>DIRECTORY
CALL LOG
Menu
Feature Menu
Directory Call Log Ringer Volume Ringer Tone Key Tone Handset Name Language Clear Msg. Wait Dial Type
Press ^or Vto scroll through menu items.
Press SELECT to select or modify a highlighted item.
Press OFF to cancel an opera­tion, back up to the previous menu, or exit the menu display.
Select/Menu
Press to display menu, or to select highlighted item from menu.
> shows highlighted item
96-005605-030-000_E2115 QSG_R0.qxd 12/20/2004 10:03 AM Page 3
Quick reference guide
Telephone Base
Copyright © 2004 Advanced American Telephones. All Rights Reserved. AT&T and the Globe Design are trademarks of AT&T Corp., licensed to Advanced American Telephones. Printed in China. Issue 3 AT&T 12/04 96-005605-030-000
IN USE
On when handset is in use. Flashes when another phone is in use on the same line.
CHARGING
On when handset batteries are charging.
NEW MESSAGE
Flashes when you have new voice mail (requires voice mail service from your local telephone company).
HANDSET LOCATOR
Press to locate handset if lost.
96-005605-030-000_E2115 QSG_R0.qxd 12/20/2004 10:03 AM Page 4
