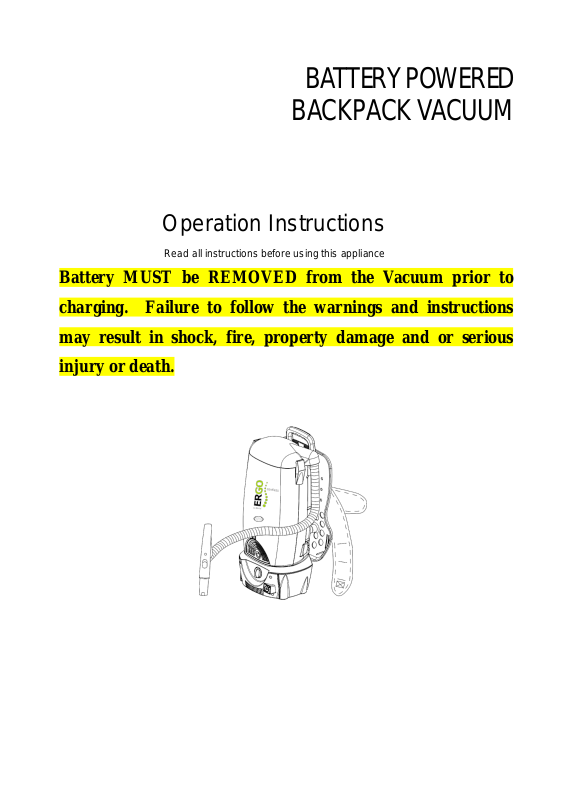

Atrix VACBP36V User Manual

BATTERY POWERED

BACKPACK VACUUM

Operation Instructions

Read all instructions before using this appliance

Battery MUST be REMOVED from the Vacuum prior to
charging. Failure to follow the warnings and instructions
may result in shock, fire, property damage and or serious
injury or death.

IMPORTANT SAFETY INSTRUCTIONS

Per CFR 49, Lithium Ion batteries are considered “hazardous goods.” As
such, they are subject to SPECIAL handling and packaging regulations for
ground and air ship pin g.

Proper shipping procedures compliant with CFR 49 MUST BE FOLLOWED.

When using your Vacuum, basic safety precautions should always be observed,
Including the following:

Vacuum Safety

Read Owner’s Manual before using this product.

Failure to do so can result in serious injury or death.

1. Use only as described in this manual. Use only the recommended attachments,
battery, charger, and replacement parts.

2. DO NOT use the vac uum ou tdo ors or on wet s urfaces . DO NOT expose to rain or water.

3. DO NOT use or store vacuum in wet or moist conditions.

4. DO NOT try to r ecov er any liq uid w i th this v acuum. This vac uum is for DRY RECOVERY

only

5. DO NOT USE A DAMAGED VACUUM. If the unit is not working as it should, or if it has
been damaged, left outdoors, or exposed to water, take it to an Authorized Repair
Center for inspection and repair.

6. DO NOT allow the vacuum to be used as a toy. Pay close attention when using the
vacuum near children.

7. DO NOT handle the switch or battery pack with wet hands.

8. DO NOT put any objects into openings. Do not use with any opening blocked, keep free

of dust, lint, hair, and anything that may reduce air flow.

9. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.

10. Use with extra care when cleaning on stairs.

11. DO NOT vacuum flammable or combustible materials or anything that is burning or

smoking, such as cigarettes, matches, or hot ashes.

12. Sparks inside the motor can ignite flammable vapors, to reduce the risk of fire or
explosion, do not use near combustible liquids, gases, or dusts, such as gasoline or

other fuels, lighter fluid, cleaners, oil-based paints, or natural gas.

13. To reduce the risk of inhaling toxic vapors or dust, DO NOT vacuum or use near toxic
or hazardous material s .

14. DO NOT use without filter in place .

15. Disconnect battery pack before servicing vacuum.

GETTING TO KNOW YOUR BATTERY POWERED BACK PACK VACUUM

1. Main Unit 14. Dusting Brush

2. Exhaust Grill Port 15. Crevice Tool

3. On/Off Power Switch 16. Pet Hair Remover

4. Canister Lid Tabs 17. Exhaust Grill

5. Waist Band 18. Blower Port

6. Shoulder Straps 19. Combination floor tool

7. Back Board Panel 20. HEPA Dust bag

8. Carry Handle 21. Waist Band Back Support Panel

9. Hose Inlet 22. Waist Band Tool Carrier

10. Canister Lid 23. Cloth Shakeout Bag

1 1. Blower Attachment 24. HEPA Pre-Motor Filter

12. Flexible Hose 25. Exhaust Filter

13. Plastic Tube 26. Turbo Floor brush

Operating Instructions

Important: Do not use the vacuum without all filters, shake-out bag and with
HEPA dust bag in place. To replace HEPA filter bag:

1. Turn off power and remove the flexible hose.

2. Open canister lid by lifting canister lid tabs on each side of the unit (Fig.1).

3. Pull the tab on the HEPA dust bag holder out slightly and flip upwards (Fig. 2).

4. Holding the HEPA dust bag in your hand, slide it firmly between the slots in the bag
holder (Fig. 2).

5. The cardboard face of the new bag should rest securely in the dust bag cover guide
(Fig. 3).

6. Ensure that the shake-out bag is in place (Fig. 4).

7. Flip the HEPA bag holder over, pressing the tab on the bag holder until it clicks.

8. The canister lid can be replaced on the unit with the hose opening on the right or left,
as per your preference (Fig. 5).
