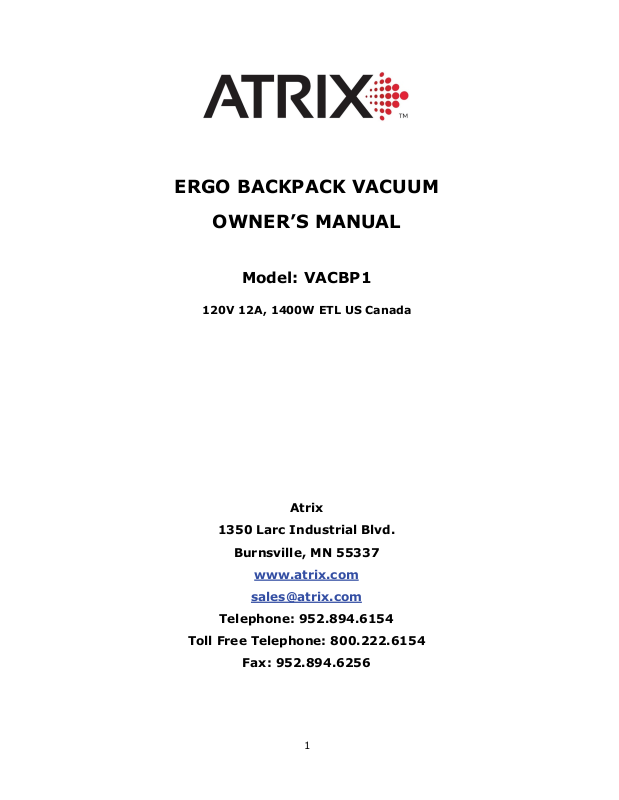

Atrix VACBP1 User Manual
ERGO BACKPACK VACUUM
OWNER’S MANUAL
Model: VACBP1
120V 12A, 1400W ETL US Canada
Atrix
1350 Larc Industrial Blvd.
Burnsville, MN 55337
www.atrix.com
sales@atrix.com
Telephone: 952.894.6154
Toll Free Telephone: 800.222.6154
Fax: 952.894.6256
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING APPLIANCE
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY:
1.
Do not leave appliance when plugged in. Unplug from outlet when not in
use and before servicing.
2.
Electrical shock may occur if used outdoors or on wet surfaces.
3.
Do not allow to be used as a toy. Close attention is necessary when used
by or near children.
4.
Use only as described in this manual. Use only manufacturer’s
recommended instructions.
5.
Do not use with damaged cord or plug. If appliance is not working as
it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to Atrix International.
6.
Do not pull or carry by cord, use cord as a handle, close a door on
cord, or pull cord around sharp edges of corners. Do not run
appliance over cord. Keep cord away from heated surfaces.
7.
Do not unplug by pulling on cord. To unplug, grasp plug, not the cord.
8.
Do not handle plug or appliance with wet hands.
9.
Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce
airflow.
10.
Keep hair, loose clothing, fingers and all body parts away from openings
and moving parts.
11.
Do not pick up anything that is burning or smoking such as cigarettes,
matches or hot ashes.
12.
Do not use without filter in place.
13.
Turn off all controls before unplugging.
14.
Use extra care when cleaning on stairs.
15.
Do not use to pick up any liquids, including flammable or combustible
liquids such as gasoline or use in areas where they may be present.
16.
Connect to a properly grounded outlet only.
17.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with the appliance.
SAVE THESE INSTRUCTIONS!
2
GETTING TO KNOW YOUR ERGO BACKPACK VACUUM
3
1. Main Unit
2. Exhaust Grill
3. On/Off Power Switch
4. Canister Lid Tabs
5. Waist Band
6. Shoulder Straps
7. Back Board Panel
8. Carry Handle
9. Hose Inlet
10. Canister Lid
11. Flexible Hose
12. Flexible Hose handle
13. Variable Suction Control
14. Telescopic Tube
OPERATING INSTRUCTIONS
Warning: To reduce the risk of electric shock, the power cord must be disconnected
before removing the dust bag, shake-out bag, changing the filters or
performing maintenance or trouble-shooting checks.
15. Telescopic Tube Button
16. Waist Band Back Support Panel
17. Waist Band
18. Dusting Brush
19. Crevice Tool
20. Blowing Port
21. Furniture Nozzle
22. Floor to Carpet Brush
23. Exhaust Filter
24. Blowing Attachments
25. HEPA Dust Bag
26. Shake-Out Bag
27. HEPA Pre-Motor Filter
28. Turbo Brush (Not Pictured)
Assembling Your Vacuum
Cleaner -
power plug
Note:
Always remove the
from the wall outlet before
attaching or removing accessories.
Important:
Do NOT use the vacuum
without all filters, shake-out bag,
and HEPA dust bag in place.
1
Unplug the power cord and
remove
the flexible hose.
2
To open the canister lid, press on
the canister lid tabs on each side
of the unit and lift canister lid.
(Fig. 1)
3
Pull the tab on the HEPA dust
bag holder out slightly and flip
upwards. (Fig. 2)
(Fig. 2)
4
Holding the HEPA dust bag in
your hand, slide it firmly
between the slots in the bag
holder. (Fig. 2)
5
The cardboard face to the new
bag should rest securely in the
dust bag cover guidelines. (Fig.
3)
(Fig. 3)
4
