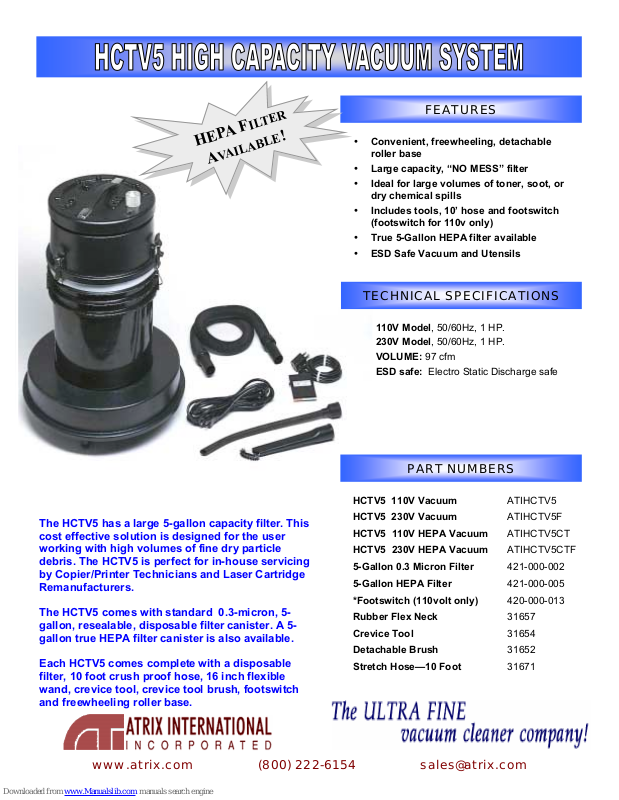

Atrix HCTV5, High Capacity HEPA Vacuum, ATIHCTV5, ATIHCTV5F, ATIHCTV5CT Specifications

H

EP

V

A

A

A

R

E

T

L

I

F

A

L

I

B

L

E

!

• Convenient, freewheeling, detachable

roller base

• Large capacity, “NO MESS” filter

• Ideal for large volumes of toner, soot, or

dry chemical spills

• Includes tools, 10’ hose and footswitch

(footswitch for 110v only)

• True 5-Gallon HEPA filter available

• ESD Safe Vacuum and Utensils

FEATURES

TECHNICAL SPECIFICATIONS

110V Model, 50/60Hz, 1 HP.

230V Model, 50/60Hz, 1 HP.
VOLUME: 97 cfm

ESD safe: Electro Static Discharge safe

The HCTV5 has a large 5-gallon capacity filter. This
cost effective solution is designed for the user
working with high volumes of fine dry particle
debris. The HCTV5 is perfect for in-house servicing
by Copier/Printer Technicians and Laser Cartridge
Remanufacturers.

The HCTV5 comes with standard 0.3-micron, 5­gallon, resealable, disposable filter canister. A 5­gallon true HEPA filter canister is also available.

Each HCTV5 comes complete with a disposable
filter, 10 foot crush proof hose, 16 inch flexible
wand, crevice tool, crevice tool brush, footswitch
and freewheeling roller base.

PART NUMBERS

HCTV5 110V Vacuum ATIHCTV5

HCTV5 230V Vacuum ATIHCTV5F

HCTV5 110V HEPA Vacuum ATIHCTV5CT

HCTV5 230V HEPA Vacuum ATIHCTV5CTF

5-Gallon 0.3 Micron Filter 421-000-002

5-Gallon HEPA Filter 421-000-005

*Footswitch (110volt only) 420-000-013

Rubber Flex Neck 31657

Crevice Tool 31654

Detachable Brush 31652

Stretch Hose—10 Foot 31671

www.atrix.com [phone] [e-mail]
