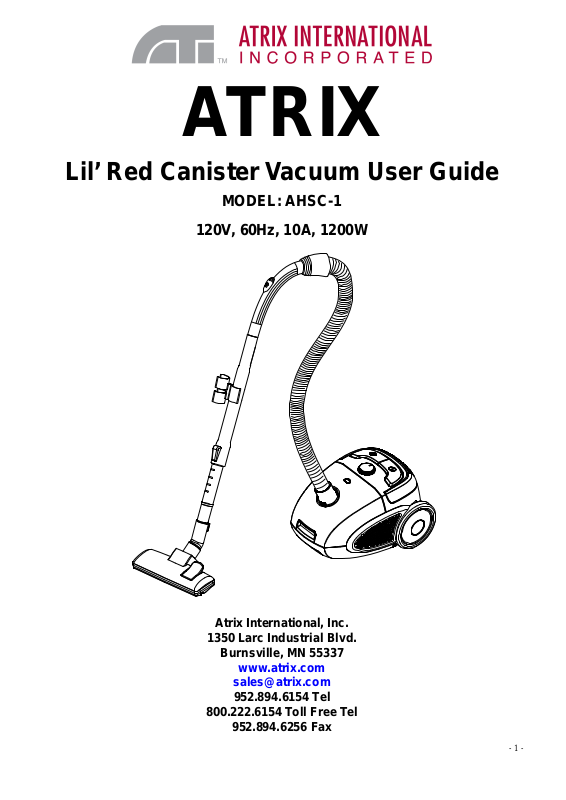

Atrix AHSC-1 User Manual

ATRIX

Lil’ Red Canister Vacuum User Guide

MODEL: AHSC-1

120V, 60Hz, 10A, 1200W

Atrix International, Inc.

1350 Larc Industrial Blvd.

Burnsville, MN 55337

www.atrix.com

[e-mail]

952.894.6154 Tel

800.222.6154 Toll Free Tel

952.894.6256 Fax

- 1 -

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING APPLIANCE

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY:

1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

2. Electrical shock may occur if used outdoors or on wet surfaces.

3. Do not allow vacuum to be used as a toy. Pay close attention when vacuum is used by or near children.

4. Use only as described in this manual. Use only manufacturer’s recommended instructions.

5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to Atrix International to be evaluated (refer to warranty policy).

6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges of corners. Do not
run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce airflow.

10. Keep hair, loose clothing, fingers and all body parts away from openings and moving parts.

11. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.

12. Do not use without filter in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up any liquids, including flammable or combustible liquids such as gasoline or use in areas where they
may be present.

16. Connect to a properly grounded outlet only.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the vacuum.

SAVE THESE INSTRUCTIONS!

- 2 -

COMPONENTS AND EQUIPMENT

1. Floor brush combo

2. Telescopic wand

3. Storage clip

4. Hose handle

5. Suction hose

6. Automatic cord rewind button

7. ON/OFF button

8. Suction control regulator

9. Carrying handle

10. Suction hose connection

11. Crevice tool/brush

12. Furniture nozzle
Not Pictured:
HEPA Filter bag
Oval Dust Brush
Hard Floor Tool

3

2

1

4

11

10

8

6

5

7

9

12

- 3 -
