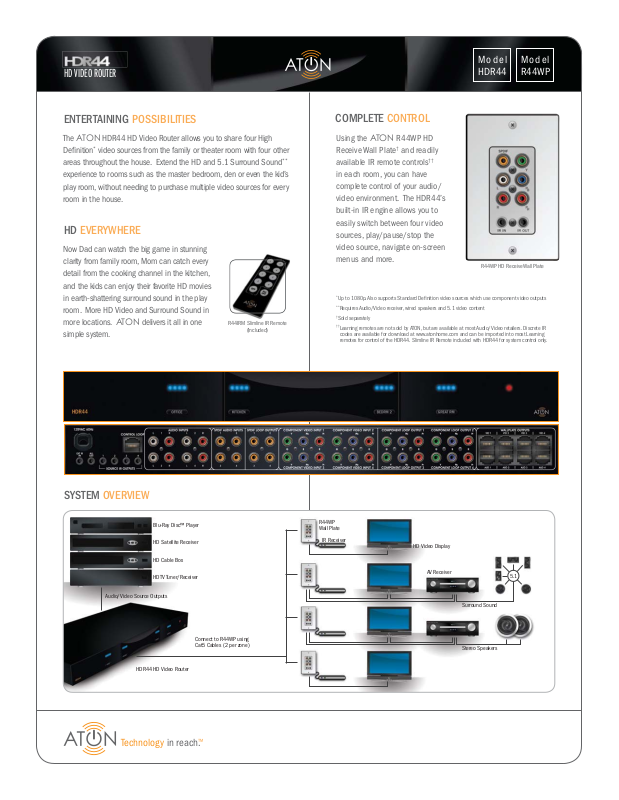

HD VIDEO ROUTER
Model
HDR44
Model
R44WP
ENTERTAINING POSSIBILITIES
The A TON HDR44 HD Video Router allows you to share four High
*
Definition
areas throughout the house. Extend the HD and 5.1 Surround Sound
video sources from the family or theater room with four other
**
experience to rooms such as the master bedroom, den or even the kid’s
play room, without needing to purchase multiple video sources for every
room in the house.
HD EVERYWHERE
Now Dad can watch the big game in stunning
clarity from family room, Mom can catch every
detail from the cooking channel in the kitchen,
and the kids can enjoy their favorite HD movies
in earth-shattering surround sound in the play
room. More HD Video and Surround Sound in
more locations. ATON delivers it all in one
simple system.
R44IRM Slimline IR Remote
(Included)
COMPLETE CONTROL
Using the ATON R44WP HD
Receive Wall Plate
available IR remote controls
in each room, you can have
complete control of your audio/
video environment. The HDR44’s
built-in IR engine allows you to
easily switch between four video
sources, play/pause/stop the
video source, navigate on-screen
menus and more.
*
Up to 1080p. Also supports Standard Definition video sources which use component video outputs
**
Requires Audio/Video receiver, wired speakers and 5.1 video content
†
Sold separately
††
Learning remotes are not sold by ATON, but are available at most Audio/Video retailers. Discrete IR
codes are available for download at www.atonhome.com and can be imported into most Learning
remotes for control of the HDR44. Slimline IR Remote included with HDR44 for system control only.
†
and readily
††
R44WP HD Receive Wall Plate
SYSTEM OVERVIEW
Audio/Video Source Outputs
HDR44 HD Video Router
Technology in reach.
Blu-Ray Disc™ Player
HD Satellite Receiver
HD Cable Box
HDTV Tuner/Receiver
Connect to R44WP using
Cat5 Cables (2 per zone)
™
R44WP
Wall Plate
IR Receiver
HD Video Display
AV Receiver
5.1
Surround Sound
Stereo Speakers
HDR44 SPECIFICATIONS
4 Component video inputs and 4 buffered outputs: Gold plated RCA
Connectors
4 SPDIF Digital audio inputs and 4 buffered outputs: Gold plated RCA
Connectors
4 Analog audio inputs: Gold plated RCA Connectors
4 R44WP wall plate outputs (2 RJ-45 per zone output)
External IR input (tip – IR, ring – ground, sleeve – 12V)
4 source IR outputs and 1 "ALL" IR output
Control loop output (RJ-45) for system expansion
4 front panel source LEDs per zone
System cable: Cat5 (2 per zone)
Maximum cable length: 500 ft.
System bandwidth: 185MHz, -3dB (90 MHz, -0.5dB)
Supported resolutions: 1080p, 1080i, 720p, 480p and 480i
Chassis dimensions:
– Without feet: 1.75” x 17” x 11”,
– With feet 2.375” x 17” x 11”
Weight: 9.6lbs
Wiring Requirements: 2 Cat5 to each R44WP Wall Plate
HDR44 FEATURES
Routes 4 HD video sources, to 4 zones (up to 500 ft. away), in tandem
with digital and analog audio
Supports resolutions of 1080p, 1080i, 720p, 480p and 480i
R44WP Wall Plate* in each zone utilizes 2 Cat5 cables from the
HDR44 to output all video and audio
System control options:
– R44WP HD Receive Wall Plate* and Slimline IR remote (included) in
each zone
– Single IR receiver
*
plugged into the back of the HDR44
(controls all zones)
Expandable to 8 zones with an additional HDR44 chassis
Gold plated Component video, digital audio and analog audio inputs
Buffered Component video, and digital audio outputs
Zone labels included for easy front panel room identification
1 Slimline remote included
1U Rack Height – Rack mountable with optional rack ear kit (REKT)
2 year warranty
*
Sold separately. Discrete IR codes are available for download at www.atonhome.com and can be imported
into most Learning remotes for control of the HDR44. Slimline IR Remote included with HDR44 for system
control only.
R44WP – HD RECEIVE WALL PLATE
Receives all video and audio from the
HDR44 via 2 Cat5 cables
Outputs HD video and analog audio to
the zone TV display and digital audio to
an optional in-room A/V receiver
IR receiver input on the front and back for
control of HDR44 and connected sources
IR emitter loop output for control of
in-room sources
Single-gang décora format
(white faceplate included)
Includes AIR1b Surface Mount
IR Receiver
Technology in reach.
™
©2008 ATON. All rights reserved. • 1300 New Circle Road, Suite 150 • Lexington, KY 40505 • www.atonhome.com
P/N CSHDR44 Rev: B
