Storm Series
Indoor/Outdoor Speakers
O41/O51/O61/O62/O62ST
www.atonhome.com
Storm Series Outdoor Speakers
1. Introduction
Thank you for choosing ATON Storm Series Outdoor Speakers. All models were voiced in our
sound labs by musicians with years of critical listening experience and crafted for your listening
enjoyment. To see the complete line of ATON products, visit us online at www.atonhome.com.
Storm Series Outdoor Speakers are designed to extend the listening experience into areas not
traditionally associated with high quality sound: the Great Outdoors! The 041/O51/O61 line
provides high quality sound at affordable prices for traditional stereo or mono listening areas.
Injection-Molded Graphite (IMG) woofers and 1¨ Treated Soft-Dome Tweeters provide deep, rich
bass and smooth highs for an authetic, exciting listening experience. The 062 and 062ST models use Woven Fiberglas Woofers and 1¨ Aluminum Tweeters for even better sound quality that
will last for years in any weather conditions. The 062 is designed for typical stereo and mono
applications while the O62ST is a Dual-Voice Coil (DVC) design that allows stereo signals to play
from a single speaker!
Storm Series Outdoor Speakers are also ideal for use indoors, too! Use them as primary stereo
speakers in any system, or connect them as rear surround speakers in Home Theater systems.
The O62ST can also be used in areas such as hallways, laundry rooms and kitchens to provide
full stereo sound in unexpected places.
O61/O62/O62ST
O51
O41
Figure 1.1 - Front View
Bracket
Knobs
Speaker
Terminals
O41/O51/O61/O62
O62ST
Figure 1.2 - Rear View
© 2007 • All rights reserved. Page 1
Storm Series Outdoor Speakers
2. System Design/Applications
ATON Outdoor speakers are designed primarily to be used in areas such as back yards, porches,
decks, etc. Because of the diversity of possible installation scenarios, pay particular attention to
which type of application is most appropriate for the environment in which the speakers will be
installed.
Stereo
In areas that have a defi ned listening area where two speakers will be mounted more or less
equidistant from each other, use a stereo setup with left and right speakers each connected
to their own channel of a stereo receiver or amplifi er. This application provides the best sound
quality, staging, and depth possible in areas with a defi ned listening position. Figure 2.1 shows
an example of an outdoor stereo listening area.

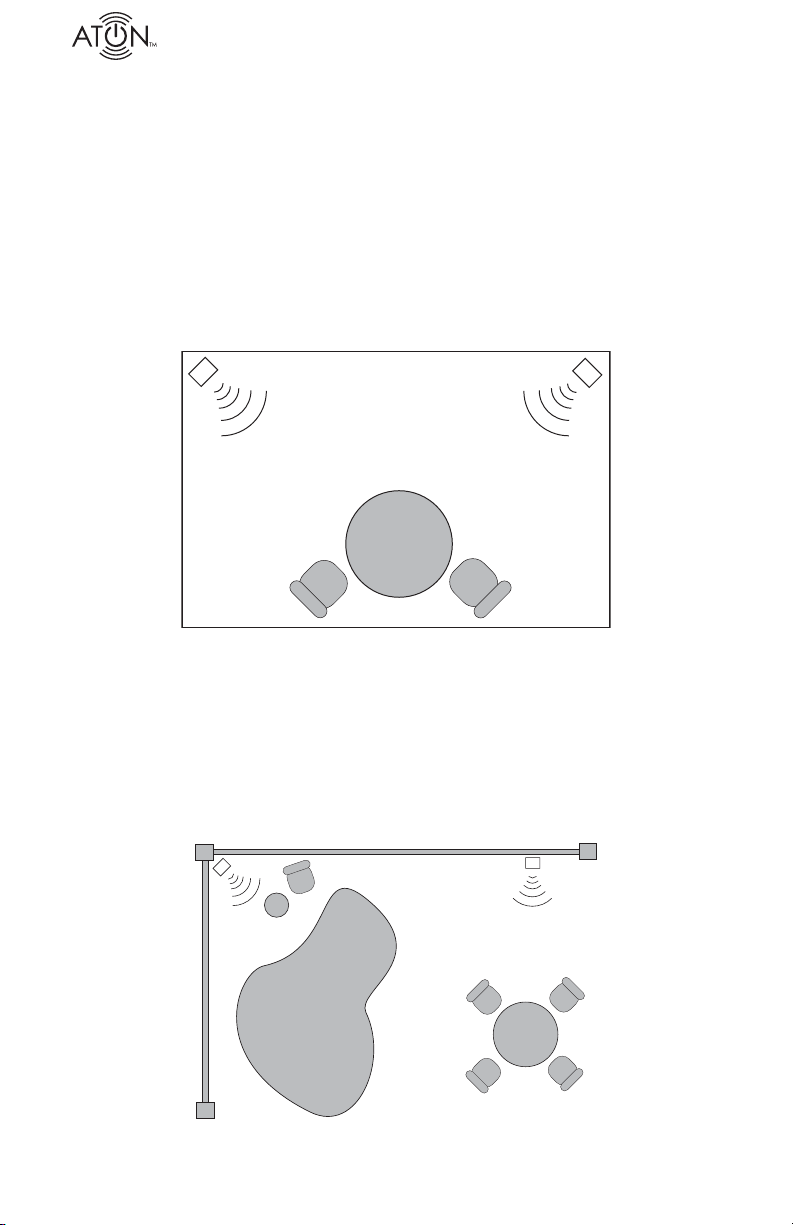

Figure 2.1 - Stereo Application
Mono/DVC
In many instances, mono or DVC setup will provide a better listening experience in outdoor
areas. Mono applications combine the left and right signals to provide the full sound of a piece
of music to each speaker in the system without left/right separation. DVC applications send
the left signal to one voice coil and the right signals to another voice coil, essentially creating a
stereo pair in one speaker cabinet. Use mono or DVC setups for any area that does not have a
defi ned listening area.
Area
A
Area
B
Figure 2.2 - Mono/DVC Application
Page 2 ©2007 • All rights reserved.
