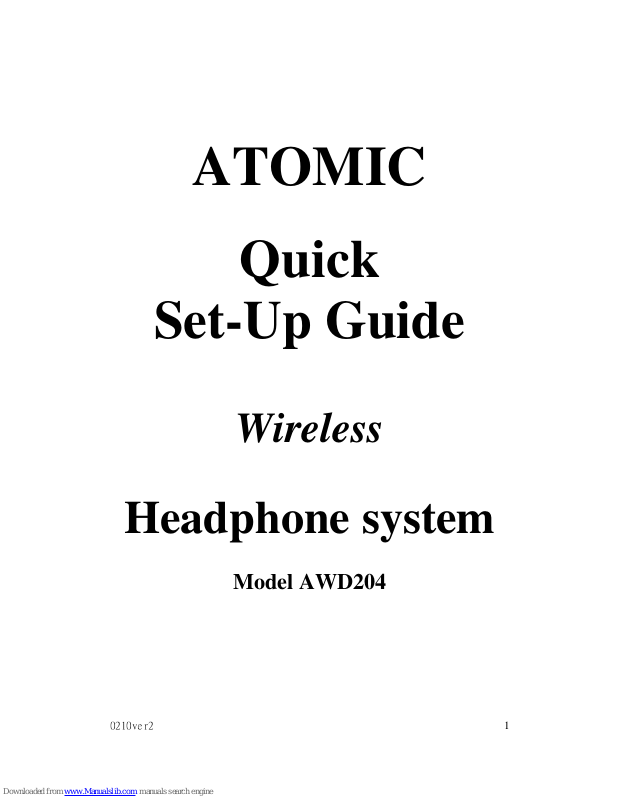

Atomic AWD204 Quick Setup Manual

0210ver2

1

ATOMIC

Quick

Set-Up Guide

Wireless

Headphone system

Model AWD204

0210ver2

2

Congratulations on the purchase of 900MHz Stereo RF Wireless Headphones to enjoy the
revolutionary technology! Please check the supplied component against the following list:

1 x Transmitter
1 x Headphone
1 x Power Supply (AC/DC 12V200mA Adaptor for Transmitter)
1 x 3.5mm audio cord (built in)
1 x Charging Cord (built in)
2 x AAA NiMH550 mAH rechargeable battery

FUNCTION KEYS

HEADPHONES

(1) Headbelt
(2) Ear Cushion
(3) Color LED Indicator
(4) Power ON/OFF Switch
(5) Volume Control Knob
(6) Charging Socket
(7) Battery Compartment
(8) Battery cover
(9) Tune

7

2

3

1

9

4

6 5

8

0210ver2

3

TRANSMITTER:

Transmitter Front:

(10) Charging LED Indicator
(11) Power LED Indicator

Transmitter Rear Side:
(12) Charging Cord
(13) Audio IN Cord
(14) Switch for channel 1,2 and 3
(15) AC/DC Adaptor IN Socket

ACCESSORIES:

(16) AC/DC Adaptor

10

11

12

13

14

15

16
