Features

• High Performance, Low Power AVR

• Advanced RISC Architecture

– 120 Powe rful Instructions – Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation

• Non-volatile Program and Data Memories

– 2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny24/44/84)

Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes In-System Programmable EEPROM (ATtiny24/44/84)

Endurance: 100,000 Write/Erase Cycles
– 128/256/512 Bytes Internal SRAM (ATtiny24/44/84)
– Programming Lock for Self-Programming Flash Program and EEPROM Data

Security

• Peripheral Features

– Two Timer/Counters, 8- and 16-bit counters with two PWM Channels on both
– 10-bit ADC

8 single-ended channels

12 differential ADC channel pairs with programmable gain (1x, 20x)

Temperature Measurement
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
– Universal Serial Interface

• Special Microcontroller Features

– debugWIRE On-chip Debug System
– In-System Programmab le via SPI Port
– External and Internal Interrupt Sources
– Pin Change Interrupt on 12 pins
– Low Power Idle, ADC Noise Reduction, Standby and Power-down Modes
– Enhanced Power-on Reset Circuit
– Programmable Brown-out Detection Circuit
– Internal Calibrated Oscillator
– On-chip Temperature Sensor

• I/O and Pac kages

– 14-pin SOIC, PDIP and 20-pin QFN/MLF: Twelve Programmable I/O Lines

• Operating Voltage:

– 1.8 - 5.5V for ATtiny24V/44V/84V
– 2.7 - 5.5V for ATtiny24/44/84

• Speed Grade

– ATtiny24V/44V/84V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
– ATtiny24/44/84: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

• Industrial Temperature Range

• Low Power Consumption

– Active Mode:

1 MHz, 1.8V: 380 µA
– Power-down Mode:

1.8V: 100 nA

®

8-Bit Microcontroller

8-bit

Microcontroller
with 2/4/8K
Bytes In-System
Programmable
Flash

ATtiny24/44/84

Preliminary
Summary

Rev. 8006FS–AVR–02/07

1. Pin Configurations

Figure 1-1. Pinout ATt i ny 24 /4 4/ 84

PDIP/SOIC

VCC

(PCINT8/XTAL1/CLKI) PB0

(PCINT9/XTAL2) PB1

(PCINT11/RESET/dW) PB3

(PCINT10/INT0/OC0A/CKOUT) PB2

(PCINT7/ICP/OC0B/ADC7) PA7

(PCINT6/OC1A/SDA/MOSI/ADC6) PA6

(ADC4/USCK/SCL/T1/PCINT4) PA4

(ADC3/T0/PCINT3) PA3
(ADC2/AIN1/PCINT2) PA2
(ADC1/AIN0/PCINT1) PA1

(ADC0/AREF/PCINT0) PA0

NOTE
Bottom pad should be
soldered to ground.
DNC: Do Not Connect

1
2
3
4
5
6
7

QFN/MLF

PA 5

DNC

2019181716

1
2
3
4
5

6

7

DNC

DNC

14
13
12
11
10

DNC

8

GND

GND
PA0 (ADC0/AREF/PCINT0)
PA1 (ADC1/AIN0/PCINT1)
PA2 (ADC2/AIN1/PCINT2)
PA3 (ADC3/T0/PCINT3)

9

PA4 (ADC4/USCK/SCL/T1/PCINT4)

8

PA5 (ADC5/DO/MISO/OC1B/PCINT5)

Pin 16: PA6 (PCINT6/OC1A/SDA/MOSI/ADC6)
Pin 20: PA5 (ADC5/DO/MISO/OC1B/PCINT5)

DNC

PA 6

15

PA7 (PCINT7/ICP/OC0B/ADC7)

14

PB2 (PCINT10/INT0/OC0A/CKOUT)

13

PB3 (PCINT11/RESET/dW)

12

PB1 (PCINT9/XTAL2)

11

PB0 (PCINT8/XTAL1/CLKI)

9

10

VCC

DNC

1.1 Disclaimer

Typical values contained in this data sheet are based on simulations and characterization of other AVR microcontrollers
manufactured on the same process technology. Min and Max values will be available after the device is characterized.

2

ATtiny24/44/84

8006FS–AVR–02/07

2. Overview

2.1 Block Diagram

ATtiny24/44/84

The ATtiny24/44/84 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced
RISC architecture. By executing powerful instructions in a single clock cycle, the ATt iny24/ 44/ 84
achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize
power consumption versus processing speed.

Figure 2-1. Block Diagram

VCC

GND

PROGRAM
COUNTER

PROGRAM

FLASH

INSTRUCTION

REGISTER

INSTRUCTION

DECODER

CONTROL

LINES

PROGRAMMING

LOGIC

STACK

POINTER

SRAM

GENERAL
PURPOSE

REGISTERS

X
Y
Z

ALU

STATUS

REGISTER

ISP INTERFACE

8-BIT DATABUS

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CONTROL

REGISTER

MCU STATUS

REGISTER

TIMER/

COUNTER0

TIMER/

COUNTER1

INTERRUPT

UNIT

EEPROM

INTERNAL
CALIBRATED
OSCILLATOR

TIMING AND

CONTROL

OSCILLATORS

8006FS–AVR–02/07

DATA REGISTER

+

-

PORT A

ANALOG

COMPARATOR

PORT A DRIVERS

PA 7- PA 0

DATA DIR.

REG.PORT A

ADC

DATA REGISTER

PORT B

PORT B DRIVERS

PB3-PB0

DATA DIR.

REG.PORT B

The AVR core combines a rich instruction set with 32 general purpose working registers. All the
32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent

3

registers to be accessed in one single instruction executed in one clock cycle. The resulting
architecture is more code efficient while achieving throughputs up to ten times faster than con­ventional CISC microcontrollers.

The ATtiny24/44/84 provides the following features: 2/4/8K byte of In-System Programmable
Flash, 128/256/512 bytes EEPROM, 128/256/512 bytes SRAM, 12 general purpose I/ O lines, 32
general purpose working registers, a 8-bit Timer/Counter with two PWM channels, a 16-bit
timer/counter with two PWM channels, Internal and External Interrupts, a 8-channel 10-bit ADC,
programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, a programmable
Watchdog Timer with internal Oscillator, internal calibrated oscillator, and three software select­able power saving modes. The Idle m ode stops the CPU while allowing the SRAM,
Timer/Counter, ADC, Analog Comparator, an d Interrupt system to continue functioning. The
Power-down mode saves the register contents, disabling all chip functions until the next Inter­rupt or Hardware Reset. The ADC Noise Reduction mode stops the CPU and all I/O modules
except ADC, to minimize switching noise during ADC conversions. In Standby mode, the crys­tal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast
start-up combined with low power consumption.

The device is manufactured ng Atmel’s high density non-volatile memory technology. The On­chip ISP Flash allows the Program memory to be re-programmed In-System thr ough an SPI
serial interface, by a conventional non-volatile memory programmer or by an On-chip boot code
running on the AVR core.

The ATtiny24/44/84 AVR is supported with a full suite of pr ogram and system d evelopment to ols
including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators,
and Evaluation kits.

4

ATtiny24/44/84

8006FS–AVR–02/07

2.2 Pin Descriptions

2.2.1 VCC

Supply voltage.

2.2.2 GND

Ground.

2.2.3 Port B (PB3...PB0)

Port B is a 4-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The
Port B output buffers have symmetrical drive characteristics with both high sink and source
capability except PB3 which has the RESET
RESET pin, program (‘0’) RSTDISBL fuse. As inputs, Port B pins that are externally pulled low
will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a
reset condition becomes active, even if the cloc k is not ru nn in g.

Port B also serves the functions of various special features of the ATtiny24/44/84 as listed on

Section 12.3 ”Alternate Port Functions” on page 61.

2.2.4 RESET

ATtiny24/44/84

capability. To use pin PB3 as an I/O pin, instead of

Reset input. A low level on this pin for longer than the minimum pulse length will generate a
reset, even if the clock is not running. The minimum pulse length is given in Table 22-3 on page

183. Shorter pulses are not guaranteed to gener at e a re se t.

2.2.5 Port A (PA7...PA0)

Port A is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The
Port A output buffers have symmetrical drive characteristics with both high sink and source
capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up
resistors are activated. The Port A pins are tri-stated when a reset co ndition becomes active,
even if the clock is not running.

Port A has an alternate functions as analog inputs for the ADC, analog comparator,
timer/counter, SPI and pin change interrupt as described in ”Alter nate Port Functions” on page

61

3. Resources

A comprehensive set of development tools, drivers and application notes, and datasheets are
available for download on http://www.atmel.com/avr.

8006FS–AVR–02/07

5

4. Register Summary

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Page

0x3F (0x5F) SREG I T H S V N Z C Page 9

0x3E (0x5E) SPH – – – – – – SP9 SP8 Page 12
0x3D (0x5D) SPL SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 Page 12
0x3C (0x5C) OCR0B
0x3B (0x5B) GIMSK – INT0 PCIE1

0x3A (0x5A GIFR – INTF0 PCIF1

0x39 (0x59) TIMSK0 – – – – – OCIE0B OCIE0A TOIE0 Page 90

0x38 (0x58) TIFR0 – – – – OCF0B OCF0A TOV0 Page 90

0x37 (0x57) SPMCSR – – – CTPB RFLB PGWRT PGERS SPMEN Page 163

0x36 (0x56) OCR0A

0x35 (0x55) MCUCR –PUDSESM1SM0– ISC01 ISC00 Page 53

0x34 (0x54) MCUSR – – – – WDRF BORF EXTRF PORF Page 46

0x33 (0x53) TCCR0B FOC0A FOC0B – – WGM02 CS02 CS01 C S0 0 Page 88

0x32 (0x52) TCNT0 Timer/Counter0 Page 89

0x31 (0x51) OSCCALCAL7CAL6CAL5CAL4CAL3CAL2CAL1CAL0 Page 33

0x30 (0x50) TCCR0A COM0A1 COM0A0 COM0B1 COM0B0 – WGM01 WGM00 Page 85
0x2F (0x4F) TCCR1A COM1A1 COM1A0 COM1B1 COM1B0 – WGM11 WGM10 Page 114
0x2E (0x4E) TCCR1B ICNC1 ICES1 – WGM13 WGM12 CS12 CS11 CS10 Page 116
0x2D (0x4D) TCNT1H Timer/Counter1 – Counter Register High Byte Page 118
0x2C (0x4C) TCNT1L Timer/Counter1 – Counter Register Low Byte Page 118
0x2B (0x4B) OCR1AH Timer/Counter1 – Compare Register A High Byte Page 118
0x2A (0x4A) OCR1AL Timer/Counter1 – Compare Register A Low Byte Page 118

0x29 (0x49) OCR1BH Timer/Counter1 – Compare Register B High Byte Page 118

0x28 (0x48) OCR1BL Timer/Counter1 – Compare Register B Low Byte Page 118

0x27 (0x47) DWDR DWDR[7:0] Page 159

0x26 (0x46) CLKPR CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 Page 33

0x25 (0x45) ICR1H Timer/Counter1 - Input Capture Register High Byte Page 119

0x24 (0x44) ICR1L Timer/Counter1 - Input Capture Register Low Byte Page 119

0x23 (0x43) GTCCR TSM – – – – – – PSR10 Page 122

0x22 (0x42) TCCR1C FOC1A FOC1B – – – – – – Page 117

0x21 (0x41) WDTCSR WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 Page 46

0x20 (0x40) PCMSK1 – – – – PCINT11 PCINT10 PCINT9 PCINT8 Page 54
0x1F (0x3F) EEARH – – – – – – – EEAR8 Page 23
0x1E (0x3E) EEARL EEAR7 EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 Page 23
0x1D (0x3D) EEDR EEPROM Data Register Page 23
0x1C (0x3C) EECR – – EEPM1 EEPM0 EERIE EEMPE EEPE EERE Page 23
0x1B (0x3B) PORTA PORTA7 PORTA6 PORTA5 PORTA4 PORTA3 PORTA2 PORTA1 PORTA0 Page 72
0x1A (0x3A) DDRA DDA7 DDA6 DDA5 DDA4 DDA3 DDA2 DDA1 DDA0 Page 72

0x19 (0x39) PINA PINA7 PINA6 PINA5 PINA4 PINA3 PINA2 PINA1 PINA0 Page 72

0x18 (0x38) PORTB – – – – PORTB3 PORTB2 PORTB1 PORTB0 Page 72

0x17 (0x37) DDRB

0x16 (0x36) PINB

0x15 (0x35) GPIOR2 General Purpose I/O Register 2 Page 25

0x14 (0x34) GPIOR1 General Purpose I/O Register 1 Page 25

0x13 (0x33) GPIOR0 General Purpose I/O Register 0 Page 25

0x12 (0x32) PCMSK0 PCINT7 PCINT6 PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 Page 55
0x11 (0x31)) Reserved

0x10 (0x30) USIBR USI Buffer Register Page 131
0x0F (0x2F) USIDR USI Data Register Page 131
0x0E (0x2E) USISR USISIF USIOIF USIPF USIDC USICNT3 USICNT2 USICNT1 USICNT0 Page 131
0x0D (0x2D) USICR USISIE USIOIE USIWM1 USIWM0 USICS1 USICS0 USICLK USITC Page 132
0x0C (0x2C) TIMSK1
0x0B (0x2B) TIFR1
0x0A (0x2A) Reserved –

0x09 (0x29) Reserved

0x08 (0x28) ACSR ACD ACBG

0x07 (0x27) ADMUX REFS1 REFS0 MUX5 MUX4 MUX3 MUX2

0x06 (0x26) ADCSRA ADEN ADSC

0x05 (0x25) ADCH ADC Data Register High Byte Page 155

0x04 (0x24) ADCL ADC Data Register Low Byte Page 155

0x03 (0x23) ADCSRB BIN ACME –ADLAR– ADTS2 ADTS1 ADTS0 Page 156

0x02 (0x22) Reserved –

0x01 (0x21) DIDR0 ADC7D ADC6D ADC5D ADC4D ADC3D ADC2D ADC1D ADC0D Page 138,Page 157

0x00 (0x20) PRR – – – – PRTIM1 PRTIM0 PRUSI PRADC Page 36

– – – – DDB3 DDB2 DDB1 DDB0 Page 72
– – – – PINB3 PINB2 PINB1 PINB0 Page 73

– –ICIE1– – OCIE1B OCIE1A TOIE1 Page 119
– –ICF1– – OCF1B OCF1A TOV1 Page 120

Timer/Counter0 – Output Compare Regist er B

Timer/Counter0 – Output Compare Regist er A

ACO ACI ACIE ACIC ACIS1 ACIS0 Page 137

ADATE ADIF ADIE ADPS2 ADPS1 ADPS0 Page 154

PCIE0
PCIF0

– – – – Page 53
– – – – Page 54

–

–

MUX1 MUX0 Page 151

Page 89

Page 89

6

ATtiny24/44/84

8006FS–AVR–02/07

ATtiny24/44/84

Note: 1. For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses

should never be written.

2. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these
registers, the value of single bits can be checked by using the SBIS and SBIC instructions.

3. Some of the Status Flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI
instructions will only operation the specified bit, and can therefore be used on registers containing such Status Flags. The
CBI and SBI instructions work with registers 0x00 to 0x1F only.

8006FS–AVR–02/07

7

5. Instruction Set Summary

Mnemonics Operands Description Operation Flags #Clocks

ARITHMETIC AND LOGIC INSTRUCTIONS

ADD Rd, Rr Add two Registers Rd ← Rd + Rr Z,C,N,V,H 1
ADC Rd, Rr Add with Carry two Registers Rd ← Rd + Rr + C Z,C,N,V,H 1
ADIW Rdl,K Add Immediate to Word Rdh:Rdl ← Rdh:Rdl + K Z,C,N,V,S 2
SUB Rd, Rr Subtract two Registers Rd ← Rd - Rr Z,C,N,V,H 1
SUBI Rd, K Subtract Constant from Register Rd ← Rd - K Z,C,N,V,H 1
SBC Rd, Rr Subtract with Carry two Registers Rd ← Rd - Rr - C Z,C,N,V,H 1
SBCI Rd, K Subtract with Carry Constant from Reg. Rd ← Rd - K - C Z,C,N,V,H 1
SBIW Rdl,K Subtract Immediate fro m Word Rdh:Rdl ← Rdh:Rdl - K Z,C,N,V,S 2
AND Rd, Rr Logical AND Registers Rd ← Rd • Rr Z,N,V 1
ANDI Rd, K Logical AND Register and Constant Rd ← Rd • K Z,N,V 1
OR Rd, Rr Logical OR Registers Rd ← Rd v Rr Z,N,V 1
ORI Rd, K Logical OR Register and Constant Rd ← Rd v K Z,N,V 1
EOR Rd, Rr Exclusive OR Registers Rd ← Rd ⊕ Rr Z,N,V 1
COM Rd One’s Complement Rd ← 0xFF − Rd Z,C,N,V 1
NEG Rd Two’s Comple ment Rd ← 0x00 − Rd Z,C,N,V,H 1
SBR Rd,K Set Bit(s) in Register Rd ← Rd v K Z,N,V 1
CBR Rd,K Clear Bit(s) in Register Rd ← Rd • (0xFF - K) Z,N,V 1
INC Rd Increment Rd ← Rd + 1 Z,N,V 1
DEC Rd Decrement Rd ← Rd − 1 Z,N,V 1
TST Rd Test for Zero or Minus Rd ← Rd • Rd Z,N,V 1
CLR Rd Clear Register Rd ← Rd ⊕ Rd Z,N,V 1
SER Rd Set Register Rd ← 0xFF None 1

BRANCH INSTRUCTIONS

RJMP k Relative Jump PC ← PC + k + 1 None 2
IJMP Indirect Jump to (Z) PC ← Z None 2
RCALL k Relative Subroutine Call PC ← PC + k + 1 None 3
ICALL Indirect Call to (Z) PC ← ZNone3
RET Subroutine Return PC ← STACK None 4
RETI Interrupt Return PC ← STACK I 4
CPSE Rd,Rr Compare, Skip if Equal if (Rd = Rr) PC ← PC + 2 or 3 None 1/2/3
CP Rd,Rr Compare Rd − Rr Z, N,V,C,H 1
CPC Rd,Rr Compare with Carry Rd − Rr − C Z, N,V,C,H 1
CPI Rd,K Compare Register with Immediate Rd − K Z, N,V,C,H 1
SBRC Rr, b Skip if Bit in Register Cleared if (Rr(b)=0 ) PC ← PC + 2 or 3 None 1/2/3
SBRS Rr, b Skip if Bit in Register is Set if (Rr(b)=1) PC ← PC + 2 or 3 None 1/2/3
SBIC P, b Skip if Bit in I/O Register Cleared if (P(b)=0) PC ← PC + 2 or 3 None 1/2/3
SBIS P, b Skip if Bit in I/O Register is Set if (P(b)=1) PC ← PC + 2 or 3 None 1/2/3
BRBS s, k Branch if Status Flag Set if (SREG(s) = 1) then PC←PC+k + 1 N one 1/2
BRBC s, k Branch if Status Flag Cleared if (SREG(s) = 0) then PC←PC+k + 1 None 1/2
BREQ k Branch if Equal if (Z = 1) then PC ← PC + k + 1 None 1/2
BRNE k Branch if Not Equal if (Z = 0) then PC ← PC + k + 1 None 1/2
BRCS k Branch if Carry Set if (C = 1) then PC ← PC + k + 1 None 1/2
BRCC k Branch if Carry Cleared if (C = 0) then PC ← PC + k + 1 None 1/2
BRSH k Branch if Same or Higher if (C = 0) then PC ← PC + k + 1 None 1/2
BRLO k Branch if Lower if (C = 1) then PC ← PC + k + 1 None 1/2
BRMI k Branch if Minus if (N = 1) then PC ← PC + k + 1 None 1/2
BRPL k Branch if Plus if (N = 0) then PC ← PC + k + 1 None 1/2
BRGE k Branch if Greater or Equal, Signed if (N ⊕ V= 0) then PC ← PC + k + 1 None 1/2
BRLT k Branch if Less Than Zero, Signed if (N ⊕ V= 1) then PC ← PC + k + 1 None 1/2
BRHS k Branch if Half Carry Flag Set if (H = 1) then PC ← PC + k + 1 None 1/2
BRHC k Branch if Half Carry Flag Cleared if (H = 0) then PC ← PC + k + 1 None 1/2
BRTS k Branch if T Flag Set if (T = 1) then PC ← PC + k + 1 None 1/2
BRTC k Branch if T Flag Cleared if (T = 0) then PC ← PC + k + 1 None 1/2
BRVS k Branch if Overflow Flag is Set if (V = 1) then PC ← PC + k + 1 None 1/2
BRVC k Branch if Overflow Flag is Cleared if (V = 0) then PC ← PC + k + 1 None 1/2
BRIE k Branch if Interrupt Enabled if ( I = 1) then PC ← PC + k + 1 None 1/2
BRID k Branch if Interrupt Disabled if ( I = 0) then PC ← PC + k + 1 None 1/2

BIT AND BIT-TEST INSTRUCTIONS

SBI P,b Set Bit in I/O Register I/O(P,b) ← 1None2
CBI P,b Clear Bit in I/O Register I/O(P,b) ← 0None2
LSL Rd Logical Shift Left Rd(n+1)
LSR Rd Logical Shift Right Rd(n) ← Rd(n+1), Rd(7) ← 0 Z,C,N,V 1

← Rd(n), Rd(0) ← 0 Z,C,N,V 1

8

ATtiny24/44/84

8006FS–AVR–02/07

ATtiny24/44/84

Mnemonics Operands Description Operation Flags #Clocks

ROL Rd Rotate Left Through Carry Rd(0)←C,Rd(n+1)← Rd(n),C←Rd(7) Z,C,N,V 1
ROR Rd Rotate Right Through Carry Rd(7)←C,Rd(n)← Rd(n+1),C←Rd(0) Z,C,N,V 1
ASR Rd Arithmetic Shift Right Rd(n) ← Rd(n+1), n=0..6 Z,C,N,V 1
SWAP Rd Swap Nibbles Rd(3..0)←Rd(7..4),Rd(7..4)←Rd(3..0) None 1
BSET s Flag Set SREG(s) ← 1 SREG(s) 1
BCLR s Flag Clear SREG(s) ← 0 SREG(s) 1
BST Rr, b Bit Store from Register to T T ← Rr(b) T 1
BLD Rd, b Bit load from T to Register Rd(b) ← TNone1
SEC Set Carry C ← 1C1
CLC Clear Carry C ← 0 C 1
SEN Set Negative Flag N ← 1N1
CLN Clear Negative Flag N ← 0 N 1
SEZ Set Zero Flag Z ← 1Z1
CLZ Clear Zero Flag Z ← 0 Z 1
SEI Global Interrupt Enable I ← 1I1
CLI Global Interru pt Disable I ← 0 I 1
SES Set Signed Test Flag S ← 1S1
CLS Clear Signed Test Flag S ← 0 S 1
SEV Set Twos Complement Overflow. V ← 1V1
CLV Clear Twos Complement Overflow V ← 0 V 1
SET Set T in SREG T ← 1T1
CLT Clear T in SREG T ← 0 T 1
SEH Set Half Carry Flag in SREG H ← 1H1
CLH Clear Half Carry Flag in SREG H ← 0 H

DATA TRANSFER INSTRUCTIONS

MOV Rd, Rr Move Between Registers Rd ← Rr None 1
MOVW Rd, Rr Copy Register Word
LDI Rd, K Load Immediate Rd ← KNone1
LD Rd, X Load Indirect Rd ← (X) None 2
LD Rd, X+ Load Indirect and Post-Inc. Rd ← (X), X ← X + 1 None 2
LD Rd, - X Load Indirect and Pre-Dec. X ← X - 1, Rd ← (X) None 2
LD Rd, Y Load Indirect Rd ← (Y) None 2
LD Rd, Y+ Load Indirect and Post-Inc. Rd ← (Y), Y ← Y + 1 None 2
LD Rd, - Y Load Indirect and Pre-Dec. Y ← Y - 1, Rd ← (Y) None 2
LDD Rd,Y+q Load Indirect with Displacement Rd ← (Y + q) None 2
LD Rd, Z Load Indirect Rd ← (Z) None 2
LD Rd, Z+ Load Indirect and Post-Inc. Rd ← (Z), Z ← Z+1 None 2
LD Rd, -Z Load Indirect and Pre-Dec. Z ← Z - 1, Rd ← (Z) None 2
LDD Rd, Z+q Load Indirect with Displacement Rd ← (Z + q) None 2
LDS Rd, k Load Direct from SRAM Rd ← (k) None 2
ST X, Rr Store Indirect (X) ← Rr None 2
ST X+, Rr Store Indirect and Post-Inc. (X) ← Rr, X ← X + 1 None 2
ST - X, Rr Store Indirect and Pre-Dec. X ← X - 1, (X) ← Rr None 2
ST Y, Rr Store Indirect (Y) ← Rr None 2
ST Y+, Rr Store Indirect and Post-Inc. (Y) ← Rr, Y ← Y + 1 None 2
ST - Y, Rr Store Indirect and Pre-Dec. Y ← Y - 1, (Y) ← Rr None 2
STD Y+q,Rr Store Indirect with Displ ace ment (Y + q) ← Rr None 2
ST Z, Rr Store Indirect (Z) ← Rr None 2
ST Z+, Rr Store Indirect and Post-Inc. (Z) ← Rr, Z ← Z + 1 None 2
ST -Z, Rr Store Indirect and Pre-Dec. Z ← Z - 1, (Z) ← Rr None 2
STD Z+q,Rr Store Indirect with Displacement (Z + q) ← Rr None 2
STS k, Rr Store Direct to SRAM (k) ← Rr None 2
LPM Load Pr ogram Memory R0 ← (Z) None 3
LPM Rd, Z Load Program Me mory Rd ← (Z) None 3
LPM Rd, Z+ Load Program Memory and Post-Inc Rd ← (Z), Z ← Z+1 None 3
SPM Store Program Memory (z) ← R1:R0 None
IN Rd, P In Port Rd ← PNone1
OUT P, Rr Out Port P ← Rr None 1
PUSH Rr Push Register on Stack STACK ← Rr None 2
POP Rd Pop Register from Stack Rd ← STACK None 2

MCU CONTROL INSTRUCTIONS

NOP No Operation None 1
SLEEP Sleep (see specific descr. for Sleep function) None 1
WDR Watchdog Reset (see specific descr. for WDR/Timer) None 1
BREAK Break For On-chip Debug Only None N/A

Rd+1:Rd ← Rr+1:Rr

None 1

1

8006FS–AVR–02/07

9

6. Ordering Information

6.1 ATtiny24

Speed (MHz) Power Supply Ordering Code

ATtiny24V-10SSU

10 1.8 - 5.5V

20 2.7 - 5.5V

Notes: 1. This device can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering information

and minimum quantities.

2. Pb-free packaging, complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also
Halide free and fully Green.

ATtiny24V-10PU
ATtiny24V-10MU

ATtiny24-20SSU
ATtiny24-20PU
ATtiny24-20MU

(1)

Package

14S1
14P3
20M1

14S1
14P3
20M1

(2)

Operational Range

Industrial

(-40°C to 85°C)

Industrial

(-40°C to 85°C)

Package Type
14S1
14P3
20M1 20-pad, 4 x 4 x 0.8 mm Body, Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

10

ATtiny24/44/84

14-lead, 0.150" Wide Body, Plastic Gull Wing Small Outline Package (SOIC)
14-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)

8006FS–AVR–02/07

6.2 ATtiny44

Speed (MHz) Power Supply Ordering Code

ATtiny44V-10SSU

10 1.8 - 5.5V

ATtiny44V-10PU
ATtiny44V-10MU

ATtiny24/44/84

(1)

Package

14S1
14P3
20M1

(2)

Operational Range

Industrial

(-40°C to 85°C)

ATtiny44-20SSU

20 2.7 - 5.5V

Notes: 1. This device can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering information

and minimum quantities.

2. Pb-free packaging, complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also
Halide free and fully Green.

ATtiny44-20PU
ATtiny44-20MU

14S1
14P3
20M1

Industrial

(-40°C to 85°C)

Package Type
14S1
14P3
20M1 20-pad, 4 x 4 x 0.8 mm Body, Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

8006FS–AVR–02/07

14-lead, 0.150" Wide Body, Plastic Gull Wing Small Outline Package (SOIC)
14-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)

11

6.3 ATtiny84

Speed (MHz) Power Supply Ordering Code

10 1.8 - 5.5V

20 2.7 - 5.5V

Notes: 1. This device can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering information

and minimum quantities.

2. Pb-free packaging, complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also
Halide free and fully Green.

ATtiny84V-10PU
ATtiny84V-10MU

ATtiny84-20PU
ATtiny84-20MU

(1)

Package

14P3
20M1

14P3
20M1

(2)

Operational Range

Industrial

(-40°C to 85°C)

Industrial

(-40°C to 85°C)

Package Type
14S1
14P3
20M1 20-pad, 4 x 4 x 0.8 mm Body, Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

12

ATtiny24/44/84

14-lead, 0.150" Wide Body, Plastic Gull Wing Small Outline Package (SOIC)
14-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)

8006FS–AVR–02/07

7. Packaging Information

7.1 20M1

D

1

Pin 1 ID

2

ATtiny24/44/84

3

E

TOP VIEW

D2

1

Pin #1

Notch

(0.20 R)

2

3

E2

b

L

e

BOTTOM VIEW

Reference JEDEC Standard MO-220, Fig. 1 (SAW Singulation) WGGD-5.

Note:

SIDE VIEW

A2

A1

A

0.08

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A 0.70 0.75 0.80

A1 – 0.01 0.05

A2 0.20 REF

b 0.18 0.23 0.30

D 4.00 BSC

D2 2.45 2.60 2.75

E 4.00 BSC

E2 2.45 2.60 2.75

e 0.50 BSC

L 0.35 0.40 0.55

MIN

NOM

C

MAX

NOTE

2325 Orchard Parkway

R

San Jose, CA 95131

8006FS–AVR–02/07

TITLE

20M1, 20-pad, 4 x 4 x 0.8 mm Body, Lead Pitch 0.50 mm,

2.6 mm Exposed Pad, Micro Lead Frame Package (MLF)

DRAWING NO.

20M1

10/27/04

REV.

A

13

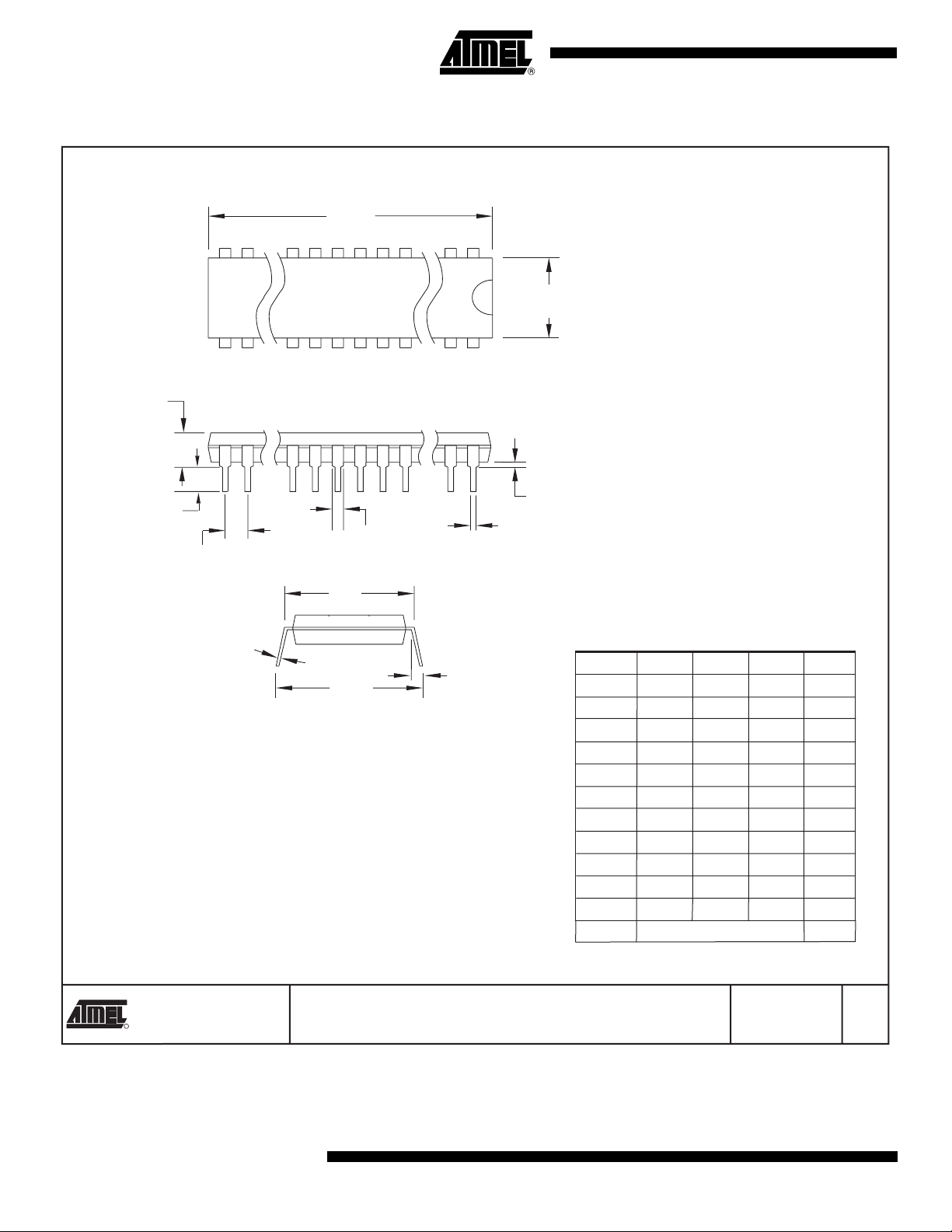

7.2 14P3

PIN

1

E1

A1

B

E

B1

C

L

SEATING PLANE

A

D

e

eC

eB

Notes: 1. This package conforms to JEDEC reference MS-001, Variation AA.

2. Dimensions D and E1 do not include mold Flash or Protrusion.
Mold Flash or Protrusion shall not exceed 0.25 mm (0.010").

TITLE

2325 Orchard Parkway

R

San Jose, CA 95131

14P3, 14-lead (0.300"/7.62 mm Wide) Plastic Dual
Inline Package (PDIP)

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A – – 5.334

A1 0.381 – –

D 18.669 – 19.685 Note 2

E 7.620 – 8.255

E1 6.096 – 7.112 Note 2

B 0.356 – 0.559

B1 1.143 – 1.778

L 2.921 – 3.810

C 0.203 – 0.356

eB – – 10.922

eC 0.000 – 1.524

e 2.540 TYP

MIN

NOM

MAX

DRAWING NO.

14P3

NOTE

11/02/05

REV.

A

14

ATtiny24/44/84

8006FS–AVR–02/07

7.3 14S1

ATtiny24/44/84

1

E

H

E

N

L

Top View

COMMON DIMENSIONS

e

A1

D

Side View

Notes: 1. This drawing is for general information only; refer to JEDEC Drawing MS-012, Variation AB for additional information.

2. Dimension D does not include mold Flash, protrusions or gate burrs. Mold Flash, protrusion and gate burrs shall not
exceed 0.15 mm (0.006") per side.

3. Dimension E does not include inter-lead Flash or protrusion. Inter-lead flash and protrusions shall not exceed 0.25 mm
(0.010") per side.

4. L is the length of the terminal for soldering to a substrate.

5. The lead width B, as measured 0.36 mm (0.014") or greater above the seating plane, shall not exceed a maximum value
of 0.61 mm (0.024") per side.

b

SYMBOL

A 1.35/0.0532 – 1.75/0.0688

A

A1 0.1/.0040 – 0.25/0.0098

b 0.33/0.0130 – 0.5/0.0200 5

D 8.55/0.3367 – 8.74/0.3444 2

E3.8/0.1497 – 3.99/0.1574 3

H5.8/0.2284 – 6.19/0.2440

L 0.41/0.0160 – 1.27/0.0500 4

e 1.27/0.050 BSC

TITLE

2325 Orchard Parkway
San Jose, CA 95131

R

14S1, 14-lead, 0.150" Wide Body, Plastic Gull
Wing Small Outline Package (SOIC)

(Unit of Measure = mm/inches)

MIN

End View

NOM

MAX

DRAWING NO.

14S1

NOTE

2/5/02

REV.

A

8006FS–AVR–02/07

15

8. Errata

8.1 ATtiny24

8.1.1 Rev. D

8.1.2 Rev. C

8.1.3 Rev. B

The revision letter in this section refers to the revision of the ATtiny24/44/84 device.

No known errata.

•

Reading EEPROM when system clock frequency is below 900 kHz may not work

1. Reading EEPROM when s ystem clock frequency is below 900 kHz may not work

Reading data from the EEPROM at system clock frequency below 900 kHz may result in
wrong data read.

Problem Fix/Work around

Avoid using the EEPROM at clock frequency below 900 kHz.

•

EEPROM read from application code does not work in Lock Bit Mode 3

• Reading EEPROM when system clock frequency is below 900 kHz may not work

8.1.4 Rev. A

1. EEPROM read from application code does not work in Lock Bit Mode 3

When the Memory Lock Bits LB2 and LB1 are progr ammed to mode 3, EEPROM read does
not work from the application code.

Problem Fix/Work around

Do not set Lock Bit Protection Mode 3 when the application code needs to rea d from
EEPROM.

2. Reading EEPROM when s ystem clock frequency is below 900 kHz may not work

Reading data from the EEPROM at system clock frequency below 900 kHz may result in
wrong data read.

Problem Fix/Work around

Avoid using the EEPROM at clock frequency below 900 kHz.

Not sampled.

16

ATtiny24/44/84

8006FS–AVR–02/07

8.2 ATtiny44

8.2.1 Rev. B

8.2.2 Rev. A

ATtiny24/44/84

No known errata.

•

Reading EEPROM when system clock frequency is below 900 kHz may not work

1. Reading EEPROM when s ystem clock frequency is below 900 kHz may not work

Reading data from the EEPROM at system clock frequency below 900 kHz may result in
wrong data read.

Problem Fix/Work around

Avoid using the EEPROM at clock frequency below 900 kHz.

8006FS–AVR–02/07

17

8.3 ATtiny84

8.3.1 Rev. A

No known errata.

18

ATtiny24/44/84

8006FS–AVR–02/07

9. Datasheet Revision History

9.1 Rev F. 02/07

1. Updated Figure 1-1 on page 2, Figure 9-7 on page 45, Figure 22-5 on page

187.

2. Updated Table 10-1 on page 50, Table 12-7 on pa ge 69, Table 13-2 on page

85, Table 13-3 on page 85, Table 13-5 on page 86, Table 13-6 on page 86,
Table 13-7 on page 87, Table 13-8 on page 87, Table 22-6 on page 185,
Table 22-8 on page 187.

3. Updated table references in ”TCCR0A – Timer/Counter Control Register

A” on page 85.

4. Updated Port B, Bit 0 functions in ”Alternate Functions of Port B” on page

69.

5. Updated WDTCR bit name to WDTCSR in assembly code examples.

6. Updated bit5 name in Section 14.11.9 on page 120.

7. Updated bit5 in Section 14.11.9 on page 120.

8. Updated ”SPI Master Operation Example” on page 126.

9. Updated step 5 in ”Enter High-voltage Serial Programming Mode” on

page 174.

ATtiny24/44/84

9.2 Rev E. 09/06

9.3 Rev D. 08/06

1. All characterization data is moved to ”Electrical Characteristics” on page

180.

2. All Register Descriptions are gathered up in separate sections in the end
of each chapter.

3. Updated ”System Control and Reset” on page 40.

4. Updated Table 13-3 on page 85, Tab le 13-6 on pa ge 86, Table 13-8 on page

87, Table 14-2 on page 114 and Table 14-4 on page 116.

5. Updated ”Fast PWM Mode” on page 105.

6. Updated Figure 14-7 on page 106 and Figure 18-1 on page 140.

7. Updated ”Analog Comparator Multiplexed Input” on page 135.

8. Added note in Table 21-11 on page 171.

9. Updated ”Electrical Characteristics” on page 180.

10. Updated ”Typical Characteristics – Preliminary Data” on page 188.

1. Updated ”Calibrated Internal RC Oscillator” on page 30.

2. Updated ”Oscillator Calibration Register – OSCCAL” on page 33.

3. Added

4. Updated code examples in ”SPI Master Operation Example” on page 126.

5. Updated code examples in ”SPI Slave Operation Example” on page 127.

6. Updated ”Signature Bytes” on page 167.

Table 22-1 on page 182.

8006FS–AVR–02/07

19

9.4 Rev C. 07/06

9.5 Rev B. 05/06

1. Updated Features in ”USI – Universal Serial Interface” on page 123.

2. Added ”Clock speed considerations” on page 130.

3. Updated Bit description in ”ADMUX – ADC Multiplexer Selection Regis-

ter” on page 151.

4. Added note to Table 20-1 on page 163.

1. Updated ”Default Clock Source” on page 27

2. Updated ”Power Reduction Register” on page 36.

3. Updated Table 22-3 on page 183, Table 9-4 on page 42, Table 18-3 on page

151, Table 21-5 on page 167, Table 21-11 on page 171, Table 21-15 on
page 177, Table 22-6 on page 185.

4. Updated Features in ”Analog to Digital Converter” on page 139.

5. Updated Operation in ”Analog to Digital Converter” on page 139.

6. Updated ”Temperature Measurement” on page 150.

7. Updated DC Characteristics in ”Electrical Characteristics” on page 180.

8. Updated ”Typical Characteristics – Preliminary Data” on page 188.

9. Updated ”Errata” on page 223.

9.6 Rev A. 12/05

Initial revision.

20

ATtiny24/44/84

8006FS–AVR–02/07

Atmel Corporation Atmel Operations

2325 Orchard Parkway
San Jose, CA 95131, USA
Tel: [phone]
Fax: [phone]

Regional Headquarters

Europe

Atmel Sarl
Route des Arsenaux 41
Case Postale 80
CH-1705 Fribourg
Switzerland
Tel: [phone]
Fax: [phone]

Asia

Room 1219
Chinachem Golden Plaza
77 Mody Road Tsimshatsui
East Kowloon
Hong Kong
Tel: [phone]
Fax: [phone]

Japan

9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
Tel: [phone]
Fax: [phone]

Memory

2325 Orchard Parkway
San Jose, CA 95131, USA
Tel: [phone]
Fax: [phone]

Microcontrollers

2325 Orchard Parkway
San Jose, CA 95131, USA
Tel: [phone]
Fax: [phone]

La Chantrerie
BP 70602
44306 Nantes Cedex 3, France
Tel: [phone]
Fax: [phone]

ASIC/ASSP/Smart Cards

Zone Industrielle
13106 Rousset Cedex, France
Tel: [phone]
Fax: [phone]

1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906, USA
Tel: [phone]
Fax: [phone]

Scottish Enterprise Technology Park
Maxwell Building
East Kilbride G75 0QR, Scotland
Tel: [phone]
Fax: [phone]

RF/Automotive

Theresienstrasse 2
Postfach 3535
74025 Heilbronn, Germany
Tel: [phone]
Fax: [phone]

1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906, USA
Tel: [phone]
Fax: [phone]

Biometrics/Imaging/Hi-Rel MPU/
High Speed Converters/RF Datacom

Avenue de Rochepleine
BP 123
38521 Saint-Egreve Cedex, France
Tel: [phone]
Fax: [phone]

Literature Requests

www.atmel.com/literature

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-

TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY
WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN­TAL DA MAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT
OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no

representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided
otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use
as components in applications intended to suppor t or sustain life.

© 2007 Atmel Corporation. All rights reserved. ATMEL®, logo and combinations thereof, Everywhere You Are®, AVR®, AVR Studio®, and oth-
ers, are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of oth­ers.

8006FS–AVR–02/07
